![[THK] — GSR-V Separable LM Guide Block (Radial, Low Profile, Short Block)](https://img.prosourcemro.com/2026/05/001-773-1024x798.png)
LM Guides
THK

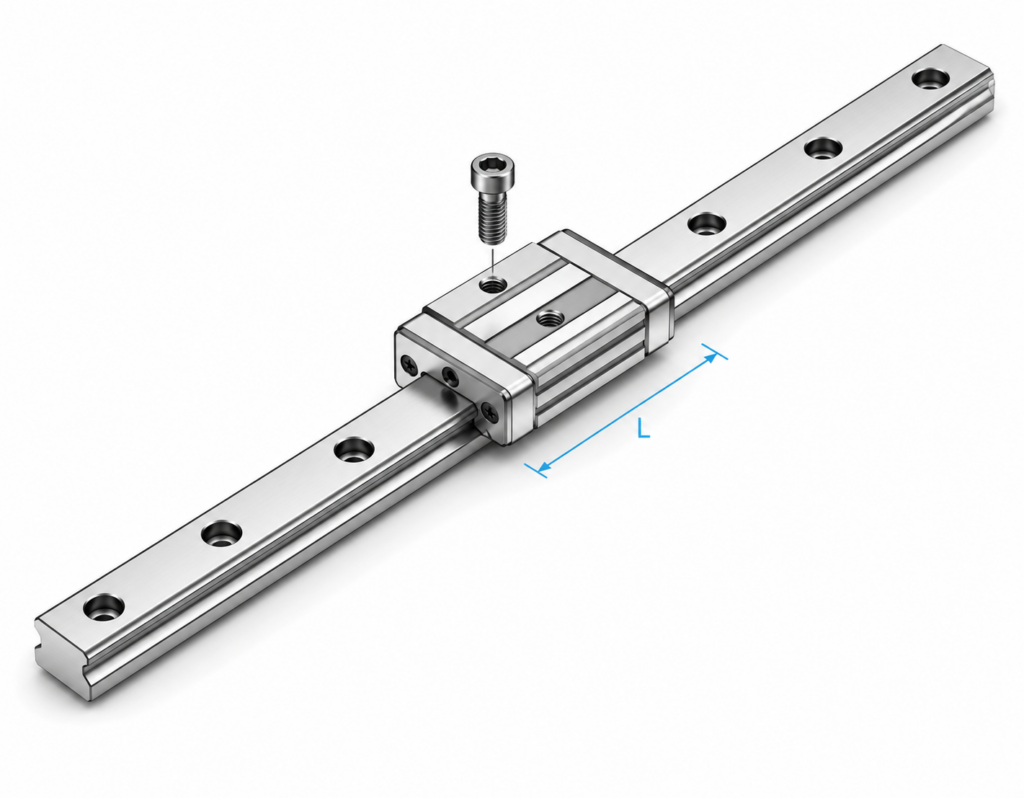

[THK] — GSR-V Separable LM Guide Block (Radial, Low Profile, Short Block)
Family ID: THK-GSR-V
Separable radial type LM Guide. Shorter block length than GSR-T for space saving. Low profile structure for compact machine design. Suitable for inverse radial, lateral and moment loads. Note: Cannot be used as single-axis guide.
3 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| GSR-15V | GSR 15V LM Block H20×W32×L47.1mm | THK | Type: Separable LM Guide Block | Series: GSR | Model: GSR 15V | Height M: 20 mm | Width W: 32 mm | Length L: 47.1 mm | Max Rail Length: 2000 mm | Dynamic Load C: 6.51 kN | Static Load C0: 6.77 kN | Structure: Separable Radial | Profile: Low | Block: Short (V type) | Brand: THK | ||
| GSR-20V | GSR 20V LM Block H24×W43×L58.1mm | THK | Type: Separable LM Guide Block | Series: GSR | Model: GSR 20V | Height M: 24 mm | Width W: 43 mm | Length L: 58.1 mm | Max Rail Length: 3000 mm | Dynamic Load C: 10.5 kN | Static Load C0: 10.6 kN | Structure: Separable Radial | Profile: Low | Block: Short (V type) | Brand: THK | ||
| GSR-25V | GSR 25V LM Block H30×W50×L69mm | THK | Type: Separable LM Guide Block | Series: GSR | Model: GSR 25V | Height M: 30 mm | Width W: 50 mm | Length L: 69 mm | Max Rail Length: 3000 mm | Dynamic Load C: 15.5 kN | Static Load C0: 15.2 kN | Structure: Separable Radial | Profile: Low | Block: Short (V type) | Brand: THK |
