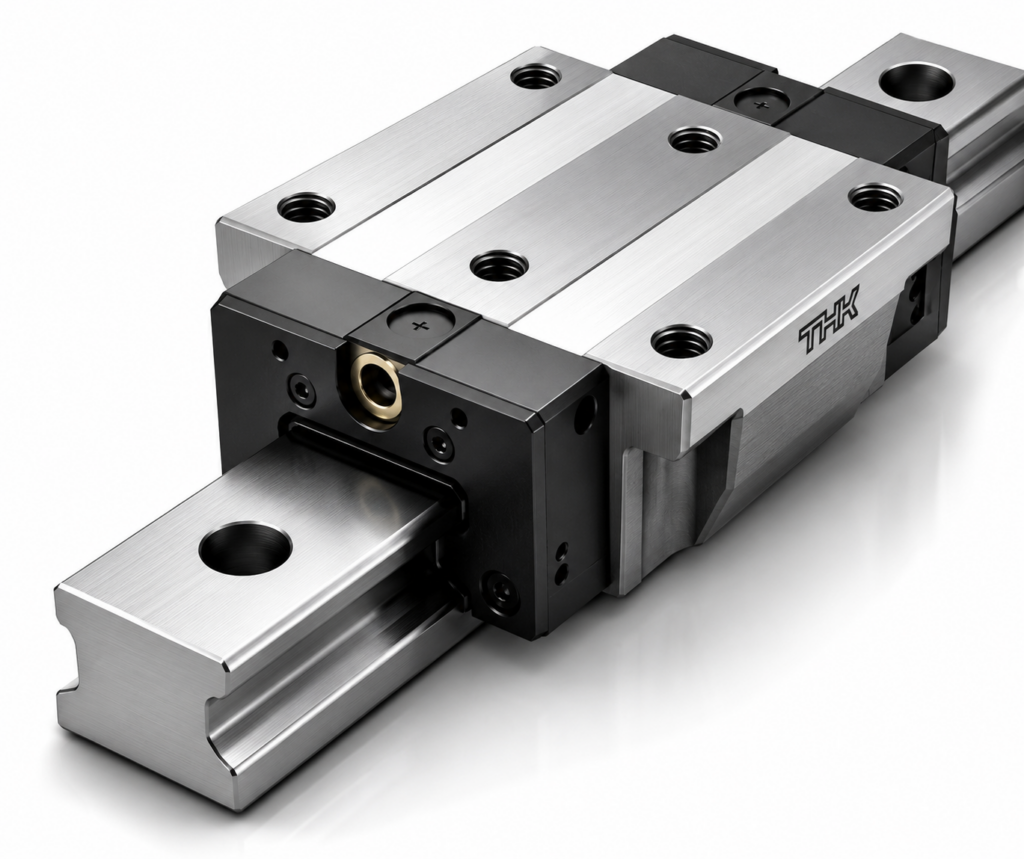

[THK] — SRG-GC/GLC/GSLC Full Roller LM Guide Block (Super High Rigidity, Flange, 35~65)
Family ID: THK-SRG-GC
Super high rigidity Full Roller type LM Guide. GC type: flange mountable from top or bottom / GLC: long block / GSLC: super long block. High rigidity rollers with length ≥1.5× roller diameter for maximum rigidity.
12 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| SRG35GC | SRG35GC LM Block H48×W100×L125mm | THK | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG35GC | Height M: 48 mm | Width W: 100 mm | Length L: 125 mm | Max Rail Length: 3000 mm | Dynamic Load C: 55.3 kN | Static Load C0: 131 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Flange (top or bottom) | Block Length: Standard (GC) | Brand: THK | ||
| SRG35GLC | SRG35GLC LM Block H48×W100×L155mm | THK | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG35GLC | Height M: 48 mm | Width W: 100 mm | Length L: 155 mm | Max Rail Length: 3000 mm | Dynamic Load C: 71.4 kN | Static Load C0: 182 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Flange (top or bottom) | Block Length: Long (GLC) | Brand: THK | ||
| SRG35GSLC | SRG35GSLC LM Block H48×W100×L180.8mm | THK | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG35GSLC | Height M: 48 mm | Width W: 100 mm | Length L: 180.8 mm | Max Rail Length: 3000 mm | Dynamic Load C: 83.4 kN | Static Load C0: 222 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Flange (top or bottom) | Block Length: Super Long (GSLC) | Brand: THK | ||
| SRG45GC | SRG45GC LM Block H60×W120×L155mm | THK | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG45GC | Height M: 60 mm | Width W: 120 mm | Length L: 155 mm | Max Rail Length: 3090 mm | Dynamic Load C: 87.8 kN | Static Load C0: 216 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Flange (top or bottom) | Block Length: Standard (GC) | Brand: THK | ||
| SRG45GLC | SRG45GLC LM Block H60×W120×L190mm | THK | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG45GLC | Height M: 60 mm | Width W: 120 mm | Length L: 190 mm | Max Rail Length: 3090 mm | Dynamic Load C: 110 kN | Static Load C0: 288 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Flange (top or bottom) | Block Length: Long (GLC) | Brand: THK | ||
| SRG45GSLC | SRG45GSLC LM Block H60×W120×L231.5mm | THK | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG45GSLC | Height M: 60 mm | Width W: 120 mm | Length L: 231.5 mm | Max Rail Length: 3090 mm | Dynamic Load C: 133 kN | Static Load C0: 368 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Flange (top or bottom) | Block Length: Super Long (GSLC) | Brand: THK | ||
| SRG55GC | SRG55GC LM Block H70×W140×L185mm | THK | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG55GC | Height M: 70 mm | Width W: 140 mm | Length L: 185 mm | Max Rail Length: 3060 mm | Dynamic Load C: 125 kN | Static Load C0: 300 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Flange (top or bottom) | Block Length: Standard (GC) | Brand: THK | ||
| SRG55GLC | SRG55GLC LM Block H70×W140×L235mm | THK | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG55GLC | Height M: 70 mm | Width W: 140 mm | Length L: 235 mm | Max Rail Length: 3060 mm | Dynamic Load C: 160 kN | Static Load C0: 411 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Flange (top or bottom) | Block Length: Long (GLC) | Brand: THK | ||
| SRG55GSLC | SRG55GSLC LM Block H70×W140×L292mm | THK | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG55GSLC | Height M: 70 mm | Width W: 140 mm | Length L: 292 mm | Max Rail Length: 3060 mm | Dynamic Load C: 199 kN | Static Load C0: 544 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Flange (top or bottom) | Block Length: Super Long (GSLC) | Brand: THK | ||
| SRG65GC | SRG65GC LM Block H90×W170×L244.9mm | THK | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG65GC | Height M: 90 mm | Width W: 170 mm | Length L: 244.9 mm | Max Rail Length: 3000 mm | Dynamic Load C: 214 kN | Static Load C0: 511 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Flange (top or bottom) | Block Length: Standard (GC) | Brand: THK | ||
| SRG65GLC | SRG65GLC LM Block H90×W170×L303mm | THK | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG65GLC | Height M: 90 mm | Width W: 170 mm | Length L: 303 mm | Max Rail Length: 3000 mm | Dynamic Load C: 264 kN | Static Load C0: 670 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Flange (top or bottom) | Block Length: Long (GLC) | Brand: THK | ||
| SRG65GSLC | SRG65GSLC LM Block H90×W170×L380mm | THK | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG65GSLC | Height M: 90 mm | Width W: 170 mm | Length L: 380 mm | Max Rail Length: 3000 mm | Dynamic Load C: 332 kN | Static Load C0: 899 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Flange (top or bottom) | Block Length: Super Long (GSLC) | Brand: THK |
