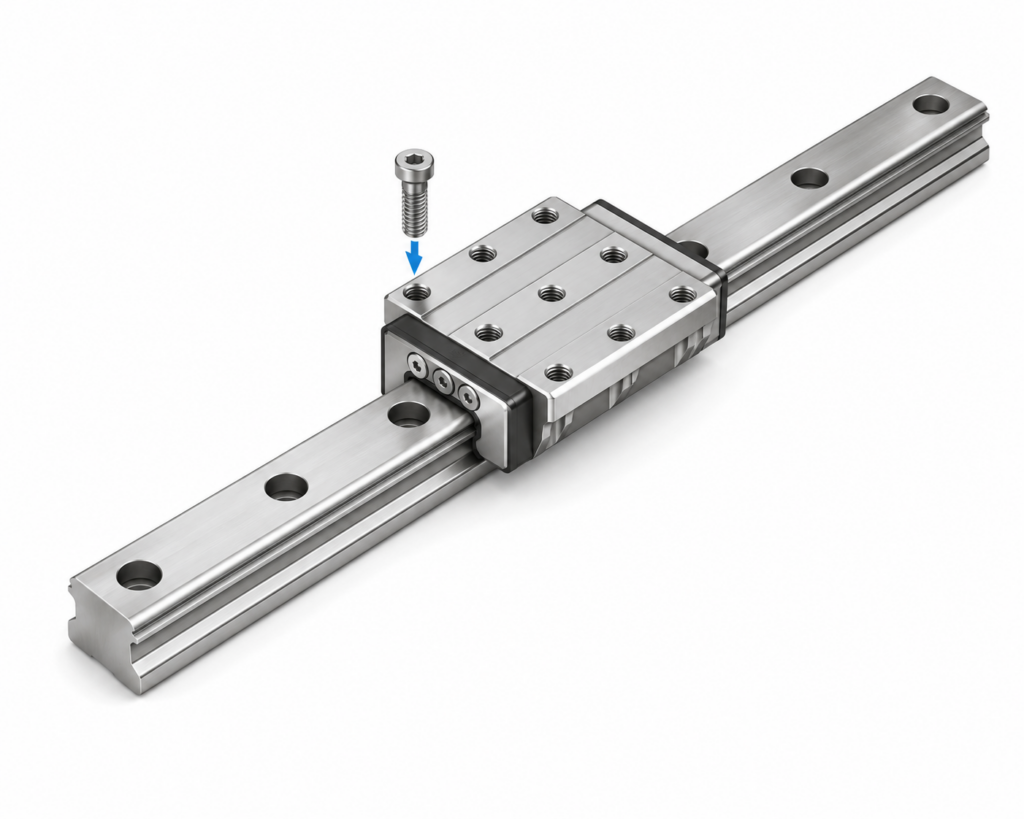

[THK] — HSR-100/120/150HA LM Guide Block (Full Ball, Big Scale, 9-tap Flange)
Family ID: THK-HSR-100150HA
Big scale HSR type LM Guide for large machine tools and structures. Block with 9 tapped mounting holes (HA type). 4-direction equal load, 4-row high rigidity configuration.
3 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| HSR-100HA | HSR 100HA LM Block H120×W250×L334mm | THK | Type: LM Guide Block | Series: HSR | Model: HSR 100HA | Height M: 120 mm | Width W: 250 mm | Length L: 334 mm | Max Rail Length: 3000 mm | Dynamic Load C: 441 kN | Static Load C0: 540 kN | Structure: Full Ball DF | Mount: Flange (9 tapped holes) | Load Type: 4-Direction Equal | Scale: Big Scale | Brand: THK | ||
| HSR-120HA | HSR 120HA LM Block H130×W290×L365mm | THK | Type: LM Guide Block | Series: HSR | Model: HSR 120HA | Height M: 130 mm | Width W: 290 mm | Length L: 365 mm | Max Rail Length: 3000 mm | Dynamic Load C: 540 kN | Static Load C0: 653 kN | Structure: Full Ball DF | Mount: Flange (9 tapped holes) | Load Type: 4-Direction Equal | Scale: Big Scale | Brand: THK | ||
| HSR-150HA | HSR 150HA LM Block H145×W350×L396mm | THK | Type: LM Guide Block | Series: HSR | Model: HSR 150HA | Height M: 145 mm | Width W: 350 mm | Length L: 396 mm | Max Rail Length: 3000 mm | Dynamic Load C: 518 kN | Static Load C0: 728 kN | Structure: Full Ball DF | Mount: Flange (9 tapped holes) | Load Type: 4-Direction Equal | Scale: Big Scale | Brand: THK |
