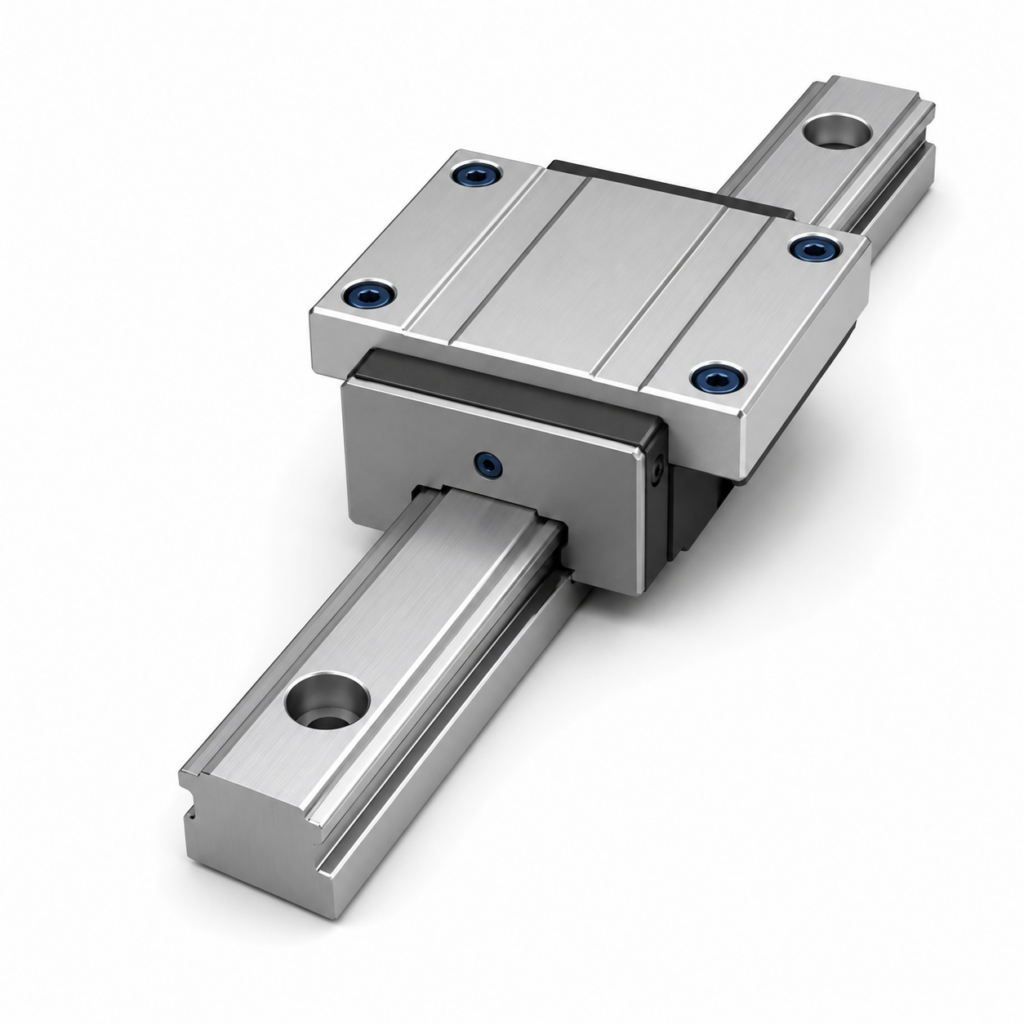

[THK] — SVR-CH/LCH LM Guide Block (Heavy Load, High Flange Type, Radial, Ball Retainer)
Family ID: THK-SVR-CH
Heavy load Ball Retainer Type LM Guide for machine tools. Height (M) and width (W) same as SHS/HSR type. Flange type — mountable from top or bottom. Circular Arc groove structure for high load capacity and improved damping. SVR = radial type. CH = high profile flange variant.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| SVR-35CH | SVR 35CH LM Block H48×W100×L109.5mm | THK | Type: LM Guide Block | Series: SVR | Block Type: 35CH | Height M: 48 mm | Width W: 100 mm | Length L: 109.5 mm | Max Rail Length: 3000 mm | Dynamic Load C: 89.6 kN | Static Load C0: 116 kN | Mount: Top or Bottom (Flange) | Structure: Circular Arc Ball Retainer | Load Type: Radial | Profile: High Flange (same dims as SHS/HSR) | Brand: THK | ||
| SVR-35LCH | SVR 35LCH LM Block H48×W100×L135mm | THK | Type: LM Guide Block | Series: SVR | Block Type: 35LCH | Height M: 48 mm | Width W: 100 mm | Length L: 135 mm | Max Rail Length: 3090 mm | Dynamic Load C: 112 kN | Static Load C0: 160 kN | Mount: Top or Bottom (Flange) | Structure: Circular Arc Ball Retainer | Load Type: Radial | Profile: High Flange (same dims as SHS/HSR) | Brand: THK | ||
| SVR-45CH | SVR 45CH LM Block H60×W120×L138.2mm | THK | Type: LM Guide Block | Series: SVR | Block Type: 45CH | Height M: 60 mm | Width W: 120 mm | Length L: 138.2 mm | Max Rail Length: 3000 mm | Dynamic Load C: 138 kN | Static Load C0: 186 kN | Mount: Top or Bottom (Flange) | Structure: Circular Arc Ball Retainer | Load Type: Radial | Profile: High Flange (same dims as SHS/HSR) | Brand: THK | ||
| SVR-45LCH | SVR 45LCH LM Block H60×W120×L171mm | THK | Type: LM Guide Block | Series: SVR | Block Type: 45LCH | Height M: 60 mm | Width W: 120 mm | Length L: 171 mm | Max Rail Length: 3060 mm | Dynamic Load C: 161 kN | Static Load C0: 233 kN | Mount: Top or Bottom (Flange) | Structure: Circular Arc Ball Retainer | Load Type: Radial | Profile: High Flange (same dims as SHS/HSR) | Brand: THK | ||
| SVR-55CH | SVR 55CH LM Block H70×W140×L163.3mm | THK | Type: LM Guide Block | Series: SVR | Block Type: 55CH | Height M: 70 mm | Width W: 140 mm | Length L: 163.3 mm | Max Rail Length: 3090 mm | Dynamic Load C: 177 kN | Static Load C0: 235 kN | Mount: Top or Bottom (Flange) | Structure: Circular Arc Ball Retainer | Load Type: Radial | Profile: High Flange (same dims as SHS/HSR) | Brand: THK | ||
| SVR-55LCH | SVR 55LCH LM Block H70×W140×L200.5mm | THK | Type: LM Guide Block | Series: SVR | Block Type: 55LCH | Height M: 70 mm | Width W: 140 mm | Length L: 200.5 mm | Max Rail Length: 3060 mm | Dynamic Load C: 214 kN | Static Load C0: 309 kN | Mount: Top or Bottom (Flange) | Structure: Circular Arc Ball Retainer | Load Type: Radial | Profile: High Flange (same dims as SHS/HSR) | Brand: THK |
