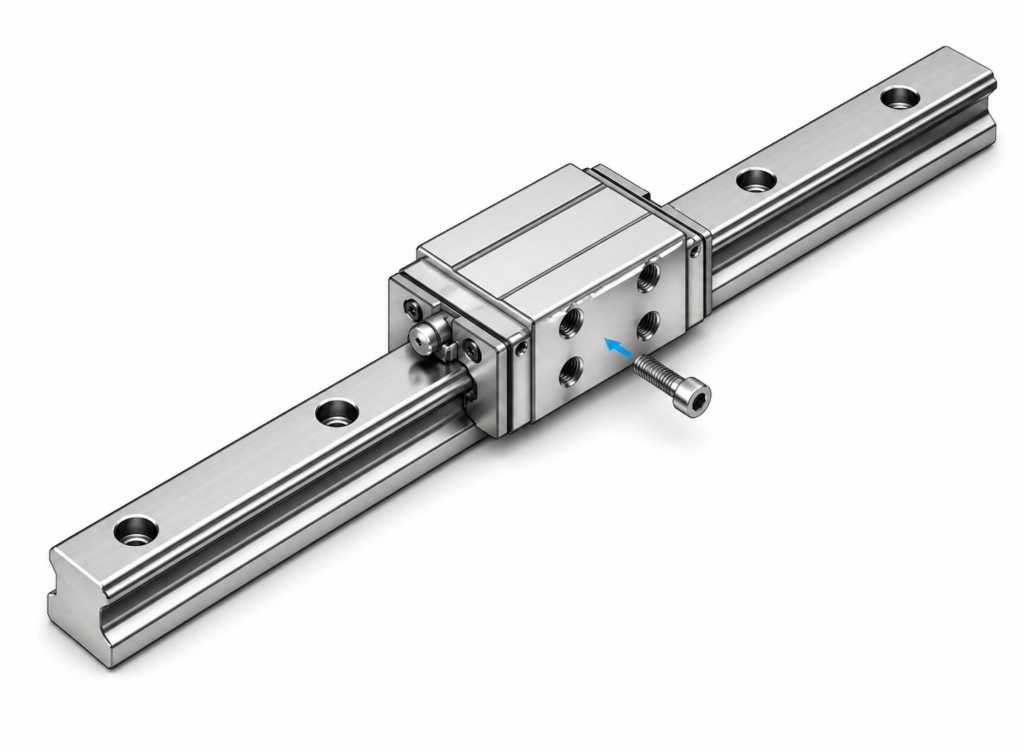

[THK] — HSR-M1-YR High Temperature LM Guide Block (Side Mount Tapped, Stainless, 150°C)
Family ID: THK-HSR-M1-YR
High temperature type HSR LM Guide. Side-mount tapped holes — ideal for symmetric/opposing installation. Stainless end plate and high-temp rubber end seal — max 150°C operating temperature. Stainless block, rail and balls — ideal for clean rooms.
5 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| HSR-15M1YR | HSR 15M1YR LM Block H28×W33.5×L59.6mm | THK | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 15M1YR | Height M: 28 mm | Width W: 33.5 mm | Length L: 59.6 mm | Max Rail Length: 1240 mm | Dynamic Load C: 10.9 kN | Static Load C0: 15.7 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Side tapped (symmetric use) | Application: High-temp / Clean room | Brand: THK | ||
| HSR-20M1YR | HSR 20M1YR LM Block H30×W43.5×L76mm | THK | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 20M1YR | Height M: 30 mm | Width W: 43.5 mm | Length L: 76 mm | Max Rail Length: 1480 mm | Dynamic Load C: 19.8 kN | Static Load C0: 27.4 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Side tapped (symmetric use) | Application: High-temp / Clean room | Brand: THK | ||
| HSR-25M1YR | HSR 25M1YR LM Block H40×W47.5×L83.9mm | THK | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 25M1YR | Height M: 40 mm | Width W: 47.5 mm | Length L: 83.9 mm | Max Rail Length: 1500 mm | Dynamic Load C: 27.6 kN | Static Load C0: 36.4 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Side tapped (symmetric use) | Application: High-temp / Clean room | Brand: THK | ||
| HSR-30M1YR | HSR 30M1YR LM Block H45×W59.5×L98.8mm | THK | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 30M1YR | Height M: 45 mm | Width W: 59.5 mm | Length L: 98.8 mm | Max Rail Length: 1500 mm | Dynamic Load C: 40.5 kN | Static Load C0: 53.7 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Side tapped (symmetric use) | Application: High-temp / Clean room | Brand: THK | ||
| HSR-35M1YR | HSR 35M1YR LM Block H55×W69.5×L112mm | THK | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 35M1YR | Height M: 55 mm | Width W: 69.5 mm | Length L: 112 mm | Max Rail Length: 1500 mm | Dynamic Load C: 53.9 kN | Static Load C0: 70.2 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Side tapped (symmetric use) | Application: High-temp / Clean room | Brand: THK |
