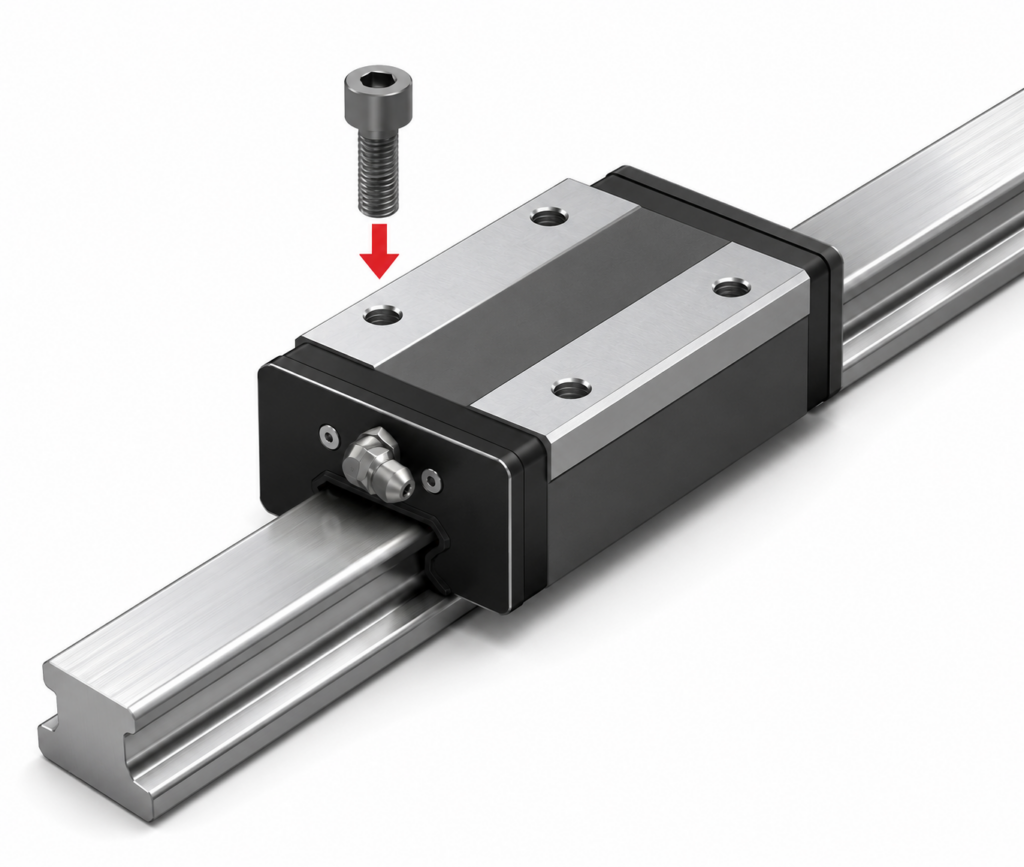

[THK] — SR-W/V/T LM Guide Block (Full Ball, Narrow Width, Radial Load)

Family ID: THK-SR-WV

Full ball type LM Guide with strong radial load ball contact structure. Narrow block width (W) with tapped holes. Low differential ball slip — excellent wear resistance. V type: same cross-section as W but shorter block length for space saving. Stainless steel option available.

27 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code	Description	Brand	Spec
SR-15V	SR 15V LM Block H24×W34×L40.4mm	THK	Type: LM Guide Block \| Series: SR \| Model: SR 15V \| Height M: 24 mm \| Width W: 34 mm \| Length L: 40.4 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 9.1 kN \| Static Load C0: 11.7 kN \| Structure: Full Ball \| Load Type: Radial \| Brand: THK
SR-15VM	SR 15VM LM Block H24×W34×L40.4mm	THK	Type: LM Guide Block \| Series: SR \| Model: SR 15VM \| Height M: 24 mm \| Width W: 34 mm \| Length L: 40.4 mm \| Max Rail Length: 1240 mm \| Dynamic Load C: 9.1 kN \| Static Load C0: 11.7 kN \| Structure: Full Ball \| Load Type: Radial \| Brand: THK
SR-15W	SR 15W LM Block H24×W34×L57mm	THK	Type: LM Guide Block \| Series: SR \| Model: SR 15W \| Height M: 24 mm \| Width W: 34 mm \| Length L: 57 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 13.8 kN \| Static Load C0: 20.5 kN \| Structure: Full Ball \| Load Type: Radial \| Brand: THK
SR-15WM	SR 15WM LM Block H24×W34×L57mm	THK	Type: LM Guide Block \| Series: SR \| Model: SR 15WM \| Height M: 24 mm \| Width W: 34 mm \| Length L: 57 mm \| Max Rail Length: 1240 mm \| Dynamic Load C: 13.8 kN \| Static Load C0: 20.5 kN \| Structure: Full Ball \| Load Type: Radial \| Brand: THK
SR-20V	SR 20V LM Block H28×W42×L47.3mm	THK	Type: LM Guide Block \| Series: SR \| Model: SR 20V \| Height M: 28 mm \| Width W: 42 mm \| Length L: 47.3 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 13.4 kN \| Static Load C0: 17.2 kN \| Structure: Full Ball \| Load Type: Radial \| Brand: THK
SR-20VM	SR 20VM LM Block H28×W42×L47.3mm	THK	Type: LM Guide Block \| Series: SR \| Model: SR 20VM \| Height M: 28 mm \| Width W: 42 mm \| Length L: 47.3 mm \| Max Rail Length: 1480 mm \| Dynamic Load C: 13.4 kN \| Static Load C0: 17.2 kN \| Structure: Full Ball \| Load Type: Radial \| Brand: THK
SR-20W	SR 20W LM Block H28×W42×L66.2mm	THK	Type: LM Guide Block \| Series: SR \| Model: SR 20W \| Height M: 28 mm \| Width W: 42 mm \| Length L: 66.2 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 19.2 kN \| Static Load C0: 28.6 kN \| Structure: Full Ball \| Load Type: Radial \| Brand: THK
SR-20WM	SR 20WM LM Block H28×W42×L66.2mm	THK	Type: LM Guide Block \| Series: SR \| Model: SR 20WM \| Height M: 28 mm \| Width W: 42 mm \| Length L: 66.2 mm \| Max Rail Length: 1480 mm \| Dynamic Load C: 19.2 kN \| Static Load C0: 28.6 kN \| Structure: Full Ball \| Load Type: Radial \| Brand: THK
SR-25V	SR 25V LM Block H33×W48×L59.2mm	THK	Type: LM Guide Block \| Series: SR \| Model: SR 25V \| Height M: 33 mm \| Width W: 48 mm \| Length L: 59.2 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 21.6 kN \| Static Load C0: 26.8 kN \| Structure: Full Ball \| Load Type: Radial \| Brand: THK
SR-25VM	SR 25VM LM Block H33×W48×L59.2mm	THK	Type: LM Guide Block \| Series: SR \| Model: SR 25VM \| Height M: 33 mm \| Width W: 48 mm \| Length L: 59.2 mm \| Max Rail Length: 2020 mm \| Dynamic Load C: 21.6 kN \| Static Load C0: 26.8 kN \| Structure: Full Ball \| Load Type: Radial \| Brand: THK
SR-25W	SR 25W LM Block H33×W48×L83mm	THK	Type: LM Guide Block \| Series: SR \| Model: SR 25W \| Height M: 33 mm \| Width W: 48 mm \| Length L: 83 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 30.9 kN \| Static Load C0: 44.7 kN \| Structure: Full Ball \| Load Type: Radial \| Brand: THK
SR-25WM	SR 25WM LM Block H33×W48×L83mm	THK	Type: LM Guide Block \| Series: SR \| Model: SR 25WM \| Height M: 33 mm \| Width W: 48 mm \| Length L: 83 mm \| Max Rail Length: 2020 mm \| Dynamic Load C: 30.9 kN \| Static Load C0: 44.7 kN \| Structure: Full Ball \| Load Type: Radial \| Brand: THK
SR-30V	SR 30V LM Block H42×W60×L67.9mm	THK	Type: LM Guide Block \| Series: SR \| Model: SR 30V \| Height M: 42 mm \| Width W: 60 mm \| Length L: 67.9 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 29.5 kN \| Static Load C0: 34.4 kN \| Structure: Full Ball \| Load Type: Radial \| Brand: THK
SR-30VM	SR 30VM LM Block H42×W60×L67.9mm	THK	Type: LM Guide Block \| Series: SR \| Model: SR 30VM \| Height M: 42 mm \| Width W: 60 mm \| Length L: 67.9 mm \| Max Rail Length: 2520 mm \| Dynamic Load C: 29.5 kN \| Static Load C0: 34.4 kN \| Structure: Full Ball \| Load Type: Radial \| Brand: THK
SR-30W	SR 30W LM Block H42×W60×L96.8mm	THK	Type: LM Guide Block \| Series: SR \| Model: SR 30W \| Height M: 42 mm \| Width W: 60 mm \| Length L: 96.8 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 45.6 kN \| Static Load C0: 64.4 kN \| Structure: Full Ball \| Load Type: Radial \| Brand: THK
SR-30WM	SR 30WM LM Block H42×W60×L96.8mm	THK	Type: LM Guide Block \| Series: SR \| Model: SR 30WM \| Height M: 42 mm \| Width W: 60 mm \| Length L: 96.8 mm \| Max Rail Length: 2520 mm \| Dynamic Load C: 45.6 kN \| Static Load C0: 64.4 kN \| Structure: Full Ball \| Load Type: Radial \| Brand: THK
SR-35V	SR 35V LM Block H48×W70×L77.6mm	THK	Type: LM Guide Block \| Series: SR \| Model: SR 35V \| Height M: 48 mm \| Width W: 70 mm \| Length L: 77.6 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 40.9 kN \| Static Load C0: 46.7 kN \| Structure: Full Ball \| Load Type: Radial \| Brand: THK
SR-35VM	SR 35VM LM Block H48×W70×L77.6mm	THK	Type: LM Guide Block \| Series: SR \| Model: SR 35VM \| Height M: 48 mm \| Width W: 70 mm \| Length L: 77.6 mm \| Max Rail Length: 2520 mm \| Dynamic Load C: 40.9 kN \| Static Load C0: 46.7 kN \| Structure: Full Ball \| Load Type: Radial \| Brand: THK
SR-35W	SR 35W LM Block H48×W70×L111mm	THK	Type: LM Guide Block \| Series: SR \| Model: SR 35W \| Height M: 48 mm \| Width W: 70 mm \| Length L: 111 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 60.4 kN \| Static Load C0: 81.8 kN \| Structure: Full Ball \| Load Type: Radial \| Brand: THK
SR-35WM	SR 35WM LM Block H48×W70×L111mm	THK	Type: LM Guide Block \| Series: SR \| Model: SR 35WM \| Height M: 48 mm \| Width W: 70 mm \| Length L: 111 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 60.4 kN \| Static Load C0: 81.8 kN \| Structure: Full Ball \| Load Type: Radial \| Brand: THK
SR-45W	SR 45W LM Block H60×W86×L126mm	THK	Type: LM Guide Block \| Series: SR \| Model: SR 45W \| Height M: 60 mm \| Width W: 86 mm \| Length L: 126 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 80.4 kN \| Static Load C0: 107 kN \| Structure: Full Ball \| Load Type: Radial \| Brand: THK
SR-55W	SR 55W LM Block H68×W100×L156mm	THK	Type: LM Guide Block \| Series: SR \| Model: SR 55W \| Height M: 68 mm \| Width W: 100 mm \| Length L: 156 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 136 kN \| Static Load C0: 179 kN \| Structure: Full Ball \| Load Type: Radial \| Brand: THK
SR-70T	SR 70T LM Block H85×W126×L194.6mm	THK	Type: LM Guide Block \| Series: SR \| Model: SR 70T \| Height M: 85 mm \| Width W: 126 mm \| Length L: 194.6 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 226 kN \| Static Load C0: 282 kN \| Structure: Full Ball \| Load Type: Radial \| Brand: THK
SR-85T	SR 85T LM Block H110×W156×L180mm	THK	Type: LM Guide Block \| Series: SR \| Model: SR 85T \| Height M: 110 mm \| Width W: 156 mm \| Length L: 180 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 120 kN \| Static Load C0: 224 kN \| Structure: Full Ball \| Load Type: Radial \| Brand: THK
SR-100T	SR 100T LM Block H120×W178×L200mm	THK	Type: LM Guide Block \| Series: SR \| Model: SR 100T \| Height M: 120 mm \| Width W: 178 mm \| Length L: 200 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 148 kN \| Static Load C0: 283 kN \| Structure: Full Ball \| Load Type: Radial \| Brand: THK
SR-120T	SR 120T LM Block H110×W205×L235mm	THK	Type: LM Guide Block \| Series: SR \| Model: SR 120T \| Height M: 110 mm \| Width W: 205 mm \| Length L: 235 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 279 kN \| Static Load C0: 377 kN \| Structure: Full Ball \| Load Type: Radial \| Brand: THK
SR-150T	SR 150T LM Block H135×W250×L280mm	THK	Type: LM Guide Block \| Series: SR \| Model: SR 150T \| Height M: 135 mm \| Width W: 250 mm \| Length L: 280 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 411 kN \| Static Load C0: 537 kN \| Structure: Full Ball \| Load Type: Radial \| Brand: THK
