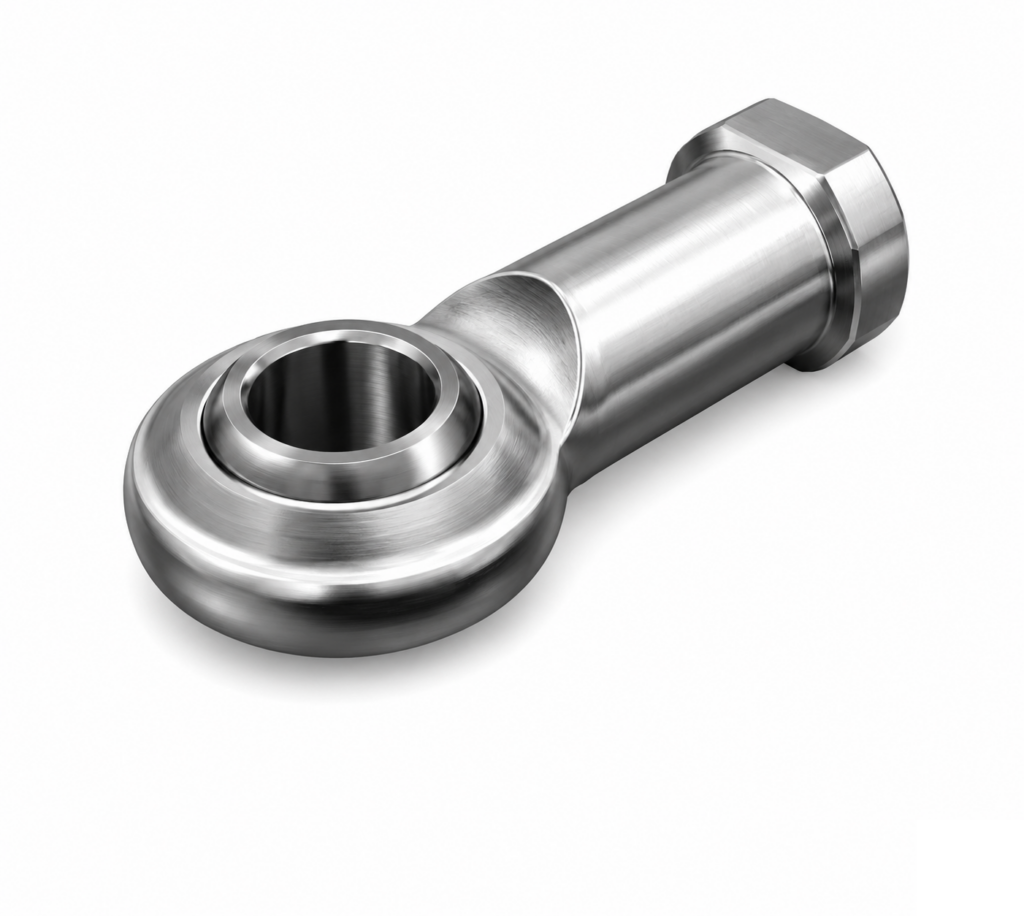

[THK] — Rod End NHS-T (Female Thread, Maintenance-Free)
Family ID: THK-NHS-T
THK NHS-T type Maintenance-Free Rod End with female (internal) thread. Self-lubricating synthetic resin bushing between steel holder and spherical inner ring. Minimized rolling clearance for precise link motion. No grease nipple required; oil or grease may be applied to spherical surface for initial lubrication. Ball diameter (inch series): 9.525~38.1mm (3/8"~1-1/2"). NHS3T/4T: S20C holder; NHS5T~NHS22T: S35C chromate holder. Left-hand thread: suffix L.
12 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| NHS3T | THK Rod End NHS3T (maintenance-free), thread=M3×0.5, Da=9.525mm, Cs=1570N | THK | Thread (female): M3×0.5 | Total Length (L): 27 mm | Holder Diameter (D): 12 mm | Ball Diameter (Da): 9.525 mm (3/8") | Bore Diameter (d): 3 mm | Allowable Tilt Angle α1/α2/α3: 8°/10°/42° | Radial Clearance: ≤0.3 mm | Static Load Capacity (Cs): 1570 N | Mass: 6.5 g | Holder Material: S20C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | ||
| NHS4T | THK Rod End NHS4T (maintenance-free), thread=M4×0.7, Da=10.319mm, Cs=2250N | THK | Thread (female): M4×0.7 | Total Length (L): 31 mm | Holder Diameter (D): 14 mm | Ball Diameter (Da): 10.319 mm (13/32") | Bore Diameter (d): 4 mm | Allowable Tilt Angle α1/α2/α3: 9°/11°/35° | Radial Clearance: ≤0.3 mm | Static Load Capacity (Cs): 2250 N | Mass: 10.0 g | Holder Material: S20C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | ||
| NHS5T | THK Rod End NHS5T (maintenance-free), thread=M5×0.8, Da=11.112mm, Cs=3920N | THK | Thread (female): M5×0.8 | Total Length (L): 35 mm | Holder Diameter (D): 16 mm | Ball Diameter (Da): 11.112 mm (7/16") | Bore Diameter (d): 5 mm | Allowable Tilt Angle α1/α2/α3: 8°/13°/30° | Radial Clearance: ≤0.3 mm | Static Load Capacity (Cs): 3920 N | Mass: 16.5 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | ||
| NHS6T | THK Rod End NHS6T (maintenance-free), thread=M6×1, Da=12.7mm, Cs=5000N | THK | Thread (female): M6×1 | Total Length (L): 39 mm | Holder Diameter (D): 18 mm | Ball Diameter (Da): 12.7 mm (1/2") | Bore Diameter (d): 6 mm | Allowable Tilt Angle α1/α2/α3: 8°/13°/30° | Radial Clearance: ≤0.3 mm | Static Load Capacity (Cs): 5000 N | Mass: 25.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | ||
| NHS8T | THK Rod End NHS8T (maintenance-free), thread=M8×1.25, Da=15.875mm, Cs=7450N | THK | Thread (female): M8×1.25 | Total Length (L): 47 mm | Holder Diameter (D): 22 mm | Ball Diameter (Da): 15.875 mm (5/8") | Bore Diameter (d): 8 mm | Allowable Tilt Angle α1/α2/α3: 8°/14°/25° | Radial Clearance: ≤0.5 mm | Static Load Capacity (Cs): 7450 N | Mass: 43.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | ||
| NHS10T | THK Rod End NHS10T (maintenance-free), thread=M10×1.5, Da=19.05mm, Cs=9410N | THK | Thread (female): M10×1.5 | Total Length (L): 56 mm | Holder Diameter (D): 26 mm | Ball Diameter (Da): 19.05 mm (3/4") | Bore Diameter (d): 10 mm | Allowable Tilt Angle α1/α2/α3: 8°/14°/25° | Radial Clearance: ≤0.5 mm | Static Load Capacity (Cs): 9410 N | Mass: 72.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | ||
| NHS12T | THK Rod End NHS12T (maintenance-free), thread=M12×1.75, Da=22.225mm, Cs=11000N | THK | Thread (female): M12×1.75 | Total Length (L): 65 mm | Holder Diameter (D): 30 mm | Ball Diameter (Da): 22.225 mm (7/8") | Bore Diameter (d): 12 mm | Allowable Tilt Angle α1/α2/α3: 8°/13°/25° | Radial Clearance: ≤0.5 mm | Static Load Capacity (Cs): 11000 N | Mass: 107.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | ||
| NHS14T | THK Rod End NHS14T (maintenance-free), thread=M14×2, Da=25.4mm, Cs=15200N | THK | Thread (female): M14×2 | Total Length (L): 74 mm | Holder Diameter (D): 34 mm | Ball Diameter (Da): 25.4 mm (1") | Bore Diameter (d): 14 mm | Allowable Tilt Angle α1/α2/α3: 10°/16°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 15200 N | Mass: 160.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | ||
| NHS16T | THK Rod End NHS16T (maintenance-free), thread=M16×2, Da=28.575mm, Cs=20200N | THK | Thread (female): M16×2 | Total Length (L): 83 mm | Holder Diameter (D): 38 mm | Ball Diameter (Da): 28.575 mm (1-1/8") | Bore Diameter (d): 16 mm | Allowable Tilt Angle α1/α2/α3: 9°/15°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 20200 N | Mass: 210.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | ||
| NHS18T | THK Rod End NHS18T (maintenance-free), thread=M18×1.5, Da=31.75mm, Cs=25200N | THK | Thread (female): M18×1.5 | Total Length (L): 92 mm | Holder Diameter (D): 42 mm | Ball Diameter (Da): 31.75 mm (1-1/4") | Bore Diameter (d): 18 mm | Allowable Tilt Angle α1/α2/α3: 9°/15°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 25200 N | Mass: 295.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | ||
| NHS20T | THK Rod End NHS20T (maintenance-free), thread=M20×1.5, Da=34.925mm, Cs=27800N | THK | Thread (female): M20×1.5 | Total Length (L): 100 mm | Holder Diameter (D): 46 mm | Ball Diameter (Da): 34.925 mm (1-3/8") | Bore Diameter (d): 20 mm | Allowable Tilt Angle α1/α2/α3: 9°/15°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 27800 N | Mass: 380.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | ||
| NHS22T | THK Rod End NHS22T (maintenance-free), thread=M22×1.5, Da=38.1mm, Cs=35900N | THK | Thread (female): M22×1.5 | Total Length (L): 109 mm | Holder Diameter (D): 50 mm | Ball Diameter (Da): 38.1 mm (1-1/2") | Bore Diameter (d): 22 mm | Allowable Tilt Angle α1/α2/α3: 10°/15°/23° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 35900 N | Mass: 490.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix |
