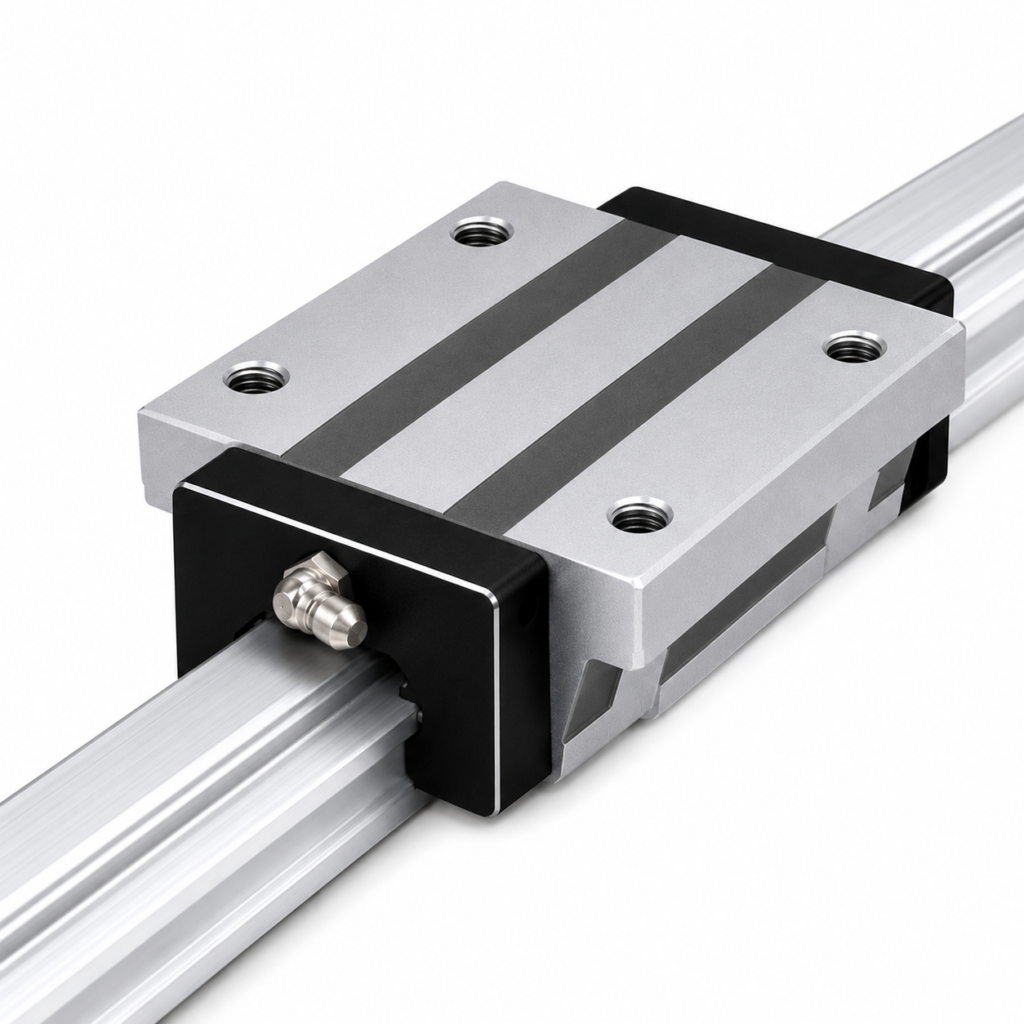

[THK] — SHS-C/CM/LC/LCM LM Guide Block (Flange Type, Ball Retainer)
Family ID: THK-SHS-C
Ball Retainer Type LM Guide. 4-direction equal load rating with 45° ball arrangement. THK Circular Arc groove (DF structure) for superior self-alignment. Compact rail cross-section for high rigidity and low center of gravity. Flange type (C/CM/LC/LCM). Mountable from top or bottom via tapped holes.
22 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| SHS-15C | SHS 15C LM Block H24×W47×L64.4mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 15C | Height M: 24 mm | Width W: 47 mm | Length L: 64.4 mm | Max Rail Length: 3000 mm | Dynamic Load C: 14.2 kN | Static Load C0: 24.2 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-15CM | SHS 15CM LM Block H24×W47×L64.4mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 15CM | Height M: 24 mm | Width W: 47 mm | Length L: 64.4 mm | Max Rail Length: 1240 mm | Dynamic Load C: 14.2 kN | Static Load C0: 24.2 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-15LC | SHS 15LC LM Block H24×W47×L79.4mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 15LC | Height M: 24 mm | Width W: 47 mm | Length L: 79.4 mm | Max Rail Length: 3000 mm | Dynamic Load C: 17.2 kN | Static Load C0: 31.9 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-15LCM | SHS 15LCM LM Block H24×W47×L79.4mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 15LCM | Height M: 24 mm | Width W: 47 mm | Length L: 79.4 mm | Max Rail Length: 1240 mm | Dynamic Load C: 17.2 kN | Static Load C0: 31.9 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-20C | SHS 20C LM Block H30×W63×L79mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 20C | Height M: 30 mm | Width W: 63 mm | Length L: 79 mm | Max Rail Length: 3000 mm | Dynamic Load C: 22.3 kN | Static Load C0: 38.4 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-20CM | SHS 20CM LM Block H30×W63×L98mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 20CM | Height M: 30 mm | Width W: 63 mm | Length L: 98 mm | Max Rail Length: 1480 mm | Dynamic Load C: 22.3 kN | Static Load C0: 38.4 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-20LC | SHS 20LC LM Block H30×W63×L98mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 20LC | Height M: 30 mm | Width W: 63 mm | Length L: 98 mm | Max Rail Length: 3000 mm | Dynamic Load C: 28.1 kN | Static Load C0: 50.3 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-20LCM | SHS 20LCM LM Block H30×W63×L98mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 20LCM | Height M: 30 mm | Width W: 63 mm | Length L: 98 mm | Max Rail Length: 1480 mm | Dynamic Load C: 28.1 kN | Static Load C0: 50.3 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-25C | SHS 25C LM Block H36×W70×L92mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 25C | Height M: 36 mm | Width W: 70 mm | Length L: 92 mm | Max Rail Length: 3000 mm | Dynamic Load C: 31.7 kN | Static Load C0: 52.4 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-25CM | SHS 25CM LM Block H36×W70×L109mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 25CM | Height M: 36 mm | Width W: 70 mm | Length L: 109 mm | Max Rail Length: 3000 mm | Dynamic Load C: 31.7 kN | Static Load C0: 52.4 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-25LC | SHS 25LC LM Block H36×W70×L109mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 25LC | Height M: 36 mm | Width W: 70 mm | Length L: 109 mm | Max Rail Length: 3000 mm | Dynamic Load C: 36.8 kN | Static Load C0: 64.7 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-25LCM | SHS 25LCM LM Block H36×W70×L109mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 25LCM | Height M: 36 mm | Width W: 70 mm | Length L: 109 mm | Max Rail Length: 2020 mm | Dynamic Load C: 36.8 kN | Static Load C0: 64.7 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-30C | SHS 30C LM Block H42×W90×L106mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 30C | Height M: 42 mm | Width W: 90 mm | Length L: 106 mm | Max Rail Length: 3000 mm | Dynamic Load C: 44.8 kN | Static Load C0: 66.6 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-30LC | SHS 30LC LM Block H42×W90×L131mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 30LC | Height M: 42 mm | Width W: 90 mm | Length L: 131 mm | Max Rail Length: 3000 mm | Dynamic Load C: 54.2 kN | Static Load C0: 88.8 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-35C | SHS 35C LM Block H48×W100×L122mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 35C | Height M: 48 mm | Width W: 100 mm | Length L: 122 mm | Max Rail Length: 3000 mm | Dynamic Load C: 62.3 kN | Static Load C0: 96.6 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-35LC | SHS 35LC LM Block H48×W100×L152mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 35LC | Height M: 48 mm | Width W: 100 mm | Length L: 152 mm | Max Rail Length: 3000 mm | Dynamic Load C: 72.9 kN | Static Load C0: 127 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-45C | SHS 45C LM Block H60×W120×L140mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 45C | Height M: 60 mm | Width W: 120 mm | Length L: 140 mm | Max Rail Length: 3090 mm | Dynamic Load C: 82.8 kN | Static Load C0: 126 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-45LC | SHS 45LC LM Block H60×W120×L174mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 45LC | Height M: 60 mm | Width W: 120 mm | Length L: 174 mm | Max Rail Length: 3090 mm | Dynamic Load C: 100 kN | Static Load C0: 166 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-55C | SHS 55C LM Block H70×W140×L171mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 55C | Height M: 70 mm | Width W: 140 mm | Length L: 171 mm | Max Rail Length: 3060 mm | Dynamic Load C: 128 kN | Static Load C0: 197 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-55LC | SHS 55LC LM Block H70×W140×L213mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 55LC | Height M: 70 mm | Width W: 140 mm | Length L: 213 mm | Max Rail Length: 3060 mm | Dynamic Load C: 161 kN | Static Load C0: 259 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-65C | SHS 65C LM Block H90×W170×L221mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 65C | Height M: 90 mm | Width W: 170 mm | Length L: 221 mm | Max Rail Length: 3000 mm | Dynamic Load C: 205 kN | Static Load C0: 320 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-65LC | SHS 65LC LM Block H90×W170×L272mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 65LC | Height M: 90 mm | Width W: 170 mm | Length L: 272 mm | Max Rail Length: 3000 mm | Dynamic Load C: 253 kN | Static Load C0: 408 kN | Structure: Ball Retainer DF | Brand: THK |
