![[THK] — HRW-CR/CRM/LRM LM Guide Block (Full Ball, Wide Rail, Narrow Width)](https://img.prosourcemro.com/2026/05/001-766-1024x974.png)
LM Guides
THK

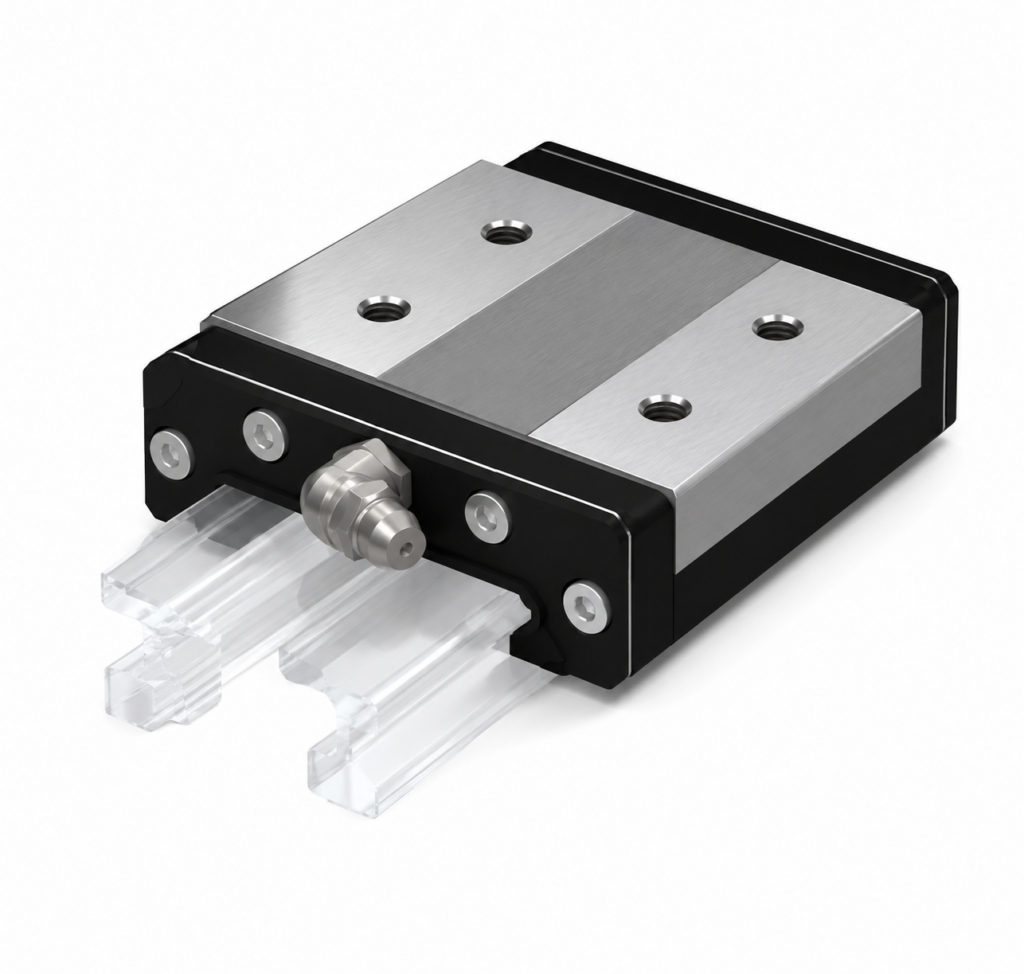

[THK] — HRW-CR/CRM/LRM LM Guide Block (Full Ball, Wide Rail, Narrow Width)
Family ID: THK-HRW-CR
Wide rail full ball type LM Guide. Narrow block width with tapped holes. Wide, low-profile rail for optimal rolling moment rigidity. 4-direction equal load type. Balls retained by support plate when block is removed (except HRW12/14LR).
11 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| HRW-12LRM | HRW 12LRM LM Block H12×W30×L37mm | THK | Type: LM Guide Block | Series: HRW | Block Type: 12LRM | Height M: 12 mm | Width W: 30 mm | Length L: 37 mm | Max Rail Length: 1000 mm | Dynamic Load C: 3.29 kN | Static Load C0: 7.16 kN | Structure: Full Ball | Rail Type: Wide | Block Width: Narrow | Load Type: 4-Direction Equal | Brand: THK | ||
| HRW-14LRM | HRW 14LRM LM Block H14×W40×L45.5mm | THK | Type: LM Guide Block | Series: HRW | Block Type: 14LRM | Height M: 14 mm | Width W: 40 mm | Length L: 45.5 mm | Max Rail Length: 1430 mm | Dynamic Load C: 5.38 kN | Static Load C0: 11.4 kN | Structure: Full Ball | Rail Type: Wide | Block Width: Narrow | Load Type: 4-Direction Equal | Brand: THK | ||
| HRW-17CR | HRW 17CR LM Block H17×W50×L50.8mm | THK | Type: LM Guide Block | Series: HRW | Block Type: 17CR | Height M: 17 mm | Width W: 50 mm | Length L: 50.8 mm | Max Rail Length: 1900 mm | Dynamic Load C: 5.53 kN | Static Load C0: 9.1 kN | Structure: Full Ball | Rail Type: Wide | Block Width: Narrow | Load Type: 4-Direction Equal | Brand: THK | ||
| HRW-17CRM | HRW 17CRM LM Block H17×W50×L50.8mm | THK | Type: LM Guide Block | Series: HRW | Block Type: 17CRM | Height M: 17 mm | Width W: 50 mm | Length L: 50.8 mm | Max Rail Length: 800 mm | Dynamic Load C: 5.53 kN | Static Load C0: 9.1 kN | Structure: Full Ball | Rail Type: Wide | Block Width: Narrow | Load Type: 4-Direction Equal | Brand: THK | ||
| HRW-21CR | HRW 21CR LM Block H21×W54×L58.8mm | THK | Type: LM Guide Block | Series: HRW | Block Type: 21CR | Height M: 21 mm | Width W: 54 mm | Length L: 58.8 mm | Max Rail Length: 3000 mm | Dynamic Load C: 8.02 kN | Static Load C0: 12.9 kN | Structure: Full Ball | Rail Type: Wide | Block Width: Narrow | Load Type: 4-Direction Equal | Brand: THK | ||
| HRW-21CRM | HRW 21CRM LM Block H21×W54×L58.8mm | THK | Type: LM Guide Block | Series: HRW | Block Type: 21CRM | Height M: 21 mm | Width W: 54 mm | Length L: 58.8 mm | Max Rail Length: 1000 mm | Dynamic Load C: 8.02 kN | Static Load C0: 12.9 kN | Structure: Full Ball | Rail Type: Wide | Block Width: Narrow | Load Type: 4-Direction Equal | Brand: THK | ||
| HRW-27CR | HRW 27CR LM Block H27×W62×L72.8mm | THK | Type: LM Guide Block | Series: HRW | Block Type: 27CR | Height M: 27 mm | Width W: 62 mm | Length L: 72.8 mm | Max Rail Length: 3000 mm | Dynamic Load C: 14.2 kN | Static Load C0: 21.6 kN | Structure: Full Ball | Rail Type: Wide | Block Width: Narrow | Load Type: 4-Direction Equal | Brand: THK | ||
| HRW-27CRM | HRW 27CRM LM Block H27×W62×L72.8mm | THK | Type: LM Guide Block | Series: HRW | Block Type: 27CRM | Height M: 27 mm | Width W: 62 mm | Length L: 72.8 mm | Max Rail Length: 1200 mm | Dynamic Load C: 14.2 kN | Static Load C0: 21.6 kN | Structure: Full Ball | Rail Type: Wide | Block Width: Narrow | Load Type: 4-Direction Equal | Brand: THK | ||
| HRW-35CR | HRW 35CR LM Block H35×W100×L106.6mm | THK | Type: LM Guide Block | Series: HRW | Block Type: 35CR | Height M: 35 mm | Width W: 100 mm | Length L: 106.6 mm | Max Rail Length: 3000 mm | Dynamic Load C: 33.8 kN | Static Load C0: 48.6 kN | Structure: Full Ball | Rail Type: Wide | Block Width: Narrow | Load Type: 4-Direction Equal | Brand: THK | ||
| HRW-35CRM | HRW 35CRM LM Block H35×W100×L106.6mm | THK | Type: LM Guide Block | Series: HRW | Block Type: 35CRM | Height M: 35 mm | Width W: 100 mm | Length L: 106.6 mm | Max Rail Length: 3000 mm | Dynamic Load C: 33.8 kN | Static Load C0: 48.6 kN | Structure: Full Ball | Rail Type: Wide | Block Width: Narrow | Load Type: 4-Direction Equal | Brand: THK | ||
| HRW-50CR | HRW 50CR LM Block H50×W130×L140.5mm | THK | Type: LM Guide Block | Series: HRW | Block Type: 50CR | Height M: 50 mm | Width W: 130 mm | Length L: 140.5 mm | Max Rail Length: 3000 mm | Dynamic Load C: 62.4 kN | Static Load C0: 86.3 kN | Structure: Full Ball | Rail Type: Wide | Block Width: Narrow | Load Type: 4-Direction Equal | Brand: THK |
