Roller Guides
THK

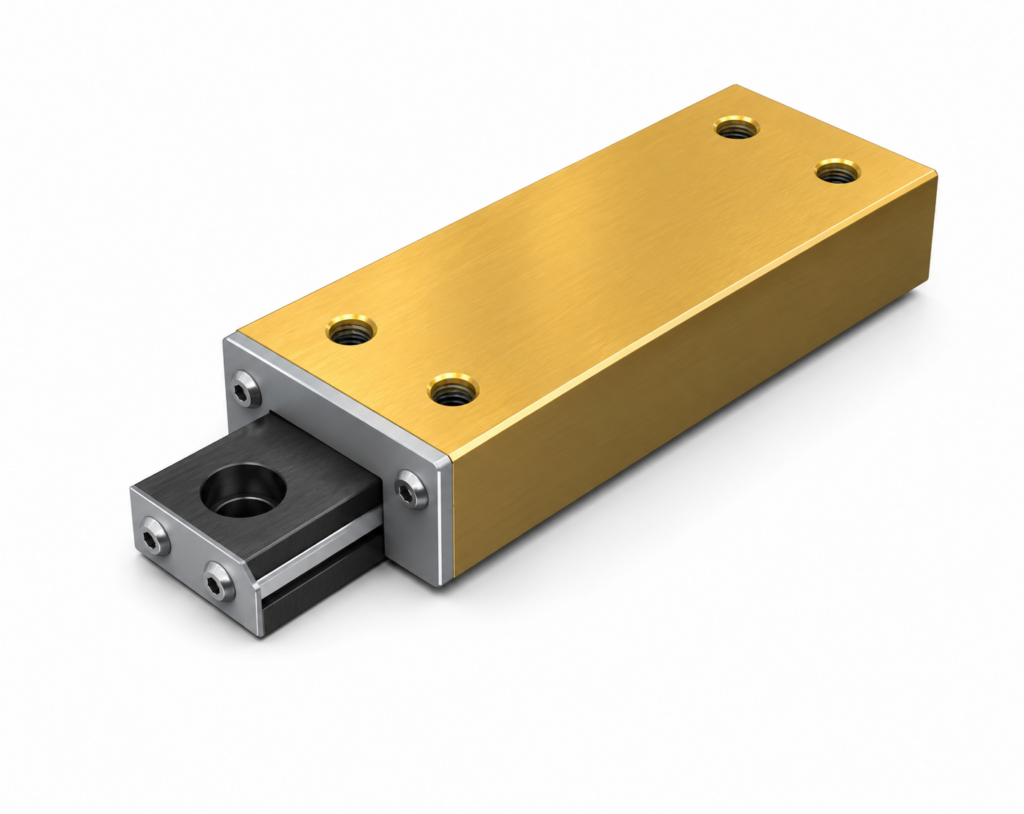

[THK] — Linear Ball Slide LS8 (W6.2×H4.7)
Family ID: THK-LS8
THK LS Linear Ball Slide, LS8 frame. Base width W1=6.2mm, height H=4.7mm. Mounting hole d×D×h = 2.2×3.9×1.4mm, table tap M2×3. Stroke range 13~50mm. Basic dynamic load rating C = 39.2~98.0 N; static C0 = 68.6~167.0 N.
3 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| LS827 | THK Linear Ball Slide LS827, stroke 13mm, C=39.2N, 9g | THK | Frame: LS8 | Stroke: 13 mm | Slide Height (M): 8 mm | Slide Width (W): 14.2 mm | Slide Length (L): 28.7 mm | Base Width (W1): 6.2 mm | Base Height (H): 4.7 mm | Mounting Hole (d×D×h): 2.2×3.9×1.4 mm | Table Tap: M2×3 | Mass: 9 g | Basic Dynamic Load Rating C: 39.2 N | Basic Static Load Rating C0: 68.6 N | Static Allowable Moment MA=MB: 0.2 N·m | Static Allowable Moment MC: 0.29 N·m | ||
| LS852 | THK Linear Ball Slide LS852, stroke 25mm, C=68.6N, 15g | THK | Frame: LS8 | Stroke: 25 mm | Slide Height (M): 8 mm | Slide Width (W): 14.2 mm | Slide Length (L): 53.7 mm | Base Width (W1): 6.2 mm | Base Height (H): 4.7 mm | Mounting Hole (d×D×h): 2.2×3.9×1.4 mm | Table Tap: M2×3 | Mass: 15 g | Basic Dynamic Load Rating C: 68.6 N | Basic Static Load Rating C0: 118.0 N | Static Allowable Moment MA=MB: 0.49 N·m | Static Allowable Moment MC: 0.39 N·m | ||
| LS877 | THK Linear Ball Slide LS877, stroke 50mm, C=98.0N, 21g | THK | Frame: LS8 | Stroke: 50 mm | Slide Height (M): 8 mm | Slide Width (W): 14.2 mm | Slide Length (L): 78.7 mm | Base Width (W1): 6.2 mm | Base Height (H): 4.7 mm | Mounting Hole (d×D×h): 2.2×3.9×1.4 mm | Table Tap: M2×3 | Mass: 21 g | Basic Dynamic Load Rating C: 98.0 N | Basic Static Load Rating C0: 167.0 N | Static Allowable Moment MA=MB: 0.88 N·m | Static Allowable Moment MC: 0.59 N·m |
