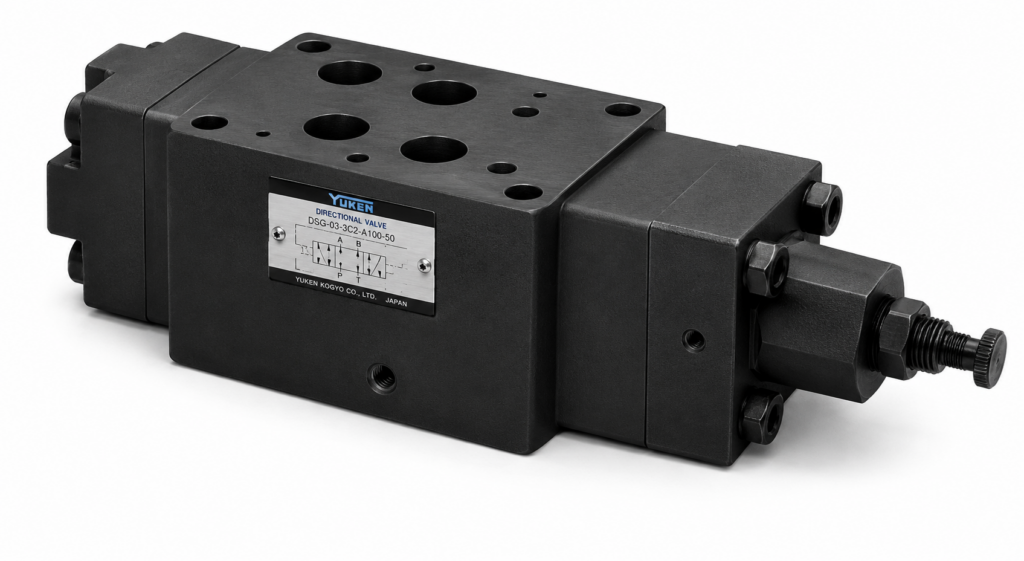

Yuken — 04 Series Reducing Modular Valve (Sandwich Type)
Family ID: YUK-FMOD-04-REDUCING
04 Series Modular Valves — Reducing. Sandwich/stack mounting. Detailed specifications by inquiry.
12 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| MRP-04-A-10 | Reducing modular valve, P-line, range A | Yuken | Series: 04 (1/2) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (P-line) | Pressure Range: A: 0.7–7 MPa | Max Pressure: 35 MPa | Max Flow: 100 L/min | ||
| MRP-04-B-10 | Reducing modular valve, P-line, range B | Yuken | Series: 04 (1/2) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (P-line) | Pressure Range: B: 1.5–7 MPa | Max Pressure: 35 MPa | Max Flow: 300 L/min | ||
| MRP-04-C-10 | Reducing modular valve, P-line, range C | Yuken | Series: 04 (1/2) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (P-line) | Pressure Range: C: 3.5–14 MPa | Max Pressure: 35 MPa | Max Flow: 300 L/min | ||
| MRP-04-H-10 | Reducing modular valve, P-line, range H | Yuken | Series: 04 (1/2) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (P-line) | Pressure Range: H: 7–25 MPa | Max Pressure: 35 MPa | Max Flow: 300 L/min | ||
| MRA-04-A-10 | Reducing modular valve, A-line, range A | Yuken | Series: 04 (1/2) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (A-line) | Pressure Range: A: 0.7–7 MPa | Max Pressure: 35 MPa | Max Flow: 100 L/min | ||
| MRA-04-B-10 | Reducing modular valve, A-line, range B | Yuken | Series: 04 (1/2) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (A-line) | Pressure Range: B: 1.5–7 MPa | Max Pressure: 35 MPa | Max Flow: 300 L/min | ||
| MRA-04-C-10 | Reducing modular valve, A-line, range C | Yuken | Series: 04 (1/2) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (A-line) | Pressure Range: C: 3.5–14 MPa | Max Pressure: 35 MPa | Max Flow: 300 L/min | ||
| MRA-04-H-10 | Reducing modular valve, A-line, range H | Yuken | Series: 04 (1/2) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (A-line) | Pressure Range: H: 7–25 MPa | Max Pressure: 35 MPa | Max Flow: 300 L/min | ||
| MRB-04-A-10 | Reducing modular valve, B-line, range A | Yuken | Series: 04 (1/2) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (B-line) | Pressure Range: A: 0.7–7 MPa | Max Pressure: 35 MPa | Max Flow: 100 L/min | ||
| MRB-04-B-10 | Reducing modular valve, B-line, range B | Yuken | Series: 04 (1/2) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (B-line) | Pressure Range: B: 1.5–7 MPa | Max Pressure: 35 MPa | Max Flow: 300 L/min | ||
| MRB-04-C-10 | Reducing modular valve, B-line, range C | Yuken | Series: 04 (1/2) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (B-line) | Pressure Range: C: 3.5–14 MPa | Max Pressure: 35 MPa | Max Flow: 300 L/min | ||
| MRB-04-H-10 | Reducing modular valve, B-line, range H | Yuken | Series: 04 (1/2) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (B-line) | Pressure Range: H: 7–25 MPa | Max Pressure: 35 MPa | Max Flow: 300 L/min |
