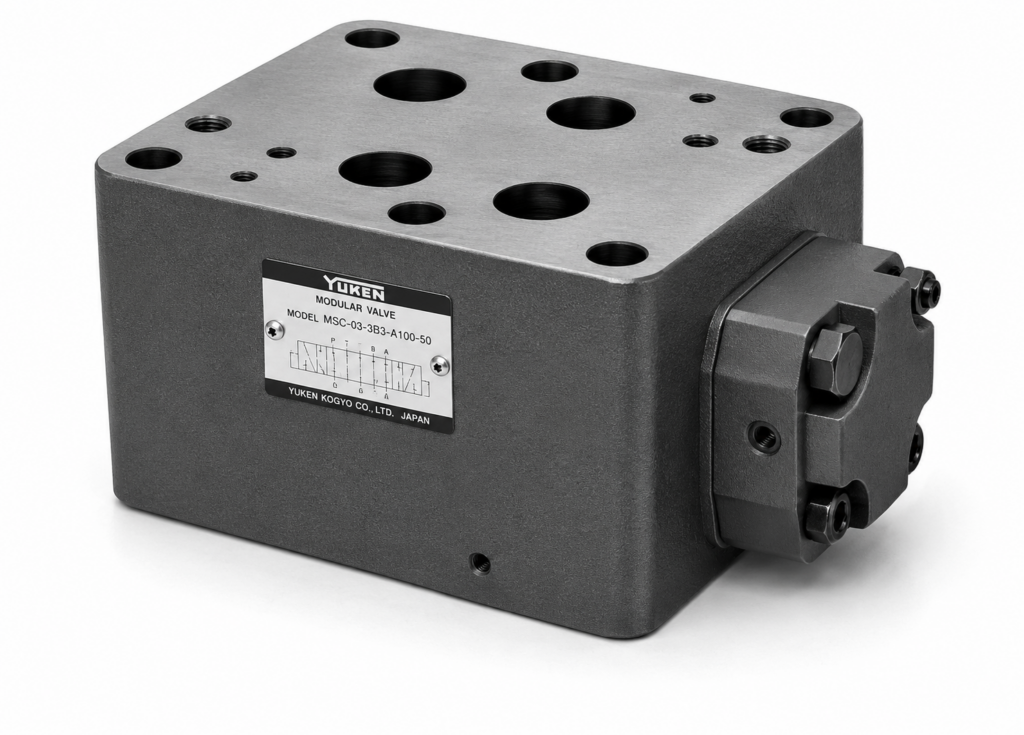

Yuken — 10 Series Reducing Modular Valve (Sandwich Type)
Family ID: YUK-FMOD-10-REDUCING
10 (1¼) Series Reducing Modular Valves. Sandwich/stack mounting (ISO 4401). P/A/B-line, pressure ranges A/B/C/H. Max 25 MPa / 800 L/min.
12 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| MRP-10-A-30 | Reducing modular valve, P-line, range A | Yuken | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (P-line) | Pressure Range: A: 0.7–7 MPa | Max Pressure: 25 MPa | Max Flow: 250 L/min | ||
| MRP-10-B-30 | Reducing modular valve, P-line, range B | Yuken | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (P-line) | Pressure Range: B: 1.5–7 MPa | Max Pressure: 25 MPa | Max Flow: 800 L/min | ||
| MRP-10-C-30 | Reducing modular valve, P-line, range C | Yuken | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (P-line) | Pressure Range: C: 3.5–14 MPa | Max Pressure: 25 MPa | Max Flow: 800 L/min | ||
| MRP-10-H-30 | Reducing modular valve, P-line, range H | Yuken | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (P-line) | Pressure Range: H: 7–21 MPa | Max Pressure: 25 MPa | Max Flow: 800 L/min | ||
| MRA-10-A-30 | Reducing modular valve, A-line, range A | Yuken | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (A-line) | Pressure Range: A: 0.7–7 MPa | Max Pressure: 25 MPa | Max Flow: 250 L/min | ||
| MRA-10-B-30 | Reducing modular valve, A-line, range B | Yuken | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (A-line) | Pressure Range: B: 1.5–7 MPa | Max Pressure: 25 MPa | Max Flow: 800 L/min | ||
| MRA-10-C-30 | Reducing modular valve, A-line, range C | Yuken | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (A-line) | Pressure Range: C: 3.5–14 MPa | Max Pressure: 25 MPa | Max Flow: 800 L/min | ||
| MRA-10-H-30 | Reducing modular valve, A-line, range H | Yuken | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (A-line) | Pressure Range: H: 7–21 MPa | Max Pressure: 25 MPa | Max Flow: 800 L/min | ||
| MRB-10-A-30 | Reducing modular valve, B-line, range A | Yuken | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (B-line) | Pressure Range: A: 0.7–7 MPa | Max Pressure: 25 MPa | Max Flow: 250 L/min | ||
| MRB-10-B-30 | Reducing modular valve, B-line, range B | Yuken | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (B-line) | Pressure Range: B: 1.5–7 MPa | Max Pressure: 25 MPa | Max Flow: 800 L/min | ||
| MRB-10-C-30 | Reducing modular valve, B-line, range C | Yuken | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (B-line) | Pressure Range: C: 3.5–14 MPa | Max Pressure: 25 MPa | Max Flow: 800 L/min | ||
| MRB-10-H-30 | Reducing modular valve, B-line, range H | Yuken | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Pressure reducing (B-line) | Pressure Range: H: 7–21 MPa | Max Pressure: 25 MPa | Max Flow: 800 L/min |
