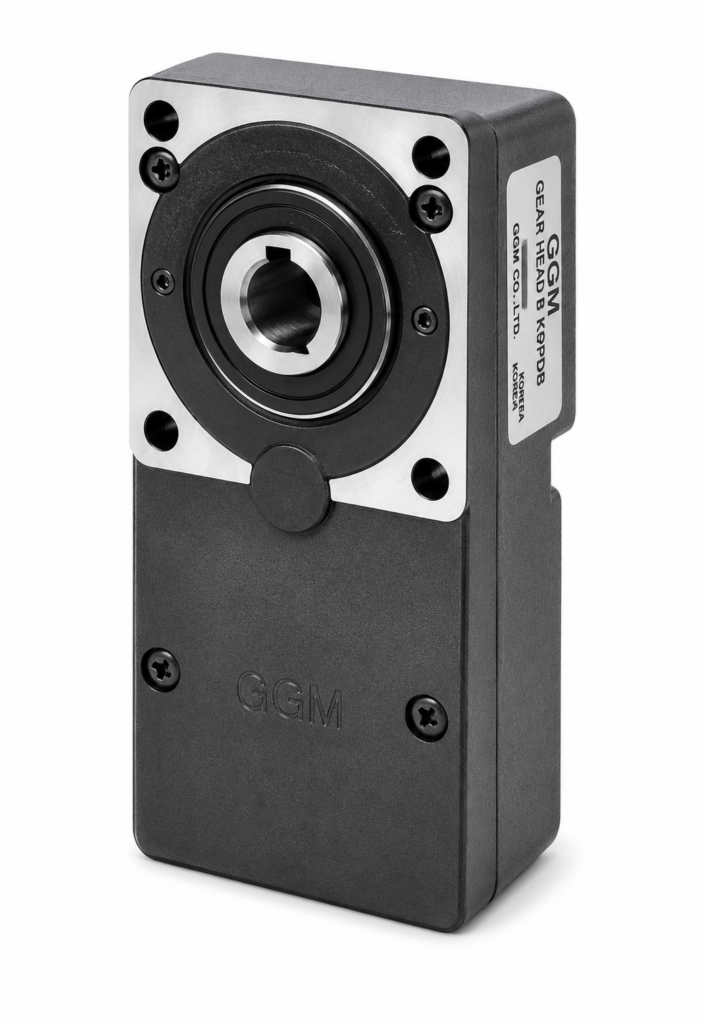

[GGM] — K10H□BTH Flat Hollow-Shaft Gearhead (for K10 200/400W Brushless Motor Unit, ø25 hollow, 1/5~1/100)
Gearheads GGM

[GGM] — K10H□BTH Flat Hollow-Shaft Gearhead (for K10 200/400W Brushless Motor Unit, ø25 hollow, 1/5~1/100)

Family ID: GGM-K10H-BTH

GGM K10H□BTH flat hollow-shaft gearhead for K10 200/400W brushless motor units, with ø25 hollow output bore (H8), ø94 pilot flange and M8×100 fixing bolt set (included). Deceleration ratios 1/5 to 1/100 (7 steps), allowed output torque up to 110 N·m, 85% efficiency; motor sold separately.

7 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
K10H5BTH GGM K10H□BTH flat hollow-shaft gearhead, ratio 1/5, ø25 hollow bore, for K10 200/400W brushless motor unit GGM Type: Flat Hollow-Shaft Gearhead (for K10 Brushless Motor Unit) | Deceleration Ratio: 1/5 | Output Speed Range: 20~600 r/min (with 100-3000 r/min motor) | Allowed Output Torque: 2.8 N·m (200W) / 5.5 N·m (400W) brushless, AC type | Gearhead Efficiency: 85% | Allowed Overhang Load: 1230 N (at 10mm from shaft end) | Allowed Thrust Load: 800 N | Output Shaft: ø25 hollow bore (H8), key type | Flange: ø94 (h7), pilot ø58 (h8), P.C.D ø120 | Fixing Bolt: M8 P1.25×100 (set included)
K10H10BTH GGM K10H□BTH flat hollow-shaft gearhead, ratio 1/10, ø25 hollow bore, for K10 200/400W brushless motor unit GGM Type: Flat Hollow-Shaft Gearhead (for K10 Brushless Motor Unit) | Deceleration Ratio: 1/10 | Output Speed Range: 10~300 r/min (with 100-3000 r/min motor) | Allowed Output Torque: 5.5 N·m (200W) / 11.1 N·m (400W) brushless, AC type | Gearhead Efficiency: 85% | Allowed Overhang Load: 1230 N (at 10mm from shaft end) | Allowed Thrust Load: 800 N | Output Shaft: ø25 hollow bore (H8), key type | Flange: ø94 (h7), pilot ø58 (h8), P.C.D ø120 | Fixing Bolt: M8 P1.25×100 (set included)
K10H15BTH GGM K10H□BTH flat hollow-shaft gearhead, ratio 1/15, ø25 hollow bore, for K10 200/400W brushless motor unit GGM Type: Flat Hollow-Shaft Gearhead (for K10 Brushless Motor Unit) | Deceleration Ratio: 1/15 | Output Speed Range: 6.7~200 r/min (with 100-3000 r/min motor) | Allowed Output Torque: 8.3 N·m (200W) / 16.6 N·m (400W) brushless, AC type | Gearhead Efficiency: 85% | Allowed Overhang Load: 1680 N (at 10mm from shaft end) | Allowed Thrust Load: 800 N | Output Shaft: ø25 hollow bore (H8), key type | Flange: ø94 (h7), pilot ø58 (h8), P.C.D ø120 | Fixing Bolt: M8 P1.25×100 (set included)
K10H20BTH GGM K10H□BTH flat hollow-shaft gearhead, ratio 1/20, ø25 hollow bore, for K10 200/400W brushless motor unit GGM Type: Flat Hollow-Shaft Gearhead (for K10 Brushless Motor Unit) | Deceleration Ratio: 1/20 | Output Speed Range: 5~150 r/min (with 100-3000 r/min motor) | Allowed Output Torque: 11.1 N·m (200W) / 22.1 N·m (400W) brushless, AC type | Gearhead Efficiency: 85% | Allowed Overhang Load: 1680 N (at 10mm from shaft end) | Allowed Thrust Load: 800 N | Output Shaft: ø25 hollow bore (H8), key type | Flange: ø94 (h7), pilot ø58 (h8), P.C.D ø120 | Fixing Bolt: M8 P1.25×100 (set included)
K10H30BTH GGM K10H□BTH flat hollow-shaft gearhead, ratio 1/30, ø25 hollow bore, for K10 200/400W brushless motor unit GGM Type: Flat Hollow-Shaft Gearhead (for K10 Brushless Motor Unit) | Deceleration Ratio: 1/30 | Output Speed Range: 3.3~100 r/min (with 100-3000 r/min motor) | Allowed Output Torque: 16.6 N·m (200W) / 33.2 N·m (400W) brushless, AC type | Gearhead Efficiency: 85% | Allowed Overhang Load: 2040 N (at 10mm from shaft end) | Allowed Thrust Load: 800 N | Output Shaft: ø25 hollow bore (H8), key type | Flange: ø94 (h7), pilot ø58 (h8), P.C.D ø120 | Fixing Bolt: M8 P1.25×100 (set included)
K10H50BTH GGM K10H□BTH flat hollow-shaft gearhead, ratio 1/50, ø25 hollow bore, for K10 200/400W brushless motor unit GGM Type: Flat Hollow-Shaft Gearhead (for K10 Brushless Motor Unit) | Deceleration Ratio: 1/50 | Output Speed Range: 2~60 r/min (with 100-3000 r/min motor) | Allowed Output Torque: 27.6 N·m (200W) / 55.3 N·m (400W) brushless, AC type | Gearhead Efficiency: 85% | Allowed Overhang Load: 2040 N (at 10mm from shaft end) | Allowed Thrust Load: 800 N | Output Shaft: ø25 hollow bore (H8), key type | Flange: ø94 (h7), pilot ø58 (h8), P.C.D ø120 | Fixing Bolt: M8 P1.25×100 (set included)
K10H100BTH GGM K10H□BTH flat hollow-shaft gearhead, ratio 1/100, ø25 hollow bore, for K10 200/400W brushless motor unit GGM Type: Flat Hollow-Shaft Gearhead (for K10 Brushless Motor Unit) | Deceleration Ratio: 1/100 | Output Speed Range: 1~30 r/min (with 100-3000 r/min motor) | Allowed Output Torque: 55.3 N·m (200W) / 110 N·m (400W) brushless, AC type | Gearhead Efficiency: 85% | Allowed Overhang Load: 2040 N (at 10mm from shaft end) | Allowed Thrust Load: 800 N | Output Shaft: ø25 hollow bore (H8), key type | Flange: ø94 (h7), pilot ø58 (h8), P.C.D ø120 | Fixing Bolt: M8 P1.25×100 (set included)
