[GGM] — K9H□BTH Flat Hollow-Shaft Gearhead (for K9 90/150W Brushless Motor Unit, ø20 hollow, 1/5~1/200)
Gearheads GGM

[GGM] — K9H□BTH Flat Hollow-Shaft Gearhead (for K9 90/150W Brushless Motor Unit, ø20 hollow, 1/5~1/200)

Family ID: GGM-K9H-BTH

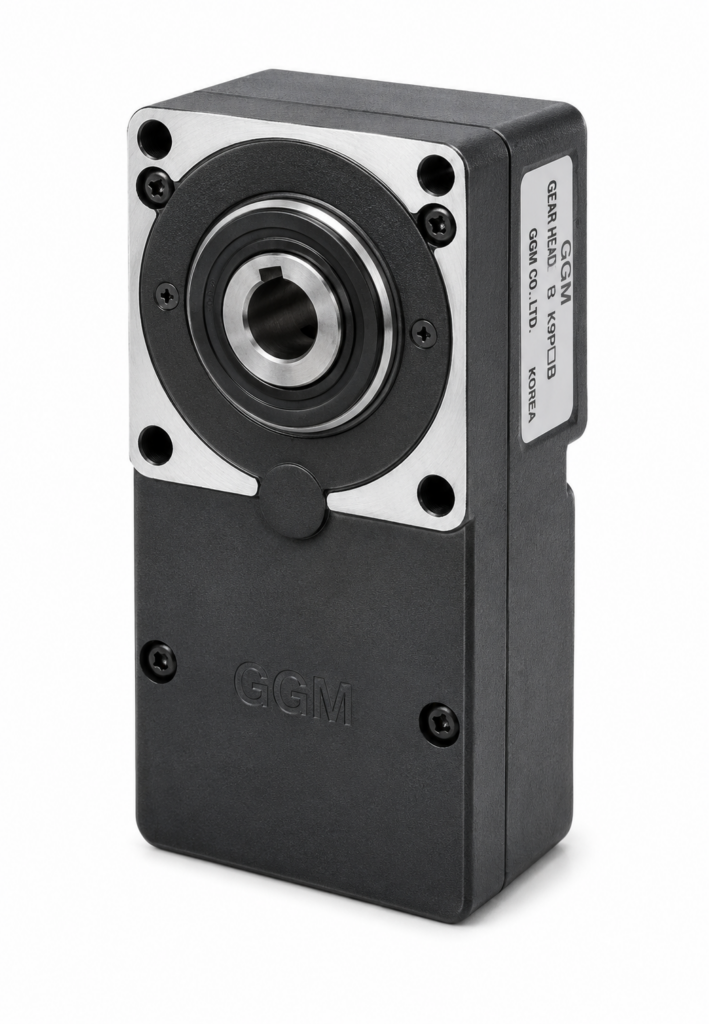

GGM K9H□BTH flat hollow-shaft gearhead for K9 90/150W brushless motor units, with ø20 hollow output bore (H8), ø83 pilot flange and M8×90 fixing bolt set (included). Deceleration ratios 1/5 to 1/200 (8 steps), allowed output torque up to 68 N·m, 85% efficiency; motor sold separately.

8 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
K9H5BTH GGM K9H□BTH flat hollow-shaft gearhead, ratio 1/5, ø20 hollow bore, for K9 90/150W brushless motor unit GGM Type: Flat Hollow-Shaft Gearhead (for K9 Brushless Motor Unit) | Deceleration Ratio: 1/5 | Output Speed Range: 20~600 r/min (with 100-3000 r/min motor) | Allowed Output Torque: 1.9 N·m (90W) / 2.1 N·m (150W) brushless, AC type | Gearhead Efficiency: 85% | Allowed Overhang Load: 900 N (at 10mm from shaft end) | Allowed Thrust Load: 500 N | Output Shaft: ø20 hollow bore (H8), key type | Flange: ø83 (h7), pilot ø50 (h8), P.C.D ø104 | Fixing Bolt: M8 P1.25×90 (set included)
K9H10BTH GGM K9H□BTH flat hollow-shaft gearhead, ratio 1/10, ø20 hollow bore, for K9 90/150W brushless motor unit GGM Type: Flat Hollow-Shaft Gearhead (for K9 Brushless Motor Unit) | Deceleration Ratio: 1/10 | Output Speed Range: 10~300 r/min (with 100-3000 r/min motor) | Allowed Output Torque: 3.8 N·m (90W) / 4.2 N·m (150W) brushless, AC type | Gearhead Efficiency: 85% | Allowed Overhang Load: 900 N (at 10mm from shaft end) | Allowed Thrust Load: 500 N | Output Shaft: ø20 hollow bore (H8), key type | Flange: ø83 (h7), pilot ø50 (h8), P.C.D ø104 | Fixing Bolt: M8 P1.25×90 (set included)
K9H15BTH GGM K9H□BTH flat hollow-shaft gearhead, ratio 1/15, ø20 hollow bore, for K9 90/150W brushless motor unit GGM Type: Flat Hollow-Shaft Gearhead (for K9 Brushless Motor Unit) | Deceleration Ratio: 1/15 | Output Speed Range: 6.7~200 r/min (with 100-3000 r/min motor) | Allowed Output Torque: 5.7 N·m (90W) / 6.2 N·m (150W) brushless, AC type | Gearhead Efficiency: 85% | Allowed Overhang Load: 1300 N (at 10mm from shaft end) | Allowed Thrust Load: 500 N | Output Shaft: ø20 hollow bore (H8), key type | Flange: ø83 (h7), pilot ø50 (h8), P.C.D ø104 | Fixing Bolt: M8 P1.25×90 (set included)
K9H20BTH GGM K9H□BTH flat hollow-shaft gearhead, ratio 1/20, ø20 hollow bore, for K9 90/150W brushless motor unit GGM Type: Flat Hollow-Shaft Gearhead (for K9 Brushless Motor Unit) | Deceleration Ratio: 1/20 | Output Speed Range: 5~150 r/min (with 100-3000 r/min motor) | Allowed Output Torque: 7.7 N·m (90W) / 8.3 N·m (150W) brushless, AC type | Gearhead Efficiency: 85% | Allowed Overhang Load: 1300 N (at 10mm from shaft end) | Allowed Thrust Load: 500 N | Output Shaft: ø20 hollow bore (H8), key type | Flange: ø83 (h7), pilot ø50 (h8), P.C.D ø104 | Fixing Bolt: M8 P1.25×90 (set included)
K9H30BTH GGM K9H□BTH flat hollow-shaft gearhead, ratio 1/30, ø20 hollow bore, for K9 90/150W brushless motor unit GGM Type: Flat Hollow-Shaft Gearhead (for K9 Brushless Motor Unit) | Deceleration Ratio: 1/30 | Output Speed Range: 3.3~100 r/min (with 100-3000 r/min motor) | Allowed Output Torque: 11.5 N·m (90W) / 12.5 N·m (150W) brushless, AC type | Gearhead Efficiency: 85% | Allowed Overhang Load: 1500 N (at 10mm from shaft end) | Allowed Thrust Load: 500 N | Output Shaft: ø20 hollow bore (H8), key type | Flange: ø83 (h7), pilot ø50 (h8), P.C.D ø104 | Fixing Bolt: M8 P1.25×90 (set included)
K9H50BTH GGM K9H□BTH flat hollow-shaft gearhead, ratio 1/50, ø20 hollow bore, for K9 90/150W brushless motor unit GGM Type: Flat Hollow-Shaft Gearhead (for K9 Brushless Motor Unit) | Deceleration Ratio: 1/50 | Output Speed Range: 2~60 r/min (with 100-3000 r/min motor) | Allowed Output Torque: 19.1 N·m (90W) / 21 N·m (150W) brushless, AC type | Gearhead Efficiency: 85% | Allowed Overhang Load: 1500 N (at 10mm from shaft end) | Allowed Thrust Load: 500 N | Output Shaft: ø20 hollow bore (H8), key type | Flange: ø83 (h7), pilot ø50 (h8), P.C.D ø104 | Fixing Bolt: M8 P1.25×90 (set included)
K9H100BTH GGM K9H□BTH flat hollow-shaft gearhead, ratio 1/100, ø20 hollow bore, for K9 90/150W brushless motor unit GGM Type: Flat Hollow-Shaft Gearhead (for K9 Brushless Motor Unit) | Deceleration Ratio: 1/100 | Output Speed Range: 1~30 r/min (with 100-3000 r/min motor) | Allowed Output Torque: 38.3 N·m (90W) / 42 N·m (150W) brushless, AC type | Gearhead Efficiency: 85% | Allowed Overhang Load: 1500 N (at 10mm from shaft end) | Allowed Thrust Load: 500 N | Output Shaft: ø20 hollow bore (H8), key type | Flange: ø83 (h7), pilot ø50 (h8), P.C.D ø104 | Fixing Bolt: M8 P1.25×90 (set included)
K9H200BTH GGM K9H□BTH flat hollow-shaft gearhead, ratio 1/200, ø20 hollow bore, for K9 90/150W brushless motor unit GGM Type: Flat Hollow-Shaft Gearhead (for K9 Brushless Motor Unit) | Deceleration Ratio: 1/200 | Output Speed Range: 0.5~15 r/min (with 100-3000 r/min motor) | Allowed Output Torque: 68 N·m (90W/150W) brushless, AC type | Gearhead Efficiency: 85% | Allowed Overhang Load: 1500 N (at 10mm from shaft end) | Allowed Thrust Load: 500 N | Output Shaft: ø20 hollow bore (H8), key type | Flange: ø83 (h7), pilot ø50 (h8), P.C.D ø104 | Fixing Bolt: M8 P1.25×90 (set included)
