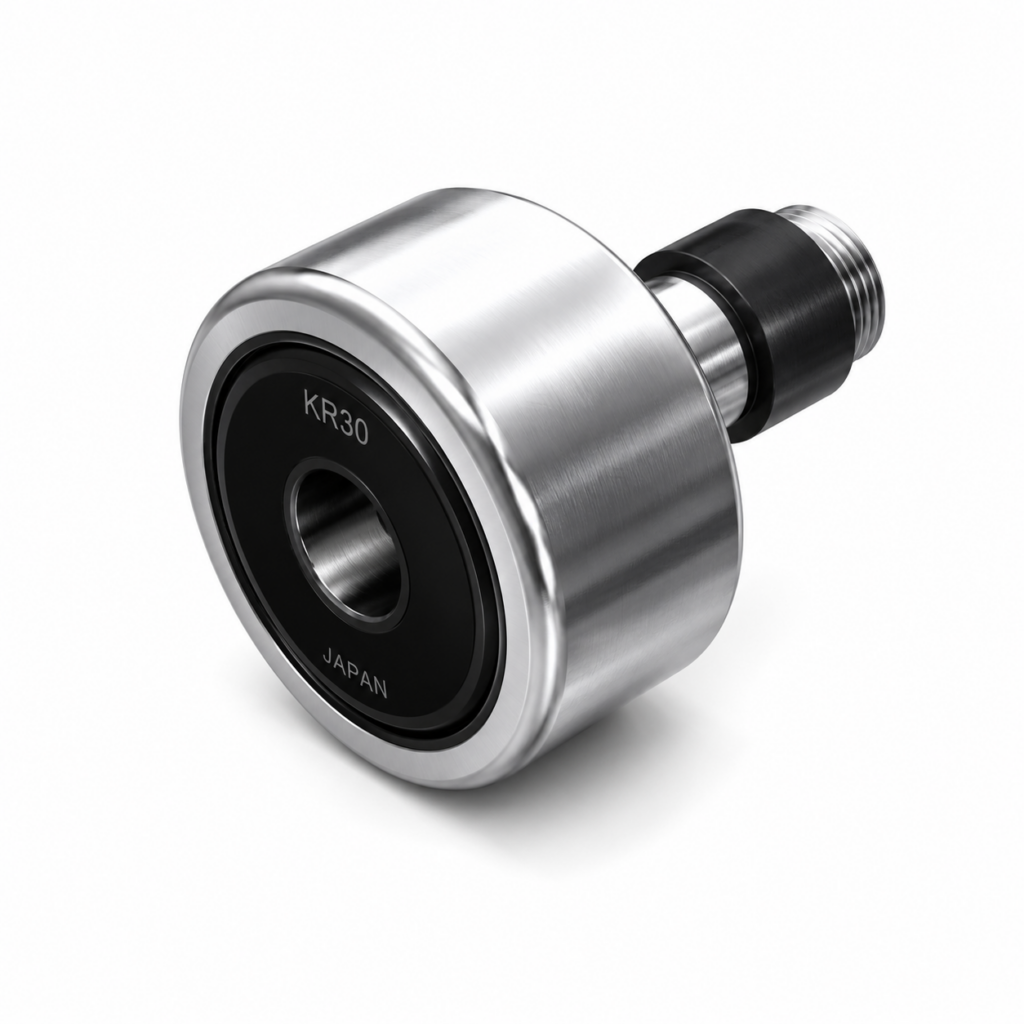

[THK] — Cam Follower CF-SFU (Simple Mount, Snap-Fit Type)
Family ID: THK-CF-SFU
THK CF-SFU type Cam Follower for simplified installation. Stepped stud design allows fixing into H7 mounting hole without thread engagement. Ideal for applications with limited stud fastening space. UU double seal standard (no UU code needed in part number). Delivered with plug installed. Stud diameter d = 6~20mm. Options: V (total needle - N/A for this type; cage only), R (spherical outer ring).
10 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| CF-SFU-6 | THK Cam Follower CF-SFU-6 (simple mount), d=6mm, D=16mm, C=3.59kN | THK | Stud Diameter (d): 6 mm | Outer Diameter (D): 16 mm | Outer Ring Width (C): 11 mm | Total Length (B): 32 mm | Eccentricity (e): 0.3 mm | Mounting Hole (H7): Ø6 mm | Shoulder (t): 20 mm | Shoulder (f): 11 mm | Seal: UU double seal (standard, included) | Basic Dynamic Load Rating C: 3.59 kN | Basic Static Load Rating C0: 3.58 kN | Max Allowable Load F0 (cylindrical): 2.11 kN | Max Allowable Load F0 (spherical): 3.43 kN | Track Load Capacity: 1.08 kN | Limit Speed: 17500 min⁻¹ | Mass: 19.0 g | Options: R=spherical outer ring | Spherical radius: R500 | Note: Plug installed on delivery; cage roller only | ||
| CF-SFU-8 | THK Cam Follower CF-SFU-8 (simple mount), d=8mm, D=19mm, C=4.17kN | THK | Stud Diameter (d): 8 mm | Outer Diameter (D): 19 mm | Outer Ring Width (C): 11 mm | Total Length (B): 32 mm | Eccentricity (e): 0.5 mm | Mounting Hole (H7): Ø8 mm | Shoulder (t): 20 mm | Shoulder (f): 13 mm | Seal: UU double seal (standard, included) | Basic Dynamic Load Rating C: 4.17 kN | Basic Static Load Rating C0: 4.65 kN | Max Allowable Load F0 (cylindrical): 4.73 kN | Max Allowable Load F0 (spherical): 4.02 kN | Track Load Capacity: 1.37 kN | Limit Speed: 14000 min⁻¹ | Mass: 28.5 g | Options: R=spherical outer ring | Spherical radius: R500 | Note: Plug installed on delivery; cage roller only | ||
| CF-SFU-10 | THK Cam Follower CF-SFU-10 (simple mount), d=10mm, D=22mm, C=5.33kN | THK | Stud Diameter (d): 10 mm | Outer Diameter (D): 22 mm | Outer Ring Width (C): 12 mm | Total Length (B): 33 mm | Eccentricity (e): 0.5 mm | Mounting Hole (H7): Ø10 mm | Shoulder (t): 20 mm | Shoulder (f): 15 mm | Seal: UU double seal (standard, included) | Basic Dynamic Load Rating C: 5.33 kN | Basic Static Load Rating C0: 6.78 kN | Max Allowable Load F0 (cylindrical): 5.81 kN | Max Allowable Load F0 (spherical): 4.7 kN | Track Load Capacity: 1.67 kN | Limit Speed: 11900 min⁻¹ | Mass: 43.0 g | Options: R=spherical outer ring | Spherical radius: R500 | Note: Plug installed on delivery; cage roller only | ||
| CF-SFU-10-1 | THK Cam Follower CF-SFU-10-1 (simple mount), d=10mm, D=26mm, C=5.33kN | THK | Stud Diameter (d): 10 mm | Outer Diameter (D): 26 mm | Outer Ring Width (C): 12 mm | Total Length (B): 33 mm | Eccentricity (e): 0.5 mm | Mounting Hole (H7): Ø10 mm | Shoulder (t): 20 mm | Shoulder (f): 15 mm | Seal: UU double seal (standard, included) | Basic Dynamic Load Rating C: 5.33 kN | Basic Static Load Rating C0: 6.78 kN | Max Allowable Load F0 (cylindrical): 5.81 kN | Max Allowable Load F0 (spherical): 5.49 kN | Track Load Capacity: 2.06 kN | Limit Speed: 11900 min⁻¹ | Mass: 58.5 g | Options: R=spherical outer ring | Spherical radius: R500 | Note: Plug installed on delivery; cage roller only | ||
| CF-SFU-12 | THK Cam Follower CF-SFU-12 (simple mount), d=12mm, D=30mm, C=7.87kN | THK | Stud Diameter (d): 12 mm | Outer Diameter (D): 30 mm | Outer Ring Width (C): 14 mm | Total Length (B): 35 mm | Eccentricity (e): 1.0 mm | Mounting Hole (H7): Ø12 mm | Shoulder (t): 20 mm | Shoulder (f): 20 mm | Seal: UU double seal (standard, included) | Basic Dynamic Load Rating C: 7.87 kN | Basic Static Load Rating C0: 9.79 kN | Max Allowable Load F0 (cylindrical): 9.37 kN | Max Allowable Load F0 (spherical): 7.06 kN | Track Load Capacity: 2.45 kN | Limit Speed: 9800 min⁻¹ | Mass: 93.0 g | Options: R=spherical outer ring | Spherical radius: R500 | Note: Plug installed on delivery; cage roller only | ||
| CF-SFU-12-1 | THK Cam Follower CF-SFU-12-1 (simple mount), d=12mm, D=32mm, C=7.87kN | THK | Stud Diameter (d): 12 mm | Outer Diameter (D): 32 mm | Outer Ring Width (C): 14 mm | Total Length (B): 35 mm | Eccentricity (e): 1.0 mm | Mounting Hole (H7): Ø12 mm | Shoulder (t): 20 mm | Shoulder (f): 20 mm | Seal: UU double seal (standard, included) | Basic Dynamic Load Rating C: 7.87 kN | Basic Static Load Rating C0: 9.79 kN | Max Allowable Load F0 (cylindrical): 9.37 kN | Max Allowable Load F0 (spherical): 7.45 kN | Track Load Capacity: 2.74 kN | Limit Speed: 9800 min⁻¹ | Mass: 103.0 g | Options: R=spherical outer ring | Spherical radius: R500 | Note: Plug installed on delivery; cage roller only | ||
| CF-SFU-16 | THK Cam Follower CF-SFU-16 (simple mount), d=16mm, D=35mm, C=12.0kN | THK | Stud Diameter (d): 16 mm | Outer Diameter (D): 35 mm | Outer Ring Width (C): 18 mm | Total Length (B): 44.5 mm | Eccentricity (e): 1.0 mm | Mounting Hole (H7): Ø16 mm | Shoulder (t): 25 mm | Shoulder (f): 24 mm | Seal: UU double seal (standard, included) | Basic Dynamic Load Rating C: 12.0 kN | Basic Static Load Rating C0: 18.3 kN | Max Allowable Load F0 (cylindrical): 17.3 kN | Max Allowable Load F0 (spherical): 11.2 kN | Track Load Capacity: 3.14 kN | Limit Speed: 7000 min⁻¹ | Mass: 163.5 g | Options: R=spherical outer ring | Spherical radius: R500 | Note: Plug installed on delivery; cage roller only | ||
| CF-SFU-18 | THK Cam Follower CF-SFU-18 (simple mount), d=18mm, D=40mm, C=14.7kN | THK | Stud Diameter (d): 18 mm | Outer Diameter (D): 40 mm | Outer Ring Width (C): 20 mm | Total Length (B): 46.5 mm | Eccentricity (e): 1.0 mm | Mounting Hole (H7): Ø18 mm | Shoulder (t): 25 mm | Shoulder (f): 26 mm | Seal: UU double seal (standard, included) | Basic Dynamic Load Rating C: 14.7 kN | Basic Static Load Rating C0: 25.2 kN | Max Allowable Load F0 (cylindrical): 26.1 kN | Max Allowable Load F0 (spherical): 14.4 kN | Track Load Capacity: 3.72 kN | Limit Speed: 5950 min⁻¹ | Mass: 235.0 g | Options: R=spherical outer ring | Spherical radius: R500 | Note: Plug installed on delivery; cage roller only | ||
| CF-SFU-20 | THK Cam Follower CF-SFU-20 (simple mount), d=20mm, D=52mm, C=20.7kN | THK | Stud Diameter (d): 20 mm | Outer Diameter (D): 52 mm | Outer Ring Width (C): 24 mm | Total Length (B): 50.5 mm | Eccentricity (e): 1.0 mm | Mounting Hole (H7): Ø20 mm | Shoulder (t): 25 mm | Shoulder (f): 36 mm | Seal: UU double seal (standard, included) | Basic Dynamic Load Rating C: 20.7 kN | Basic Static Load Rating C0: 34.8 kN | Max Allowable Load F0 (cylindrical): 32.1 kN | Max Allowable Load F0 (spherical): 23.2 kN | Track Load Capacity: 8.23 kN | Limit Speed: 4900 min⁻¹ | Mass: 436.0 g | Options: R=spherical outer ring | Spherical radius: R1000 | Note: Plug installed on delivery; cage roller only | ||
| CF-SFU-20-1 | THK Cam Follower CF-SFU-20-1 (simple mount), d=20mm, D=47mm, C=20.7kN | THK | Stud Diameter (d): 20 mm | Outer Diameter (D): 47 mm | Outer Ring Width (C): 24 mm | Total Length (B): 50.5 mm | Eccentricity (e): 1.0 mm | Mounting Hole (H7): Ø20 mm | Shoulder (t): 25 mm | Shoulder (f): 36 mm | Seal: UU double seal (standard, included) | Basic Dynamic Load Rating C: 20.7 kN | Basic Static Load Rating C0: 34.8 kN | Max Allowable Load F0 (cylindrical): 32.1 kN | Max Allowable Load F0 (spherical): 21.0 kN | Track Load Capacity: 7.15 kN | Limit Speed: 4900 min⁻¹ | Mass: 361.0 g | Options: R=spherical outer ring | Spherical radius: R1000 | Note: Plug installed on delivery; cage roller only |
