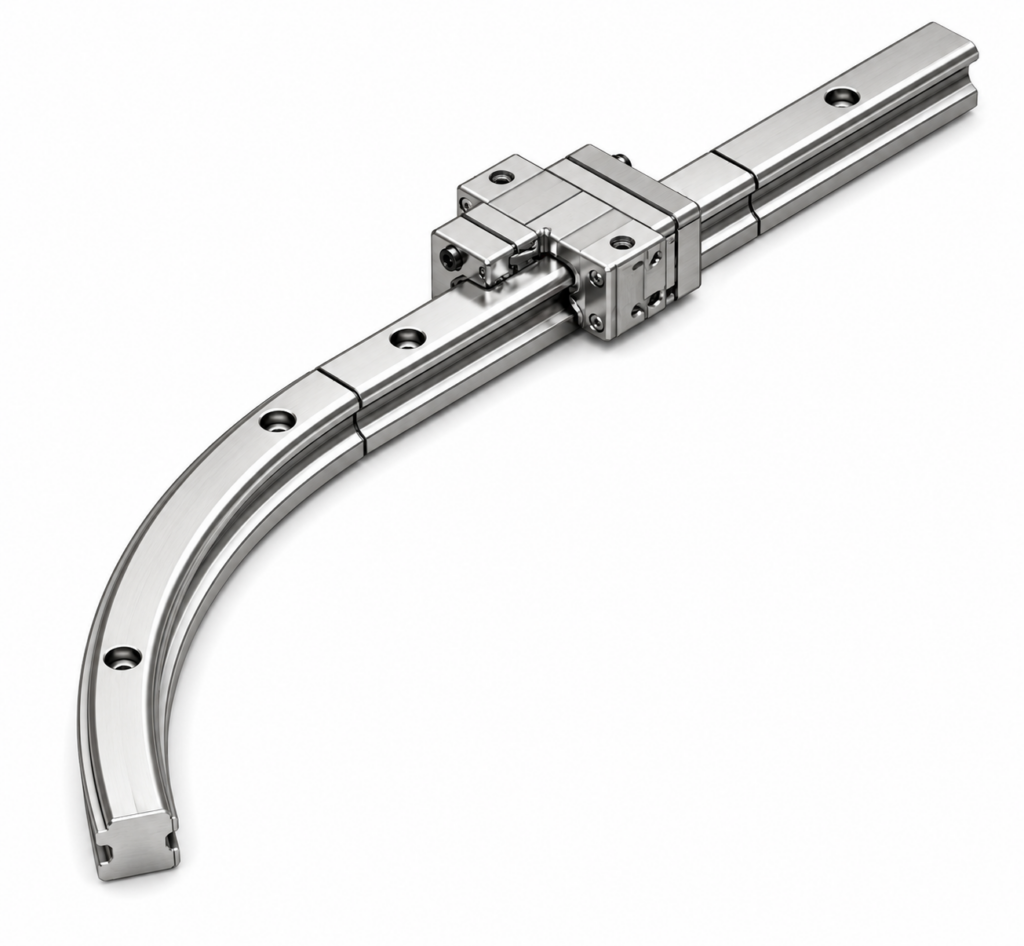

[THK] — HMG Straight-Curve LM Guide Block (HSR + HCR Combined, Continuous Motion)
Family ID: THK-HMG
Straight-curve type LM Guide. Combines HSR linear and HCR R-guide technology. One block type for continuous straight and curved motion. Free layout design: O / U / L / S shapes. Smooth transition between straight and curved sections — ideal for assembly/conveyor lines.
5 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| HMG-15A | HMG 15A LM Block H24×W47×L48mm | THK | Type: Straight-Curve LM Guide Block | Series: HMG | Model: HMG 15A | Height M: 24 mm | Width W: 47 mm | Length L: 48 mm | Combined Dynamic Load C: 2.56 kN | Straight Dynamic Load C: 4.23 kN | Straight Static Load C0: 0.44 kN | Layout: O/U/L/S shapes available | Application: Assembly/Conveyor/Inspection line | Brand: THK | ||
| HMG-25A | HMG 25A LM Block H36×W70×L62.2mm | THK | Type: Straight-Curve LM Guide Block | Series: HMG | Model: HMG 25A | Height M: 36 mm | Width W: 70 mm | Length L: 62.2 mm | Combined Dynamic Load C: 9.41 kN | Straight Dynamic Load C: 10.8 kN | Straight Static Load C0: 6.7 kN | Layout: O/U/L/S shapes available | Application: Assembly/Conveyor/Inspection line | Brand: THK | ||
| HMG-35A | HMG 35A LM Block H48×W100×L80.6mm | THK | Type: Straight-Curve LM Guide Block | Series: HMG | Model: HMG 35A | Height M: 48 mm | Width W: 100 mm | Length L: 80.6 mm | Combined Dynamic Load C: 17.7 kN | Straight Dynamic Load C: 19 kN | Straight Static Load C0: 11.5 kN | Layout: O/U/L/S shapes available | Application: Assembly/Conveyor/Inspection line | Brand: THK | ||
| HMG-45A | HMG 45A LM Block H60×W120×L107.6mm | THK | Type: Straight-Curve LM Guide Block | Series: HMG | Model: HMG 45A | Height M: 60 mm | Width W: 120 mm | Length L: 107.6 mm | Combined Dynamic Load C: 28.1 kN | Straight Dynamic Load C: 29.7 kN | Straight Static Load C0: 18.2 kN | Layout: O/U/L/S shapes available | Application: Assembly/Conveyor/Inspection line | Brand: THK | ||
| HMG-65A | HMG 65A LM Block H90×W170×L144.4mm | THK | Type: Straight-Curve LM Guide Block | Series: HMG | Model: HMG 65A | Height M: 90 mm | Width W: 170 mm | Length L: 144.4 mm | Combined Dynamic Load C: 66.2 kN | Straight Dynamic Load C: 66.7 kN | Straight Static Load C0: 36.2 kN | Layout: O/U/L/S shapes available | Application: Assembly/Conveyor/Inspection line | Brand: THK |
