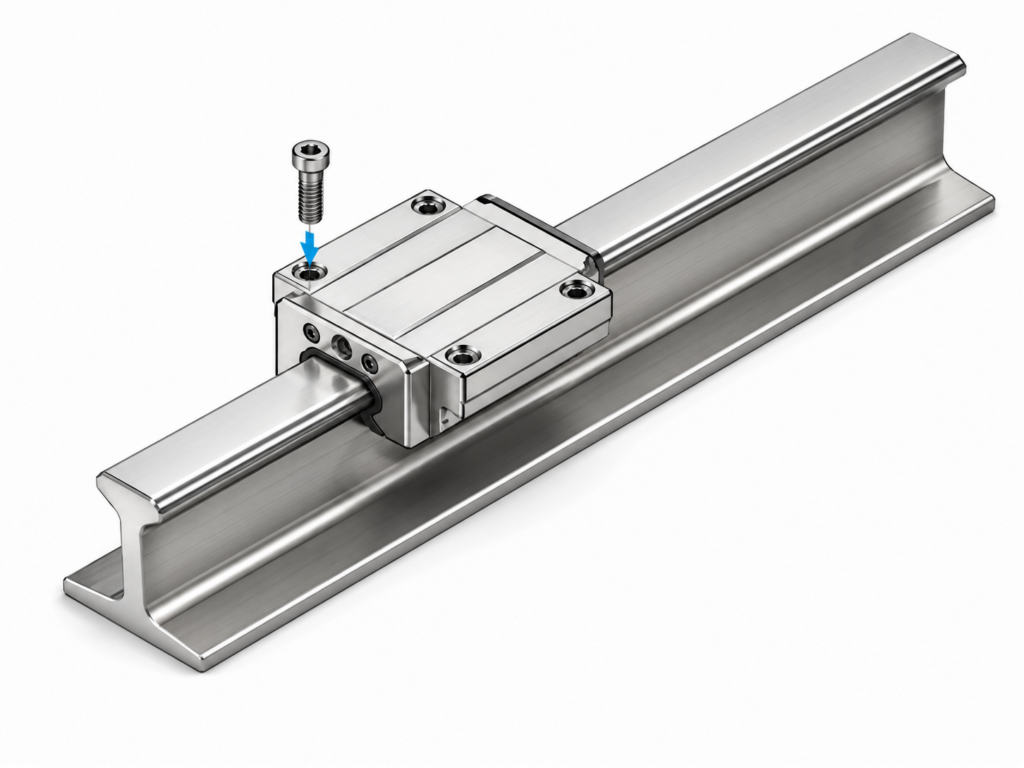

[THK] — JR-A/B/R Structural Rail LM Guide Block (4-Direction Equal Load)

Family ID: THK-JR-ABR

Structural rail type LM Guide. A type: flange tapped / B type: flange through-holes / R type: narrow width tapped. 4-direction equal load with 45° ball contact angle. Rail center is thin — absorbs parallelism error between two rails. High bending rigidity rail cross-section usable as structural member.

12 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code	Description	Brand	Spec
JR-25A	JR 25A LM Block H61×W70×L83.1mm	THK	Type: Structural Rail LM Guide Block \| Series: JR \| Model: JR 25A \| Height M: 61 mm \| Width W: 70 mm \| Length L: 83.1 mm \| Max Rail Length: 2000 mm \| Dynamic Load C: 27.6 kN \| Static Load C0: 36.4 kN \| Mount: Flange tapped \| Load Type: 4-Direction Equal \| Rail: Structural / High Bending Rigidity \| Brand: THK
JR-25B	JR 25B LM Block H61×W70×L83.1mm	THK	Type: Structural Rail LM Guide Block \| Series: JR \| Model: JR 25B \| Height M: 61 mm \| Width W: 70 mm \| Length L: 83.1 mm \| Max Rail Length: 2000 mm \| Dynamic Load C: 27.6 kN \| Static Load C0: 36.4 kN \| Mount: Flange through-holes \| Load Type: 4-Direction Equal \| Rail: Structural / High Bending Rigidity \| Brand: THK
JR-25R	JR 25R LM Block H65×W48×L83.1mm	THK	Type: Structural Rail LM Guide Block \| Series: JR \| Model: JR 25R \| Height M: 65 mm \| Width W: 48 mm \| Length L: 83.1 mm \| Max Rail Length: 2000 mm \| Dynamic Load C: 27.6 kN \| Static Load C0: 36.4 kN \| Mount: Narrow width tapped \| Load Type: 4-Direction Equal \| Rail: Structural / High Bending Rigidity \| Brand: THK
JR-35A	JR 35A LM Block H73×W100×L113.6mm	THK	Type: Structural Rail LM Guide Block \| Series: JR \| Model: JR 35A \| Height M: 73 mm \| Width W: 100 mm \| Length L: 113.6 mm \| Max Rail Length: 4000 mm \| Dynamic Load C: 53.9 kN \| Static Load C0: 70.2 kN \| Mount: Flange tapped \| Load Type: 4-Direction Equal \| Rail: Structural / High Bending Rigidity \| Brand: THK
JR-35B	JR 35B LM Block H73×W100×L113.6mm	THK	Type: Structural Rail LM Guide Block \| Series: JR \| Model: JR 35B \| Height M: 73 mm \| Width W: 100 mm \| Length L: 113.6 mm \| Max Rail Length: 4000 mm \| Dynamic Load C: 53.9 kN \| Static Load C0: 70.2 kN \| Mount: Flange through-holes \| Load Type: 4-Direction Equal \| Rail: Structural / High Bending Rigidity \| Brand: THK
JR-35R	JR 35R LM Block H80×W70×L113.6mm	THK	Type: Structural Rail LM Guide Block \| Series: JR \| Model: JR 35R \| Height M: 80 mm \| Width W: 70 mm \| Length L: 113.6 mm \| Max Rail Length: 4000 mm \| Dynamic Load C: 53.9 kN \| Static Load C0: 70.2 kN \| Mount: Narrow width tapped \| Load Type: 4-Direction Equal \| Rail: Structural / High Bending Rigidity \| Brand: THK
JR-45A	JR 45A LM Block H92×W120×L145mm	THK	Type: Structural Rail LM Guide Block \| Series: JR \| Model: JR 45A \| Height M: 92 mm \| Width W: 120 mm \| Length L: 145 mm \| Max Rail Length: 4000 mm \| Dynamic Load C: 82.2 kN \| Static Load C0: 101 kN \| Mount: Flange tapped \| Load Type: 4-Direction Equal \| Rail: Structural / High Bending Rigidity \| Brand: THK
JR-45B	JR 45B LM Block H92×W120×L145mm	THK	Type: Structural Rail LM Guide Block \| Series: JR \| Model: JR 45B \| Height M: 92 mm \| Width W: 120 mm \| Length L: 145 mm \| Max Rail Length: 4000 mm \| Dynamic Load C: 82.2 kN \| Static Load C0: 101 kN \| Mount: Flange through-holes \| Load Type: 4-Direction Equal \| Rail: Structural / High Bending Rigidity \| Brand: THK
JR-45R	JR 45R LM Block H102×W86×L145mm	THK	Type: Structural Rail LM Guide Block \| Series: JR \| Model: JR 45R \| Height M: 102 mm \| Width W: 86 mm \| Length L: 145 mm \| Max Rail Length: 4000 mm \| Dynamic Load C: 82.2 kN \| Static Load C0: 101 kN \| Mount: Narrow width tapped \| Load Type: 4-Direction Equal \| Rail: Structural / High Bending Rigidity \| Brand: THK
JR-55A	JR 55A LM Block H114×W140×L165mm	THK	Type: Structural Rail LM Guide Block \| Series: JR \| Model: JR 55A \| Height M: 114 mm \| Width W: 140 mm \| Length L: 165 mm \| Max Rail Length: 4000 mm \| Dynamic Load C: 121 kN \| Static Load C0: 146 kN \| Mount: Flange tapped \| Load Type: 4-Direction Equal \| Rail: Structural / High Bending Rigidity \| Brand: THK
JR-55B	JR 55B LM Block H114×W140×L165mm	THK	Type: Structural Rail LM Guide Block \| Series: JR \| Model: JR 55B \| Height M: 114 mm \| Width W: 140 mm \| Length L: 165 mm \| Max Rail Length: 4000 mm \| Dynamic Load C: 121 kN \| Static Load C0: 146 kN \| Mount: Flange through-holes \| Load Type: 4-Direction Equal \| Rail: Structural / High Bending Rigidity \| Brand: THK
JR-55R	JR 55R LM Block H124×W100×L165mm	THK	Type: Structural Rail LM Guide Block \| Series: JR \| Model: JR 55R \| Height M: 124 mm \| Width W: 100 mm \| Length L: 165 mm \| Max Rail Length: 4000 mm \| Dynamic Load C: 121 kN \| Static Load C0: 146 kN \| Mount: Narrow width tapped \| Load Type: 4-Direction Equal \| Rail: Structural / High Bending Rigidity \| Brand: THK
