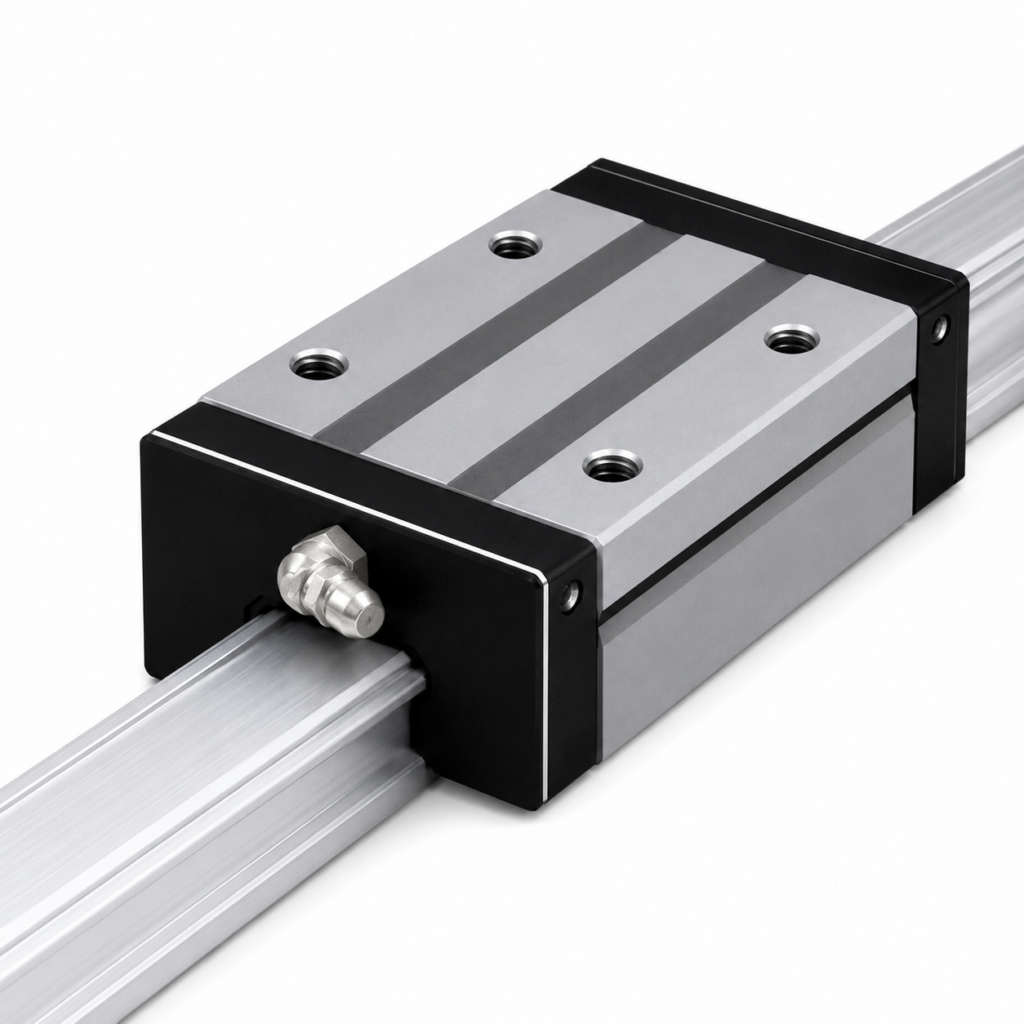

[THK] — SSR-XW/XWM LM Guide Block (Narrow Width, Ball Retainer, Radial Load)
Family ID: THK-SSR-XW
Ball Retainer Type LM Guide with strong radial load ball contact structure. Narrow block width (W) with tapped mounting holes. Low profile compact type. THK Circular Arc groove (DF structure) for high-precision smooth motion.
10 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| SSR-15XW | SSR 15XW LM Block H24×W34×L56.9mm | THK | Type: LM Guide Block | Series: SSR | Block Type: 15XW | Height M: 24 mm | Width W: 34 mm | Length L: 56.9 mm | Max Rail Length: 3000 mm | Dynamic Load C: 14.7 kN | Static Load C0: 16.5 kN | Structure: Ball Retainer DF | Load Type: Radial | Brand: THK | ||
| SSR-15XWM | SSR 15XWM LM Block H24×W34×L56.9mm | THK | Type: LM Guide Block | Series: SSR | Block Type: 15XWM | Height M: 24 mm | Width W: 34 mm | Length L: 56.9 mm | Max Rail Length: 3000 mm | Dynamic Load C: 14.7 kN | Static Load C0: 16.5 kN | Structure: Ball Retainer DF | Load Type: Radial | Brand: THK | ||
| SSR-20XW | SSR 20XW LM Block H28×W42×L66.5mm | THK | Type: LM Guide Block | Series: SSR | Block Type: 20XW | Height M: 28 mm | Width W: 42 mm | Length L: 66.5 mm | Max Rail Length: 3000 mm | Dynamic Load C: 19.6 kN | Static Load C0: 23.4 kN | Structure: Ball Retainer DF | Load Type: Radial | Brand: THK | ||
| SSR-20XWM | SSR 20XWM LM Block H28×W42×L66.5mm | THK | Type: LM Guide Block | Series: SSR | Block Type: 20XWM | Height M: 28 mm | Width W: 42 mm | Length L: 66.5 mm | Max Rail Length: 3000 mm | Dynamic Load C: 19.6 kN | Static Load C0: 23.4 kN | Structure: Ball Retainer DF | Load Type: Radial | Brand: THK | ||
| SSR-25XW | SSR 25XW LM Block H33×W48×L83mm | THK | Type: LM Guide Block | Series: SSR | Block Type: 25XW | Height M: 33 mm | Width W: 48 mm | Length L: 83 mm | Max Rail Length: 3000 mm | Dynamic Load C: 31.5 kN | Static Load C0: 36.4 kN | Structure: Ball Retainer DF | Load Type: Radial | Brand: THK | ||
| SSR-25XWM | SSR 25XWM LM Block H33×W48×L83mm | THK | Type: LM Guide Block | Series: SSR | Block Type: 25XWM | Height M: 33 mm | Width W: 48 mm | Length L: 83 mm | Max Rail Length: 3000 mm | Dynamic Load C: 31.5 kN | Static Load C0: 36.4 kN | Structure: Ball Retainer DF | Load Type: Radial | Brand: THK | ||
| SSR-30XW | SSR 30XW LM Block H42×W60×L97mm | THK | Type: LM Guide Block | Series: SSR | Block Type: 30XW | Height M: 42 mm | Width W: 60 mm | Length L: 97 mm | Max Rail Length: 3000 mm | Dynamic Load C: 46.5 kN | Static Load C0: 52.7 kN | Structure: Ball Retainer DF | Load Type: Radial | Brand: THK | ||
| SSR-30XWM | SSR 30XWM LM Block H42×W60×L97mm | THK | Type: LM Guide Block | Series: SSR | Block Type: 30XWM | Height M: 42 mm | Width W: 60 mm | Length L: 97 mm | Max Rail Length: 3000 mm | Dynamic Load C: 46.5 kN | Static Load C0: 52.7 kN | Structure: Ball Retainer DF | Load Type: Radial | Brand: THK | ||
| SSR-35XW | SSR 35XW LM Block H48×W70×L110.9mm | THK | Type: LM Guide Block | Series: SSR | Block Type: 35XW | Height M: 48 mm | Width W: 70 mm | Length L: 110.9 mm | Max Rail Length: 3000 mm | Dynamic Load C: 64.6 kN | Static Load C0: 71.6 kN | Structure: Ball Retainer DF | Load Type: Radial | Brand: THK | ||
| SSR-35XWM | SSR 35XWM LM Block H48×W70×L110.9mm | THK | Type: LM Guide Block | Series: SSR | Block Type: 35XWM | Height M: 48 mm | Width W: 70 mm | Length L: 110.9 mm | Max Rail Length: 3000 mm | Dynamic Load C: 64.6 kN | Static Load C0: 71.6 kN | Structure: Ball Retainer DF | Load Type: Radial | Brand: THK |
