Area Sensors

1 product area-sensors ✕

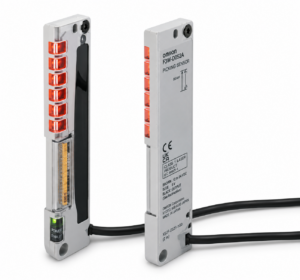

[OMRON] — F3W-D052 Picking Sensor (Through-beam, 5 Beams, 100mm Width, NPN/PNP)

OMRON F3W-D Series compact picking sensor. Through-beam, 5 beams, 25mm gap, 100mm sensing width. 3 m sensing distance, infrared LED. Resistant to mutual interference. NPN and PNP output. External indicator option (P suffix). Pre-wired 5 m (A/C suffix) and pre-wired connector 2 m (B/D suffix). Mounting brackets F39-L10/L11 and protective bracket F39-L12 sold separately.

Brand: Omron Category: Area Sensors 8 models

Product Code	Description	Brand	Spec
F3W-D052A	Picking sensor NPN 5m Without external indicator	OMRON	Sensing Distance: 3 m \| Light Source: Infrared LED \| Sensing Method: Through-beam multi-beam (5 beams) \| Beam Gap: 25 mm \| Sensing Width: 100 mm \| Beams: 5 \| Output: NPN open collector \| External Indicator: Without external indicator \| Connection: Pre-wired 5 m
F3W-D052B	Picking sensor NPN connector 2m Without external indicator	OMRON	Sensing Distance: 3 m \| Light Source: Infrared LED \| Sensing Method: Through-beam multi-beam (5 beams) \| Beam Gap: 25 mm \| Sensing Width: 100 mm \| Beams: 5 \| Output: NPN open collector \| External Indicator: Without external indicator \| Connection: Pre-wired Connector 2 m \| Required Cable: Requires XS2F-D521-DG0-A (2m) / XS2F-D521-GG0-A (5m) straight or XS2F-D522 L-shape (sold separately; order 2 cables per set)
F3W-D052AP	Picking sensor NPN 5m With external indicator	OMRON	Sensing Distance: 3 m \| Light Source: Infrared LED \| Sensing Method: Through-beam multi-beam (5 beams) \| Beam Gap: 25 mm \| Sensing Width: 100 mm \| Beams: 5 \| Output: NPN open collector \| External Indicator: With external indicator \| Connection: Pre-wired 5 m
F3W-D052BP	Picking sensor NPN connector 2m With external indicator	OMRON	Sensing Distance: 3 m \| Light Source: Infrared LED \| Sensing Method: Through-beam multi-beam (5 beams) \| Beam Gap: 25 mm \| Sensing Width: 100 mm \| Beams: 5 \| Output: NPN open collector \| External Indicator: With external indicator \| Connection: Pre-wired Connector 2 m \| Required Cable: Requires XS2F-D521-DG0-A (2m) / XS2F-D521-GG0-A (5m) straight or XS2F-D522 L-shape (sold separately; order 2 cables per set)
F3W-D052C	Picking sensor PNP 5m Without external indicator	OMRON	Sensing Distance: 3 m \| Light Source: Infrared LED \| Sensing Method: Through-beam multi-beam (5 beams) \| Beam Gap: 25 mm \| Sensing Width: 100 mm \| Beams: 5 \| Output: PNP open collector \| External Indicator: Without external indicator \| Connection: Pre-wired 5 m
F3W-D052D	Picking sensor PNP connector 2m Without external indicator	OMRON	Sensing Distance: 3 m \| Light Source: Infrared LED \| Sensing Method: Through-beam multi-beam (5 beams) \| Beam Gap: 25 mm \| Sensing Width: 100 mm \| Beams: 5 \| Output: PNP open collector \| External Indicator: Without external indicator \| Connection: Pre-wired Connector 2 m \| Required Cable: Requires XS2F-D521-DG0-A (2m) / XS2F-D521-GG0-A (5m) straight or XS2F-D522 L-shape (sold separately; order 2 cables per set)
F3W-D052CP	Picking sensor PNP 5m With external indicator	OMRON	Sensing Distance: 3 m \| Light Source: Infrared LED \| Sensing Method: Through-beam multi-beam (5 beams) \| Beam Gap: 25 mm \| Sensing Width: 100 mm \| Beams: 5 \| Output: PNP open collector \| External Indicator: With external indicator \| Connection: Pre-wired 5 m
F3W-D052DP	Picking sensor PNP connector 2m With external indicator	OMRON	Sensing Distance: 3 m \| Light Source: Infrared LED \| Sensing Method: Through-beam multi-beam (5 beams) \| Beam Gap: 25 mm \| Sensing Width: 100 mm \| Beams: 5 \| Output: PNP open collector \| External Indicator: With external indicator \| Connection: Pre-wired Connector 2 m \| Required Cable: Requires XS2F-D521-DG0-A (2m) / XS2F-D521-GG0-A (5m) straight or XS2F-D522 L-shape (sold separately; order 2 cables per set)
