Cylinders
![[SMC] — CDQ2F80 Compact Cylinder](https://img.prosourcemro.com/2026/04/CDQ-300x293.png)
Compact pneumatic cylinder, ø80mm bore, double-acting single-rod, Rod-side flange mounting, Rc port, auto-switch ready with built-in magnet. Space-saving thin profile for automation applications.
Compact pneumatic cylinder, ø80mm bore, double-acting single-rod, Rod-side flange mounting, Rc port, auto-switch ready with built-in magnet. Space-saving thin profile for automation applications.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| CDQ2F80-10DZ | ø80mm bore × 10mm stroke, double-acting | SMC | Stroke: 10 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc | |
| CDQ2F80-15DZ | ø80mm bore × 15mm stroke, double-acting | SMC | Stroke: 15 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc | |
| CDQ2F80-20DZ | ø80mm bore × 20mm stroke, double-acting | SMC | Stroke: 20 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc | |
| CDQ2F80-25DZ | ø80mm bore × 25mm stroke, double-acting | SMC | Stroke: 25 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc | |
| CDQ2F80-30DZ | ø80mm bore × 30mm stroke, double-acting | SMC | Stroke: 30 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc | |
| CDQ2F80-35DZ | ø80mm bore × 35mm stroke, double-acting | SMC | Stroke: 35 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc | |
| CDQ2F80-40DZ | ø80mm bore × 40mm stroke, double-acting | SMC | Stroke: 40 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc | |
| CDQ2F80-45DZ | ø80mm bore × 45mm stroke, double-acting | SMC | Stroke: 45 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc | |
| CDQ2F80-50DZ | ø80mm bore × 50mm stroke, double-acting | SMC | Stroke: 50 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc | |
| CDQ2F80-75DZ | ø80mm bore × 75mm stroke, double-acting | SMC | Stroke: 75 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc | |
| CDQ2F80-100DZ | ø80mm bore × 100mm stroke, double-acting | SMC | Stroke: 100 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc |

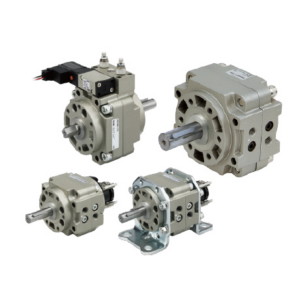

![[SMC] — CDRB1BW100 Vane Rotary Actuator (with magnet, large size)](https://img.prosourcemro.com/2026/04/crb1-300x293.png)
SMC vane-type rotary actuator, large size 100 (CRB1 series). Mount type: Basic mount. Shaft type: Double shaft (long shaft Key + chamfer). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 1.0 MPa, proof pressure: 1.5 MPa, min working pressure: 0.15 MPa. Allowable shaft load: radial 588 N, thrust 539 N. Port size: Rc 1/4 (body side or axial). Port thread: Rc (G/NPT available on request). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/Z/Y/K/S/T/X), semi-standard angles (190°/280°), alternative case configurations (clean spec 10-, no winter/fluorine 20-, solenoid valve mount CVRB1), and ordered specifications (XA1-XA60 simple made-to-order, XC1-XC30 full made-to-order) available on request.
SMC vane-type rotary actuator, large size 100 (CRB1 series). Mount type: Basic mount. Shaft type: Double shaft (long shaft Key + chamfer). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 1.0 MPa, proof pressure: 1.5 MPa, min working pressure: 0.15 MPa. Allowable shaft load: radial 588 N, thrust 539 N. Port size: Rc 1/4 (body side or axial). Port thread: Rc (G/NPT available on request). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/Z/Y/K/S/T/X), semi-standard angles (190°/280°), alternative case configurations (clean spec 10-, no winter/fluorine 20-, solenoid valve mount CVRB1), and ordered specifications (XA1-XA60 simple made-to-order, XC1-XC30 full made-to-order) available on request.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| CDRB1BW100-90S-M9N | 90° rotation, Single vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 4155 g | |
| CDRB1BW100-90S-M9P | 90° rotation, Single vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 4155 g | |
| CDRB1BW100-90S-M9B | 90° rotation, Single vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 4155 g | |
| CDRB1BW100-90SE-M9N | 90° rotation, Single vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 4155 g | |
| CDRB1BW100-90SE-M9P | 90° rotation, Single vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 4155 g | |
| CDRB1BW100-90SE-M9B | 90° rotation, Single vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 4155 g | |
| CDRB1BW100-180S-M9N | 180° rotation, Single vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 4045 g | |
| CDRB1BW100-180S-M9P | 180° rotation, Single vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 4045 g | |
| CDRB1BW100-180S-M9B | 180° rotation, Single vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 4045 g | |
| CDRB1BW100-180SE-M9N | 180° rotation, Single vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 4045 g | |
| CDRB1BW100-180SE-M9P | 180° rotation, Single vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 4045 g | |
| CDRB1BW100-180SE-M9B | 180° rotation, Single vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 4045 g | |
| CDRB1BW100-270S-M9N | 270° rotation, Single vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3925 g | |
| CDRB1BW100-270S-M9P | 270° rotation, Single vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3925 g | |
| CDRB1BW100-270S-M9B | 270° rotation, Single vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3925 g | |
| CDRB1BW100-270SE-M9N | 270° rotation, Single vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3925 g | |
| CDRB1BW100-270SE-M9P | 270° rotation, Single vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3925 g | |
| CDRB1BW100-270SE-M9B | 270° rotation, Single vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3925 g | |
| CDRB1BW100-90D-M9N | 90° rotation, Double vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 4315 g | |
| CDRB1BW100-90D-M9P | 90° rotation, Double vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 4315 g | |
| CDRB1BW100-90D-M9B | 90° rotation, Double vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 4315 g | |
| CDRB1BW100-90DE-M9N | 90° rotation, Double vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 4315 g | |
| CDRB1BW100-90DE-M9P | 90° rotation, Double vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 4315 g | |
| CDRB1BW100-90DE-M9B | 90° rotation, Double vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 4315 g | |
| CDRB1BW100-100D-M9N | 100° rotation, Double vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 4265 g | |
| CDRB1BW100-100D-M9P | 100° rotation, Double vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 4265 g | |
| CDRB1BW100-100D-M9B | 100° rotation, Double vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 4265 g | |
| CDRB1BW100-100DE-M9N | 100° rotation, Double vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 4265 g | |
| CDRB1BW100-100DE-M9P | 100° rotation, Double vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 4265 g | |
| CDRB1BW100-100DE-M9B | 100° rotation, Double vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 4265 g |
SMC vane-type rotary actuator, large size 50 (CRB1 series). Mount type: Basic mount. Shaft type: Double shaft (long shaft Key + chamfer). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 1.0 MPa, proof pressure: 1.5 MPa, min working pressure: 0.15 MPa. Allowable shaft load: radial 245 N, thrust 196 N. Port size: Rc 1/8 (body side or axial). Port thread: Rc (G/NPT available on request). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/Z/Y/K/S/T/X), semi-standard angles (190°/280°), alternative case configurations (clean spec 10-, no winter/fluorine 20-, solenoid valve mount CVRB1), and ordered specifications (XA1-XA60 simple made-to-order, XC1-XC30 full made-to-order) available on request.
SMC vane-type rotary actuator, large size 50 (CRB1 series). Mount type: Basic mount. Shaft type: Double shaft (long shaft Key + chamfer). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 1.0 MPa, proof pressure: 1.5 MPa, min working pressure: 0.15 MPa. Allowable shaft load: radial 245 N, thrust 196 N. Port size: Rc 1/8 (body side or axial). Port thread: Rc (G/NPT available on request). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/Z/Y/K/S/T/X), semi-standard angles (190°/280°), alternative case configurations (clean spec 10-, no winter/fluorine 20-, solenoid valve mount CVRB1), and ordered specifications (XA1-XA60 simple made-to-order, XC1-XC30 full made-to-order) available on request.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| CDRB1BW50-90S-M9N | 90° rotation, Single vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 875 g | |
| CDRB1BW50-90S-M9P | 90° rotation, Single vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 875 g | |
| CDRB1BW50-90S-M9B | 90° rotation, Single vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 875 g | |
| CDRB1BW50-90SE-M9N | 90° rotation, Single vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 875 g | |
| CDRB1BW50-90SE-M9P | 90° rotation, Single vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 875 g | |
| CDRB1BW50-90SE-M9B | 90° rotation, Single vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 875 g | |
| CDRB1BW50-180S-M9N | 180° rotation, Single vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 855 g | |
| CDRB1BW50-180S-M9P | 180° rotation, Single vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 855 g | |
| CDRB1BW50-180S-M9B | 180° rotation, Single vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 855 g | |
| CDRB1BW50-180SE-M9N | 180° rotation, Single vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 855 g | |
| CDRB1BW50-180SE-M9P | 180° rotation, Single vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 855 g | |
| CDRB1BW50-180SE-M9B | 180° rotation, Single vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 855 g | |
| CDRB1BW50-270S-M9N | 270° rotation, Single vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 835 g | |
| CDRB1BW50-270S-M9P | 270° rotation, Single vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 835 g | |
| CDRB1BW50-270S-M9B | 270° rotation, Single vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 835 g | |
| CDRB1BW50-270SE-M9N | 270° rotation, Single vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 835 g | |
| CDRB1BW50-270SE-M9P | 270° rotation, Single vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 835 g | |
| CDRB1BW50-270SE-M9B | 270° rotation, Single vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 835 g | |
| CDRB1BW50-90D-M9N | 90° rotation, Double vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 895 g | |
| CDRB1BW50-90D-M9P | 90° rotation, Double vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 895 g | |
| CDRB1BW50-90D-M9B | 90° rotation, Double vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 895 g | |
| CDRB1BW50-90DE-M9N | 90° rotation, Double vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 895 g | |
| CDRB1BW50-90DE-M9P | 90° rotation, Double vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 895 g | |
| CDRB1BW50-90DE-M9B | 90° rotation, Double vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 895 g | |
| CDRB1BW50-100D-M9N | 100° rotation, Double vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 887 g | |
| CDRB1BW50-100D-M9P | 100° rotation, Double vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 887 g | |
| CDRB1BW50-100D-M9B | 100° rotation, Double vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 887 g | |
| CDRB1BW50-100DE-M9N | 100° rotation, Double vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 887 g | |
| CDRB1BW50-100DE-M9P | 100° rotation, Double vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 887 g | |
| CDRB1BW50-100DE-M9B | 100° rotation, Double vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 887 g |
SMC vane-type rotary actuator, large size 63 (CRB1 series). Mount type: Basic mount. Shaft type: Double shaft (long shaft Key + chamfer). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 1.0 MPa, proof pressure: 1.5 MPa, min working pressure: 0.15 MPa. Allowable shaft load: radial 390 N, thrust 340 N. Port size: Rc 1/8 (body side or axial). Port thread: Rc (G/NPT available on request). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/Z/Y/K/S/T/X), semi-standard angles (190°/280°), alternative case configurations (clean spec 10-, no winter/fluorine 20-, solenoid valve mount CVRB1), and ordered specifications (XA1-XA60 simple made-to-order, XC1-XC30 full made-to-order) available on request.
SMC vane-type rotary actuator, large size 63 (CRB1 series). Mount type: Basic mount. Shaft type: Double shaft (long shaft Key + chamfer). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 1.0 MPa, proof pressure: 1.5 MPa, min working pressure: 0.15 MPa. Allowable shaft load: radial 390 N, thrust 340 N. Port size: Rc 1/8 (body side or axial). Port thread: Rc (G/NPT available on request). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/Z/Y/K/S/T/X), semi-standard angles (190°/280°), alternative case configurations (clean spec 10-, no winter/fluorine 20-, solenoid valve mount CVRB1), and ordered specifications (XA1-XA60 simple made-to-order, XC1-XC30 full made-to-order) available on request.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| CDRB1BW63-90S-M9N | 90° rotation, Single vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1450 g | |
| CDRB1BW63-90S-M9P | 90° rotation, Single vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1450 g | |
| CDRB1BW63-90S-M9B | 90° rotation, Single vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1450 g | |
| CDRB1BW63-90SE-M9N | 90° rotation, Single vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1450 g | |
| CDRB1BW63-90SE-M9P | 90° rotation, Single vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1450 g | |
| CDRB1BW63-90SE-M9B | 90° rotation, Single vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1450 g | |
| CDRB1BW63-180S-M9N | 180° rotation, Single vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1415 g | |
| CDRB1BW63-180S-M9P | 180° rotation, Single vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1415 g | |
| CDRB1BW63-180S-M9B | 180° rotation, Single vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1415 g | |
| CDRB1BW63-180SE-M9N | 180° rotation, Single vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1415 g | |
| CDRB1BW63-180SE-M9P | 180° rotation, Single vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1415 g | |
| CDRB1BW63-180SE-M9B | 180° rotation, Single vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1415 g | |
| CDRB1BW63-270S-M9N | 270° rotation, Single vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1375 g | |
| CDRB1BW63-270S-M9P | 270° rotation, Single vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1375 g | |
| CDRB1BW63-270S-M9B | 270° rotation, Single vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1375 g | |
| CDRB1BW63-270SE-M9N | 270° rotation, Single vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1375 g | |
| CDRB1BW63-270SE-M9P | 270° rotation, Single vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1375 g | |
| CDRB1BW63-270SE-M9B | 270° rotation, Single vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1375 g | |
| CDRB1BW63-90D-M9N | 90° rotation, Double vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1495 g | |
| CDRB1BW63-90D-M9P | 90° rotation, Double vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1495 g | |
| CDRB1BW63-90D-M9B | 90° rotation, Double vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1495 g | |
| CDRB1BW63-90DE-M9N | 90° rotation, Double vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1495 g | |
| CDRB1BW63-90DE-M9P | 90° rotation, Double vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1495 g | |
| CDRB1BW63-90DE-M9B | 90° rotation, Double vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1495 g | |
| CDRB1BW63-100D-M9N | 100° rotation, Double vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1485 g | |
| CDRB1BW63-100D-M9P | 100° rotation, Double vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1485 g | |
| CDRB1BW63-100D-M9B | 100° rotation, Double vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1485 g | |
| CDRB1BW63-100DE-M9N | 100° rotation, Double vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1485 g | |
| CDRB1BW63-100DE-M9P | 100° rotation, Double vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1485 g | |
| CDRB1BW63-100DE-M9B | 100° rotation, Double vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1485 g |
SMC vane-type rotary actuator, large size 80 (CRB1 series). Mount type: Basic mount. Shaft type: Double shaft (long shaft Key + chamfer). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 1.0 MPa, proof pressure: 1.5 MPa, min working pressure: 0.15 MPa. Allowable shaft load: radial 490 N, thrust 490 N. Port size: Rc 1/4 (body side or axial). Port thread: Rc (G/NPT available on request). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/Z/Y/K/S/T/X), semi-standard angles (190°/280°), alternative case configurations (clean spec 10-, no winter/fluorine 20-, solenoid valve mount CVRB1), and ordered specifications (XA1-XA60 simple made-to-order, XC1-XC30 full made-to-order) available on request.
SMC vane-type rotary actuator, large size 80 (CRB1 series). Mount type: Basic mount. Shaft type: Double shaft (long shaft Key + chamfer). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 1.0 MPa, proof pressure: 1.5 MPa, min working pressure: 0.15 MPa. Allowable shaft load: radial 490 N, thrust 490 N. Port size: Rc 1/4 (body side or axial). Port thread: Rc (G/NPT available on request). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/Z/Y/K/S/T/X), semi-standard angles (190°/280°), alternative case configurations (clean spec 10-, no winter/fluorine 20-, solenoid valve mount CVRB1), and ordered specifications (XA1-XA60 simple made-to-order, XC1-XC30 full made-to-order) available on request.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| CDRB1BW80-90S-M9N | 90° rotation, Single vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2165 g | |
| CDRB1BW80-90S-M9P | 90° rotation, Single vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2165 g | |
| CDRB1BW80-90S-M9B | 90° rotation, Single vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2165 g | |
| CDRB1BW80-90SE-M9N | 90° rotation, Single vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2165 g | |
| CDRB1BW80-90SE-M9P | 90° rotation, Single vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2165 g | |
| CDRB1BW80-90SE-M9B | 90° rotation, Single vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2165 g | |
| CDRB1BW80-180S-M9N | 180° rotation, Single vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2105 g | |
| CDRB1BW80-180S-M9P | 180° rotation, Single vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2105 g | |
| CDRB1BW80-180S-M9B | 180° rotation, Single vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2105 g | |
| CDRB1BW80-180SE-M9N | 180° rotation, Single vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2105 g | |
| CDRB1BW80-180SE-M9P | 180° rotation, Single vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2105 g | |
| CDRB1BW80-180SE-M9B | 180° rotation, Single vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2105 g | |
| CDRB1BW80-270S-M9N | 270° rotation, Single vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2045 g | |
| CDRB1BW80-270S-M9P | 270° rotation, Single vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2045 g | |
| CDRB1BW80-270S-M9B | 270° rotation, Single vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2045 g | |
| CDRB1BW80-270SE-M9N | 270° rotation, Single vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2045 g | |
| CDRB1BW80-270SE-M9P | 270° rotation, Single vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2045 g | |
| CDRB1BW80-270SE-M9B | 270° rotation, Single vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2045 g | |
| CDRB1BW80-90D-M9N | 90° rotation, Double vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2215 g | |
| CDRB1BW80-90D-M9P | 90° rotation, Double vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2215 g | |
| CDRB1BW80-90D-M9B | 90° rotation, Double vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2215 g | |
| CDRB1BW80-90DE-M9N | 90° rotation, Double vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2215 g | |
| CDRB1BW80-90DE-M9P | 90° rotation, Double vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2215 g | |
| CDRB1BW80-90DE-M9B | 90° rotation, Double vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2215 g | |
| CDRB1BW80-100D-M9N | 100° rotation, Double vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2195 g | |
| CDRB1BW80-100D-M9P | 100° rotation, Double vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2195 g | |
| CDRB1BW80-100D-M9B | 100° rotation, Double vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2195 g | |
| CDRB1BW80-100DE-M9N | 100° rotation, Double vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2195 g | |
| CDRB1BW80-100DE-M9P | 100° rotation, Double vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2195 g | |
| CDRB1BW80-100DE-M9B | 100° rotation, Double vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Basic mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 2195 g |
SMC vane-type rotary actuator, large size 100 (CRB1 series). Mount type: Foot mount. Shaft type: Double shaft (long shaft Key + chamfer). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 1.0 MPa, proof pressure: 1.5 MPa, min working pressure: 0.15 MPa. Allowable shaft load: radial 588 N, thrust 539 N. Port size: Rc 1/4 (body side or axial). Port thread: Rc (G/NPT available on request). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/Z/Y/K/S/T/X), semi-standard angles (190°/280°), alternative case configurations (clean spec 10-, no winter/fluorine 20-, solenoid valve mount CVRB1), and ordered specifications (XA1-XA60 simple made-to-order, XC1-XC30 full made-to-order) available on request.
SMC vane-type rotary actuator, large size 100 (CRB1 series). Mount type: Foot mount. Shaft type: Double shaft (long shaft Key + chamfer). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 1.0 MPa, proof pressure: 1.5 MPa, min working pressure: 0.15 MPa. Allowable shaft load: radial 588 N, thrust 539 N. Port size: Rc 1/4 (body side or axial). Port thread: Rc (G/NPT available on request). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/Z/Y/K/S/T/X), semi-standard angles (190°/280°), alternative case configurations (clean spec 10-, no winter/fluorine 20-, solenoid valve mount CVRB1), and ordered specifications (XA1-XA60 simple made-to-order, XC1-XC30 full made-to-order) available on request.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| CDRB1LW100-90S-M9N | 90° rotation, Single vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5877 g | |
| CDRB1LW100-90S-M9P | 90° rotation, Single vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5877 g | |
| CDRB1LW100-90S-M9B | 90° rotation, Single vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5877 g | |
| CDRB1LW100-90SE-M9N | 90° rotation, Single vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5877 g | |
| CDRB1LW100-90SE-M9P | 90° rotation, Single vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5877 g | |
| CDRB1LW100-90SE-M9B | 90° rotation, Single vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5877 g | |
| CDRB1LW100-180S-M9N | 180° rotation, Single vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5767 g | |
| CDRB1LW100-180S-M9P | 180° rotation, Single vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5767 g | |
| CDRB1LW100-180S-M9B | 180° rotation, Single vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5767 g | |
| CDRB1LW100-180SE-M9N | 180° rotation, Single vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5767 g | |
| CDRB1LW100-180SE-M9P | 180° rotation, Single vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5767 g | |
| CDRB1LW100-180SE-M9B | 180° rotation, Single vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5767 g | |
| CDRB1LW100-270S-M9N | 270° rotation, Single vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5647 g | |
| CDRB1LW100-270S-M9P | 270° rotation, Single vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5647 g | |
| CDRB1LW100-270S-M9B | 270° rotation, Single vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5647 g | |
| CDRB1LW100-270SE-M9N | 270° rotation, Single vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5647 g | |
| CDRB1LW100-270SE-M9P | 270° rotation, Single vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5647 g | |
| CDRB1LW100-270SE-M9B | 270° rotation, Single vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5647 g | |
| CDRB1LW100-90D-M9N | 90° rotation, Double vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 6037 g | |
| CDRB1LW100-90D-M9P | 90° rotation, Double vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 6037 g | |
| CDRB1LW100-90D-M9B | 90° rotation, Double vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 6037 g | |
| CDRB1LW100-90DE-M9N | 90° rotation, Double vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 6037 g | |
| CDRB1LW100-90DE-M9P | 90° rotation, Double vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 6037 g | |
| CDRB1LW100-90DE-M9B | 90° rotation, Double vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 6037 g | |
| CDRB1LW100-100D-M9N | 100° rotation, Double vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5987 g | |
| CDRB1LW100-100D-M9P | 100° rotation, Double vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5987 g | |
| CDRB1LW100-100D-M9B | 100° rotation, Double vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5987 g | |
| CDRB1LW100-100DE-M9N | 100° rotation, Double vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5987 g | |
| CDRB1LW100-100DE-M9P | 100° rotation, Double vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5987 g | |
| CDRB1LW100-100DE-M9B | 100° rotation, Double vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 100 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5987 g |
SMC vane-type rotary actuator, large size 50 (CRB1 series). Mount type: Foot mount. Shaft type: Double shaft (long shaft Key + chamfer). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 1.0 MPa, proof pressure: 1.5 MPa, min working pressure: 0.15 MPa. Allowable shaft load: radial 245 N, thrust 196 N. Port size: Rc 1/8 (body side or axial). Port thread: Rc (G/NPT available on request). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/Z/Y/K/S/T/X), semi-standard angles (190°/280°), alternative case configurations (clean spec 10-, no winter/fluorine 20-, solenoid valve mount CVRB1), and ordered specifications (XA1-XA60 simple made-to-order, XC1-XC30 full made-to-order) available on request.
SMC vane-type rotary actuator, large size 50 (CRB1 series). Mount type: Foot mount. Shaft type: Double shaft (long shaft Key + chamfer). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 1.0 MPa, proof pressure: 1.5 MPa, min working pressure: 0.15 MPa. Allowable shaft load: radial 245 N, thrust 196 N. Port size: Rc 1/8 (body side or axial). Port thread: Rc (G/NPT available on request). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/Z/Y/K/S/T/X), semi-standard angles (190°/280°), alternative case configurations (clean spec 10-, no winter/fluorine 20-, solenoid valve mount CVRB1), and ordered specifications (XA1-XA60 simple made-to-order, XC1-XC30 full made-to-order) available on request.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| CDRB1LW50-90S-M9N | 90° rotation, Single vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1259 g | |
| CDRB1LW50-90S-M9P | 90° rotation, Single vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1259 g | |
| CDRB1LW50-90S-M9B | 90° rotation, Single vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1259 g | |
| CDRB1LW50-90SE-M9N | 90° rotation, Single vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1259 g | |
| CDRB1LW50-90SE-M9P | 90° rotation, Single vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1259 g | |
| CDRB1LW50-90SE-M9B | 90° rotation, Single vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1259 g | |
| CDRB1LW50-180S-M9N | 180° rotation, Single vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1239 g | |
| CDRB1LW50-180S-M9P | 180° rotation, Single vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1239 g | |
| CDRB1LW50-180S-M9B | 180° rotation, Single vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1239 g | |
| CDRB1LW50-180SE-M9N | 180° rotation, Single vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1239 g | |
| CDRB1LW50-180SE-M9P | 180° rotation, Single vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1239 g | |
| CDRB1LW50-180SE-M9B | 180° rotation, Single vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1239 g | |
| CDRB1LW50-270S-M9N | 270° rotation, Single vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1219 g | |
| CDRB1LW50-270S-M9P | 270° rotation, Single vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1219 g | |
| CDRB1LW50-270S-M9B | 270° rotation, Single vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1219 g | |
| CDRB1LW50-270SE-M9N | 270° rotation, Single vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1219 g | |
| CDRB1LW50-270SE-M9P | 270° rotation, Single vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1219 g | |
| CDRB1LW50-270SE-M9B | 270° rotation, Single vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1219 g | |
| CDRB1LW50-90D-M9N | 90° rotation, Double vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1279 g | |
| CDRB1LW50-90D-M9P | 90° rotation, Double vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1279 g | |
| CDRB1LW50-90D-M9B | 90° rotation, Double vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1279 g | |
| CDRB1LW50-90DE-M9N | 90° rotation, Double vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1279 g | |
| CDRB1LW50-90DE-M9P | 90° rotation, Double vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1279 g | |
| CDRB1LW50-90DE-M9B | 90° rotation, Double vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1279 g | |
| CDRB1LW50-100D-M9N | 100° rotation, Double vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1271 g | |
| CDRB1LW50-100D-M9P | 100° rotation, Double vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1271 g | |
| CDRB1LW50-100D-M9B | 100° rotation, Double vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1271 g | |
| CDRB1LW50-100DE-M9N | 100° rotation, Double vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1271 g | |
| CDRB1LW50-100DE-M9P | 100° rotation, Double vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1271 g | |
| CDRB1LW50-100DE-M9B | 100° rotation, Double vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 50 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 245 N | Allowable thrust load: 196 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 1271 g |
SMC vane-type rotary actuator, large size 63 (CRB1 series). Mount type: Foot mount. Shaft type: Double shaft (long shaft Key + chamfer). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 1.0 MPa, proof pressure: 1.5 MPa, min working pressure: 0.15 MPa. Allowable shaft load: radial 390 N, thrust 340 N. Port size: Rc 1/8 (body side or axial). Port thread: Rc (G/NPT available on request). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/Z/Y/K/S/T/X), semi-standard angles (190°/280°), alternative case configurations (clean spec 10-, no winter/fluorine 20-, solenoid valve mount CVRB1), and ordered specifications (XA1-XA60 simple made-to-order, XC1-XC30 full made-to-order) available on request.
SMC vane-type rotary actuator, large size 63 (CRB1 series). Mount type: Foot mount. Shaft type: Double shaft (long shaft Key + chamfer). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 1.0 MPa, proof pressure: 1.5 MPa, min working pressure: 0.15 MPa. Allowable shaft load: radial 390 N, thrust 340 N. Port size: Rc 1/8 (body side or axial). Port thread: Rc (G/NPT available on request). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/Z/Y/K/S/T/X), semi-standard angles (190°/280°), alternative case configurations (clean spec 10-, no winter/fluorine 20-, solenoid valve mount CVRB1), and ordered specifications (XA1-XA60 simple made-to-order, XC1-XC30 full made-to-order) available on request.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| CDRB1LW63-90S-M9N | 90° rotation, Single vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2235 g | |
| CDRB1LW63-90S-M9P | 90° rotation, Single vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2235 g | |
| CDRB1LW63-90S-M9B | 90° rotation, Single vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2235 g | |
| CDRB1LW63-90SE-M9N | 90° rotation, Single vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2235 g | |
| CDRB1LW63-90SE-M9P | 90° rotation, Single vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2235 g | |
| CDRB1LW63-90SE-M9B | 90° rotation, Single vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2235 g | |
| CDRB1LW63-180S-M9N | 180° rotation, Single vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2200 g | |
| CDRB1LW63-180S-M9P | 180° rotation, Single vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2200 g | |
| CDRB1LW63-180S-M9B | 180° rotation, Single vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2200 g | |
| CDRB1LW63-180SE-M9N | 180° rotation, Single vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2200 g | |
| CDRB1LW63-180SE-M9P | 180° rotation, Single vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2200 g | |
| CDRB1LW63-180SE-M9B | 180° rotation, Single vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2200 g | |
| CDRB1LW63-270S-M9N | 270° rotation, Single vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2160 g | |
| CDRB1LW63-270S-M9P | 270° rotation, Single vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2160 g | |
| CDRB1LW63-270S-M9B | 270° rotation, Single vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2160 g | |
| CDRB1LW63-270SE-M9N | 270° rotation, Single vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2160 g | |
| CDRB1LW63-270SE-M9P | 270° rotation, Single vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2160 g | |
| CDRB1LW63-270SE-M9B | 270° rotation, Single vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2160 g | |
| CDRB1LW63-90D-M9N | 90° rotation, Double vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2280 g | |
| CDRB1LW63-90D-M9P | 90° rotation, Double vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2280 g | |
| CDRB1LW63-90D-M9B | 90° rotation, Double vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2280 g | |
| CDRB1LW63-90DE-M9N | 90° rotation, Double vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2280 g | |
| CDRB1LW63-90DE-M9P | 90° rotation, Double vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2280 g | |
| CDRB1LW63-90DE-M9B | 90° rotation, Double vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2280 g | |
| CDRB1LW63-100D-M9N | 100° rotation, Double vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2270 g | |
| CDRB1LW63-100D-M9P | 100° rotation, Double vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2270 g | |
| CDRB1LW63-100D-M9B | 100° rotation, Double vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2270 g | |
| CDRB1LW63-100DE-M9N | 100° rotation, Double vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2270 g | |
| CDRB1LW63-100DE-M9P | 100° rotation, Double vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2270 g | |
| CDRB1LW63-100DE-M9B | 100° rotation, Double vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 63 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 390 N | Allowable thrust load: 340 N | Port size: Rc 1/8 | Port thread: Rc | Mass: 2270 g |
SMC vane-type rotary actuator, large size 80 (CRB1 series). Mount type: Foot mount. Shaft type: Double shaft (long shaft Key + chamfer). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 1.0 MPa, proof pressure: 1.5 MPa, min working pressure: 0.15 MPa. Allowable shaft load: radial 490 N, thrust 490 N. Port size: Rc 1/4 (body side or axial). Port thread: Rc (G/NPT available on request). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/Z/Y/K/S/T/X), semi-standard angles (190°/280°), alternative case configurations (clean spec 10-, no winter/fluorine 20-, solenoid valve mount CVRB1), and ordered specifications (XA1-XA60 simple made-to-order, XC1-XC30 full made-to-order) available on request.
SMC vane-type rotary actuator, large size 80 (CRB1 series). Mount type: Foot mount. Shaft type: Double shaft (long shaft Key + chamfer). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 1.0 MPa, proof pressure: 1.5 MPa, min working pressure: 0.15 MPa. Allowable shaft load: radial 490 N, thrust 490 N. Port size: Rc 1/4 (body side or axial). Port thread: Rc (G/NPT available on request). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/Z/Y/K/S/T/X), semi-standard angles (190°/280°), alternative case configurations (clean spec 10-, no winter/fluorine 20-, solenoid valve mount CVRB1), and ordered specifications (XA1-XA60 simple made-to-order, XC1-XC30 full made-to-order) available on request.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| CDRB1LW80-90S-M9N | 90° rotation, Single vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3158 g | |
| CDRB1LW80-90S-M9P | 90° rotation, Single vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3158 g | |
| CDRB1LW80-90S-M9B | 90° rotation, Single vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3158 g | |
| CDRB1LW80-90SE-M9N | 90° rotation, Single vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3158 g | |
| CDRB1LW80-90SE-M9P | 90° rotation, Single vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3158 g | |
| CDRB1LW80-90SE-M9B | 90° rotation, Single vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3158 g | |
| CDRB1LW80-180S-M9N | 180° rotation, Single vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3098 g | |
| CDRB1LW80-180S-M9P | 180° rotation, Single vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3098 g | |
| CDRB1LW80-180S-M9B | 180° rotation, Single vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3098 g | |
| CDRB1LW80-180SE-M9N | 180° rotation, Single vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3098 g | |
| CDRB1LW80-180SE-M9P | 180° rotation, Single vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3098 g | |
| CDRB1LW80-180SE-M9B | 180° rotation, Single vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3098 g | |
| CDRB1LW80-270S-M9N | 270° rotation, Single vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3038 g | |
| CDRB1LW80-270S-M9P | 270° rotation, Single vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3038 g | |
| CDRB1LW80-270S-M9B | 270° rotation, Single vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3038 g | |
| CDRB1LW80-270SE-M9N | 270° rotation, Single vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3038 g | |
| CDRB1LW80-270SE-M9P | 270° rotation, Single vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3038 g | |
| CDRB1LW80-270SE-M9B | 270° rotation, Single vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3038 g | |
| CDRB1LW80-90D-M9N | 90° rotation, Double vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3208 g | |
| CDRB1LW80-90D-M9P | 90° rotation, Double vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3208 g | |
| CDRB1LW80-90D-M9B | 90° rotation, Double vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3208 g | |
| CDRB1LW80-90DE-M9N | 90° rotation, Double vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3208 g | |
| CDRB1LW80-90DE-M9P | 90° rotation, Double vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3208 g | |
| CDRB1LW80-90DE-M9B | 90° rotation, Double vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3208 g | |
| CDRB1LW80-100D-M9N | 100° rotation, Double vane, Body side port, Auto switch M9N (3-wire NPN) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body side port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3188 g | |
| CDRB1LW80-100D-M9P | 100° rotation, Double vane, Body side port, Auto switch M9P (3-wire PNP) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body side port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3188 g | |
| CDRB1LW80-100D-M9B | 100° rotation, Double vane, Body side port, Auto switch M9B (2-wire) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body side port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3188 g | |
| CDRB1LW80-100DE-M9N | 100° rotation, Double vane, Body axial port, Auto switch M9N (3-wire NPN) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body axial port | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3188 g | |
| CDRB1LW80-100DE-M9P | 100° rotation, Double vane, Body axial port, Auto switch M9P (3-wire PNP) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body axial port | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3188 g | |
| CDRB1LW80-100DE-M9B | 100° rotation, Double vane, Body axial port, Auto switch M9B (2-wire) | SMC | Body size: 80 | Type: With magnet (for auto switch mounting) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body axial port | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 490 N | Allowable thrust load: 490 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 3188 g |
![[SMC] — CDRBS10 Vane Rotary Actuator (with magnet)](https://img.prosourcemro.com/2026/04/crb-300x293.png)
SMC vane-type rotary actuator, body size 10. Shaft type: Single shaft (one-side, with flat). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 0.7 MPa, proof pressure: 1.05 MPa. Min working pressure: 0.2 MPa. Allowable shaft load: radial 15 N, thrust 10 N. Port size: M5×0.8 (M3×0.5 for size 10/15 with 270° rotation, and size 10 double vane). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire length 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/K/T/Y) and angle adjustment unit (CRB□-A/-B/-C variants) available on request. CAT.KS20-253D.
SMC vane-type rotary actuator, body size 10. Shaft type: Single shaft (one-side, with flat). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 0.7 MPa, proof pressure: 1.05 MPa. Min working pressure: 0.2 MPa. Allowable shaft load: radial 15 N, thrust 10 N. Port size: M5×0.8 (M3×0.5 for size 10/15 with 270° rotation, and size 10 double vane). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire length 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/K/T/Y) and angle adjustment unit (CRB□-A/-B/-C variants) available on request. CAT.KS20-253D.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| CDRBS10-90-M9N | 90° rotation, Single vane, Auto switch M9N (3-wire NPN) | SMC | Body size: 10 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 39 g | |
| CDRBS10-90-M9P | 90° rotation, Single vane, Auto switch M9P (3-wire PNP) | SMC | Body size: 10 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 39 g | |
| CDRBS10-90-M9B | 90° rotation, Single vane, Auto switch M9B (2-wire) | SMC | Body size: 10 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 39 g | |
| CDRBS10-180-M9N | 180° rotation, Single vane, Auto switch M9N (3-wire NPN) | SMC | Body size: 10 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 38 g | |
| CDRBS10-180-M9P | 180° rotation, Single vane, Auto switch M9P (3-wire PNP) | SMC | Body size: 10 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 38 g | |
| CDRBS10-180-M9B | 180° rotation, Single vane, Auto switch M9B (2-wire) | SMC | Body size: 10 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 38 g | |
| CDRBS10-90D-M9N | 90° rotation, Double vane (NEW), Auto switch M9N (3-wire NPN) | SMC | Body size: 10 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M3×0.5 | Mass: 54 g | |
| CDRBS10-90D-M9P | 90° rotation, Double vane (NEW), Auto switch M9P (3-wire PNP) | SMC | Body size: 10 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M3×0.5 | Mass: 54 g | |
| CDRBS10-90D-M9B | 90° rotation, Double vane (NEW), Auto switch M9B (2-wire) | SMC | Body size: 10 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M3×0.5 | Mass: 54 g | |
| CDRBS10-100D-M9N | 100° rotation, Double vane (NEW), Auto switch M9N (3-wire NPN) | SMC | Body size: 10 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M3×0.5 | Mass: 54 g | |
| CDRBS10-100D-M9P | 100° rotation, Double vane (NEW), Auto switch M9P (3-wire PNP) | SMC | Body size: 10 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M3×0.5 | Mass: 54 g | |
| CDRBS10-100D-M9B | 100° rotation, Double vane (NEW), Auto switch M9B (2-wire) | SMC | Body size: 10 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M3×0.5 | Mass: 54 g |
SMC vane-type rotary actuator, body size 15. Shaft type: Single shaft (one-side, with flat). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 0.7 MPa, proof pressure: 1.05 MPa. Min working pressure: 0.2 MPa. Allowable shaft load: radial 15 N, thrust 10 N. Port size: M5×0.8 (M3×0.5 for size 10/15 with 270° rotation, and size 10 double vane). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire length 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/K/T/Y) and angle adjustment unit (CRB□-A/-B/-C variants) available on request. CAT.KS20-253D.
SMC vane-type rotary actuator, body size 15. Shaft type: Single shaft (one-side, with flat). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 0.7 MPa, proof pressure: 1.05 MPa. Min working pressure: 0.2 MPa. Allowable shaft load: radial 15 N, thrust 10 N. Port size: M5×0.8 (M3×0.5 for size 10/15 with 270° rotation, and size 10 double vane). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire length 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/K/T/Y) and angle adjustment unit (CRB□-A/-B/-C variants) available on request. CAT.KS20-253D.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| CDRBS15-90-M9N | 90° rotation, Single vane, Auto switch M9N (3-wire NPN) | SMC | Body size: 15 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 62 g | |
| CDRBS15-90-M9P | 90° rotation, Single vane, Auto switch M9P (3-wire PNP) | SMC | Body size: 15 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 62 g | |
| CDRBS15-90-M9B | 90° rotation, Single vane, Auto switch M9B (2-wire) | SMC | Body size: 15 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 62 g | |
| CDRBS15-180-M9N | 180° rotation, Single vane, Auto switch M9N (3-wire NPN) | SMC | Body size: 15 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 61 g | |
| CDRBS15-180-M9P | 180° rotation, Single vane, Auto switch M9P (3-wire PNP) | SMC | Body size: 15 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 61 g | |
| CDRBS15-180-M9B | 180° rotation, Single vane, Auto switch M9B (2-wire) | SMC | Body size: 15 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 61 g | |
| CDRBS15-90D-M9N | 90° rotation, Double vane (NEW), Auto switch M9N (3-wire NPN) | SMC | Body size: 15 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 65 g | |
| CDRBS15-90D-M9P | 90° rotation, Double vane (NEW), Auto switch M9P (3-wire PNP) | SMC | Body size: 15 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 65 g | |
| CDRBS15-90D-M9B | 90° rotation, Double vane (NEW), Auto switch M9B (2-wire) | SMC | Body size: 15 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 65 g | |
| CDRBS15-100D-M9N | 100° rotation, Double vane (NEW), Auto switch M9N (3-wire NPN) | SMC | Body size: 15 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 65 g | |
| CDRBS15-100D-M9P | 100° rotation, Double vane (NEW), Auto switch M9P (3-wire PNP) | SMC | Body size: 15 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 65 g | |
| CDRBS15-100D-M9B | 100° rotation, Double vane (NEW), Auto switch M9B (2-wire) | SMC | Body size: 15 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 65 g |
SMC vane-type rotary actuator, body size 20. Shaft type: Single shaft (one-side, with flat). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 0.7 MPa, proof pressure: 1.05 MPa. Min working pressure: 0.2 MPa. Allowable shaft load: radial 25 N, thrust 20 N. Port size: M5×0.8 (M3×0.5 for size 10/15 with 270° rotation, and size 10 double vane). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire length 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/K/T/Y) and angle adjustment unit (CRB□-A/-B/-C variants) available on request. CAT.KS20-253D.
SMC vane-type rotary actuator, body size 20. Shaft type: Single shaft (one-side, with flat). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 0.7 MPa, proof pressure: 1.05 MPa. Min working pressure: 0.2 MPa. Allowable shaft load: radial 25 N, thrust 20 N. Port size: M5×0.8 (M3×0.5 for size 10/15 with 270° rotation, and size 10 double vane). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire length 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/K/T/Y) and angle adjustment unit (CRB□-A/-B/-C variants) available on request. CAT.KS20-253D.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| CDRBS20-90-M9N | 90° rotation, Single vane, Auto switch M9N (3-wire NPN) | SMC | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 115 g | |
| CDRBS20-90-M9P | 90° rotation, Single vane, Auto switch M9P (3-wire PNP) | SMC | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 115 g | |
| CDRBS20-90-M9B | 90° rotation, Single vane, Auto switch M9B (2-wire) | SMC | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 115 g | |
| CDRBS20-180-M9N | 180° rotation, Single vane, Auto switch M9N (3-wire NPN) | SMC | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 112 g | |
| CDRBS20-180-M9P | 180° rotation, Single vane, Auto switch M9P (3-wire PNP) | SMC | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 112 g | |
| CDRBS20-180-M9B | 180° rotation, Single vane, Auto switch M9B (2-wire) | SMC | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 112 g | |
| CDRBS20-90D-M9N | 90° rotation, Double vane (NEW), Auto switch M9N (3-wire NPN) | SMC | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 126 g | |
| CDRBS20-90D-M9P | 90° rotation, Double vane (NEW), Auto switch M9P (3-wire PNP) | SMC | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 126 g | |
| CDRBS20-90D-M9B | 90° rotation, Double vane (NEW), Auto switch M9B (2-wire) | SMC | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 126 g | |
| CDRBS20-100D-M9N | 100° rotation, Double vane (NEW), Auto switch M9N (3-wire NPN) | SMC | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 126 g | |
| CDRBS20-100D-M9P | 100° rotation, Double vane (NEW), Auto switch M9P (3-wire PNP) | SMC | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 126 g | |
| CDRBS20-100D-M9B | 100° rotation, Double vane (NEW), Auto switch M9B (2-wire) | SMC | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 126 g |
SMC vane-type rotary actuator, body size 30. Shaft type: Single shaft (one-side, with flat). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 1.0 MPa, proof pressure: 1.5 MPa. Min working pressure: 0.2 MPa. Allowable shaft load: radial 30 N, thrust 25 N. Port size: M5×0.8 (M3×0.5 for size 10/15 with 270° rotation, and size 10 double vane). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire length 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/K/T/Y) and angle adjustment unit (CRB□-A/-B/-C variants) available on request. CAT.KS20-253D.
SMC vane-type rotary actuator, body size 30. Shaft type: Single shaft (one-side, with flat). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 1.0 MPa, proof pressure: 1.5 MPa. Min working pressure: 0.2 MPa. Allowable shaft load: radial 30 N, thrust 25 N. Port size: M5×0.8 (M3×0.5 for size 10/15 with 270° rotation, and size 10 double vane). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire length 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/K/T/Y) and angle adjustment unit (CRB□-A/-B/-C variants) available on request. CAT.KS20-253D.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| CDRBS30-90-M9N | 90° rotation, Single vane, Auto switch M9N (3-wire NPN) | SMC | Body size: 30 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 30 N | Allowable thrust load: 25 N | Port size: M5×0.8 | Mass: 216 g | |
| CDRBS30-90-M9P | 90° rotation, Single vane, Auto switch M9P (3-wire PNP) | SMC | Body size: 30 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 30 N | Allowable thrust load: 25 N | Port size: M5×0.8 | Mass: 216 g | |
| CDRBS30-90-M9B | 90° rotation, Single vane, Auto switch M9B (2-wire) | SMC | Body size: 30 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 30 N | Allowable thrust load: 25 N | Port size: M5×0.8 | Mass: 216 g | |
| CDRBS30-180-M9N | 180° rotation, Single vane, Auto switch M9N (3-wire NPN) | SMC | Body size: 30 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 30 N | Allowable thrust load: 25 N | Port size: M5×0.8 | Mass: 209 g | |
| CDRBS30-180-M9P | 180° rotation, Single vane, Auto switch M9P (3-wire PNP) | SMC | Body size: 30 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 30 N | Allowable thrust load: 25 N | Port size: M5×0.8 | Mass: 209 g | |
| CDRBS30-180-M9B | 180° rotation, Single vane, Auto switch M9B (2-wire) | SMC | Body size: 30 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 30 N | Allowable thrust load: 25 N | Port size: M5×0.8 | Mass: 209 g | |
| CDRBS30-90D-M9N | 90° rotation, Double vane (NEW), Auto switch M9N (3-wire NPN) | SMC | Body size: 30 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 30 N | Allowable thrust load: 25 N | Port size: M5×0.8 | Mass: 228 g | |
| CDRBS30-90D-M9P | 90° rotation, Double vane (NEW), Auto switch M9P (3-wire PNP) | SMC | Body size: 30 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 30 N | Allowable thrust load: 25 N | Port size: M5×0.8 | Mass: 228 g | |
| CDRBS30-90D-M9B | 90° rotation, Double vane (NEW), Auto switch M9B (2-wire) | SMC | Body size: 30 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 30 N | Allowable thrust load: 25 N | Port size: M5×0.8 | Mass: 228 g | |
| CDRBS30-100D-M9N | 100° rotation, Double vane (NEW), Auto switch M9N (3-wire NPN) | SMC | Body size: 30 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 30 N | Allowable thrust load: 25 N | Port size: M5×0.8 | Mass: 228 g | |
| CDRBS30-100D-M9P | 100° rotation, Double vane (NEW), Auto switch M9P (3-wire PNP) | SMC | Body size: 30 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 30 N | Allowable thrust load: 25 N | Port size: M5×0.8 | Mass: 228 g | |
| CDRBS30-100D-M9B | 100° rotation, Double vane (NEW), Auto switch M9B (2-wire) | SMC | Body size: 30 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 30 N | Allowable thrust load: 25 N | Port size: M5×0.8 | Mass: 228 g |
SMC vane-type rotary actuator, body size 40. Shaft type: Single shaft (one-side, with flat). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 1.0 MPa, proof pressure: 1.5 MPa. Min working pressure: 0.2 MPa. Allowable shaft load: radial 60 N, thrust 40 N. Port size: M5×0.8 (M3×0.5 for size 10/15 with 270° rotation, and size 10 double vane). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire length 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/K/T/Y) and angle adjustment unit (CRB□-A/-B/-C variants) available on request. CAT.KS20-253D.
SMC vane-type rotary actuator, body size 40. Shaft type: Single shaft (one-side, with flat). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 1.0 MPa, proof pressure: 1.5 MPa. Min working pressure: 0.2 MPa. Allowable shaft load: radial 60 N, thrust 40 N. Port size: M5×0.8 (M3×0.5 for size 10/15 with 270° rotation, and size 10 double vane). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire length 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/K/T/Y) and angle adjustment unit (CRB□-A/-B/-C variants) available on request. CAT.KS20-253D.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| CDRBS40-90-M9N | 90° rotation, Single vane, Auto switch M9N (3-wire NPN) | SMC | Body size: 40 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 60 N | Allowable thrust load: 40 N | Port size: M5×0.8 | Mass: 380 g | |
| CDRBS40-90-M9P | 90° rotation, Single vane, Auto switch M9P (3-wire PNP) | SMC | Body size: 40 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 60 N | Allowable thrust load: 40 N | Port size: M5×0.8 | Mass: 380 g | |
| CDRBS40-90-M9B | 90° rotation, Single vane, Auto switch M9B (2-wire) | SMC | Body size: 40 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 60 N | Allowable thrust load: 40 N | Port size: M5×0.8 | Mass: 380 g | |
| CDRBS40-180-M9N | 180° rotation, Single vane, Auto switch M9N (3-wire NPN) | SMC | Body size: 40 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 60 N | Allowable thrust load: 40 N | Port size: M5×0.8 | Mass: 367 g | |
| CDRBS40-180-M9P | 180° rotation, Single vane, Auto switch M9P (3-wire PNP) | SMC | Body size: 40 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 60 N | Allowable thrust load: 40 N | Port size: M5×0.8 | Mass: 367 g | |
| CDRBS40-180-M9B | 180° rotation, Single vane, Auto switch M9B (2-wire) | SMC | Body size: 40 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 60 N | Allowable thrust load: 40 N | Port size: M5×0.8 | Mass: 367 g | |
| CDRBS40-90D-M9N | 90° rotation, Double vane (NEW), Auto switch M9N (3-wire NPN) | SMC | Body size: 40 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 60 N | Allowable thrust load: 40 N | Port size: M5×0.8 | Mass: 425 g | |
| CDRBS40-90D-M9P | 90° rotation, Double vane (NEW), Auto switch M9P (3-wire PNP) | SMC | Body size: 40 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 60 N | Allowable thrust load: 40 N | Port size: M5×0.8 | Mass: 425 g | |
| CDRBS40-90D-M9B | 90° rotation, Double vane (NEW), Auto switch M9B (2-wire) | SMC | Body size: 40 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 60 N | Allowable thrust load: 40 N | Port size: M5×0.8 | Mass: 425 g | |
| CDRBS40-100D-M9N | 100° rotation, Double vane (NEW), Auto switch M9N (3-wire NPN) | SMC | Body size: 40 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 60 N | Allowable thrust load: 40 N | Port size: M5×0.8 | Mass: 424 g | |
| CDRBS40-100D-M9P | 100° rotation, Double vane (NEW), Auto switch M9P (3-wire PNP) | SMC | Body size: 40 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 60 N | Allowable thrust load: 40 N | Port size: M5×0.8 | Mass: 424 g | |
| CDRBS40-100D-M9B | 100° rotation, Double vane (NEW), Auto switch M9B (2-wire) | SMC | Body size: 40 | Type: With magnet (for auto switch mounting) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 60 N | Allowable thrust load: 40 N | Port size: M5×0.8 | Mass: 424 g |
SMC vane-type rotary actuator, body size 10. Shaft type: Double shaft (both-side, with flats). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 0.7 MPa, proof pressure: 1.05 MPa. Min working pressure: 0.2 MPa. Allowable shaft load: radial 15 N, thrust 10 N. Port size: M5×0.8 (M3×0.5 for size 10/15 with 270° rotation, and size 10 double vane). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire length 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/K/T/Y) and angle adjustment unit (CRB□-A/-B/-C variants) available on request. CAT.KS20-253D.
SMC vane-type rotary actuator, body size 10. Shaft type: Double shaft (both-side, with flats). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 0.7 MPa, proof pressure: 1.05 MPa. Min working pressure: 0.2 MPa. Allowable shaft load: radial 15 N, thrust 10 N. Port size: M5×0.8 (M3×0.5 for size 10/15 with 270° rotation, and size 10 double vane). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire length 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/K/T/Y) and angle adjustment unit (CRB□-A/-B/-C variants) available on request. CAT.KS20-253D.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| CDRBW10-90-M9N | 90° rotation, Single vane, Auto switch M9N (3-wire NPN) | SMC | Body size: 10 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 39 g | |
| CDRBW10-90-M9P | 90° rotation, Single vane, Auto switch M9P (3-wire PNP) | SMC | Body size: 10 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 39 g | |
| CDRBW10-90-M9B | 90° rotation, Single vane, Auto switch M9B (2-wire) | SMC | Body size: 10 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 39 g | |
| CDRBW10-180-M9N | 180° rotation, Single vane, Auto switch M9N (3-wire NPN) | SMC | Body size: 10 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 38 g | |
| CDRBW10-180-M9P | 180° rotation, Single vane, Auto switch M9P (3-wire PNP) | SMC | Body size: 10 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 38 g | |
| CDRBW10-180-M9B | 180° rotation, Single vane, Auto switch M9B (2-wire) | SMC | Body size: 10 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 38 g | |
| CDRBW10-90D-M9N | 90° rotation, Double vane (NEW), Auto switch M9N (3-wire NPN) | SMC | Body size: 10 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M3×0.5 | Mass: 53 g | |
| CDRBW10-90D-M9P | 90° rotation, Double vane (NEW), Auto switch M9P (3-wire PNP) | SMC | Body size: 10 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M3×0.5 | Mass: 53 g | |
| CDRBW10-90D-M9B | 90° rotation, Double vane (NEW), Auto switch M9B (2-wire) | SMC | Body size: 10 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M3×0.5 | Mass: 53 g | |
| CDRBW10-100D-M9N | 100° rotation, Double vane (NEW), Auto switch M9N (3-wire NPN) | SMC | Body size: 10 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M3×0.5 | Mass: 53 g | |
| CDRBW10-100D-M9P | 100° rotation, Double vane (NEW), Auto switch M9P (3-wire PNP) | SMC | Body size: 10 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M3×0.5 | Mass: 53 g | |
| CDRBW10-100D-M9B | 100° rotation, Double vane (NEW), Auto switch M9B (2-wire) | SMC | Body size: 10 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M3×0.5 | Mass: 53 g |
SMC vane-type rotary actuator, body size 15. Shaft type: Double shaft (both-side, with flats). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 0.7 MPa, proof pressure: 1.05 MPa. Min working pressure: 0.2 MPa. Allowable shaft load: radial 15 N, thrust 10 N. Port size: M5×0.8 (M3×0.5 for size 10/15 with 270° rotation, and size 10 double vane). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire length 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/K/T/Y) and angle adjustment unit (CRB□-A/-B/-C variants) available on request. CAT.KS20-253D.
SMC vane-type rotary actuator, body size 15. Shaft type: Double shaft (both-side, with flats). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 0.7 MPa, proof pressure: 1.05 MPa. Min working pressure: 0.2 MPa. Allowable shaft load: radial 15 N, thrust 10 N. Port size: M5×0.8 (M3×0.5 for size 10/15 with 270° rotation, and size 10 double vane). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire length 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/K/T/Y) and angle adjustment unit (CRB□-A/-B/-C variants) available on request. CAT.KS20-253D.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| CDRBW15-90-M9N | 90° rotation, Single vane, Auto switch M9N (3-wire NPN) | SMC | Body size: 15 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 62 g | |
| CDRBW15-90-M9P | 90° rotation, Single vane, Auto switch M9P (3-wire PNP) | SMC | Body size: 15 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 62 g | |
| CDRBW15-90-M9B | 90° rotation, Single vane, Auto switch M9B (2-wire) | SMC | Body size: 15 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 62 g | |
| CDRBW15-180-M9N | 180° rotation, Single vane, Auto switch M9N (3-wire NPN) | SMC | Body size: 15 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 61 g | |
| CDRBW15-180-M9P | 180° rotation, Single vane, Auto switch M9P (3-wire PNP) | SMC | Body size: 15 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 61 g | |
| CDRBW15-180-M9B | 180° rotation, Single vane, Auto switch M9B (2-wire) | SMC | Body size: 15 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 61 g | |
| CDRBW15-90D-M9N | 90° rotation, Double vane (NEW), Auto switch M9N (3-wire NPN) | SMC | Body size: 15 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 64 g | |
| CDRBW15-90D-M9P | 90° rotation, Double vane (NEW), Auto switch M9P (3-wire PNP) | SMC | Body size: 15 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 64 g | |
| CDRBW15-90D-M9B | 90° rotation, Double vane (NEW), Auto switch M9B (2-wire) | SMC | Body size: 15 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 64 g | |
| CDRBW15-100D-M9N | 100° rotation, Double vane (NEW), Auto switch M9N (3-wire NPN) | SMC | Body size: 15 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 64 g | |
| CDRBW15-100D-M9P | 100° rotation, Double vane (NEW), Auto switch M9P (3-wire PNP) | SMC | Body size: 15 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 64 g | |
| CDRBW15-100D-M9B | 100° rotation, Double vane (NEW), Auto switch M9B (2-wire) | SMC | Body size: 15 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 64 g |
SMC vane-type rotary actuator, body size 20. Shaft type: Double shaft (both-side, with flats). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 0.7 MPa, proof pressure: 1.05 MPa. Min working pressure: 0.2 MPa. Allowable shaft load: radial 25 N, thrust 20 N. Port size: M5×0.8 (M3×0.5 for size 10/15 with 270° rotation, and size 10 double vane). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire length 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/K/T/Y) and angle adjustment unit (CRB□-A/-B/-C variants) available on request. CAT.KS20-253D.
SMC vane-type rotary actuator, body size 20. Shaft type: Double shaft (both-side, with flats). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 0.7 MPa, proof pressure: 1.05 MPa. Min working pressure: 0.2 MPa. Allowable shaft load: radial 25 N, thrust 20 N. Port size: M5×0.8 (M3×0.5 for size 10/15 with 270° rotation, and size 10 double vane). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire length 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/K/T/Y) and angle adjustment unit (CRB□-A/-B/-C variants) available on request. CAT.KS20-253D.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| CDRBW20-90-M9N | 90° rotation, Single vane, Auto switch M9N (3-wire NPN) | SMC | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 115 g | |
| CDRBW20-90-M9P | 90° rotation, Single vane, Auto switch M9P (3-wire PNP) | SMC | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 115 g | |
| CDRBW20-90-M9B | 90° rotation, Single vane, Auto switch M9B (2-wire) | SMC | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 115 g | |
| CDRBW20-180-M9N | 180° rotation, Single vane, Auto switch M9N (3-wire NPN) | SMC | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 112 g | |
| CDRBW20-180-M9P | 180° rotation, Single vane, Auto switch M9P (3-wire PNP) | SMC | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 112 g | |
| CDRBW20-180-M9B | 180° rotation, Single vane, Auto switch M9B (2-wire) | SMC | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 112 g | |
| CDRBW20-90D-M9N | 90° rotation, Double vane (NEW), Auto switch M9N (3-wire NPN) | SMC | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 124 g | |
| CDRBW20-90D-M9P | 90° rotation, Double vane (NEW), Auto switch M9P (3-wire PNP) | SMC | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 124 g | |
| CDRBW20-90D-M9B | 90° rotation, Double vane (NEW), Auto switch M9B (2-wire) | SMC | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 124 g | |
| CDRBW20-100D-M9N | 100° rotation, Double vane (NEW), Auto switch M9N (3-wire NPN) | SMC | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 124 g | |
| CDRBW20-100D-M9P | 100° rotation, Double vane (NEW), Auto switch M9P (3-wire PNP) | SMC | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 124 g | |
| CDRBW20-100D-M9B | 100° rotation, Double vane (NEW), Auto switch M9B (2-wire) | SMC | Body size: 20 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 25 N | Allowable thrust load: 20 N | Port size: M5×0.8 | Mass: 124 g |
SMC vane-type rotary actuator, body size 30. Shaft type: Double shaft (both-side, with flats). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 1.0 MPa, proof pressure: 1.5 MPa. Min working pressure: 0.2 MPa. Allowable shaft load: radial 30 N, thrust 25 N. Port size: M5×0.8 (M3×0.5 for size 10/15 with 270° rotation, and size 10 double vane). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire length 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/K/T/Y) and angle adjustment unit (CRB□-A/-B/-C variants) available on request. CAT.KS20-253D.
SMC vane-type rotary actuator, body size 30. Shaft type: Double shaft (both-side, with flats). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 1.0 MPa, proof pressure: 1.5 MPa. Min working pressure: 0.2 MPa. Allowable shaft load: radial 30 N, thrust 25 N. Port size: M5×0.8 (M3×0.5 for size 10/15 with 270° rotation, and size 10 double vane). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire length 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/K/T/Y) and angle adjustment unit (CRB□-A/-B/-C variants) available on request. CAT.KS20-253D.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| CDRBW30-90-M9N | 90° rotation, Single vane, Auto switch M9N (3-wire NPN) | SMC | Body size: 30 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 30 N | Allowable thrust load: 25 N | Port size: M5×0.8 | Mass: 216 g | |
| CDRBW30-90-M9P | 90° rotation, Single vane, Auto switch M9P (3-wire PNP) | SMC | Body size: 30 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 30 N | Allowable thrust load: 25 N | Port size: M5×0.8 | Mass: 216 g | |
| CDRBW30-90-M9B | 90° rotation, Single vane, Auto switch M9B (2-wire) | SMC | Body size: 30 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 30 N | Allowable thrust load: 25 N | Port size: M5×0.8 | Mass: 216 g | |
| CDRBW30-180-M9N | 180° rotation, Single vane, Auto switch M9N (3-wire NPN) | SMC | Body size: 30 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 30 N | Allowable thrust load: 25 N | Port size: M5×0.8 | Mass: 209 g | |
| CDRBW30-180-M9P | 180° rotation, Single vane, Auto switch M9P (3-wire PNP) | SMC | Body size: 30 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 30 N | Allowable thrust load: 25 N | Port size: M5×0.8 | Mass: 209 g | |
| CDRBW30-180-M9B | 180° rotation, Single vane, Auto switch M9B (2-wire) | SMC | Body size: 30 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 30 N | Allowable thrust load: 25 N | Port size: M5×0.8 | Mass: 209 g | |
| CDRBW30-90D-M9N | 90° rotation, Double vane (NEW), Auto switch M9N (3-wire NPN) | SMC | Body size: 30 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 30 N | Allowable thrust load: 25 N | Port size: M5×0.8 | Mass: 224 g | |
| CDRBW30-90D-M9P | 90° rotation, Double vane (NEW), Auto switch M9P (3-wire PNP) | SMC | Body size: 30 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 30 N | Allowable thrust load: 25 N | Port size: M5×0.8 | Mass: 224 g | |
| CDRBW30-90D-M9B | 90° rotation, Double vane (NEW), Auto switch M9B (2-wire) | SMC | Body size: 30 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 30 N | Allowable thrust load: 25 N | Port size: M5×0.8 | Mass: 224 g | |
| CDRBW30-100D-M9N | 100° rotation, Double vane (NEW), Auto switch M9N (3-wire NPN) | SMC | Body size: 30 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 30 N | Allowable thrust load: 25 N | Port size: M5×0.8 | Mass: 224 g | |
| CDRBW30-100D-M9P | 100° rotation, Double vane (NEW), Auto switch M9P (3-wire PNP) | SMC | Body size: 30 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 30 N | Allowable thrust load: 25 N | Port size: M5×0.8 | Mass: 224 g | |
| CDRBW30-100D-M9B | 100° rotation, Double vane (NEW), Auto switch M9B (2-wire) | SMC | Body size: 30 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 30 N | Allowable thrust load: 25 N | Port size: M5×0.8 | Mass: 224 g |
SMC vane-type rotary actuator, body size 40. Shaft type: Double shaft (both-side, with flats). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 1.0 MPa, proof pressure: 1.5 MPa. Min working pressure: 0.2 MPa. Allowable shaft load: radial 60 N, thrust 40 N. Port size: M5×0.8 (M3×0.5 for size 10/15 with 270° rotation, and size 10 double vane). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire length 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/K/T/Y) and angle adjustment unit (CRB□-A/-B/-C variants) available on request. CAT.KS20-253D.
SMC vane-type rotary actuator, body size 40. Shaft type: Double shaft (both-side, with flats). Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated). Operating temperature: 5 to 60°C. Max working pressure: 1.0 MPa, proof pressure: 1.5 MPa. Min working pressure: 0.2 MPa. Allowable shaft load: radial 60 N, thrust 40 N. Port size: M5×0.8 (M3×0.5 for size 10/15 with 270° rotation, and size 10 double vane). Auto switch options: M9N (3-wire NPN), M9P (3-wire PNP), M9B (2-wire). Lead wire length 0.5m standard (1m M, 3m L, 5m Z available on request). Other shaft types (J/K/T/Y) and angle adjustment unit (CRB□-A/-B/-C variants) available on request. CAT.KS20-253D.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| CDRBW40-90-M9N | 90° rotation, Single vane, Auto switch M9N (3-wire NPN) | SMC | Body size: 40 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 60 N | Allowable thrust load: 40 N | Port size: M5×0.8 | Mass: 380 g | |
| CDRBW40-90-M9P | 90° rotation, Single vane, Auto switch M9P (3-wire PNP) | SMC | Body size: 40 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 60 N | Allowable thrust load: 40 N | Port size: M5×0.8 | Mass: 380 g | |
| CDRBW40-90-M9B | 90° rotation, Single vane, Auto switch M9B (2-wire) | SMC | Body size: 40 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 90° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 60 N | Allowable thrust load: 40 N | Port size: M5×0.8 | Mass: 380 g | |
| CDRBW40-180-M9N | 180° rotation, Single vane, Auto switch M9N (3-wire NPN) | SMC | Body size: 40 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 60 N | Allowable thrust load: 40 N | Port size: M5×0.8 | Mass: 367 g | |
| CDRBW40-180-M9P | 180° rotation, Single vane, Auto switch M9P (3-wire PNP) | SMC | Body size: 40 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 60 N | Allowable thrust load: 40 N | Port size: M5×0.8 | Mass: 367 g | |
| CDRBW40-180-M9B | 180° rotation, Single vane, Auto switch M9B (2-wire) | SMC | Body size: 40 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Single vane | Rotation angle: 180° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 60 N | Allowable thrust load: 40 N | Port size: M5×0.8 | Mass: 367 g | |
| CDRBW40-90D-M9N | 90° rotation, Double vane (NEW), Auto switch M9N (3-wire NPN) | SMC | Body size: 40 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 60 N | Allowable thrust load: 40 N | Port size: M5×0.8 | Mass: 419 g | |
| CDRBW40-90D-M9P | 90° rotation, Double vane (NEW), Auto switch M9P (3-wire PNP) | SMC | Body size: 40 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 60 N | Allowable thrust load: 40 N | Port size: M5×0.8 | Mass: 419 g | |
| CDRBW40-90D-M9B | 90° rotation, Double vane (NEW), Auto switch M9B (2-wire) | SMC | Body size: 40 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 90° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 60 N | Allowable thrust load: 40 N | Port size: M5×0.8 | Mass: 419 g | |
| CDRBW40-100D-M9N | 100° rotation, Double vane (NEW), Auto switch M9N (3-wire NPN) | SMC | Body size: 40 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9N (3-wire NPN) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 60 N | Allowable thrust load: 40 N | Port size: M5×0.8 | Mass: 418 g | |
| CDRBW40-100D-M9P | 100° rotation, Double vane (NEW), Auto switch M9P (3-wire PNP) | SMC | Body size: 40 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9P (3-wire PNP) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 60 N | Allowable thrust load: 40 N | Port size: M5×0.8 | Mass: 418 g | |
| CDRBW40-100D-M9B | 100° rotation, Double vane (NEW), Auto switch M9B (2-wire) | SMC | Body size: 40 | Type: With magnet (for auto switch mounting) | Shaft type: Double shaft (both-side, with flats) | Vane type: Double vane (NEW) | Rotation angle: 100° | Auto switch: Auto switch M9B (2-wire) | Lead wire length: 0.5 m (standard) | Number of switches: 2 (standard) | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 60 N | Allowable thrust load: 40 N | Port size: M5×0.8 | Mass: 418 g |
![[SMC] — CJ2B10 Micro Air Cylinder](https://img.prosourcemro.com/2026/04/CJ2-Z-300x293.png)
SMC CJ2 Series micro air cylinder, double-acting single-rod, rubber cushion. Bore ø10 mm, basic mount. Standard strokes 15–150 mm. Port thread M5×0.8. Rod end male thread M4×0.7.
SMC CJ2 Series micro air cylinder, double-acting single-rod, rubber cushion. Bore ø10 mm, basic mount. Standard strokes 15–150 mm. Port thread M5×0.8. Rod end male thread M4×0.7.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| CJ2B10-15Z | CJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø10 mm bore, 15 mm stroke, basic mount | SMC | Bore: ø10 mm | Stroke: 15 mm | Mount: Basic | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: No | Rod thread: M4×0.7 (male) | Port: M5×0.8 | |
| CJ2B10-30Z | CJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø10 mm bore, 30 mm stroke, basic mount | SMC | Bore: ø10 mm | Stroke: 30 mm | Mount: Basic | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: No | Rod thread: M4×0.7 (male) | Port: M5×0.8 | |
| CJ2B10-45Z | CJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø10 mm bore, 45 mm stroke, basic mount | SMC | Bore: ø10 mm | Stroke: 45 mm | Mount: Basic | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: No | Rod thread: M4×0.7 (male) | Port: M5×0.8 | |
| CJ2B10-60Z | CJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø10 mm bore, 60 mm stroke, basic mount | SMC | Bore: ø10 mm | Stroke: 60 mm | Mount: Basic | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: No | Rod thread: M4×0.7 (male) | Port: M5×0.8 | |
| CJ2B10-75Z | CJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø10 mm bore, 75 mm stroke, basic mount | SMC | Bore: ø10 mm | Stroke: 75 mm | Mount: Basic | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: No | Rod thread: M4×0.7 (male) | Port: M5×0.8 | |
| CJ2B10-100Z | CJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø10 mm bore, 100 mm stroke, basic mount | SMC | Bore: ø10 mm | Stroke: 100 mm | Mount: Basic | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: No | Rod thread: M4×0.7 (male) | Port: M5×0.8 | |
| CJ2B10-125Z | CJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø10 mm bore, 125 mm stroke, basic mount | SMC | Bore: ø10 mm | Stroke: 125 mm | Mount: Basic | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: No | Rod thread: M4×0.7 (male) | Port: M5×0.8 | |
| CJ2B10-150Z | CJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø10 mm bore, 150 mm stroke, basic mount | SMC | Bore: ø10 mm | Stroke: 150 mm | Mount: Basic | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: No | Rod thread: M4×0.7 (male) | Port: M5×0.8 |
