Recorder

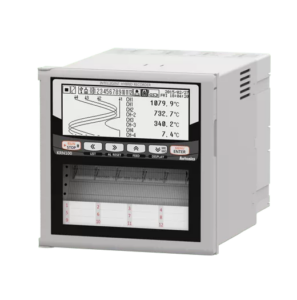

100 mm width hybrid (paper + digital) recorders. Print on paper while also logging digitally. RTD, thermocouple, voltage, current input. Multi-channel (6 or 12 ch).
100 mm width hybrid (paper + digital) recorders. Print on paper while also logging digitally. RTD, thermocouple, voltage, current input. Multi-channel (6 or 12 ch).
| Product Code | Brand | Spec | |
|---|---|---|---|
| AUTONICS-KRN100-06 | AUTONICS | Recorder | KRN100 Series | 100 mm hybrid 6-ch | universal RTD/TC/V/I | print + RS485 | 100-240 VAC | Screw terminal | IP50 | 6-channel hybrid | |
| AUTONICS-KRN100-12 | AUTONICS | Recorder | KRN100 Series | 100 mm hybrid 12-ch | universal RTD/TC/V/I | print + RS485 | 100-240 VAC | Screw terminal | IP50 | 12-channel hybrid |

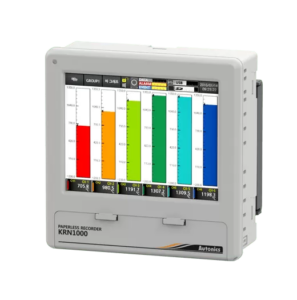

LCD touchscreen paperless recorders for data logging without paper consumption. Color TFT touchscreen. Multiple input channels (RTD, TC, voltage, current). USB and Ethernet data export. Real-time and historical trend display.
LCD touchscreen paperless recorders for data logging without paper consumption. Color TFT touchscreen. Multiple input channels (RTD, TC, voltage, current). USB and Ethernet data export. Real-time and historical trend display.
| Product Code | Brand | Spec | |
|---|---|---|---|
| AUTONICS-KRN1000-04 | AUTONICS | Recorder | KRN1000 Series | Paperless touchscreen 4-ch | universal RTD/TC/V/I | RS485+USB+Ethernet | 100-240 VAC | Screw terminal | IP65 front | 4-channel paperless | |
| AUTONICS-KRN1000-08 | AUTONICS | Recorder | KRN1000 Series | Paperless touchscreen 8-ch | universal RTD/TC/V/I | RS485+USB+Ethernet | 100-240 VAC | Screw terminal | IP65 front | 8-channel paperless | |
| AUTONICS-KRN1000-12 | AUTONICS | Recorder | KRN1000 Series | Paperless touchscreen 12-ch | universal RTD/TC/V/I | RS485+USB+Ethernet | 100-240 VAC | Screw terminal | IP65 front | 12-channel paperless |

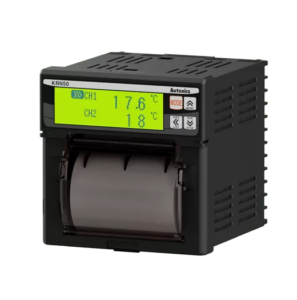

50 mm width hybrid recorders. Compact alternative to KRN100 for narrow panel space. Multi-channel input.
50 mm width hybrid recorders. Compact alternative to KRN100 for narrow panel space. Multi-channel input.
| Product Code | Brand | Spec | |
|---|---|---|---|
| AUTONICS-KRN50-06 | AUTONICS | Recorder | KRN50 Series | 50 mm hybrid 6-ch | universal RTD/TC/V/I | print + RS485 | 100-240 VAC | Screw terminal | IP50 | compact 6-channel hybrid |
