Relays

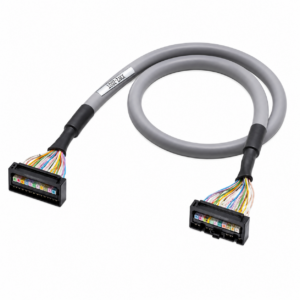

![[OMRON] — XW2Z-R I/O Cable (MIL, 1:1/1:2, 16/32-point, Input+Output+Mix, 0.25-5m)](https://img.prosourcemro.com/2026/05/001-534-300x300.png)
Connect I/O Relay Terminals to I/O Units for Programmable Controllers with one touch.
Connect I/O Relay Terminals to I/O Units for Programmable Controllers with one touch.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| XW2Z-RO25C | XW2Z-R MIL 1:1 Output 250mm | OMRON | Type: XW2Z-R Cable (MIL 20-pin, 1:1) | Points: 16 | I/O: Output | Length: 250mm | |
| XW2Z-RO50C | XW2Z-R MIL 1:1 Output 500mm | OMRON | Type: XW2Z-R Cable (MIL 20-pin, 1:1) | Points: 16 | I/O: Output | Length: 500mm | |
| XW2Z-RI25C | XW2Z-R MIL 1:1 Input 250mm | OMRON | Type: XW2Z-R Cable (MIL 20-pin, 1:1) | Points: 16 | I/O: Input | Length: 250mm | |
| XW2Z-RI50C | XW2Z-R MIL 1:1 Input 500mm | OMRON | Type: XW2Z-R Cable (MIL 20-pin, 1:1) | Points: 16 | I/O: Input | Length: 500mm | |
| XW2Z-RO50-25-D1 | XW2Z-R MIL 1:2 Output A=500mm | OMRON | Type: XW2Z-R Cable (MIL 40-pin, 1:2 Output) | Points: 32 output | Length A: 500mm | Length B: 250mm | |
| XW2Z-RO75-50-D1 | XW2Z-R MIL 1:2 Output A=750mm | OMRON | Type: XW2Z-R Cable (MIL 40-pin, 1:2 Output) | Points: 32 output | Length A: 750mm | Length B: 500mm | |
| XW2Z-RO100-75-D1 | XW2Z-R MIL 1:2 Output A=1,000mm | OMRON | Type: XW2Z-R Cable (MIL 40-pin, 1:2 Output) | Points: 32 output | Length A: 1,000mm | Length B: 750mm | |
| XW2Z-RO150-125-D1 | XW2Z-R MIL 1:2 Output A=1,500mm | OMRON | Type: XW2Z-R Cable (MIL 40-pin, 1:2 Output) | Points: 32 output | Length A: 1,500mm | Length B: 1,250mm | |
| XW2Z-RO200-175-D1 | XW2Z-R MIL 1:2 Output A=2,000mm | OMRON | Type: XW2Z-R Cable (MIL 40-pin, 1:2 Output) | Points: 32 output | Length A: 2,000mm | Length B: 1,750mm | |
| XW2Z-RO300-275-D1 | XW2Z-R MIL 1:2 Output A=3,000mm | OMRON | Type: XW2Z-R Cable (MIL 40-pin, 1:2 Output) | Points: 32 output | Length A: 3,000mm | Length B: 2,750mm | |
| XW2Z-RO500-475-D1 | XW2Z-R MIL 1:2 Output A=5,000mm | OMRON | Type: XW2Z-R Cable (MIL 40-pin, 1:2 Output) | Points: 32 output | Length A: 5,000mm | Length B: 4,750mm | |
| XW2Z-RI50-25-D1 | XW2Z-R MIL 1:2 Input D1 A=500mm | OMRON | Type: XW2Z-R Cable (MIL 40-pin, 1:2 Input D1) | Points: 32 input | Length A: 500mm | Length B: 250mm | |
| XW2Z-RI75-50-D1 | XW2Z-R MIL 1:2 Input D1 A=750mm | OMRON | Type: XW2Z-R Cable (MIL 40-pin, 1:2 Input D1) | Points: 32 input | Length A: 750mm | Length B: 500mm | |
| XW2Z-RI100-75-D1 | XW2Z-R MIL 1:2 Input D1 A=1,000mm | OMRON | Type: XW2Z-R Cable (MIL 40-pin, 1:2 Input D1) | Points: 32 input | Length A: 1,000mm | Length B: 750mm | |
| XW2Z-RI150-125-D1 | XW2Z-R MIL 1:2 Input D1 A=1,500mm | OMRON | Type: XW2Z-R Cable (MIL 40-pin, 1:2 Input D1) | Points: 32 input | Length A: 1,500mm | Length B: 1,250mm | |
| XW2Z-RI200-175-D1 | XW2Z-R MIL 1:2 Input D1 A=2,000mm | OMRON | Type: XW2Z-R Cable (MIL 40-pin, 1:2 Input D1) | Points: 32 input | Length A: 2,000mm | Length B: 1,750mm | |
| XW2Z-RI300-275-D1 | XW2Z-R MIL 1:2 Input D1 A=3,000mm | OMRON | Type: XW2Z-R Cable (MIL 40-pin, 1:2 Input D1) | Points: 32 input | Length A: 3,000mm | Length B: 2,750mm | |
| XW2Z-RI500-475-D1 | XW2Z-R MIL 1:2 Input D1 A=5,000mm | OMRON | Type: XW2Z-R Cable (MIL 40-pin, 1:2 Input D1) | Points: 32 input | Length A: 5,000mm | Length B: 4,750mm | |
| XW2Z-RI50-25-D2 | XW2Z-R MIL 1:2 Input D2 A=500mm | OMRON | Type: XW2Z-R Cable (MIL 40-pin, 1:2 Input D2) | Points: 32 input | Length A: 500mm | Length B: 250mm | |
| XW2Z-RI75-50-D2 | XW2Z-R MIL 1:2 Input D2 A=750mm | OMRON | Type: XW2Z-R Cable (MIL 40-pin, 1:2 Input D2) | Points: 32 input | Length A: 750mm | Length B: 500mm | |
| XW2Z-RM50-25-D1 | XW2Z-R MIL 1:2 Mix 16in+16out A=500mm | OMRON | Type: XW2Z-R Cable (MIL 40-pin, 1:2 Mix I+O) | Points: 16in+16out | Length A: 500mm | Length B: 250mm | Note: For DeviceNet slave connections | |
| XW2Z-RM75-50-D1 | XW2Z-R MIL 1:2 Mix 16in+16out A=750mm | OMRON | Type: XW2Z-R Cable (MIL 40-pin, 1:2 Mix I+O) | Points: 16in+16out | Length A: 750mm | Length B: 500mm | Note: For DeviceNet slave connections | |
| XW2Z-RM100-75-D1 | XW2Z-R MIL 1:2 Mix 16in+16out A=1,000mm | OMRON | Type: XW2Z-R Cable (MIL 40-pin, 1:2 Mix I+O) | Points: 16in+16out | Length A: 1,000mm | Length B: 750mm | Note: For DeviceNet slave connections | |
| XW2Z-RM150-125-D1 | XW2Z-R MIL 1:2 Mix 16in+16out A=1,500mm | OMRON | Type: XW2Z-R Cable (MIL 40-pin, 1:2 Mix I+O) | Points: 16in+16out | Length A: 1,500mm | Length B: 1,250mm | Note: For DeviceNet slave connections | |
| XW2Z-RM200-175-D1 | XW2Z-R MIL 1:2 Mix 16in+16out A=2,000mm | OMRON | Type: XW2Z-R Cable (MIL 40-pin, 1:2 Mix I+O) | Points: 16in+16out | Length A: 2,000mm | Length B: 1,750mm | Note: For DeviceNet slave connections | |
| XW2Z-RM300-275-D1 | XW2Z-R MIL 1:2 Mix 16in+16out A=3,000mm | OMRON | Type: XW2Z-R Cable (MIL 40-pin, 1:2 Mix I+O) | Points: 16in+16out | Length A: 3,000mm | Length B: 2,750mm | Note: For DeviceNet slave connections | |
| XW2Z-RM500-475-D1 | XW2Z-R MIL 1:2 Mix 16in+16out A=5,000mm | OMRON | Type: XW2Z-R Cable (MIL 40-pin, 1:2 Mix I+O) | Points: 16in+16out | Length A: 5,000mm | Length B: 4,750mm | Note: For DeviceNet slave connections |
Connect I/O Relay Terminals to I/O Units for Programmable Controllers with one touch.
Connect I/O Relay Terminals to I/O Units for Programmable Controllers with one touch.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| XW2Z-RI100C-75-MN | XW2Z-R Mitsubishi Input A=1,000mm | OMRON | Type: XW2Z-R Cable (Mitsubishi PLC, 1:2) | Points: 32 Input | I/O: Input | Length A: 1,000mm | Length B: 750mm | Applicable: Mitsubishi AX42/A1SX41/QX41 (Input) or AY42/A1SY41/QY41P (Input) | |
| XW2Z-RI150C-125-MN | XW2Z-R Mitsubishi Input A=1,500mm | OMRON | Type: XW2Z-R Cable (Mitsubishi PLC, 1:2) | Points: 32 Input | I/O: Input | Length A: 1,500mm | Length B: 1,250mm | Applicable: Mitsubishi AX42/A1SX41/QX41 (Input) or AY42/A1SY41/QY41P (Input) | |
| XW2Z-RI200C-175-MN | XW2Z-R Mitsubishi Input A=2,000mm | OMRON | Type: XW2Z-R Cable (Mitsubishi PLC, 1:2) | Points: 32 Input | I/O: Input | Length A: 2,000mm | Length B: 1,750mm | Applicable: Mitsubishi AX42/A1SX41/QX41 (Input) or AY42/A1SY41/QY41P (Input) | |
| XW2Z-RI300C-275-MN | XW2Z-R Mitsubishi Input A=3,000mm | OMRON | Type: XW2Z-R Cable (Mitsubishi PLC, 1:2) | Points: 32 Input | I/O: Input | Length A: 3,000mm | Length B: 2,750mm | Applicable: Mitsubishi AX42/A1SX41/QX41 (Input) or AY42/A1SY41/QY41P (Input) | |
| XW2Z-RO100C-75-MN | XW2Z-R Mitsubishi Output A=1,000mm | OMRON | Type: XW2Z-R Cable (Mitsubishi PLC, 1:2) | Points: 32 Output | I/O: Output | Length A: 1,000mm | Length B: 750mm | Applicable: Mitsubishi AX42/A1SX41/QX41 (Output) or AY42/A1SY41/QY41P (Output) | |
| XW2Z-RO150C-125-MN | XW2Z-R Mitsubishi Output A=1,500mm | OMRON | Type: XW2Z-R Cable (Mitsubishi PLC, 1:2) | Points: 32 Output | I/O: Output | Length A: 1,500mm | Length B: 1,250mm | Applicable: Mitsubishi AX42/A1SX41/QX41 (Output) or AY42/A1SY41/QY41P (Output) | |
| XW2Z-RO200C-175-MN | XW2Z-R Mitsubishi Output A=2,000mm | OMRON | Type: XW2Z-R Cable (Mitsubishi PLC, 1:2) | Points: 32 Output | I/O: Output | Length A: 2,000mm | Length B: 1,750mm | Applicable: Mitsubishi AX42/A1SX41/QX41 (Output) or AY42/A1SY41/QY41P (Output) | |
| XW2Z-RO300C-275-MN | XW2Z-R Mitsubishi Output A=3,000mm | OMRON | Type: XW2Z-R Cable (Mitsubishi PLC, 1:2) | Points: 32 Output | I/O: Output | Length A: 3,000mm | Length B: 2,750mm | Applicable: Mitsubishi AX42/A1SX41/QX41 (Output) or AY42/A1SY41/QY41P (Output) |
