Cross Roller Rings

9 products cross-roller-rings ✕

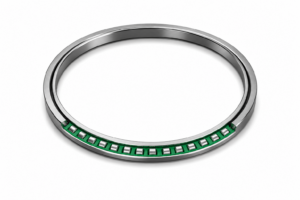

[THK] — RA Cross Roller Ring (Split Outer Ring, Compact Thin Type)

THK RA-type Cross Roller Ring with split outer ring — compact thin type with minimized ring wall thickness. Optimized for lightweight, space-saving applications such as robot hand pivot joints. For inner ring rotation. Seal version: RA...UU. Bore range: 50–200 mm.

Brand: THK Category: Cross Roller Rings 16 models

Product Code	Description	Brand	Spec
RA5008	THK RA5008, d=50mm D=66mm B=8mm compact thin type	THK	Model: RA5008 \| Type: RA (Split Outer Ring, Compact Thin) \| Bore d: 50 mm \| OD D: 66 mm \| Roller PCD dp: 57 mm \| Width B: 8 mm \| Dynamic Load C: 5.1 kN \| Static Load C0: 7.19 kN \| Mass: 0.08 kg \| Seal variant: RA5008UU
RA6008	THK RA6008, d=60mm D=76mm B=8mm compact thin type	THK	Model: RA6008 \| Type: RA (Split Outer Ring, Compact Thin) \| Bore d: 60 mm \| OD D: 76 mm \| Roller PCD dp: 67 mm \| Width B: 8 mm \| Dynamic Load C: 5.68 kN \| Static Load C0: 8.68 kN \| Mass: 0.09 kg \| Seal variant: RA6008UU
RA7008	THK RA7008, d=70mm D=86mm B=8mm compact thin type	THK	Model: RA7008 \| Type: RA (Split Outer Ring, Compact Thin) \| Bore d: 70 mm \| OD D: 86 mm \| Roller PCD dp: 77 mm \| Width B: 8 mm \| Dynamic Load C: 5.98 kN \| Static Load C0: 9.8 kN \| Mass: 0.1 kg \| Seal variant: RA7008UU
RA8008	THK RA8008, d=80mm D=96mm B=8mm compact thin type	THK	Model: RA8008 \| Type: RA (Split Outer Ring, Compact Thin) \| Bore d: 80 mm \| OD D: 96 mm \| Roller PCD dp: 87 mm \| Width B: 8 mm \| Dynamic Load C: 6.37 kN \| Static Load C0: 11.3 kN \| Mass: 0.11 kg \| Seal variant: RA8008UU
RA9008	THK RA9008, d=90mm D=106mm B=8mm compact thin type	THK	Model: RA9008 \| Type: RA (Split Outer Ring, Compact Thin) \| Bore d: 90 mm \| OD D: 106 mm \| Roller PCD dp: 97 mm \| Width B: 8 mm \| Dynamic Load C: 6.76 kN \| Static Load C0: 12.4 kN \| Mass: 0.12 kg \| Seal variant: RA9008UU
RA10008	THK RA10008, d=100mm D=116mm B=8mm compact thin type	THK	Model: RA10008 \| Type: RA (Split Outer Ring, Compact Thin) \| Bore d: 100 mm \| OD D: 116 mm \| Roller PCD dp: 107 mm \| Width B: 8 mm \| Dynamic Load C: 7.15 kN \| Static Load C0: 13.9 kN \| Mass: 0.14 kg \| Seal variant: RA10008UU
RA11008	THK RA11008, d=110mm D=126mm B=8mm compact thin type	THK	Model: RA11008 \| Type: RA (Split Outer Ring, Compact Thin) \| Bore d: 110 mm \| OD D: 126 mm \| Roller PCD dp: 117 mm \| Width B: 8 mm \| Dynamic Load C: 7.45 kN \| Static Load C0: 15.0 kN \| Mass: 0.15 kg \| Seal variant: RA11008UU
RA12008	THK RA12008, d=120mm D=136mm B=8mm compact thin type	THK	Model: RA12008 \| Type: RA (Split Outer Ring, Compact Thin) \| Bore d: 120 mm \| OD D: 136 mm \| Roller PCD dp: 127 mm \| Width B: 8 mm \| Dynamic Load C: 7.84 kN \| Static Load C0: 16.5 kN \| Mass: 0.17 kg \| Seal variant: RA12008UU
RA13008	THK RA13008, d=130mm D=146mm B=8mm compact thin type	THK	Model: RA13008 \| Type: RA (Split Outer Ring, Compact Thin) \| Bore d: 130 mm \| OD D: 146 mm \| Roller PCD dp: 137 mm \| Width B: 8 mm \| Dynamic Load C: 7.94 kN \| Static Load C0: 17.6 kN \| Mass: 0.18 kg \| Seal variant: RA13008UU
RA14008	THK RA14008, d=140mm D=156mm B=8mm compact thin type	THK	Model: RA14008 \| Type: RA (Split Outer Ring, Compact Thin) \| Bore d: 140 mm \| OD D: 156 mm \| Roller PCD dp: 147 mm \| Width B: 8 mm \| Dynamic Load C: 8.33 kN \| Static Load C0: 19.1 kN \| Mass: 0.19 kg \| Seal variant: RA14008UU
RA15008	THK RA15008, d=150mm D=166mm B=8mm compact thin type	THK	Model: RA15008 \| Type: RA (Split Outer Ring, Compact Thin) \| Bore d: 150 mm \| OD D: 166 mm \| Roller PCD dp: 157 mm \| Width B: 8 mm \| Dynamic Load C: 8.82 kN \| Static Load C0: 20.6 kN \| Mass: 0.2 kg \| Seal variant: RA15008UU
RA16013	THK RA16013, d=160mm D=186mm B=13mm compact thin type	THK	Model: RA16013 \| Type: RA (Split Outer Ring, Compact Thin) \| Bore d: 160 mm \| OD D: 186 mm \| Roller PCD dp: 172 mm \| Width B: 13 mm \| Dynamic Load C: 23.3 kN \| Static Load C0: 44.9 kN \| Mass: 0.59 kg \| Seal variant: RA16013UU
RA17013	THK RA17013, d=170mm D=196mm B=13mm compact thin type	THK	Model: RA17013 \| Type: RA (Split Outer Ring, Compact Thin) \| Bore d: 170 mm \| OD D: 196 mm \| Roller PCD dp: 182 mm \| Width B: 13 mm \| Dynamic Load C: 23.5 kN \| Static Load C0: 46.5 kN \| Mass: 0.64 kg \| Seal variant: RA17013UU
RA18013	THK RA18013, d=180mm D=206mm B=13mm compact thin type	THK	Model: RA18013 \| Type: RA (Split Outer Ring, Compact Thin) \| Bore d: 180 mm \| OD D: 206 mm \| Roller PCD dp: 192 mm \| Width B: 13 mm \| Dynamic Load C: 24.5 kN \| Static Load C0: 49.8 kN \| Mass: 0.68 kg \| Seal variant: RA18013UU
RA19013	THK RA19013, d=190mm D=216mm B=13mm compact thin type	THK	Model: RA19013 \| Type: RA (Split Outer Ring, Compact Thin) \| Bore d: 190 mm \| OD D: 216 mm \| Roller PCD dp: 202 mm \| Width B: 13 mm \| Dynamic Load C: 24.9 kN \| Static Load C0: 51.5 kN \| Mass: 0.69 kg \| Seal variant: RA19013UU
RA20013	THK RA20013, d=200mm D=226mm B=13mm compact thin type	THK	Model: RA20013 \| Type: RA (Split Outer Ring, Compact Thin) \| Bore d: 200 mm \| OD D: 226 mm \| Roller PCD dp: 212 mm \| Width B: 13 mm \| Dynamic Load C: 25.8 kN \| Static Load C0: 54.7 kN \| Mass: 0.71 kg \| Seal variant: RA20013UU

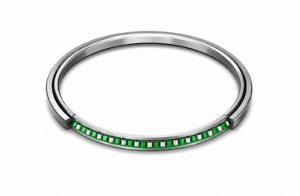

[THK] — RA-C Cross Roller Ring (Single Split Outer Ring)

THK RA-C type Cross Roller Ring — single split outer ring type. Same dimensions as RA type; single outer ring split increases outer ring rigidity allowing use for outer ring rotation as well as inner ring rotation. Seal version: RA...CUU. Bore range: 50–200 mm.

Brand: THK Category: Cross Roller Rings 16 models

Product Code	Description	Brand	Spec
RA5008C	THK RA5008C, d=50mm D=66mm B=8mm single split outer ring	THK	Model: RA5008C \| Type: RA-C (Single Split Outer Ring) \| Bore d: 50 mm \| OD D: 66 mm \| Roller PCD dp: 57 mm \| Width B: 8 mm \| Dynamic Load C: 5.1 kN \| Static Load C0: 7.19 kN \| Mass: 0.08 kg \| Seal variant: RA5008CUU
RA6008C	THK RA6008C, d=60mm D=76mm B=8mm single split outer ring	THK	Model: RA6008C \| Type: RA-C (Single Split Outer Ring) \| Bore d: 60 mm \| OD D: 76 mm \| Roller PCD dp: 67 mm \| Width B: 8 mm \| Dynamic Load C: 5.68 kN \| Static Load C0: 8.68 kN \| Mass: 0.09 kg \| Seal variant: RA6008CUU
RA7008C	THK RA7008C, d=70mm D=86mm B=8mm single split outer ring	THK	Model: RA7008C \| Type: RA-C (Single Split Outer Ring) \| Bore d: 70 mm \| OD D: 86 mm \| Roller PCD dp: 77 mm \| Width B: 8 mm \| Dynamic Load C: 5.98 kN \| Static Load C0: 9.8 kN \| Mass: 0.1 kg \| Seal variant: RA7008CUU
RA8008C	THK RA8008C, d=80mm D=96mm B=8mm single split outer ring	THK	Model: RA8008C \| Type: RA-C (Single Split Outer Ring) \| Bore d: 80 mm \| OD D: 96 mm \| Roller PCD dp: 87 mm \| Width B: 8 mm \| Dynamic Load C: 6.37 kN \| Static Load C0: 11.3 kN \| Mass: 0.11 kg \| Seal variant: RA8008CUU
RA9008C	THK RA9008C, d=90mm D=106mm B=8mm single split outer ring	THK	Model: RA9008C \| Type: RA-C (Single Split Outer Ring) \| Bore d: 90 mm \| OD D: 106 mm \| Roller PCD dp: 97 mm \| Width B: 8 mm \| Dynamic Load C: 6.76 kN \| Static Load C0: 12.4 kN \| Mass: 0.12 kg \| Seal variant: RA9008CUU
RA10008C	THK RA10008C, d=100mm D=116mm B=8mm single split outer ring	THK	Model: RA10008C \| Type: RA-C (Single Split Outer Ring) \| Bore d: 100 mm \| OD D: 116 mm \| Roller PCD dp: 107 mm \| Width B: 8 mm \| Dynamic Load C: 7.15 kN \| Static Load C0: 13.9 kN \| Mass: 0.14 kg \| Seal variant: RA10008CUU
RA11008C	THK RA11008C, d=110mm D=126mm B=8mm single split outer ring	THK	Model: RA11008C \| Type: RA-C (Single Split Outer Ring) \| Bore d: 110 mm \| OD D: 126 mm \| Roller PCD dp: 117 mm \| Width B: 8 mm \| Dynamic Load C: 7.45 kN \| Static Load C0: 15.0 kN \| Mass: 0.15 kg \| Seal variant: RA11008CUU
RA12008C	THK RA12008C, d=120mm D=136mm B=8mm single split outer ring	THK	Model: RA12008C \| Type: RA-C (Single Split Outer Ring) \| Bore d: 120 mm \| OD D: 136 mm \| Roller PCD dp: 127 mm \| Width B: 8 mm \| Dynamic Load C: 7.84 kN \| Static Load C0: 16.5 kN \| Mass: 0.17 kg \| Seal variant: RA12008CUU
RA13008C	THK RA13008C, d=130mm D=146mm B=8mm single split outer ring	THK	Model: RA13008C \| Type: RA-C (Single Split Outer Ring) \| Bore d: 130 mm \| OD D: 146 mm \| Roller PCD dp: 137 mm \| Width B: 8 mm \| Dynamic Load C: 7.94 kN \| Static Load C0: 17.6 kN \| Mass: 0.18 kg \| Seal variant: RA13008CUU
RA14008C	THK RA14008C, d=140mm D=156mm B=8mm single split outer ring	THK	Model: RA14008C \| Type: RA-C (Single Split Outer Ring) \| Bore d: 140 mm \| OD D: 156 mm \| Roller PCD dp: 147 mm \| Width B: 8 mm \| Dynamic Load C: 8.33 kN \| Static Load C0: 19.1 kN \| Mass: 0.19 kg \| Seal variant: RA14008CUU
RA15008C	THK RA15008C, d=150mm D=166mm B=8mm single split outer ring	THK	Model: RA15008C \| Type: RA-C (Single Split Outer Ring) \| Bore d: 150 mm \| OD D: 166 mm \| Roller PCD dp: 157 mm \| Width B: 8 mm \| Dynamic Load C: 8.82 kN \| Static Load C0: 20.6 kN \| Mass: 0.2 kg \| Seal variant: RA15008CUU
RA16013C	THK RA16013C, d=160mm D=186mm B=13mm single split outer ring	THK	Model: RA16013C \| Type: RA-C (Single Split Outer Ring) \| Bore d: 160 mm \| OD D: 186 mm \| Roller PCD dp: 172 mm \| Width B: 13 mm \| Dynamic Load C: 23.3 kN \| Static Load C0: 44.9 kN \| Mass: 0.59 kg \| Seal variant: RA16013CUU
RA17013C	THK RA17013C, d=170mm D=196mm B=13mm single split outer ring	THK	Model: RA17013C \| Type: RA-C (Single Split Outer Ring) \| Bore d: 170 mm \| OD D: 196 mm \| Roller PCD dp: 182 mm \| Width B: 13 mm \| Dynamic Load C: 23.5 kN \| Static Load C0: 46.5 kN \| Mass: 0.64 kg \| Seal variant: RA17013CUU
RA18013C	THK RA18013C, d=180mm D=206mm B=13mm single split outer ring	THK	Model: RA18013C \| Type: RA-C (Single Split Outer Ring) \| Bore d: 180 mm \| OD D: 206 mm \| Roller PCD dp: 192 mm \| Width B: 13 mm \| Dynamic Load C: 24.5 kN \| Static Load C0: 49.8 kN \| Mass: 0.68 kg \| Seal variant: RA18013CUU
RA19013C	THK RA19013C, d=190mm D=216mm B=13mm single split outer ring	THK	Model: RA19013C \| Type: RA-C (Single Split Outer Ring) \| Bore d: 190 mm \| OD D: 216 mm \| Roller PCD dp: 202 mm \| Width B: 13 mm \| Dynamic Load C: 24.9 kN \| Static Load C0: 51.5 kN \| Mass: 0.69 kg \| Seal variant: RA19013CUU
RA20013C	THK RA20013C, d=200mm D=226mm B=13mm single split outer ring	THK	Model: RA20013C \| Type: RA-C (Single Split Outer Ring) \| Bore d: 200 mm \| OD D: 226 mm \| Roller PCD dp: 212 mm \| Width B: 13 mm \| Dynamic Load C: 25.8 kN \| Static Load C0: 54.7 kN \| Mass: 0.71 kg \| Seal variant: RA20013CUU

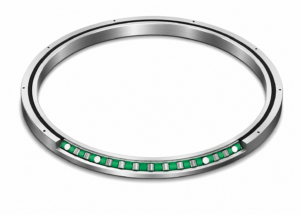

[THK] — RAU Cross Roller Ring (RA-Compatible, Integrated Inner/Outer Ring)

THK RAU-type Cross Roller Ring — RA-compatible integrated inner/outer ring type. Small cross-sectional area for lightweight, compact design. Usable for both inner ring and outer ring rotation. Seal version: RAU...UU. Bore range: 50–200 mm.

Brand: THK Category: Cross Roller Rings 16 models

Product Code	Description	Brand	Spec
RAU5008	THK RAU5008, d=50mm D=66mm B=8mm RA-compatible	THK	Model: RAU5008 \| Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) \| Bore d: 50 mm \| OD D: 66 mm \| Roller PCD dp: 57 mm \| Width B: 8 mm \| Dynamic Load C: 5.1 kN \| Static Load C0: 7.19 kN \| Mass: 0.08 kg \| Seal variant: RAU5008UU
RAU6008	THK RAU6008, d=60mm D=76mm B=8mm RA-compatible	THK	Model: RAU6008 \| Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) \| Bore d: 60 mm \| OD D: 76 mm \| Roller PCD dp: 67 mm \| Width B: 8 mm \| Dynamic Load C: 5.68 kN \| Static Load C0: 8.68 kN \| Mass: 0.09 kg \| Seal variant: RAU6008UU
RAU7008	THK RAU7008, d=70mm D=86mm B=8mm RA-compatible	THK	Model: RAU7008 \| Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) \| Bore d: 70 mm \| OD D: 86 mm \| Roller PCD dp: 77 mm \| Width B: 8 mm \| Dynamic Load C: 5.98 kN \| Static Load C0: 9.8 kN \| Mass: 0.1 kg \| Seal variant: RAU7008UU
RAU8008	THK RAU8008, d=80mm D=96mm B=8mm RA-compatible	THK	Model: RAU8008 \| Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) \| Bore d: 80 mm \| OD D: 96 mm \| Roller PCD dp: 87 mm \| Width B: 8 mm \| Dynamic Load C: 6.37 kN \| Static Load C0: 11.3 kN \| Mass: 0.11 kg \| Seal variant: RAU8008UU
RAU9008	THK RAU9008, d=90mm D=106mm B=8mm RA-compatible	THK	Model: RAU9008 \| Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) \| Bore d: 90 mm \| OD D: 106 mm \| Roller PCD dp: 97 mm \| Width B: 8 mm \| Dynamic Load C: 6.76 kN \| Static Load C0: 12.4 kN \| Mass: 0.12 kg \| Seal variant: RAU9008UU
RAU10008	THK RAU10008, d=100mm D=116mm B=8mm RA-compatible	THK	Model: RAU10008 \| Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) \| Bore d: 100 mm \| OD D: 116 mm \| Roller PCD dp: 107 mm \| Width B: 8 mm \| Dynamic Load C: 7.15 kN \| Static Load C0: 13.9 kN \| Mass: 0.14 kg \| Seal variant: RAU10008UU
RAU11008	THK RAU11008, d=110mm D=126mm B=8mm RA-compatible	THK	Model: RAU11008 \| Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) \| Bore d: 110 mm \| OD D: 126 mm \| Roller PCD dp: 117 mm \| Width B: 8 mm \| Dynamic Load C: 7.45 kN \| Static Load C0: 15.0 kN \| Mass: 0.15 kg \| Seal variant: RAU11008UU
RAU12008	THK RAU12008, d=120mm D=136mm B=8mm RA-compatible	THK	Model: RAU12008 \| Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) \| Bore d: 120 mm \| OD D: 136 mm \| Roller PCD dp: 127 mm \| Width B: 8 mm \| Dynamic Load C: 7.84 kN \| Static Load C0: 16.5 kN \| Mass: 0.17 kg \| Seal variant: RAU12008UU
RAU13008	THK RAU13008, d=130mm D=146mm B=8mm RA-compatible	THK	Model: RAU13008 \| Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) \| Bore d: 130 mm \| OD D: 146 mm \| Roller PCD dp: 137 mm \| Width B: 8 mm \| Dynamic Load C: 7.94 kN \| Static Load C0: 17.6 kN \| Mass: 0.18 kg \| Seal variant: RAU13008UU
RAU14008	THK RAU14008, d=140mm D=156mm B=8mm RA-compatible	THK	Model: RAU14008 \| Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) \| Bore d: 140 mm \| OD D: 156 mm \| Roller PCD dp: 147 mm \| Width B: 8 mm \| Dynamic Load C: 8.33 kN \| Static Load C0: 19.1 kN \| Mass: 0.19 kg \| Seal variant: RAU14008UU
RAU15008	THK RAU15008, d=150mm D=166mm B=8mm RA-compatible	THK	Model: RAU15008 \| Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) \| Bore d: 150 mm \| OD D: 166 mm \| Roller PCD dp: 157 mm \| Width B: 8 mm \| Dynamic Load C: 8.82 kN \| Static Load C0: 20.6 kN \| Mass: 0.2 kg \| Seal variant: RAU15008UU
RAU16013	THK RAU16013, d=160mm D=186mm B=13mm RA-compatible	THK	Model: RAU16013 \| Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) \| Bore d: 160 mm \| OD D: 186 mm \| Roller PCD dp: 172 mm \| Width B: 13 mm \| Dynamic Load C: 23.3 kN \| Static Load C0: 44.9 kN \| Mass: 0.59 kg \| Seal variant: RAU16013UU
RAU17013	THK RAU17013, d=170mm D=196mm B=13mm RA-compatible	THK	Model: RAU17013 \| Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) \| Bore d: 170 mm \| OD D: 196 mm \| Roller PCD dp: 182 mm \| Width B: 13 mm \| Dynamic Load C: 23.5 kN \| Static Load C0: 46.5 kN \| Mass: 0.64 kg \| Seal variant: RAU17013UU
RAU18013	THK RAU18013, d=180mm D=206mm B=13mm RA-compatible	THK	Model: RAU18013 \| Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) \| Bore d: 180 mm \| OD D: 206 mm \| Roller PCD dp: 192 mm \| Width B: 13 mm \| Dynamic Load C: 24.5 kN \| Static Load C0: 49.8 kN \| Mass: 0.68 kg \| Seal variant: RAU18013UU
RAU19013	THK RAU19013, d=190mm D=216mm B=13mm RA-compatible	THK	Model: RAU19013 \| Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) \| Bore d: 190 mm \| OD D: 216 mm \| Roller PCD dp: 202 mm \| Width B: 13 mm \| Dynamic Load C: 24.9 kN \| Static Load C0: 51.5 kN \| Mass: 0.69 kg \| Seal variant: RAU19013UU
RAU20013	THK RAU20013, d=200mm D=226mm B=13mm RA-compatible	THK	Model: RAU20013 \| Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) \| Bore d: 200 mm \| OD D: 226 mm \| Roller PCD dp: 212 mm \| Width B: 13 mm \| Dynamic Load C: 25.8 kN \| Static Load C0: 54.7 kN \| Mass: 0.71 kg \| Seal variant: RAU20013UU

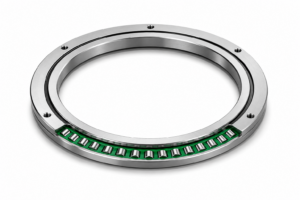

[THK] — RAU Cross Roller Ring (Small Bore, Thin Type, Width 5mm)

THK RAU-type Cross Roller Ring — small bore, thin type with 5mm width. No seal available. Radial clearance C0 only. Standard accuracy (Grade 0). Bore range: 10–100 mm.

Brand: THK Category: Cross Roller Rings 11 models

THK RAU-type Cross Roller Ring — small bore, thin type with 5mm width. No seal available. Radial clearance C0 only. Standard accuracy (Grade 0). Bore range: 10–100 mm.

Product Code	Description	Brand	Spec
RAU1005	THK RAU1005, d=10mm D=21mm B=5mm thin type	THK	Model: RAU1005 \| Type: RAU (Small Bore, Thin 5mm Width) \| Bore d: 10 mm \| OD D: 21 mm \| Roller PCD dp: 14.7 mm \| Width B: 5 mm \| Dynamic Load C: 1.12 kN \| Static Load C0: 0.809 kN \| Mass: 9 g \| Note: No seal. C0 clearance only. Standard accuracy only.
RAU1505	THK RAU1505, d=15mm D=26mm B=5mm thin type	THK	Model: RAU1505 \| Type: RAU (Small Bore, Thin 5mm Width) \| Bore d: 15 mm \| OD D: 26 mm \| Roller PCD dp: 19.7 mm \| Width B: 5 mm \| Dynamic Load C: 1.32 kN \| Static Load C0: 1.1 kN \| Mass: 12 g \| Note: No seal. C0 clearance only. Standard accuracy only.
RAU2005	THK RAU2005, d=20mm D=31mm B=5mm thin type	THK	Model: RAU2005 \| Type: RAU (Small Bore, Thin 5mm Width) \| Bore d: 20 mm \| OD D: 31 mm \| Roller PCD dp: 24.7 mm \| Width B: 5 mm \| Dynamic Load C: 1.49 kN \| Static Load C0: 1.4 kN \| Mass: 15 g \| Note: No seal. C0 clearance only. Standard accuracy only.
RAU3005	THK RAU3005, d=30mm D=41mm B=5mm thin type	THK	Model: RAU3005 \| Type: RAU (Small Bore, Thin 5mm Width) \| Bore d: 30 mm \| OD D: 41 mm \| Roller PCD dp: 34.7 mm \| Width B: 5 mm \| Dynamic Load C: 1.89 kN \| Static Load C0: 2.14 kN \| Mass: 21 g \| Note: No seal. C0 clearance only. Standard accuracy only.
RAU4005	THK RAU4005, d=40mm D=51mm B=5mm thin type	THK	Model: RAU4005 \| Type: RAU (Small Bore, Thin 5mm Width) \| Bore d: 40 mm \| OD D: 51 mm \| Roller PCD dp: 44.7 mm \| Width B: 5 mm \| Dynamic Load C: 2.14 kN \| Static Load C0: 2.74 kN \| Mass: 27 g \| Note: No seal. C0 clearance only. Standard accuracy only.
RAU5005	THK RAU5005, d=50mm D=61mm B=5mm thin type	THK	Model: RAU5005 \| Type: RAU (Small Bore, Thin 5mm Width) \| Bore d: 50 mm \| OD D: 61 mm \| Roller PCD dp: 54.7 mm \| Width B: 5 mm \| Dynamic Load C: 2.43 kN \| Static Load C0: 3.49 kN \| Mass: 32 g \| Note: No seal. C0 clearance only. Standard accuracy only.
RAU6005	THK RAU6005, d=60mm D=71mm B=5mm thin type	THK	Model: RAU6005 \| Type: RAU (Small Bore, Thin 5mm Width) \| Bore d: 60 mm \| OD D: 71 mm \| Roller PCD dp: 64.7 mm \| Width B: 5 mm \| Dynamic Load C: 2.63 kN \| Static Load C0: 4.09 kN \| Mass: 38 g \| Note: No seal. C0 clearance only. Standard accuracy only.
RAU7005	THK RAU7005, d=70mm D=81mm B=5mm thin type	THK	Model: RAU7005 \| Type: RAU (Small Bore, Thin 5mm Width) \| Bore d: 70 mm \| OD D: 81 mm \| Roller PCD dp: 74.7 mm \| Width B: 5 mm \| Dynamic Load C: 2.81 kN \| Static Load C0: 4.68 kN \| Mass: 44 g \| Note: No seal. C0 clearance only. Standard accuracy only.
RAU8005	THK RAU8005, d=80mm D=91mm B=5mm thin type	THK	Model: RAU8005 \| Type: RAU (Small Bore, Thin 5mm Width) \| Bore d: 80 mm \| OD D: 91 mm \| Roller PCD dp: 84.7 mm \| Width B: 5 mm \| Dynamic Load C: 3.05 kN \| Static Load C0: 5.43 kN \| Mass: 50 g \| Note: No seal. C0 clearance only. Standard accuracy only.
RAU9005	THK RAU9005, d=90mm D=101mm B=5mm thin type	THK	Model: RAU9005 \| Type: RAU (Small Bore, Thin 5mm Width) \| Bore d: 90 mm \| OD D: 101 mm \| Roller PCD dp: 94.7 mm \| Width B: 5 mm \| Dynamic Load C: 3.19 kN \| Static Load C0: 6.03 kN \| Mass: 56 g \| Note: No seal. C0 clearance only. Standard accuracy only.
RAU10005	THK RAU10005, d=100mm D=111mm B=5mm thin type	THK	Model: RAU10005 \| Type: RAU (Small Bore, Thin 5mm Width) \| Bore d: 100 mm \| OD D: 111 mm \| Roller PCD dp: 104.7 mm \| Width B: 5 mm \| Dynamic Load C: 3.37 kN \| Static Load C0: 6.63 kN \| Mass: 61 g \| Note: No seal. C0 clearance only. Standard accuracy only.

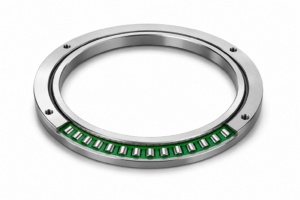

[THK] — RB Cross Roller Ring (Split Outer Ring)

THK RB-type Cross Roller Ring with split outer ring and integrated inner ring. Suitable for inner ring rotation applications requiring high rotational accuracy. Seal version available as RB...UU. Bore range: 20–1250 mm.

Brand: THK Category: Cross Roller Rings 53 models

Product Code	Description	Brand	Spec
RB2008	THK RB2008, d=20mm D=36mm B=8mm, C=3.23kN C0=3.1kN	THK	Model: RB2008 \| Type: RB (Split Outer Ring) \| Bore d: 20 mm \| OD D: 36 mm \| Roller PCD dp: 27.0 mm \| Width B: 8 mm \| Dynamic Load C: 3.23 kN \| Static Load C0: 3.1 kN \| Mass: 0.04 kg \| Seal variant: RB2008UU
RB2508	THK RB2508, d=25mm D=41mm B=8mm, C=3.63kN C0=3.83kN	THK	Model: RB2508 \| Type: RB (Split Outer Ring) \| Bore d: 25 mm \| OD D: 41 mm \| Roller PCD dp: 32.0 mm \| Width B: 8 mm \| Dynamic Load C: 3.63 kN \| Static Load C0: 3.83 kN \| Mass: 0.05 kg \| Seal variant: RB2508UU
RB3010	THK RB3010, d=30mm D=55mm B=10mm, C=7.35kN C0=8.36kN	THK	Model: RB3010 \| Type: RB (Split Outer Ring) \| Bore d: 30 mm \| OD D: 55 mm \| Roller PCD dp: 41.5 mm \| Width B: 10 mm \| Dynamic Load C: 7.35 kN \| Static Load C0: 8.36 kN \| Mass: 0.12 kg \| Seal variant: RB3010UU
RB3510	THK RB3510, d=35mm D=60mm B=10mm, C=7.64kN C0=9.12kN	THK	Model: RB3510 \| Type: RB (Split Outer Ring) \| Bore d: 35 mm \| OD D: 60 mm \| Roller PCD dp: 46.5 mm \| Width B: 10 mm \| Dynamic Load C: 7.64 kN \| Static Load C0: 9.12 kN \| Mass: 0.13 kg \| Seal variant: RB3510UU
RB4010	THK RB4010, d=40mm D=65mm B=10mm, C=8.33kN C0=10.6kN	THK	Model: RB4010 \| Type: RB (Split Outer Ring) \| Bore d: 40 mm \| OD D: 65 mm \| Roller PCD dp: 51.5 mm \| Width B: 10 mm \| Dynamic Load C: 8.33 kN \| Static Load C0: 10.6 kN \| Mass: 0.16 kg \| Seal variant: RB4010UU
RB4510	THK RB4510, d=45mm D=70mm B=10mm, C=8.62kN C0=11.3kN	THK	Model: RB4510 \| Type: RB (Split Outer Ring) \| Bore d: 45 mm \| OD D: 70 mm \| Roller PCD dp: 56.5 mm \| Width B: 10 mm \| Dynamic Load C: 8.62 kN \| Static Load C0: 11.3 kN \| Mass: 0.17 kg \| Seal variant: RB4510UU
RB5013	THK RB5013, d=50mm D=80mm B=13mm, C=16.7kN C0=20.9kN	THK	Model: RB5013 \| Type: RB (Split Outer Ring) \| Bore d: 50 mm \| OD D: 80 mm \| Roller PCD dp: 64.0 mm \| Width B: 13 mm \| Dynamic Load C: 16.7 kN \| Static Load C0: 20.9 kN \| Mass: 0.27 kg \| Seal variant: RB5013UU
RB6013	THK RB6013, d=60mm D=90mm B=13mm, C=18.0kN C0=24.3kN	THK	Model: RB6013 \| Type: RB (Split Outer Ring) \| Bore d: 60 mm \| OD D: 90 mm \| Roller PCD dp: 74.0 mm \| Width B: 13 mm \| Dynamic Load C: 18.0 kN \| Static Load C0: 24.3 kN \| Mass: 0.3 kg \| Seal variant: RB6013UU
RB7013	THK RB7013, d=70mm D=100mm B=13mm, C=19.4kN C0=27.7kN	THK	Model: RB7013 \| Type: RB (Split Outer Ring) \| Bore d: 70 mm \| OD D: 100 mm \| Roller PCD dp: 84.0 mm \| Width B: 13 mm \| Dynamic Load C: 19.4 kN \| Static Load C0: 27.7 kN \| Mass: 0.35 kg \| Seal variant: RB7013UU
RB8016	THK RB8016, d=80mm D=120mm B=16mm, C=30.1kN C0=42.1kN	THK	Model: RB8016 \| Type: RB (Split Outer Ring) \| Bore d: 80 mm \| OD D: 120 mm \| Roller PCD dp: 98.0 mm \| Width B: 16 mm \| Dynamic Load C: 30.1 kN \| Static Load C0: 42.1 kN \| Mass: 0.7 kg \| Seal variant: RB8016UU
RB9016	THK RB9016, d=90mm D=130mm B=16mm, C=31.4kN C0=45.3kN	THK	Model: RB9016 \| Type: RB (Split Outer Ring) \| Bore d: 90 mm \| OD D: 130 mm \| Roller PCD dp: 108.0 mm \| Width B: 16 mm \| Dynamic Load C: 31.4 kN \| Static Load C0: 45.3 kN \| Mass: 0.75 kg \| Seal variant: RB9016UU
RB10016	THK RB10016, d=100mm D=140mm B=16mm, C=31.7kN C0=48.6kN	THK	Model: RB10016 \| Type: RB (Split Outer Ring) \| Bore d: 100 mm \| OD D: 140 mm \| Roller PCD dp: 119.3 mm \| Width B: 16 mm \| Dynamic Load C: 31.7 kN \| Static Load C0: 48.6 kN \| Mass: 0.83 kg \| Seal variant: RB10016UU
RB10020	THK RB10020, d=100mm D=150mm B=20mm, C=33.1kN C0=50.9kN	THK	Model: RB10020 \| Type: RB (Split Outer Ring) \| Bore d: 100 mm \| OD D: 150 mm \| Roller PCD dp: 123.0 mm \| Width B: 20 mm \| Dynamic Load C: 33.1 kN \| Static Load C0: 50.9 kN \| Mass: 1.45 kg \| Seal variant: RB10020UU
RB11012	THK RB11012, d=110mm D=135mm B=12mm, C=12.5kN C0=24.1kN	THK	Model: RB11012 \| Type: RB (Split Outer Ring) \| Bore d: 110 mm \| OD D: 135 mm \| Roller PCD dp: 121.8 mm \| Width B: 12 mm \| Dynamic Load C: 12.5 kN \| Static Load C0: 24.1 kN \| Mass: 0.4 kg \| Seal variant: RB11012UU
RB11015	THK RB11015, d=110mm D=145mm B=15mm, C=23.7kN C0=41.5kN	THK	Model: RB11015 \| Type: RB (Split Outer Ring) \| Bore d: 110 mm \| OD D: 145 mm \| Roller PCD dp: 126.5 mm \| Width B: 15 mm \| Dynamic Load C: 23.7 kN \| Static Load C0: 41.5 kN \| Mass: 0.75 kg \| Seal variant: RB11015UU
RB11020	THK RB11020, d=110mm D=160mm B=20mm, C=34.0kN C0=54.0kN	THK	Model: RB11020 \| Type: RB (Split Outer Ring) \| Bore d: 110 mm \| OD D: 160 mm \| Roller PCD dp: 133.0 mm \| Width B: 20 mm \| Dynamic Load C: 34.0 kN \| Static Load C0: 54.0 kN \| Mass: 1.56 kg \| Seal variant: RB11020UU
RB12016	THK RB12016, d=120mm D=150mm B=16mm, C=24.2kN C0=43.2kN	THK	Model: RB12016 \| Type: RB (Split Outer Ring) \| Bore d: 120 mm \| OD D: 150 mm \| Roller PCD dp: 134.2 mm \| Width B: 16 mm \| Dynamic Load C: 24.2 kN \| Static Load C0: 43.2 kN \| Mass: 0.72 kg \| Seal variant: RB12016UU
RB12025	THK RB12025, d=120mm D=180mm B=25mm, C=66.9kN C0=100.0kN	THK	Model: RB12025 \| Type: RB (Split Outer Ring) \| Bore d: 120 mm \| OD D: 180 mm \| Roller PCD dp: 148.7 mm \| Width B: 25 mm \| Dynamic Load C: 66.9 kN \| Static Load C0: 100.0 kN \| Mass: 2.62 kg \| Seal variant: RB12025UU
RB13015	THK RB13015, d=130mm D=160mm B=15mm, C=25.0kN C0=46.7kN	THK	Model: RB13015 \| Type: RB (Split Outer Ring) \| Bore d: 130 mm \| OD D: 160 mm \| Roller PCD dp: 144.5 mm \| Width B: 15 mm \| Dynamic Load C: 25.0 kN \| Static Load C0: 46.7 kN \| Mass: 0.72 kg \| Seal variant: RB13015UU
RB13025	THK RB13025, d=130mm D=190mm B=25mm, C=69.5kN C0=107.0kN	THK	Model: RB13025 \| Type: RB (Split Outer Ring) \| Bore d: 130 mm \| OD D: 190 mm \| Roller PCD dp: 158.0 mm \| Width B: 25 mm \| Dynamic Load C: 69.5 kN \| Static Load C0: 107.0 kN \| Mass: 2.82 kg \| Seal variant: RB13025UU
RB14016	THK RB14016, d=140mm D=175mm B=16mm, C=25.9kN C0=50.1kN	THK	Model: RB14016 \| Type: RB (Split Outer Ring) \| Bore d: 140 mm \| OD D: 175 mm \| Roller PCD dp: 154.8 mm \| Width B: 16 mm \| Dynamic Load C: 25.9 kN \| Static Load C0: 50.1 kN \| Mass: 1.0 kg \| Seal variant: RB14016UU
RB14025	THK RB14025, d=140mm D=200mm B=25mm, C=74.8kN C0=121.0kN	THK	Model: RB14025 \| Type: RB (Split Outer Ring) \| Bore d: 140 mm \| OD D: 200 mm \| Roller PCD dp: 168.0 mm \| Width B: 25 mm \| Dynamic Load C: 74.8 kN \| Static Load C0: 121.0 kN \| Mass: 2.96 kg \| Seal variant: RB14025UU
RB15013	THK RB15013, d=150mm D=180mm B=13mm, C=27.0kN C0=53.5kN	THK	Model: RB15013 \| Type: RB (Split Outer Ring) \| Bore d: 150 mm \| OD D: 180 mm \| Roller PCD dp: 164.0 mm \| Width B: 13 mm \| Dynamic Load C: 27.0 kN \| Static Load C0: 53.5 kN \| Mass: 0.68 kg \| Seal variant: RB15013UU
RB15025	THK RB15025, d=150mm D=210mm B=25mm, C=76.8kN C0=128.0kN	THK	Model: RB15025 \| Type: RB (Split Outer Ring) \| Bore d: 150 mm \| OD D: 210 mm \| Roller PCD dp: 178.0 mm \| Width B: 25 mm \| Dynamic Load C: 76.8 kN \| Static Load C0: 128.0 kN \| Mass: 3.16 kg \| Seal variant: RB15025UU
RB15030	THK RB15030, d=150mm D=230mm B=30mm, C=100.0kN C0=156.0kN	THK	Model: RB15030 \| Type: RB (Split Outer Ring) \| Bore d: 150 mm \| OD D: 230 mm \| Roller PCD dp: 188.0 mm \| Width B: 30 mm \| Dynamic Load C: 100.0 kN \| Static Load C0: 156.0 kN \| Mass: 5.3 kg \| Seal variant: RB15030UU
RB16025	THK RB16025, d=160mm D=220mm B=25mm, C=81.7kN C0=135.0kN	THK	Model: RB16025 \| Type: RB (Split Outer Ring) \| Bore d: 160 mm \| OD D: 220 mm \| Roller PCD dp: 188.6 mm \| Width B: 25 mm \| Dynamic Load C: 81.7 kN \| Static Load C0: 135.0 kN \| Mass: 3.14 kg \| Seal variant: RB16025UU
RB17020	THK RB17020, d=170mm D=220mm B=20mm, C=29.0kN C0=62.1kN	THK	Model: RB17020 \| Type: RB (Split Outer Ring) \| Bore d: 170 mm \| OD D: 220 mm \| Roller PCD dp: 191.0 mm \| Width B: 20 mm \| Dynamic Load C: 29.0 kN \| Static Load C0: 62.1 kN \| Mass: 2.21 kg \| Seal variant: RB17020UU
RB18025	THK RB18025, d=180mm D=240mm B=25mm, C=84.0kN C0=143.0kN	THK	Model: RB18025 \| Type: RB (Split Outer Ring) \| Bore d: 180 mm \| OD D: 240 mm \| Roller PCD dp: 210.0 mm \| Width B: 25 mm \| Dynamic Load C: 84.0 kN \| Static Load C0: 143.0 kN \| Mass: 3.44 kg \| Seal variant: RB18025UU
RB19025	THK RB19025, d=190mm D=240mm B=25mm, C=41.7kN C0=82.9kN	THK	Model: RB19025 \| Type: RB (Split Outer Ring) \| Bore d: 190 mm \| OD D: 240 mm \| Roller PCD dp: 211.9 mm \| Width B: 25 mm \| Dynamic Load C: 41.7 kN \| Static Load C0: 82.9 kN \| Mass: 2.99 kg \| Seal variant: RB19025UU
RB20025	THK RB20025, d=200mm D=260mm B=25mm, C=84.2kN C0=157.0kN	THK	Model: RB20025 \| Type: RB (Split Outer Ring) \| Bore d: 200 mm \| OD D: 260 mm \| Roller PCD dp: 230.0 mm \| Width B: 25 mm \| Dynamic Load C: 84.2 kN \| Static Load C0: 157.0 kN \| Mass: 4.0 kg \| Seal variant: RB20025UU
RB20030	THK RB20030, d=200mm D=280mm B=30mm, C=114.0kN C0=200.0kN	THK	Model: RB20030 \| Type: RB (Split Outer Ring) \| Bore d: 200 mm \| OD D: 280 mm \| Roller PCD dp: 240.0 mm \| Width B: 30 mm \| Dynamic Load C: 114.0 kN \| Static Load C0: 200.0 kN \| Mass: 6.7 kg \| Seal variant: RB20030UU
RB20035	THK RB20035, d=200mm D=295mm B=35mm, C=151.0kN C0=252.0kN	THK	Model: RB20035 \| Type: RB (Split Outer Ring) \| Bore d: 200 mm \| OD D: 295 mm \| Roller PCD dp: 247.7 mm \| Width B: 35 mm \| Dynamic Load C: 151.0 kN \| Static Load C0: 252.0 kN \| Mass: 9.6 kg \| Seal variant: RB20035UU
RB22025	THK RB22025, d=220mm D=280mm B=25mm, C=92.3kN C0=171.0kN	THK	Model: RB22025 \| Type: RB (Split Outer Ring) \| Bore d: 220 mm \| OD D: 280 mm \| Roller PCD dp: 250.1 mm \| Width B: 25 mm \| Dynamic Load C: 92.3 kN \| Static Load C0: 171.0 kN \| Mass: 4.1 kg \| Seal variant: RB22025UU
RB24025	THK RB24025, d=240mm D=300mm B=25mm, C=68.3kN C0=145.0kN	THK	Model: RB24025 \| Type: RB (Split Outer Ring) \| Bore d: 240 mm \| OD D: 300 mm \| Roller PCD dp: 269.0 mm \| Width B: 25 mm \| Dynamic Load C: 68.3 kN \| Static Load C0: 145.0 kN \| Mass: 4.5 kg \| Seal variant: RB24025UU
RB25025	THK RB25025, d=250mm D=310mm B=25mm, C=69.3kN C0=150.0kN	THK	Model: RB25025 \| Type: RB (Split Outer Ring) \| Bore d: 250 mm \| OD D: 310 mm \| Roller PCD dp: 277.5 mm \| Width B: 25 mm \| Dynamic Load C: 69.3 kN \| Static Load C0: 150.0 kN \| Mass: 5.0 kg \| Seal variant: RB25025UU
RB25030	THK RB25030, d=250mm D=330mm B=30mm, C=126.0kN C0=244.0kN	THK	Model: RB25030 \| Type: RB (Split Outer Ring) \| Bore d: 250 mm \| OD D: 330 mm \| Roller PCD dp: 287.5 mm \| Width B: 30 mm \| Dynamic Load C: 126.0 kN \| Static Load C0: 244.0 kN \| Mass: 8.1 kg \| Seal variant: RB25030UU
RB25040	THK RB25040, d=250mm D=355mm B=40mm, C=195.0kN C0=348.0kN	THK	Model: RB25040 \| Type: RB (Split Outer Ring) \| Bore d: 250 mm \| OD D: 355 mm \| Roller PCD dp: 300.7 mm \| Width B: 40 mm \| Dynamic Load C: 195.0 kN \| Static Load C0: 348.0 kN \| Mass: 14.8 kg \| Seal variant: RB25040UU
RB30025	THK RB30025, d=300mm D=360mm B=25mm, C=76.3kN C0=178.0kN	THK	Model: RB30025 \| Type: RB (Split Outer Ring) \| Bore d: 300 mm \| OD D: 360 mm \| Roller PCD dp: 328.0 mm \| Width B: 25 mm \| Dynamic Load C: 76.3 kN \| Static Load C0: 178.0 kN \| Mass: 5.9 kg \| Seal variant: RB30025UU
RB30035	THK RB30035, d=300mm D=395mm B=35mm, C=183.0kN C0=367.0kN	THK	Model: RB30035 \| Type: RB (Split Outer Ring) \| Bore d: 300 mm \| OD D: 395 mm \| Roller PCD dp: 345.0 mm \| Width B: 35 mm \| Dynamic Load C: 183.0 kN \| Static Load C0: 367.0 kN \| Mass: 13.4 kg \| Seal variant: RB30035UU
RB30040	THK RB30040, d=300mm D=405mm B=40mm, C=212.0kN C0=409.0kN	THK	Model: RB30040 \| Type: RB (Split Outer Ring) \| Bore d: 300 mm \| OD D: 405 mm \| Roller PCD dp: 351.6 mm \| Width B: 40 mm \| Dynamic Load C: 212.0 kN \| Static Load C0: 409.0 kN \| Mass: 17.2 kg \| Seal variant: RB30040UU
RB35020	THK RB35020, d=350mm D=400mm B=20mm, C=54.1kN C0=143.0kN	THK	Model: RB35020 \| Type: RB (Split Outer Ring) \| Bore d: 350 mm \| OD D: 400 mm \| Roller PCD dp: 373.4 mm \| Width B: 20 mm \| Dynamic Load C: 54.1 kN \| Static Load C0: 143.0 kN \| Mass: 3.9 kg \| Seal variant: RB35020UU
RB40035	THK RB40035, d=400mm D=480mm B=35mm, C=156.0kN C0=370.0kN	THK	Model: RB40035 \| Type: RB (Split Outer Ring) \| Bore d: 400 mm \| OD D: 480 mm \| Roller PCD dp: 440.3 mm \| Width B: 35 mm \| Dynamic Load C: 156.0 kN \| Static Load C0: 370.0 kN \| Mass: 14.5 kg \| Seal variant: RB40035UU
RB40040	THK RB40040, d=400mm D=510mm B=40mm, C=241.0kN C0=531.0kN	THK	Model: RB40040 \| Type: RB (Split Outer Ring) \| Bore d: 400 mm \| OD D: 510 mm \| Roller PCD dp: 453.4 mm \| Width B: 40 mm \| Dynamic Load C: 241.0 kN \| Static Load C0: 531.0 kN \| Mass: 23.5 kg \| Seal variant: RB40040UU
RB45025	THK RB45025, d=450mm D=500mm B=25mm, C=61.7kN C0=182.0kN	THK	Model: RB45025 \| Type: RB (Split Outer Ring) \| Bore d: 450 mm \| OD D: 500 mm \| Roller PCD dp: 474.0 mm \| Width B: 25 mm \| Dynamic Load C: 61.7 kN \| Static Load C0: 182.0 kN \| Mass: 6.6 kg \| Seal variant: RB45025UU
RB50025	THK RB50025, d=500mm D=550mm B=25mm, C=65.5kN C0=201.0kN	THK	Model: RB50025 \| Type: RB (Split Outer Ring) \| Bore d: 500 mm \| OD D: 550 mm \| Roller PCD dp: 524.2 mm \| Width B: 25 mm \| Dynamic Load C: 65.5 kN \| Static Load C0: 201.0 kN \| Mass: 7.3 kg \| Seal variant: RB50025UU
RB50040	THK RB50040, d=500mm D=600mm B=40mm, C=239.0kN C0=607.0kN	THK	Model: RB50040 \| Type: RB (Split Outer Ring) \| Bore d: 500 mm \| OD D: 600 mm \| Roller PCD dp: 548.8 mm \| Width B: 40 mm \| Dynamic Load C: 239.0 kN \| Static Load C0: 607.0 kN \| Mass: 26.0 kg \| Seal variant: RB50040UU
RB50050	THK RB50050, d=500mm D=625mm B=50mm, C=267.0kN C0=653.0kN	THK	Model: RB50050 \| Type: RB (Split Outer Ring) \| Bore d: 500 mm \| OD D: 625 mm \| Roller PCD dp: 561.6 mm \| Width B: 50 mm \| Dynamic Load C: 267.0 kN \| Static Load C0: 653.0 kN \| Mass: 41.7 kg \| Seal variant: RB50050UU
RB60040	THK RB60040, d=600mm D=700mm B=40mm, C=264.0kN C0=721.0kN	THK	Model: RB60040 \| Type: RB (Split Outer Ring) \| Bore d: 600 mm \| OD D: 700 mm \| Roller PCD dp: 650.0 mm \| Width B: 40 mm \| Dynamic Load C: 264.0 kN \| Static Load C0: 721.0 kN \| Mass: 29.0 kg \| Seal variant: RB60040UU
RB70045	THK RB70045, d=700mm D=815mm B=45mm, C=281.0kN C0=836.0kN	THK	Model: RB70045 \| Type: RB (Split Outer Ring) \| Bore d: 700 mm \| OD D: 815 mm \| Roller PCD dp: 753.5 mm \| Width B: 45 mm \| Dynamic Load C: 281.0 kN \| Static Load C0: 836.0 kN \| Mass: 46.0 kg \| Seal variant: RB70045UU
RB80070	THK RB80070, d=800mm D=950mm B=70mm, C=468.0kN C0=1330.0kN	THK	Model: RB80070 \| Type: RB (Split Outer Ring) \| Bore d: 800 mm \| OD D: 950 mm \| Roller PCD dp: 868.1 mm \| Width B: 70 mm \| Dynamic Load C: 468.0 kN \| Static Load C0: 1330.0 kN \| Mass: 105.0 kg \| Seal variant: RB80070UU
RB90070	THK RB90070, d=900mm D=1050mm B=70mm, C=494.0kN C0=1490.0kN	THK	Model: RB90070 \| Type: RB (Split Outer Ring) \| Bore d: 900 mm \| OD D: 1050 mm \| Roller PCD dp: 969.0 mm \| Width B: 70 mm \| Dynamic Load C: 494.0 kN \| Static Load C0: 1490.0 kN \| Mass: 120.0 kg \| Seal variant: RB90070UU
RB1000110	THK RB1000110, d=1000mm D=1250mm B=110mm, C=1220.0kN C0=3220.0kN	THK	Model: RB1000110 \| Type: RB (Split Outer Ring) \| Bore d: 1000 mm \| OD D: 1250 mm \| Roller PCD dp: 1114.0 mm \| Width B: 110 mm \| Dynamic Load C: 1220.0 kN \| Static Load C0: 3220.0 kN \| Mass: 360.0 kg \| Seal variant: RB1000110UU
RB1250110	THK RB1250110, d=1250mm D=1500mm B=110mm, C=1350.0kN C0=3970.0kN	THK	Model: RB1250110 \| Type: RB (Split Outer Ring) \| Bore d: 1250 mm \| OD D: 1500 mm \| Roller PCD dp: 1365.8 mm \| Width B: 110 mm \| Dynamic Load C: 1350.0 kN \| Static Load C0: 3970.0 kN \| Mass: 440.0 kg \| Seal variant: RB1250110UU

[THK] — RB Cross Roller Ring USP Grade (Ultra-Super Precision, Split Outer Ring)

THK RB-type Cross Roller Ring USP grade — ultra-super precision exceeding JIS Class 2 / ISO Class 2 / DIN P2. Split outer ring, integrated inner ring. For inner ring rotation applications. Seal version: RB...UU-USP. Bore range: 100–600 mm.

Brand: THK Category: Cross Roller Rings 9 models

Product Code	Description	Brand	Spec
RB10020USP	THK RB10020USP, d=100mm D=150mm B=20mm USP grade	THK	Model: RB10020USP \| Grade: USP (Ultra-Super Precision) \| Type: RB (Split Outer Ring) \| Bore d: 100 mm \| OD D: 150 mm \| Roller PCD dp: 123 mm \| Width B: 20 mm \| Dynamic Load C: 33.1 kN \| Static Load C0: 50.9 kN \| Mass: 1.45 kg \| Seal variant: RB10020UU-USP
RB12025USP	THK RB12025USP, d=120mm D=180mm B=25mm USP grade	THK	Model: RB12025USP \| Grade: USP (Ultra-Super Precision) \| Type: RB (Split Outer Ring) \| Bore d: 120 mm \| OD D: 180 mm \| Roller PCD dp: 148.7 mm \| Width B: 25 mm \| Dynamic Load C: 66.9 kN \| Static Load C0: 100.0 kN \| Mass: 2.62 kg \| Seal variant: RB12025UU-USP
RB15025USP	THK RB15025USP, d=150mm D=210mm B=25mm USP grade	THK	Model: RB15025USP \| Grade: USP (Ultra-Super Precision) \| Type: RB (Split Outer Ring) \| Bore d: 150 mm \| OD D: 210 mm \| Roller PCD dp: 178 mm \| Width B: 25 mm \| Dynamic Load C: 76.8 kN \| Static Load C0: 128.0 kN \| Mass: 3.16 kg \| Seal variant: RB15025UU-USP
RB20030USP	THK RB20030USP, d=200mm D=280mm B=30mm USP grade	THK	Model: RB20030USP \| Grade: USP (Ultra-Super Precision) \| Type: RB (Split Outer Ring) \| Bore d: 200 mm \| OD D: 280 mm \| Roller PCD dp: 240 mm \| Width B: 30 mm \| Dynamic Load C: 114.0 kN \| Static Load C0: 200.0 kN \| Mass: 6.7 kg \| Seal variant: RB20030UU-USP
RB25030USP	THK RB25030USP, d=250mm D=330mm B=30mm USP grade	THK	Model: RB25030USP \| Grade: USP (Ultra-Super Precision) \| Type: RB (Split Outer Ring) \| Bore d: 250 mm \| OD D: 330 mm \| Roller PCD dp: 287.5 mm \| Width B: 30 mm \| Dynamic Load C: 126.0 kN \| Static Load C0: 244.0 kN \| Mass: 8.1 kg \| Seal variant: RB25030UU-USP
RB30035USP	THK RB30035USP, d=300mm D=395mm B=35mm USP grade	THK	Model: RB30035USP \| Grade: USP (Ultra-Super Precision) \| Type: RB (Split Outer Ring) \| Bore d: 300 mm \| OD D: 395 mm \| Roller PCD dp: 345 mm \| Width B: 35 mm \| Dynamic Load C: 183.0 kN \| Static Load C0: 367.0 kN \| Mass: 13.4 kg \| Seal variant: RB30035UU-USP
RB40040USP	THK RB40040USP, d=400mm D=510mm B=40mm USP grade	THK	Model: RB40040USP \| Grade: USP (Ultra-Super Precision) \| Type: RB (Split Outer Ring) \| Bore d: 400 mm \| OD D: 510 mm \| Roller PCD dp: 453.4 mm \| Width B: 40 mm \| Dynamic Load C: 241.0 kN \| Static Load C0: 531.0 kN \| Mass: 23.5 kg \| Seal variant: RB40040UU-USP
RB50040USP	THK RB50040USP, d=500mm D=600mm B=40mm USP grade	THK	Model: RB50040USP \| Grade: USP (Ultra-Super Precision) \| Type: RB (Split Outer Ring) \| Bore d: 500 mm \| OD D: 600 mm \| Roller PCD dp: 548.8 mm \| Width B: 40 mm \| Dynamic Load C: 239.0 kN \| Static Load C0: 607.0 kN \| Mass: 26.0 kg \| Seal variant: RB50040UU-USP
RB60040USP	THK RB60040USP, d=600mm D=700mm B=40mm USP grade	THK	Model: RB60040USP \| Grade: USP (Ultra-Super Precision) \| Type: RB (Split Outer Ring) \| Bore d: 600 mm \| OD D: 700 mm \| Roller PCD dp: 650 mm \| Width B: 40 mm \| Dynamic Load C: 264.0 kN \| Static Load C0: 721.0 kN \| Mass: 29.0 kg \| Seal variant: RB60040UU-USP

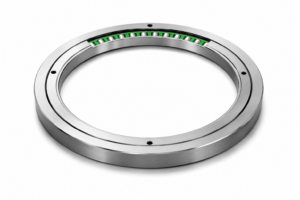

[THK] — RE Cross Roller Ring (Split Inner Ring)

THK RE-type Cross Roller Ring with split inner ring and integrated outer ring. Suitable for outer ring rotation applications requiring high rotational accuracy. Seal version available as RE...UU. Bore range: 20–600 mm.

Brand: THK Category: Cross Roller Rings 48 models

Product Code	Description	Brand	Spec
RE2008	THK RE2008, d=20mm D=36mm B=8mm, C=3.23kN C0=3.1kN	THK	Model: RE2008 \| Type: RE (Split Inner Ring) \| Bore d: 20 mm \| OD D: 36 mm \| Roller PCD dp: 29.0 mm \| Width B: 8 mm \| Dynamic Load C: 3.23 kN \| Static Load C0: 3.1 kN \| Mass: 0.04 kg \| Seal variant: RE2008UU
RE2508	THK RE2508, d=25mm D=41mm B=8mm, C=3.63kN C0=3.83kN	THK	Model: RE2508 \| Type: RE (Split Inner Ring) \| Bore d: 25 mm \| OD D: 41 mm \| Roller PCD dp: 34.0 mm \| Width B: 8 mm \| Dynamic Load C: 3.63 kN \| Static Load C0: 3.83 kN \| Mass: 0.05 kg \| Seal variant: RE2508UU
RE3010	THK RE3010, d=30mm D=55mm B=10mm, C=7.35kN C0=8.36kN	THK	Model: RE3010 \| Type: RE (Split Inner Ring) \| Bore d: 30 mm \| OD D: 55 mm \| Roller PCD dp: 43.5 mm \| Width B: 10 mm \| Dynamic Load C: 7.35 kN \| Static Load C0: 8.36 kN \| Mass: 0.12 kg \| Seal variant: RE3010UU
RE3510	THK RE3510, d=35mm D=60mm B=10mm, C=7.64kN C0=9.12kN	THK	Model: RE3510 \| Type: RE (Split Inner Ring) \| Bore d: 35 mm \| OD D: 60 mm \| Roller PCD dp: 48.5 mm \| Width B: 10 mm \| Dynamic Load C: 7.64 kN \| Static Load C0: 9.12 kN \| Mass: 0.13 kg \| Seal variant: RE3510UU
RE4010	THK RE4010, d=40mm D=65mm B=10mm, C=8.33kN C0=10.6kN	THK	Model: RE4010 \| Type: RE (Split Inner Ring) \| Bore d: 40 mm \| OD D: 65 mm \| Roller PCD dp: 53.5 mm \| Width B: 10 mm \| Dynamic Load C: 8.33 kN \| Static Load C0: 10.6 kN \| Mass: 0.16 kg \| Seal variant: RE4010UU
RE4510	THK RE4510, d=45mm D=70mm B=10mm, C=8.62kN C0=11.3kN	THK	Model: RE4510 \| Type: RE (Split Inner Ring) \| Bore d: 45 mm \| OD D: 70 mm \| Roller PCD dp: 58.5 mm \| Width B: 10 mm \| Dynamic Load C: 8.62 kN \| Static Load C0: 11.3 kN \| Mass: 0.17 kg \| Seal variant: RE4510UU
RE5013	THK RE5013, d=50mm D=80mm B=13mm, C=16.7kN C0=20.9kN	THK	Model: RE5013 \| Type: RE (Split Inner Ring) \| Bore d: 50 mm \| OD D: 80 mm \| Roller PCD dp: 66.0 mm \| Width B: 13 mm \| Dynamic Load C: 16.7 kN \| Static Load C0: 20.9 kN \| Mass: 0.27 kg \| Seal variant: RE5013UU
RE6013	THK RE6013, d=60mm D=90mm B=13mm, C=18.0kN C0=24.3kN	THK	Model: RE6013 \| Type: RE (Split Inner Ring) \| Bore d: 60 mm \| OD D: 90 mm \| Roller PCD dp: 76.0 mm \| Width B: 13 mm \| Dynamic Load C: 18.0 kN \| Static Load C0: 24.3 kN \| Mass: 0.3 kg \| Seal variant: RE6013UU
RE7013	THK RE7013, d=70mm D=100mm B=13mm, C=19.4kN C0=27.7kN	THK	Model: RE7013 \| Type: RE (Split Inner Ring) \| Bore d: 70 mm \| OD D: 100 mm \| Roller PCD dp: 86.0 mm \| Width B: 13 mm \| Dynamic Load C: 19.4 kN \| Static Load C0: 27.7 kN \| Mass: 0.35 kg \| Seal variant: RE7013UU
RE8016	THK RE8016, d=80mm D=120mm B=16mm, C=30.1kN C0=42.1kN	THK	Model: RE8016 \| Type: RE (Split Inner Ring) \| Bore d: 80 mm \| OD D: 120 mm \| Roller PCD dp: 101.4 mm \| Width B: 16 mm \| Dynamic Load C: 30.1 kN \| Static Load C0: 42.1 kN \| Mass: 0.7 kg \| Seal variant: RE8016UU
RE9016	THK RE9016, d=90mm D=130mm B=16mm, C=31.4kN C0=45.3kN	THK	Model: RE9016 \| Type: RE (Split Inner Ring) \| Bore d: 90 mm \| OD D: 130 mm \| Roller PCD dp: 112.0 mm \| Width B: 16 mm \| Dynamic Load C: 31.4 kN \| Static Load C0: 45.3 kN \| Mass: 0.75 kg \| Seal variant: RE9016UU
RE10016	THK RE10016, d=100mm D=140mm B=16mm, C=31.7kN C0=48.6kN	THK	Model: RE10016 \| Type: RE (Split Inner Ring) \| Bore d: 100 mm \| OD D: 140 mm \| Roller PCD dp: 121.1 mm \| Width B: 16 mm \| Dynamic Load C: 31.7 kN \| Static Load C0: 48.6 kN \| Mass: 0.83 kg \| Seal variant: RE10016UU
RE10020	THK RE10020, d=100mm D=150mm B=20mm, C=33.1kN C0=50.9kN	THK	Model: RE10020 \| Type: RE (Split Inner Ring) \| Bore d: 100 mm \| OD D: 150 mm \| Roller PCD dp: 127.0 mm \| Width B: 20 mm \| Dynamic Load C: 33.1 kN \| Static Load C0: 50.9 kN \| Mass: 1.45 kg \| Seal variant: RE10020UU
RE11012	THK RE11012, d=110mm D=135mm B=12mm, C=12.5kN C0=24.1kN	THK	Model: RE11012 \| Type: RE (Split Inner Ring) \| Bore d: 110 mm \| OD D: 135 mm \| Roller PCD dp: 123.3 mm \| Width B: 12 mm \| Dynamic Load C: 12.5 kN \| Static Load C0: 24.1 kN \| Mass: 0.4 kg \| Seal variant: RE11012UU
RE11015	THK RE11015, d=110mm D=145mm B=15mm, C=23.7kN C0=41.5kN	THK	Model: RE11015 \| Type: RE (Split Inner Ring) \| Bore d: 110 mm \| OD D: 145 mm \| Roller PCD dp: 129.0 mm \| Width B: 15 mm \| Dynamic Load C: 23.7 kN \| Static Load C0: 41.5 kN \| Mass: 0.75 kg \| Seal variant: RE11015UU
RE11020	THK RE11020, d=110mm D=160mm B=20mm, C=34.0kN C0=54.0kN	THK	Model: RE11020 \| Type: RE (Split Inner Ring) \| Bore d: 110 mm \| OD D: 160 mm \| Roller PCD dp: 137.0 mm \| Width B: 20 mm \| Dynamic Load C: 34.0 kN \| Static Load C0: 54.0 kN \| Mass: 1.56 kg \| Seal variant: RE11020UU
RE12016	THK RE12016, d=120mm D=150mm B=16mm, C=24.2kN C0=43.2kN	THK	Model: RE12016 \| Type: RE (Split Inner Ring) \| Bore d: 120 mm \| OD D: 150 mm \| Roller PCD dp: 136.0 mm \| Width B: 16 mm \| Dynamic Load C: 24.2 kN \| Static Load C0: 43.2 kN \| Mass: 0.72 kg \| Seal variant: RE12016UU
RE12025	THK RE12025, d=120mm D=180mm B=25mm, C=66.9kN C0=100.0kN	THK	Model: RE12025 \| Type: RE (Split Inner Ring) \| Bore d: 120 mm \| OD D: 180 mm \| Roller PCD dp: 152.0 mm \| Width B: 25 mm \| Dynamic Load C: 66.9 kN \| Static Load C0: 100.0 kN \| Mass: 2.62 kg \| Seal variant: RE12025UU
RE13015	THK RE13015, d=130mm D=160mm B=15mm, C=25.0kN C0=46.7kN	THK	Model: RE13015 \| Type: RE (Split Inner Ring) \| Bore d: 130 mm \| OD D: 160 mm \| Roller PCD dp: 146.0 mm \| Width B: 15 mm \| Dynamic Load C: 25.0 kN \| Static Load C0: 46.7 kN \| Mass: 0.72 kg \| Seal variant: RE13015UU
RE13025	THK RE13025, d=130mm D=190mm B=25mm, C=69.5kN C0=107.0kN	THK	Model: RE13025 \| Type: RE (Split Inner Ring) \| Bore d: 130 mm \| OD D: 190 mm \| Roller PCD dp: 162.0 mm \| Width B: 25 mm \| Dynamic Load C: 69.5 kN \| Static Load C0: 107.0 kN \| Mass: 2.82 kg \| Seal variant: RE13025UU
RE14016	THK RE14016, d=140mm D=175mm B=16mm, C=25.9kN C0=50.1kN	THK	Model: RE14016 \| Type: RE (Split Inner Ring) \| Bore d: 140 mm \| OD D: 175 mm \| Roller PCD dp: 160.0 mm \| Width B: 16 mm \| Dynamic Load C: 25.9 kN \| Static Load C0: 50.1 kN \| Mass: 1.0 kg \| Seal variant: RE14016UU
RE14025	THK RE14025, d=140mm D=200mm B=25mm, C=74.8kN C0=121.0kN	THK	Model: RE14025 \| Type: RE (Split Inner Ring) \| Bore d: 140 mm \| OD D: 200 mm \| Roller PCD dp: 172.0 mm \| Width B: 25 mm \| Dynamic Load C: 74.8 kN \| Static Load C0: 121.0 kN \| Mass: 2.96 kg \| Seal variant: RE14025UU
RE15013	THK RE15013, d=150mm D=180mm B=13mm, C=27.0kN C0=53.5kN	THK	Model: RE15013 \| Type: RE (Split Inner Ring) \| Bore d: 150 mm \| OD D: 180 mm \| Roller PCD dp: 166.0 mm \| Width B: 13 mm \| Dynamic Load C: 27.0 kN \| Static Load C0: 53.5 kN \| Mass: 0.68 kg \| Seal variant: RE15013UU
RE15025	THK RE15025, d=150mm D=210mm B=25mm, C=76.8kN C0=128.0kN	THK	Model: RE15025 \| Type: RE (Split Inner Ring) \| Bore d: 150 mm \| OD D: 210 mm \| Roller PCD dp: 182.0 mm \| Width B: 25 mm \| Dynamic Load C: 76.8 kN \| Static Load C0: 128.0 kN \| Mass: 3.16 kg \| Seal variant: RE15025UU
RE15030	THK RE15030, d=150mm D=230mm B=30mm, C=100.0kN C0=156.0kN	THK	Model: RE15030 \| Type: RE (Split Inner Ring) \| Bore d: 150 mm \| OD D: 230 mm \| Roller PCD dp: 192.0 mm \| Width B: 30 mm \| Dynamic Load C: 100.0 kN \| Static Load C0: 156.0 kN \| Mass: 5.3 kg \| Seal variant: RE15030UU
RE16025	THK RE16025, d=160mm D=220mm B=25mm, C=81.7kN C0=135.0kN	THK	Model: RE16025 \| Type: RE (Split Inner Ring) \| Bore d: 160 mm \| OD D: 220 mm \| Roller PCD dp: 192.0 mm \| Width B: 25 mm \| Dynamic Load C: 81.7 kN \| Static Load C0: 135.0 kN \| Mass: 3.14 kg \| Seal variant: RE16025UU
RE17020	THK RE17020, d=170mm D=220mm B=20mm, C=29.0kN C0=62.1kN	THK	Model: RE17020 \| Type: RE (Split Inner Ring) \| Bore d: 170 mm \| OD D: 220 mm \| Roller PCD dp: 196.1 mm \| Width B: 20 mm \| Dynamic Load C: 29.0 kN \| Static Load C0: 62.1 kN \| Mass: 2.21 kg \| Seal variant: RE17020UU
RE18025	THK RE18025, d=180mm D=240mm B=25mm, C=84.0kN C0=143.0kN	THK	Model: RE18025 \| Type: RE (Split Inner Ring) \| Bore d: 180 mm \| OD D: 240 mm \| Roller PCD dp: 210.0 mm \| Width B: 25 mm \| Dynamic Load C: 84.0 kN \| Static Load C0: 143.0 kN \| Mass: 3.44 kg \| Seal variant: RE18025UU
RE19025	THK RE19025, d=190mm D=240mm B=25mm, C=41.7kN C0=82.9kN	THK	Model: RE19025 \| Type: RE (Split Inner Ring) \| Bore d: 190 mm \| OD D: 240 mm \| Roller PCD dp: 219.0 mm \| Width B: 25 mm \| Dynamic Load C: 41.7 kN \| Static Load C0: 82.9 kN \| Mass: 2.99 kg \| Seal variant: RE19025UU
RE20025	THK RE20025, d=200mm D=260mm B=25mm, C=84.2kN C0=157.0kN	THK	Model: RE20025 \| Type: RE (Split Inner Ring) \| Bore d: 200 mm \| OD D: 260 mm \| Roller PCD dp: 230.0 mm \| Width B: 25 mm \| Dynamic Load C: 84.2 kN \| Static Load C0: 157.0 kN \| Mass: 4.0 kg \| Seal variant: RE20025UU
RE20030	THK RE20030, d=200mm D=280mm B=30mm, C=114.0kN C0=200.0kN	THK	Model: RE20030 \| Type: RE (Split Inner Ring) \| Bore d: 200 mm \| OD D: 280 mm \| Roller PCD dp: 240.0 mm \| Width B: 30 mm \| Dynamic Load C: 114.0 kN \| Static Load C0: 200.0 kN \| Mass: 6.7 kg \| Seal variant: RE20030UU
RE20035	THK RE20035, d=200mm D=295mm B=35mm, C=151.0kN C0=252.0kN	THK	Model: RE20035 \| Type: RE (Split Inner Ring) \| Bore d: 200 mm \| OD D: 295 mm \| Roller PCD dp: 247.7 mm \| Width B: 35 mm \| Dynamic Load C: 151.0 kN \| Static Load C0: 252.0 kN \| Mass: 9.6 kg \| Seal variant: RE20035UU
RE22025	THK RE22025, d=220mm D=280mm B=25mm, C=92.3kN C0=171.0kN	THK	Model: RE22025 \| Type: RE (Split Inner Ring) \| Bore d: 220 mm \| OD D: 280 mm \| Roller PCD dp: 250.1 mm \| Width B: 25 mm \| Dynamic Load C: 92.3 kN \| Static Load C0: 171.0 kN \| Mass: 4.1 kg \| Seal variant: RE22025UU
RE24025	THK RE24025, d=240mm D=300mm B=25mm, C=68.3kN C0=145.0kN	THK	Model: RE24025 \| Type: RE (Split Inner Ring) \| Bore d: 240 mm \| OD D: 300 mm \| Roller PCD dp: 272.5 mm \| Width B: 25 mm \| Dynamic Load C: 68.3 kN \| Static Load C0: 145.0 kN \| Mass: 4.5 kg \| Seal variant: RE24025UU
RE25025	THK RE25025, d=250mm D=310mm B=25mm, C=69.3kN C0=150.0kN	THK	Model: RE25025 \| Type: RE (Split Inner Ring) \| Bore d: 250 mm \| OD D: 310 mm \| Roller PCD dp: 280.9 mm \| Width B: 25 mm \| Dynamic Load C: 69.3 kN \| Static Load C0: 150.0 kN \| Mass: 5.0 kg \| Seal variant: RE25025UU
RE25030	THK RE25030, d=250mm D=330mm B=30mm, C=126.0kN C0=244.0kN	THK	Model: RE25030 \| Type: RE (Split Inner Ring) \| Bore d: 250 mm \| OD D: 330 mm \| Roller PCD dp: 287.5 mm \| Width B: 30 mm \| Dynamic Load C: 126.0 kN \| Static Load C0: 244.0 kN \| Mass: 8.1 kg \| Seal variant: RE25030UU
RE25040	THK RE25040, d=250mm D=355mm B=40mm, C=195.0kN C0=348.0kN	THK	Model: RE25040 \| Type: RE (Split Inner Ring) \| Bore d: 250 mm \| OD D: 355 mm \| Roller PCD dp: 300.7 mm \| Width B: 40 mm \| Dynamic Load C: 195.0 kN \| Static Load C0: 348.0 kN \| Mass: 14.8 kg \| Seal variant: RE25040UU
RE30025	THK RE30025, d=300mm D=360mm B=25mm, C=75.5kN C0=178.0kN	THK	Model: RE30025 \| Type: RE (Split Inner Ring) \| Bore d: 300 mm \| OD D: 360 mm \| Roller PCD dp: 332.0 mm \| Width B: 25 mm \| Dynamic Load C: 75.5 kN \| Static Load C0: 178.0 kN \| Mass: 5.9 kg \| Seal variant: RE30025UU
RE30035	THK RE30035, d=300mm D=395mm B=35mm, C=183.0kN C0=367.0kN	THK	Model: RE30035 \| Type: RE (Split Inner Ring) \| Bore d: 300 mm \| OD D: 395 mm \| Roller PCD dp: 345.0 mm \| Width B: 35 mm \| Dynamic Load C: 183.0 kN \| Static Load C0: 367.0 kN \| Mass: 13.4 kg \| Seal variant: RE30035UU
RE30040	THK RE30040, d=300mm D=405mm B=40mm, C=212.0kN C0=409.0kN	THK	Model: RE30040 \| Type: RE (Split Inner Ring) \| Bore d: 300 mm \| OD D: 405 mm \| Roller PCD dp: 351.6 mm \| Width B: 40 mm \| Dynamic Load C: 212.0 kN \| Static Load C0: 409.0 kN \| Mass: 17.2 kg \| Seal variant: RE30040UU
RE35020	THK RE35020, d=350mm D=400mm B=20mm, C=54.1kN C0=143.0kN	THK	Model: RE35020 \| Type: RE (Split Inner Ring) \| Bore d: 350 mm \| OD D: 400 mm \| Roller PCD dp: 376.6 mm \| Width B: 20 mm \| Dynamic Load C: 54.1 kN \| Static Load C0: 143.0 kN \| Mass: 3.9 kg \| Seal variant: RE35020UU
RE40035	THK RE40035, d=400mm D=480mm B=35mm, C=156.0kN C0=370.0kN	THK	Model: RE40035 \| Type: RE (Split Inner Ring) \| Bore d: 400 mm \| OD D: 480 mm \| Roller PCD dp: 440.3 mm \| Width B: 35 mm \| Dynamic Load C: 156.0 kN \| Static Load C0: 370.0 kN \| Mass: 14.5 kg \| Seal variant: RE40035UU
RE40040	THK RE40040, d=400mm D=510mm B=40mm, C=241.0kN C0=531.0kN	THK	Model: RE40040 \| Type: RE (Split Inner Ring) \| Bore d: 400 mm \| OD D: 510 mm \| Roller PCD dp: 453.4 mm \| Width B: 40 mm \| Dynamic Load C: 241.0 kN \| Static Load C0: 531.0 kN \| Mass: 23.5 kg \| Seal variant: RE40040UU
RE45025	THK RE45025, d=450mm D=500mm B=25mm, C=61.7kN C0=182.0kN	THK	Model: RE45025 \| Type: RE (Split Inner Ring) \| Bore d: 450 mm \| OD D: 500 mm \| Roller PCD dp: 476.6 mm \| Width B: 25 mm \| Dynamic Load C: 61.7 kN \| Static Load C0: 182.0 kN \| Mass: 6.6 kg \| Seal variant: RE45025UU
RE50025	THK RE50025, d=500mm D=550mm B=25mm, C=65.5kN C0=201.0kN	THK	Model: RE50025 \| Type: RE (Split Inner Ring) \| Bore d: 500 mm \| OD D: 550 mm \| Roller PCD dp: 526.6 mm \| Width B: 25 mm \| Dynamic Load C: 65.5 kN \| Static Load C0: 201.0 kN \| Mass: 7.3 kg \| Seal variant: RE50025UU
RE50040	THK RE50040, d=500mm D=600mm B=40mm, C=239.0kN C0=607.0kN	THK	Model: RE50040 \| Type: RE (Split Inner Ring) \| Bore d: 500 mm \| OD D: 600 mm \| Roller PCD dp: 548.8 mm \| Width B: 40 mm \| Dynamic Load C: 239.0 kN \| Static Load C0: 607.0 kN \| Mass: 26.0 kg \| Seal variant: RE50040UU
RE50050	THK RE50050, d=500mm D=625mm B=50mm, C=267.0kN C0=653.0kN	THK	Model: RE50050 \| Type: RE (Split Inner Ring) \| Bore d: 500 mm \| OD D: 625 mm \| Roller PCD dp: 561.6 mm \| Width B: 50 mm \| Dynamic Load C: 267.0 kN \| Static Load C0: 653.0 kN \| Mass: 41.7 kg \| Seal variant: RE50050UU
RE60040	THK RE60040, d=600mm D=700mm B=40mm, C=264.0kN C0=721.0kN	THK	Model: RE60040 \| Type: RE (Split Inner Ring) \| Bore d: 600 mm \| OD D: 700 mm \| Roller PCD dp: 650.0 mm \| Width B: 40 mm \| Dynamic Load C: 264.0 kN \| Static Load C0: 721.0 kN \| Mass: 29.0 kg \| Seal variant: RE60040UU

[THK] — RE Cross Roller Ring USP Grade (Ultra-Super Precision, Split Inner Ring)

THK RE-type Cross Roller Ring USP grade — ultra-super precision exceeding JIS Class 2 / ISO Class 2 / DIN P2. Split inner ring, integrated outer ring. For outer ring rotation applications. Seal version: RE...UU-USP. Bore range: 100–600 mm.

Brand: THK Category: Cross Roller Rings 9 models

Product Code	Description	Brand	Spec
RE10020USP	THK RE10020USP, d=100mm D=150mm B=20mm USP grade	THK	Model: RE10020USP \| Grade: USP (Ultra-Super Precision) \| Type: RE (Split Inner Ring) \| Bore d: 100 mm \| OD D: 150 mm \| Roller PCD dp: 127 mm \| Width B: 20 mm \| Dynamic Load C: 33.1 kN \| Static Load C0: 50.9 kN \| Mass: 1.45 kg \| Seal variant: RE10020UU-USP
RE12025USP	THK RE12025USP, d=120mm D=180mm B=25mm USP grade	THK	Model: RE12025USP \| Grade: USP (Ultra-Super Precision) \| Type: RE (Split Inner Ring) \| Bore d: 120 mm \| OD D: 180 mm \| Roller PCD dp: 152 mm \| Width B: 25 mm \| Dynamic Load C: 66.9 kN \| Static Load C0: 100.0 kN \| Mass: 2.62 kg \| Seal variant: RE12025UU-USP
RE15025USP	THK RE15025USP, d=150mm D=210mm B=25mm USP grade	THK	Model: RE15025USP \| Grade: USP (Ultra-Super Precision) \| Type: RE (Split Inner Ring) \| Bore d: 150 mm \| OD D: 210 mm \| Roller PCD dp: 182 mm \| Width B: 25 mm \| Dynamic Load C: 76.8 kN \| Static Load C0: 128.0 kN \| Mass: 3.16 kg \| Seal variant: RE15025UU-USP
RE20030USP	THK RE20030USP, d=200mm D=280mm B=30mm USP grade	THK	Model: RE20030USP \| Grade: USP (Ultra-Super Precision) \| Type: RE (Split Inner Ring) \| Bore d: 200 mm \| OD D: 280 mm \| Roller PCD dp: 240 mm \| Width B: 30 mm \| Dynamic Load C: 114.0 kN \| Static Load C0: 200.0 kN \| Mass: 6.7 kg \| Seal variant: RE20030UU-USP
RE25030USP	THK RE25030USP, d=250mm D=330mm B=30mm USP grade	THK	Model: RE25030USP \| Grade: USP (Ultra-Super Precision) \| Type: RE (Split Inner Ring) \| Bore d: 250 mm \| OD D: 330 mm \| Roller PCD dp: 287.5 mm \| Width B: 30 mm \| Dynamic Load C: 126.0 kN \| Static Load C0: 244.0 kN \| Mass: 8.1 kg \| Seal variant: RE25030UU-USP
RE30035USP	THK RE30035USP, d=300mm D=395mm B=35mm USP grade	THK	Model: RE30035USP \| Grade: USP (Ultra-Super Precision) \| Type: RE (Split Inner Ring) \| Bore d: 300 mm \| OD D: 395 mm \| Roller PCD dp: 345 mm \| Width B: 35 mm \| Dynamic Load C: 183.0 kN \| Static Load C0: 367.0 kN \| Mass: 13.4 kg \| Seal variant: RE30035UU-USP
RE40040USP	THK RE40040USP, d=400mm D=510mm B=40mm USP grade	THK	Model: RE40040USP \| Grade: USP (Ultra-Super Precision) \| Type: RE (Split Inner Ring) \| Bore d: 400 mm \| OD D: 510 mm \| Roller PCD dp: 453.4 mm \| Width B: 40 mm \| Dynamic Load C: 241.0 kN \| Static Load C0: 531.0 kN \| Mass: 23.5 kg \| Seal variant: RE40040UU-USP
RE50040USP	THK RE50040USP, d=500mm D=600mm B=40mm USP grade	THK	Model: RE50040USP \| Grade: USP (Ultra-Super Precision) \| Type: RE (Split Inner Ring) \| Bore d: 500 mm \| OD D: 600 mm \| Roller PCD dp: 548.8 mm \| Width B: 40 mm \| Dynamic Load C: 239.0 kN \| Static Load C0: 607.0 kN \| Mass: 26.0 kg \| Seal variant: RE50040UU-USP
RE60040USP	THK RE60040USP, d=600mm D=700mm B=40mm USP grade	THK	Model: RE60040USP \| Grade: USP (Ultra-Super Precision) \| Type: RE (Split Inner Ring) \| Bore d: 600 mm \| OD D: 700 mm \| Roller PCD dp: 650 mm \| Width B: 40 mm \| Dynamic Load C: 264.0 kN \| Static Load C0: 721.0 kN \| Mass: 29.0 kg \| Seal variant: RE60040UU-USP

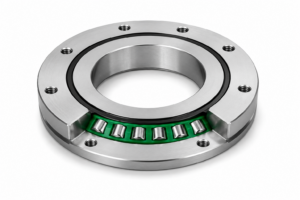

[THK] — RU Cross Roller Ring (Integrated Inner/Outer Ring)

THK RU-type Cross Roller Ring with integrated inner and outer ring. No housing or flange required. Suitable for inner ring rotation, outer ring rotation, or both. Available in standard, G (grease nipple), and X (inner ring tapped through-hole) variants. Bore range: 20–350 mm.

Brand: THK Category: Cross Roller Rings 21 models

Product Code	Description	Brand	Spec
RU42	THK RU 42, d=20mm D=70mm B=12mm, Standard type	THK	Model: RU 42 \| Variant: Standard \| Bore d: 20 mm \| OD D: 70 mm \| Roller PCD dp: 41.5 mm \| Width B: 12 mm \| Lubrication hole d1: φ3.1 mm \| r min: 0.6 mm \| Dynamic Load C: 7.35 kN \| Static Load C0: 8.35 kN \| Mass: 0.29 kg \| Note: Standard type
RU66	THK RU 66, d=35mm D=95mm B=15mm, Standard type	THK	Model: RU 66 \| Variant: Standard \| Bore d: 35 mm \| OD D: 95 mm \| Roller PCD dp: 66 mm \| Width B: 15 mm \| Lubrication hole d1: φ3.1 mm \| r min: 0.6 mm \| Dynamic Load C: 17.5 kN \| Static Load C0: 22.3 kN \| Mass: 0.62 kg \| Note: Standard type
RU85	THK RU 85, d=55mm D=120mm B=15mm, Standard type	THK	Model: RU 85 \| Variant: Standard \| Bore d: 55 mm \| OD D: 120 mm \| Roller PCD dp: 85 mm \| Width B: 15 mm \| Lubrication hole d1: φ3.1 mm \| r min: 0.6 mm \| Dynamic Load C: 20.3 kN \| Static Load C0: 29.5 kN \| Mass: 1.0 kg \| Note: Standard type
RU124	THK RU 124, d=80mm D=165mm B=22mm, Standard type	THK	Model: RU 124 \| Variant: Standard \| Bore d: 80 mm \| OD D: 165 mm \| Roller PCD dp: 124 mm \| Width B: 22 mm \| Lubrication hole d1: φ3.1 mm \| r min: 1.0 mm \| Dynamic Load C: 33.1 kN \| Static Load C0: 50.9 kN \| Mass: 2.6 kg \| Note: Standard type
RU124G	THK RU 124G, d=80mm D=165mm B=22mm, With grease nipple (NP3.2×3.5)	THK	Model: RU 124G \| Variant: G (Grease nipple built-in) \| Bore d: 80 mm \| OD D: 165 mm \| Roller PCD dp: 124 mm \| Width B: 22 mm \| Lubrication hole d1: φ3.1 mm \| r min: 1.0 mm \| Dynamic Load C: 33.1 kN \| Static Load C0: 50.9 kN \| Mass: 2.6 kg \| Note: With grease nipple (NP3.2×3.5)
RU124X	THK RU 124X, d=80mm D=165mm B=22mm, Inner ring with tapped through-holes	THK	Model: RU 124X \| Variant: X (Inner ring tapped through-hole) \| Bore d: 80 mm \| OD D: 165 mm \| Roller PCD dp: 124 mm \| Width B: 22 mm \| Lubrication hole d1: φ3.1 mm \| r min: 1.0 mm \| Dynamic Load C: 33.1 kN \| Static Load C0: 50.9 kN \| Mass: 2.6 kg \| Note: Inner ring with tapped through-holes
RU148	THK RU 148, d=90mm D=210mm B=25mm, Standard type	THK	Model: RU 148 \| Variant: Standard \| Bore d: 90 mm \| OD D: 210 mm \| Roller PCD dp: 147.5 mm \| Width B: 25 mm \| Lubrication hole d1: φ3.1 mm \| r min: 1.5 mm \| Dynamic Load C: 49.1 kN \| Static Load C0: 76.8 kN \| Mass: 4.9 kg \| Note: Standard type
RU148G	THK RU 148G, d=90mm D=210mm B=25mm, With grease nipple (NP3.2×3.5)	THK	Model: RU 148G \| Variant: G (Grease nipple built-in) \| Bore d: 90 mm \| OD D: 210 mm \| Roller PCD dp: 147.5 mm \| Width B: 25 mm \| Lubrication hole d1: φ3.1 mm \| r min: 1.5 mm \| Dynamic Load C: 49.1 kN \| Static Load C0: 76.8 kN \| Mass: 4.9 kg \| Note: With grease nipple (NP3.2×3.5)
RU148X	THK RU 148X, d=90mm D=210mm B=25mm, Inner ring with tapped through-holes	THK	Model: RU 148X \| Variant: X (Inner ring tapped through-hole) \| Bore d: 90 mm \| OD D: 210 mm \| Roller PCD dp: 147.5 mm \| Width B: 25 mm \| Lubrication hole d1: φ3.1 mm \| r min: 1.5 mm \| Dynamic Load C: 49.1 kN \| Static Load C0: 76.8 kN \| Mass: 4.9 kg \| Note: Inner ring with tapped through-holes
RU178	THK RU 178, d=115mm D=240mm B=28mm, Standard type	THK	Model: RU 178 \| Variant: Standard \| Bore d: 115 mm \| OD D: 240 mm \| Roller PCD dp: 178 mm \| Width B: 28 mm \| Lubrication hole d1: φ3.1 mm \| r min: 1.5 mm \| Dynamic Load C: 80.3 kN \| Static Load C0: 135 kN \| Mass: 6.8 kg \| Note: Standard type
RU178G	THK RU 178G, d=115mm D=240mm B=28mm, With grease nipple (NP3.2×3.5)	THK	Model: RU 178G \| Variant: G (Grease nipple built-in) \| Bore d: 115 mm \| OD D: 240 mm \| Roller PCD dp: 178 mm \| Width B: 28 mm \| Lubrication hole d1: φ3.1 mm \| r min: 1.5 mm \| Dynamic Load C: 80.3 kN \| Static Load C0: 135 kN \| Mass: 6.8 kg \| Note: With grease nipple (NP3.2×3.5)
RU178X	THK RU 178X, d=115mm D=240mm B=28mm, Inner ring with tapped through-holes	THK	Model: RU 178X \| Variant: X (Inner ring tapped through-hole) \| Bore d: 115 mm \| OD D: 240 mm \| Roller PCD dp: 178 mm \| Width B: 28 mm \| Lubrication hole d1: φ3.1 mm \| r min: 1.5 mm \| Dynamic Load C: 80.3 kN \| Static Load C0: 135 kN \| Mass: 6.8 kg \| Note: Inner ring with tapped through-holes
RU228	THK RU 228, d=160mm D=295mm B=35mm, Standard type	THK	Model: RU 228 \| Variant: Standard \| Bore d: 160 mm \| OD D: 295 mm \| Roller PCD dp: 227.5 mm \| Width B: 35 mm \| Lubrication hole d1: φ6.0 mm \| r min: 2.0 mm \| Dynamic Load C: 104 kN \| Static Load C0: 173 kN \| Mass: 11.4 kg \| Note: Standard type
RU228G	THK RU 228G, d=160mm D=295mm B=35mm, With grease nipple (NP6×5)	THK	Model: RU 228G \| Variant: G (Grease nipple built-in) \| Bore d: 160 mm \| OD D: 295 mm \| Roller PCD dp: 227.5 mm \| Width B: 35 mm \| Lubrication hole d1: φ6.0 mm \| r min: 2.0 mm \| Dynamic Load C: 104 kN \| Static Load C0: 173 kN \| Mass: 11.4 kg \| Note: With grease nipple (NP6×5)
RU228X	THK RU 228X, d=160mm D=295mm B=35mm, Inner ring with tapped through-holes	THK	Model: RU 228X \| Variant: X (Inner ring tapped through-hole) \| Bore d: 160 mm \| OD D: 295 mm \| Roller PCD dp: 227.5 mm \| Width B: 35 mm \| Lubrication hole d1: φ6.0 mm \| r min: 2.0 mm \| Dynamic Load C: 104 kN \| Static Load C0: 173 kN \| Mass: 11.4 kg \| Note: Inner ring with tapped through-holes
RU297	THK RU 297, d=210mm D=380mm B=40mm, Standard type	THK	Model: RU 297 \| Variant: Standard \| Bore d: 210 mm \| OD D: 380 mm \| Roller PCD dp: 297.3 mm \| Width B: 40 mm \| Lubrication hole d1: φ6.0 mm \| r min: 2.5 mm \| Dynamic Load C: 156 kN \| Static Load C0: 281 kN \| Mass: 21.3 kg \| Note: Standard type
RU297G	THK RU 297G, d=210mm D=380mm B=40mm, With grease nipple (NP6×5)	THK	Model: RU 297G \| Variant: G (Grease nipple built-in) \| Bore d: 210 mm \| OD D: 380 mm \| Roller PCD dp: 297.3 mm \| Width B: 40 mm \| Lubrication hole d1: φ6.0 mm \| r min: 2.5 mm \| Dynamic Load C: 156 kN \| Static Load C0: 281 kN \| Mass: 21.3 kg \| Note: With grease nipple (NP6×5)
RU297X	THK RU 297X, d=210mm D=380mm B=40mm, Inner ring with tapped through-holes	THK	Model: RU 297X \| Variant: X (Inner ring tapped through-hole) \| Bore d: 210 mm \| OD D: 380 mm \| Roller PCD dp: 297.3 mm \| Width B: 40 mm \| Lubrication hole d1: φ6.0 mm \| r min: 2.5 mm \| Dynamic Load C: 156 kN \| Static Load C0: 281 kN \| Mass: 21.3 kg \| Note: Inner ring with tapped through-holes
RU445	THK RU 445, d=350mm D=540mm B=45mm, Standard type	THK	Model: RU 445 \| Variant: Standard \| Bore d: 350 mm \| OD D: 540 mm \| Roller PCD dp: 445.4 mm \| Width B: 45 mm \| Lubrication hole d1: φ6.0 mm \| r min: 2.5 mm \| Dynamic Load C: 222 kN \| Static Load C0: 473 kN \| Mass: 35.4 kg \| Note: Standard type
RU445G	THK RU 445G, d=350mm D=540mm B=45mm, With grease nipple (NP6×5)	THK	Model: RU 445G \| Variant: G (Grease nipple built-in) \| Bore d: 350 mm \| OD D: 540 mm \| Roller PCD dp: 445.4 mm \| Width B: 45 mm \| Lubrication hole d1: φ6.0 mm \| r min: 2.5 mm \| Dynamic Load C: 222 kN \| Static Load C0: 473 kN \| Mass: 35.4 kg \| Note: With grease nipple (NP6×5)
RU445X	THK RU 445X, d=350mm D=540mm B=45mm, Inner ring with tapped through-holes	THK	Model: RU 445X \| Variant: X (Inner ring tapped through-hole) \| Bore d: 350 mm \| OD D: 540 mm \| Roller PCD dp: 445.4 mm \| Width B: 45 mm \| Lubrication hole d1: φ6.0 mm \| r min: 2.5 mm \| Dynamic Load C: 222 kN \| Static Load C0: 473 kN \| Mass: 35.4 kg \| Note: Inner ring with tapped through-holes
