Valves

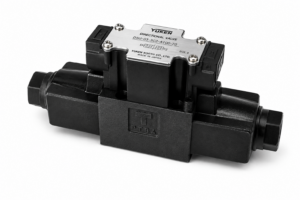

1/8 Solenoid Operated Directional Valves, DSG-01 Series β Shockless type. Suppresses switching shock/noise and piping vibration: max. operating pressure 25 MPa, max. flow 63 L/min, tank back pressure 21 MPa, max. switching frequency 120 min-1. Subplate mounting.
1/8 Solenoid Operated Directional Valves, DSG-01 Series β Shockless type. Suppresses switching shock/noise and piping vibration: max. operating pressure 25 MPa, max. flow 63 L/min, tank back pressure 21 MPa, max. switching frequency 120 min-1. Subplate mounting.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| S-DSG-01-3C2-*-70 | S-DSG-01 solenoid directional valve, spool 3C2 (3-position, spring centered) | Yuken | Type: Shockless (Solenoid Operated) | Valve Size: 01 (Rc 1/8) | Max Pressure: 25 MPa | Max Flow: 63 L/min | Tank Back Pressure: 21 MPa | Max Switching Freq: 120 min-1 | Mounting: Subplate (ISO 4401) | Spool Form: 3C2 | Spring: 3-position, spring centered | Coil: DC D12/D24/D48, rectified R100/R200 (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 70 | |
| S-DSG-01-3C4-*-70 | S-DSG-01 solenoid directional valve, spool 3C4 (3-position, spring centered) | Yuken | Type: Shockless (Solenoid Operated) | Valve Size: 01 (Rc 1/8) | Max Pressure: 25 MPa | Max Flow: 63 L/min | Tank Back Pressure: 21 MPa | Max Switching Freq: 120 min-1 | Mounting: Subplate (ISO 4401) | Spool Form: 3C4 | Spring: 3-position, spring centered | Coil: DC D12/D24/D48, rectified R100/R200 (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 70 | |
| S-DSG-01-2B2-*-70 | S-DSG-01 solenoid directional valve, spool 2B2 (2-position, spring offset) | Yuken | Type: Shockless (Solenoid Operated) | Valve Size: 01 (Rc 1/8) | Max Pressure: 25 MPa | Max Flow: 63 L/min | Tank Back Pressure: 21 MPa | Max Switching Freq: 120 min-1 | Mounting: Subplate (ISO 4401) | Spool Form: 2B2 | Spring: 2-position, spring offset | Coil: DC D12/D24/D48, rectified R100/R200 (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 70 |

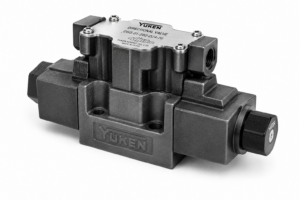

3/8 Solenoid Operated Directional Valves, DSG-03 Series β Shockless type. Max. operating pressure 25 MPa, max. flow 120 L/min, tank back pressure 16 MPa, max. switching frequency 120 min-1. Subplate mounting.
3/8 Solenoid Operated Directional Valves, DSG-03 Series β Shockless type. Max. operating pressure 25 MPa, max. flow 120 L/min, tank back pressure 16 MPa, max. switching frequency 120 min-1. Subplate mounting.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| S-DSG-03-3C2-*-50 | S-DSG-03 solenoid directional valve, spool 3C2 (3-position, spring centered) | Yuken | Type: Shockless (Solenoid Operated) | Valve Size: 03 (Rc 3/8) | Max Pressure: 25 MPa | Max Flow: 120 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 120 min-1 | Mounting: Subplate (ISO 4401) | Spool Form: 3C2 | Spring: 3-position, spring centered | Coil: DC D12/D24/D48, rectified R / quick-return RQ100 (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 50 | |
| S-DSG-03-3C4-*-50 | S-DSG-03 solenoid directional valve, spool 3C4 (3-position, spring centered) | Yuken | Type: Shockless (Solenoid Operated) | Valve Size: 03 (Rc 3/8) | Max Pressure: 25 MPa | Max Flow: 120 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 120 min-1 | Mounting: Subplate (ISO 4401) | Spool Form: 3C4 | Spring: 3-position, spring centered | Coil: DC D12/D24/D48, rectified R / quick-return RQ100 (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 50 | |
| S-DSG-03-2B2-*-50 | S-DSG-03 solenoid directional valve, spool 2B2 (2-position, spring offset) | Yuken | Type: Shockless (Solenoid Operated) | Valve Size: 03 (Rc 3/8) | Max Pressure: 25 MPa | Max Flow: 120 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 120 min-1 | Mounting: Subplate (ISO 4401) | Spool Form: 2B2 | Spring: 2-position, spring offset | Coil: DC D12/D24/D48, rectified R / quick-return RQ100 (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 50 |

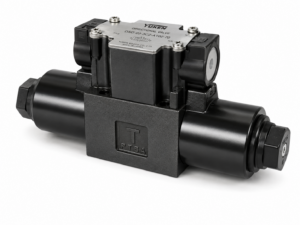

Electronic Relay Incorporated Solenoid Operated Directional Valves, T-DSG-01. Switches with a fine signal current (approx. 10 mA), directly drivable from sequence/controller output circuits: max. operating pressure 35 MPa, max. flow 100 L/min, tank back pressure 21 MPa, max. switching frequency 300 min-1. General & shockless. Subplate mounting.
Electronic Relay Incorporated Solenoid Operated Directional Valves, T-DSG-01. Switches with a fine signal current (approx. 10 mA), directly drivable from sequence/controller output circuits: max. operating pressure 35 MPa, max. flow 100 L/min, tank back pressure 21 MPa, max. switching frequency 300 min-1. General & shockless. Subplate mounting.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| T-DSG-01-3C*-D24-70 | T-DSG-01 electronic-relay solenoid directional valve, general, spool group 3C (3-position, spring centered) | Yuken | Type: Electronic-relay incorporated (Solenoid Operated) | Valve Size: 01 (Rc 1/8) | Switching Signal: approx. 10 mA constant (DC20-65V) | Coil: DC24V (D24) | Mounting: Subplate (ISO 4401) | Subtype: General | Spool Group: 3Cx (per base DSG-01 table) | Spring: 3-position, spring centered | Design No.: 70 | Wiring: RFQ | |
| T-DSG-01-2D2-D24-70 | T-DSG-01 electronic-relay solenoid directional valve, general, spool group 2D2 (2-position, no-spring detented) | Yuken | Type: Electronic-relay incorporated (Solenoid Operated) | Valve Size: 01 (Rc 1/8) | Switching Signal: approx. 10 mA constant (DC20-65V) | Coil: DC24V (D24) | Mounting: Subplate (ISO 4401) | Subtype: General | Spool Group: 2D2 | Spring: 2-position, no-spring detented | Design No.: 70 | Wiring: RFQ | |
| T-DSG-01-2B*-D24-70 | T-DSG-01 electronic-relay solenoid directional valve, general, spool group 2B (2-position, spring offset) | Yuken | Type: Electronic-relay incorporated (Solenoid Operated) | Valve Size: 01 (Rc 1/8) | Switching Signal: approx. 10 mA constant (DC20-65V) | Coil: DC24V (D24) | Mounting: Subplate (ISO 4401) | Subtype: General | Spool Group: 2Bx (per base DSG-01 table) | Spring: 2-position, spring offset | Design No.: 70 | Wiring: RFQ | |
| T-S-DSG-01-3C*-D24-70 | T-S-DSG-01 electronic-relay shockless solenoid directional valve, spool group 3C (3-position, spring centered) | Yuken | Type: Electronic-relay incorporated (Solenoid Operated) | Valve Size: 01 (Rc 1/8) | Switching Signal: approx. 10 mA constant (DC20-65V) | Coil: DC24V (D24) | Mounting: Subplate (ISO 4401) | Subtype: Shockless | Spool Group: 3Cx (per base S-DSG-01 table) | Spring: 3-position, spring centered | Design No.: 70 | Wiring: RFQ | |
| T-S-DSG-01-2B2-D24-70 | T-S-DSG-01 electronic-relay shockless solenoid directional valve, spool group 2B2 (2-position, spring offset) | Yuken | Type: Electronic-relay incorporated (Solenoid Operated) | Valve Size: 01 (Rc 1/8) | Switching Signal: approx. 10 mA constant (DC20-65V) | Coil: DC24V (D24) | Mounting: Subplate (ISO 4401) | Subtype: Shockless | Spool Group: 2B2 | Spring: 2-position, spring offset | Design No.: 70 | Wiring: RFQ |
Electronic Relay Incorporated Solenoid Operated Directional Valves, T-DSG-03. Switches with a fine signal current (approx. 10 mA), directly drivable from sequence/controller output circuits: max. operating pressure 31.5 MPa (spool 60) / 25 MPa, max. flow 120 L/min, tank back pressure 16 MPa, max. switching frequency 240 min-1. General & shockless. Subplate mounting.
Electronic Relay Incorporated Solenoid Operated Directional Valves, T-DSG-03. Switches with a fine signal current (approx. 10 mA), directly drivable from sequence/controller output circuits: max. operating pressure 31.5 MPa (spool 60) / 25 MPa, max. flow 120 L/min, tank back pressure 16 MPa, max. switching frequency 240 min-1. General & shockless. Subplate mounting.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| T-DSG-03-3C*-D24-50 | T-DSG-03 electronic-relay solenoid directional valve, general, spool group 3C (3-position, spring centered) | Yuken | Type: Electronic-relay incorporated (Solenoid Operated) | Valve Size: 03 (Rc 3/8) | Switching Signal: approx. 10 mA constant (DC20-65V) | Coil: DC24V (D24) | Mounting: Subplate (ISO 4401) | Subtype: General | Spool Group: 3Cx (per base DSG-03 table) | Spring: 3-position, spring centered | Design No.: 50 | Wiring: RFQ | |
| T-DSG-03-2D2-D24-50 | T-DSG-03 electronic-relay solenoid directional valve, general, spool group 2D2 (2-position, no-spring detented) | Yuken | Type: Electronic-relay incorporated (Solenoid Operated) | Valve Size: 03 (Rc 3/8) | Switching Signal: approx. 10 mA constant (DC20-65V) | Coil: DC24V (D24) | Mounting: Subplate (ISO 4401) | Subtype: General | Spool Group: 2D2 | Spring: 2-position, no-spring detented | Design No.: 50 | Wiring: RFQ | |
| T-DSG-03-2B*-D24-50 | T-DSG-03 electronic-relay solenoid directional valve, general, spool group 2B (2-position, spring offset) | Yuken | Type: Electronic-relay incorporated (Solenoid Operated) | Valve Size: 03 (Rc 3/8) | Switching Signal: approx. 10 mA constant (DC20-65V) | Coil: DC24V (D24) | Mounting: Subplate (ISO 4401) | Subtype: General | Spool Group: 2Bx (per base DSG-03 table) | Spring: 2-position, spring offset | Design No.: 50 | Wiring: RFQ | |
| T-S-DSG-03-3C*-D24-50 | T-S-DSG-03 electronic-relay shockless solenoid directional valve, spool group 3C (3-position, spring centered) | Yuken | Type: Electronic-relay incorporated (Solenoid Operated) | Valve Size: 03 (Rc 3/8) | Switching Signal: approx. 10 mA constant (DC20-65V) | Coil: DC24V (D24) | Mounting: Subplate (ISO 4401) | Subtype: Shockless | Spool Group: 3Cx (per base S-DSG-03 table) | Spring: 3-position, spring centered | Design No.: 50 | Wiring: RFQ | |
| T-S-DSG-03-2B2-D24-50 | T-S-DSG-03 electronic-relay shockless solenoid directional valve, spool group 2B2 (2-position, spring offset) | Yuken | Type: Electronic-relay incorporated (Solenoid Operated) | Valve Size: 03 (Rc 3/8) | Switching Signal: approx. 10 mA constant (DC20-65V) | Coil: DC24V (D24) | Mounting: Subplate (ISO 4401) | Subtype: Shockless | Spool Group: 2B2 | Spring: 2-position, spring offset | Design No.: 50 | Wiring: RFQ |
