Displacement

35 products displacement ✕

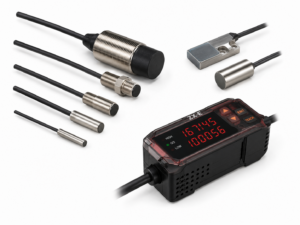

[OMRON] — ZX-E Inductive Displacement Sensor Amplifier Unit (NPN/PNP, DC, 2m)

OMRON ZX-E Series inductive displacement sensor amplifier units. ZX-EDA11 (NPN) and ZX-EDA41 (PNP). DC power supply. Cable 2 m. ZX-XBE1 mounting bracket included. ZX-XBE2 DIN track bracket sold separately.

Brand: Omron Category: Displacement 2 models

Product Code	Description	Brand	Spec
ZX-EDA11 2M	Inductive displacement amplifier NPN DC 2m	OMRON	Type: Amplifier Unit \| Power Supply: DC \| Output: NPN \| Cable Length: 2 m \| Compatible Heads: All ZX-E series sensor heads \| Note: Version 1.200+ required for ZX-EV04T; version 1.300+ for ZX-EM02HT \| Accessories: ZX-CAL2/ZX-SF11/ZX-SW11EV3/ZX-XC1A~8A sold separately
ZX-EDA41 2M	Inductive displacement amplifier PNP DC 2m	OMRON	Type: Amplifier Unit \| Power Supply: DC \| Output: PNP \| Cable Length: 2 m \| Compatible Heads: All ZX-E series sensor heads \| Note: Version 1.200+ required for ZX-EV04T; version 1.300+ for ZX-EM02HT

[OMRON] — ZX-E Inductive Displacement Sensor Head (Cylindrical / Screw / Flat / Heat-resistant)

OMRON ZX-E Series inductive displacement sensor heads for metal workpiece detection. Resolution 1 μm (avg 4096). Cylindrical: ZX-EDR5T (3mm/0.5mm), ZX-ED01T (5.4mm/1mm), ZX-ED02T (8mm/2mm). Screw: ZX-EM02T (M10/2mm), ZX-EM07MT (M18/7mm). Flat: ZX-EV04T (30×14mm/4mm). Heat-resistant: ZX-EM02HT (M12/2mm). Protective spiral tube variants available with -S suffix. Requires ZX-EDA11 (NPN) or ZX-EDA41 (PNP) amplifier.

Brand: Omron Category: Displacement 7 models

Product Code	Description	Brand	Spec
ZX-EDR5T	Inductive displacement head Cylindrical 3 dia. × 18 mm 0.5 mm	OMRON	Sensing Method: Inductive displacement \| Shape: Cylindrical \| Dimensions: 3 dia. × 18 mm \| Sensing Distance: 0.5 mm \| Resolution: 1 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-EDA11 (NPN) or ZX-EDA41 (PNP) amplifier unit
ZX-ED01T	Inductive displacement head Cylindrical 5.4 dia. × 18 mm 1 mm	OMRON	Sensing Method: Inductive displacement \| Shape: Cylindrical \| Dimensions: 5.4 dia. × 18 mm \| Sensing Distance: 1 mm \| Resolution: 1 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-EDA11 (NPN) or ZX-EDA41 (PNP) amplifier unit \| Protective Spiral Tube: Protective Spiral Tube model: add '-S' suffix (e.g. ZX-ED01T-S)
ZX-ED02T	Inductive displacement head Cylindrical 8 dia. × 22 mm 2 mm	OMRON	Sensing Method: Inductive displacement \| Shape: Cylindrical \| Dimensions: 8 dia. × 22 mm \| Sensing Distance: 2 mm \| Resolution: 1 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-EDA11 (NPN) or ZX-EDA41 (PNP) amplifier unit \| Protective Spiral Tube: Protective Spiral Tube model: add '-S' suffix (e.g. ZX-ED01T-S)
ZX-EM02T	Inductive displacement head Screw-shaped M10 × 22 mm 2 mm	OMRON	Sensing Method: Inductive displacement \| Shape: Screw-shaped \| Dimensions: M10 × 22 mm \| Sensing Distance: 2 mm \| Resolution: 1 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-EDA11 (NPN) or ZX-EDA41 (PNP) amplifier unit \| Protective Spiral Tube: Protective Spiral Tube model: add '-S' suffix (e.g. ZX-ED01T-S)
ZX-EM07MT	Inductive displacement head Screw-shaped M18 × 46.3 mm 7 mm	OMRON	Sensing Method: Inductive displacement \| Shape: Screw-shaped \| Dimensions: M18 × 46.3 mm \| Sensing Distance: 7 mm \| Resolution: 1 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-EDA11 (NPN) or ZX-EDA41 (PNP) amplifier unit \| Protective Spiral Tube: Protective Spiral Tube model: order as ZX-EM07M-S
ZX-EV04T	Inductive displacement head Flat 30 × 14 × 4.8 mm 4 mm	OMRON	Sensing Method: Inductive displacement \| Shape: Flat \| Dimensions: 30 × 14 × 4.8 mm \| Sensing Distance: 4 mm \| Resolution: 1 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-EDA11 (NPN) or ZX-EDA41 (PNP) amplifier unit \| Protective Spiral Tube: Protective Spiral Tube model: add '-S' suffix (e.g. ZX-ED01T-S) \| Note: Use ZX-EDA amplifier unit version 1.200 or later
ZX-EM02HT	Inductive displacement head Heat-resistant cylindrical M12 × 22 mm 2 mm	OMRON	Sensing Method: Inductive displacement \| Shape: Heat-resistant cylindrical \| Dimensions: M12 × 22 mm \| Sensing Distance: 2 mm \| Resolution: 1 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-EDA11 (NPN) or ZX-EDA41 (PNP) amplifier unit \| Note: Use ZX-EDA amplifier unit version 1.300 or later; heat-resistant

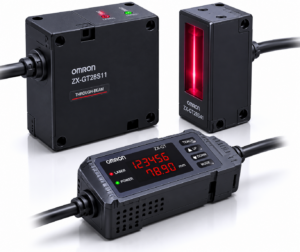

[OMRON] — ZX-GT Wide Laser Beam Measurement Sensor Controller (NPN/PNP, DC)

OMRON ZX-GT Series sensor controllers. DC power supply. ZX-GTC11 (NPN) and ZX-GTC41 (PNP). Interface unit ZX-GIF11/41, Smart Monitor GT ZX-GSW11, extension cables ZX-XGC1A~20A/R sold separately.

Brand: Omron Category: Displacement 2 models

OMRON ZX-GT Series sensor controllers. DC power supply. ZX-GTC11 (NPN) and ZX-GTC41 (PNP). Interface unit ZX-GIF11/41, Smart Monitor GT ZX-GSW11, extension cables ZX-XGC1A~20A/R sold separately.

Product Code	Description	Brand	Spec
ZX-GTC11	Controller NPN DC	OMRON	Type: Sensor Controller \| Power Supply: DC \| Output: NPN \| Compatible Heads: ZX-GT28S11 / ZX-GT2840S11 \| Accessories: ZX-GIF11A interface+software set / ZX-GIF11 interface unit / ZX-CAL2 calculating unit sold separately \| Extension Cable: ZX-XGC1A~20A standard or ZX-XGC1R~20R flexible (max 30m total, sold separately)
ZX-GTC41	Controller PNP DC	OMRON	Type: Sensor Controller \| Power Supply: DC \| Output: PNP \| Compatible Heads: ZX-GT28S41 / ZX-GT2840S41 \| Extension Cable: ZX-XGC1A~20A standard or ZX-XGC1R~20R flexible (max 30m total, sold separately)

[OMRON] — ZX-GT Wide Laser Beam Measurement Sensor Head (28mm Separate / 40mm Integrated, NPN/PNP)

OMRON ZX-GT Series wide laser beam measurement sensor heads. Through-beam, line imaging device type. Separate emitter/receiver (ZX-GT28S11/41): 28mm measuring width, 0~500mm sensing distance, 10μm resolution. Integrated (ZX-GT2840S11/41): 40mm measuring width. NPN and PNP. Requires ZX-GTC11/41 controller.

Brand: Omron Category: Displacement 4 models

Product Code	Description	Brand	Spec
ZX-GT28S11	Separate type through-beam 28mm NPN	OMRON	Type: Emitter and Receiver Separate \| Optical System: Through-beam \| Measuring Width: 28 mm \| Sensing Distance: 0 to 500 mm \| Resolution: 10 μm \| Output: NPN \| Required Controller: ZX-GTC11 (NPN) or ZX-GTC41 (PNP) controller required \| Accessories: ZX-GIF11A/41A interface unit + software sold separately
ZX-GT28S41	Separate type through-beam 28mm PNP	OMRON	Type: Emitter and Receiver Separate \| Optical System: Through-beam \| Measuring Width: 28 mm \| Sensing Distance: 0 to 500 mm \| Resolution: 10 μm \| Output: PNP \| Required Controller: ZX-GTC11 (NPN) or ZX-GTC41 (PNP) controller required
ZX-GT2840S11	Integrated type through-beam 40mm NPN	OMRON	Type: Emitter and Receiver Integrated \| Optical System: Through-beam \| Measuring Width: 40 mm \| Sensing Distance: 0 to 500 mm \| Resolution: 10 μm \| Output: NPN \| Required Controller: ZX-GTC11 (NPN) or ZX-GTC41 (PNP) controller required
ZX-GT2840S41	Integrated type through-beam 40mm PNP	OMRON	Type: Emitter and Receiver Integrated \| Optical System: Through-beam \| Measuring Width: 40 mm \| Sensing Distance: 0 to 500 mm \| Resolution: 10 μm \| Output: PNP \| Required Controller: ZX-GTC11 (NPN) or ZX-GTC41 (PNP) controller required

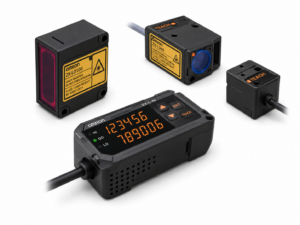

[OMRON] — ZX-L-N Laser Displacement Sensor Head Reflective (Diffuse/Regular, Spot/Line beam)

OMRON ZX-L-N Series reflective laser displacement sensor heads. Resolution at avg 4096. Diffuse spot: ZX-LD40 (2μm)/LD100 (16μm)/LD300 (300μm). Diffuse line: ZX-LD40L/100L/300L. Regular spot/line: ZX-LD30V/30VL (0.25μm). Requires ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP) amplifier.

Brand: Omron Category: Displacement 8 models

Product Code	Description	Brand	Spec
ZX-LD40	ZX-L Diffuse-reflective Spot beam 40±10 mm 2 μm	OMRON	Optical System: Diffuse-reflective \| Beam Shape: Spot beam \| Sensing Distance: 40±10 mm \| Resolution: 2 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP)
ZX-LD100	ZX-L Diffuse-reflective Spot beam 100±40 mm 16 μm	OMRON	Optical System: Diffuse-reflective \| Beam Shape: Spot beam \| Sensing Distance: 100±40 mm \| Resolution: 16 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP)
ZX-LD300	ZX-L Diffuse-reflective Spot beam 300±200 mm 300 μm	OMRON	Optical System: Diffuse-reflective \| Beam Shape: Spot beam \| Sensing Distance: 300±200 mm \| Resolution: 300 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP)
ZX-LD40L	ZX-L Diffuse-reflective Line beam 40±10 mm 2 μm	OMRON	Optical System: Diffuse-reflective \| Beam Shape: Line beam \| Sensing Distance: 40±10 mm \| Resolution: 2 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP)
ZX-LD100L	ZX-L Diffuse-reflective Line beam 100±40 mm 16 μm	OMRON	Optical System: Diffuse-reflective \| Beam Shape: Line beam \| Sensing Distance: 100±40 mm \| Resolution: 16 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP)
ZX-LD300L	ZX-L Diffuse-reflective Line beam 300±200 mm 300 μm	OMRON	Optical System: Diffuse-reflective \| Beam Shape: Line beam \| Sensing Distance: 300±200 mm \| Resolution: 300 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP)
ZX-LD30V	ZX-L Regular-reflective Spot beam 30±2 mm 0.25 μm	OMRON	Optical System: Regular-reflective \| Beam Shape: Spot beam \| Sensing Distance: 30±2 mm \| Resolution: 0.25 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP)
ZX-LD30VL	ZX-L Regular-reflective Line beam 30±2 mm 0.25 μm	OMRON	Optical System: Regular-reflective \| Beam Shape: Line beam \| Sensing Distance: 30±2 mm \| Resolution: 0.25 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP)

[OMRON] — ZX-L-N Laser Displacement Sensor Head Through-beam (1mm/5mm/10mm/30mm width)

OMRON ZX-L-N Series through-beam laser displacement sensor heads. Resolution at avg 64. ZX-LT001: 1mm/1~2.5mm measuring width. ZX-LT005: 5mm. ZX-LT010: 10mm. ZX-LT030: 30mm (12μm). All 0.5m cable. Requires amplifier unit.

Brand: Omron Category: Displacement 4 models

Product Code	Description	Brand	Spec
ZX-LT001	ZX-L through-beam 1 mm dia. / 1~2.5 mm dia. 0~500 mm / 500~2000 mm 4 μm / ---	OMRON	Sensing Method: Through-beam \| Measuring Width: 1 mm dia. / 1~2.5 mm dia. \| Sensing Distance: 0~500 mm / 500~2000 mm \| Resolution: 4 μm / --- \| Resolution Note: Average count 64 \| Cable Length: 0.5 m \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP) \| Side-view Attachment: ZX-XF12 (LT001/005) / ZX-XF22 (LT010) sold separately
ZX-LT005	ZX-L through-beam 5 mm 0~500 mm 4 μm	OMRON	Sensing Method: Through-beam \| Measuring Width: 5 mm \| Sensing Distance: 0~500 mm \| Resolution: 4 μm \| Resolution Note: Average count 64 \| Cable Length: 0.5 m \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP) \| Side-view Attachment: ZX-XF12 (LT001/005) / ZX-XF22 (LT010) sold separately
ZX-LT010	ZX-L through-beam 10 mm 0~500 mm 4 μm	OMRON	Sensing Method: Through-beam \| Measuring Width: 10 mm \| Sensing Distance: 0~500 mm \| Resolution: 4 μm \| Resolution Note: Average count 64 \| Cable Length: 0.5 m \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP) \| Side-view Attachment: ZX-XF12 (LT001/005) / ZX-XF22 (LT010) sold separately
ZX-LT030 0.5M	ZX-L through-beam 30 mm 0~500 mm 12 μm	OMRON	Sensing Method: Through-beam \| Measuring Width: 30 mm \| Sensing Distance: 0~500 mm \| Resolution: 12 μm \| Resolution Note: Average count 64 \| Cable Length: 0.5 m \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP) \| Side-view Attachment: ZX-XF12 (LT001/005) / ZX-XF22 (LT010) sold separately

[OMRON] — ZX-L-N Smart Sensor Amplifier Unit (NPN/PNP, DC, 2m)

OMRON ZX-L-N Series amplifier units. DC power supply. ZX-LDA11-N (NPN) and ZX-LDA41-N (PNP). Cable 2 m. Compatible with ZX-LD and ZX-LT sensor heads. Extension cables ZX-XC1A~9A, calculating unit ZX-CAL2, RS-232C ZX-SF11 sold separately.

Brand: Omron Category: Displacement 2 models

Product Code	Description	Brand	Spec
ZX-LDA11-N 2M	Amplifier NPN DC 2m	OMRON	Type: Amplifier Unit \| Power Supply: DC \| Output: NPN \| Cable Length: 2 m \| Accessories: ZX-CAL2 calculating unit / ZX-SF11 RS-232C / ZX-SW11EV3 software sold separately
ZX-LDA41-N 2M	Amplifier PNP DC 2m	OMRON	Type: Amplifier Unit \| Power Supply: DC \| Output: PNP \| Cable Length: 2 m \| Accessories: ZX-CAL2 calculating unit / ZX-SF11 RS-232C / ZX-SW11EV3 software sold separately

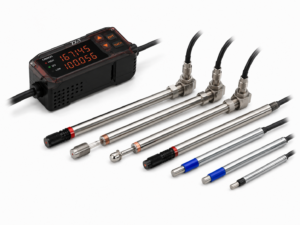

[OMRON] — ZX-T Contact Displacement Sensor Amplifier Unit (NPN/PNP, DC, 2m)

OMRON ZX-T Series contact displacement sensor amplifier units. ZX-TDA11 (NPN) and ZX-TDA41 (PNP). DC power supply. Cable 2 m. ZX-XBT1 preamplifier mounting bracket included. ZX-XBT2 DIN track bracket sold separately.

Brand: Omron Category: Displacement 2 models

Product Code	Description	Brand	Spec
ZX-TDA11 2M	Contact displacement amplifier NPN DC 2m	OMRON	Type: Amplifier Unit \| Power Supply: DC \| Output: NPN \| Cable Length: 2 m \| Compatible Heads: All ZX-T series sensor heads \| Accessories: ZX-CAL2/ZX-SF11/ZX-SW11EV3/ZX-XC1A~8A sold separately \| Note: ZX-XBT1 mounting bracket included; ZX-XBT2 DIN track bracket sold separately
ZX-TDA41 2M	Contact displacement amplifier PNP DC 2m	OMRON	Type: Amplifier Unit \| Power Supply: DC \| Output: PNP \| Cable Length: 2 m \| Compatible Heads: All ZX-T series sensor heads \| Note: ZX-XBT1 mounting bracket included; ZX-XBT2 DIN track bracket sold separately

[OMRON] — ZX-T High-Precision Contact Displacement Sensor Head (6 dia. / 8 dia.)

OMRON ZX-T Series high-precision contact displacement sensor heads. 6 dia.: ZX-TDS01T (Short 1mm/0.1μm), ZX-TDS04T (Standard 4mm), ZX-TDS04T-L (Low measurement). 8 dia.: ZX-TDS10T (Standard 10mm/0.4μm), ZX-TDS10T-L (Ultra-low-load), ZX-TDS10T-V (Air Lift), ZX-TDS10T-VL (Air Lift/Push). Requires ZX-TDA11 (NPN) or ZX-TDA41 (PNP) amplifier.

Brand: Omron Category: Displacement 7 models

Product Code	Description	Brand	Spec
ZX-TDS01T	Contact displacement head 6 dia. Short type 1 mm	OMRON	Sensing Method: Contact type (high-precision) \| Size: 6 dia. \| Type: Short type \| Sensing Distance: 1 mm \| Resolution: 0.1 μm \| Resolution Note: With ZX-TDA11/41 amplifier \| Required Amplifier: ZX-TDA11 (NPN) or ZX-TDA41 (PNP) amplifier unit
ZX-TDS04T	Contact displacement head 6 dia. Standard type 4 mm	OMRON	Sensing Method: Contact type (high-precision) \| Size: 6 dia. \| Type: Standard type \| Sensing Distance: 4 mm \| Resolution: 0.1 μm \| Resolution Note: With ZX-TDA11/41 amplifier \| Required Amplifier: ZX-TDA11 (NPN) or ZX-TDA41 (PNP) amplifier unit
ZX-TDS04T-L	Contact displacement head 6 dia. Low measurement type 4 mm	OMRON	Sensing Method: Contact type (high-precision) \| Size: 6 dia. \| Type: Low measurement type \| Sensing Distance: 4 mm \| Resolution: 0.1 μm \| Resolution Note: With ZX-TDA11/41 amplifier \| Required Amplifier: ZX-TDA11 (NPN) or ZX-TDA41 (PNP) amplifier unit
ZX-TDS10T	Contact displacement head 8 dia. Standard type 10 mm	OMRON	Sensing Method: Contact type (high-precision) \| Size: 8 dia. \| Type: Standard type \| Sensing Distance: 10 mm \| Resolution: 0.4 μm \| Resolution Note: With ZX-TDA11/41 amplifier \| Required Amplifier: ZX-TDA11 (NPN) or ZX-TDA41 (PNP) amplifier unit
ZX-TDS10T-L	Contact displacement head 8 dia. Ultra-low-load type 10 mm	OMRON	Sensing Method: Contact type (high-precision) \| Size: 8 dia. \| Type: Ultra-low-load type \| Sensing Distance: 10 mm \| Resolution: 0.4 μm \| Resolution Note: With ZX-TDA11/41 amplifier \| Required Amplifier: ZX-TDA11 (NPN) or ZX-TDA41 (PNP) amplifier unit
ZX-TDS10T-V	Contact displacement head 8 dia. Air Lift type 10 mm	OMRON	Sensing Method: Contact type (high-precision) \| Size: 8 dia. \| Type: Air Lift type \| Sensing Distance: 10 mm \| Resolution: 0.4 μm \| Resolution Note: With ZX-TDA11/41 amplifier \| Required Amplifier: ZX-TDA11 (NPN) or ZX-TDA41 (PNP) amplifier unit
ZX-TDS10T-VL	Contact displacement head 8 dia. Air Lift / Air Push type 10 mm	OMRON	Sensing Method: Contact type (high-precision) \| Size: 8 dia. \| Type: Air Lift / Air Push type \| Sensing Distance: 10 mm \| Resolution: 0.4 μm \| Resolution Note: With ZX-TDA11/41 amplifier \| Required Amplifier: ZX-TDA11 (NPN) or ZX-TDA41 (PNP) amplifier unit

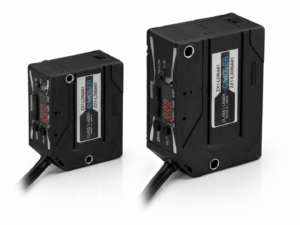

[OMRON] — ZX1-LD100A CMOS Laser Sensor with Built-in Amplifier (100 mm, NPN/PNP)

OMRON ZX1 Series CMOS laser sensor with built-in amplifier. 100 mm sensing distance. NPN and PNP. Pre-wired 2m/5m (Class 1 'L' suffix also available) and pre-wired connector 0.5m. Mounting bracket E39-L180 sold separately.

Brand: Omron Category: Displacement 10 models

Product Code	Description	Brand	Spec
ZX1-LD100A61 2M	CMOS laser 100 mm NPN 2m Class2	OMRON	Sensing Distance: 100 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: NPN \| Connection: Pre-wired 2 m \| Laser Class: Class 2
ZX1-LD100A61L 2M	CMOS laser 100 mm NPN 2m Class1	OMRON	Sensing Distance: 100 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: NPN \| Connection: Pre-wired 2 m \| Laser Class: Class 1
ZX1-LD100A61 5M	CMOS laser 100 mm NPN 5m Class2	OMRON	Sensing Distance: 100 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: NPN \| Connection: Pre-wired 5 m \| Laser Class: Class 2
ZX1-LD100A61L 5M	CMOS laser 100 mm NPN 5m Class1	OMRON	Sensing Distance: 100 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: NPN \| Connection: Pre-wired 5 m \| Laser Class: Class 1
ZX1-LD100A66 0.5M	CMOS laser 100 mm NPN connector 0.5m	OMRON	Sensing Distance: 100 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: NPN \| Connection: Pre-wired Connector 0.5 m \| Laser Class: Class 2 only \| Extension Cable: Extension cables: ZX0-XC10R (10m) / ZX0-XC20R (20m) for pre-wired connector models (sold separately)
ZX1-LD100A81 2M	CMOS laser 100 mm PNP 2m Class2	OMRON	Sensing Distance: 100 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: PNP \| Connection: Pre-wired 2 m \| Laser Class: Class 2
ZX1-LD100A81L 2M	CMOS laser 100 mm PNP 2m Class1	OMRON	Sensing Distance: 100 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: PNP \| Connection: Pre-wired 2 m \| Laser Class: Class 1
ZX1-LD100A81 5M	CMOS laser 100 mm PNP 5m Class2	OMRON	Sensing Distance: 100 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: PNP \| Connection: Pre-wired 5 m \| Laser Class: Class 2
ZX1-LD100A81L 5M	CMOS laser 100 mm PNP 5m Class1	OMRON	Sensing Distance: 100 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: PNP \| Connection: Pre-wired 5 m \| Laser Class: Class 1
ZX1-LD100A86 0.5M	CMOS laser 100 mm PNP connector 0.5m	OMRON	Sensing Distance: 100 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: PNP \| Connection: Pre-wired Connector 0.5 m \| Laser Class: Class 2 only \| Extension Cable: Extension cables: ZX0-XC10R (10m) / ZX0-XC20R (20m) for pre-wired connector models (sold separately)

[OMRON] — ZX1-LD300A CMOS Laser Sensor with Built-in Amplifier (300 mm, NPN/PNP)

OMRON ZX1 Series CMOS laser sensor with built-in amplifier. 300 mm sensing distance. NPN and PNP. Pre-wired 2m/5m (Class 1 'L' suffix also available) and pre-wired connector 0.5m. Mounting bracket E39-L181 sold separately.

Brand: Omron Category: Displacement 10 models

Product Code	Description	Brand	Spec
ZX1-LD300A61 2M	CMOS laser 300 mm NPN 2m Class2	OMRON	Sensing Distance: 300 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: NPN \| Connection: Pre-wired 2 m \| Laser Class: Class 2
ZX1-LD300A61L 2M	CMOS laser 300 mm NPN 2m Class1	OMRON	Sensing Distance: 300 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: NPN \| Connection: Pre-wired 2 m \| Laser Class: Class 1
ZX1-LD300A61 5M	CMOS laser 300 mm NPN 5m Class2	OMRON	Sensing Distance: 300 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: NPN \| Connection: Pre-wired 5 m \| Laser Class: Class 2
ZX1-LD300A61L 5M	CMOS laser 300 mm NPN 5m Class1	OMRON	Sensing Distance: 300 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: NPN \| Connection: Pre-wired 5 m \| Laser Class: Class 1
ZX1-LD300A66 0.5M	CMOS laser 300 mm NPN connector 0.5m	OMRON	Sensing Distance: 300 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: NPN \| Connection: Pre-wired Connector 0.5 m \| Laser Class: Class 2 only \| Extension Cable: Extension cables: ZX0-XC10R (10m) / ZX0-XC20R (20m) for pre-wired connector models (sold separately)
ZX1-LD300A81 2M	CMOS laser 300 mm PNP 2m Class2	OMRON	Sensing Distance: 300 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: PNP \| Connection: Pre-wired 2 m \| Laser Class: Class 2
ZX1-LD300A81L 2M	CMOS laser 300 mm PNP 2m Class1	OMRON	Sensing Distance: 300 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: PNP \| Connection: Pre-wired 2 m \| Laser Class: Class 1
ZX1-LD300A81 5M	CMOS laser 300 mm PNP 5m Class2	OMRON	Sensing Distance: 300 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: PNP \| Connection: Pre-wired 5 m \| Laser Class: Class 2
ZX1-LD300A81L 5M	CMOS laser 300 mm PNP 5m Class1	OMRON	Sensing Distance: 300 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: PNP \| Connection: Pre-wired 5 m \| Laser Class: Class 1
ZX1-LD300A86 0.5M	CMOS laser 300 mm PNP connector 0.5m	OMRON	Sensing Distance: 300 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: PNP \| Connection: Pre-wired Connector 0.5 m \| Laser Class: Class 2 only \| Extension Cable: Extension cables: ZX0-XC10R (10m) / ZX0-XC20R (20m) for pre-wired connector models (sold separately)

[OMRON] — ZX1-LD50A CMOS Laser Sensor with Built-in Amplifier (50 mm, NPN/PNP)

OMRON ZX1 Series CMOS laser sensor with built-in amplifier. 50 mm sensing distance. NPN and PNP. Pre-wired 2m/5m (Class 1 'L' suffix also available) and pre-wired connector 0.5m. Mounting bracket E39-L180 sold separately.

Brand: Omron Category: Displacement 10 models

Product Code	Description	Brand	Spec
ZX1-LD50A61 2M	CMOS laser 50 mm NPN 2m Class2	OMRON	Sensing Distance: 50 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: NPN \| Connection: Pre-wired 2 m \| Laser Class: Class 2
ZX1-LD50A61L 2M	CMOS laser 50 mm NPN 2m Class1	OMRON	Sensing Distance: 50 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: NPN \| Connection: Pre-wired 2 m \| Laser Class: Class 1
ZX1-LD50A61 5M	CMOS laser 50 mm NPN 5m Class2	OMRON	Sensing Distance: 50 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: NPN \| Connection: Pre-wired 5 m \| Laser Class: Class 2
ZX1-LD50A61L 5M	CMOS laser 50 mm NPN 5m Class1	OMRON	Sensing Distance: 50 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: NPN \| Connection: Pre-wired 5 m \| Laser Class: Class 1
ZX1-LD50A66 0.5M	CMOS laser 50 mm NPN connector 0.5m	OMRON	Sensing Distance: 50 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: NPN \| Connection: Pre-wired Connector 0.5 m \| Laser Class: Class 2 only \| Extension Cable: Extension cables: ZX0-XC10R (10m) / ZX0-XC20R (20m) for pre-wired connector models (sold separately)
ZX1-LD50A81 2M	CMOS laser 50 mm PNP 2m Class2	OMRON	Sensing Distance: 50 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: PNP \| Connection: Pre-wired 2 m \| Laser Class: Class 2
ZX1-LD50A81L 2M	CMOS laser 50 mm PNP 2m Class1	OMRON	Sensing Distance: 50 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: PNP \| Connection: Pre-wired 2 m \| Laser Class: Class 1
ZX1-LD50A81 5M	CMOS laser 50 mm PNP 5m Class2	OMRON	Sensing Distance: 50 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: PNP \| Connection: Pre-wired 5 m \| Laser Class: Class 2
ZX1-LD50A81L 5M	CMOS laser 50 mm PNP 5m Class1	OMRON	Sensing Distance: 50 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: PNP \| Connection: Pre-wired 5 m \| Laser Class: Class 1
ZX1-LD50A86 0.5M	CMOS laser 50 mm PNP connector 0.5m	OMRON	Sensing Distance: 50 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: PNP \| Connection: Pre-wired Connector 0.5 m \| Laser Class: Class 2 only \| Extension Cable: Extension cables: ZX0-XC10R (10m) / ZX0-XC20R (20m) for pre-wired connector models (sold separately)

[OMRON] — ZX1-LD600A CMOS Laser Sensor with Built-in Amplifier (600 mm, NPN/PNP)

OMRON ZX1 Series CMOS laser sensor with built-in amplifier. 600 mm sensing distance. NPN and PNP. Pre-wired 2m/5m (Class 1 'L' suffix also available) and pre-wired connector 0.5m. Mounting bracket E39-L181 sold separately.

Brand: Omron Category: Displacement 10 models

Product Code	Description	Brand	Spec
ZX1-LD600A61 2M	CMOS laser 600 mm NPN 2m Class2	OMRON	Sensing Distance: 600 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: NPN \| Connection: Pre-wired 2 m \| Laser Class: Class 2
ZX1-LD600A61L 2M	CMOS laser 600 mm NPN 2m Class1	OMRON	Sensing Distance: 600 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: NPN \| Connection: Pre-wired 2 m \| Laser Class: Class 1
ZX1-LD600A61 5M	CMOS laser 600 mm NPN 5m Class2	OMRON	Sensing Distance: 600 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: NPN \| Connection: Pre-wired 5 m \| Laser Class: Class 2
ZX1-LD600A61L 5M	CMOS laser 600 mm NPN 5m Class1	OMRON	Sensing Distance: 600 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: NPN \| Connection: Pre-wired 5 m \| Laser Class: Class 1
ZX1-LD600A66 0.5M	CMOS laser 600 mm NPN connector 0.5m	OMRON	Sensing Distance: 600 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: NPN \| Connection: Pre-wired Connector 0.5 m \| Laser Class: Class 2 only \| Extension Cable: Extension cables: ZX0-XC10R (10m) / ZX0-XC20R (20m) for pre-wired connector models (sold separately)
ZX1-LD600A81 2M	CMOS laser 600 mm PNP 2m Class2	OMRON	Sensing Distance: 600 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: PNP \| Connection: Pre-wired 2 m \| Laser Class: Class 2
ZX1-LD600A81L 2M	CMOS laser 600 mm PNP 2m Class1	OMRON	Sensing Distance: 600 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: PNP \| Connection: Pre-wired 2 m \| Laser Class: Class 1
ZX1-LD600A81 5M	CMOS laser 600 mm PNP 5m Class2	OMRON	Sensing Distance: 600 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: PNP \| Connection: Pre-wired 5 m \| Laser Class: Class 2
ZX1-LD600A81L 5M	CMOS laser 600 mm PNP 5m Class1	OMRON	Sensing Distance: 600 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: PNP \| Connection: Pre-wired 5 m \| Laser Class: Class 1
ZX1-LD600A86 0.5M	CMOS laser 600 mm PNP connector 0.5m	OMRON	Sensing Distance: 600 mm \| Light Source: Red laser (CMOS) \| Sensing Method: CMOS laser displacement \| Note: Class 1 laser also available: add 'L' suffix to 2M/5M models (e.g. ZX1-LD50A61L 2M) \| Output: PNP \| Connection: Pre-wired Connector 0.5 m \| Laser Class: Class 2 only \| Extension Cable: Extension cables: ZX0-XC10R (10m) / ZX0-XC20R (20m) for pre-wired connector models (sold separately)

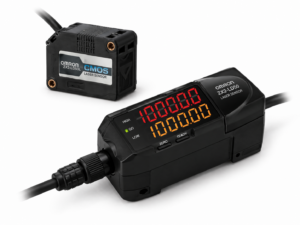

[OMRON] — ZX2 CMOS Laser Displacement Sensor Amplifier Unit (NPN/PNP, DC, 2m)

OMRON ZX2 Series CMOS laser displacement sensor amplifier units. DC power supply. ZX2-LDA11 (NPN) and ZX2-LDA41 (PNP). Cable 2 m. Calculating unit ZX2-CAL, RS-232C interface ZX2-SF11, extension cables ZX2-XC1R~20R sold separately.

Brand: Omron Category: Displacement 2 models

Product Code	Description	Brand	Spec
ZX2-LDA11 2M	Amplifier unit NPN DC 2m	OMRON	Type: Amplifier Unit \| Power Supply: DC \| Output: NPN \| Cable Length: 2 m \| Accessories: ZX2-CAL calculating unit / ZX2-SF11 RS-232C interface / ZX2-XC1R~20R extension cables — sold separately
ZX2-LDA41 2M	Amplifier unit PNP DC 2m	OMRON	Type: Amplifier Unit \| Power Supply: DC \| Output: PNP \| Cable Length: 2 m \| Accessories: ZX2-CAL calculating unit / ZX2-SF11 RS-232C interface / ZX2-XC1R~20R extension cables — sold separately

[OMRON] — ZX2 CMOS Laser Displacement Sensor Head (Diffuse/Regular-reflective, Line/Spot beam)

OMRON ZX2 Series CMOS laser displacement sensor heads. Diffuse line beam: ZX2-LD50L (1.5μm) / ZX2-LD100L (5μm). Diffuse spot beam: ZX2-LD50 (1.5μm) / ZX2-LD100 (5μm). Regular-reflective spot beam: ZX2-LD50V (1.5μm). All 0.5m cable. Requires ZX2-LDA11/41 amplifier unit.

Brand: Omron Category: Displacement 5 models

Product Code	Description	Brand	Spec
ZX2-LD50L 0.5M	Diffuse line beam 50mm 1.5μm 0.5m	OMRON	Optical System: Diffuse-reflective \| Beam Shape: Line beam \| Sensing Distance: Refer to datasheet (50 range) \| Resolution: 1.5 μm \| Cable Length: 0.5 m \| Required Amplifier: ZX2-LDA11 (NPN) or ZX2-LDA41 (PNP)
ZX2-LD50 0.5M	Diffuse spot beam 50mm 1.5μm 0.5m	OMRON	Optical System: Diffuse-reflective \| Beam Shape: Spot beam \| Sensing Distance: Refer to datasheet (50 range) \| Resolution: 1.5 μm \| Cable Length: 0.5 m \| Required Amplifier: ZX2-LDA11 (NPN) or ZX2-LDA41 (PNP)
ZX2-LD100L 0.5M	Diffuse line beam 100mm 5μm 0.5m	OMRON	Optical System: Diffuse-reflective \| Beam Shape: Line beam \| Sensing Distance: Refer to datasheet (100 range) \| Resolution: 5 μm \| Cable Length: 0.5 m \| Required Amplifier: ZX2-LDA11 (NPN) or ZX2-LDA41 (PNP)
ZX2-LD100 0.5M	Diffuse spot beam 100mm 5μm 0.5m	OMRON	Optical System: Diffuse-reflective \| Beam Shape: Spot beam \| Sensing Distance: Refer to datasheet (100 range) \| Resolution: 5 μm \| Cable Length: 0.5 m \| Required Amplifier: ZX2-LDA11 (NPN) or ZX2-LDA41 (PNP)
ZX2-LD50V 0.5M	Regular-reflective spot beam 50mm 1.5μm 0.5m	OMRON	Optical System: Regular-reflective \| Beam Shape: Spot beam \| Sensing Distance: Refer to datasheet (50 range) \| Resolution: 1.5 μm \| Cable Length: 0.5 m \| Required Amplifier: ZX2-LDA11 (NPN) or ZX2-LDA41 (PNP)
