Electrical

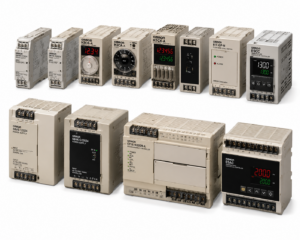

![[OMRON] — S8VS Switch Mode Power Supply (Standard, No Monitor, 15~480W, 5V/12V/24VDC)](https://img.prosourcemro.com/2026/05/001-667-300x240.png)
Indication Monitor for Visualization of Operating Status. Standard models without monitor. 15~480W. 5V/12V/24VDC output. Screw terminal and Screwless terminal variants. Input: 100~240VAC.
Indication Monitor for Visualization of Operating Status. Standard models without monitor. 15~480W. 5V/12V/24VDC output. Screw terminal and Screwless terminal variants. Input: 100~240VAC.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| S8VS-01505 | 15W, 100~240VAC, 5VDC 2A, No Monitor, Screw | OMRON | Type: Switch Mode Power Supply | Capacity: 15W | Input: 100~240VAC (85~264VAC) | Output: 5VDC 2A | Monitor: No Monitor | Terminal: Screw | UL Class 2: Yes | |
| S8VS-01512 | 15W, 100~240VAC, 12VDC 1.2A, No Monitor, Screw | OMRON | Type: Switch Mode Power Supply | Capacity: 15W | Input: 100~240VAC (85~264VAC) | Output: 12VDC 1.2A | Monitor: No Monitor | Terminal: Screw | UL Class 2: Yes | |
| S8VS-01524 | 15W, 100~240VAC, 24VDC 0.65A, No Monitor, Screw | OMRON | Type: Switch Mode Power Supply | Capacity: 15W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 0.65A | Monitor: No Monitor | Terminal: Screw | UL Class 2: Yes | |
| S8VS-03005 | 30W, 100~240VAC, 5VDC 4A, No Monitor, Screw | OMRON | Type: Switch Mode Power Supply | Capacity: 30W | Input: 100~240VAC (85~264VAC) | Output: 5VDC 4A | Monitor: No Monitor | Terminal: Screw | UL Class 2: Yes | |
| S8VS-03012 | 30W, 100~240VAC, 12VDC 2.5A, No Monitor, Screw | OMRON | Type: Switch Mode Power Supply | Capacity: 30W | Input: 100~240VAC (85~264VAC) | Output: 12VDC 2.5A | Monitor: No Monitor | Terminal: Screw | UL Class 2: Yes | |
| S8VS-03024 | 30W, 100~240VAC, 24VDC 1.3A, No Monitor, Screw | OMRON | Type: Switch Mode Power Supply | Capacity: 30W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 1.3A | Monitor: No Monitor | Terminal: Screw | UL Class 2: Yes | |
| S8VS-06024 | 60W, 100~240VAC, 24VDC 2.5A, No Monitor, Screw | OMRON | Type: Switch Mode Power Supply | Capacity: 60W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 2.5A | Monitor: No Monitor | Terminal: Screw | UL Class 2: Yes | |
| S8VS-09024 | 90W, 100~240VAC, 24VDC 3.75A, No Monitor, Screw | OMRON | Type: Switch Mode Power Supply | Capacity: 90W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 3.75A | Monitor: No Monitor | Terminal: Screw | UL Class 2: No | |
| S8VS-09024S | 90W, 100~240VAC, 24VDC 3.75A, No Monitor, Screw (UL Class 2 S) | OMRON | Type: Switch Mode Power Supply | Capacity: 90W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 3.75A | Monitor: No Monitor | Terminal: Screw (UL Class 2 S) | UL Class 2: Yes | |
| S8VS-12024 | 120W, 100~240VAC, 24VDC 5A, No Monitor, Screw | OMRON | Type: Switch Mode Power Supply | Capacity: 120W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 5A | Monitor: No Monitor | Terminal: Screw | UL Class 2: No | |
| S8VS-18024 | 180W, 100~240VAC, 24VDC 7.5A, No Monitor, Screw | OMRON | Type: Switch Mode Power Supply | Capacity: 180W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 7.5A | Monitor: No Monitor | Terminal: Screw | UL Class 2: No | |
| S8VS-24024 | 240W, 100~240VAC, 24VDC 10A, No Monitor, Screw | OMRON | Type: Switch Mode Power Supply | Capacity: 240W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 10A | Monitor: No Monitor | Terminal: Screw | UL Class 2: No | |
| S8VS-48024 | 480W, 100~240VAC, 24VDC 20A (peak 30A), No Monitor, Screw | OMRON | Type: Switch Mode Power Supply | Capacity: 480W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 20A (peak 30A) | Monitor: No Monitor | Terminal: Screw | UL Class 2: No | |
| S8VS-06024-F | 60W, 100~240VAC, 24VDC 2.5A, No Monitor, Screwless | OMRON | Type: Switch Mode Power Supply | Capacity: 60W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 2.5A | Monitor: No Monitor | Terminal: Screwless | UL Class 2: Yes | |
| S8VS-09024-F | 90W, 100~240VAC, 24VDC 3.75A, No Monitor, Screwless | OMRON | Type: Switch Mode Power Supply | Capacity: 90W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 3.75A | Monitor: No Monitor | Terminal: Screwless | UL Class 2: No | |
| S8VS-09024S-F | 90W, 100~240VAC, 24VDC 3.75A, No Monitor, Screwless (UL Class 2 S) | OMRON | Type: Switch Mode Power Supply | Capacity: 90W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 3.75A | Monitor: No Monitor | Terminal: Screwless (UL Class 2 S) | UL Class 2: Yes | |
| S8VS-12024-F | 120W, 100~240VAC, 24VDC 5A, No Monitor, Screwless | OMRON | Type: Switch Mode Power Supply | Capacity: 120W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 5A | Monitor: No Monitor | Terminal: Screwless | UL Class 2: No | |
| S8VS-18024-F | 180W, 100~240VAC, 24VDC 7.5A, No Monitor, Screwless | OMRON | Type: Switch Mode Power Supply | Capacity: 180W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 7.5A | Monitor: No Monitor | Terminal: Screwless | UL Class 2: No | |
| S8VS-24024-F | 240W, 100~240VAC, 24VDC 10A, No Monitor, Screwless | OMRON | Type: Switch Mode Power Supply | Capacity: 240W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 10A | Monitor: No Monitor | Terminal: Screwless | UL Class 2: No | |
| S8VS-48024-F | 480W, 100~240VAC, 24VDC 20A (peak 30A), No Monitor, Screwless | OMRON | Type: Switch Mode Power Supply | Capacity: 480W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 20A (peak 30A) | Monitor: No Monitor | Terminal: Screwless | UL Class 2: No |
S8VS with Total Run Time Monitor. Displays cumulative operating hours for maintenance scheduling. 60~480W. 24VDC output. None/Sinking/Sourcing alarm output variants. Screw and Screwless terminals.
S8VS with Total Run Time Monitor. Displays cumulative operating hours for maintenance scheduling. 60~480W. 24VDC output. None/Sinking/Sourcing alarm output variants. Screw and Screwless terminals.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| S8VS-06024B | 60W, 100~240VAC, 24VDC 2.5A, Total Run Time Monitor, Screw, Alarm: None | OMRON | Type: Switch Mode Power Supply | Capacity: 60W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 2.5A | Monitor: Total Run Time Monitor | Terminal: Screw | UL Class 2: Yes | Alarm Output: None | |
| S8VS-09024BE | 90W, 100~240VAC, 24VDC 3.75A, Total Run Time Monitor, Screw, Alarm: None | OMRON | Type: Switch Mode Power Supply | Capacity: 90W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 3.75A | Monitor: Total Run Time Monitor | Terminal: Screw | UL Class 2: No | Alarm Output: None | |
| S8VS-09024BES | 90W, 100~240VAC, 24VDC 3.75A, Total Run Time Monitor, Screw, Alarm: None | OMRON | Type: Switch Mode Power Supply | Capacity: 90W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 3.75A | Monitor: Total Run Time Monitor | Terminal: Screw | UL Class 2: Yes | Alarm Output: None | |
| S8VS-09024B | 90W, 100~240VAC, 24VDC 3.75A, Total Run Time Monitor, Screw, Alarm: Sinking | OMRON | Type: Switch Mode Power Supply | Capacity: 90W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 3.75A | Monitor: Total Run Time Monitor | Terminal: Screw | UL Class 2: No | Alarm Output: Sinking | |
| S8VS-09024BS | 90W, 100~240VAC, 24VDC 3.75A, Total Run Time Monitor, Screw, Alarm: Sinking | OMRON | Type: Switch Mode Power Supply | Capacity: 90W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 3.75A | Monitor: Total Run Time Monitor | Terminal: Screw | UL Class 2: Yes | Alarm Output: Sinking | |
| S8VS-09024BP | 90W, 100~240VAC, 24VDC 3.75A, Total Run Time Monitor, Screw, Alarm: Sourcing | OMRON | Type: Switch Mode Power Supply | Capacity: 90W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 3.75A | Monitor: Total Run Time Monitor | Terminal: Screw | UL Class 2: No | Alarm Output: Sourcing | |
| S8VS-09024BPS | 90W, 100~240VAC, 24VDC 3.75A, Total Run Time Monitor, Screw, Alarm: Sourcing | OMRON | Type: Switch Mode Power Supply | Capacity: 90W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 3.75A | Monitor: Total Run Time Monitor | Terminal: Screw | UL Class 2: Yes | Alarm Output: Sourcing | |
| S8VS-12024BE | 120W, 100~240VAC, 24VDC 5A, Total Run Time Monitor, Screw, Alarm: None | OMRON | Type: Switch Mode Power Supply | Capacity: 120W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 5A | Monitor: Total Run Time Monitor | Terminal: Screw | UL Class 2: No | Alarm Output: None | |
| S8VS-12024B | 120W, 100~240VAC, 24VDC 5A, Total Run Time Monitor, Screw, Alarm: Sinking | OMRON | Type: Switch Mode Power Supply | Capacity: 120W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 5A | Monitor: Total Run Time Monitor | Terminal: Screw | UL Class 2: No | Alarm Output: Sinking | |
| S8VS-12024BP | 120W, 100~240VAC, 24VDC 5A, Total Run Time Monitor, Screw, Alarm: Sourcing | OMRON | Type: Switch Mode Power Supply | Capacity: 120W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 5A | Monitor: Total Run Time Monitor | Terminal: Screw | UL Class 2: No | Alarm Output: Sourcing | |
| S8VS-18024BE | 180W, 100~240VAC, 24VDC 7.5A, Total Run Time Monitor, Screw, Alarm: None | OMRON | Type: Switch Mode Power Supply | Capacity: 180W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 7.5A | Monitor: Total Run Time Monitor | Terminal: Screw | UL Class 2: No | Alarm Output: None | |
| S8VS-18024B | 180W, 100~240VAC, 24VDC 7.5A, Total Run Time Monitor, Screw, Alarm: Sinking | OMRON | Type: Switch Mode Power Supply | Capacity: 180W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 7.5A | Monitor: Total Run Time Monitor | Terminal: Screw | UL Class 2: No | Alarm Output: Sinking | |
| S8VS-18024BP | 180W, 100~240VAC, 24VDC 7.5A, Total Run Time Monitor, Screw, Alarm: Sourcing | OMRON | Type: Switch Mode Power Supply | Capacity: 180W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 7.5A | Monitor: Total Run Time Monitor | Terminal: Screw | UL Class 2: No | Alarm Output: Sourcing | |
| S8VS-24024BE | 240W, 100~240VAC, 24VDC 10A, Total Run Time Monitor, Screw, Alarm: None | OMRON | Type: Switch Mode Power Supply | Capacity: 240W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 10A | Monitor: Total Run Time Monitor | Terminal: Screw | UL Class 2: No | Alarm Output: None | |
| S8VS-24024B | 240W, 100~240VAC, 24VDC 10A, Total Run Time Monitor, Screw, Alarm: Sinking | OMRON | Type: Switch Mode Power Supply | Capacity: 240W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 10A | Monitor: Total Run Time Monitor | Terminal: Screw | UL Class 2: No | Alarm Output: Sinking | |
| S8VS-24024BP | 240W, 100~240VAC, 24VDC 10A, Total Run Time Monitor, Screw, Alarm: Sourcing | OMRON | Type: Switch Mode Power Supply | Capacity: 240W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 10A | Monitor: Total Run Time Monitor | Terminal: Screw | UL Class 2: No | Alarm Output: Sourcing | |
| S8VS-48024B | 480W, 100~240VAC, 24VDC 20A (peak 30A), Total Run Time Monitor, Screw, Alarm: Sinking/Sourcing | OMRON | Type: Switch Mode Power Supply | Capacity: 480W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 20A (peak 30A) | Monitor: Total Run Time Monitor | Terminal: Screw | UL Class 2: No | Alarm Output: Sinking/Sourcing | |
| S8VS-06024B-F | 60W, 100~240VAC, 24VDC 2.5A, Total Run Time Monitor, Screwless, Alarm: None | OMRON | Type: Switch Mode Power Supply | Capacity: 60W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 2.5A | Monitor: Total Run Time Monitor | Terminal: Screwless | UL Class 2: Yes | Alarm Output: None | |
| S8VS-09024BE-F | 90W, 100~240VAC, 24VDC 3.75A, Total Run Time Monitor, Screwless, Alarm: None | OMRON | Type: Switch Mode Power Supply | Capacity: 90W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 3.75A | Monitor: Total Run Time Monitor | Terminal: Screwless | UL Class 2: No | Alarm Output: None | |
| S8VS-09024BES-F | 90W, 100~240VAC, 24VDC 3.75A, Total Run Time Monitor, Screwless, Alarm: None | OMRON | Type: Switch Mode Power Supply | Capacity: 90W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 3.75A | Monitor: Total Run Time Monitor | Terminal: Screwless | UL Class 2: Yes | Alarm Output: None | |
| S8VS-09024B-F | 90W, 100~240VAC, 24VDC 3.75A, Total Run Time Monitor, Screwless, Alarm: Sinking | OMRON | Type: Switch Mode Power Supply | Capacity: 90W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 3.75A | Monitor: Total Run Time Monitor | Terminal: Screwless | UL Class 2: No | Alarm Output: Sinking | |
| S8VS-09024BS-F | 90W, 100~240VAC, 24VDC 3.75A, Total Run Time Monitor, Screwless, Alarm: Sinking | OMRON | Type: Switch Mode Power Supply | Capacity: 90W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 3.75A | Monitor: Total Run Time Monitor | Terminal: Screwless | UL Class 2: Yes | Alarm Output: Sinking | |
| S8VS-09024BP-F | 90W, 100~240VAC, 24VDC 3.75A, Total Run Time Monitor, Screwless, Alarm: Sourcing | OMRON | Type: Switch Mode Power Supply | Capacity: 90W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 3.75A | Monitor: Total Run Time Monitor | Terminal: Screwless | UL Class 2: No | Alarm Output: Sourcing | |
| S8VS-09024BPS-F | 90W, 100~240VAC, 24VDC 3.75A, Total Run Time Monitor, Screwless, Alarm: Sourcing | OMRON | Type: Switch Mode Power Supply | Capacity: 90W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 3.75A | Monitor: Total Run Time Monitor | Terminal: Screwless | UL Class 2: Yes | Alarm Output: Sourcing | |
| S8VS-12024BE-F | 120W, 100~240VAC, 24VDC 5A, Total Run Time Monitor, Screwless, Alarm: None | OMRON | Type: Switch Mode Power Supply | Capacity: 120W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 5A | Monitor: Total Run Time Monitor | Terminal: Screwless | UL Class 2: No | Alarm Output: None | |
| S8VS-12024B-F | 120W, 100~240VAC, 24VDC 5A, Total Run Time Monitor, Screwless, Alarm: Sinking | OMRON | Type: Switch Mode Power Supply | Capacity: 120W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 5A | Monitor: Total Run Time Monitor | Terminal: Screwless | UL Class 2: No | Alarm Output: Sinking | |
| S8VS-12024BP-F | 120W, 100~240VAC, 24VDC 5A, Total Run Time Monitor, Screwless, Alarm: Sourcing | OMRON | Type: Switch Mode Power Supply | Capacity: 120W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 5A | Monitor: Total Run Time Monitor | Terminal: Screwless | UL Class 2: No | Alarm Output: Sourcing | |
| S8VS-18024BE-F | 180W, 100~240VAC, 24VDC 7.5A, Total Run Time Monitor, Screwless, Alarm: None | OMRON | Type: Switch Mode Power Supply | Capacity: 180W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 7.5A | Monitor: Total Run Time Monitor | Terminal: Screwless | UL Class 2: No | Alarm Output: None | |
| S8VS-18024B-F | 180W, 100~240VAC, 24VDC 7.5A, Total Run Time Monitor, Screwless, Alarm: Sinking | OMRON | Type: Switch Mode Power Supply | Capacity: 180W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 7.5A | Monitor: Total Run Time Monitor | Terminal: Screwless | UL Class 2: No | Alarm Output: Sinking | |
| S8VS-18024BP-F | 180W, 100~240VAC, 24VDC 7.5A, Total Run Time Monitor, Screwless, Alarm: Sourcing | OMRON | Type: Switch Mode Power Supply | Capacity: 180W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 7.5A | Monitor: Total Run Time Monitor | Terminal: Screwless | UL Class 2: No | Alarm Output: Sourcing | |
| S8VS-24024BE-F | 240W, 100~240VAC, 24VDC 10A, Total Run Time Monitor, Screwless, Alarm: None | OMRON | Type: Switch Mode Power Supply | Capacity: 240W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 10A | Monitor: Total Run Time Monitor | Terminal: Screwless | UL Class 2: No | Alarm Output: None | |
| S8VS-24024B-F | 240W, 100~240VAC, 24VDC 10A, Total Run Time Monitor, Screwless, Alarm: Sinking | OMRON | Type: Switch Mode Power Supply | Capacity: 240W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 10A | Monitor: Total Run Time Monitor | Terminal: Screwless | UL Class 2: No | Alarm Output: Sinking | |
| S8VS-24024BP-F | 240W, 100~240VAC, 24VDC 10A, Total Run Time Monitor, Screwless, Alarm: Sourcing | OMRON | Type: Switch Mode Power Supply | Capacity: 240W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 10A | Monitor: Total Run Time Monitor | Terminal: Screwless | UL Class 2: No | Alarm Output: Sourcing | |
| S8VS-48024B-F | 480W, 100~240VAC, 24VDC 20A (peak 30A), Total Run Time Monitor, Screwless, Alarm: Sinking/Sourcing | OMRON | Type: Switch Mode Power Supply | Capacity: 480W | Input: 100~240VAC (85~264VAC) | Output: 24VDC 20A (peak 30A) | Monitor: Total Run Time Monitor | Terminal: Screwless | UL Class 2: No | Alarm Output: Sinking/Sourcing |
![[OMRON] — SAO Solid-state Plug-in Current Sensor (Overcurrent/Undercurrent, 100VAC~100VDC)](https://img.prosourcemro.com/2026/05/001-447-300x200.png)
Solid-state, Plug-in Current Sensor
Solid-state, Plug-in Current Sensor
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| SAO-R1N | SAO Overcurrent, Inverse type 100/110/120 VAC | OMRON | Type: Solid-state Plug-in Current Sensor | Function: Overcurrent, Inverse type | Trip Characteristic: Overcurrent inverse-time trip | Control Voltage: 100/110/120 VAC | Mount: Plug-in / DIN rail via socket | Note: Plug-in/DIN rail via socket (8PFA1 sold separately); current converters SET-3A/3B available | |
| SAO-Q1N | SAO Overcurrent, Instantaneous (with start-up lock) 100/110/120 VAC | OMRON | Type: Solid-state Plug-in Current Sensor | Function: Overcurrent, Instantaneous (with start-up lock) | Trip Characteristic: Overcurrent instantaneous; fixed time-limit at start-up | Control Voltage: 100/110/120 VAC | Mount: Plug-in / DIN rail via socket | Note: Plug-in/DIN rail via socket (8PFA1 sold separately); current converters SET-3A/3B available | |
| SAO-S1N | SAO Undercurrent, Instantaneous (with start-up lock) 100/110/120 VAC | OMRON | Type: Solid-state Plug-in Current Sensor | Function: Undercurrent, Instantaneous (with start-up lock) | Trip Characteristic: Undercurrent instantaneous; fixed time-limit at start-up | Control Voltage: 100/110/120 VAC | Mount: Plug-in / DIN rail via socket | Note: Plug-in/DIN rail via socket (8PFA1 sold separately); current converters SET-3A/3B available | |
| SAO-SU1N | SAO Undercurrent, Instantaneous (w/o start-up lock) 100/110/120 VAC | OMRON | Type: Solid-state Plug-in Current Sensor | Function: Undercurrent, Instantaneous (w/o start-up lock) | Trip Characteristic: Undercurrent instantaneous; no start-up lock | Control Voltage: 100/110/120 VAC | Mount: Plug-in / DIN rail via socket | Note: Plug-in/DIN rail via socket (8PFA1 sold separately); current converters SET-3A/3B available | |
| SAO-R2N | SAO Overcurrent, Inverse type 200/220/240 VAC | OMRON | Type: Solid-state Plug-in Current Sensor | Function: Overcurrent, Inverse type | Trip Characteristic: Overcurrent inverse-time trip | Control Voltage: 200/220/240 VAC | Mount: Plug-in / DIN rail via socket | Note: Plug-in/DIN rail via socket (8PFA1 sold separately); current converters SET-3A/3B available | |
| SAO-Q2N | SAO Overcurrent, Instantaneous (with start-up lock) 200/220/240 VAC | OMRON | Type: Solid-state Plug-in Current Sensor | Function: Overcurrent, Instantaneous (with start-up lock) | Trip Characteristic: Overcurrent instantaneous; fixed time-limit at start-up | Control Voltage: 200/220/240 VAC | Mount: Plug-in / DIN rail via socket | Note: Plug-in/DIN rail via socket (8PFA1 sold separately); current converters SET-3A/3B available | |
| SAO-S2N | SAO Undercurrent, Instantaneous (with start-up lock) 200/220/240 VAC | OMRON | Type: Solid-state Plug-in Current Sensor | Function: Undercurrent, Instantaneous (with start-up lock) | Trip Characteristic: Undercurrent instantaneous; fixed time-limit at start-up | Control Voltage: 200/220/240 VAC | Mount: Plug-in / DIN rail via socket | Note: Plug-in/DIN rail via socket (8PFA1 sold separately); current converters SET-3A/3B available | |
| SAO-SU2N | SAO Undercurrent, Instantaneous (w/o start-up lock) 200/220/240 VAC | OMRON | Type: Solid-state Plug-in Current Sensor | Function: Undercurrent, Instantaneous (w/o start-up lock) | Trip Characteristic: Undercurrent instantaneous; no start-up lock | Control Voltage: 200/220/240 VAC | Mount: Plug-in / DIN rail via socket | Note: Plug-in/DIN rail via socket (8PFA1 sold separately); current converters SET-3A/3B available | |
| SAO-R5N | SAO Overcurrent, Inverse type 24 VDC | OMRON | Type: Solid-state Plug-in Current Sensor | Function: Overcurrent, Inverse type | Trip Characteristic: Overcurrent inverse-time trip | Control Voltage: 24 VDC | Mount: Plug-in / DIN rail via socket | Note: Plug-in/DIN rail via socket (8PFA1 sold separately); current converters SET-3A/3B available | |
| SAO-Q5N | SAO Overcurrent, Instantaneous (with start-up lock) 24 VDC | OMRON | Type: Solid-state Plug-in Current Sensor | Function: Overcurrent, Instantaneous (with start-up lock) | Trip Characteristic: Overcurrent instantaneous; fixed time-limit at start-up | Control Voltage: 24 VDC | Mount: Plug-in / DIN rail via socket | Note: Plug-in/DIN rail via socket (8PFA1 sold separately); current converters SET-3A/3B available | |
| SAO-S5N | SAO Undercurrent, Instantaneous (with start-up lock) 24 VDC | OMRON | Type: Solid-state Plug-in Current Sensor | Function: Undercurrent, Instantaneous (with start-up lock) | Trip Characteristic: Undercurrent instantaneous; fixed time-limit at start-up | Control Voltage: 24 VDC | Mount: Plug-in / DIN rail via socket | Note: Plug-in/DIN rail via socket (8PFA1 sold separately); current converters SET-3A/3B available | |
| SAO-SU5N | SAO Undercurrent, Instantaneous (w/o start-up lock) 24 VDC | OMRON | Type: Solid-state Plug-in Current Sensor | Function: Undercurrent, Instantaneous (w/o start-up lock) | Trip Characteristic: Undercurrent instantaneous; no start-up lock | Control Voltage: 24 VDC | Mount: Plug-in / DIN rail via socket | Note: Plug-in/DIN rail via socket (8PFA1 sold separately); current converters SET-3A/3B available | |
| SAO-R6N | SAO Overcurrent, Inverse type 48 VDC | OMRON | Type: Solid-state Plug-in Current Sensor | Function: Overcurrent, Inverse type | Trip Characteristic: Overcurrent inverse-time trip | Control Voltage: 48 VDC | Mount: Plug-in / DIN rail via socket | Note: Plug-in/DIN rail via socket (8PFA1 sold separately); current converters SET-3A/3B available | |
| SAO-Q6N | SAO Overcurrent, Instantaneous (with start-up lock) 48 VDC | OMRON | Type: Solid-state Plug-in Current Sensor | Function: Overcurrent, Instantaneous (with start-up lock) | Trip Characteristic: Overcurrent instantaneous; fixed time-limit at start-up | Control Voltage: 48 VDC | Mount: Plug-in / DIN rail via socket | Note: Plug-in/DIN rail via socket (8PFA1 sold separately); current converters SET-3A/3B available | |
| SAO-S6N | SAO Undercurrent, Instantaneous (with start-up lock) 48 VDC | OMRON | Type: Solid-state Plug-in Current Sensor | Function: Undercurrent, Instantaneous (with start-up lock) | Trip Characteristic: Undercurrent instantaneous; fixed time-limit at start-up | Control Voltage: 48 VDC | Mount: Plug-in / DIN rail via socket | Note: Plug-in/DIN rail via socket (8PFA1 sold separately); current converters SET-3A/3B available | |
| SAO-SU6N | SAO Undercurrent, Instantaneous (w/o start-up lock) 48 VDC | OMRON | Type: Solid-state Plug-in Current Sensor | Function: Undercurrent, Instantaneous (w/o start-up lock) | Trip Characteristic: Undercurrent instantaneous; no start-up lock | Control Voltage: 48 VDC | Mount: Plug-in / DIN rail via socket | Note: Plug-in/DIN rail via socket (8PFA1 sold separately); current converters SET-3A/3B available | |
| SAO-R7N | SAO Overcurrent, Inverse type 100/110 VDC | OMRON | Type: Solid-state Plug-in Current Sensor | Function: Overcurrent, Inverse type | Trip Characteristic: Overcurrent inverse-time trip | Control Voltage: 100/110 VDC | Mount: Plug-in / DIN rail via socket | Note: Plug-in/DIN rail via socket (8PFA1 sold separately); current converters SET-3A/3B available | |
| SAO-Q7N | SAO Overcurrent, Instantaneous (with start-up lock) 100/110 VDC | OMRON | Type: Solid-state Plug-in Current Sensor | Function: Overcurrent, Instantaneous (with start-up lock) | Trip Characteristic: Overcurrent instantaneous; fixed time-limit at start-up | Control Voltage: 100/110 VDC | Mount: Plug-in / DIN rail via socket | Note: Plug-in/DIN rail via socket (8PFA1 sold separately); current converters SET-3A/3B available | |
| SAO-S7N | SAO Undercurrent, Instantaneous (with start-up lock) 100/110 VDC | OMRON | Type: Solid-state Plug-in Current Sensor | Function: Undercurrent, Instantaneous (with start-up lock) | Trip Characteristic: Undercurrent instantaneous; fixed time-limit at start-up | Control Voltage: 100/110 VDC | Mount: Plug-in / DIN rail via socket | Note: Plug-in/DIN rail via socket (8PFA1 sold separately); current converters SET-3A/3B available | |
| SAO-SU7N | SAO Undercurrent, Instantaneous (w/o start-up lock) 100/110 VDC | OMRON | Type: Solid-state Plug-in Current Sensor | Function: Undercurrent, Instantaneous (w/o start-up lock) | Trip Characteristic: Undercurrent instantaneous; no start-up lock | Control Voltage: 100/110 VDC | Mount: Plug-in / DIN rail via socket | Note: Plug-in/DIN rail via socket (8PFA1 sold separately); current converters SET-3A/3B available |
![[OMRON] — SDV Shunts (for SDV-FL) and Connecting Sockets](https://img.prosourcemro.com/2026/05/001-708-300x300.png)
Shunts (for SDV-FL) and connecting sockets for SDV Voltage Sensor.
Shunts (for SDV-FL) and connecting sockets for SDV Voltage Sensor.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| SDV-SH5 | Shunt 5A 60mV for SDV-FL | OMRON | Type: Shunt | Rated Current: 5 A | Rated Voltage: 60 mV | Accuracy: 1.0 class | Compatible: SDV-FL | |
| SDV-SH7.5 | Shunt 7.5A 60mV for SDV-FL | OMRON | Type: Shunt | Rated Current: 7.5 A | Rated Voltage: 60 mV | Accuracy: 1.0 class | Compatible: SDV-FL | |
| SDV-SH7.5 100MV | Shunt 7.5A 100mV for SDV-FL | OMRON | Type: Shunt | Rated Current: 7.5 A | Rated Voltage: 100 mV | Accuracy: 1.0 class | Compatible: SDV-FL | |
| SDV-SH10 | Shunt 10A 60mV for SDV-FL | OMRON | Type: Shunt | Rated Current: 10 A | Rated Voltage: 60 mV | Accuracy: 1.0 class | Compatible: SDV-FL | |
| SDV-SH15 | Shunt 15A 60mV for SDV-FL | OMRON | Type: Shunt | Rated Current: 15 A | Rated Voltage: 60 mV | Accuracy: 1.0 class | Compatible: SDV-FL | |
| SDV-SH20 | Shunt 20A 60mV for SDV-FL | OMRON | Type: Shunt | Rated Current: 20 A | Rated Voltage: 60 mV | Accuracy: 1.0 class | Compatible: SDV-FL | |
| SDV-SH30 | Shunt 30A 60mV for SDV-FL | OMRON | Type: Shunt | Rated Current: 30 A | Rated Voltage: 60 mV | Accuracy: 1.0 class | Compatible: SDV-FL | |
| SDV-SH50 | Shunt 50A 60mV for SDV-FL | OMRON | Type: Shunt | Rated Current: 50 A | Rated Voltage: 60 mV | Accuracy: 1.0 class | Compatible: SDV-FL | |
| SDV-SH75 | Shunt 75A 60mV for SDV-FL | OMRON | Type: Shunt | Rated Current: 75 A | Rated Voltage: 60 mV | Accuracy: 1.0 class | Compatible: SDV-FL | |
| SDV-SH100 | Shunt 100A 60mV for SDV-FL | OMRON | Type: Shunt | Rated Current: 100 A | Rated Voltage: 60 mV | Accuracy: 1.0 class | Compatible: SDV-FL | |
| SDV-SH150 | Shunt 150A 60mV for SDV-FL | OMRON | Type: Shunt | Rated Current: 150 A | Rated Voltage: 60 mV | Accuracy: 1.0 class | Compatible: SDV-FL | |
| SDV-SH200 | Shunt 200A 60mV for SDV-FL | OMRON | Type: Shunt | Rated Current: 200 A | Rated Voltage: 60 mV | Accuracy: 1.0 class | Compatible: SDV-FL | |
| SDV-SH300 | Shunt 300A 60mV for SDV-FL | OMRON | Type: Shunt | Rated Current: 300 A | Rated Voltage: 60 mV | Accuracy: 1.0 class | Compatible: SDV-FL | |
| SDV-SH500 | Shunt 500A 60mV for SDV-FL | OMRON | Type: Shunt | Rated Current: 500 A | Rated Voltage: 60 mV | Accuracy: 1.0 class | Compatible: SDV-FL | |
| SDV-SH750 | Shunt 750A 60mV for SDV-FL | OMRON | Type: Shunt | Rated Current: 750 A | Rated Voltage: 60 mV | Accuracy: 1.0 class | Compatible: SDV-FL | |
| SDV-SH1000 | Shunt 1000A 60mV for SDV-FL | OMRON | Type: Shunt | Rated Current: 1000 A | Rated Voltage: 60 mV | Accuracy: 1.0 class | Compatible: SDV-FL | |
| 8PFA1 | Front Connecting Socket 8-pin for SDV-F/FHT | OMRON | Type: Connecting Socket | Style: Front | Pins: 8 | Compatible: SDV-F / SDV-FHT | |
| PL08 | Back Connecting Socket 8-pin for SDV-F/FHT | OMRON | Type: Connecting Socket | Style: Back | Pins: 8 | Compatible: SDV-F / SDV-FHT | |
| 14PFA | Front Connecting Socket 14-pin for SDV-D | OMRON | Type: Connecting Socket | Style: Front | Pins: 14 | Compatible: SDV-D | |
| PL15 | Back Connecting Socket 15-pin for SDV-D | OMRON | Type: Connecting Socket | Style: Back | Pins: 15 | Compatible: SDV-D |
SDV Voltage Sensor Dual-function. Overvoltage AND Undervoltage detection. DC or AC input selectable.
SDV Voltage Sensor Dual-function. Overvoltage AND Undervoltage detection. DC or AC input selectable.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| SDV-DM2 | Dual-func DM 24 VDC 0.2~12 V | OMRON | Type: Voltage Sensor | Model: Dual-function DM | Control: 24 VDC | Input: DC or AC | Input Range: 0.2~12 V | Detection: Overvoltage AND Undervoltage | Series: SDV | |
| SDV-DH2 | Dual-func DH 24 VDC 10~300 V | OMRON | Type: Voltage Sensor | Model: Dual-function DH | Control: 24 VDC | Input: DC or AC | Input Range: 10~300 V | Detection: Overvoltage AND Undervoltage | Series: SDV | |
| SDV-DM3 | Dual-func DM 48 VDC 0.2~12 V | OMRON | Type: Voltage Sensor | Model: Dual-function DM | Control: 48 VDC | Input: DC or AC | Input Range: 0.2~12 V | Detection: Overvoltage AND Undervoltage | Series: SDV | |
| SDV-DH3 | Dual-func DH 48 VDC 10~300 V | OMRON | Type: Voltage Sensor | Model: Dual-function DH | Control: 48 VDC | Input: DC or AC | Input Range: 10~300 V | Detection: Overvoltage AND Undervoltage | Series: SDV | |
| SDV-DM4 | Dual-func DM 100/110 VDC 0.2~12 V | OMRON | Type: Voltage Sensor | Model: Dual-function DM | Control: 100/110 VDC | Input: DC or AC | Input Range: 0.2~12 V | Detection: Overvoltage AND Undervoltage | Series: SDV | |
| SDV-DH4 | Dual-func DH 100/110 VDC 10~300 V | OMRON | Type: Voltage Sensor | Model: Dual-function DH | Control: 100/110 VDC | Input: DC or AC | Input Range: 10~300 V | Detection: Overvoltage AND Undervoltage | Series: SDV | |
| SDV-DM5 | Dual-func DM 125 VDC 0.2~12 V | OMRON | Type: Voltage Sensor | Model: Dual-function DM | Control: 125 VDC | Input: DC or AC | Input Range: 0.2~12 V | Detection: Overvoltage AND Undervoltage | Series: SDV | |
| SDV-DH5 | Dual-func DH 125 VDC 10~300 V | OMRON | Type: Voltage Sensor | Model: Dual-function DH | Control: 125 VDC | Input: DC or AC | Input Range: 10~300 V | Detection: Overvoltage AND Undervoltage | Series: SDV | |
| SDV-DM6 | Dual-func DM 100/110 VAC 0.2~12 V | OMRON | Type: Voltage Sensor | Model: Dual-function DM | Control: 100/110 VAC | Input: DC or AC | Input Range: 0.2~12 V | Detection: Overvoltage AND Undervoltage | Series: SDV | |
| SDV-DH6 | Dual-func DH 100/110 VAC 10~300 V | OMRON | Type: Voltage Sensor | Model: Dual-function DH | Control: 100/110 VAC | Input: DC or AC | Input Range: 10~300 V | Detection: Overvoltage AND Undervoltage | Series: SDV | |
| SDV-DM7 | Dual-func DM 200/220 VAC 0.2~12 V | OMRON | Type: Voltage Sensor | Model: Dual-function DM | Control: 200/220 VAC | Input: DC or AC | Input Range: 0.2~12 V | Detection: Overvoltage AND Undervoltage | Series: SDV | |
| SDV-DH7 | Dual-func DH 200/220 VAC 10~300 V | OMRON | Type: Voltage Sensor | Model: Dual-function DH | Control: 200/220 VAC | Input: DC or AC | Input Range: 10~300 V | Detection: Overvoltage AND Undervoltage | Series: SDV | |
| SDV-DM71 | Dual-func DM 240 VAC 0.2~12 V | OMRON | Type: Voltage Sensor | Model: Dual-function DM | Control: 240 VAC | Input: DC or AC | Input Range: 0.2~12 V | Detection: Overvoltage AND Undervoltage | Series: SDV | |
| SDV-DH71 | Dual-func DH 240 VAC 10~300 V | OMRON | Type: Voltage Sensor | Model: Dual-function DH | Control: 240 VAC | Input: DC or AC | Input Range: 10~300 V | Detection: Overvoltage AND Undervoltage | Series: SDV |
SDV Voltage Sensor Single-function. Overvoltage or Undervoltage detection (switch selectable). AC and DC input.
SDV Voltage Sensor Single-function. Overvoltage or Undervoltage detection (switch selectable). AC and DC input.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| SDV-FL2 | Single-func FL 24VDC 4~240mV | OMRON | Type: Voltage Sensor | Model: Single-function FL | Control: 24 VDC | Input: DC or AC | Input Range: 4~240 mV | Detection: Overvoltage or Undervoltage | Series: SDV | |
| SDV-FL3 | Single-func FL 48VDC 4~240mV | OMRON | Type: Voltage Sensor | Model: Single-function FL | Control: 48 VDC | Input: DC or AC | Input Range: 4~240 mV | Detection: Overvoltage or Undervoltage | Series: SDV | |
| SDV-FL4 | Single-func FL 100/110VDC 4~240mV | OMRON | Type: Voltage Sensor | Model: Single-function FL | Control: 100/110 VDC | Input: DC or AC | Input Range: 4~240 mV | Detection: Overvoltage or Undervoltage | Series: SDV | |
| SDV-FL5 | Single-func FL 125VDC 4~240mV | OMRON | Type: Voltage Sensor | Model: Single-function FL | Control: 125 VDC | Input: DC or AC | Input Range: 4~240 mV | Detection: Overvoltage or Undervoltage | Series: SDV | |
| SDV-FL6 | Single-func FL 100/110VAC 4~240mV | OMRON | Type: Voltage Sensor | Model: Single-function FL | Control: 100/110 VAC | Input: DC or AC | Input Range: 4~240 mV | Detection: Overvoltage or Undervoltage | Series: SDV | |
| SDV-FL7 | Single-func FL 200/220VAC 4~240mV | OMRON | Type: Voltage Sensor | Model: Single-function FL | Control: 200/220 VAC | Input: DC or AC | Input Range: 4~240 mV | Detection: Overvoltage or Undervoltage | Series: SDV | |
| SDV-FM2 | Single-func FM 24VDC 0.2~12V | OMRON | Type: Voltage Sensor | Model: Single-function FM | Control: 24 VDC | Input: DC or AC | Input Range: 0.2~12 V | Detection: Overvoltage or Undervoltage | Series: SDV | |
| SDV-FM3 | Single-func FM 48VDC 0.2~12V | OMRON | Type: Voltage Sensor | Model: Single-function FM | Control: 48 VDC | Input: DC or AC | Input Range: 0.2~12 V | Detection: Overvoltage or Undervoltage | Series: SDV | |
| SDV-FM4 | Single-func FM 100/110VDC 0.2~12V | OMRON | Type: Voltage Sensor | Model: Single-function FM | Control: 100/110 VDC | Input: DC or AC | Input Range: 0.2~12 V | Detection: Overvoltage or Undervoltage | Series: SDV | |
| SDV-FM5 | Single-func FM 125VDC 0.2~12V | OMRON | Type: Voltage Sensor | Model: Single-function FM | Control: 125 VDC | Input: DC or AC | Input Range: 0.2~12 V | Detection: Overvoltage or Undervoltage | Series: SDV | |
| SDV-FM6 | Single-func FM 100/110VAC 0.2~12V | OMRON | Type: Voltage Sensor | Model: Single-function FM | Control: 100/110 VAC | Input: DC or AC | Input Range: 0.2~12 V | Detection: Overvoltage or Undervoltage | Series: SDV | |
| SDV-FM7 | Single-func FM 200/220VAC 0.2~12V | OMRON | Type: Voltage Sensor | Model: Single-function FM | Control: 200/220 VAC | Input: DC or AC | Input Range: 0.2~12 V | Detection: Overvoltage or Undervoltage | Series: SDV | |
| SDV-FH2 | Single-func FH 24VDC 10~300V | OMRON | Type: Voltage Sensor | Model: Single-function FH | Control: 24 VDC | Input: DC or AC | Input Range: 10~300 V | Detection: Overvoltage or Undervoltage | Series: SDV | |
| SDV-FH3 | Single-func FH 48VDC 10~300V | OMRON | Type: Voltage Sensor | Model: Single-function FH | Control: 48 VDC | Input: DC or AC | Input Range: 10~300 V | Detection: Overvoltage or Undervoltage | Series: SDV | |
| SDV-FH4 | Single-func FH 100/110VDC 10~300V | OMRON | Type: Voltage Sensor | Model: Single-function FH | Control: 100/110 VDC | Input: DC or AC | Input Range: 10~300 V | Detection: Overvoltage or Undervoltage | Series: SDV | |
| SDV-FH5 | Single-func FH 125VDC 10~300V | OMRON | Type: Voltage Sensor | Model: Single-function FH | Control: 125 VDC | Input: DC or AC | Input Range: 10~300 V | Detection: Overvoltage or Undervoltage | Series: SDV | |
| SDV-FH51 | Single-func FH 200/220VDC 10~300V | OMRON | Type: Voltage Sensor | Model: Single-function FH | Control: 200/220 VDC | Input: DC or AC | Input Range: 10~300 V | Detection: Overvoltage or Undervoltage | Series: SDV | |
| SDV-FH6 | Single-func FH 100/110VAC 10~300V | OMRON | Type: Voltage Sensor | Model: Single-function FH | Control: 100/110 VAC | Input: DC or AC | Input Range: 10~300 V | Detection: Overvoltage or Undervoltage | Series: SDV | |
| SDV-FH61 | Single-func FH 120VAC 10~300V | OMRON | Type: Voltage Sensor | Model: Single-function FH | Control: 120 VAC | Input: DC or AC | Input Range: 10~300 V | Detection: Overvoltage or Undervoltage | Series: SDV | |
| SDV-FH7 | Single-func FH 200/220VAC 10~300V | OMRON | Type: Voltage Sensor | Model: Single-function FH | Control: 200/220 VAC | Input: DC or AC | Input Range: 10~300 V | Detection: Overvoltage or Undervoltage | Series: SDV | |
| SDV-FH71 | Single-func FH 240VAC 10~300V | OMRON | Type: Voltage Sensor | Model: Single-function FH | Control: 240 VAC | Input: DC or AC | Input Range: 10~300 V | Detection: Overvoltage or Undervoltage | Series: SDV |
SDV-FH Voltage Sensor Single-function with Timing. ON-delay / OFF-delay / Startup lock operating modes.
SDV-FH Voltage Sensor Single-function with Timing. ON-delay / OFF-delay / Startup lock operating modes.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| SDV-FH2T | Single-func FH with timer 24 VDC | OMRON | Type: Voltage Sensor | Model: Single-function FH with Timing | Control: 24 VDC | Input: DC or AC | Input Range: 10~300 V | Detection: Overvoltage or Undervoltage | Operating Mode: ON-delay / OFF-delay / Startup lock | Series: SDV | |
| SDV-FH3T | Single-func FH with timer 48 VDC | OMRON | Type: Voltage Sensor | Model: Single-function FH with Timing | Control: 48 VDC | Input: DC or AC | Input Range: 10~300 V | Detection: Overvoltage or Undervoltage | Operating Mode: ON-delay / OFF-delay / Startup lock | Series: SDV | |
| SDV-FH4T | Single-func FH with timer 100/110 VDC | OMRON | Type: Voltage Sensor | Model: Single-function FH with Timing | Control: 100/110 VDC | Input: DC or AC | Input Range: 10~300 V | Detection: Overvoltage or Undervoltage | Operating Mode: ON-delay / OFF-delay / Startup lock | Series: SDV | |
| SDV-FH5T | Single-func FH with timer 125 VDC | OMRON | Type: Voltage Sensor | Model: Single-function FH with Timing | Control: 125 VDC | Input: DC or AC | Input Range: 10~300 V | Detection: Overvoltage or Undervoltage | Operating Mode: ON-delay / OFF-delay / Startup lock | Series: SDV | |
| SDV-FH51T | Single-func FH with timer 200/220 VDC | OMRON | Type: Voltage Sensor | Model: Single-function FH with Timing | Control: 200/220 VDC | Input: DC or AC | Input Range: 10~300 V | Detection: Overvoltage or Undervoltage | Operating Mode: ON-delay / OFF-delay / Startup lock | Series: SDV | |
| SDV-FH6T | Single-func FH with timer 100/110 VAC | OMRON | Type: Voltage Sensor | Model: Single-function FH with Timing | Control: 100/110 VAC | Input: DC or AC | Input Range: 10~300 V | Detection: Overvoltage or Undervoltage | Operating Mode: ON-delay / OFF-delay / Startup lock | Series: SDV | |
| SDV-FH61T | Single-func FH with timer 120 VAC | OMRON | Type: Voltage Sensor | Model: Single-function FH with Timing | Control: 120 VAC | Input: DC or AC | Input Range: 10~300 V | Detection: Overvoltage or Undervoltage | Operating Mode: ON-delay / OFF-delay / Startup lock | Series: SDV | |
| SDV-FH7T | Single-func FH with timer 200/220 VAC | OMRON | Type: Voltage Sensor | Model: Single-function FH with Timing | Control: 200/220 VAC | Input: DC or AC | Input Range: 10~300 V | Detection: Overvoltage or Undervoltage | Operating Mode: ON-delay / OFF-delay / Startup lock | Series: SDV | |
| SDV-FH71T | Single-func FH with timer 240 VAC | OMRON | Type: Voltage Sensor | Model: Single-function FH with Timing | Control: 240 VAC | Input: DC or AC | Input Range: 10~300 V | Detection: Overvoltage or Undervoltage | Operating Mode: ON-delay / OFF-delay / Startup lock | Series: SDV |
![[OMRON] — SE Motor Protective Relay (SE-[][]N, Instantaneous, 115% OC, Plug-in/Screw, 100~440VAC)](https://img.prosourcemro.com/2026/05/001-446-300x200.png)
Solid-state Relay Provides Three Operating Functions in a Compact Package
Solid-state Relay Provides Three Operating Functions in a Compact Package
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| SE-KQP1N | SE-N Instantaneous Plug-in 100/110/120 VAC Manual | OMRON | Type: Motor Protective Relay | Series: SE-[][]N | Overcurrent Level: 115% of current SV | Trip: Instantaneous (with start-up lock) | Terminal/Mount: Plug-in | Control Voltage: 100/110/120 VAC | Reset: Manual | Note: Overcurrent operating value: 115% of current SV; plug-in type requires socket 8PFA1 (sold separately); With start-up lock: fixed time-limit on start-up, instantaneous thereafter | |
| SE-KQP1AN | SE-N Instantaneous Plug-in 100/110/120 VAC Automatic | OMRON | Type: Motor Protective Relay | Series: SE-[][]N | Overcurrent Level: 115% of current SV | Trip: Instantaneous (with start-up lock) | Terminal/Mount: Plug-in | Control Voltage: 100/110/120 VAC | Reset: Automatic | Note: Overcurrent operating value: 115% of current SV; plug-in type requires socket 8PFA1 (sold separately); With start-up lock: fixed time-limit on start-up, instantaneous thereafter | |
| SE-KQP2N | SE-N Instantaneous Plug-in 200/220/240 VAC Manual | OMRON | Type: Motor Protective Relay | Series: SE-[][]N | Overcurrent Level: 115% of current SV | Trip: Instantaneous (with start-up lock) | Terminal/Mount: Plug-in | Control Voltage: 200/220/240 VAC | Reset: Manual | Note: Overcurrent operating value: 115% of current SV; plug-in type requires socket 8PFA1 (sold separately); With start-up lock: fixed time-limit on start-up, instantaneous thereafter | |
| SE-KQP2AN | SE-N Instantaneous Plug-in 200/220/240 VAC Automatic | OMRON | Type: Motor Protective Relay | Series: SE-[][]N | Overcurrent Level: 115% of current SV | Trip: Instantaneous (with start-up lock) | Terminal/Mount: Plug-in | Control Voltage: 200/220/240 VAC | Reset: Automatic | Note: Overcurrent operating value: 115% of current SV; plug-in type requires socket 8PFA1 (sold separately); With start-up lock: fixed time-limit on start-up, instantaneous thereafter | |
| SE-KQ1N | SE-N Instantaneous Screw 100/110/120 VAC Manual | OMRON | Type: Motor Protective Relay | Series: SE-[][]N | Overcurrent Level: 115% of current SV | Trip: Instantaneous (with start-up lock) | Terminal/Mount: Screw | Control Voltage: 100/110/120 VAC | Reset: Manual | Note: Overcurrent operating value: 115% of current SV; plug-in type requires socket 8PFA1 (sold separately); With start-up lock: fixed time-limit on start-up, instantaneous thereafter | |
| SE-KQ1AN | SE-N Instantaneous Screw 100/110/120 VAC Automatic | OMRON | Type: Motor Protective Relay | Series: SE-[][]N | Overcurrent Level: 115% of current SV | Trip: Instantaneous (with start-up lock) | Terminal/Mount: Screw | Control Voltage: 100/110/120 VAC | Reset: Automatic | Note: Overcurrent operating value: 115% of current SV; plug-in type requires socket 8PFA1 (sold separately); With start-up lock: fixed time-limit on start-up, instantaneous thereafter | |
| SE-KQ2N | SE-N Instantaneous Screw 200/220/240 VAC Manual | OMRON | Type: Motor Protective Relay | Series: SE-[][]N | Overcurrent Level: 115% of current SV | Trip: Instantaneous (with start-up lock) | Terminal/Mount: Screw | Control Voltage: 200/220/240 VAC | Reset: Manual | Note: Overcurrent operating value: 115% of current SV; plug-in type requires socket 8PFA1 (sold separately); With start-up lock: fixed time-limit on start-up, instantaneous thereafter | |
| SE-KQ2AN | SE-N Instantaneous Screw 200/220/240 VAC Automatic | OMRON | Type: Motor Protective Relay | Series: SE-[][]N | Overcurrent Level: 115% of current SV | Trip: Instantaneous (with start-up lock) | Terminal/Mount: Screw | Control Voltage: 200/220/240 VAC | Reset: Automatic | Note: Overcurrent operating value: 115% of current SV; plug-in type requires socket 8PFA1 (sold separately); With start-up lock: fixed time-limit on start-up, instantaneous thereafter | |
| SE-KQ4N | SE-N Instantaneous Screw 380/400/440 VAC Manual | OMRON | Type: Motor Protective Relay | Series: SE-[][]N | Overcurrent Level: 115% of current SV | Trip: Instantaneous (with start-up lock) | Terminal/Mount: Screw | Control Voltage: 380/400/440 VAC | Reset: Manual | Note: Overcurrent operating value: 115% of current SV; plug-in type requires socket 8PFA1 (sold separately); With start-up lock: fixed time-limit on start-up, instantaneous thereafter |
Solid-state Relay Provides Three Operating Functions in a Compact Package
Solid-state Relay Provides Three Operating Functions in a Compact Package
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| SE-KP1N | SE-N Inverse Plug-in 100/110/120 VAC Manual | OMRON | Type: Motor Protective Relay | Series: SE-[][]N | Overcurrent Level: 115% of current SV | Trip: Inverse time | Terminal/Mount: Plug-in | Control Voltage: 100/110/120 VAC | Reset: Manual | Note: Overcurrent operating value: 115% of current SV; plug-in type requires socket 8PFA1 (sold separately) | |
| SE-KP1AN | SE-N Inverse Plug-in 100/110/120 VAC Automatic | OMRON | Type: Motor Protective Relay | Series: SE-[][]N | Overcurrent Level: 115% of current SV | Trip: Inverse time | Terminal/Mount: Plug-in | Control Voltage: 100/110/120 VAC | Reset: Automatic | Note: Overcurrent operating value: 115% of current SV; plug-in type requires socket 8PFA1 (sold separately) | |
| SE-KP2N | SE-N Inverse Plug-in 200/220/240 VAC Manual | OMRON | Type: Motor Protective Relay | Series: SE-[][]N | Overcurrent Level: 115% of current SV | Trip: Inverse time | Terminal/Mount: Plug-in | Control Voltage: 200/220/240 VAC | Reset: Manual | Note: Overcurrent operating value: 115% of current SV; plug-in type requires socket 8PFA1 (sold separately) | |
| SE-KP2AN | SE-N Inverse Plug-in 200/220/240 VAC Automatic | OMRON | Type: Motor Protective Relay | Series: SE-[][]N | Overcurrent Level: 115% of current SV | Trip: Inverse time | Terminal/Mount: Plug-in | Control Voltage: 200/220/240 VAC | Reset: Automatic | Note: Overcurrent operating value: 115% of current SV; plug-in type requires socket 8PFA1 (sold separately) | |
| SE-K1N | SE-N Inverse Screw 100/110/120 VAC Manual | OMRON | Type: Motor Protective Relay | Series: SE-[][]N | Overcurrent Level: 115% of current SV | Trip: Inverse time | Terminal/Mount: Screw | Control Voltage: 100/110/120 VAC | Reset: Manual | Note: Overcurrent operating value: 115% of current SV; plug-in type requires socket 8PFA1 (sold separately) | |
| SE-K1AN | SE-N Inverse Screw 100/110/120 VAC Automatic | OMRON | Type: Motor Protective Relay | Series: SE-[][]N | Overcurrent Level: 115% of current SV | Trip: Inverse time | Terminal/Mount: Screw | Control Voltage: 100/110/120 VAC | Reset: Automatic | Note: Overcurrent operating value: 115% of current SV; plug-in type requires socket 8PFA1 (sold separately) | |
| SE-K2N | SE-N Inverse Screw 200/220/240 VAC Manual | OMRON | Type: Motor Protective Relay | Series: SE-[][]N | Overcurrent Level: 115% of current SV | Trip: Inverse time | Terminal/Mount: Screw | Control Voltage: 200/220/240 VAC | Reset: Manual | Note: Overcurrent operating value: 115% of current SV; plug-in type requires socket 8PFA1 (sold separately) | |
| SE-K2AN | SE-N Inverse Screw 200/220/240 VAC Automatic | OMRON | Type: Motor Protective Relay | Series: SE-[][]N | Overcurrent Level: 115% of current SV | Trip: Inverse time | Terminal/Mount: Screw | Control Voltage: 200/220/240 VAC | Reset: Automatic | Note: Overcurrent operating value: 115% of current SV; plug-in type requires socket 8PFA1 (sold separately) | |
| SE-K4N | SE-N Inverse Screw 380/400/440 VAC Manual | OMRON | Type: Motor Protective Relay | Series: SE-[][]N | Overcurrent Level: 115% of current SV | Trip: Inverse time | Terminal/Mount: Screw | Control Voltage: 380/400/440 VAC | Reset: Manual | Note: Overcurrent operating value: 115% of current SV; plug-in type requires socket 8PFA1 (sold separately) |
Solid-state Relay Provides Three Operating Functions in a Compact Package
Solid-state Relay Provides Three Operating Functions in a Compact Package
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| SE-KQP1EN | SE-EN Instantaneous Plug-in 100/110/120 VAC | OMRON | Type: Motor Protective Relay | Series: SE-[]EN | Overcurrent Level: 100% of current SV | Trip: Instantaneous (with start-up lock) | Terminal/Mount: Plug-in | Control Voltage: 100/110/120 VAC | Reset: Manual | Note: Overcurrent operating value: 100% of current SV; plug-in type requires socket 8PFA1 (sold separately); With start-up lock: fixed time-limit on start-up, instantaneous thereafter | |
| SE-KQP2EN | SE-EN Instantaneous Plug-in 200/220/240 VAC | OMRON | Type: Motor Protective Relay | Series: SE-[]EN | Overcurrent Level: 100% of current SV | Trip: Instantaneous (with start-up lock) | Terminal/Mount: Plug-in | Control Voltage: 200/220/240 VAC | Reset: Manual | Note: Overcurrent operating value: 100% of current SV; plug-in type requires socket 8PFA1 (sold separately); With start-up lock: fixed time-limit on start-up, instantaneous thereafter | |
| SE-KQ1EN | SE-EN Instantaneous Screw 100/110/120 VAC | OMRON | Type: Motor Protective Relay | Series: SE-[]EN | Overcurrent Level: 100% of current SV | Trip: Instantaneous (with start-up lock) | Terminal/Mount: Screw | Control Voltage: 100/110/120 VAC | Reset: Manual | Note: Overcurrent operating value: 100% of current SV; plug-in type requires socket 8PFA1 (sold separately); With start-up lock: fixed time-limit on start-up, instantaneous thereafter | |
| SE-KQ2EN | SE-EN Instantaneous Screw 200/220/240 VAC | OMRON | Type: Motor Protective Relay | Series: SE-[]EN | Overcurrent Level: 100% of current SV | Trip: Instantaneous (with start-up lock) | Terminal/Mount: Screw | Control Voltage: 200/220/240 VAC | Reset: Manual | Note: Overcurrent operating value: 100% of current SV; plug-in type requires socket 8PFA1 (sold separately); With start-up lock: fixed time-limit on start-up, instantaneous thereafter | |
| SE-KQ4EN | SE-EN Instantaneous Screw 380/400/440 VAC | OMRON | Type: Motor Protective Relay | Series: SE-[]EN | Overcurrent Level: 100% of current SV | Trip: Instantaneous (with start-up lock) | Terminal/Mount: Screw | Control Voltage: 380/400/440 VAC | Reset: Manual | Note: Overcurrent operating value: 100% of current SV; plug-in type requires socket 8PFA1 (sold separately); With start-up lock: fixed time-limit on start-up, instantaneous thereafter |
Solid-state Relay Provides Three Operating Functions in a Compact Package
Solid-state Relay Provides Three Operating Functions in a Compact Package
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| SE-KP1EN | SE-EN Inverse Plug-in 100/110/120 VAC | OMRON | Type: Motor Protective Relay | Series: SE-[]EN | Overcurrent Level: 100% of current SV | Trip: Inverse time | Terminal/Mount: Plug-in | Control Voltage: 100/110/120 VAC | Reset: Manual | Note: Overcurrent operating value: 100% of current SV; plug-in type requires socket 8PFA1 (sold separately) | |
| SE-KP2EN | SE-EN Inverse Plug-in 200/220/240 VAC | OMRON | Type: Motor Protective Relay | Series: SE-[]EN | Overcurrent Level: 100% of current SV | Trip: Inverse time | Terminal/Mount: Plug-in | Control Voltage: 200/220/240 VAC | Reset: Manual | Note: Overcurrent operating value: 100% of current SV; plug-in type requires socket 8PFA1 (sold separately) | |
| SE-K1EN | SE-EN Inverse Screw 100/110/120 VAC | OMRON | Type: Motor Protective Relay | Series: SE-[]EN | Overcurrent Level: 100% of current SV | Trip: Inverse time | Terminal/Mount: Screw | Control Voltage: 100/110/120 VAC | Reset: Manual | Note: Overcurrent operating value: 100% of current SV; plug-in type requires socket 8PFA1 (sold separately) | |
| SE-K2EN | SE-EN Inverse Screw 200/220/240 VAC | OMRON | Type: Motor Protective Relay | Series: SE-[]EN | Overcurrent Level: 100% of current SV | Trip: Inverse time | Terminal/Mount: Screw | Control Voltage: 200/220/240 VAC | Reset: Manual | Note: Overcurrent operating value: 100% of current SV; plug-in type requires socket 8PFA1 (sold separately) | |
| SE-K4EN | SE-EN Inverse Screw 380/400/440 VAC | OMRON | Type: Motor Protective Relay | Series: SE-[]EN | Overcurrent Level: 100% of current SV | Trip: Inverse time | Terminal/Mount: Screw | Control Voltage: 380/400/440 VAC | Reset: Manual | Note: Overcurrent operating value: 100% of current SV; plug-in type requires socket 8PFA1 (sold separately) |
![[OMRON] — Servo Relay Unit Cables (PCU Side) and CN1 Connector for G5 Series R88D-KT](https://img.prosourcemro.com/2026/05/001-689-300x300.png)
Servo Relay Unit cables (Position Control Unit side) for G5 Series R88D-KT Servo Drive.
Servo Relay Unit cables (Position Control Unit side) for G5 Series R88D-KT Servo Drive.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| R88A-CNU11C | Control I/O Connector CN1 for R88D-KT | OMRON | Type: Control I/O connector | Connects to: CN1 | Compatible: R88D-KT G5 Series | |
| XW2Z-050J-A18 | Relay unit cable CJ1W line-driver, CJ1W-NC133, 1-axis, 0.5m | OMRON | Type: Relay unit cable (PCU side) | Controller: CJ1W-NC133 | Output: Line-driver | Axes: 1 | Length: 0.5 m | |
| XW2Z-100J-A18 | Relay unit cable CJ1W line-driver, CJ1W-NC133, 1-axis, 1.0m | OMRON | Type: Relay unit cable (PCU side) | Controller: CJ1W-NC133 | Output: Line-driver | Axes: 1 | Length: 1.0 m | |
| XW2Z-050J-A19 | Relay unit cable CJ1W line-driver, CJ1W-NC233/433, 2-axis, 0.5m | OMRON | Type: Relay unit cable (PCU side) | Controller: CJ1W-NC233/433 | Output: Line-driver | Axes: 2 | Length: 0.5 m | |
| XW2Z-100J-A19 | Relay unit cable CJ1W line-driver, CJ1W-NC233/433, 2-axis, 1.0m | OMRON | Type: Relay unit cable (PCU side) | Controller: CJ1W-NC233/433 | Output: Line-driver | Axes: 2 | Length: 1.0 m | |
| XW2Z-050J-A10 | Relay unit cable CS1W line-driver, CS1W-NC133, 1-axis, 0.5m | OMRON | Type: Relay unit cable (PCU side) | Controller: CS1W-NC133 | Output: Line-driver | Axes: 1 | Length: 0.5 m | |
| XW2Z-100J-A10 | Relay unit cable CS1W line-driver, CS1W-NC133, 1-axis, 1.0m | OMRON | Type: Relay unit cable (PCU side) | Controller: CS1W-NC133 | Output: Line-driver | Axes: 1 | Length: 1.0 m | |
| XW2Z-050J-A11 | Relay unit cable CS1W line-driver, CS1W-NC233/433, 2-axis, 0.5m | OMRON | Type: Relay unit cable (PCU side) | Controller: CS1W-NC233/433 | Output: Line-driver | Axes: 2 | Length: 0.5 m | |
| XW2Z-100J-A11 | Relay unit cable CS1W line-driver, CS1W-NC233/433, 2-axis, 1.0m | OMRON | Type: Relay unit cable (PCU side) | Controller: CS1W-NC233/433 | Output: Line-driver | Axes: 2 | Length: 1.0 m | |
| XW2Z-050J-A14 | Relay unit cable CJ1W open collector, CJ1W-NC113, 1-axis, 0.5m | OMRON | Type: Relay unit cable (PCU side) | Controller: CJ1W-NC113 | Output: Open collector | Axes: 1 | Length: 0.5 m | |
| XW2Z-100J-A14 | Relay unit cable CJ1W open collector, CJ1W-NC113, 1-axis, 1.0m | OMRON | Type: Relay unit cable (PCU side) | Controller: CJ1W-NC113 | Output: Open collector | Axes: 1 | Length: 1.0 m | |
| XW2Z-050J-A15 | Relay unit cable CJ1W open collector, CJ1W-NC213/413, 2-axis, 0.5m | OMRON | Type: Relay unit cable (PCU side) | Controller: CJ1W-NC213/413 | Output: Open collector | Axes: 2 | Length: 0.5 m | |
| XW2Z-100J-A15 | Relay unit cable CJ1W open collector, CJ1W-NC213/413, 2-axis, 1.0m | OMRON | Type: Relay unit cable (PCU side) | Controller: CJ1W-NC213/413 | Output: Open collector | Axes: 2 | Length: 1.0 m | |
| XW2Z-050J-A6 | Relay unit cable CS1W/C200HW open collector, CS1W-NC113, 1-axis, 0.5m | OMRON | Type: Relay unit cable (PCU side) | Controller: CS1W-NC113 | Output: Open collector | Axes: 1 | Length: 0.5 m | |
| XW2Z-100J-A6 | Relay unit cable CS1W/C200HW open collector, CS1W-NC113, 1-axis, 1.0m | OMRON | Type: Relay unit cable (PCU side) | Controller: CS1W-NC113 | Output: Open collector | Axes: 1 | Length: 1.0 m | |
| XW2Z-050J-A7 | Relay unit cable CS1W/C200HW open collector, CS1W-NC213/413, 2-axis, 0.5m | OMRON | Type: Relay unit cable (PCU side) | Controller: CS1W-NC213/413 | Output: Open collector | Axes: 2 | Length: 0.5 m | |
| XW2Z-100J-A7 | Relay unit cable CS1W/C200HW open collector, CS1W-NC213/413, 2-axis, 1.0m | OMRON | Type: Relay unit cable (PCU side) | Controller: CS1W-NC213/413 | Output: Open collector | Axes: 2 | Length: 1.0 m | |
| XW2Z-050J-A33 | Relay unit cable CJ2M open collector, 1-axis, 0.5m | OMRON | Type: Relay unit cable (PCU side) | Controller: CJ2M-CPU | Output: Open collector | Axes: 1 | Length: 0.5 m | |
| XW2Z-100J-A33 | Relay unit cable CJ2M open collector, 1-axis, 1.0m | OMRON | Type: Relay unit cable (PCU side) | Controller: CJ2M-CPU | Output: Open collector | Axes: 1 | Length: 1.0 m | |
| XW2Z-050J-A28 | Relay unit cable FQM1 general-purpose I/O 26-pin, 2-axis, 0.5m | OMRON | Type: Relay unit cable (PCU side) | Controller: FQM1-MMA22/MMP22 | I/O: 26-pin | Axes: 2 | Length: 0.5 m | |
| XW2Z-100J-A28 | Relay unit cable FQM1 general-purpose I/O 26-pin, 2-axis, 1.0m | OMRON | Type: Relay unit cable (PCU side) | Controller: FQM1-MMA22/MMP22 | I/O: 26-pin | Axes: 2 | Length: 1.0 m | |
| XW2Z-200J-A28 | Relay unit cable FQM1 general-purpose I/O 26-pin, 2-axis, 2.0m | OMRON | Type: Relay unit cable (PCU side) | Controller: FQM1-MMA22/MMP22 | I/O: 26-pin | Axes: 2 | Length: 2.0 m | |
| XW2Z-050J-A31 | Relay unit cable FQM1-MMA22 special I/O 40-pin, 2-axis, 0.5m | OMRON | Type: Relay unit cable (PCU side) | Controller: FQM1-MMA22 | I/O: 40-pin | Axes: 2 | Length: 0.5 m | |
| XW2Z-100J-A31 | Relay unit cable FQM1-MMA22 special I/O 40-pin, 2-axis, 1.0m | OMRON | Type: Relay unit cable (PCU side) | Controller: FQM1-MMA22 | I/O: 40-pin | Axes: 2 | Length: 1.0 m | |
| XW2Z-200J-A31 | Relay unit cable FQM1-MMA22 special I/O 40-pin, 2-axis, 2.0m | OMRON | Type: Relay unit cable (PCU side) | Controller: FQM1-MMA22 | I/O: 40-pin | Axes: 2 | Length: 2.0 m | |
| XW2Z-050J-A30 | Relay unit cable FQM1-MMP22 special I/O 40-pin, 2-axis, 0.5m | OMRON | Type: Relay unit cable (PCU side) | Controller: FQM1-MMP22 | I/O: 40-pin | Axes: 2 | Length: 0.5 m | |
| XW2Z-100J-A30 | Relay unit cable FQM1-MMP22 special I/O 40-pin, 2-axis, 1.0m | OMRON | Type: Relay unit cable (PCU side) | Controller: FQM1-MMP22 | I/O: 40-pin | Axes: 2 | Length: 1.0 m | |
| XW2Z-200J-A30 | Relay unit cable FQM1-MMP22 special I/O 40-pin, 2-axis, 2.0m | OMRON | Type: Relay unit cable (PCU side) | Controller: FQM1-MMP22 | I/O: 40-pin | Axes: 2 | Length: 2.0 m |
Servo Relay Units and relay unit cables for G5 Series R88D-KT Servo Drive.
Servo Relay Units and relay unit cables for G5 Series R88D-KT Servo Drive.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| XW2B-20J6-1B | Servo Relay Unit for CJ1W-NC113/133 / CS1W-NC113/133, 1-axis | OMRON | Type: Servo Relay Unit | Controller: CJ1W/CS1W-NC113/133 | Axes: 1 | |
| XW2B-40J6-2B | Servo Relay Unit for CJ1W-NC213/233/413/433 / CS1W-NC213/233/413/433, 2-axis | OMRON | Type: Servo Relay Unit | Controller: CJ1W/CS1W-NC213/233/413/433 | Axes: 2 | |
| XW2B-20J6-8A | Servo Relay Unit for CJ2M-CPU31~35/CPU11~15, 1-axis | OMRON | Type: Servo Relay Unit | Controller: CJ2M-CPU31~35/CPU11~15 | Axes: 1 | |
| XW2B-40J6-9A | Servo Relay Unit for CJ2M-CPU31~35/CPU11~15, 2-axis | OMRON | Type: Servo Relay Unit | Controller: CJ2M-CPU31~35/CPU11~15 | Axes: 2 | |
| XW2B-80J7-12A | Servo Relay Unit for FQM1-MMA22/MMP22, 2-axis | OMRON | Type: Servo Relay Unit | Controller: FQM1-MMA22/MMP22 | Axes: 2 | |
| XW2Z-100J-B25 | Relay unit cable for CJ1W/CS1W/C200HW-NC[][][] (XW2B-20J6-1B/40J6-2B), 1.0m | OMRON | Type: Relay unit cable (servo drive CN1 side) | Controller: CJ1W/CS1W-NC | Length: 1.0 m | |
| XW2Z-200J-B25 | Relay unit cable for CJ1W/CS1W/C200HW-NC[][][] (XW2B-20J6-1B/40J6-2B), 2.0m | OMRON | Type: Relay unit cable (servo drive CN1 side) | Controller: CJ1W/CS1W-NC | Length: 2.0 m | |
| XW2Z-100J-B31 | Relay unit cable for CJ2M-CPU31~35/CPU11~15 (XW2B-20J6-8A/40J6-9A), 1.0m | OMRON | Type: Relay unit cable (servo drive CN1 side) | Controller: CJ2M-CPU | Length: 1.0 m | |
| XW2Z-200J-B31 | Relay unit cable for CJ2M-CPU31~35/CPU11~15 (XW2B-20J6-8A/40J6-9A), 2.0m | OMRON | Type: Relay unit cable (servo drive CN1 side) | Controller: CJ2M-CPU | Length: 2.0 m | |
| XW2Z-100J-B27 | Relay unit cable for FQM1-MMA22 analog (XW2B-80J7-12A), 1.0m | OMRON | Type: Relay unit cable (servo drive CN1 side) | Controller: FQM1-MMA22 | Length: 1.0 m | |
| XW2Z-200J-B27 | Relay unit cable for FQM1-MMA22 analog (XW2B-80J7-12A), 2.0m | OMRON | Type: Relay unit cable (servo drive CN1 side) | Controller: FQM1-MMA22 | Length: 2.0 m | |
| XW2Z-100J-B26 | Relay unit cable for FQM1-MMP22 pulse (XW2B-80J7-12A), 1.0m | OMRON | Type: Relay unit cable (servo drive CN1 side) | Controller: FQM1-MMP22 | Length: 1.0 m | |
| XW2Z-200J-B26 | Relay unit cable for FQM1-MMP22 pulse (XW2B-80J7-12A), 2.0m | OMRON | Type: Relay unit cable (servo drive CN1 side) | Controller: FQM1-MMP22 | Length: 2.0 m |
![[OMRON] — XW2D Slim Connector-Terminal Block Conversion Units (MIL 20/34/40/50-pole)](https://img.prosourcemro.com/2026/05/001-713-300x300.png)
Slim Connector-Terminal Block Conversion Units. XG4A MIL Connectors, 20 to 50 poles.
Slim Connector-Terminal Block Conversion Units. XG4A MIL Connectors, 20 to 50 poles.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| XW2D-20G6 | MIL 20-pole slim conversion unit | OMRON | Type: Slim Connector-Terminal Block Conversion Unit | Connector: MIL XG4A-2031 | Poles: 20 | Cable Connector: XG4M-2030-T | Series: XW2D | |
| XW2D-34G6 | MIL 34-pole slim conversion unit | OMRON | Type: Slim Connector-Terminal Block Conversion Unit | Connector: MIL XG4A-3431 | Poles: 34 | Cable Connector: XG4M-3430-T | Series: XW2D | |
| XW2D-40G6 | MIL 40-pole slim conversion unit | OMRON | Type: Slim Connector-Terminal Block Conversion Unit | Connector: MIL XG4A-4031 | Poles: 40 | Cable Connector: XG4M-4030-T | Series: XW2D | |
| XW2D-50G6 | MIL 50-pole slim conversion unit | OMRON | Type: Slim Connector-Terminal Block Conversion Unit | Connector: MIL XG4A-5031 | Poles: 50 | Cable Connector: XG4M-5030-T | Series: XW2D |
![[OMRON] — XW2K Ultra-Compact Interface Wiring System for PLC Connection](https://img.prosourcemro.com/2026/05/001-709-300x300.png)
XW2K Ultra-Compact Interface Wiring System for PLC Connection. Industry's smallest compact interface wiring system.
XW2K Ultra-Compact Interface Wiring System for PLC Connection. Industry's smallest compact interface wiring system.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| XW2K-40G-O32A | For OMRON/Yokogawa/Hitachi PLC, MIL 40-pole, 32 I/O, Green | OMRON | Type: Interface Wiring Unit | Connector: MIL 40-pole | I/O Points: 32 | PWB Color: Green | PLC: OMRON/Yokogawa/Hitachi | Dim (V): 39×75×40.8mm | Series: XW2K | |
| XW2K-40G-O32B | For OMRON/Yokogawa/Hitachi PLC, MIL 40-pole, 32 I/O, Blue | OMRON | Type: Interface Wiring Unit | Connector: MIL 40-pole | I/O Points: 32 | PWB Color: Blue | PLC: OMRON/Yokogawa/Hitachi | Dim (V): 39×75×40.8mm | Series: XW2K | |
| XW2K-40G-O32C | For OMRON/Yokogawa/Hitachi PLC, MIL 40-pole, 32 I/O, Black | OMRON | Type: Interface Wiring Unit | Connector: MIL 40-pole | I/O Points: 32 | PWB Color: Black | PLC: OMRON/Yokogawa/Hitachi | Dim (V): 39×75×40.8mm | Series: XW2K | |
| XW2K-40G-M32 | For Mitsubishi/Fuji/KEYENCE PLC, MIL 40-pole, 32 I/O, Black | OMRON | Type: Interface Wiring Unit | Connector: MIL 40-pole | I/O Points: 32 | PWB Color: Black | PLC: Mitsubishi/Fuji Electric/KEYENCE | Dim (V): 39×75×40.8mm | Series: XW2K | |
| XW2K-34G-K32 | For Mitsubishi/Fuji/KEYENCE PLC, MIL 34-pole, 32 I/O, Black | OMRON | Type: Interface Wiring Unit | Connector: MIL 34-pole | I/O Points: 32 | PWB Color: Black | PLC: Mitsubishi/Fuji Electric/KEYENCE | Dim (V): 39×75×40.8mm | Series: XW2K |
XW2K Ultra-Compact Interface Wiring System for PLC Connection, Integrated Common Terminal Type.
XW2K Ultra-Compact Interface Wiring System for PLC Connection, Integrated Common Terminal Type.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| XW2K-20G-O16A-IN | OMRON PLC, MIL 20-pole, 16 Input NPN, Green | OMRON | Type: Interface Wiring Unit (Integrated Common Terminal) | Connector: MIL 20-pole | I/O: 16 Input | Polarity: NPN | PWB: Green | PLC: OMRON | Dim (V): 52.7×75×40.8mm | Series: XW2K | |
| XW2K-20G-O16A-IN-P | OMRON PLC, MIL 20-pole, 16 Input PNP, Green | OMRON | Type: Interface Wiring Unit (Integrated Common Terminal) | Connector: MIL 20-pole | I/O: 16 Input | Polarity: PNP | PWB: Green | PLC: OMRON | Dim (V): 52.7×75×40.8mm | Series: XW2K | |
| XW2K-20G-O16B-OUT | OMRON PLC, MIL 20-pole, 16 Output NPN, Blue | OMRON | Type: Interface Wiring Unit (Integrated Common Terminal) | Connector: MIL 20-pole | I/O: 16 Output | Polarity: NPN | PWB: Blue | PLC: OMRON | Dim (V): 39×75×40.8mm | Series: XW2K | |
| XW2K-20G-O16B-OUT-P | OMRON PLC, MIL 20-pole, 16 Output PNP, Blue | OMRON | Type: Interface Wiring Unit (Integrated Common Terminal) | Connector: MIL 20-pole | I/O: 16 Output | Polarity: PNP | PWB: Blue | PLC: OMRON | Dim (V): 39×75×40.8mm | Series: XW2K | |
| XW2K-40G-O32A-IN | OMRON/Yokogawa/Hitachi PLC, MIL 40-pole, 32 Input NPN, Green | OMRON | Type: Interface Wiring Unit (Integrated Common Terminal) | Connector: MIL 40-pole | I/O: 32 Input | Polarity: NPN | PWB: Green | PLC: OMRON/Yokogawa/Hitachi | Dim (V): 52.7×124×40.8mm | Series: XW2K | |
| XW2K-40G-O32C-IN | OMRON/Yokogawa/Hitachi PLC, MIL 40-pole, 32 Input NPN, Black | OMRON | Type: Interface Wiring Unit (Integrated Common Terminal) | Connector: MIL 40-pole | I/O: 32 Input | Polarity: NPN | PWB: Black | PLC: OMRON/Yokogawa/Hitachi | Dim (V): 52.7×124×40.8mm | Series: XW2K | |
| XW2K-40G-O32A-IN-P | OMRON/Yokogawa/Hitachi PLC, MIL 40-pole, 32 Input PNP, Green | OMRON | Type: Interface Wiring Unit (Integrated Common Terminal) | Connector: MIL 40-pole | I/O: 32 Input | Polarity: PNP | PWB: Green | PLC: OMRON/Yokogawa/Hitachi | Dim (V): 52.7×124×40.8mm | Series: XW2K | |
| XW2K-40G-O32C-IN-P | OMRON/Yokogawa/Hitachi PLC, MIL 40-pole, 32 Input PNP, Black | OMRON | Type: Interface Wiring Unit (Integrated Common Terminal) | Connector: MIL 40-pole | I/O: 32 Input | Polarity: PNP | PWB: Black | PLC: OMRON/Yokogawa/Hitachi | Dim (V): 52.7×124×40.8mm | Series: XW2K | |
| XW2K-40G-O32B-OUT | OMRON/Yokogawa/Hitachi PLC, MIL 40-pole, 32 Output NPN, Blue | OMRON | Type: Interface Wiring Unit (Integrated Common Terminal) | Connector: MIL 40-pole | I/O: 32 Output | Polarity: NPN | PWB: Blue | PLC: OMRON/Yokogawa/Hitachi | Dim (V): 39×124×40.8mm | Series: XW2K | |
| XW2K-40G-O32C-OUT | OMRON/Yokogawa/Hitachi PLC, MIL 40-pole, 32 Output NPN, Black | OMRON | Type: Interface Wiring Unit (Integrated Common Terminal) | Connector: MIL 40-pole | I/O: 32 Output | Polarity: NPN | PWB: Black | PLC: OMRON/Yokogawa/Hitachi | Dim (V): 39×124×40.8mm | Series: XW2K | |
| XW2K-40G-O32B-OUT-P | OMRON/Yokogawa/Hitachi PLC, MIL 40-pole, 32 Output PNP, Blue | OMRON | Type: Interface Wiring Unit (Integrated Common Terminal) | Connector: MIL 40-pole | I/O: 32 Output | Polarity: PNP | PWB: Blue | PLC: OMRON/Yokogawa/Hitachi | Dim (V): 39×124×40.8mm | Series: XW2K | |
| XW2K-40G-O32C-OUT-P | OMRON/Yokogawa/Hitachi PLC, MIL 40-pole, 32 Output PNP, Black | OMRON | Type: Interface Wiring Unit (Integrated Common Terminal) | Connector: MIL 40-pole | I/O: 32 Output | Polarity: PNP | PWB: Black | PLC: OMRON/Yokogawa/Hitachi | Dim (V): 39×124×40.8mm | Series: XW2K | |
| XW2K-40G-M32-IN | Mitsubishi/Fuji PLC, MIL 40-pole, 32 Input NPN, Black | OMRON | Type: Interface Wiring Unit (Integrated Common Terminal) | Connector: MIL 40-pole | I/O: 32 Input | Polarity: NPN | PWB: Black | PLC: Mitsubishi/Fuji Electric | Dim (V): 52.7×124×40.8mm | Series: XW2K | |
| XW2K-40G-M32-IN-P | Mitsubishi/Fuji PLC, MIL 40-pole, 32 Input PNP, Black | OMRON | Type: Interface Wiring Unit (Integrated Common Terminal) | Connector: MIL 40-pole | I/O: 32 Input | Polarity: PNP | PWB: Black | PLC: Mitsubishi/Fuji Electric | Dim (V): 52.7×124×40.8mm | Series: XW2K | |
| XW2K-40G-M32-OUT | Mitsubishi/Fuji PLC, MIL 40-pole, 32 Output NPN, Black | OMRON | Type: Interface Wiring Unit (Integrated Common Terminal) | Connector: MIL 40-pole | I/O: 32 Output | Polarity: NPN | PWB: Black | PLC: Mitsubishi/Fuji Electric | Dim (V): 39×124×40.8mm | Series: XW2K | |
| XW2K-40G-M32-OUT-P | Mitsubishi/Fuji PLC, MIL 40-pole, 32 Output PNP, Black | OMRON | Type: Interface Wiring Unit (Integrated Common Terminal) | Connector: MIL 40-pole | I/O: 32 Output | Polarity: PNP | PWB: Black | PLC: Mitsubishi/Fuji Electric | Dim (V): 39×124×40.8mm | Series: XW2K | |
| XW2K-34G-K32-IN | KEYENCE PLC, MIL 34-pole, 32 Input NPN, Black | OMRON | Type: Interface Wiring Unit (Integrated Common Terminal) | Connector: MIL 34-pole | I/O: 32 Input | Polarity: NPN | PWB: Black | PLC: KEYENCE | Dim (V): 52.7×124×40.8mm | Series: XW2K | |
| XW2K-34G-K32-IN-P | KEYENCE PLC, MIL 34-pole, 32 Input PNP, Black | OMRON | Type: Interface Wiring Unit (Integrated Common Terminal) | Connector: MIL 34-pole | I/O: 32 Input | Polarity: PNP | PWB: Black | PLC: KEYENCE | Dim (V): 52.7×124×40.8mm | Series: XW2K | |
| XW2K-34G-K32-OUT | KEYENCE PLC, MIL 34-pole, 32 Output NPN, Black | OMRON | Type: Interface Wiring Unit (Integrated Common Terminal) | Connector: MIL 34-pole | I/O: 32 Output | Polarity: NPN | PWB: Black | PLC: KEYENCE | Dim (V): 39×124×40.8mm | Series: XW2K | |
| XW2K-34G-K32-OUT-P | KEYENCE PLC, MIL 34-pole, 32 Output PNP, Black | OMRON | Type: Interface Wiring Unit (Integrated Common Terminal) | Connector: MIL 34-pole | I/O: 32 Output | Polarity: PNP | PWB: Black | PLC: KEYENCE | Dim (V): 39×124×40.8mm | Series: XW2K |
XW2K Ultra-Compact Interface Wiring System, General-Purpose. MIL connector to terminal block.
XW2K Ultra-Compact Interface Wiring System, General-Purpose. MIL connector to terminal block.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| XW2K-20G-T | General-purpose MIL 20-pole to 20-terminal, Black | OMRON | Type: Interface Wiring Unit (General-Purpose) | Connector: MIL 20-pole | Terminal Block Poles: 20 | PWB: Black | Dim (V): 39×56×40.8mm | Series: XW2K | |
| XW2K-34G-T | General-purpose MIL 34-pole to 34-terminal, Black | OMRON | Type: Interface Wiring Unit (General-Purpose) | Connector: MIL 34-pole | Terminal Block Poles: 34 | PWB: Black | Dim (V): 39×75×40.8mm | Series: XW2K | |
| XW2K-40G-T | General-purpose MIL 40-pole to 40-terminal, Black | OMRON | Type: Interface Wiring Unit (General-Purpose) | Connector: MIL 40-pole | Terminal Block Poles: 40 | PWB: Black | Dim (V): 39×75×40.8mm | Series: XW2K | |
| XW2K-50G-T | General-purpose MIL 50-pole to 50-terminal, Black | OMRON | Type: Interface Wiring Unit (General-Purpose) | Connector: MIL 50-pole | Terminal Block Poles: 50 | PWB: Black | Dim (V): 39×92.5×40.8mm | Series: XW2K |
![[OMRON] — XW2K-COM Ultra-Compact Common Terminal Block for Sensor Power Supply](https://img.prosourcemro.com/2026/05/001-710-300x300.png)
Ultra-Compact Common Terminal Block for Sensor Power Supply. 20-pole, Push-In Plus technology, vertical/horizontal mounting. For + common, - common, or +/- mix configurations.
Ultra-Compact Common Terminal Block for Sensor Power Supply. 20-pole, Push-In Plus technology, vertical/horizontal mounting. For + common, - common, or +/- mix configurations.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| XW2K-COM20P | 20-pole for + common, Black | OMRON | Type: Common Terminal Block | Poles: 20 | Application: For + common | PWB Color: Black | Dim: 14.8×75×29.4 mm | Technology: Push-In Plus | Mount: Vertical/Horizontal | Series: XW2K-COM | |
| XW2K-COM20N | 20-pole for - common, Black | OMRON | Type: Common Terminal Block | Poles: 20 | Application: For - common | PWB Color: Black | Dim: 14.8×75×29.4 mm | Technology: Push-In Plus | Mount: Vertical/Horizontal | Series: XW2K-COM | |
| XW2K-COM20 | 20-pole for +/- mix, Black | OMRON | Type: Common Terminal Block | Poles: 20 | Application: +/- mix | PWB Color: Black | Dim: 14.8×75×29.4 mm | Technology: Push-In Plus | Mount: Vertical/Horizontal | Series: XW2K-COM |
![[OMRON] — XW2R Connector-Terminal Block Conversion Units for PLCs (OMRON / Mitsubishi / KEYENCE)](https://img.prosourcemro.com/2026/05/001-711-300x300.png)
XW2R PLC Connector-Terminal Block Conversion Units for PLCs. OMRON, Mitsubishi, and KEYENCE PLC compatible.
XW2R PLC Connector-Terminal Block Conversion Units for PLCs. OMRON, Mitsubishi, and KEYENCE PLC compatible.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| XW2R-N16GD-C1-COM | e-CON 16-pole input unit with power supply, OMRON | OMRON | Type: Connector-Terminal Block Conversion Unit | Poles: 16 | I/O: Input | Power Supply: With | PLC: OMRON | Connector: e-CON | Series: XW2R | |
| XW2R-N32GD-C1-COM | e-CON 32-pole input unit with power supply, OMRON connector C1 | OMRON | Type: Connector-Terminal Block Conversion Unit | Poles: 32 | I/O: Input | Power Supply: With | PLC: OMRON | Connector: e-CON C1 | Series: XW2R | |
| XW2R-N32GD-C2-COM | e-CON 32-pole input unit with power supply, OMRON connector C2 | OMRON | Type: Connector-Terminal Block Conversion Unit | Poles: 32 | I/O: Input | Power Supply: With | PLC: OMRON | Connector: e-CON C2 | Series: XW2R | |
| XW2R-G32GD-M1-COM | MIL 40-pole input unit with power supply, Mitsubishi | OMRON | Type: Connector-Terminal Block Conversion Unit | Poles: 40 (32 I/O) | Power Supply: With | PLC: Mitsubishi | Connector: MIL 40-pole + 14-pole×4 | Series: XW2R | |
| XW2R-N08GD-COM | 8-point input unit with power supply, XN2 e-CON | OMRON | Type: Connector-Terminal Block Conversion Unit | I/O Points: 8 | Poles: 14 | I/O: Input | Power Supply: With | Connector: e-CON XN2 | Series: XW2R | |
| XW2R-J34GD-C1 | 34-pole unit, OMRON input C1, Phillips screw | OMRON | Type: Connector-Terminal Block Conversion Unit | Poles: 34 (32 I/O) | I/O: Input | Power Supply: Without | PLC: OMRON | Screw: Phillips | Mount: DIN Track | Connector: C1 | Series: XW2R | |
| XW2R-J34GD-C2 | 34-pole unit, OMRON input C2, Phillips screw | OMRON | Type: Connector-Terminal Block Conversion Unit | Poles: 34 (32 I/O) | I/O: Input | Power Supply: Without | PLC: OMRON | Screw: Phillips | Mount: DIN Track | Connector: C2 | Series: XW2R | |
| XW2R-J34GD-C3 | 34-pole unit, OMRON output C3, Phillips screw | OMRON | Type: Connector-Terminal Block Conversion Unit | Poles: 34 (32 I/O) | I/O: Output | Power Supply: Without | PLC: OMRON | Screw: Phillips | Mount: DIN Track | Connector: C3 | Series: XW2R | |
| XW2R-J34GD-C4 | 34-pole unit, OMRON output C4, Phillips screw | OMRON | Type: Connector-Terminal Block Conversion Unit | Poles: 34 (32 I/O) | I/O: Output | Power Supply: Without | PLC: OMRON | Screw: Phillips | Mount: DIN Track | Connector: C4 | Series: XW2R | |
| XW2R-E34GD-C1 | 34-pole unit, OMRON input C1, Slotted screw | OMRON | Type: Connector-Terminal Block Conversion Unit | Poles: 34 (32 I/O) | I/O: Input | Power Supply: Without | PLC: OMRON | Screw: Slotted (rise up) | Mount: DIN Track | Connector: C1 | Series: XW2R | |
| XW2R-E34GD-C2 | 34-pole unit, OMRON input C2, Slotted screw | OMRON | Type: Connector-Terminal Block Conversion Unit | Poles: 34 (32 I/O) | I/O: Input | Power Supply: Without | PLC: OMRON | Screw: Slotted (rise up) | Mount: DIN Track | Connector: C2 | Series: XW2R | |
| XW2R-E34GD-C3 | 34-pole unit, OMRON output C3, Slotted screw | OMRON | Type: Connector-Terminal Block Conversion Unit | Poles: 34 (32 I/O) | I/O: Output | Power Supply: Without | PLC: OMRON | Screw: Slotted (rise up) | Mount: DIN Track | Connector: C3 | Series: XW2R | |
| XW2R-E34GD-C4 | 34-pole unit, OMRON output C4, Slotted screw | OMRON | Type: Connector-Terminal Block Conversion Unit | Poles: 34 (32 I/O) | I/O: Output | Power Supply: Without | PLC: OMRON | Screw: Slotted (rise up) | Mount: DIN Track | Connector: C4 | Series: XW2R | |
| XW2R-J34GD-M1 | 34-pole unit, Mitsubishi input M1, Phillips screw | OMRON | Type: Connector-Terminal Block Conversion Unit | Poles: 34 (32 I/O) | I/O: Input | Power Supply: Without | PLC: Mitsubishi | Screw: Phillips | Mount: DIN Track | Connector: M1 | Series: XW2R | |
| XW2R-J34GD-M2 | 34-pole unit, Mitsubishi output M2, Phillips screw | OMRON | Type: Connector-Terminal Block Conversion Unit | Poles: 34 (32 I/O) | I/O: Output | Power Supply: Without | PLC: Mitsubishi | Screw: Phillips | Mount: DIN Track | Connector: M2 | Series: XW2R | |
| XW2R-E34GD-M1 | 34-pole unit, Mitsubishi input M1, Slotted screw | OMRON | Type: Connector-Terminal Block Conversion Unit | Poles: 34 (32 I/O) | I/O: Input | Power Supply: Without | PLC: Mitsubishi | Screw: Slotted (rise up) | Mount: DIN Track | Connector: M1 | Series: XW2R | |
| XW2R-E34GD-M2 | 34-pole unit, Mitsubishi output M2, Slotted screw | OMRON | Type: Connector-Terminal Block Conversion Unit | Poles: 34 (32 I/O) | I/O: Output | Power Supply: Without | PLC: Mitsubishi | Screw: Slotted (rise up) | Mount: DIN Track | Connector: M2 | Series: XW2R | |
| XW2R-J34GD-K1 | 34-pole unit, KEYENCE I/O K1, Phillips screw | OMRON | Type: Connector-Terminal Block Conversion Unit | Poles: 34 (32 I/O) | I/O: Input/Output | Power Supply: Without | PLC: KEYENCE | Screw: Phillips | Mount: DIN Track | Connector: K1 | Series: XW2R | |
| XW2R-J40GD-K2 | 40-pole unit, KEYENCE CPU K2, Phillips screw | OMRON | Type: Connector-Terminal Block Conversion Unit | Poles: 40 (36 I/O) | I/O: Input/Output | Power Supply: Without | PLC: KEYENCE CPU (KV-1000/3000/5000/5500) | Screw: Phillips | Connector: K2 | Series: XW2R | |
| XN2A-1470 | XN2 e-CON Sensor Connector 4-pole | OMRON | Type: Input Device Connector (e-CON) | Poles: 4 | Application: For sensor | Compatible: XW2R-N08GD-COM | Series: XW2R | |
| XN2B-1470 | XN2 e-CON Relay Connector 4-pole | OMRON | Type: Input Device Connector (e-CON) | Poles: 4 | Application: Relay connector | Compatible: XW2R-N08GD-COM | Series: XW2R |
![[OMRON] — XW2R General-purpose Connector-Terminal Block Conversion Units (MIL/FCN, 20~60-pole)](https://img.prosourcemro.com/2026/05/001-712-300x300.png)
XW2R Connector-Terminal Block Conversion Units for General-purpose Devices. MIL and FCN connectors, 20 to 60 poles. Phillips or Slotted screw.
XW2R Connector-Terminal Block Conversion Units for General-purpose Devices. MIL and FCN connectors, 20 to 60 poles. Phillips or Slotted screw.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| XW2R-J20GD-T | Phillips screw MIL 20-pole | OMRON | Type: Connector-Terminal Block Conversion Unit | Connector: MIL (XG4A-2031) | Poles: 20 | Screw: Phillips | Mount: DIN Track | Power Supply: Without | Series: XW2R | |
| XW2R-J34GD-T | Phillips screw MIL 34-pole | OMRON | Type: Connector-Terminal Block Conversion Unit | Connector: MIL (XG4A-3431) | Poles: 34 | Screw: Phillips | Mount: DIN Track | Power Supply: Without | Series: XW2R | |
| XW2R-J40GD-T | Phillips screw MIL 40-pole | OMRON | Type: Connector-Terminal Block Conversion Unit | Connector: MIL (XG4A-4031) | Poles: 40 | Screw: Phillips | Mount: DIN Track | Power Supply: Without | Series: XW2R | |
| XW2R-J50GD-T | Phillips screw MIL 50-pole | OMRON | Type: Connector-Terminal Block Conversion Unit | Connector: MIL (XG4A-5031) | Poles: 50 | Screw: Phillips | Mount: DIN Track | Power Supply: Without | Series: XW2R | |
| XW2R-J60GD-T | Phillips screw MIL 60-pole | OMRON | Type: Connector-Terminal Block Conversion Unit | Connector: MIL (XG4A-6031) | Poles: 60 | Screw: Phillips | Mount: DIN Track | Power Supply: Without | Series: XW2R | |
| XW2R-J40FD-T | Phillips screw FCN 40-pole | OMRON | Type: Connector-Terminal Block Conversion Unit | Connector: Fujitsu FCN-364P040-AU | Poles: 40 | Screw: Phillips | Mount: DIN Track | Power Supply: Without | Series: XW2R | |
| XW2R-E20GD-T | Slotted screw MIL 20-pole | OMRON | Type: Connector-Terminal Block Conversion Unit | Connector: MIL (XG4A-2031) | Poles: 20 | Screw: Slotted (rise up) | Mount: DIN Track | Power Supply: Without | Series: XW2R | |
| XW2R-E34GD-T | Slotted screw MIL 34-pole | OMRON | Type: Connector-Terminal Block Conversion Unit | Connector: MIL (XG4A-3431) | Poles: 34 | Screw: Slotted (rise up) | Mount: DIN Track | Power Supply: Without | Series: XW2R | |
| XW2R-E40GD-T | Slotted screw MIL 40-pole | OMRON | Type: Connector-Terminal Block Conversion Unit | Connector: MIL (XG4A-4031) | Poles: 40 | Screw: Slotted (rise up) | Mount: DIN Track | Power Supply: Without | Series: XW2R | |
| XW2R-E50GD-T | Slotted screw MIL 50-pole | OMRON | Type: Connector-Terminal Block Conversion Unit | Connector: MIL (XG4A-5031) | Poles: 50 | Screw: Slotted (rise up) | Mount: DIN Track | Power Supply: Without | Series: XW2R | |
| XW2R-E60GD-T | Slotted screw MIL 60-pole | OMRON | Type: Connector-Terminal Block Conversion Unit | Connector: MIL (XG4A-6031) | Poles: 60 | Screw: Slotted (rise up) | Mount: DIN Track | Power Supply: Without | Series: XW2R | |
| XW2R-E40FD-T | Slotted screw FCN 40-pole | OMRON | Type: Connector-Terminal Block Conversion Unit | Connector: Fujitsu FCN-364P040-AU | Poles: 40 | Screw: Slotted (rise up) | Mount: DIN Track | Power Supply: Without | Series: XW2R |
