Linear Bushings
![[THK] — LMF-L Linear Bush Flange Long Type (LMF6L~LMF60L)](https://img.prosourcemro.com/2026/05/001-987-300x241.png)
LMF-L type Linear Bush — flange integrated, long type. Two retainers for optimal moment load performance. Nut and flange in one piece; mounts directly to housing with bolts. Shaft diameters: 6~60mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
LMF-L type Linear Bush — flange integrated, long type. Two retainers for optimal moment load performance. Nut and flange in one piece; mounts directly to housing with bolts. Shaft diameters: 6~60mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| LMF6L | THK Linear Bush flange long type, shaft φ6mm, OD φ12mm, L=35mm, flange φ28mm | THK | Shaft Dia.: D0=6mm | Outer Dia.: D=12mm | Length: L=35mm | Flange OD: D1=28mm | Type: Flange integrated long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF8L | THK Linear Bush flange long type, shaft φ8mm, OD φ15mm, L=45mm, flange φ32mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=45mm | Flange OD: D1=32mm | Type: Flange integrated long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF10L | THK Linear Bush flange long type, shaft φ10mm, OD φ19mm, L=55mm, flange φ39mm | THK | Shaft Dia.: D0=10mm | Outer Dia.: D=19mm | Length: L=55mm | Flange OD: D1=39mm | Type: Flange integrated long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF12L | THK Linear Bush flange long type, shaft φ12mm, OD φ21mm, L=57mm, flange φ42mm | THK | Shaft Dia.: D0=12mm | Outer Dia.: D=21mm | Length: L=57mm | Flange OD: D1=42mm | Type: Flange integrated long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF13L | THK Linear Bush flange long type, shaft φ13mm, OD φ23mm, L=61mm, flange φ43mm | THK | Shaft Dia.: D0=13mm | Outer Dia.: D=23mm | Length: L=61mm | Flange OD: D1=43mm | Type: Flange integrated long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF16L | THK Linear Bush flange long type, shaft φ16mm, OD φ28mm, L=70mm, flange φ48mm | THK | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=70mm | Flange OD: D1=48mm | Type: Flange integrated long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF20L | THK Linear Bush flange long type, shaft φ20mm, OD φ32mm, L=80mm, flange φ54mm | THK | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=80mm | Flange OD: D1=54mm | Type: Flange integrated long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF25L | THK Linear Bush flange long type, shaft φ25mm, OD φ40mm, L=112mm, flange φ62mm | THK | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=112mm | Flange OD: D1=62mm | Type: Flange integrated long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF30L | THK Linear Bush flange long type, shaft φ30mm, OD φ45mm, L=123mm, flange φ74mm | THK | Shaft Dia.: D0=30mm | Outer Dia.: D=45mm | Length: L=123mm | Flange OD: D1=74mm | Type: Flange integrated long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF35L | THK Linear Bush flange long type, shaft φ35mm, OD φ52mm, L=135mm, flange φ82mm | THK | Shaft Dia.: D0=35mm | Outer Dia.: D=52mm | Length: L=135mm | Flange OD: D1=82mm | Type: Flange integrated long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF40L | THK Linear Bush flange long type, shaft φ40mm, OD φ60mm, L=154mm, flange φ96mm | THK | Shaft Dia.: D0=40mm | Outer Dia.: D=60mm | Length: L=154mm | Flange OD: D1=96mm | Type: Flange integrated long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF50L | THK Linear Bush flange long type, shaft φ50mm, OD φ80mm, L=192mm, flange φ116mm | THK | Shaft Dia.: D0=50mm | Outer Dia.: D=80mm | Length: L=192mm | Flange OD: D1=116mm | Type: Flange integrated long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF60L | THK Linear Bush flange long type, shaft φ60mm, OD φ90mm, L=211mm, flange φ134mm | THK | Shaft Dia.: D0=60mm | Outer Dia.: D=90mm | Length: L=211mm | Flange OD: D1=134mm | Type: Flange integrated long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order |

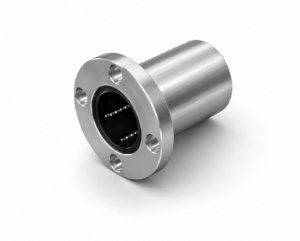

![[THK] — LMF-M Linear Bush Flange Type Stainless Steel (LMF6M~LMF30M)](https://img.prosourcemro.com/2026/05/001-986-300x241.png)
LMF-M type Linear Bush — flange integrated, stainless steel. Nut and flange in one piece; mounts directly to housing with bolts. Stainless steel nut and balls for corrosion resistance. Shaft diameters: 6~30mm. Short type (LMF8SM) available for φ8mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
LMF-M type Linear Bush — flange integrated, stainless steel. Nut and flange in one piece; mounts directly to housing with bolts. Stainless steel nut and balls for corrosion resistance. Shaft diameters: 6~30mm. Short type (LMF8SM) available for φ8mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| LMF6M | THK Linear Bush flange stainless, shaft φ6mm, OD φ12mm, L=19mm, flange φ28mm | THK | Shaft Dia.: D0=6mm | Outer Dia.: D=12mm | Length: L=19mm | Flange OD: D1=28mm | Type: Flange integrated (direct bolt mount to housing) | Material: Stainless steel (nut and balls) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF8SM | THK Linear Bush flange stainless, shaft φ8mm, OD φ15mm, L=17mm, flange φ32mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=17mm | Flange OD: D1=32mm | Type: Flange integrated (direct bolt mount to housing) | Material: Stainless steel (nut and balls) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF8M | THK Linear Bush flange stainless, shaft φ8mm, OD φ15mm, L=24mm, flange φ32mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=24mm | Flange OD: D1=32mm | Type: Flange integrated (direct bolt mount to housing) | Material: Stainless steel (nut and balls) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF10M | THK Linear Bush flange stainless, shaft φ10mm, OD φ19mm, L=29mm, flange φ39mm | THK | Shaft Dia.: D0=10mm | Outer Dia.: D=19mm | Length: L=29mm | Flange OD: D1=39mm | Type: Flange integrated (direct bolt mount to housing) | Material: Stainless steel (nut and balls) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF12M | THK Linear Bush flange stainless, shaft φ12mm, OD φ21mm, L=30mm, flange φ42mm | THK | Shaft Dia.: D0=12mm | Outer Dia.: D=21mm | Length: L=30mm | Flange OD: D1=42mm | Type: Flange integrated (direct bolt mount to housing) | Material: Stainless steel (nut and balls) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF13M | THK Linear Bush flange stainless, shaft φ13mm, OD φ23mm, L=32mm, flange φ43mm | THK | Shaft Dia.: D0=13mm | Outer Dia.: D=23mm | Length: L=32mm | Flange OD: D1=43mm | Type: Flange integrated (direct bolt mount to housing) | Material: Stainless steel (nut and balls) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF16M | THK Linear Bush flange stainless, shaft φ16mm, OD φ28mm, L=37mm, flange φ48mm | THK | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=37mm | Flange OD: D1=48mm | Type: Flange integrated (direct bolt mount to housing) | Material: Stainless steel (nut and balls) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF20M | THK Linear Bush flange stainless, shaft φ20mm, OD φ32mm, L=42mm, flange φ54mm | THK | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=42mm | Flange OD: D1=54mm | Type: Flange integrated (direct bolt mount to housing) | Material: Stainless steel (nut and balls) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF25M | THK Linear Bush flange stainless, shaft φ25mm, OD φ40mm, L=59mm, flange φ62mm | THK | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=59mm | Flange OD: D1=62mm | Type: Flange integrated (direct bolt mount to housing) | Material: Stainless steel (nut and balls) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF30M | THK Linear Bush flange stainless, shaft φ30mm, OD φ45mm, L=64mm, flange φ74mm | THK | Shaft Dia.: D0=30mm | Outer Dia.: D=45mm | Length: L=64mm | Flange OD: D1=74mm | Type: Flange integrated (direct bolt mount to housing) | Material: Stainless steel (nut and balls) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order |

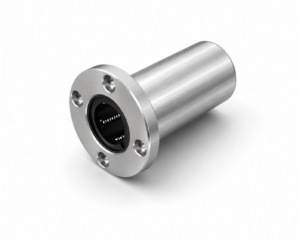

![[THK] — LMF-ML Linear Bush Flange Long Type Stainless Steel (LMF6ML~LMF30ML)](https://img.prosourcemro.com/2026/05/001-988-300x241.png)
LMF-ML type Linear Bush — flange integrated, long type, stainless steel. Two retainers for optimal moment load performance. Nut and flange in one piece; mounts directly to housing with bolts. Stainless steel nut and balls for corrosion resistance. Shaft diameters: 6~30mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
LMF-ML type Linear Bush — flange integrated, long type, stainless steel. Two retainers for optimal moment load performance. Nut and flange in one piece; mounts directly to housing with bolts. Stainless steel nut and balls for corrosion resistance. Shaft diameters: 6~30mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| LMF6ML | THK Linear Bush flange long stainless, shaft φ6mm, OD φ12mm, L=35mm, flange φ28mm | THK | Shaft Dia.: D0=6mm | Outer Dia.: D=12mm | Length: L=35mm | Flange OD: D1=28mm | Type: Flange integrated long type (2 retainers) | Material: Stainless steel (nut and balls) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF8ML | THK Linear Bush flange long stainless, shaft φ8mm, OD φ15mm, L=45mm, flange φ32mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=45mm | Flange OD: D1=32mm | Type: Flange integrated long type (2 retainers) | Material: Stainless steel (nut and balls) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF10ML | THK Linear Bush flange long stainless, shaft φ10mm, OD φ19mm, L=55mm, flange φ39mm | THK | Shaft Dia.: D0=10mm | Outer Dia.: D=19mm | Length: L=55mm | Flange OD: D1=39mm | Type: Flange integrated long type (2 retainers) | Material: Stainless steel (nut and balls) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF12ML | THK Linear Bush flange long stainless, shaft φ12mm, OD φ21mm, L=57mm, flange φ42mm | THK | Shaft Dia.: D0=12mm | Outer Dia.: D=21mm | Length: L=57mm | Flange OD: D1=42mm | Type: Flange integrated long type (2 retainers) | Material: Stainless steel (nut and balls) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF13ML | THK Linear Bush flange long stainless, shaft φ13mm, OD φ23mm, L=61mm, flange φ43mm | THK | Shaft Dia.: D0=13mm | Outer Dia.: D=23mm | Length: L=61mm | Flange OD: D1=43mm | Type: Flange integrated long type (2 retainers) | Material: Stainless steel (nut and balls) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF16ML | THK Linear Bush flange long stainless, shaft φ16mm, OD φ28mm, L=70mm, flange φ48mm | THK | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=70mm | Flange OD: D1=48mm | Type: Flange integrated long type (2 retainers) | Material: Stainless steel (nut and balls) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF20ML | THK Linear Bush flange long stainless, shaft φ20mm, OD φ32mm, L=80mm, flange φ54mm | THK | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=80mm | Flange OD: D1=54mm | Type: Flange integrated long type (2 retainers) | Material: Stainless steel (nut and balls) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF25ML | THK Linear Bush flange long stainless, shaft φ25mm, OD φ40mm, L=112mm, flange φ62mm | THK | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=112mm | Flange OD: D1=62mm | Type: Flange integrated long type (2 retainers) | Material: Stainless steel (nut and balls) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMF30ML | THK Linear Bush flange long stainless, shaft φ30mm, OD φ45mm, L=123mm, flange φ74mm | THK | Shaft Dia.: D0=30mm | Outer Dia.: D=45mm | Length: L=123mm | Flange OD: D1=74mm | Type: Flange integrated long type (2 retainers) | Material: Stainless steel (nut and balls) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order |

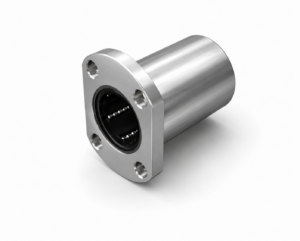

![[THK] — LMH Linear Bush Small Plate Flange Type (LMH6~LMH30)](https://img.prosourcemro.com/2026/05/001-996-300x241.png)
LMH type Linear Bush — small plate (compact square) flange type. Flange and outer shell in one piece; lower center height than LMK type for ultra-compact design. Ball circuits aligned so 2 circuits carry load in the flat direction — improved service life. Shaft diameters: 6~30mm. Short type (LMH8S) available for φ8mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
LMH type Linear Bush — small plate (compact square) flange type. Flange and outer shell in one piece; lower center height than LMK type for ultra-compact design. Ball circuits aligned so 2 circuits carry load in the flat direction — improved service life. Shaft diameters: 6~30mm. Short type (LMH8S) available for φ8mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| LMH6 | THK Linear Bush small plate flange, shaft φ6mm, OD φ12mm, L=19mm, K=18mm | THK | Shaft Dia.: D0=6mm | Outer Dia.: D=12mm | Length: L=19mm | Flange OD: D1=28mm | Square Width: K=18mm | Type: Small plate flange (ultra-compact, lower than LMK) | Feature: 2 ball circuits in flat direction for improved life | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMH8S | THK Linear Bush small plate flange, shaft φ8mm, OD φ15mm, L=17mm, K=21mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=17mm | Flange OD: D1=32mm | Square Width: K=21mm | Type: Small plate flange (ultra-compact, lower than LMK) | Feature: 2 ball circuits in flat direction for improved life | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMH8 | THK Linear Bush small plate flange, shaft φ8mm, OD φ15mm, L=24mm, K=21mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=24mm | Flange OD: D1=32mm | Square Width: K=21mm | Type: Small plate flange (ultra-compact, lower than LMK) | Feature: 2 ball circuits in flat direction for improved life | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMH10 | THK Linear Bush small plate flange, shaft φ10mm, OD φ19mm, L=29mm, K=25mm | THK | Shaft Dia.: D0=10mm | Outer Dia.: D=19mm | Length: L=29mm | Flange OD: D1=39mm | Square Width: K=25mm | Type: Small plate flange (ultra-compact, lower than LMK) | Feature: 2 ball circuits in flat direction for improved life | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMH12 | THK Linear Bush small plate flange, shaft φ12mm, OD φ21mm, L=30mm, K=27mm | THK | Shaft Dia.: D0=12mm | Outer Dia.: D=21mm | Length: L=30mm | Flange OD: D1=42mm | Square Width: K=27mm | Type: Small plate flange (ultra-compact, lower than LMK) | Feature: 2 ball circuits in flat direction for improved life | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMH13 | THK Linear Bush small plate flange, shaft φ13mm, OD φ23mm, L=32mm, K=29mm | THK | Shaft Dia.: D0=13mm | Outer Dia.: D=23mm | Length: L=32mm | Flange OD: D1=43mm | Square Width: K=29mm | Type: Small plate flange (ultra-compact, lower than LMK) | Feature: 2 ball circuits in flat direction for improved life | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMH16 | THK Linear Bush small plate flange, shaft φ16mm, OD φ28mm, L=37mm, K=34mm | THK | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=37mm | Flange OD: D1=48mm | Square Width: K=34mm | Type: Small plate flange (ultra-compact, lower than LMK) | Feature: 2 ball circuits in flat direction for improved life | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMH20 | THK Linear Bush small plate flange, shaft φ20mm, OD φ32mm, L=42mm, K=38mm | THK | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=42mm | Flange OD: D1=54mm | Square Width: K=38mm | Type: Small plate flange (ultra-compact, lower than LMK) | Feature: 2 ball circuits in flat direction for improved life | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMH25 | THK Linear Bush small plate flange, shaft φ25mm, OD φ40mm, L=59mm, K=46mm | THK | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=59mm | Flange OD: D1=62mm | Square Width: K=46mm | Type: Small plate flange (ultra-compact, lower than LMK) | Feature: 2 ball circuits in flat direction for improved life | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMH30 | THK Linear Bush small plate flange, shaft φ30mm, OD φ45mm, L=64mm, K=51mm | THK | Shaft Dia.: D0=30mm | Outer Dia.: D=45mm | Length: L=64mm | Flange OD: D1=74mm | Square Width: K=51mm | Type: Small plate flange (ultra-compact, lower than LMK) | Feature: 2 ball circuits in flat direction for improved life | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order |

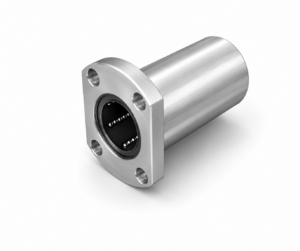

![[THK] — LMH-L Linear Bush Small Plate Flange Long Type (LMH6L~LMH30L)](https://img.prosourcemro.com/2026/05/001-997-300x251.png)
LMH-L type Linear Bush — small plate flange, long type. Lower center height than LMK-L type for ultra-compact design. Two retainers for optimal moment load performance. 2 ball circuits in flat direction for improved service life. Shaft diameters: 6~30mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
LMH-L type Linear Bush — small plate flange, long type. Lower center height than LMK-L type for ultra-compact design. Two retainers for optimal moment load performance. 2 ball circuits in flat direction for improved service life. Shaft diameters: 6~30mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| LMH6L | THK Linear Bush small plate flange long, shaft φ6mm, OD φ12mm, L=35mm, K=18mm | THK | Shaft Dia.: D0=6mm | Outer Dia.: D=12mm | Length: L=35mm | Flange OD: D1=28mm | Square Width: K=18mm | Type: Small plate flange long type (2 retainers) | Feature: Lower center height than LMK-L; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMH8L | THK Linear Bush small plate flange long, shaft φ8mm, OD φ15mm, L=45mm, K=21mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=45mm | Flange OD: D1=32mm | Square Width: K=21mm | Type: Small plate flange long type (2 retainers) | Feature: Lower center height than LMK-L; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMH10L | THK Linear Bush small plate flange long, shaft φ10mm, OD φ19mm, L=55mm, K=25mm | THK | Shaft Dia.: D0=10mm | Outer Dia.: D=19mm | Length: L=55mm | Flange OD: D1=39mm | Square Width: K=25mm | Type: Small plate flange long type (2 retainers) | Feature: Lower center height than LMK-L; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMH12L | THK Linear Bush small plate flange long, shaft φ12mm, OD φ21mm, L=57mm, K=27mm | THK | Shaft Dia.: D0=12mm | Outer Dia.: D=21mm | Length: L=57mm | Flange OD: D1=42mm | Square Width: K=27mm | Type: Small plate flange long type (2 retainers) | Feature: Lower center height than LMK-L; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMH13L | THK Linear Bush small plate flange long, shaft φ13mm, OD φ23mm, L=61mm, K=29mm | THK | Shaft Dia.: D0=13mm | Outer Dia.: D=23mm | Length: L=61mm | Flange OD: D1=43mm | Square Width: K=29mm | Type: Small plate flange long type (2 retainers) | Feature: Lower center height than LMK-L; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMH16L | THK Linear Bush small plate flange long, shaft φ16mm, OD φ28mm, L=70mm, K=34mm | THK | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=70mm | Flange OD: D1=48mm | Square Width: K=34mm | Type: Small plate flange long type (2 retainers) | Feature: Lower center height than LMK-L; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMH20L | THK Linear Bush small plate flange long, shaft φ20mm, OD φ32mm, L=80mm, K=38mm | THK | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=80mm | Flange OD: D1=54mm | Square Width: K=38mm | Type: Small plate flange long type (2 retainers) | Feature: Lower center height than LMK-L; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMH25L | THK Linear Bush small plate flange long, shaft φ25mm, OD φ40mm, L=112mm, K=46mm | THK | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=112mm | Flange OD: D1=62mm | Square Width: K=46mm | Type: Small plate flange long type (2 retainers) | Feature: Lower center height than LMK-L; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMH30L | THK Linear Bush small plate flange long, shaft φ30mm, OD φ45mm, L=123mm, K=51mm | THK | Shaft Dia.: D0=30mm | Outer Dia.: D=45mm | Length: L=123mm | Flange OD: D1=74mm | Square Width: K=51mm | Type: Small plate flange long type (2 retainers) | Feature: Lower center height than LMK-L; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order |

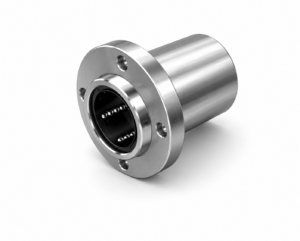

![[THK] — LMIF Linear Bush Inlaid Flange Type Round (LMIF6~LMIF25)](https://img.prosourcemro.com/2026/05/001-989-300x241.png)
LMIF type Linear Bush — inlaid (spigot) flange type, round. Short spigot prevents bush from protruding to the opposite side. Direct bolt mount to housing. Shaft diameters: 6~25mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
LMIF type Linear Bush — inlaid (spigot) flange type, round. Short spigot prevents bush from protruding to the opposite side. Direct bolt mount to housing. Shaft diameters: 6~25mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| LMIF6 | THK Linear Bush inlaid flange, shaft φ6mm, OD φ12mm, L=19mm, flange φ28mm | THK | Shaft Dia.: D0=6mm | Outer Dia.: D=12mm | Length: L=19mm | Flange OD: D1=28mm | Type: Inlaid flange (spigot, round) | Feature: Short spigot; no protrusion to opposite side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIF8 | THK Linear Bush inlaid flange, shaft φ8mm, OD φ15mm, L=24mm, flange φ32mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=24mm | Flange OD: D1=32mm | Type: Inlaid flange (spigot, round) | Feature: Short spigot; no protrusion to opposite side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIF10 | THK Linear Bush inlaid flange, shaft φ10mm, OD φ19mm, L=29mm, flange φ39mm | THK | Shaft Dia.: D0=10mm | Outer Dia.: D=19mm | Length: L=29mm | Flange OD: D1=39mm | Type: Inlaid flange (spigot, round) | Feature: Short spigot; no protrusion to opposite side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIF12 | THK Linear Bush inlaid flange, shaft φ12mm, OD φ21mm, L=30mm, flange φ42mm | THK | Shaft Dia.: D0=12mm | Outer Dia.: D=21mm | Length: L=30mm | Flange OD: D1=42mm | Type: Inlaid flange (spigot, round) | Feature: Short spigot; no protrusion to opposite side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIF13 | THK Linear Bush inlaid flange, shaft φ13mm, OD φ23mm, L=32mm, flange φ43mm | THK | Shaft Dia.: D0=13mm | Outer Dia.: D=23mm | Length: L=32mm | Flange OD: D1=43mm | Type: Inlaid flange (spigot, round) | Feature: Short spigot; no protrusion to opposite side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIF16 | THK Linear Bush inlaid flange, shaft φ16mm, OD φ28mm, L=37mm, flange φ48mm | THK | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=37mm | Flange OD: D1=48mm | Type: Inlaid flange (spigot, round) | Feature: Short spigot; no protrusion to opposite side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIF20 | THK Linear Bush inlaid flange, shaft φ20mm, OD φ32mm, L=42mm, flange φ54mm | THK | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=42mm | Flange OD: D1=54mm | Type: Inlaid flange (spigot, round) | Feature: Short spigot; no protrusion to opposite side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIF25 | THK Linear Bush inlaid flange, shaft φ25mm, OD φ40mm, L=59mm, flange φ62mm | THK | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=59mm | Flange OD: D1=62mm | Type: Inlaid flange (spigot, round) | Feature: Short spigot; no protrusion to opposite side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order |

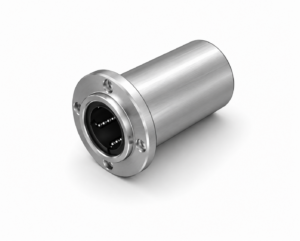

![[THK] — LMIF-L Linear Bush Inlaid Flange Long Type (LMIF6L~LMIF25L)](https://img.prosourcemro.com/2026/05/001-990-300x241.png)
LMIF-L type Linear Bush — inlaid (spigot) flange, long type. Short spigot prevents bush from protruding to the opposite side; excellent space efficiency on the non-flange side. Two retainers for moment load applications. Shaft diameters: 6~25mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
LMIF-L type Linear Bush — inlaid (spigot) flange, long type. Short spigot prevents bush from protruding to the opposite side; excellent space efficiency on the non-flange side. Two retainers for moment load applications. Shaft diameters: 6~25mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| LMIF6L | THK Linear Bush inlaid flange long, shaft φ6mm, OD φ12mm, L=35mm, flange φ28mm | THK | Shaft Dia.: D0=6mm | Outer Dia.: D=12mm | Length: L=35mm | Flange OD: D1=28mm | Type: Inlaid flange long type (2 retainers) | Feature: Short spigot; space-efficient on non-flange side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIF8L | THK Linear Bush inlaid flange long, shaft φ8mm, OD φ15mm, L=45mm, flange φ32mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=45mm | Flange OD: D1=32mm | Type: Inlaid flange long type (2 retainers) | Feature: Short spigot; space-efficient on non-flange side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIF10L | THK Linear Bush inlaid flange long, shaft φ10mm, OD φ19mm, L=55mm, flange φ39mm | THK | Shaft Dia.: D0=10mm | Outer Dia.: D=19mm | Length: L=55mm | Flange OD: D1=39mm | Type: Inlaid flange long type (2 retainers) | Feature: Short spigot; space-efficient on non-flange side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIF12L | THK Linear Bush inlaid flange long, shaft φ12mm, OD φ21mm, L=57mm, flange φ42mm | THK | Shaft Dia.: D0=12mm | Outer Dia.: D=21mm | Length: L=57mm | Flange OD: D1=42mm | Type: Inlaid flange long type (2 retainers) | Feature: Short spigot; space-efficient on non-flange side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIF13L | THK Linear Bush inlaid flange long, shaft φ13mm, OD φ23mm, L=61mm, flange φ43mm | THK | Shaft Dia.: D0=13mm | Outer Dia.: D=23mm | Length: L=61mm | Flange OD: D1=43mm | Type: Inlaid flange long type (2 retainers) | Feature: Short spigot; space-efficient on non-flange side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIF16L | THK Linear Bush inlaid flange long, shaft φ16mm, OD φ28mm, L=70mm, flange φ48mm | THK | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=70mm | Flange OD: D1=48mm | Type: Inlaid flange long type (2 retainers) | Feature: Short spigot; space-efficient on non-flange side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIF20L | THK Linear Bush inlaid flange long, shaft φ20mm, OD φ32mm, L=80mm, flange φ54mm | THK | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=80mm | Flange OD: D1=54mm | Type: Inlaid flange long type (2 retainers) | Feature: Short spigot; space-efficient on non-flange side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIF25L | THK Linear Bush inlaid flange long, shaft φ25mm, OD φ40mm, L=112mm, flange φ62mm | THK | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=112mm | Flange OD: D1=62mm | Type: Inlaid flange long type (2 retainers) | Feature: Short spigot; space-efficient on non-flange side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order |

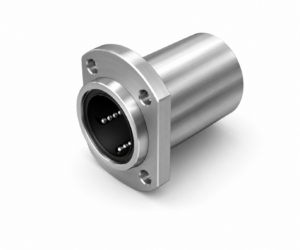

![[THK] — LMIH Linear Bush Inlaid Small Plate Flange Type (LMIH6~LMIH25)](https://img.prosourcemro.com/2026/05/001-1001-300x250.png)
LMIH type Linear Bush — inlaid small plate flange type. Lower center height than LMIF type for ultra-compact design. Short spigot prevents bush from protruding to opposite side. 2 ball circuits in flat direction for improved service life. Shaft diameters: 6~25mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
LMIH type Linear Bush — inlaid small plate flange type. Lower center height than LMIF type for ultra-compact design. Short spigot prevents bush from protruding to opposite side. 2 ball circuits in flat direction for improved service life. Shaft diameters: 6~25mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| LMIH6 | THK Linear Bush inlaid small plate flange, shaft φ6mm, OD φ12mm, L=19mm, K=18mm | THK | Shaft Dia.: D0=6mm | Outer Dia.: D=12mm | Length: L=19mm | Flange OD: D1=28mm | Square Width: K=18mm | Type: Inlaid small plate flange | Feature: Lower than LMIF; short spigot; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIH8 | THK Linear Bush inlaid small plate flange, shaft φ8mm, OD φ15mm, L=24mm, K=21mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=24mm | Flange OD: D1=32mm | Square Width: K=21mm | Type: Inlaid small plate flange | Feature: Lower than LMIF; short spigot; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIH10 | THK Linear Bush inlaid small plate flange, shaft φ10mm, OD φ19mm, L=29mm, K=25mm | THK | Shaft Dia.: D0=10mm | Outer Dia.: D=19mm | Length: L=29mm | Flange OD: D1=39mm | Square Width: K=25mm | Type: Inlaid small plate flange | Feature: Lower than LMIF; short spigot; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIH12 | THK Linear Bush inlaid small plate flange, shaft φ12mm, OD φ21mm, L=30mm, K=27mm | THK | Shaft Dia.: D0=12mm | Outer Dia.: D=21mm | Length: L=30mm | Flange OD: D1=42mm | Square Width: K=27mm | Type: Inlaid small plate flange | Feature: Lower than LMIF; short spigot; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIH13 | THK Linear Bush inlaid small plate flange, shaft φ13mm, OD φ23mm, L=32mm, K=29mm | THK | Shaft Dia.: D0=13mm | Outer Dia.: D=23mm | Length: L=32mm | Flange OD: D1=43mm | Square Width: K=29mm | Type: Inlaid small plate flange | Feature: Lower than LMIF; short spigot; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIH16 | THK Linear Bush inlaid small plate flange, shaft φ16mm, OD φ28mm, L=37mm, K=34mm | THK | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=37mm | Flange OD: D1=48mm | Square Width: K=34mm | Type: Inlaid small plate flange | Feature: Lower than LMIF; short spigot; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIH20 | THK Linear Bush inlaid small plate flange, shaft φ20mm, OD φ32mm, L=42mm, K=38mm | THK | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=42mm | Flange OD: D1=54mm | Square Width: K=38mm | Type: Inlaid small plate flange | Feature: Lower than LMIF; short spigot; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIH25 | THK Linear Bush inlaid small plate flange, shaft φ25mm, OD φ40mm, L=59mm, K=46mm | THK | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=59mm | Flange OD: D1=62mm | Square Width: K=46mm | Type: Inlaid small plate flange | Feature: Lower than LMIF; short spigot; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order |

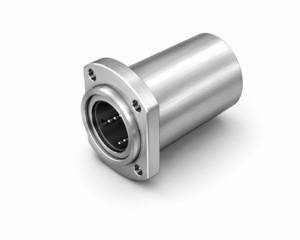

![[THK] — LMIH-L Linear Bush Inlaid Small Plate Flange Long Type (LMIH6L~LMIH25L)](https://img.prosourcemro.com/2026/05/001-1002-300x240.png)
LMIH-L type Linear Bush — inlaid small plate flange, long type. Lower center height than LMIF-L for ultra-compact design. Two retainers for optimal moment load performance. Short spigot; 2 ball circuits in flat direction for improved service life. Shaft diameters: 6~25mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
LMIH-L type Linear Bush — inlaid small plate flange, long type. Lower center height than LMIF-L for ultra-compact design. Two retainers for optimal moment load performance. Short spigot; 2 ball circuits in flat direction for improved service life. Shaft diameters: 6~25mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| LMIH6L | THK Linear Bush inlaid small plate flange long, shaft φ6mm, OD φ12mm, L=35mm, K=18mm | THK | Shaft Dia.: D0=6mm | Outer Dia.: D=12mm | Length: L=35mm | Flange OD: D1=28mm | Square Width: K=18mm | Type: Inlaid small plate flange long type (2 retainers) | Feature: Lower than LMIF-L; short spigot; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIH8L | THK Linear Bush inlaid small plate flange long, shaft φ8mm, OD φ15mm, L=45mm, K=21mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=45mm | Flange OD: D1=32mm | Square Width: K=21mm | Type: Inlaid small plate flange long type (2 retainers) | Feature: Lower than LMIF-L; short spigot; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIH10L | THK Linear Bush inlaid small plate flange long, shaft φ10mm, OD φ19mm, L=55mm, K=25mm | THK | Shaft Dia.: D0=10mm | Outer Dia.: D=19mm | Length: L=55mm | Flange OD: D1=39mm | Square Width: K=25mm | Type: Inlaid small plate flange long type (2 retainers) | Feature: Lower than LMIF-L; short spigot; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIH12L | THK Linear Bush inlaid small plate flange long, shaft φ12mm, OD φ21mm, L=57mm, K=27mm | THK | Shaft Dia.: D0=12mm | Outer Dia.: D=21mm | Length: L=57mm | Flange OD: D1=42mm | Square Width: K=27mm | Type: Inlaid small plate flange long type (2 retainers) | Feature: Lower than LMIF-L; short spigot; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIH13L | THK Linear Bush inlaid small plate flange long, shaft φ13mm, OD φ23mm, L=61mm, K=29mm | THK | Shaft Dia.: D0=13mm | Outer Dia.: D=23mm | Length: L=61mm | Flange OD: D1=43mm | Square Width: K=29mm | Type: Inlaid small plate flange long type (2 retainers) | Feature: Lower than LMIF-L; short spigot; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIH16L | THK Linear Bush inlaid small plate flange long, shaft φ16mm, OD φ28mm, L=70mm, K=34mm | THK | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=70mm | Flange OD: D1=48mm | Square Width: K=34mm | Type: Inlaid small plate flange long type (2 retainers) | Feature: Lower than LMIF-L; short spigot; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIH20L | THK Linear Bush inlaid small plate flange long, shaft φ20mm, OD φ32mm, L=80mm, K=38mm | THK | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=80mm | Flange OD: D1=54mm | Square Width: K=38mm | Type: Inlaid small plate flange long type (2 retainers) | Feature: Lower than LMIF-L; short spigot; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIH25L | THK Linear Bush inlaid small plate flange long, shaft φ25mm, OD φ40mm, L=112mm, K=46mm | THK | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=112mm | Flange OD: D1=62mm | Square Width: K=46mm | Type: Inlaid small plate flange long type (2 retainers) | Feature: Lower than LMIF-L; short spigot; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order |

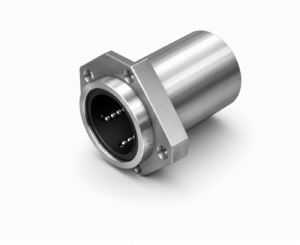

![[THK] — LMIK Linear Bush Inlaid Square Flange Type (LMIK6~LMIK25)](https://img.prosourcemro.com/2026/05/001-998-300x245.png)
LMIK type Linear Bush — inlaid (spigot) square flange type. 4-flat version of LMIF; lower center height than round inlaid flange for compact design. Short spigot prevents bush from protruding to opposite side. Shaft diameters: 6~25mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
LMIK type Linear Bush — inlaid (spigot) square flange type. 4-flat version of LMIF; lower center height than round inlaid flange for compact design. Short spigot prevents bush from protruding to opposite side. Shaft diameters: 6~25mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| LMIK6 | THK Linear Bush inlaid square flange, shaft φ6mm, OD φ12mm, L=19mm, K=22mm | THK | Shaft Dia.: D0=6mm | Outer Dia.: D=12mm | Length: L=19mm | Flange OD: D1=28mm | Square Width: K=22mm | Type: Inlaid square flange (4-flat, compact center height) | Feature: Short spigot; no protrusion to opposite side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIK8 | THK Linear Bush inlaid square flange, shaft φ8mm, OD φ15mm, L=24mm, K=25mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=24mm | Flange OD: D1=32mm | Square Width: K=25mm | Type: Inlaid square flange (4-flat, compact center height) | Feature: Short spigot; no protrusion to opposite side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIK10 | THK Linear Bush inlaid square flange, shaft φ10mm, OD φ19mm, L=29mm, K=30mm | THK | Shaft Dia.: D0=10mm | Outer Dia.: D=19mm | Length: L=29mm | Flange OD: D1=39mm | Square Width: K=30mm | Type: Inlaid square flange (4-flat, compact center height) | Feature: Short spigot; no protrusion to opposite side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIK12 | THK Linear Bush inlaid square flange, shaft φ12mm, OD φ21mm, L=30mm, K=32mm | THK | Shaft Dia.: D0=12mm | Outer Dia.: D=21mm | Length: L=30mm | Flange OD: D1=42mm | Square Width: K=32mm | Type: Inlaid square flange (4-flat, compact center height) | Feature: Short spigot; no protrusion to opposite side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIK13 | THK Linear Bush inlaid square flange, shaft φ13mm, OD φ23mm, L=32mm, K=34mm | THK | Shaft Dia.: D0=13mm | Outer Dia.: D=23mm | Length: L=32mm | Flange OD: D1=43mm | Square Width: K=34mm | Type: Inlaid square flange (4-flat, compact center height) | Feature: Short spigot; no protrusion to opposite side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIK16 | THK Linear Bush inlaid square flange, shaft φ16mm, OD φ28mm, L=37mm, K=37mm | THK | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=37mm | Flange OD: D1=48mm | Square Width: K=37mm | Type: Inlaid square flange (4-flat, compact center height) | Feature: Short spigot; no protrusion to opposite side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIK20 | THK Linear Bush inlaid square flange, shaft φ20mm, OD φ32mm, L=42mm, K=42mm | THK | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=42mm | Flange OD: D1=54mm | Square Width: K=42mm | Type: Inlaid square flange (4-flat, compact center height) | Feature: Short spigot; no protrusion to opposite side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIK25 | THK Linear Bush inlaid square flange, shaft φ25mm, OD φ40mm, L=59mm, K=50mm | THK | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=59mm | Flange OD: D1=62mm | Square Width: K=50mm | Type: Inlaid square flange (4-flat, compact center height) | Feature: Short spigot; no protrusion to opposite side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order |

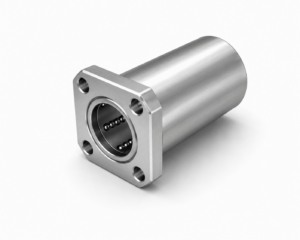

![[THK] — LMIK-L Linear Bush Inlaid Square Flange Long Type (LMIK6L~LMIK25L)](https://img.prosourcemro.com/2026/05/001-999-300x240.png)
LMIK-L type Linear Bush — inlaid square flange, long type. 4-flat version of LMIF-L; lower center height than round inlaid flange for compact design. Two retainers for optimal moment load performance. Short spigot prevents bush from protruding to opposite side. Shaft diameters: 6~25mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
LMIK-L type Linear Bush — inlaid square flange, long type. 4-flat version of LMIF-L; lower center height than round inlaid flange for compact design. Two retainers for optimal moment load performance. Short spigot prevents bush from protruding to opposite side. Shaft diameters: 6~25mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| LMIK6L | THK Linear Bush inlaid square flange long, shaft φ6mm, OD φ12mm, L=35mm, K=22mm | THK | Shaft Dia.: D0=6mm | Outer Dia.: D=12mm | Length: L=35mm | Flange OD: D1=28mm | Square Width: K=22mm | Type: Inlaid square flange long type (2 retainers) | Feature: Short spigot; compact center height; moment load capable | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIK8L | THK Linear Bush inlaid square flange long, shaft φ8mm, OD φ15mm, L=45mm, K=25mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=45mm | Flange OD: D1=32mm | Square Width: K=25mm | Type: Inlaid square flange long type (2 retainers) | Feature: Short spigot; compact center height; moment load capable | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIK10L | THK Linear Bush inlaid square flange long, shaft φ10mm, OD φ19mm, L=55mm, K=30mm | THK | Shaft Dia.: D0=10mm | Outer Dia.: D=19mm | Length: L=55mm | Flange OD: D1=39mm | Square Width: K=30mm | Type: Inlaid square flange long type (2 retainers) | Feature: Short spigot; compact center height; moment load capable | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIK12L | THK Linear Bush inlaid square flange long, shaft φ12mm, OD φ21mm, L=57mm, K=32mm | THK | Shaft Dia.: D0=12mm | Outer Dia.: D=21mm | Length: L=57mm | Flange OD: D1=42mm | Square Width: K=32mm | Type: Inlaid square flange long type (2 retainers) | Feature: Short spigot; compact center height; moment load capable | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIK13L | THK Linear Bush inlaid square flange long, shaft φ13mm, OD φ23mm, L=61mm, K=34mm | THK | Shaft Dia.: D0=13mm | Outer Dia.: D=23mm | Length: L=61mm | Flange OD: D1=43mm | Square Width: K=34mm | Type: Inlaid square flange long type (2 retainers) | Feature: Short spigot; compact center height; moment load capable | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIK16L | THK Linear Bush inlaid square flange long, shaft φ16mm, OD φ28mm, L=70mm, K=37mm | THK | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=70mm | Flange OD: D1=48mm | Square Width: K=37mm | Type: Inlaid square flange long type (2 retainers) | Feature: Short spigot; compact center height; moment load capable | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIK20L | THK Linear Bush inlaid square flange long, shaft φ20mm, OD φ32mm, L=80mm, K=42mm | THK | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=80mm | Flange OD: D1=54mm | Square Width: K=42mm | Type: Inlaid square flange long type (2 retainers) | Feature: Short spigot; compact center height; moment load capable | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMIK25L | THK Linear Bush inlaid square flange long, shaft φ25mm, OD φ40mm, L=112mm, K=50mm | THK | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=112mm | Flange OD: D1=62mm | Square Width: K=50mm | Type: Inlaid square flange long type (2 retainers) | Feature: Short spigot; compact center height; moment load capable | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order |

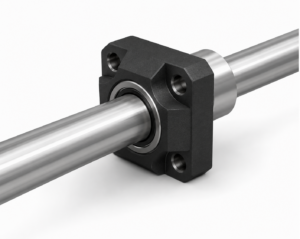

![[THK] — LMJK Linear Bush Plastic Square Flange Type (LMJK8~LMJK25)](https://img.prosourcemro.com/2026/05/001-1004-300x239.png)
LMJK type Linear Bush — high-strength plastic square flange. Lighter weight than metal flange type. Shaft diameters: 8~25mm. Synthetic resin retainer (max 80°C). Seal option available on order.
LMJK type Linear Bush — high-strength plastic square flange. Lighter weight than metal flange type. Shaft diameters: 8~25mm. Synthetic resin retainer (max 80°C). Seal option available on order.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| LMJK8 | THK Linear Bush plastic square flange, shaft φ8mm, OD φ15mm, L=24mm, K=25mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=24mm | Flange OD: D1=32mm | Square Width: K=25mm | Flange Material: High-strength plastic (lightweight) | Max Temp.: 80°C | Seal: Optional on order | |
| LMJK10 | THK Linear Bush plastic square flange, shaft φ10mm, OD φ19mm, L=29mm, K=30mm | THK | Shaft Dia.: D0=10mm | Outer Dia.: D=19mm | Length: L=29mm | Flange OD: D1=39mm | Square Width: K=30mm | Flange Material: High-strength plastic (lightweight) | Max Temp.: 80°C | Seal: Optional on order | |
| LMJK12 | THK Linear Bush plastic square flange, shaft φ12mm, OD φ21mm, L=30mm, K=32mm | THK | Shaft Dia.: D0=12mm | Outer Dia.: D=21mm | Length: L=30mm | Flange OD: D1=42mm | Square Width: K=32mm | Flange Material: High-strength plastic (lightweight) | Max Temp.: 80°C | Seal: Optional on order | |
| LMJK16 | THK Linear Bush plastic square flange, shaft φ16mm, OD φ28mm, L=37mm, K=37mm | THK | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=37mm | Flange OD: D1=48mm | Square Width: K=37mm | Flange Material: High-strength plastic (lightweight) | Max Temp.: 80°C | Seal: Optional on order | |
| LMJK20 | THK Linear Bush plastic square flange, shaft φ20mm, OD φ32mm, L=42mm, K=42mm | THK | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=42mm | Flange OD: D1=54mm | Square Width: K=42mm | Flange Material: High-strength plastic (lightweight) | Max Temp.: 80°C | Seal: Optional on order | |
| LMJK25 | THK Linear Bush plastic square flange, shaft φ25mm, OD φ40mm, L=59mm, K=50mm | THK | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=59mm | Flange OD: D1=62mm | Square Width: K=50mm | Flange Material: High-strength plastic (lightweight) | Max Temp.: 80°C | Seal: Optional on order |
![[THK] — LMJK-L Linear Bush Plastic Square Flange Long Type (LMJK8L~LMJK25L)](https://img.prosourcemro.com/2026/05/001-1005-300x239.png)
LMJK-L type Linear Bush — high-strength plastic square flange, long type. Lighter weight than metal flange type. Two retainers for moment load applications. Shaft diameters: 8~25mm. Synthetic resin retainer (max 80°C). Seal option available on order.
LMJK-L type Linear Bush — high-strength plastic square flange, long type. Lighter weight than metal flange type. Two retainers for moment load applications. Shaft diameters: 8~25mm. Synthetic resin retainer (max 80°C). Seal option available on order.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| LMJK8L | THK Linear Bush plastic square flange long, shaft φ8mm, OD φ15mm, L=45mm, K=25mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=45mm | Flange OD: D1=32mm | Square Width: K=25mm | Flange Material: High-strength plastic (lightweight) | Type: Long type (2 retainers) | Max Temp.: 80°C | Seal: Optional on order | |
| LMJK10L | THK Linear Bush plastic square flange long, shaft φ10mm, OD φ19mm, L=55mm, K=30mm | THK | Shaft Dia.: D0=10mm | Outer Dia.: D=19mm | Length: L=55mm | Flange OD: D1=39mm | Square Width: K=30mm | Flange Material: High-strength plastic (lightweight) | Type: Long type (2 retainers) | Max Temp.: 80°C | Seal: Optional on order | |
| LMJK12L | THK Linear Bush plastic square flange long, shaft φ12mm, OD φ21mm, L=57mm, K=32mm | THK | Shaft Dia.: D0=12mm | Outer Dia.: D=21mm | Length: L=57mm | Flange OD: D1=42mm | Square Width: K=32mm | Flange Material: High-strength plastic (lightweight) | Type: Long type (2 retainers) | Max Temp.: 80°C | Seal: Optional on order | |
| LMJK16L | THK Linear Bush plastic square flange long, shaft φ16mm, OD φ28mm, L=70mm, K=37mm | THK | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=70mm | Flange OD: D1=48mm | Square Width: K=37mm | Flange Material: High-strength plastic (lightweight) | Type: Long type (2 retainers) | Max Temp.: 80°C | Seal: Optional on order | |
| LMJK20L | THK Linear Bush plastic square flange long, shaft φ20mm, OD φ32mm, L=80mm, K=42mm | THK | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=80mm | Flange OD: D1=54mm | Square Width: K=42mm | Flange Material: High-strength plastic (lightweight) | Type: Long type (2 retainers) | Max Temp.: 80°C | Seal: Optional on order | |
| LMJK25L | THK Linear Bush plastic square flange long, shaft φ25mm, OD φ40mm, L=112mm, K=50mm | THK | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=112mm | Flange OD: D1=62mm | Square Width: K=50mm | Flange Material: High-strength plastic (lightweight) | Type: Long type (2 retainers) | Max Temp.: 80°C | Seal: Optional on order |

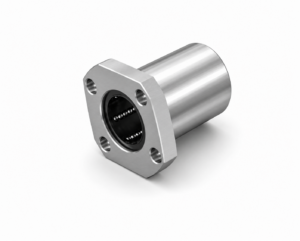

![[THK] — LMK Linear Bush Square Flange Type (LMK6~LMK60)](https://img.prosourcemro.com/2026/05/001-992-300x241.png)
LMK type Linear Bush — square (4-flat) flange type. Four flats on the round flange of LMF type; lower center height for compact design. Direct bolt mount to housing. Shaft diameters: 6~60mm. Short type (LMK8S) available for φ8mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
LMK type Linear Bush — square (4-flat) flange type. Four flats on the round flange of LMF type; lower center height for compact design. Direct bolt mount to housing. Shaft diameters: 6~60mm. Short type (LMK8S) available for φ8mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| LMK6 | THK Linear Bush square flange, shaft φ6mm, OD φ12mm, L=19mm, K=22mm | THK | Shaft Dia.: D0=6mm | Outer Dia.: D=12mm | Length: L=19mm | Flange OD: D1=28mm | Square Width: K=22mm | Type: Square flange (4-flat, compact center height) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK8S | THK Linear Bush square flange, shaft φ8mm, OD φ15mm, L=17mm, K=25mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=17mm | Flange OD: D1=32mm | Square Width: K=25mm | Type: Square flange (4-flat, compact center height) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK8 | THK Linear Bush square flange, shaft φ8mm, OD φ15mm, L=24mm, K=25mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=24mm | Flange OD: D1=32mm | Square Width: K=25mm | Type: Square flange (4-flat, compact center height) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK10 | THK Linear Bush square flange, shaft φ10mm, OD φ19mm, L=29mm, K=30mm | THK | Shaft Dia.: D0=10mm | Outer Dia.: D=19mm | Length: L=29mm | Flange OD: D1=39mm | Square Width: K=30mm | Type: Square flange (4-flat, compact center height) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK12 | THK Linear Bush square flange, shaft φ12mm, OD φ21mm, L=30mm, K=32mm | THK | Shaft Dia.: D0=12mm | Outer Dia.: D=21mm | Length: L=30mm | Flange OD: D1=42mm | Square Width: K=32mm | Type: Square flange (4-flat, compact center height) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK13 | THK Linear Bush square flange, shaft φ13mm, OD φ23mm, L=32mm, K=34mm | THK | Shaft Dia.: D0=13mm | Outer Dia.: D=23mm | Length: L=32mm | Flange OD: D1=43mm | Square Width: K=34mm | Type: Square flange (4-flat, compact center height) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK16 | THK Linear Bush square flange, shaft φ16mm, OD φ28mm, L=37mm, K=37mm | THK | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=37mm | Flange OD: D1=48mm | Square Width: K=37mm | Type: Square flange (4-flat, compact center height) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK20 | THK Linear Bush square flange, shaft φ20mm, OD φ32mm, L=42mm, K=42mm | THK | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=42mm | Flange OD: D1=54mm | Square Width: K=42mm | Type: Square flange (4-flat, compact center height) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK25 | THK Linear Bush square flange, shaft φ25mm, OD φ40mm, L=59mm, K=50mm | THK | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=59mm | Flange OD: D1=62mm | Square Width: K=50mm | Type: Square flange (4-flat, compact center height) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK30 | THK Linear Bush square flange, shaft φ30mm, OD φ45mm, L=64mm, K=58mm | THK | Shaft Dia.: D0=30mm | Outer Dia.: D=45mm | Length: L=64mm | Flange OD: D1=74mm | Square Width: K=58mm | Type: Square flange (4-flat, compact center height) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK35 | THK Linear Bush square flange, shaft φ35mm, OD φ52mm, L=70mm, K=64mm | THK | Shaft Dia.: D0=35mm | Outer Dia.: D=52mm | Length: L=70mm | Flange OD: D1=82mm | Square Width: K=64mm | Type: Square flange (4-flat, compact center height) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK40 | THK Linear Bush square flange, shaft φ40mm, OD φ60mm, L=80mm, K=75mm | THK | Shaft Dia.: D0=40mm | Outer Dia.: D=60mm | Length: L=80mm | Flange OD: D1=96mm | Square Width: K=75mm | Type: Square flange (4-flat, compact center height) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK50 | THK Linear Bush square flange, shaft φ50mm, OD φ80mm, L=100mm, K=92mm | THK | Shaft Dia.: D0=50mm | Outer Dia.: D=80mm | Length: L=100mm | Flange OD: D1=116mm | Square Width: K=92mm | Type: Square flange (4-flat, compact center height) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK60 | THK Linear Bush square flange, shaft φ60mm, OD φ90mm, L=110mm, K=106mm | THK | Shaft Dia.: D0=60mm | Outer Dia.: D=90mm | Length: L=110mm | Flange OD: D1=134mm | Square Width: K=106mm | Type: Square flange (4-flat, compact center height) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order |

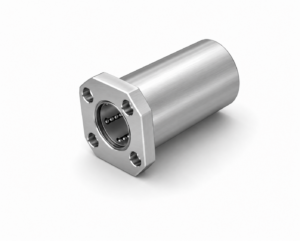

![[THK] — LMK-L Linear Bush Square Flange Long Type (LMK6L~LMK60L)](https://img.prosourcemro.com/2026/05/001-994-300x241.png)
LMK-L type Linear Bush — square (4-flat) flange, long type. Lower center height than round flange for compact design. Two retainers for optimal moment load performance. Shaft diameters: 6~60mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
LMK-L type Linear Bush — square (4-flat) flange, long type. Lower center height than round flange for compact design. Two retainers for optimal moment load performance. Shaft diameters: 6~60mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| LMK6L | THK Linear Bush square flange long, shaft φ6mm, OD φ12mm, L=35mm, K=22mm | THK | Shaft Dia.: D0=6mm | Outer Dia.: D=12mm | Length: L=35mm | Flange OD: D1=28mm | Square Width: K=22mm | Type: Square flange long type (2 retainers) | Feature: Compact center height; suitable for moment load | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK8L | THK Linear Bush square flange long, shaft φ8mm, OD φ15mm, L=45mm, K=25mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=45mm | Flange OD: D1=32mm | Square Width: K=25mm | Type: Square flange long type (2 retainers) | Feature: Compact center height; suitable for moment load | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK10L | THK Linear Bush square flange long, shaft φ10mm, OD φ19mm, L=55mm, K=30mm | THK | Shaft Dia.: D0=10mm | Outer Dia.: D=19mm | Length: L=55mm | Flange OD: D1=39mm | Square Width: K=30mm | Type: Square flange long type (2 retainers) | Feature: Compact center height; suitable for moment load | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK12L | THK Linear Bush square flange long, shaft φ12mm, OD φ21mm, L=57mm, K=32mm | THK | Shaft Dia.: D0=12mm | Outer Dia.: D=21mm | Length: L=57mm | Flange OD: D1=42mm | Square Width: K=32mm | Type: Square flange long type (2 retainers) | Feature: Compact center height; suitable for moment load | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK13L | THK Linear Bush square flange long, shaft φ13mm, OD φ23mm, L=61mm, K=34mm | THK | Shaft Dia.: D0=13mm | Outer Dia.: D=23mm | Length: L=61mm | Flange OD: D1=43mm | Square Width: K=34mm | Type: Square flange long type (2 retainers) | Feature: Compact center height; suitable for moment load | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK16L | THK Linear Bush square flange long, shaft φ16mm, OD φ28mm, L=70mm, K=37mm | THK | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=70mm | Flange OD: D1=48mm | Square Width: K=37mm | Type: Square flange long type (2 retainers) | Feature: Compact center height; suitable for moment load | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK20L | THK Linear Bush square flange long, shaft φ20mm, OD φ32mm, L=80mm, K=42mm | THK | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=80mm | Flange OD: D1=54mm | Square Width: K=42mm | Type: Square flange long type (2 retainers) | Feature: Compact center height; suitable for moment load | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK25L | THK Linear Bush square flange long, shaft φ25mm, OD φ40mm, L=112mm, K=50mm | THK | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=112mm | Flange OD: D1=62mm | Square Width: K=50mm | Type: Square flange long type (2 retainers) | Feature: Compact center height; suitable for moment load | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK30L | THK Linear Bush square flange long, shaft φ30mm, OD φ45mm, L=123mm, K=58mm | THK | Shaft Dia.: D0=30mm | Outer Dia.: D=45mm | Length: L=123mm | Flange OD: D1=74mm | Square Width: K=58mm | Type: Square flange long type (2 retainers) | Feature: Compact center height; suitable for moment load | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK35L | THK Linear Bush square flange long, shaft φ35mm, OD φ52mm, L=135mm, K=64mm | THK | Shaft Dia.: D0=35mm | Outer Dia.: D=52mm | Length: L=135mm | Flange OD: D1=82mm | Square Width: K=64mm | Type: Square flange long type (2 retainers) | Feature: Compact center height; suitable for moment load | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK40L | THK Linear Bush square flange long, shaft φ40mm, OD φ60mm, L=154mm, K=75mm | THK | Shaft Dia.: D0=40mm | Outer Dia.: D=60mm | Length: L=154mm | Flange OD: D1=96mm | Square Width: K=75mm | Type: Square flange long type (2 retainers) | Feature: Compact center height; suitable for moment load | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK50L | THK Linear Bush square flange long, shaft φ50mm, OD φ80mm, L=192mm, K=92mm | THK | Shaft Dia.: D0=50mm | Outer Dia.: D=80mm | Length: L=192mm | Flange OD: D1=116mm | Square Width: K=92mm | Type: Square flange long type (2 retainers) | Feature: Compact center height; suitable for moment load | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK60L | THK Linear Bush square flange long, shaft φ60mm, OD φ90mm, L=211mm, K=106mm | THK | Shaft Dia.: D0=60mm | Outer Dia.: D=90mm | Length: L=211mm | Flange OD: D1=134mm | Square Width: K=106mm | Type: Square flange long type (2 retainers) | Feature: Compact center height; suitable for moment load | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order |
![[THK] — LMK-M Linear Bush Square Flange Stainless Steel (LMK6M~LMK30M)](https://img.prosourcemro.com/2026/05/001-993-300x241.png)
LMK-M type Linear Bush — square (4-flat) flange, stainless steel. Lower center height than round flange for compact design. Stainless steel nut and balls for corrosion resistance. Shaft diameters: 6~30mm. Short type (LMK8SM) available for φ8mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
LMK-M type Linear Bush — square (4-flat) flange, stainless steel. Lower center height than round flange for compact design. Stainless steel nut and balls for corrosion resistance. Shaft diameters: 6~30mm. Short type (LMK8SM) available for φ8mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| LMK6M | THK Linear Bush square flange stainless, shaft φ6mm, OD φ12mm, L=19mm, K=22mm | THK | Shaft Dia.: D0=6mm | Outer Dia.: D=12mm | Length: L=19mm | Flange OD: D1=28mm | Square Width: K=22mm | Type: Square flange (4-flat, compact center height) | Material: Stainless steel (nut and balls) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK8SM | THK Linear Bush square flange stainless, shaft φ8mm, OD φ15mm, L=17mm, K=25mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=17mm | Flange OD: D1=32mm | Square Width: K=25mm | Type: Square flange (4-flat, compact center height) | Material: Stainless steel (nut and balls) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK8M | THK Linear Bush square flange stainless, shaft φ8mm, OD φ15mm, L=24mm, K=25mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=24mm | Flange OD: D1=32mm | Square Width: K=25mm | Type: Square flange (4-flat, compact center height) | Material: Stainless steel (nut and balls) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK10M | THK Linear Bush square flange stainless, shaft φ10mm, OD φ19mm, L=29mm, K=30mm | THK | Shaft Dia.: D0=10mm | Outer Dia.: D=19mm | Length: L=29mm | Flange OD: D1=39mm | Square Width: K=30mm | Type: Square flange (4-flat, compact center height) | Material: Stainless steel (nut and balls) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK12M | THK Linear Bush square flange stainless, shaft φ12mm, OD φ21mm, L=30mm, K=32mm | THK | Shaft Dia.: D0=12mm | Outer Dia.: D=21mm | Length: L=30mm | Flange OD: D1=42mm | Square Width: K=32mm | Type: Square flange (4-flat, compact center height) | Material: Stainless steel (nut and balls) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK13M | THK Linear Bush square flange stainless, shaft φ13mm, OD φ23mm, L=32mm, K=34mm | THK | Shaft Dia.: D0=13mm | Outer Dia.: D=23mm | Length: L=32mm | Flange OD: D1=43mm | Square Width: K=34mm | Type: Square flange (4-flat, compact center height) | Material: Stainless steel (nut and balls) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK16M | THK Linear Bush square flange stainless, shaft φ16mm, OD φ28mm, L=37mm, K=37mm | THK | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=37mm | Flange OD: D1=48mm | Square Width: K=37mm | Type: Square flange (4-flat, compact center height) | Material: Stainless steel (nut and balls) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK20M | THK Linear Bush square flange stainless, shaft φ20mm, OD φ32mm, L=42mm, K=42mm | THK | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=42mm | Flange OD: D1=54mm | Square Width: K=42mm | Type: Square flange (4-flat, compact center height) | Material: Stainless steel (nut and balls) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK25M | THK Linear Bush square flange stainless, shaft φ25mm, OD φ40mm, L=59mm, K=50mm | THK | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=59mm | Flange OD: D1=62mm | Square Width: K=50mm | Type: Square flange (4-flat, compact center height) | Material: Stainless steel (nut and balls) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK30M | THK Linear Bush square flange stainless, shaft φ30mm, OD φ45mm, L=64mm, K=58mm | THK | Shaft Dia.: D0=30mm | Outer Dia.: D=45mm | Length: L=64mm | Flange OD: D1=74mm | Square Width: K=58mm | Type: Square flange (4-flat, compact center height) | Material: Stainless steel (nut and balls) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order |
![[THK] — LMK-ML Linear Bush Square Flange Long Type Stainless (LMK6ML~LMK30ML)](https://img.prosourcemro.com/2026/05/001-995-300x241.png)
LMK-ML type Linear Bush — square (4-flat) flange, long type, stainless steel. Lower center height than round flange for compact design. Two retainers for optimal moment load performance. Stainless steel nut and balls for corrosion resistance. Shaft diameters: 6~30mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
LMK-ML type Linear Bush — square (4-flat) flange, long type, stainless steel. Lower center height than round flange for compact design. Two retainers for optimal moment load performance. Stainless steel nut and balls for corrosion resistance. Shaft diameters: 6~30mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| LMK6ML | THK Linear Bush square flange long stainless, shaft φ6mm, OD φ12mm, L=35mm, K=22mm | THK | Shaft Dia.: D0=6mm | Outer Dia.: D=12mm | Length: L=35mm | Flange OD: D1=28mm | Square Width: K=22mm | Type: Square flange long type (2 retainers) | Material: Stainless steel (nut and balls) | Feature: Compact center height; suitable for moment load | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK8ML | THK Linear Bush square flange long stainless, shaft φ8mm, OD φ15mm, L=45mm, K=25mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=45mm | Flange OD: D1=32mm | Square Width: K=25mm | Type: Square flange long type (2 retainers) | Material: Stainless steel (nut and balls) | Feature: Compact center height; suitable for moment load | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK10ML | THK Linear Bush square flange long stainless, shaft φ10mm, OD φ19mm, L=55mm, K=30mm | THK | Shaft Dia.: D0=10mm | Outer Dia.: D=19mm | Length: L=55mm | Flange OD: D1=39mm | Square Width: K=30mm | Type: Square flange long type (2 retainers) | Material: Stainless steel (nut and balls) | Feature: Compact center height; suitable for moment load | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK12ML | THK Linear Bush square flange long stainless, shaft φ12mm, OD φ21mm, L=57mm, K=32mm | THK | Shaft Dia.: D0=12mm | Outer Dia.: D=21mm | Length: L=57mm | Flange OD: D1=42mm | Square Width: K=32mm | Type: Square flange long type (2 retainers) | Material: Stainless steel (nut and balls) | Feature: Compact center height; suitable for moment load | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK13ML | THK Linear Bush square flange long stainless, shaft φ13mm, OD φ23mm, L=61mm, K=34mm | THK | Shaft Dia.: D0=13mm | Outer Dia.: D=23mm | Length: L=61mm | Flange OD: D1=43mm | Square Width: K=34mm | Type: Square flange long type (2 retainers) | Material: Stainless steel (nut and balls) | Feature: Compact center height; suitable for moment load | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK16ML | THK Linear Bush square flange long stainless, shaft φ16mm, OD φ28mm, L=70mm, K=37mm | THK | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=70mm | Flange OD: D1=48mm | Square Width: K=37mm | Type: Square flange long type (2 retainers) | Material: Stainless steel (nut and balls) | Feature: Compact center height; suitable for moment load | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK20ML | THK Linear Bush square flange long stainless, shaft φ20mm, OD φ32mm, L=80mm, K=42mm | THK | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=80mm | Flange OD: D1=54mm | Square Width: K=42mm | Type: Square flange long type (2 retainers) | Material: Stainless steel (nut and balls) | Feature: Compact center height; suitable for moment load | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK25ML | THK Linear Bush square flange long stainless, shaft φ25mm, OD φ40mm, L=112mm, K=50mm | THK | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=112mm | Flange OD: D1=62mm | Square Width: K=50mm | Type: Square flange long type (2 retainers) | Material: Stainless steel (nut and balls) | Feature: Compact center height; suitable for moment load | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| LMK30ML | THK Linear Bush square flange long stainless, shaft φ30mm, OD φ45mm, L=123mm, K=58mm | THK | Shaft Dia.: D0=30mm | Outer Dia.: D=45mm | Length: L=123mm | Flange OD: D1=74mm | Square Width: K=58mm | Type: Square flange long type (2 retainers) | Material: Stainless steel (nut and balls) | Feature: Compact center height; suitable for moment load | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order |

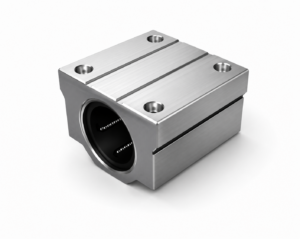

![[THK] — SC Linear Bush Case Unit Aluminum (SC6UU~SC30UU)](https://img.prosourcemro.com/2026/05/001-1006-300x239.png)
SC type Linear Bush Case Unit — standard LM bush in compact lightweight aluminum case. Easy table mounting with bolts. Seal type (UU) standard stock; no-seal type on order. Stainless LM-MG bush option available on request. Shaft diameters: 6~30mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
SC type Linear Bush Case Unit — standard LM bush in compact lightweight aluminum case. Easy table mounting with bolts. Seal type (UU) standard stock; no-seal type on order. Stainless LM-MG bush option available on request. Shaft diameters: 6~30mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| SC6UU | THK Linear Bush case unit, shaft φ6mm, H=18mm, W=30mm, L=25mm | THK | Shaft Dia.: d=6mm | Case Height: M=18mm | Case Width: W=30mm | Case Length: L=25mm | Case Material: Aluminum | Seal: Double seal (UU) standard; no-seal type on order | Bush: LM6UU | Stainless Option: SC{d0}MUU available on request | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| SC8UU | THK Linear Bush case unit, shaft φ8mm, H=22mm, W=34mm, L=30mm | THK | Shaft Dia.: d=8mm | Case Height: M=22mm | Case Width: W=34mm | Case Length: L=30mm | Case Material: Aluminum | Seal: Double seal (UU) standard; no-seal type on order | Bush: LM8UU | Stainless Option: SC{d0}MUU available on request | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| SC10UU | THK Linear Bush case unit, shaft φ10mm, H=26mm, W=40mm, L=35mm | THK | Shaft Dia.: d=10mm | Case Height: M=26mm | Case Width: W=40mm | Case Length: L=35mm | Case Material: Aluminum | Seal: Double seal (UU) standard; no-seal type on order | Bush: LM10UU | Stainless Option: SC{d0}MUU available on request | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| SC12UU | THK Linear Bush case unit, shaft φ12mm, H=29mm, W=42mm, L=36mm | THK | Shaft Dia.: d=12mm | Case Height: M=29mm | Case Width: W=42mm | Case Length: L=36mm | Case Material: Aluminum | Seal: Double seal (UU) standard; no-seal type on order | Bush: LM12UU | Stainless Option: SC{d0}MUU available on request | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| SC13UU | THK Linear Bush case unit, shaft φ13mm, H=30mm, W=44mm, L=39mm | THK | Shaft Dia.: d=13mm | Case Height: M=30mm | Case Width: W=44mm | Case Length: L=39mm | Case Material: Aluminum | Seal: Double seal (UU) standard; no-seal type on order | Bush: LM13UU | Stainless Option: SC{d0}MUU available on request | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| SC16UU | THK Linear Bush case unit, shaft φ16mm, H=38.5mm, W=50mm, L=44mm | THK | Shaft Dia.: d=16mm | Case Height: M=38.5mm | Case Width: W=50mm | Case Length: L=44mm | Case Material: Aluminum | Seal: Double seal (UU) standard; no-seal type on order | Bush: LM16UU | Stainless Option: SC{d0}MUU available on request | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| SC20UU | THK Linear Bush case unit, shaft φ20mm, H=42mm, W=54mm, L=50mm | THK | Shaft Dia.: d=20mm | Case Height: M=42mm | Case Width: W=54mm | Case Length: L=50mm | Case Material: Aluminum | Seal: Double seal (UU) standard; no-seal type on order | Bush: LM20UU | Stainless Option: SC{d0}MUU available on request | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| SC25UU | THK Linear Bush case unit, shaft φ25mm, H=51.5mm, W=76mm, L=67mm | THK | Shaft Dia.: d=25mm | Case Height: M=51.5mm | Case Width: W=76mm | Case Length: L=67mm | Case Material: Aluminum | Seal: Double seal (UU) standard; no-seal type on order | Bush: LM25UU | Stainless Option: SC{d0}MUU available on request | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| SC30UU | THK Linear Bush case unit, shaft φ30mm, H=59.5mm, W=78mm, L=72mm | THK | Shaft Dia.: d=30mm | Case Height: M=59.5mm | Case Width: W=78mm | Case Length: L=72mm | Case Material: Aluminum | Seal: Double seal (UU) standard; no-seal type on order | Bush: LM30UU | Stainless Option: SC{d0}MUU available on request | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order |
![[THK] — SC Linear Bush Case Unit Large Aluminum (SC35UU~SC50UU)](https://img.prosourcemro.com/2026/05/001-1007-300x239.png)
SC type Linear Bush Case Unit (large) — standard LM bush in compact lightweight aluminum case. Easy table mounting with bolts. Seal type (UU) standard stock; no-seal type on order. Stainless LM-MG bush option available for SC35/40 on request (SC50 not available). Shaft diameters: 35~50mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
SC type Linear Bush Case Unit (large) — standard LM bush in compact lightweight aluminum case. Easy table mounting with bolts. Seal type (UU) standard stock; no-seal type on order. Stainless LM-MG bush option available for SC35/40 on request (SC50 not available). Shaft diameters: 35~50mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| SC35UU | THK Linear Bush case unit large, shaft φ35mm, H=68mm, W=90mm, L=80mm | THK | Shaft Dia.: d=35mm | Case Height: M=68mm | Case Width: W=90mm | Case Length: L=80mm | Case Material: Aluminum | Seal: Double seal (UU) standard; no-seal type on order | Bush: LM35UU | Stainless Option: SC35/40MUU available on request | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| SC40UU | THK Linear Bush case unit large, shaft φ40mm, H=78mm, W=102mm, L=90mm | THK | Shaft Dia.: d=40mm | Case Height: M=78mm | Case Width: W=102mm | Case Length: L=90mm | Case Material: Aluminum | Seal: Double seal (UU) standard; no-seal type on order | Bush: LM40UU | Stainless Option: SC35/40MUU available on request | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | |
| SC50UU | THK Linear Bush case unit large, shaft φ50mm, H=102mm, W=122mm, L=110mm | THK | Shaft Dia.: d=50mm | Case Height: M=102mm | Case Width: W=122mm | Case Length: L=110mm | Case Material: Aluminum | Seal: Double seal (UU) standard; no-seal type on order | Bush: LM50UU | Stainless Option: Not available for SC50 | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order |

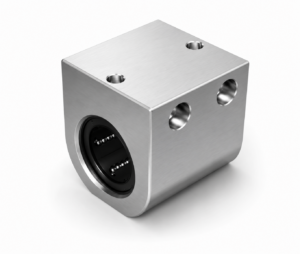

![[THK] — SH Linear Bush Case Unit Compact Aluminum (SH3UU~SH20UU)](https://img.prosourcemro.com/2026/05/001-1009-300x254.png)
SH type Linear Bush Case Unit — more compact and lightweight than SC type. 2 ball circuits load from top of case for improved service life. Aluminum case. Seal type (UU) standard stock; no-seal type on order. Stainless LM-MG bush option available on request. Shaft diameters: 3~20mm. Synthetic resin retainer (max 80°C).
SH type Linear Bush Case Unit — more compact and lightweight than SC type. 2 ball circuits load from top of case for improved service life. Aluminum case. Seal type (UU) standard stock; no-seal type on order. Stainless LM-MG bush option available on request. Shaft diameters: 3~20mm. Synthetic resin retainer (max 80°C).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| SH3UU | THK Linear Bush case unit compact, shaft φ3mm, H=14mm, W=10mm, L=13mm | THK | Shaft Dia.: d=3mm | Case Height: M=14mm | Case Width: W=10mm | Case Length: L=13mm | Case Material: Aluminum (compact, lighter than SC) | Feature: 2 ball circuits load from top; improved service life | Seal: Double seal (UU) standard; no-seal type on order | Stainless Option: SH3MUU available on request | Max Temp.: 80°C (standard retainer) | |
| SH4UU | THK Linear Bush case unit compact, shaft φ4mm, H=16mm, W=12mm, L=15mm | THK | Shaft Dia.: d=4mm | Case Height: M=16mm | Case Width: W=12mm | Case Length: L=15mm | Case Material: Aluminum (compact, lighter than SC) | Feature: 2 ball circuits load from top; improved service life | Seal: Double seal (UU) standard; no-seal type on order | Stainless Option: SH4MUU available on request | Max Temp.: 80°C (standard retainer) | |
| SH5UU | THK Linear Bush case unit compact, shaft φ5mm, H=18mm, W=14mm, L=17mm | THK | Shaft Dia.: d=5mm | Case Height: M=18mm | Case Width: W=14mm | Case Length: L=17mm | Case Material: Aluminum (compact, lighter than SC) | Feature: 2 ball circuits load from top; improved service life | Seal: Double seal (UU) standard; no-seal type on order | Stainless Option: SH5MUU available on request | Max Temp.: 80°C (standard retainer) | |
| SH6UU | THK Linear Bush case unit compact, shaft φ6mm, H=22mm, W=16mm, L=24mm | THK | Shaft Dia.: d=6mm | Case Height: M=22mm | Case Width: W=16mm | Case Length: L=24mm | Case Material: Aluminum (compact, lighter than SC) | Feature: 2 ball circuits load from top; improved service life | Seal: Double seal (UU) standard; no-seal type on order | Stainless Option: SH6MUU available on request | Max Temp.: 80°C (standard retainer) | |
| SH8UU | THK Linear Bush case unit compact, shaft φ8mm, H=26mm, W=20mm, L=27mm | THK | Shaft Dia.: d=8mm | Case Height: M=26mm | Case Width: W=20mm | Case Length: L=27mm | Case Material: Aluminum (compact, lighter than SC) | Feature: 2 ball circuits load from top; improved service life | Seal: Double seal (UU) standard; no-seal type on order | Stainless Option: SH8MUU available on request | Max Temp.: 80°C (standard retainer) | |
| SH10UU | THK Linear Bush case unit compact, shaft φ10mm, H=32mm, W=26mm, L=35mm | THK | Shaft Dia.: d=10mm | Case Height: M=32mm | Case Width: W=26mm | Case Length: L=35mm | Case Material: Aluminum (compact, lighter than SC) | Feature: 2 ball circuits load from top; improved service life | Seal: Double seal (UU) standard; no-seal type on order | Stainless Option: SH10MUU available on request | Max Temp.: 80°C (standard retainer) | |
| SH12UU | THK Linear Bush case unit compact, shaft φ12mm, H=34mm, W=28mm, L=35mm | THK | Shaft Dia.: d=12mm | Case Height: M=34mm | Case Width: W=28mm | Case Length: L=35mm | Case Material: Aluminum (compact, lighter than SC) | Feature: 2 ball circuits load from top; improved service life | Seal: Double seal (UU) standard; no-seal type on order | Stainless Option: SH12MUU available on request | Max Temp.: 80°C (standard retainer) | |
| SH13UU | THK Linear Bush case unit compact, shaft φ13mm, H=36mm, W=30mm, L=36mm | THK | Shaft Dia.: d=13mm | Case Height: M=36mm | Case Width: W=30mm | Case Length: L=36mm | Case Material: Aluminum (compact, lighter than SC) | Feature: 2 ball circuits load from top; improved service life | Seal: Double seal (UU) standard; no-seal type on order | Stainless Option: SH13MUU available on request | Max Temp.: 80°C (standard retainer) | |
| SH16UU | THK Linear Bush case unit compact, shaft φ16mm, H=42mm, W=36mm, L=40mm | THK | Shaft Dia.: d=16mm | Case Height: M=42mm | Case Width: W=36mm | Case Length: L=40mm | Case Material: Aluminum (compact, lighter than SC) | Feature: 2 ball circuits load from top; improved service life | Seal: Double seal (UU) standard; no-seal type on order | Stainless Option: SH16MUU available on request | Max Temp.: 80°C (standard retainer) | |
| SH20UU | THK Linear Bush case unit compact, shaft φ20mm, H=49mm, W=42mm, L=44mm | THK | Shaft Dia.: d=20mm | Case Height: M=49mm | Case Width: W=42mm | Case Length: L=44mm | Case Material: Aluminum (compact, lighter than SC) | Feature: 2 ball circuits load from top; improved service life | Seal: Double seal (UU) standard; no-seal type on order | Stainless Option: SH20MUU available on request | Max Temp.: 80°C (standard retainer) |
