Motors
![[GGM] — KGV2-3640 BLDC Geared Motor, KB3640S2 (DC 24V, 9 ratios 1/60–1/660, F/R output)](https://img.prosourcemro.com/2026/06/0605-22-300x251.png)
GGM KGV2-3640 BLDC geared motor, KB3640S2 (DC 24V, no-load 5000 rpm). 9 ratios 1/60–1/660, F/R output shaft, PWM speed control with CW/CCW and brake, torque up to 20 kgf·cm.
GGM KGV2-3640 BLDC geared motor, KB3640S2 (DC 24V, no-load 5000 rpm). 9 ratios 1/60–1/660, F/R output shaft, PWM speed control with CW/CCW and brake, torque up to 20 kgf·cm.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KGV2-0060-KB3640S2-F | KGV2-3640 BLDC KB3640S2 geared motor, 1/60, F-TYPE | GGM | Gear Ratio: 1/60 | Output Speed: 65 rpm | Output Torque: 8.7 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0060-KB3640S2-R | KGV2-3640 BLDC KB3640S2 geared motor, 1/60, R-TYPE | GGM | Gear Ratio: 1/60 | Output Speed: 65 rpm | Output Torque: 8.7 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0070-KB3640S2-F | KGV2-3640 BLDC KB3640S2 geared motor, 1/70, F-TYPE | GGM | Gear Ratio: 1/70 | Output Speed: 55.7 rpm | Output Torque: 10.2 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0070-KB3640S2-R | KGV2-3640 BLDC KB3640S2 geared motor, 1/70, R-TYPE | GGM | Gear Ratio: 1/70 | Output Speed: 55.7 rpm | Output Torque: 10.2 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0090-KB3640S2-F | KGV2-3640 BLDC KB3640S2 geared motor, 1/90, F-TYPE | GGM | Gear Ratio: 1/90 | Output Speed: 43.3 rpm | Output Torque: 13 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0090-KB3640S2-R | KGV2-3640 BLDC KB3640S2 geared motor, 1/90, R-TYPE | GGM | Gear Ratio: 1/90 | Output Speed: 43.3 rpm | Output Torque: 13 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0105-KB3640S2-F | KGV2-3640 BLDC KB3640S2 geared motor, 1/105, F-TYPE | GGM | Gear Ratio: 1/105 | Output Speed: 37 rpm | Output Torque: 15.3 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0105-KB3640S2-R | KGV2-3640 BLDC KB3640S2 geared motor, 1/105, R-TYPE | GGM | Gear Ratio: 1/105 | Output Speed: 37 rpm | Output Torque: 15.3 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0135-KB3640S2-F | KGV2-3640 BLDC KB3640S2 geared motor, 1/135, F-TYPE | GGM | Gear Ratio: 1/135 | Output Speed: 28.8 rpm | Output Torque: 17.7 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0135-KB3640S2-R | KGV2-3640 BLDC KB3640S2 geared motor, 1/135, R-TYPE | GGM | Gear Ratio: 1/135 | Output Speed: 28.8 rpm | Output Torque: 17.7 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0200-KB3640S2-F | KGV2-3640 BLDC KB3640S2 geared motor, 1/200, F-TYPE | GGM | Gear Ratio: 1/200 | Output Speed: 19.5 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0200-KB3640S2-R | KGV2-3640 BLDC KB3640S2 geared motor, 1/200, R-TYPE | GGM | Gear Ratio: 1/200 | Output Speed: 19.5 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0350-KB3640S2-F | KGV2-3640 BLDC KB3640S2 geared motor, 1/350, F-TYPE | GGM | Gear Ratio: 1/350 | Output Speed: 11 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0350-KB3640S2-R | KGV2-3640 BLDC KB3640S2 geared motor, 1/350, R-TYPE | GGM | Gear Ratio: 1/350 | Output Speed: 11 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0500-KB3640S2-F | KGV2-3640 BLDC KB3640S2 geared motor, 1/500, F-TYPE | GGM | Gear Ratio: 1/500 | Output Speed: 7.8 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0500-KB3640S2-R | KGV2-3640 BLDC KB3640S2 geared motor, 1/500, R-TYPE | GGM | Gear Ratio: 1/500 | Output Speed: 7.8 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0660-KB3640S2-F | KGV2-3640 BLDC KB3640S2 geared motor, 1/660, F-TYPE | GGM | Gear Ratio: 1/660 | Output Speed: 5.9 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0660-KB3640S2-R | KGV2-3640 BLDC KB3640S2 geared motor, 1/660, R-TYPE | GGM | Gear Ratio: 1/660 | Output Speed: 5.9 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE |

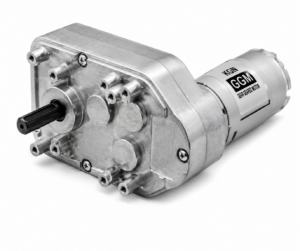

![[GGM] — KGV2-3657 Geared Motor, KD3657U1 (DC 12V, 9 ratios 1/60–1/660, F/R output)](https://img.prosourcemro.com/2026/06/0605-23-300x251.png)
GGM KGV2-3657 DC geared motor with KD3657U1 brushed motor (DC 12V, no-load 6000 rpm, 218 g). 9 reduction ratios 1/60–1/660, F-type/R-type output shaft, output torque up to 20 kgf·cm.
GGM KGV2-3657 DC geared motor with KD3657U1 brushed motor (DC 12V, no-load 6000 rpm, 218 g). 9 reduction ratios 1/60–1/660, F-type/R-type output shaft, output torque up to 20 kgf·cm.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KGV2-0060-KD3657U1-F | KGV2-3657 KD3657U1 geared motor, 1/60, F-TYPE | GGM | Gear Ratio: 1/60 | Output Speed: 83.3 rpm | Output Torque: 6.9 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0060-KD3657U1-R | KGV2-3657 KD3657U1 geared motor, 1/60, R-TYPE | GGM | Gear Ratio: 1/60 | Output Speed: 83.3 rpm | Output Torque: 6.9 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0070-KD3657U1-F | KGV2-3657 KD3657U1 geared motor, 1/70, F-TYPE | GGM | Gear Ratio: 1/70 | Output Speed: 71.4 rpm | Output Torque: 8.1 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0070-KD3657U1-R | KGV2-3657 KD3657U1 geared motor, 1/70, R-TYPE | GGM | Gear Ratio: 1/70 | Output Speed: 71.4 rpm | Output Torque: 8.1 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0090-KD3657U1-F | KGV2-3657 KD3657U1 geared motor, 1/90, F-TYPE | GGM | Gear Ratio: 1/90 | Output Speed: 55.5 rpm | Output Torque: 10.4 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0090-KD3657U1-R | KGV2-3657 KD3657U1 geared motor, 1/90, R-TYPE | GGM | Gear Ratio: 1/90 | Output Speed: 55.5 rpm | Output Torque: 10.4 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0105-KD3657U1-F | KGV2-3657 KD3657U1 geared motor, 1/105, F-TYPE | GGM | Gear Ratio: 1/105 | Output Speed: 47.6 rpm | Output Torque: 12.2 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0105-KD3657U1-R | KGV2-3657 KD3657U1 geared motor, 1/105, R-TYPE | GGM | Gear Ratio: 1/105 | Output Speed: 47.6 rpm | Output Torque: 12.2 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0135-KD3657U1-F | KGV2-3657 KD3657U1 geared motor, 1/135, F-TYPE | GGM | Gear Ratio: 1/135 | Output Speed: 37 rpm | Output Torque: 14 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0135-KD3657U1-R | KGV2-3657 KD3657U1 geared motor, 1/135, R-TYPE | GGM | Gear Ratio: 1/135 | Output Speed: 37 rpm | Output Torque: 14 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0200-KD3657U1-F | KGV2-3657 KD3657U1 geared motor, 1/200, F-TYPE | GGM | Gear Ratio: 1/200 | Output Speed: 25 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0200-KD3657U1-R | KGV2-3657 KD3657U1 geared motor, 1/200, R-TYPE | GGM | Gear Ratio: 1/200 | Output Speed: 25 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0350-KD3657U1-F | KGV2-3657 KD3657U1 geared motor, 1/350, F-TYPE | GGM | Gear Ratio: 1/350 | Output Speed: 14.2 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0350-KD3657U1-R | KGV2-3657 KD3657U1 geared motor, 1/350, R-TYPE | GGM | Gear Ratio: 1/350 | Output Speed: 14.2 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0500-KD3657U1-F | KGV2-3657 KD3657U1 geared motor, 1/500, F-TYPE | GGM | Gear Ratio: 1/500 | Output Speed: 10 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0500-KD3657U1-R | KGV2-3657 KD3657U1 geared motor, 1/500, R-TYPE | GGM | Gear Ratio: 1/500 | Output Speed: 10 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0660-KD3657U1-F | KGV2-3657 KD3657U1 geared motor, 1/660, F-TYPE | GGM | Gear Ratio: 1/660 | Output Speed: 7.5 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0660-KD3657U1-R | KGV2-3657 KD3657U1 geared motor, 1/660, R-TYPE | GGM | Gear Ratio: 1/660 | Output Speed: 7.5 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE |
GGM KGV2-3657 DC geared motor with KD3657U2 brushed motor (DC 24V, no-load 6000 rpm, 218 g). 9 reduction ratios 1/60–1/660, F-type/R-type output shaft, output torque up to 20 kgf·cm.
GGM KGV2-3657 DC geared motor with KD3657U2 brushed motor (DC 24V, no-load 6000 rpm, 218 g). 9 reduction ratios 1/60–1/660, F-type/R-type output shaft, output torque up to 20 kgf·cm.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KGV2-0060-KD3657U2-F | KGV2-3657 KD3657U2 geared motor, 1/60, F-TYPE | GGM | Gear Ratio: 1/60 | Output Speed: 83.3 rpm | Output Torque: 6.9 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0060-KD3657U2-R | KGV2-3657 KD3657U2 geared motor, 1/60, R-TYPE | GGM | Gear Ratio: 1/60 | Output Speed: 83.3 rpm | Output Torque: 6.9 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0070-KD3657U2-F | KGV2-3657 KD3657U2 geared motor, 1/70, F-TYPE | GGM | Gear Ratio: 1/70 | Output Speed: 71.4 rpm | Output Torque: 8.1 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0070-KD3657U2-R | KGV2-3657 KD3657U2 geared motor, 1/70, R-TYPE | GGM | Gear Ratio: 1/70 | Output Speed: 71.4 rpm | Output Torque: 8.1 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0090-KD3657U2-F | KGV2-3657 KD3657U2 geared motor, 1/90, F-TYPE | GGM | Gear Ratio: 1/90 | Output Speed: 55.5 rpm | Output Torque: 10.4 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0090-KD3657U2-R | KGV2-3657 KD3657U2 geared motor, 1/90, R-TYPE | GGM | Gear Ratio: 1/90 | Output Speed: 55.5 rpm | Output Torque: 10.4 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0105-KD3657U2-F | KGV2-3657 KD3657U2 geared motor, 1/105, F-TYPE | GGM | Gear Ratio: 1/105 | Output Speed: 47.6 rpm | Output Torque: 12.2 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0105-KD3657U2-R | KGV2-3657 KD3657U2 geared motor, 1/105, R-TYPE | GGM | Gear Ratio: 1/105 | Output Speed: 47.6 rpm | Output Torque: 12.2 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0135-KD3657U2-F | KGV2-3657 KD3657U2 geared motor, 1/135, F-TYPE | GGM | Gear Ratio: 1/135 | Output Speed: 37 rpm | Output Torque: 14 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0135-KD3657U2-R | KGV2-3657 KD3657U2 geared motor, 1/135, R-TYPE | GGM | Gear Ratio: 1/135 | Output Speed: 37 rpm | Output Torque: 14 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0200-KD3657U2-F | KGV2-3657 KD3657U2 geared motor, 1/200, F-TYPE | GGM | Gear Ratio: 1/200 | Output Speed: 25 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0200-KD3657U2-R | KGV2-3657 KD3657U2 geared motor, 1/200, R-TYPE | GGM | Gear Ratio: 1/200 | Output Speed: 25 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0350-KD3657U2-F | KGV2-3657 KD3657U2 geared motor, 1/350, F-TYPE | GGM | Gear Ratio: 1/350 | Output Speed: 14.2 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0350-KD3657U2-R | KGV2-3657 KD3657U2 geared motor, 1/350, R-TYPE | GGM | Gear Ratio: 1/350 | Output Speed: 14.2 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0500-KD3657U2-F | KGV2-3657 KD3657U2 geared motor, 1/500, F-TYPE | GGM | Gear Ratio: 1/500 | Output Speed: 10 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0500-KD3657U2-R | KGV2-3657 KD3657U2 geared motor, 1/500, R-TYPE | GGM | Gear Ratio: 1/500 | Output Speed: 10 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0660-KD3657U2-F | KGV2-3657 KD3657U2 geared motor, 1/660, F-TYPE | GGM | Gear Ratio: 1/660 | Output Speed: 7.5 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0660-KD3657U2-R | KGV2-3657 KD3657U2 geared motor, 1/660, R-TYPE | GGM | Gear Ratio: 1/660 | Output Speed: 7.5 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE |

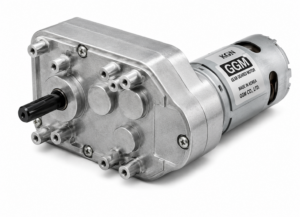

![[GGM] — KGV2-4266 Geared Motor, KD4266T1 (DC 12V, 9 ratios 1/60–1/660, F/R output)](https://img.prosourcemro.com/2026/06/0605-24-300x217.png)
GGM KGV2-4266 DC geared motor with KD4266T1 ø42 brushed motor (DC 12V, no-load 7000 rpm, 350 g). 9 reduction ratios 1/60–1/660, F-type/R-type output shaft, output torque up to 20 kgf·cm.
GGM KGV2-4266 DC geared motor with KD4266T1 ø42 brushed motor (DC 12V, no-load 7000 rpm, 350 g). 9 reduction ratios 1/60–1/660, F-type/R-type output shaft, output torque up to 20 kgf·cm.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KGV2-0060-KD4266T1-F | KGV2-4266 KD4266T1 geared motor, 1/60, F-TYPE | GGM | Gear Ratio: 1/60 | Output Speed: 98.3 rpm | Output Torque: 18 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0060-KD4266T1-R | KGV2-4266 KD4266T1 geared motor, 1/60, R-TYPE | GGM | Gear Ratio: 1/60 | Output Speed: 98.3 rpm | Output Torque: 18 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0070-KD4266T1-F | KGV2-4266 KD4266T1 geared motor, 1/70, F-TYPE | GGM | Gear Ratio: 1/70 | Output Speed: 84.2 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0070-KD4266T1-R | KGV2-4266 KD4266T1 geared motor, 1/70, R-TYPE | GGM | Gear Ratio: 1/70 | Output Speed: 84.2 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0090-KD4266T1-F | KGV2-4266 KD4266T1 geared motor, 1/90, F-TYPE | GGM | Gear Ratio: 1/90 | Output Speed: 65.5 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0090-KD4266T1-R | KGV2-4266 KD4266T1 geared motor, 1/90, R-TYPE | GGM | Gear Ratio: 1/90 | Output Speed: 65.5 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0105-KD4266T1-F | KGV2-4266 KD4266T1 geared motor, 1/105, F-TYPE | GGM | Gear Ratio: 1/105 | Output Speed: 56 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0105-KD4266T1-R | KGV2-4266 KD4266T1 geared motor, 1/105, R-TYPE | GGM | Gear Ratio: 1/105 | Output Speed: 56 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0135-KD4266T1-F | KGV2-4266 KD4266T1 geared motor, 1/135, F-TYPE | GGM | Gear Ratio: 1/135 | Output Speed: 43.7 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0135-KD4266T1-R | KGV2-4266 KD4266T1 geared motor, 1/135, R-TYPE | GGM | Gear Ratio: 1/135 | Output Speed: 43.7 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0200-KD4266T1-F | KGV2-4266 KD4266T1 geared motor, 1/200, F-TYPE | GGM | Gear Ratio: 1/200 | Output Speed: 29.5 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0200-KD4266T1-R | KGV2-4266 KD4266T1 geared motor, 1/200, R-TYPE | GGM | Gear Ratio: 1/200 | Output Speed: 29.5 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0350-KD4266T1-F | KGV2-4266 KD4266T1 geared motor, 1/350, F-TYPE | GGM | Gear Ratio: 1/350 | Output Speed: 16.8 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0350-KD4266T1-R | KGV2-4266 KD4266T1 geared motor, 1/350, R-TYPE | GGM | Gear Ratio: 1/350 | Output Speed: 16.8 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0500-KD4266T1-F | KGV2-4266 KD4266T1 geared motor, 1/500, F-TYPE | GGM | Gear Ratio: 1/500 | Output Speed: 11.8 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0500-KD4266T1-R | KGV2-4266 KD4266T1 geared motor, 1/500, R-TYPE | GGM | Gear Ratio: 1/500 | Output Speed: 11.8 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0660-KD4266T1-F | KGV2-4266 KD4266T1 geared motor, 1/660, F-TYPE | GGM | Gear Ratio: 1/660 | Output Speed: 8.9 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0660-KD4266T1-R | KGV2-4266 KD4266T1 geared motor, 1/660, R-TYPE | GGM | Gear Ratio: 1/660 | Output Speed: 8.9 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE |
GGM KGV2-4266 DC geared motor with KD4266T2 ø42 brushed motor (DC 24V, no-load 7000 rpm, 350 g). 9 reduction ratios 1/60–1/660, F-type/R-type output shaft, output torque up to 20 kgf·cm.
GGM KGV2-4266 DC geared motor with KD4266T2 ø42 brushed motor (DC 24V, no-load 7000 rpm, 350 g). 9 reduction ratios 1/60–1/660, F-type/R-type output shaft, output torque up to 20 kgf·cm.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KGV2-0060-KD4266T2-F | KGV2-4266 KD4266T2 geared motor, 1/60, F-TYPE | GGM | Gear Ratio: 1/60 | Output Speed: 98.3 rpm | Output Torque: 18 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0060-KD4266T2-R | KGV2-4266 KD4266T2 geared motor, 1/60, R-TYPE | GGM | Gear Ratio: 1/60 | Output Speed: 98.3 rpm | Output Torque: 18 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0070-KD4266T2-F | KGV2-4266 KD4266T2 geared motor, 1/70, F-TYPE | GGM | Gear Ratio: 1/70 | Output Speed: 84.2 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0070-KD4266T2-R | KGV2-4266 KD4266T2 geared motor, 1/70, R-TYPE | GGM | Gear Ratio: 1/70 | Output Speed: 84.2 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0090-KD4266T2-F | KGV2-4266 KD4266T2 geared motor, 1/90, F-TYPE | GGM | Gear Ratio: 1/90 | Output Speed: 65.5 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0090-KD4266T2-R | KGV2-4266 KD4266T2 geared motor, 1/90, R-TYPE | GGM | Gear Ratio: 1/90 | Output Speed: 65.5 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0105-KD4266T2-F | KGV2-4266 KD4266T2 geared motor, 1/105, F-TYPE | GGM | Gear Ratio: 1/105 | Output Speed: 56 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0105-KD4266T2-R | KGV2-4266 KD4266T2 geared motor, 1/105, R-TYPE | GGM | Gear Ratio: 1/105 | Output Speed: 56 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0135-KD4266T2-F | KGV2-4266 KD4266T2 geared motor, 1/135, F-TYPE | GGM | Gear Ratio: 1/135 | Output Speed: 43.7 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0135-KD4266T2-R | KGV2-4266 KD4266T2 geared motor, 1/135, R-TYPE | GGM | Gear Ratio: 1/135 | Output Speed: 43.7 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0200-KD4266T2-F | KGV2-4266 KD4266T2 geared motor, 1/200, F-TYPE | GGM | Gear Ratio: 1/200 | Output Speed: 29.5 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0200-KD4266T2-R | KGV2-4266 KD4266T2 geared motor, 1/200, R-TYPE | GGM | Gear Ratio: 1/200 | Output Speed: 29.5 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0350-KD4266T2-F | KGV2-4266 KD4266T2 geared motor, 1/350, F-TYPE | GGM | Gear Ratio: 1/350 | Output Speed: 16.8 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0350-KD4266T2-R | KGV2-4266 KD4266T2 geared motor, 1/350, R-TYPE | GGM | Gear Ratio: 1/350 | Output Speed: 16.8 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0500-KD4266T2-F | KGV2-4266 KD4266T2 geared motor, 1/500, F-TYPE | GGM | Gear Ratio: 1/500 | Output Speed: 11.8 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0500-KD4266T2-R | KGV2-4266 KD4266T2 geared motor, 1/500, R-TYPE | GGM | Gear Ratio: 1/500 | Output Speed: 11.8 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | |
| KGV2-0660-KD4266T2-F | KGV2-4266 KD4266T2 geared motor, 1/660, F-TYPE | GGM | Gear Ratio: 1/660 | Output Speed: 8.9 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | |
| KGV2-0660-KD4266T2-R | KGV2-4266 KD4266T2 geared motor, 1/660, R-TYPE | GGM | Gear Ratio: 1/660 | Output Speed: 8.9 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE |

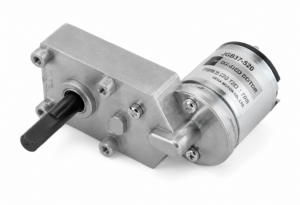

![[GGM] — KME-3429-P1 DC Geared Motor (DC 12V, F/R output, 1/22–1/67)](https://img.prosourcemro.com/2026/06/0609-300x205.png)
GGM KME-3429 P1 right-angle DC geared motor, KD3429P1 base, DC 12V. Gear ratios 1/22 to 1/67, output torque 1.3–3.5 kgf·cm; F-TYPE (standard) and R-TYPE output shaft.
GGM KME-3429 P1 right-angle DC geared motor, KD3429P1 base, DC 12V. Gear ratios 1/22 to 1/67, output torque 1.3–3.5 kgf·cm; F-TYPE (standard) and R-TYPE output shaft.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KME-0022-KD3429P1 | KME-3429 KD3429P1, 1/22, F-TYPE, DC 12V | GGM | Gear Ratio: 1/22 · Output Speed: 364 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: F-TYPE | |
| KME-0034-KD3429P1 | KME-3429 KD3429P1, 1/34, F-TYPE, DC 12V | GGM | Gear Ratio: 1/34 · Output Speed: 235 rpm · Output Torque: 2 kgf·cm · Output Shaft: F-TYPE | |
| KME-0043-KD3429P1 | KME-3429 KD3429P1, 1/43, F-TYPE, DC 12V | GGM | Gear Ratio: 1/43 · Output Speed: 186 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0053-KD3429P1 | KME-3429 KD3429P1, 1/53, F-TYPE, DC 12V | GGM | Gear Ratio: 1/53 · Output Speed: 150 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0060-KD3429P1 | KME-3429 KD3429P1, 1/60, F-TYPE, DC 12V | GGM | Gear Ratio: 1/60 · Output Speed: 133 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0067-KD3429P1 | KME-3429 KD3429P1, 1/67, F-TYPE, DC 12V | GGM | Gear Ratio: 1/67 · Output Speed: 119 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0022-KD3429P1-R | KME-3429 KD3429P1, 1/22, R-TYPE, DC 12V | GGM | Gear Ratio: 1/22 · Output Speed: 364 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: R-TYPE | |
| KME-0034-KD3429P1-R | KME-3429 KD3429P1, 1/34, R-TYPE, DC 12V | GGM | Gear Ratio: 1/34 · Output Speed: 235 rpm · Output Torque: 2 kgf·cm · Output Shaft: R-TYPE | |
| KME-0043-KD3429P1-R | KME-3429 KD3429P1, 1/43, R-TYPE, DC 12V | GGM | Gear Ratio: 1/43 · Output Speed: 186 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: R-TYPE | |
| KME-0053-KD3429P1-R | KME-3429 KD3429P1, 1/53, R-TYPE, DC 12V | GGM | Gear Ratio: 1/53 · Output Speed: 150 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0060-KD3429P1-R | KME-3429 KD3429P1, 1/60, R-TYPE, DC 12V | GGM | Gear Ratio: 1/60 · Output Speed: 133 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0067-KD3429P1-R | KME-3429 KD3429P1, 1/67, R-TYPE, DC 12V | GGM | Gear Ratio: 1/67 · Output Speed: 119 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: R-TYPE | |
| KME-0022-KD3429P1 | KME-3429 KD3429P1, 1/22, F-TYPE, DC 12V | GGM | Gear Ratio: 1/22 · Output Speed: 364 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: F-TYPE | |
| KME-0034-KD3429P1 | KME-3429 KD3429P1, 1/34, F-TYPE, DC 12V | GGM | Gear Ratio: 1/34 · Output Speed: 235 rpm · Output Torque: 2 kgf·cm · Output Shaft: F-TYPE | |
| KME-0043-KD3429P1 | KME-3429 KD3429P1, 1/43, F-TYPE, DC 12V | GGM | Gear Ratio: 1/43 · Output Speed: 186 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0053-KD3429P1 | KME-3429 KD3429P1, 1/53, F-TYPE, DC 12V | GGM | Gear Ratio: 1/53 · Output Speed: 150 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0060-KD3429P1 | KME-3429 KD3429P1, 1/60, F-TYPE, DC 12V | GGM | Gear Ratio: 1/60 · Output Speed: 133 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0067-KD3429P1 | KME-3429 KD3429P1, 1/67, F-TYPE, DC 12V | GGM | Gear Ratio: 1/67 · Output Speed: 119 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0022-KD3429P1-R | KME-3429 KD3429P1, 1/22, R-TYPE, DC 12V | GGM | Gear Ratio: 1/22 · Output Speed: 364 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: R-TYPE | |
| KME-0034-KD3429P1-R | KME-3429 KD3429P1, 1/34, R-TYPE, DC 12V | GGM | Gear Ratio: 1/34 · Output Speed: 235 rpm · Output Torque: 2 kgf·cm · Output Shaft: R-TYPE | |
| KME-0043-KD3429P1-R | KME-3429 KD3429P1, 1/43, R-TYPE, DC 12V | GGM | Gear Ratio: 1/43 · Output Speed: 186 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: R-TYPE | |
| KME-0053-KD3429P1-R | KME-3429 KD3429P1, 1/53, R-TYPE, DC 12V | GGM | Gear Ratio: 1/53 · Output Speed: 150 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0060-KD3429P1-R | KME-3429 KD3429P1, 1/60, R-TYPE, DC 12V | GGM | Gear Ratio: 1/60 · Output Speed: 133 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0067-KD3429P1-R | KME-3429 KD3429P1, 1/67, R-TYPE, DC 12V | GGM | Gear Ratio: 1/67 · Output Speed: 119 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: R-TYPE |
GGM KME-3429 P2 right-angle DC geared motor, KD3429P2 base, DC 24V. Gear ratios 1/22 to 1/67, output torque 0.6–1.8 kgf·cm; F-TYPE (standard) and R-TYPE output shaft.
GGM KME-3429 P2 right-angle DC geared motor, KD3429P2 base, DC 24V. Gear ratios 1/22 to 1/67, output torque 0.6–1.8 kgf·cm; F-TYPE (standard) and R-TYPE output shaft.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KME-0022-KD3429P2 | KME-3429 KD3429P2, 1/22, F-TYPE, DC 24V | GGM | Gear Ratio: 1/22 · Output Speed: 364 rpm · Output Torque: 0.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0034-KD3429P2 | KME-3429 KD3429P2, 1/34, F-TYPE, DC 24V | GGM | Gear Ratio: 1/34 · Output Speed: 235 rpm · Output Torque: 1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0043-KD3429P2 | KME-3429 KD3429P2, 1/43, F-TYPE, DC 24V | GGM | Gear Ratio: 1/43 · Output Speed: 186 rpm · Output Torque: 1.1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0053-KD3429P2 | KME-3429 KD3429P2, 1/53, F-TYPE, DC 24V | GGM | Gear Ratio: 1/53 · Output Speed: 150 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: F-TYPE | |
| KME-0060-KD3429P2 | KME-3429 KD3429P2, 1/60, F-TYPE, DC 24V | GGM | Gear Ratio: 1/60 · Output Speed: 133 rpm · Output Torque: 1.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0067-KD3429P2 | KME-3429 KD3429P2, 1/67, F-TYPE, DC 24V | GGM | Gear Ratio: 1/67 · Output Speed: 119 rpm · Output Torque: 1.8 kgf·cm · Output Shaft: F-TYPE | |
| KME-0022-KD3429P2-R | KME-3429 KD3429P2, 1/22, R-TYPE, DC 24V | GGM | Gear Ratio: 1/22 · Output Speed: 364 rpm · Output Torque: 0.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0034-KD3429P2-R | KME-3429 KD3429P2, 1/34, R-TYPE, DC 24V | GGM | Gear Ratio: 1/34 · Output Speed: 235 rpm · Output Torque: 1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0043-KD3429P2-R | KME-3429 KD3429P2, 1/43, R-TYPE, DC 24V | GGM | Gear Ratio: 1/43 · Output Speed: 186 rpm · Output Torque: 1.1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0053-KD3429P2-R | KME-3429 KD3429P2, 1/53, R-TYPE, DC 24V | GGM | Gear Ratio: 1/53 · Output Speed: 150 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: R-TYPE | |
| KME-0060-KD3429P2-R | KME-3429 KD3429P2, 1/60, R-TYPE, DC 24V | GGM | Gear Ratio: 1/60 · Output Speed: 133 rpm · Output Torque: 1.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0067-KD3429P2-R | KME-3429 KD3429P2, 1/67, R-TYPE, DC 24V | GGM | Gear Ratio: 1/67 · Output Speed: 119 rpm · Output Torque: 1.8 kgf·cm · Output Shaft: R-TYPE | |
| KME-0022-KD3429P2 | KME-3429 KD3429P2, 1/22, F-TYPE, DC 24V | GGM | Gear Ratio: 1/22 · Output Speed: 364 rpm · Output Torque: 0.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0034-KD3429P2 | KME-3429 KD3429P2, 1/34, F-TYPE, DC 24V | GGM | Gear Ratio: 1/34 · Output Speed: 235 rpm · Output Torque: 1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0043-KD3429P2 | KME-3429 KD3429P2, 1/43, F-TYPE, DC 24V | GGM | Gear Ratio: 1/43 · Output Speed: 186 rpm · Output Torque: 1.1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0053-KD3429P2 | KME-3429 KD3429P2, 1/53, F-TYPE, DC 24V | GGM | Gear Ratio: 1/53 · Output Speed: 150 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: F-TYPE | |
| KME-0060-KD3429P2 | KME-3429 KD3429P2, 1/60, F-TYPE, DC 24V | GGM | Gear Ratio: 1/60 · Output Speed: 133 rpm · Output Torque: 1.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0067-KD3429P2 | KME-3429 KD3429P2, 1/67, F-TYPE, DC 24V | GGM | Gear Ratio: 1/67 · Output Speed: 119 rpm · Output Torque: 1.8 kgf·cm · Output Shaft: F-TYPE | |
| KME-0022-KD3429P2-R | KME-3429 KD3429P2, 1/22, R-TYPE, DC 24V | GGM | Gear Ratio: 1/22 · Output Speed: 364 rpm · Output Torque: 0.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0034-KD3429P2-R | KME-3429 KD3429P2, 1/34, R-TYPE, DC 24V | GGM | Gear Ratio: 1/34 · Output Speed: 235 rpm · Output Torque: 1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0043-KD3429P2-R | KME-3429 KD3429P2, 1/43, R-TYPE, DC 24V | GGM | Gear Ratio: 1/43 · Output Speed: 186 rpm · Output Torque: 1.1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0053-KD3429P2-R | KME-3429 KD3429P2, 1/53, R-TYPE, DC 24V | GGM | Gear Ratio: 1/53 · Output Speed: 150 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: R-TYPE | |
| KME-0060-KD3429P2-R | KME-3429 KD3429P2, 1/60, R-TYPE, DC 24V | GGM | Gear Ratio: 1/60 · Output Speed: 133 rpm · Output Torque: 1.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0067-KD3429P2-R | KME-3429 KD3429P2, 1/67, R-TYPE, DC 24V | GGM | Gear Ratio: 1/67 · Output Speed: 119 rpm · Output Torque: 1.8 kgf·cm · Output Shaft: R-TYPE |
GGM KME-3429 S1 right-angle DC geared motor, KD3429S1 base, DC 12V. Gear ratios 1/22 to 1/67, output torque 0.6–1.8 kgf·cm; F-TYPE (standard) and R-TYPE output shaft.
GGM KME-3429 S1 right-angle DC geared motor, KD3429S1 base, DC 12V. Gear ratios 1/22 to 1/67, output torque 0.6–1.8 kgf·cm; F-TYPE (standard) and R-TYPE output shaft.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KME-0022-KD3429S1 | KME-3429 KD3429S1, 1/22, F-TYPE, DC 12V | GGM | Gear Ratio: 1/22 · Output Speed: 205 rpm · Output Torque: 0.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0034-KD3429S1 | KME-3429 KD3429S1, 1/34, F-TYPE, DC 12V | GGM | Gear Ratio: 1/34 · Output Speed: 132 rpm · Output Torque: 1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0043-KD3429S1 | KME-3429 KD3429S1, 1/43, F-TYPE, DC 12V | GGM | Gear Ratio: 1/43 · Output Speed: 104.7 rpm · Output Torque: 1.1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0053-KD3429S1 | KME-3429 KD3429S1, 1/53, F-TYPE, DC 12V | GGM | Gear Ratio: 1/53 · Output Speed: 84 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: F-TYPE | |
| KME-0060-KD3429S1 | KME-3429 KD3429S1, 1/60, F-TYPE, DC 12V | GGM | Gear Ratio: 1/60 · Output Speed: 75 rpm · Output Torque: 1.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0067-KD3429S1 | KME-3429 KD3429S1, 1/67, F-TYPE, DC 12V | GGM | Gear Ratio: 1/67 · Output Speed: 67.2 rpm · Output Torque: 1.8 kgf·cm · Output Shaft: F-TYPE | |
| KME-0022-KD3429S1-R | KME-3429 KD3429S1, 1/22, R-TYPE, DC 12V | GGM | Gear Ratio: 1/22 · Output Speed: 205 rpm · Output Torque: 0.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0034-KD3429S1-R | KME-3429 KD3429S1, 1/34, R-TYPE, DC 12V | GGM | Gear Ratio: 1/34 · Output Speed: 132 rpm · Output Torque: 1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0043-KD3429S1-R | KME-3429 KD3429S1, 1/43, R-TYPE, DC 12V | GGM | Gear Ratio: 1/43 · Output Speed: 104.7 rpm · Output Torque: 1.1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0053-KD3429S1-R | KME-3429 KD3429S1, 1/53, R-TYPE, DC 12V | GGM | Gear Ratio: 1/53 · Output Speed: 84 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: R-TYPE | |
| KME-0060-KD3429S1-R | KME-3429 KD3429S1, 1/60, R-TYPE, DC 12V | GGM | Gear Ratio: 1/60 · Output Speed: 75 rpm · Output Torque: 1.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0067-KD3429S1-R | KME-3429 KD3429S1, 1/67, R-TYPE, DC 12V | GGM | Gear Ratio: 1/67 · Output Speed: 67.2 rpm · Output Torque: 1.8 kgf·cm · Output Shaft: R-TYPE | |
| KME-0022-KD3429S1 | KME-3429 KD3429S1, 1/22, F-TYPE, DC 12V | GGM | Gear Ratio: 1/22 · Output Speed: 205 rpm · Output Torque: 0.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0034-KD3429S1 | KME-3429 KD3429S1, 1/34, F-TYPE, DC 12V | GGM | Gear Ratio: 1/34 · Output Speed: 132 rpm · Output Torque: 1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0043-KD3429S1 | KME-3429 KD3429S1, 1/43, F-TYPE, DC 12V | GGM | Gear Ratio: 1/43 · Output Speed: 104.7 rpm · Output Torque: 1.1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0053-KD3429S1 | KME-3429 KD3429S1, 1/53, F-TYPE, DC 12V | GGM | Gear Ratio: 1/53 · Output Speed: 84 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: F-TYPE | |
| KME-0060-KD3429S1 | KME-3429 KD3429S1, 1/60, F-TYPE, DC 12V | GGM | Gear Ratio: 1/60 · Output Speed: 75 rpm · Output Torque: 1.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0067-KD3429S1 | KME-3429 KD3429S1, 1/67, F-TYPE, DC 12V | GGM | Gear Ratio: 1/67 · Output Speed: 67.2 rpm · Output Torque: 1.8 kgf·cm · Output Shaft: F-TYPE | |
| KME-0022-KD3429S1-R | KME-3429 KD3429S1, 1/22, R-TYPE, DC 12V | GGM | Gear Ratio: 1/22 · Output Speed: 205 rpm · Output Torque: 0.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0034-KD3429S1-R | KME-3429 KD3429S1, 1/34, R-TYPE, DC 12V | GGM | Gear Ratio: 1/34 · Output Speed: 132 rpm · Output Torque: 1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0043-KD3429S1-R | KME-3429 KD3429S1, 1/43, R-TYPE, DC 12V | GGM | Gear Ratio: 1/43 · Output Speed: 104.7 rpm · Output Torque: 1.1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0053-KD3429S1-R | KME-3429 KD3429S1, 1/53, R-TYPE, DC 12V | GGM | Gear Ratio: 1/53 · Output Speed: 84 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: R-TYPE | |
| KME-0060-KD3429S1-R | KME-3429 KD3429S1, 1/60, R-TYPE, DC 12V | GGM | Gear Ratio: 1/60 · Output Speed: 75 rpm · Output Torque: 1.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0067-KD3429S1-R | KME-3429 KD3429S1, 1/67, R-TYPE, DC 12V | GGM | Gear Ratio: 1/67 · Output Speed: 67.2 rpm · Output Torque: 1.8 kgf·cm · Output Shaft: R-TYPE |
GGM KME-3429 S2 right-angle DC geared motor, KD3429S2 base, DC 24V. Gear ratios 1/22 to 1/67, output torque 0.6–1.8 kgf·cm; F-TYPE (standard) and R-TYPE output shaft.
GGM KME-3429 S2 right-angle DC geared motor, KD3429S2 base, DC 24V. Gear ratios 1/22 to 1/67, output torque 0.6–1.8 kgf·cm; F-TYPE (standard) and R-TYPE output shaft.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KME-0022-KD3429S2 | KME-3429 KD3429S2, 1/22, F-TYPE, DC 24V | GGM | Gear Ratio: 1/22 · Output Speed: 205 rpm · Output Torque: 0.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0034-KD3429S2 | KME-3429 KD3429S2, 1/34, F-TYPE, DC 24V | GGM | Gear Ratio: 1/34 · Output Speed: 132 rpm · Output Torque: 1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0043-KD3429S2 | KME-3429 KD3429S2, 1/43, F-TYPE, DC 24V | GGM | Gear Ratio: 1/43 · Output Speed: 104.7 rpm · Output Torque: 1.1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0053-KD3429S2 | KME-3429 KD3429S2, 1/53, F-TYPE, DC 24V | GGM | Gear Ratio: 1/53 · Output Speed: 84 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: F-TYPE | |
| KME-0060-KD3429S2 | KME-3429 KD3429S2, 1/60, F-TYPE, DC 24V | GGM | Gear Ratio: 1/60 · Output Speed: 75 rpm · Output Torque: 1.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0067-KD3429S2 | KME-3429 KD3429S2, 1/67, F-TYPE, DC 24V | GGM | Gear Ratio: 1/67 · Output Speed: 67.2 rpm · Output Torque: 1.8 kgf·cm · Output Shaft: F-TYPE | |
| KME-0022-KD3429S2-R | KME-3429 KD3429S2, 1/22, R-TYPE, DC 24V | GGM | Gear Ratio: 1/22 · Output Speed: 205 rpm · Output Torque: 0.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0034-KD3429S2-R | KME-3429 KD3429S2, 1/34, R-TYPE, DC 24V | GGM | Gear Ratio: 1/34 · Output Speed: 132 rpm · Output Torque: 1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0043-KD3429S2-R | KME-3429 KD3429S2, 1/43, R-TYPE, DC 24V | GGM | Gear Ratio: 1/43 · Output Speed: 104.7 rpm · Output Torque: 1.1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0053-KD3429S2-R | KME-3429 KD3429S2, 1/53, R-TYPE, DC 24V | GGM | Gear Ratio: 1/53 · Output Speed: 84 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: R-TYPE | |
| KME-0060-KD3429S2-R | KME-3429 KD3429S2, 1/60, R-TYPE, DC 24V | GGM | Gear Ratio: 1/60 · Output Speed: 75 rpm · Output Torque: 1.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0067-KD3429S2-R | KME-3429 KD3429S2, 1/67, R-TYPE, DC 24V | GGM | Gear Ratio: 1/67 · Output Speed: 67.2 rpm · Output Torque: 1.8 kgf·cm · Output Shaft: R-TYPE | |
| KME-0022-KD3429S2 | KME-3429 KD3429S2, 1/22, F-TYPE, DC 24V | GGM | Gear Ratio: 1/22 · Output Speed: 205 rpm · Output Torque: 0.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0034-KD3429S2 | KME-3429 KD3429S2, 1/34, F-TYPE, DC 24V | GGM | Gear Ratio: 1/34 · Output Speed: 132 rpm · Output Torque: 1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0043-KD3429S2 | KME-3429 KD3429S2, 1/43, F-TYPE, DC 24V | GGM | Gear Ratio: 1/43 · Output Speed: 104.7 rpm · Output Torque: 1.1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0053-KD3429S2 | KME-3429 KD3429S2, 1/53, F-TYPE, DC 24V | GGM | Gear Ratio: 1/53 · Output Speed: 84 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: F-TYPE | |
| KME-0060-KD3429S2 | KME-3429 KD3429S2, 1/60, F-TYPE, DC 24V | GGM | Gear Ratio: 1/60 · Output Speed: 75 rpm · Output Torque: 1.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0067-KD3429S2 | KME-3429 KD3429S2, 1/67, F-TYPE, DC 24V | GGM | Gear Ratio: 1/67 · Output Speed: 67.2 rpm · Output Torque: 1.8 kgf·cm · Output Shaft: F-TYPE | |
| KME-0022-KD3429S2-R | KME-3429 KD3429S2, 1/22, R-TYPE, DC 24V | GGM | Gear Ratio: 1/22 · Output Speed: 205 rpm · Output Torque: 0.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0034-KD3429S2-R | KME-3429 KD3429S2, 1/34, R-TYPE, DC 24V | GGM | Gear Ratio: 1/34 · Output Speed: 132 rpm · Output Torque: 1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0043-KD3429S2-R | KME-3429 KD3429S2, 1/43, R-TYPE, DC 24V | GGM | Gear Ratio: 1/43 · Output Speed: 104.7 rpm · Output Torque: 1.1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0053-KD3429S2-R | KME-3429 KD3429S2, 1/53, R-TYPE, DC 24V | GGM | Gear Ratio: 1/53 · Output Speed: 84 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: R-TYPE | |
| KME-0060-KD3429S2-R | KME-3429 KD3429S2, 1/60, R-TYPE, DC 24V | GGM | Gear Ratio: 1/60 · Output Speed: 75 rpm · Output Torque: 1.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0067-KD3429S2-R | KME-3429 KD3429S2, 1/67, R-TYPE, DC 24V | GGM | Gear Ratio: 1/67 · Output Speed: 67.2 rpm · Output Torque: 1.8 kgf·cm · Output Shaft: R-TYPE |
GGM KME-3429 T1 right-angle DC geared motor, KD3429T1 base, DC 12V. Gear ratios 1/22 to 1/67, output torque 0.6–1.8 kgf·cm; F-TYPE (standard) and R-TYPE output shaft.
GGM KME-3429 T1 right-angle DC geared motor, KD3429T1 base, DC 12V. Gear ratios 1/22 to 1/67, output torque 0.6–1.8 kgf·cm; F-TYPE (standard) and R-TYPE output shaft.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KME-0022-KD3429T1 | KME-3429 KD3429T1, 1/22, F-TYPE, DC 12V | GGM | Gear Ratio: 1/22 · Output Speed: 295 rpm · Output Torque: 0.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0034-KD3429T1 | KME-3429 KD3429T1, 1/34, F-TYPE, DC 12V | GGM | Gear Ratio: 1/34 · Output Speed: 191 rpm · Output Torque: 1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0043-KD3429T1 | KME-3429 KD3429T1, 1/43, F-TYPE, DC 12V | GGM | Gear Ratio: 1/43 · Output Speed: 151 rpm · Output Torque: 1.1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0053-KD3429T1 | KME-3429 KD3429T1, 1/53, F-TYPE, DC 12V | GGM | Gear Ratio: 1/53 · Output Speed: 122 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: F-TYPE | |
| KME-0060-KD3429T1 | KME-3429 KD3429T1, 1/60, F-TYPE, DC 12V | GGM | Gear Ratio: 1/60 · Output Speed: 108 rpm · Output Torque: 1.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0067-KD3429T1 | KME-3429 KD3429T1, 1/67, F-TYPE, DC 12V | GGM | Gear Ratio: 1/67 · Output Speed: 97 rpm · Output Torque: 1.8 kgf·cm · Output Shaft: F-TYPE | |
| KME-0022-KD3429T1-R | KME-3429 KD3429T1, 1/22, R-TYPE, DC 12V | GGM | Gear Ratio: 1/22 · Output Speed: 295 rpm · Output Torque: 0.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0034-KD3429T1-R | KME-3429 KD3429T1, 1/34, R-TYPE, DC 12V | GGM | Gear Ratio: 1/34 · Output Speed: 191 rpm · Output Torque: 1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0043-KD3429T1-R | KME-3429 KD3429T1, 1/43, R-TYPE, DC 12V | GGM | Gear Ratio: 1/43 · Output Speed: 151 rpm · Output Torque: 1.1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0053-KD3429T1-R | KME-3429 KD3429T1, 1/53, R-TYPE, DC 12V | GGM | Gear Ratio: 1/53 · Output Speed: 122 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: R-TYPE | |
| KME-0060-KD3429T1-R | KME-3429 KD3429T1, 1/60, R-TYPE, DC 12V | GGM | Gear Ratio: 1/60 · Output Speed: 108 rpm · Output Torque: 1.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0067-KD3429T1-R | KME-3429 KD3429T1, 1/67, R-TYPE, DC 12V | GGM | Gear Ratio: 1/67 · Output Speed: 97 rpm · Output Torque: 1.8 kgf·cm · Output Shaft: R-TYPE | |
| KME-0022-KD3429T1 | KME-3429 KD3429T1, 1/22, F-TYPE, DC 12V | GGM | Gear Ratio: 1/22 · Output Speed: 295 rpm · Output Torque: 0.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0034-KD3429T1 | KME-3429 KD3429T1, 1/34, F-TYPE, DC 12V | GGM | Gear Ratio: 1/34 · Output Speed: 191 rpm · Output Torque: 1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0043-KD3429T1 | KME-3429 KD3429T1, 1/43, F-TYPE, DC 12V | GGM | Gear Ratio: 1/43 · Output Speed: 151 rpm · Output Torque: 1.1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0053-KD3429T1 | KME-3429 KD3429T1, 1/53, F-TYPE, DC 12V | GGM | Gear Ratio: 1/53 · Output Speed: 122 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: F-TYPE | |
| KME-0060-KD3429T1 | KME-3429 KD3429T1, 1/60, F-TYPE, DC 12V | GGM | Gear Ratio: 1/60 · Output Speed: 108 rpm · Output Torque: 1.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0067-KD3429T1 | KME-3429 KD3429T1, 1/67, F-TYPE, DC 12V | GGM | Gear Ratio: 1/67 · Output Speed: 97 rpm · Output Torque: 1.8 kgf·cm · Output Shaft: F-TYPE | |
| KME-0022-KD3429T1-R | KME-3429 KD3429T1, 1/22, R-TYPE, DC 12V | GGM | Gear Ratio: 1/22 · Output Speed: 295 rpm · Output Torque: 0.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0034-KD3429T1-R | KME-3429 KD3429T1, 1/34, R-TYPE, DC 12V | GGM | Gear Ratio: 1/34 · Output Speed: 191 rpm · Output Torque: 1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0043-KD3429T1-R | KME-3429 KD3429T1, 1/43, R-TYPE, DC 12V | GGM | Gear Ratio: 1/43 · Output Speed: 151 rpm · Output Torque: 1.1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0053-KD3429T1-R | KME-3429 KD3429T1, 1/53, R-TYPE, DC 12V | GGM | Gear Ratio: 1/53 · Output Speed: 122 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: R-TYPE | |
| KME-0060-KD3429T1-R | KME-3429 KD3429T1, 1/60, R-TYPE, DC 12V | GGM | Gear Ratio: 1/60 · Output Speed: 108 rpm · Output Torque: 1.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0067-KD3429T1-R | KME-3429 KD3429T1, 1/67, R-TYPE, DC 12V | GGM | Gear Ratio: 1/67 · Output Speed: 97 rpm · Output Torque: 1.8 kgf·cm · Output Shaft: R-TYPE |
GGM KME-3429 T2 right-angle DC geared motor, KD3429T2 base, DC 24V. Gear ratios 1/22 to 1/67, output torque 0.6–1.8 kgf·cm; F-TYPE (standard) and R-TYPE output shaft.
GGM KME-3429 T2 right-angle DC geared motor, KD3429T2 base, DC 24V. Gear ratios 1/22 to 1/67, output torque 0.6–1.8 kgf·cm; F-TYPE (standard) and R-TYPE output shaft.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KME-0022-KD3429T2 | KME-3429 KD3429T2, 1/22, F-TYPE, DC 24V | GGM | Gear Ratio: 1/22 · Output Speed: 295 rpm · Output Torque: 0.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0034-KD3429T2 | KME-3429 KD3429T2, 1/34, F-TYPE, DC 24V | GGM | Gear Ratio: 1/34 · Output Speed: 191 rpm · Output Torque: 1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0043-KD3429T2 | KME-3429 KD3429T2, 1/43, F-TYPE, DC 24V | GGM | Gear Ratio: 1/43 · Output Speed: 151 rpm · Output Torque: 1.1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0053-KD3429T2 | KME-3429 KD3429T2, 1/53, F-TYPE, DC 24V | GGM | Gear Ratio: 1/53 · Output Speed: 122 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: F-TYPE | |
| KME-0060-KD3429T2 | KME-3429 KD3429T2, 1/60, F-TYPE, DC 24V | GGM | Gear Ratio: 1/60 · Output Speed: 108 rpm · Output Torque: 1.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0067-KD3429T2 | KME-3429 KD3429T2, 1/67, F-TYPE, DC 24V | GGM | Gear Ratio: 1/67 · Output Speed: 97 rpm · Output Torque: 1.8 kgf·cm · Output Shaft: F-TYPE | |
| KME-0022-KD3429T2-R | KME-3429 KD3429T2, 1/22, R-TYPE, DC 24V | GGM | Gear Ratio: 1/22 · Output Speed: 295 rpm · Output Torque: 0.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0034-KD3429T2-R | KME-3429 KD3429T2, 1/34, R-TYPE, DC 24V | GGM | Gear Ratio: 1/34 · Output Speed: 191 rpm · Output Torque: 1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0043-KD3429T2-R | KME-3429 KD3429T2, 1/43, R-TYPE, DC 24V | GGM | Gear Ratio: 1/43 · Output Speed: 151 rpm · Output Torque: 1.1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0053-KD3429T2-R | KME-3429 KD3429T2, 1/53, R-TYPE, DC 24V | GGM | Gear Ratio: 1/53 · Output Speed: 122 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: R-TYPE | |
| KME-0060-KD3429T2-R | KME-3429 KD3429T2, 1/60, R-TYPE, DC 24V | GGM | Gear Ratio: 1/60 · Output Speed: 108 rpm · Output Torque: 1.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0067-KD3429T2-R | KME-3429 KD3429T2, 1/67, R-TYPE, DC 24V | GGM | Gear Ratio: 1/67 · Output Speed: 97 rpm · Output Torque: 1.8 kgf·cm · Output Shaft: R-TYPE | |
| KME-0022-KD3429T2 | KME-3429 KD3429T2, 1/22, F-TYPE, DC 24V | GGM | Gear Ratio: 1/22 · Output Speed: 295 rpm · Output Torque: 0.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0034-KD3429T2 | KME-3429 KD3429T2, 1/34, F-TYPE, DC 24V | GGM | Gear Ratio: 1/34 · Output Speed: 191 rpm · Output Torque: 1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0043-KD3429T2 | KME-3429 KD3429T2, 1/43, F-TYPE, DC 24V | GGM | Gear Ratio: 1/43 · Output Speed: 151 rpm · Output Torque: 1.1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0053-KD3429T2 | KME-3429 KD3429T2, 1/53, F-TYPE, DC 24V | GGM | Gear Ratio: 1/53 · Output Speed: 122 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: F-TYPE | |
| KME-0060-KD3429T2 | KME-3429 KD3429T2, 1/60, F-TYPE, DC 24V | GGM | Gear Ratio: 1/60 · Output Speed: 108 rpm · Output Torque: 1.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0067-KD3429T2 | KME-3429 KD3429T2, 1/67, F-TYPE, DC 24V | GGM | Gear Ratio: 1/67 · Output Speed: 97 rpm · Output Torque: 1.8 kgf·cm · Output Shaft: F-TYPE | |
| KME-0022-KD3429T2-R | KME-3429 KD3429T2, 1/22, R-TYPE, DC 24V | GGM | Gear Ratio: 1/22 · Output Speed: 295 rpm · Output Torque: 0.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0034-KD3429T2-R | KME-3429 KD3429T2, 1/34, R-TYPE, DC 24V | GGM | Gear Ratio: 1/34 · Output Speed: 191 rpm · Output Torque: 1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0043-KD3429T2-R | KME-3429 KD3429T2, 1/43, R-TYPE, DC 24V | GGM | Gear Ratio: 1/43 · Output Speed: 151 rpm · Output Torque: 1.1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0053-KD3429T2-R | KME-3429 KD3429T2, 1/53, R-TYPE, DC 24V | GGM | Gear Ratio: 1/53 · Output Speed: 122 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: R-TYPE | |
| KME-0060-KD3429T2-R | KME-3429 KD3429T2, 1/60, R-TYPE, DC 24V | GGM | Gear Ratio: 1/60 · Output Speed: 108 rpm · Output Torque: 1.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0067-KD3429T2-R | KME-3429 KD3429T2, 1/67, R-TYPE, DC 24V | GGM | Gear Ratio: 1/67 · Output Speed: 97 rpm · Output Torque: 1.8 kgf·cm · Output Shaft: R-TYPE |
GGM KME-3448 P1 right-angle DC geared motor, KD3448P1 base, DC 12V. Gear ratios 1/22 to 1/67, output torque 1.3–3.5 kgf·cm; F-TYPE (standard) and R-TYPE output shaft.
GGM KME-3448 P1 right-angle DC geared motor, KD3448P1 base, DC 12V. Gear ratios 1/22 to 1/67, output torque 1.3–3.5 kgf·cm; F-TYPE (standard) and R-TYPE output shaft.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KME-0022-KD3448P1 | KME-3448 KD3448P1, 1/22, F-TYPE, DC 12V | GGM | Gear Ratio: 1/22 · Output Speed: 364 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: F-TYPE | |
| KME-0034-KD3448P1 | KME-3448 KD3448P1, 1/34, F-TYPE, DC 12V | GGM | Gear Ratio: 1/34 · Output Speed: 235 rpm · Output Torque: 2 kgf·cm · Output Shaft: F-TYPE | |
| KME-0043-KD3448P1 | KME-3448 KD3448P1, 1/43, F-TYPE, DC 12V | GGM | Gear Ratio: 1/43 · Output Speed: 186 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0053-KD3448P1 | KME-3448 KD3448P1, 1/53, F-TYPE, DC 12V | GGM | Gear Ratio: 1/53 · Output Speed: 150 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0060-KD3448P1 | KME-3448 KD3448P1, 1/60, F-TYPE, DC 12V | GGM | Gear Ratio: 1/60 · Output Speed: 133 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0067-KD3448P1 | KME-3448 KD3448P1, 1/67, F-TYPE, DC 12V | GGM | Gear Ratio: 1/67 · Output Speed: 119 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0022-KD3448P1-R | KME-3448 KD3448P1, 1/22, R-TYPE, DC 12V | GGM | Gear Ratio: 1/22 · Output Speed: 364 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: R-TYPE | |
| KME-0034-KD3448P1-R | KME-3448 KD3448P1, 1/34, R-TYPE, DC 12V | GGM | Gear Ratio: 1/34 · Output Speed: 235 rpm · Output Torque: 2 kgf·cm · Output Shaft: R-TYPE | |
| KME-0043-KD3448P1-R | KME-3448 KD3448P1, 1/43, R-TYPE, DC 12V | GGM | Gear Ratio: 1/43 · Output Speed: 186 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: R-TYPE | |
| KME-0053-KD3448P1-R | KME-3448 KD3448P1, 1/53, R-TYPE, DC 12V | GGM | Gear Ratio: 1/53 · Output Speed: 150 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0060-KD3448P1-R | KME-3448 KD3448P1, 1/60, R-TYPE, DC 12V | GGM | Gear Ratio: 1/60 · Output Speed: 133 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0067-KD3448P1-R | KME-3448 KD3448P1, 1/67, R-TYPE, DC 12V | GGM | Gear Ratio: 1/67 · Output Speed: 119 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: R-TYPE | |
| KME-0022-KD3448P1 | KME-3448 KD3448P1, 1/22, F-TYPE, DC 12V | GGM | Gear Ratio: 1/22 · Output Speed: 364 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: F-TYPE | |
| KME-0034-KD3448P1 | KME-3448 KD3448P1, 1/34, F-TYPE, DC 12V | GGM | Gear Ratio: 1/34 · Output Speed: 235 rpm · Output Torque: 2 kgf·cm · Output Shaft: F-TYPE | |
| KME-0043-KD3448P1 | KME-3448 KD3448P1, 1/43, F-TYPE, DC 12V | GGM | Gear Ratio: 1/43 · Output Speed: 186 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0053-KD3448P1 | KME-3448 KD3448P1, 1/53, F-TYPE, DC 12V | GGM | Gear Ratio: 1/53 · Output Speed: 150 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0060-KD3448P1 | KME-3448 KD3448P1, 1/60, F-TYPE, DC 12V | GGM | Gear Ratio: 1/60 · Output Speed: 133 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0067-KD3448P1 | KME-3448 KD3448P1, 1/67, F-TYPE, DC 12V | GGM | Gear Ratio: 1/67 · Output Speed: 119 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0022-KD3448P1-R | KME-3448 KD3448P1, 1/22, R-TYPE, DC 12V | GGM | Gear Ratio: 1/22 · Output Speed: 364 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: R-TYPE | |
| KME-0034-KD3448P1-R | KME-3448 KD3448P1, 1/34, R-TYPE, DC 12V | GGM | Gear Ratio: 1/34 · Output Speed: 235 rpm · Output Torque: 2 kgf·cm · Output Shaft: R-TYPE | |
| KME-0043-KD3448P1-R | KME-3448 KD3448P1, 1/43, R-TYPE, DC 12V | GGM | Gear Ratio: 1/43 · Output Speed: 186 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: R-TYPE | |
| KME-0053-KD3448P1-R | KME-3448 KD3448P1, 1/53, R-TYPE, DC 12V | GGM | Gear Ratio: 1/53 · Output Speed: 150 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0060-KD3448P1-R | KME-3448 KD3448P1, 1/60, R-TYPE, DC 12V | GGM | Gear Ratio: 1/60 · Output Speed: 133 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0067-KD3448P1-R | KME-3448 KD3448P1, 1/67, R-TYPE, DC 12V | GGM | Gear Ratio: 1/67 · Output Speed: 119 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: R-TYPE |
GGM KME-3448 P2 right-angle DC geared motor, KD3448P2 base, DC 24V. Gear ratios 1/22 to 1/67, output torque 1.3–3.5 kgf·cm; F-TYPE (standard) and R-TYPE output shaft.
GGM KME-3448 P2 right-angle DC geared motor, KD3448P2 base, DC 24V. Gear ratios 1/22 to 1/67, output torque 1.3–3.5 kgf·cm; F-TYPE (standard) and R-TYPE output shaft.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KME-0022-KD3448P2 | KME-3448 KD3448P2, 1/22, F-TYPE, DC 24V | GGM | Gear Ratio: 1/22 · Output Speed: 364 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: F-TYPE | |
| KME-0034-KD3448P2 | KME-3448 KD3448P2, 1/34, F-TYPE, DC 24V | GGM | Gear Ratio: 1/34 · Output Speed: 235 rpm · Output Torque: 2 kgf·cm · Output Shaft: F-TYPE | |
| KME-0043-KD3448P2 | KME-3448 KD3448P2, 1/43, F-TYPE, DC 24V | GGM | Gear Ratio: 1/43 · Output Speed: 186 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0053-KD3448P2 | KME-3448 KD3448P2, 1/53, F-TYPE, DC 24V | GGM | Gear Ratio: 1/53 · Output Speed: 150 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0060-KD3448P2 | KME-3448 KD3448P2, 1/60, F-TYPE, DC 24V | GGM | Gear Ratio: 1/60 · Output Speed: 133 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0067-KD3448P2 | KME-3448 KD3448P2, 1/67, F-TYPE, DC 24V | GGM | Gear Ratio: 1/67 · Output Speed: 119 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0022-KD3448P2-R | KME-3448 KD3448P2, 1/22, R-TYPE, DC 24V | GGM | Gear Ratio: 1/22 · Output Speed: 364 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: R-TYPE | |
| KME-0034-KD3448P2-R | KME-3448 KD3448P2, 1/34, R-TYPE, DC 24V | GGM | Gear Ratio: 1/34 · Output Speed: 235 rpm · Output Torque: 2 kgf·cm · Output Shaft: R-TYPE | |
| KME-0043-KD3448P2-R | KME-3448 KD3448P2, 1/43, R-TYPE, DC 24V | GGM | Gear Ratio: 1/43 · Output Speed: 186 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: R-TYPE | |
| KME-0053-KD3448P2-R | KME-3448 KD3448P2, 1/53, R-TYPE, DC 24V | GGM | Gear Ratio: 1/53 · Output Speed: 150 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0060-KD3448P2-R | KME-3448 KD3448P2, 1/60, R-TYPE, DC 24V | GGM | Gear Ratio: 1/60 · Output Speed: 133 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0067-KD3448P2-R | KME-3448 KD3448P2, 1/67, R-TYPE, DC 24V | GGM | Gear Ratio: 1/67 · Output Speed: 119 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: R-TYPE | |
| KME-0022-KD3448P2 | KME-3448 KD3448P2, 1/22, F-TYPE, DC 24V | GGM | Gear Ratio: 1/22 · Output Speed: 364 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: F-TYPE | |
| KME-0034-KD3448P2 | KME-3448 KD3448P2, 1/34, F-TYPE, DC 24V | GGM | Gear Ratio: 1/34 · Output Speed: 235 rpm · Output Torque: 2 kgf·cm · Output Shaft: F-TYPE | |
| KME-0043-KD3448P2 | KME-3448 KD3448P2, 1/43, F-TYPE, DC 24V | GGM | Gear Ratio: 1/43 · Output Speed: 186 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0053-KD3448P2 | KME-3448 KD3448P2, 1/53, F-TYPE, DC 24V | GGM | Gear Ratio: 1/53 · Output Speed: 150 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0060-KD3448P2 | KME-3448 KD3448P2, 1/60, F-TYPE, DC 24V | GGM | Gear Ratio: 1/60 · Output Speed: 133 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0067-KD3448P2 | KME-3448 KD3448P2, 1/67, F-TYPE, DC 24V | GGM | Gear Ratio: 1/67 · Output Speed: 119 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0022-KD3448P2-R | KME-3448 KD3448P2, 1/22, R-TYPE, DC 24V | GGM | Gear Ratio: 1/22 · Output Speed: 364 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: R-TYPE | |
| KME-0034-KD3448P2-R | KME-3448 KD3448P2, 1/34, R-TYPE, DC 24V | GGM | Gear Ratio: 1/34 · Output Speed: 235 rpm · Output Torque: 2 kgf·cm · Output Shaft: R-TYPE | |
| KME-0043-KD3448P2-R | KME-3448 KD3448P2, 1/43, R-TYPE, DC 24V | GGM | Gear Ratio: 1/43 · Output Speed: 186 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: R-TYPE | |
| KME-0053-KD3448P2-R | KME-3448 KD3448P2, 1/53, R-TYPE, DC 24V | GGM | Gear Ratio: 1/53 · Output Speed: 150 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0060-KD3448P2-R | KME-3448 KD3448P2, 1/60, R-TYPE, DC 24V | GGM | Gear Ratio: 1/60 · Output Speed: 133 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0067-KD3448P2-R | KME-3448 KD3448P2, 1/67, R-TYPE, DC 24V | GGM | Gear Ratio: 1/67 · Output Speed: 119 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: R-TYPE |
GGM KME-3448 S1 right-angle DC geared motor, KD3448S1 base, DC 12V. Gear ratios 1/22 to 1/67, output torque 1.3–3.5 kgf·cm; F-TYPE (standard) and R-TYPE output shaft.
GGM KME-3448 S1 right-angle DC geared motor, KD3448S1 base, DC 12V. Gear ratios 1/22 to 1/67, output torque 1.3–3.5 kgf·cm; F-TYPE (standard) and R-TYPE output shaft.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KME-0022-KD3448S1 | KME-3448 KD3448S1, 1/22, F-TYPE, DC 12V | GGM | Gear Ratio: 1/22 · Output Speed: 205 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: F-TYPE | |
| KME-0034-KD3448S1 | KME-3448 KD3448S1, 1/34, F-TYPE, DC 12V | GGM | Gear Ratio: 1/34 · Output Speed: 132 rpm · Output Torque: 2 kgf·cm · Output Shaft: F-TYPE | |
| KME-0043-KD3448S1 | KME-3448 KD3448S1, 1/43, F-TYPE, DC 12V | GGM | Gear Ratio: 1/43 · Output Speed: 104.7 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0053-KD3448S1 | KME-3448 KD3448S1, 1/53, F-TYPE, DC 12V | GGM | Gear Ratio: 1/53 · Output Speed: 84 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0060-KD3448S1 | KME-3448 KD3448S1, 1/60, F-TYPE, DC 12V | GGM | Gear Ratio: 1/60 · Output Speed: 75 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0067-KD3448S1 | KME-3448 KD3448S1, 1/67, F-TYPE, DC 12V | GGM | Gear Ratio: 1/67 · Output Speed: 67.2 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0022-KD3448S1-R | KME-3448 KD3448S1, 1/22, R-TYPE, DC 12V | GGM | Gear Ratio: 1/22 · Output Speed: 205 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: R-TYPE | |
| KME-0034-KD3448S1-R | KME-3448 KD3448S1, 1/34, R-TYPE, DC 12V | GGM | Gear Ratio: 1/34 · Output Speed: 132 rpm · Output Torque: 2 kgf·cm · Output Shaft: R-TYPE | |
| KME-0043-KD3448S1-R | KME-3448 KD3448S1, 1/43, R-TYPE, DC 12V | GGM | Gear Ratio: 1/43 · Output Speed: 104.7 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: R-TYPE | |
| KME-0053-KD3448S1-R | KME-3448 KD3448S1, 1/53, R-TYPE, DC 12V | GGM | Gear Ratio: 1/53 · Output Speed: 84 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0060-KD3448S1-R | KME-3448 KD3448S1, 1/60, R-TYPE, DC 12V | GGM | Gear Ratio: 1/60 · Output Speed: 75 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0067-KD3448S1-R | KME-3448 KD3448S1, 1/67, R-TYPE, DC 12V | GGM | Gear Ratio: 1/67 · Output Speed: 67.2 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: R-TYPE | |
| KME-0022-KD3448S1 | KME-3448 KD3448S1, 1/22, F-TYPE, DC 12V | GGM | Gear Ratio: 1/22 · Output Speed: 205 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: F-TYPE | |
| KME-0034-KD3448S1 | KME-3448 KD3448S1, 1/34, F-TYPE, DC 12V | GGM | Gear Ratio: 1/34 · Output Speed: 132 rpm · Output Torque: 2 kgf·cm · Output Shaft: F-TYPE | |
| KME-0043-KD3448S1 | KME-3448 KD3448S1, 1/43, F-TYPE, DC 12V | GGM | Gear Ratio: 1/43 · Output Speed: 104.7 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0053-KD3448S1 | KME-3448 KD3448S1, 1/53, F-TYPE, DC 12V | GGM | Gear Ratio: 1/53 · Output Speed: 84 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0060-KD3448S1 | KME-3448 KD3448S1, 1/60, F-TYPE, DC 12V | GGM | Gear Ratio: 1/60 · Output Speed: 75 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0067-KD3448S1 | KME-3448 KD3448S1, 1/67, F-TYPE, DC 12V | GGM | Gear Ratio: 1/67 · Output Speed: 67.2 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0022-KD3448S1-R | KME-3448 KD3448S1, 1/22, R-TYPE, DC 12V | GGM | Gear Ratio: 1/22 · Output Speed: 205 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: R-TYPE | |
| KME-0034-KD3448S1-R | KME-3448 KD3448S1, 1/34, R-TYPE, DC 12V | GGM | Gear Ratio: 1/34 · Output Speed: 132 rpm · Output Torque: 2 kgf·cm · Output Shaft: R-TYPE | |
| KME-0043-KD3448S1-R | KME-3448 KD3448S1, 1/43, R-TYPE, DC 12V | GGM | Gear Ratio: 1/43 · Output Speed: 104.7 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: R-TYPE | |
| KME-0053-KD3448S1-R | KME-3448 KD3448S1, 1/53, R-TYPE, DC 12V | GGM | Gear Ratio: 1/53 · Output Speed: 84 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0060-KD3448S1-R | KME-3448 KD3448S1, 1/60, R-TYPE, DC 12V | GGM | Gear Ratio: 1/60 · Output Speed: 75 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0067-KD3448S1-R | KME-3448 KD3448S1, 1/67, R-TYPE, DC 12V | GGM | Gear Ratio: 1/67 · Output Speed: 67.2 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: R-TYPE |
GGM KME-3448 S2 right-angle DC geared motor, KD3448S2 base, DC 24V. Gear ratios 1/22 to 1/67, output torque 1.3–3.5 kgf·cm; F-TYPE (standard) and R-TYPE output shaft.
GGM KME-3448 S2 right-angle DC geared motor, KD3448S2 base, DC 24V. Gear ratios 1/22 to 1/67, output torque 1.3–3.5 kgf·cm; F-TYPE (standard) and R-TYPE output shaft.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KME-0022-KD3448S2 | KME-3448 KD3448S2, 1/22, F-TYPE, DC 24V | GGM | Gear Ratio: 1/22 · Output Speed: 205 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: F-TYPE | |
| KME-0034-KD3448S2 | KME-3448 KD3448S2, 1/34, F-TYPE, DC 24V | GGM | Gear Ratio: 1/34 · Output Speed: 132 rpm · Output Torque: 2 kgf·cm · Output Shaft: F-TYPE | |
| KME-0043-KD3448S2 | KME-3448 KD3448S2, 1/43, F-TYPE, DC 24V | GGM | Gear Ratio: 1/43 · Output Speed: 104.7 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0053-KD3448S2 | KME-3448 KD3448S2, 1/53, F-TYPE, DC 24V | GGM | Gear Ratio: 1/53 · Output Speed: 84 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0060-KD3448S2 | KME-3448 KD3448S2, 1/60, F-TYPE, DC 24V | GGM | Gear Ratio: 1/60 · Output Speed: 75 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0067-KD3448S2 | KME-3448 KD3448S2, 1/67, F-TYPE, DC 24V | GGM | Gear Ratio: 1/67 · Output Speed: 67.2 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0022-KD3448S2-R | KME-3448 KD3448S2, 1/22, R-TYPE, DC 24V | GGM | Gear Ratio: 1/22 · Output Speed: 205 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: R-TYPE | |
| KME-0034-KD3448S2-R | KME-3448 KD3448S2, 1/34, R-TYPE, DC 24V | GGM | Gear Ratio: 1/34 · Output Speed: 132 rpm · Output Torque: 2 kgf·cm · Output Shaft: R-TYPE | |
| KME-0043-KD3448S2-R | KME-3448 KD3448S2, 1/43, R-TYPE, DC 24V | GGM | Gear Ratio: 1/43 · Output Speed: 104.7 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: R-TYPE | |
| KME-0053-KD3448S2-R | KME-3448 KD3448S2, 1/53, R-TYPE, DC 24V | GGM | Gear Ratio: 1/53 · Output Speed: 84 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0060-KD3448S2-R | KME-3448 KD3448S2, 1/60, R-TYPE, DC 24V | GGM | Gear Ratio: 1/60 · Output Speed: 75 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0067-KD3448S2-R | KME-3448 KD3448S2, 1/67, R-TYPE, DC 24V | GGM | Gear Ratio: 1/67 · Output Speed: 67.2 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: R-TYPE | |
| KME-0022-KD3448S2 | KME-3448 KD3448S2, 1/22, F-TYPE, DC 24V | GGM | Gear Ratio: 1/22 · Output Speed: 205 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: F-TYPE | |
| KME-0034-KD3448S2 | KME-3448 KD3448S2, 1/34, F-TYPE, DC 24V | GGM | Gear Ratio: 1/34 · Output Speed: 132 rpm · Output Torque: 2 kgf·cm · Output Shaft: F-TYPE | |
| KME-0043-KD3448S2 | KME-3448 KD3448S2, 1/43, F-TYPE, DC 24V | GGM | Gear Ratio: 1/43 · Output Speed: 104.7 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0053-KD3448S2 | KME-3448 KD3448S2, 1/53, F-TYPE, DC 24V | GGM | Gear Ratio: 1/53 · Output Speed: 84 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0060-KD3448S2 | KME-3448 KD3448S2, 1/60, F-TYPE, DC 24V | GGM | Gear Ratio: 1/60 · Output Speed: 75 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0067-KD3448S2 | KME-3448 KD3448S2, 1/67, F-TYPE, DC 24V | GGM | Gear Ratio: 1/67 · Output Speed: 67.2 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0022-KD3448S2-R | KME-3448 KD3448S2, 1/22, R-TYPE, DC 24V | GGM | Gear Ratio: 1/22 · Output Speed: 205 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: R-TYPE | |
| KME-0034-KD3448S2-R | KME-3448 KD3448S2, 1/34, R-TYPE, DC 24V | GGM | Gear Ratio: 1/34 · Output Speed: 132 rpm · Output Torque: 2 kgf·cm · Output Shaft: R-TYPE | |
| KME-0043-KD3448S2-R | KME-3448 KD3448S2, 1/43, R-TYPE, DC 24V | GGM | Gear Ratio: 1/43 · Output Speed: 104.7 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: R-TYPE | |
| KME-0053-KD3448S2-R | KME-3448 KD3448S2, 1/53, R-TYPE, DC 24V | GGM | Gear Ratio: 1/53 · Output Speed: 84 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0060-KD3448S2-R | KME-3448 KD3448S2, 1/60, R-TYPE, DC 24V | GGM | Gear Ratio: 1/60 · Output Speed: 75 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0067-KD3448S2-R | KME-3448 KD3448S2, 1/67, R-TYPE, DC 24V | GGM | Gear Ratio: 1/67 · Output Speed: 67.2 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: R-TYPE |
GGM KME-3448 T1 right-angle DC geared motor, KD3448T1 base, DC 12V. Gear ratios 1/22 to 1/67, output torque 1.3–3.5 kgf·cm; F-TYPE (standard) and R-TYPE output shaft.
GGM KME-3448 T1 right-angle DC geared motor, KD3448T1 base, DC 12V. Gear ratios 1/22 to 1/67, output torque 1.3–3.5 kgf·cm; F-TYPE (standard) and R-TYPE output shaft.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KME-0022-KD3448T1 | KME-3448 KD3448T1, 1/22, F-TYPE, DC 12V | GGM | Gear Ratio: 1/22 · Output Speed: 295 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: F-TYPE | |
| KME-0034-KD3448T1 | KME-3448 KD3448T1, 1/34, F-TYPE, DC 12V | GGM | Gear Ratio: 1/34 · Output Speed: 191 rpm · Output Torque: 2 kgf·cm · Output Shaft: F-TYPE | |
| KME-0043-KD3448T1 | KME-3448 KD3448T1, 1/43, F-TYPE, DC 12V | GGM | Gear Ratio: 1/43 · Output Speed: 151 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0053-KD3448T1 | KME-3448 KD3448T1, 1/53, F-TYPE, DC 12V | GGM | Gear Ratio: 1/53 · Output Speed: 122 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0060-KD3448T1 | KME-3448 KD3448T1, 1/60, F-TYPE, DC 12V | GGM | Gear Ratio: 1/60 · Output Speed: 108 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0067-KD3448T1 | KME-3448 KD3448T1, 1/67, F-TYPE, DC 12V | GGM | Gear Ratio: 1/67 · Output Speed: 97 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0022-KD3448T1-R | KME-3448 KD3448T1, 1/22, R-TYPE, DC 12V | GGM | Gear Ratio: 1/22 · Output Speed: 295 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: R-TYPE | |
| KME-0034-KD3448T1-R | KME-3448 KD3448T1, 1/34, R-TYPE, DC 12V | GGM | Gear Ratio: 1/34 · Output Speed: 191 rpm · Output Torque: 2 kgf·cm · Output Shaft: R-TYPE | |
| KME-0043-KD3448T1-R | KME-3448 KD3448T1, 1/43, R-TYPE, DC 12V | GGM | Gear Ratio: 1/43 · Output Speed: 151 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: R-TYPE | |
| KME-0053-KD3448T1-R | KME-3448 KD3448T1, 1/53, R-TYPE, DC 12V | GGM | Gear Ratio: 1/53 · Output Speed: 122 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0060-KD3448T1-R | KME-3448 KD3448T1, 1/60, R-TYPE, DC 12V | GGM | Gear Ratio: 1/60 · Output Speed: 108 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0067-KD3448T1-R | KME-3448 KD3448T1, 1/67, R-TYPE, DC 12V | GGM | Gear Ratio: 1/67 · Output Speed: 97 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: R-TYPE | |
| KME-0022-KD3448T1 | KME-3448 KD3448T1, 1/22, F-TYPE, DC 12V | GGM | Gear Ratio: 1/22 · Output Speed: 295 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: F-TYPE | |
| KME-0034-KD3448T1 | KME-3448 KD3448T1, 1/34, F-TYPE, DC 12V | GGM | Gear Ratio: 1/34 · Output Speed: 191 rpm · Output Torque: 2 kgf·cm · Output Shaft: F-TYPE | |
| KME-0043-KD3448T1 | KME-3448 KD3448T1, 1/43, F-TYPE, DC 12V | GGM | Gear Ratio: 1/43 · Output Speed: 151 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0053-KD3448T1 | KME-3448 KD3448T1, 1/53, F-TYPE, DC 12V | GGM | Gear Ratio: 1/53 · Output Speed: 122 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0060-KD3448T1 | KME-3448 KD3448T1, 1/60, F-TYPE, DC 12V | GGM | Gear Ratio: 1/60 · Output Speed: 108 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0067-KD3448T1 | KME-3448 KD3448T1, 1/67, F-TYPE, DC 12V | GGM | Gear Ratio: 1/67 · Output Speed: 97 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0022-KD3448T1-R | KME-3448 KD3448T1, 1/22, R-TYPE, DC 12V | GGM | Gear Ratio: 1/22 · Output Speed: 295 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: R-TYPE | |
| KME-0034-KD3448T1-R | KME-3448 KD3448T1, 1/34, R-TYPE, DC 12V | GGM | Gear Ratio: 1/34 · Output Speed: 191 rpm · Output Torque: 2 kgf·cm · Output Shaft: R-TYPE | |
| KME-0043-KD3448T1-R | KME-3448 KD3448T1, 1/43, R-TYPE, DC 12V | GGM | Gear Ratio: 1/43 · Output Speed: 151 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: R-TYPE | |
| KME-0053-KD3448T1-R | KME-3448 KD3448T1, 1/53, R-TYPE, DC 12V | GGM | Gear Ratio: 1/53 · Output Speed: 122 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0060-KD3448T1-R | KME-3448 KD3448T1, 1/60, R-TYPE, DC 12V | GGM | Gear Ratio: 1/60 · Output Speed: 108 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0067-KD3448T1-R | KME-3448 KD3448T1, 1/67, R-TYPE, DC 12V | GGM | Gear Ratio: 1/67 · Output Speed: 97 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: R-TYPE |
GGM KME-3448 T2 right-angle DC geared motor, KD3448T2 base, DC 24V. Gear ratios 1/22 to 1/67, output torque 1.3–3.5 kgf·cm; F-TYPE (standard) and R-TYPE output shaft.
GGM KME-3448 T2 right-angle DC geared motor, KD3448T2 base, DC 24V. Gear ratios 1/22 to 1/67, output torque 1.3–3.5 kgf·cm; F-TYPE (standard) and R-TYPE output shaft.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KME-0022-KD3448T2 | KME-3448 KD3448T2, 1/22, F-TYPE, DC 24V | GGM | Gear Ratio: 1/22 · Output Speed: 295 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: F-TYPE | |
| KME-0034-KD3448T2 | KME-3448 KD3448T2, 1/34, F-TYPE, DC 24V | GGM | Gear Ratio: 1/34 · Output Speed: 191 rpm · Output Torque: 2 kgf·cm · Output Shaft: F-TYPE | |
| KME-0043-KD3448T2 | KME-3448 KD3448T2, 1/43, F-TYPE, DC 24V | GGM | Gear Ratio: 1/43 · Output Speed: 151 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0053-KD3448T2 | KME-3448 KD3448T2, 1/53, F-TYPE, DC 24V | GGM | Gear Ratio: 1/53 · Output Speed: 122 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0060-KD3448T2 | KME-3448 KD3448T2, 1/60, F-TYPE, DC 24V | GGM | Gear Ratio: 1/60 · Output Speed: 108 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0067-KD3448T2 | KME-3448 KD3448T2, 1/67, F-TYPE, DC 24V | GGM | Gear Ratio: 1/67 · Output Speed: 97 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0022-KD3448T2-R | KME-3448 KD3448T2, 1/22, R-TYPE, DC 24V | GGM | Gear Ratio: 1/22 · Output Speed: 295 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: R-TYPE | |
| KME-0034-KD3448T2-R | KME-3448 KD3448T2, 1/34, R-TYPE, DC 24V | GGM | Gear Ratio: 1/34 · Output Speed: 191 rpm · Output Torque: 2 kgf·cm · Output Shaft: R-TYPE | |
| KME-0043-KD3448T2-R | KME-3448 KD3448T2, 1/43, R-TYPE, DC 24V | GGM | Gear Ratio: 1/43 · Output Speed: 151 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: R-TYPE | |
| KME-0053-KD3448T2-R | KME-3448 KD3448T2, 1/53, R-TYPE, DC 24V | GGM | Gear Ratio: 1/53 · Output Speed: 122 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0060-KD3448T2-R | KME-3448 KD3448T2, 1/60, R-TYPE, DC 24V | GGM | Gear Ratio: 1/60 · Output Speed: 108 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0067-KD3448T2-R | KME-3448 KD3448T2, 1/67, R-TYPE, DC 24V | GGM | Gear Ratio: 1/67 · Output Speed: 97 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: R-TYPE | |
| KME-0022-KD3448T2 | KME-3448 KD3448T2, 1/22, F-TYPE, DC 24V | GGM | Gear Ratio: 1/22 · Output Speed: 295 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: F-TYPE | |
| KME-0034-KD3448T2 | KME-3448 KD3448T2, 1/34, F-TYPE, DC 24V | GGM | Gear Ratio: 1/34 · Output Speed: 191 rpm · Output Torque: 2 kgf·cm · Output Shaft: F-TYPE | |
| KME-0043-KD3448T2 | KME-3448 KD3448T2, 1/43, F-TYPE, DC 24V | GGM | Gear Ratio: 1/43 · Output Speed: 151 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0053-KD3448T2 | KME-3448 KD3448T2, 1/53, F-TYPE, DC 24V | GGM | Gear Ratio: 1/53 · Output Speed: 122 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: F-TYPE | |
| KME-0060-KD3448T2 | KME-3448 KD3448T2, 1/60, F-TYPE, DC 24V | GGM | Gear Ratio: 1/60 · Output Speed: 108 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: F-TYPE | |
| KME-0067-KD3448T2 | KME-3448 KD3448T2, 1/67, F-TYPE, DC 24V | GGM | Gear Ratio: 1/67 · Output Speed: 97 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: F-TYPE | |
| KME-0022-KD3448T2-R | KME-3448 KD3448T2, 1/22, R-TYPE, DC 24V | GGM | Gear Ratio: 1/22 · Output Speed: 295 rpm · Output Torque: 1.3 kgf·cm · Output Shaft: R-TYPE | |
| KME-0034-KD3448T2-R | KME-3448 KD3448T2, 1/34, R-TYPE, DC 24V | GGM | Gear Ratio: 1/34 · Output Speed: 191 rpm · Output Torque: 2 kgf·cm · Output Shaft: R-TYPE | |
| KME-0043-KD3448T2-R | KME-3448 KD3448T2, 1/43, R-TYPE, DC 24V | GGM | Gear Ratio: 1/43 · Output Speed: 151 rpm · Output Torque: 2.5 kgf·cm · Output Shaft: R-TYPE | |
| KME-0053-KD3448T2-R | KME-3448 KD3448T2, 1/53, R-TYPE, DC 24V | GGM | Gear Ratio: 1/53 · Output Speed: 122 rpm · Output Torque: 2.6 kgf·cm · Output Shaft: R-TYPE | |
| KME-0060-KD3448T2-R | KME-3448 KD3448T2, 1/60, R-TYPE, DC 24V | GGM | Gear Ratio: 1/60 · Output Speed: 108 rpm · Output Torque: 3.1 kgf·cm · Output Shaft: R-TYPE | |
| KME-0067-KD3448T2-R | KME-3448 KD3448T2, 1/67, R-TYPE, DC 24V | GGM | Gear Ratio: 1/67 · Output Speed: 97 rpm · Output Torque: 3.5 kgf·cm · Output Shaft: R-TYPE |
![[GGM] — KMF Gearhead for KA61 Shaded-Pole Motors (□60, F-Type, 1/150–1/3140)](https://img.prosourcemro.com/2026/06/0604-14-300x240.png)
GGM KMF gearhead for □60 KA61 shaded-pole general-type motors, 13 gear ratios from 1/150 to 1/3140 with output rotating opposite to the motor. Max permissible output torque 30 kgf·cm, F-TYPE standard, body 69.9×119.1mm, Ø12.7 shaft, 4-M5 mounting.
GGM KMF gearhead for □60 KA61 shaded-pole general-type motors, 13 gear ratios from 1/150 to 1/3140 with output rotating opposite to the motor. Max permissible output torque 30 kgf·cm, F-TYPE standard, body 69.9×119.1mm, Ø12.7 shaft, 4-M5 mounting.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KMF-0150 | KMF gearhead, 1/150, output 16/19.3 rpm (50/60Hz), reverse rotation | GGM | Gear Ratio: 1/150 | Output Speed: 16 rpm (50Hz) / 19.3 rpm (60Hz) | Max Permissible Output Torque: 30 kgf·cm | Rotation: Opposite to motor | |
| KMF-0330 | KMF gearhead, 1/330, output 7.3/8.8 rpm (50/60Hz), reverse rotation | GGM | Gear Ratio: 1/330 | Output Speed: 7.3 rpm (50Hz) / 8.8 rpm (60Hz) | Max Permissible Output Torque: 30 kgf·cm | Rotation: Opposite to motor | |
| KMF-0500 | KMF gearhead, 1/500, output 4.8/5.8 rpm (50/60Hz), reverse rotation | GGM | Gear Ratio: 1/500 | Output Speed: 4.8 rpm (50Hz) / 5.8 rpm (60Hz) | Max Permissible Output Torque: 30 kgf·cm | Rotation: Opposite to motor | |
| KMF-0550 | KMF gearhead, 1/550, output 4.4/5.3 rpm (50/60Hz), reverse rotation | GGM | Gear Ratio: 1/550 | Output Speed: 4.4 rpm (50Hz) / 5.3 rpm (60Hz) | Max Permissible Output Torque: 30 kgf·cm | Rotation: Opposite to motor | |
| KMF-0760 | KMF gearhead, 1/760, output 3.2/3.8 rpm (50/60Hz), reverse rotation | GGM | Gear Ratio: 1/760 | Output Speed: 3.2 rpm (50Hz) / 3.8 rpm (60Hz) | Max Permissible Output Torque: 30 kgf·cm | Rotation: Opposite to motor | |
| KMF-0850 | KMF gearhead, 1/850, output 2.8/3.4 rpm (50/60Hz), reverse rotation | GGM | Gear Ratio: 1/850 | Output Speed: 2.8 rpm (50Hz) / 3.4 rpm (60Hz) | Max Permissible Output Torque: 30 kgf·cm | Rotation: Opposite to motor | |
| KMF-0940 | KMF gearhead, 1/940, output 2.6/3.1 rpm (50/60Hz), reverse rotation | GGM | Gear Ratio: 1/940 | Output Speed: 2.6 rpm (50Hz) / 3.1 rpm (60Hz) | Max Permissible Output Torque: 30 kgf·cm | Rotation: Opposite to motor | |
| KMF-1410 | KMF gearhead, 1/1410, output 1.7/2.1 rpm (50/60Hz), reverse rotation | GGM | Gear Ratio: 1/1410 | Output Speed: 1.7 rpm (50Hz) / 2.1 rpm (60Hz) | Max Permissible Output Torque: 30 kgf·cm | Rotation: Opposite to motor | |
| KMF-1740 | KMF gearhead, 1/1740, output 1.4/1.7 rpm (50/60Hz), reverse rotation | GGM | Gear Ratio: 1/1740 | Output Speed: 1.4 rpm (50Hz) / 1.7 rpm (60Hz) | Max Permissible Output Torque: 30 kgf·cm | Rotation: Opposite to motor | |
| KMF-2250 | KMF gearhead, 1/2250, output 1.1/1.3 rpm (50/60Hz), reverse rotation | GGM | Gear Ratio: 1/2250 | Output Speed: 1.1 rpm (50Hz) / 1.3 rpm (60Hz) | Max Permissible Output Torque: 30 kgf·cm | Rotation: Opposite to motor | |
| KMF-2360 | KMF gearhead, 1/2360, output 1/1.2 rpm (50/60Hz), reverse rotation | GGM | Gear Ratio: 1/2360 | Output Speed: 1 rpm (50Hz) / 1.2 rpm (60Hz) | Max Permissible Output Torque: 30 kgf·cm | Rotation: Opposite to motor | |
| KMF-2610 | KMF gearhead, 1/2610, output 0.9/1.1 rpm (50/60Hz), reverse rotation | GGM | Gear Ratio: 1/2610 | Output Speed: 0.9 rpm (50Hz) / 1.1 rpm (60Hz) | Max Permissible Output Torque: 30 kgf·cm | Rotation: Opposite to motor | |
| KMF-3140 | KMF gearhead, 1/3140, output 0.8/0.9 rpm (50/60Hz), reverse rotation | GGM | Gear Ratio: 1/3140 | Output Speed: 0.8 rpm (50Hz) / 0.9 rpm (60Hz) | Max Permissible Output Torque: 30 kgf·cm | Rotation: Opposite to motor |
![[GGM] — KWA-2531-U1 Worm Geared Motor (DC 12V, 1/76–1/1650)](https://img.prosourcemro.com/2026/06/0609-1-300x225.png)
GGM KWA worm geared motor, KD2531U1 base, DC 12V. 12 gear ratios 1/76 to 1/1650, output torque 0.4–6 kgf·cm; ø6 output shaft, 6500 rpm no-load motor.
GGM KWA worm geared motor, KD2531U1 base, DC 12V. 12 gear ratios 1/76 to 1/1650, output torque 0.4–6 kgf·cm; ø6 output shaft, 6500 rpm no-load motor.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KWA-0076-KD2531U1 | KWA worm gearhead KD2531U1, 1/76, DC 12V | GGM | Gear Ratio: 1/76 · Output Speed: 61.8 rpm · Output Torque: 0.4 kgf·cm | |
| KWA-0095-KD2531U1 | KWA worm gearhead KD2531U1, 1/95, DC 12V | GGM | Gear Ratio: 1/95 · Output Speed: 49.4 rpm · Output Torque: 0.5 kgf·cm | |
| KWA-0123-KD2531U1 | KWA worm gearhead KD2531U1, 1/123, DC 12V | GGM | Gear Ratio: 1/123 · Output Speed: 38.2 rpm · Output Torque: 0.6 kgf·cm | |
| KWA-0150-KD2531U1 | KWA worm gearhead KD2531U1, 1/150, DC 12V | GGM | Gear Ratio: 1/150 · Output Speed: 31.3 rpm · Output Torque: 0.8 kgf·cm | |
| KWA-0175-KD2531U1 | KWA worm gearhead KD2531U1, 1/175, DC 12V | GGM | Gear Ratio: 1/175 · Output Speed: 26.8 rpm · Output Torque: 0.9 kgf·cm | |
| KWA-0200-KD2531U1 | KWA worm gearhead KD2531U1, 1/200, DC 12V | GGM | Gear Ratio: 1/200 · Output Speed: 23.5 rpm · Output Torque: 1 kgf·cm | |
| KWA-0255-KD2531U1 | KWA worm gearhead KD2531U1, 1/255, DC 12V | GGM | Gear Ratio: 1/255 · Output Speed: 18.4 rpm · Output Torque: 1.3 kgf·cm | |
| KWA-0290-KD2531U1 | KWA worm gearhead KD2531U1, 1/290, DC 12V | GGM | Gear Ratio: 1/290 · Output Speed: 16.2 rpm · Output Torque: 1.4 kgf·cm | |
| KWA-0380-KD2531U1 | KWA worm gearhead KD2531U1, 1/380, DC 12V | GGM | Gear Ratio: 1/380 · Output Speed: 12.3 rpm · Output Torque: 1.8 kgf·cm | |
| KWA-0650-KD2531U1 | KWA worm gearhead KD2531U1, 1/650, DC 12V | GGM | Gear Ratio: 1/650 · Output Speed: 7.2 rpm · Output Torque: 3.1 kgf·cm | |
| KWA-0940-KD2531U1 | KWA worm gearhead KD2531U1, 1/940, DC 12V | GGM | Gear Ratio: 1/940 · Output Speed: 5 rpm · Output Torque: 4 kgf·cm | |
| KWA-1650-KD2531U1 | KWA worm gearhead KD2531U1, 1/1650, DC 12V | GGM | Gear Ratio: 1/1650 · Output Speed: 2.8 rpm · Output Torque: 6 kgf·cm |
GGM KWA worm geared motor, KD2531U2 base, DC 24V. 12 gear ratios 1/76 to 1/1650, output torque 0.4–6 kgf·cm; ø6 output shaft, 6500 rpm no-load motor.
GGM KWA worm geared motor, KD2531U2 base, DC 24V. 12 gear ratios 1/76 to 1/1650, output torque 0.4–6 kgf·cm; ø6 output shaft, 6500 rpm no-load motor.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KWA-0076-KD2531U2 | KWA worm gearhead KD2531U2, 1/76, DC 24V | GGM | Gear Ratio: 1/76 · Output Speed: 61.8 rpm · Output Torque: 0.4 kgf·cm | |
| KWA-0095-KD2531U2 | KWA worm gearhead KD2531U2, 1/95, DC 24V | GGM | Gear Ratio: 1/95 · Output Speed: 49.4 rpm · Output Torque: 0.5 kgf·cm | |
| KWA-0123-KD2531U2 | KWA worm gearhead KD2531U2, 1/123, DC 24V | GGM | Gear Ratio: 1/123 · Output Speed: 38.2 rpm · Output Torque: 0.6 kgf·cm | |
| KWA-0150-KD2531U2 | KWA worm gearhead KD2531U2, 1/150, DC 24V | GGM | Gear Ratio: 1/150 · Output Speed: 31.3 rpm · Output Torque: 0.8 kgf·cm | |
| KWA-0175-KD2531U2 | KWA worm gearhead KD2531U2, 1/175, DC 24V | GGM | Gear Ratio: 1/175 · Output Speed: 26.8 rpm · Output Torque: 0.9 kgf·cm | |
| KWA-0200-KD2531U2 | KWA worm gearhead KD2531U2, 1/200, DC 24V | GGM | Gear Ratio: 1/200 · Output Speed: 23.5 rpm · Output Torque: 1 kgf·cm | |
| KWA-0255-KD2531U2 | KWA worm gearhead KD2531U2, 1/255, DC 24V | GGM | Gear Ratio: 1/255 · Output Speed: 18.4 rpm · Output Torque: 1.3 kgf·cm | |
| KWA-0290-KD2531U2 | KWA worm gearhead KD2531U2, 1/290, DC 24V | GGM | Gear Ratio: 1/290 · Output Speed: 16.2 rpm · Output Torque: 1.4 kgf·cm | |
| KWA-0380-KD2531U2 | KWA worm gearhead KD2531U2, 1/380, DC 24V | GGM | Gear Ratio: 1/380 · Output Speed: 12.3 rpm · Output Torque: 1.8 kgf·cm | |
| KWA-0650-KD2531U2 | KWA worm gearhead KD2531U2, 1/650, DC 24V | GGM | Gear Ratio: 1/650 · Output Speed: 7.2 rpm · Output Torque: 3.1 kgf·cm | |
| KWA-0940-KD2531U2 | KWA worm gearhead KD2531U2, 1/940, DC 24V | GGM | Gear Ratio: 1/940 · Output Speed: 5 rpm · Output Torque: 4 kgf·cm | |
| KWA-1650-KD2531U2 | KWA worm gearhead KD2531U2, 1/1650, DC 24V | GGM | Gear Ratio: 1/1650 · Output Speed: 2.8 rpm · Output Torque: 6 kgf·cm |
