Cable Carriers

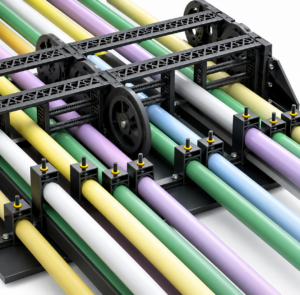

![[CP SYSTEM] — Cable Clamp Middle Housing (Ø06-34mm, H.2)](https://img.prosourcemro.com/2026/05/002-205-300x295.png)
CP SYSTEM Cable Clamp middle housing for double/triple-clamp composition. Sized by applicable cable diameter (Ø06-34mm), 36x8.5mm section.
CP SYSTEM Cable Clamp middle housing for double/triple-clamp composition. Sized by applicable cable diameter (Ø06-34mm), 36x8.5mm section.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| H.2.1 | Cable clamp middle housing, Ø06~12mm | CP SYSTEM | Type: Middle Housing | Applicable Cable: Ø06~12mm | Section: 36±0.2mm x 8.5±0.2mm | Used in: Double & Triple clamp composition | |
| H.2.2 | Cable clamp middle housing, Ø12~14mm | CP SYSTEM | Type: Middle Housing | Applicable Cable: Ø12~14mm | Section: 36±0.2mm x 8.5±0.2mm | Used in: Double & Triple clamp composition | |
| H.2.3 | Cable clamp middle housing, Ø14~16mm | CP SYSTEM | Type: Middle Housing | Applicable Cable: Ø14~16mm | Section: 36±0.2mm x 8.5±0.2mm | Used in: Double & Triple clamp composition | |
| H.2.4 | Cable clamp middle housing, Ø16~18mm | CP SYSTEM | Type: Middle Housing | Applicable Cable: Ø16~18mm | Section: 36±0.2mm x 8.5±0.2mm | Used in: Double & Triple clamp composition | |
| H.2.5 | Cable clamp middle housing, Ø18~20mm | CP SYSTEM | Type: Middle Housing | Applicable Cable: Ø18~20mm | Section: 36±0.2mm x 8.5±0.2mm | Used in: Double & Triple clamp composition | |
| H.2.6 | Cable clamp middle housing, Ø20~22mm | CP SYSTEM | Type: Middle Housing | Applicable Cable: Ø20~22mm | Section: 36±0.2mm x 8.5±0.2mm | Used in: Double & Triple clamp composition | |
| H.2.7 | Cable clamp middle housing, Ø22~26mm | CP SYSTEM | Type: Middle Housing | Applicable Cable: Ø22~26mm | Section: 36±0.2mm x 8.5±0.2mm | Used in: Double & Triple clamp composition | |
| H.2.8 | Cable clamp middle housing, Ø26~30mm | CP SYSTEM | Type: Middle Housing | Applicable Cable: Ø26~30mm | Section: 36±0.2mm x 8.5±0.2mm | Used in: Double & Triple clamp composition | |
| H.2.9 | Cable clamp middle housing, Ø30~34mm | CP SYSTEM | Type: Middle Housing | Applicable Cable: Ø30~34mm | Section: 36±0.2mm x 8.5±0.2mm | Used in: Double & Triple clamp composition |
CP SYSTEM Cable Clamp multi housing — special type used in multi-type clamp composition (MH1.06 single, MH2.06 / MH2.0612 double). Refer to applicable cable specifications for selection.
CP SYSTEM Cable Clamp multi housing — special type used in multi-type clamp composition (MH1.06 single, MH2.06 / MH2.0612 double). Refer to applicable cable specifications for selection.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| MH1.06 | Cable clamp multi housing MH1.06 (Ø06X2 (Single Type)) | CP SYSTEM | Type: Multi Housing (special type) | Configuration: Ø06X2 (Single Type) | Note: Special type - refer to applicable cable spec | |
| MH2.06 | Cable clamp multi housing MH2.06 (Ø06X2 (Double Type)) | CP SYSTEM | Type: Multi Housing (special type) | Configuration: Ø06X2 (Double Type) | Note: Special type - refer to applicable cable spec | |
| MH2.0612 | Cable clamp multi housing MH2.0612 (Ø06X2,12 (Double Type)) | CP SYSTEM | Type: Multi Housing (special type) | Configuration: Ø06X2,12 (Double Type) | Note: Special type - refer to applicable cable spec |
CP SYSTEM Cable Clamp support rail (CS650) — sliding-type support onto which the clamps are mounted; cut to length per cable-chain specification (max 650mm). Part no. by frame length; actual support length = frame length + 20mm. Fixed with M5 bolts.
CP SYSTEM Cable Clamp support rail (CS650) — sliding-type support onto which the clamps are mounted; cut to length per cable-chain specification (max 650mm). Part no. by frame length; actual support length = frame length + 20mm. Fixed with M5 bolts.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| CS650.50 | Cable clamp support CS650, frame 50mm (length 70mm) | CP SYSTEM | Type: Cable Clamp Support (rail) | Frame Length: 50mm | Actual Length: 70mm (frame + 20mm) | Max Length: 650mm | Section: 27.2 x 15.7mm (11 / 7.4mm) | Mounting: M5 bolt; cut to length per cable-chain spec | Note: Customized specification available | |
| CS650.75 | Cable clamp support CS650, frame 75mm (length 95mm) | CP SYSTEM | Type: Cable Clamp Support (rail) | Frame Length: 75mm | Actual Length: 95mm (frame + 20mm) | Max Length: 650mm | Section: 27.2 x 15.7mm (11 / 7.4mm) | Mounting: M5 bolt; cut to length per cable-chain spec | Note: Customized specification available | |
| CS650.100 | Cable clamp support CS650, frame 100mm (length 120mm) | CP SYSTEM | Type: Cable Clamp Support (rail) | Frame Length: 100mm | Actual Length: 120mm (frame + 20mm) | Max Length: 650mm | Section: 27.2 x 15.7mm (11 / 7.4mm) | Mounting: M5 bolt; cut to length per cable-chain spec | Note: Customized specification available | |
| CS650.125 | Cable clamp support CS650, frame 125mm (length 145mm) | CP SYSTEM | Type: Cable Clamp Support (rail) | Frame Length: 125mm | Actual Length: 145mm (frame + 20mm) | Max Length: 650mm | Section: 27.2 x 15.7mm (11 / 7.4mm) | Mounting: M5 bolt; cut to length per cable-chain spec | Note: Customized specification available | |
| CS650.150 | Cable clamp support CS650, frame 150mm (length 170mm) | CP SYSTEM | Type: Cable Clamp Support (rail) | Frame Length: 150mm | Actual Length: 170mm (frame + 20mm) | Max Length: 650mm | Section: 27.2 x 15.7mm (11 / 7.4mm) | Mounting: M5 bolt; cut to length per cable-chain spec | Note: Customized specification available | |
| CS650.175 | Cable clamp support CS650, frame 175mm (length 195mm) | CP SYSTEM | Type: Cable Clamp Support (rail) | Frame Length: 175mm | Actual Length: 195mm (frame + 20mm) | Max Length: 650mm | Section: 27.2 x 15.7mm (11 / 7.4mm) | Mounting: M5 bolt; cut to length per cable-chain spec | Note: Customized specification available | |
| CS650.200 | Cable clamp support CS650, frame 200mm (length 220mm) | CP SYSTEM | Type: Cable Clamp Support (rail) | Frame Length: 200mm | Actual Length: 220mm (frame + 20mm) | Max Length: 650mm | Section: 27.2 x 15.7mm (11 / 7.4mm) | Mounting: M5 bolt; cut to length per cable-chain spec | Note: Customized specification available | |
| CS650.250 | Cable clamp support CS650, frame 250mm (length 270mm) | CP SYSTEM | Type: Cable Clamp Support (rail) | Frame Length: 250mm | Actual Length: 270mm (frame + 20mm) | Max Length: 650mm | Section: 27.2 x 15.7mm (11 / 7.4mm) | Mounting: M5 bolt; cut to length per cable-chain spec | Note: Customized specification available | |
| CS650.300 | Cable clamp support CS650, frame 300mm (length 320mm) | CP SYSTEM | Type: Cable Clamp Support (rail) | Frame Length: 300mm | Actual Length: 320mm (frame + 20mm) | Max Length: 650mm | Section: 27.2 x 15.7mm (11 / 7.4mm) | Mounting: M5 bolt; cut to length per cable-chain spec | Note: Customized specification available | |
| CS650.350 | Cable clamp support CS650, frame 350mm (length 370mm) | CP SYSTEM | Type: Cable Clamp Support (rail) | Frame Length: 350mm | Actual Length: 370mm (frame + 20mm) | Max Length: 650mm | Section: 27.2 x 15.7mm (11 / 7.4mm) | Mounting: M5 bolt; cut to length per cable-chain spec | Note: Customized specification available | |
| CS650.400 | Cable clamp support CS650, frame 400mm (length 420mm) | CP SYSTEM | Type: Cable Clamp Support (rail) | Frame Length: 400mm | Actual Length: 420mm (frame + 20mm) | Max Length: 650mm | Section: 27.2 x 15.7mm (11 / 7.4mm) | Mounting: M5 bolt; cut to length per cable-chain spec | Note: Customized specification available | |
| CS650.450 | Cable clamp support CS650, frame 450mm (length 470mm) | CP SYSTEM | Type: Cable Clamp Support (rail) | Frame Length: 450mm | Actual Length: 470mm (frame + 20mm) | Max Length: 650mm | Section: 27.2 x 15.7mm (11 / 7.4mm) | Mounting: M5 bolt; cut to length per cable-chain spec | Note: Customized specification available | |
| CS650.500 | Cable clamp support CS650, frame 500mm (length 520mm) | CP SYSTEM | Type: Cable Clamp Support (rail) | Frame Length: 500mm | Actual Length: 520mm (frame + 20mm) | Max Length: 650mm | Section: 27.2 x 15.7mm (11 / 7.4mm) | Mounting: M5 bolt; cut to length per cable-chain spec | Note: Customized specification available | |
| CS650.550 | Cable clamp support CS650, frame 550mm (length 570mm) | CP SYSTEM | Type: Cable Clamp Support (rail) | Frame Length: 550mm | Actual Length: 570mm (frame + 20mm) | Max Length: 650mm | Section: 27.2 x 15.7mm (11 / 7.4mm) | Mounting: M5 bolt; cut to length per cable-chain spec | Note: Customized specification available | |
| CS650.600 | Cable clamp support CS650, frame 600mm (length 620mm) | CP SYSTEM | Type: Cable Clamp Support (rail) | Frame Length: 600mm | Actual Length: 620mm (frame + 20mm) | Max Length: 650mm | Section: 27.2 x 15.7mm (11 / 7.4mm) | Mounting: M5 bolt; cut to length per cable-chain spec | Note: Customized specification available | |
| CS650.650 | Cable clamp support CS650, frame 650mm (length 670mm) | CP SYSTEM | Type: Cable Clamp Support (rail) | Frame Length: 650mm | Actual Length: 670mm (frame + 20mm) | Max Length: 650mm | Section: 27.2 x 15.7mm (11 / 7.4mm) | Mounting: M5 bolt; cut to length per cable-chain spec | Note: Customized specification available |
CP SYSTEM Cable Clamp upper/lower housing for single-clamp composition. Sized by applicable cable diameter (Ø06-42mm), 36x8.5mm section. Used together with the clamp and clamp support for reliable cable fixing.
CP SYSTEM Cable Clamp upper/lower housing for single-clamp composition. Sized by applicable cable diameter (Ø06-42mm), 36x8.5mm section. Used together with the clamp and clamp support for reliable cable fixing.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| H.1.1 | Cable clamp upper/lower housing, Ø06~12mm | CP SYSTEM | Type: Upper/Lower Housing | Applicable Cable: Ø06~12mm | Section: 36±0.2mm x 8.5±0.2mm | Used in: Single clamp composition | |
| H.1.2 | Cable clamp upper/lower housing, Ø12~14mm | CP SYSTEM | Type: Upper/Lower Housing | Applicable Cable: Ø12~14mm | Section: 36±0.2mm x 8.5±0.2mm | Used in: Single clamp composition | |
| H.1.3 | Cable clamp upper/lower housing, Ø14~16mm | CP SYSTEM | Type: Upper/Lower Housing | Applicable Cable: Ø14~16mm | Section: 36±0.2mm x 8.5±0.2mm | Used in: Single clamp composition | |
| H.1.4 | Cable clamp upper/lower housing, Ø16~18mm | CP SYSTEM | Type: Upper/Lower Housing | Applicable Cable: Ø16~18mm | Section: 36±0.2mm x 8.5±0.2mm | Used in: Single clamp composition | |
| H.1.5 | Cable clamp upper/lower housing, Ø18~20mm | CP SYSTEM | Type: Upper/Lower Housing | Applicable Cable: Ø18~20mm | Section: 36±0.2mm x 8.5±0.2mm | Used in: Single clamp composition | |
| H.1.6 | Cable clamp upper/lower housing, Ø20~22mm | CP SYSTEM | Type: Upper/Lower Housing | Applicable Cable: Ø20~22mm | Section: 36±0.2mm x 8.5±0.2mm | Used in: Single clamp composition | |
| H.1.7 | Cable clamp upper/lower housing, Ø22~26mm | CP SYSTEM | Type: Upper/Lower Housing | Applicable Cable: Ø22~26mm | Section: 36±0.2mm x 8.5±0.2mm | Used in: Single clamp composition | |
| H.1.8 | Cable clamp upper/lower housing, Ø26~30mm | CP SYSTEM | Type: Upper/Lower Housing | Applicable Cable: Ø26~30mm | Section: 36±0.2mm x 8.5±0.2mm | Used in: Single clamp composition | |
| H.1.9 | Cable clamp upper/lower housing, Ø30~34mm | CP SYSTEM | Type: Upper/Lower Housing | Applicable Cable: Ø30~34mm | Section: 36±0.2mm x 8.5±0.2mm | Used in: Single clamp composition | |
| H.1.10 | Cable clamp upper/lower housing, Ø34~38mm | CP SYSTEM | Type: Upper/Lower Housing | Applicable Cable: Ø34~38mm | Section: 36±0.2mm x 8.5±0.2mm | Used in: Single clamp composition | |
| H.1.11 | Cable clamp upper/lower housing, Ø38~42mm | CP SYSTEM | Type: Upper/Lower Housing | Applicable Cable: Ø38~42mm | Section: 36±0.2mm x 8.5±0.2mm | Used in: Single clamp composition |

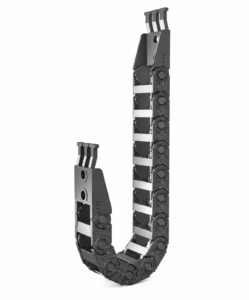

![[CP SYSTEM] — CPS015 Mini Chain Cable Carrier (Pitch 15mm)](https://img.prosourcemro.com/2026/05/002-177-249x300.png)
CPS Mini Chain CPS015 cable carrier (cable chain / drag chain). Material: CPS-Amide (PA6+G.F). Noise level: 40dB (DIN EN 61672-1). Speed: 6 m/s. Acceleration: 15 m/s2. Temperature: -30C ~ +130C. Special production: ESD, UV. Certificate: CE, ATEX(Ex), RoHS2. Pitch 15mm. Inside widths: 6, 10, 15, 20mm. Bending radius (R): 18, 28, 38mm. Bracket type: B1/B2/B3. Max length (vertical standing 0.8m / hanging 3.0m / side-mounted unsupported 0.2m). Length & divider qty: made-to-order.
CPS Mini Chain CPS015 cable carrier (cable chain / drag chain). Material: CPS-Amide (PA6+G.F). Noise level: 40dB (DIN EN 61672-1). Speed: 6 m/s. Acceleration: 15 m/s2. Temperature: -30C ~ +130C. Special production: ESD, UV. Certificate: CE, ATEX(Ex), RoHS2. Pitch 15mm. Inside widths: 6, 10, 15, 20mm. Bending radius (R): 18, 28, 38mm. Bracket type: B1/B2/B3. Max length (vertical standing 0.8m / hanging 3.0m / side-mounted unsupported 0.2m). Length & divider qty: made-to-order.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| CPS015.06.R18/B1 | CPS015 cable carrier, inner width 6mm, R18, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 6 mm | Outer Width: 12.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 18 mm | Loop Length (Lp): 117 mm | Loop Projection (LF): 55 mm | Moving Height (H): 49 mm | Bracket: B1 | Weight: 0.1 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.06.R18/B2 | CPS015 cable carrier, inner width 6mm, R18, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 6 mm | Outer Width: 12.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 18 mm | Loop Length (Lp): 117 mm | Loop Projection (LF): 55 mm | Moving Height (H): 49 mm | Bracket: B2 | Weight: 0.1 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.06.R18/B3 | CPS015 cable carrier, inner width 6mm, R18, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 6 mm | Outer Width: 12.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 18 mm | Loop Length (Lp): 117 mm | Loop Projection (LF): 55 mm | Moving Height (H): 49 mm | Bracket: B3 | Weight: 0.1 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.06.R28/B1 | CPS015 cable carrier, inner width 6mm, R28, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 6 mm | Outer Width: 12.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 28 mm | Loop Length (Lp): 148 mm | Loop Projection (LF): 65 mm | Moving Height (H): 69 mm | Bracket: B1 | Weight: 0.1 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.06.R28/B2 | CPS015 cable carrier, inner width 6mm, R28, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 6 mm | Outer Width: 12.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 28 mm | Loop Length (Lp): 148 mm | Loop Projection (LF): 65 mm | Moving Height (H): 69 mm | Bracket: B2 | Weight: 0.1 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.06.R28/B3 | CPS015 cable carrier, inner width 6mm, R28, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 6 mm | Outer Width: 12.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 28 mm | Loop Length (Lp): 148 mm | Loop Projection (LF): 65 mm | Moving Height (H): 69 mm | Bracket: B3 | Weight: 0.1 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.06.R38/B1 | CPS015 cable carrier, inner width 6mm, R38, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 6 mm | Outer Width: 12.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 38 mm | Loop Length (Lp): 180 mm | Loop Projection (LF): 75 mm | Moving Height (H): 89 mm | Bracket: B1 | Weight: 0.1 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.06.R38/B2 | CPS015 cable carrier, inner width 6mm, R38, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 6 mm | Outer Width: 12.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 38 mm | Loop Length (Lp): 180 mm | Loop Projection (LF): 75 mm | Moving Height (H): 89 mm | Bracket: B2 | Weight: 0.1 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.06.R38/B3 | CPS015 cable carrier, inner width 6mm, R38, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 6 mm | Outer Width: 12.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 38 mm | Loop Length (Lp): 180 mm | Loop Projection (LF): 75 mm | Moving Height (H): 89 mm | Bracket: B3 | Weight: 0.1 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.10.R18/B1 | CPS015 cable carrier, inner width 10mm, R18, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 10 mm | Outer Width: 16.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 18 mm | Loop Length (Lp): 117 mm | Loop Projection (LF): 55 mm | Moving Height (H): 49 mm | Bracket: B1 | Weight: 0.106 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.10.R18/B2 | CPS015 cable carrier, inner width 10mm, R18, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 10 mm | Outer Width: 16.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 18 mm | Loop Length (Lp): 117 mm | Loop Projection (LF): 55 mm | Moving Height (H): 49 mm | Bracket: B2 | Weight: 0.106 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.10.R18/B3 | CPS015 cable carrier, inner width 10mm, R18, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 10 mm | Outer Width: 16.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 18 mm | Loop Length (Lp): 117 mm | Loop Projection (LF): 55 mm | Moving Height (H): 49 mm | Bracket: B3 | Weight: 0.106 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.10.R28/B1 | CPS015 cable carrier, inner width 10mm, R28, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 10 mm | Outer Width: 16.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 28 mm | Loop Length (Lp): 148 mm | Loop Projection (LF): 65 mm | Moving Height (H): 69 mm | Bracket: B1 | Weight: 0.106 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.10.R28/B2 | CPS015 cable carrier, inner width 10mm, R28, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 10 mm | Outer Width: 16.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 28 mm | Loop Length (Lp): 148 mm | Loop Projection (LF): 65 mm | Moving Height (H): 69 mm | Bracket: B2 | Weight: 0.106 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.10.R28/B3 | CPS015 cable carrier, inner width 10mm, R28, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 10 mm | Outer Width: 16.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 28 mm | Loop Length (Lp): 148 mm | Loop Projection (LF): 65 mm | Moving Height (H): 69 mm | Bracket: B3 | Weight: 0.106 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.10.R38/B1 | CPS015 cable carrier, inner width 10mm, R38, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 10 mm | Outer Width: 16.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 38 mm | Loop Length (Lp): 180 mm | Loop Projection (LF): 75 mm | Moving Height (H): 89 mm | Bracket: B1 | Weight: 0.106 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.10.R38/B2 | CPS015 cable carrier, inner width 10mm, R38, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 10 mm | Outer Width: 16.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 38 mm | Loop Length (Lp): 180 mm | Loop Projection (LF): 75 mm | Moving Height (H): 89 mm | Bracket: B2 | Weight: 0.106 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.10.R38/B3 | CPS015 cable carrier, inner width 10mm, R38, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 10 mm | Outer Width: 16.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 38 mm | Loop Length (Lp): 180 mm | Loop Projection (LF): 75 mm | Moving Height (H): 89 mm | Bracket: B3 | Weight: 0.106 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.15.R18/B1 | CPS015 cable carrier, inner width 15mm, R18, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 15 mm | Outer Width: 21.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 18 mm | Loop Length (Lp): 117 mm | Loop Projection (LF): 55 mm | Moving Height (H): 49 mm | Bracket: B1 | Weight: 0.111 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.15.R18/B2 | CPS015 cable carrier, inner width 15mm, R18, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 15 mm | Outer Width: 21.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 18 mm | Loop Length (Lp): 117 mm | Loop Projection (LF): 55 mm | Moving Height (H): 49 mm | Bracket: B2 | Weight: 0.111 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.15.R18/B3 | CPS015 cable carrier, inner width 15mm, R18, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 15 mm | Outer Width: 21.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 18 mm | Loop Length (Lp): 117 mm | Loop Projection (LF): 55 mm | Moving Height (H): 49 mm | Bracket: B3 | Weight: 0.111 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.15.R28/B1 | CPS015 cable carrier, inner width 15mm, R28, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 15 mm | Outer Width: 21.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 28 mm | Loop Length (Lp): 148 mm | Loop Projection (LF): 65 mm | Moving Height (H): 69 mm | Bracket: B1 | Weight: 0.111 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.15.R28/B2 | CPS015 cable carrier, inner width 15mm, R28, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 15 mm | Outer Width: 21.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 28 mm | Loop Length (Lp): 148 mm | Loop Projection (LF): 65 mm | Moving Height (H): 69 mm | Bracket: B2 | Weight: 0.111 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.15.R28/B3 | CPS015 cable carrier, inner width 15mm, R28, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 15 mm | Outer Width: 21.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 28 mm | Loop Length (Lp): 148 mm | Loop Projection (LF): 65 mm | Moving Height (H): 69 mm | Bracket: B3 | Weight: 0.111 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.15.R38/B1 | CPS015 cable carrier, inner width 15mm, R38, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 15 mm | Outer Width: 21.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 38 mm | Loop Length (Lp): 180 mm | Loop Projection (LF): 75 mm | Moving Height (H): 89 mm | Bracket: B1 | Weight: 0.111 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.15.R38/B2 | CPS015 cable carrier, inner width 15mm, R38, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 15 mm | Outer Width: 21.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 38 mm | Loop Length (Lp): 180 mm | Loop Projection (LF): 75 mm | Moving Height (H): 89 mm | Bracket: B2 | Weight: 0.111 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.15.R38/B3 | CPS015 cable carrier, inner width 15mm, R38, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 15 mm | Outer Width: 21.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 38 mm | Loop Length (Lp): 180 mm | Loop Projection (LF): 75 mm | Moving Height (H): 89 mm | Bracket: B3 | Weight: 0.111 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.20.R18/B1 | CPS015 cable carrier, inner width 20mm, R18, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 20 mm | Outer Width: 26.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 18 mm | Loop Length (Lp): 117 mm | Loop Projection (LF): 55 mm | Moving Height (H): 49 mm | Bracket: B1 | Weight: 0.115 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.20.R18/B2 | CPS015 cable carrier, inner width 20mm, R18, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 20 mm | Outer Width: 26.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 18 mm | Loop Length (Lp): 117 mm | Loop Projection (LF): 55 mm | Moving Height (H): 49 mm | Bracket: B2 | Weight: 0.115 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.20.R18/B3 | CPS015 cable carrier, inner width 20mm, R18, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 20 mm | Outer Width: 26.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 18 mm | Loop Length (Lp): 117 mm | Loop Projection (LF): 55 mm | Moving Height (H): 49 mm | Bracket: B3 | Weight: 0.115 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.20.R28/B1 | CPS015 cable carrier, inner width 20mm, R28, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 20 mm | Outer Width: 26.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 28 mm | Loop Length (Lp): 148 mm | Loop Projection (LF): 65 mm | Moving Height (H): 69 mm | Bracket: B1 | Weight: 0.115 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.20.R28/B2 | CPS015 cable carrier, inner width 20mm, R28, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 20 mm | Outer Width: 26.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 28 mm | Loop Length (Lp): 148 mm | Loop Projection (LF): 65 mm | Moving Height (H): 69 mm | Bracket: B2 | Weight: 0.115 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.20.R28/B3 | CPS015 cable carrier, inner width 20mm, R28, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 20 mm | Outer Width: 26.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 28 mm | Loop Length (Lp): 148 mm | Loop Projection (LF): 65 mm | Moving Height (H): 69 mm | Bracket: B3 | Weight: 0.115 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.20.R38/B1 | CPS015 cable carrier, inner width 20mm, R38, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 20 mm | Outer Width: 26.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 38 mm | Loop Length (Lp): 180 mm | Loop Projection (LF): 75 mm | Moving Height (H): 89 mm | Bracket: B1 | Weight: 0.115 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.20.R38/B2 | CPS015 cable carrier, inner width 20mm, R38, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 20 mm | Outer Width: 26.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 38 mm | Loop Length (Lp): 180 mm | Loop Projection (LF): 75 mm | Moving Height (H): 89 mm | Bracket: B2 | Weight: 0.115 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS015.20.R38/B3 | CPS015 cable carrier, inner width 20mm, R38, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS015 | Pitch: 15 mm | Inner Width: 20 mm | Outer Width: 26.6 mm | Inner Height: 10 mm | Outer Height: 13 mm | Bending Radius: 38 mm | Loop Length (Lp): 180 mm | Loop Projection (LF): 75 mm | Moving Height (H): 89 mm | Bracket: B3 | Weight: 0.115 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order |
CPS Mini Chain CPS020 cable carrier (cable chain / drag chain). Material: CPS-Amide (PA6+G.F). Noise level: 40dB (DIN EN 61672-1). Speed: 6 m/s. Acceleration: 15 m/s2. Temperature: -30C ~ +130C. Special production: ESD, UV. Certificate: CE, ATEX(Ex), RoHS2. Pitch 20mm. Inside widths: 15, 20, 30, 40mm. Bending radius (R): 28, 38, 48mm. Bracket type: B1/B2/B3. Max length (vertical standing 1.0m / hanging 5.0m / side-mounted unsupported 0.5m). Length & divider qty: made-to-order.
CPS Mini Chain CPS020 cable carrier (cable chain / drag chain). Material: CPS-Amide (PA6+G.F). Noise level: 40dB (DIN EN 61672-1). Speed: 6 m/s. Acceleration: 15 m/s2. Temperature: -30C ~ +130C. Special production: ESD, UV. Certificate: CE, ATEX(Ex), RoHS2. Pitch 20mm. Inside widths: 15, 20, 30, 40mm. Bending radius (R): 28, 38, 48mm. Bracket type: B1/B2/B3. Max length (vertical standing 1.0m / hanging 5.0m / side-mounted unsupported 0.5m). Length & divider qty: made-to-order.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| CPS020.15.R28/B1 | CPS020 cable carrier, inner width 15mm, R28, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 15 mm | Outer Width: 24 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 28 mm | Loop Length (Lp): 168 mm | Loop Projection (LF): 78 mm | Moving Height (H): 76 mm | Bracket: B1 | Weight: 0.245 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.15.R28/B2 | CPS020 cable carrier, inner width 15mm, R28, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 15 mm | Outer Width: 24 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 28 mm | Loop Length (Lp): 168 mm | Loop Projection (LF): 78 mm | Moving Height (H): 76 mm | Bracket: B2 | Weight: 0.245 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.15.R28/B3 | CPS020 cable carrier, inner width 15mm, R28, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 15 mm | Outer Width: 24 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 28 mm | Loop Length (Lp): 168 mm | Loop Projection (LF): 78 mm | Moving Height (H): 76 mm | Bracket: B3 | Weight: 0.245 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.15.R38/B1 | CPS020 cable carrier, inner width 15mm, R38, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 15 mm | Outer Width: 24 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 38 mm | Loop Length (Lp): 200 mm | Loop Projection (LF): 88 mm | Moving Height (H): 96 mm | Bracket: B1 | Weight: 0.245 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.15.R38/B2 | CPS020 cable carrier, inner width 15mm, R38, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 15 mm | Outer Width: 24 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 38 mm | Loop Length (Lp): 200 mm | Loop Projection (LF): 88 mm | Moving Height (H): 96 mm | Bracket: B2 | Weight: 0.245 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.15.R38/B3 | CPS020 cable carrier, inner width 15mm, R38, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 15 mm | Outer Width: 24 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 38 mm | Loop Length (Lp): 200 mm | Loop Projection (LF): 88 mm | Moving Height (H): 96 mm | Bracket: B3 | Weight: 0.245 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.15.R48/B1 | CPS020 cable carrier, inner width 15mm, R48, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 15 mm | Outer Width: 24 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 48 mm | Loop Length (Lp): 231 mm | Loop Projection (LF): 98 mm | Moving Height (H): 116 mm | Bracket: B1 | Weight: 0.245 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.15.R48/B2 | CPS020 cable carrier, inner width 15mm, R48, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 15 mm | Outer Width: 24 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 48 mm | Loop Length (Lp): 231 mm | Loop Projection (LF): 98 mm | Moving Height (H): 116 mm | Bracket: B2 | Weight: 0.245 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.15.R48/B3 | CPS020 cable carrier, inner width 15mm, R48, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 15 mm | Outer Width: 24 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 48 mm | Loop Length (Lp): 231 mm | Loop Projection (LF): 98 mm | Moving Height (H): 116 mm | Bracket: B3 | Weight: 0.245 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.20.R28/B1 | CPS020 cable carrier, inner width 20mm, R28, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 20 mm | Outer Width: 29 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 28 mm | Loop Length (Lp): 168 mm | Loop Projection (LF): 78 mm | Moving Height (H): 76 mm | Bracket: B1 | Weight: 0.26 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.20.R28/B2 | CPS020 cable carrier, inner width 20mm, R28, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 20 mm | Outer Width: 29 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 28 mm | Loop Length (Lp): 168 mm | Loop Projection (LF): 78 mm | Moving Height (H): 76 mm | Bracket: B2 | Weight: 0.26 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.20.R28/B3 | CPS020 cable carrier, inner width 20mm, R28, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 20 mm | Outer Width: 29 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 28 mm | Loop Length (Lp): 168 mm | Loop Projection (LF): 78 mm | Moving Height (H): 76 mm | Bracket: B3 | Weight: 0.26 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.20.R38/B1 | CPS020 cable carrier, inner width 20mm, R38, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 20 mm | Outer Width: 29 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 38 mm | Loop Length (Lp): 200 mm | Loop Projection (LF): 88 mm | Moving Height (H): 96 mm | Bracket: B1 | Weight: 0.26 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.20.R38/B2 | CPS020 cable carrier, inner width 20mm, R38, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 20 mm | Outer Width: 29 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 38 mm | Loop Length (Lp): 200 mm | Loop Projection (LF): 88 mm | Moving Height (H): 96 mm | Bracket: B2 | Weight: 0.26 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.20.R38/B3 | CPS020 cable carrier, inner width 20mm, R38, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 20 mm | Outer Width: 29 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 38 mm | Loop Length (Lp): 200 mm | Loop Projection (LF): 88 mm | Moving Height (H): 96 mm | Bracket: B3 | Weight: 0.26 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.20.R48/B1 | CPS020 cable carrier, inner width 20mm, R48, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 20 mm | Outer Width: 29 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 48 mm | Loop Length (Lp): 231 mm | Loop Projection (LF): 98 mm | Moving Height (H): 116 mm | Bracket: B1 | Weight: 0.26 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.20.R48/B2 | CPS020 cable carrier, inner width 20mm, R48, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 20 mm | Outer Width: 29 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 48 mm | Loop Length (Lp): 231 mm | Loop Projection (LF): 98 mm | Moving Height (H): 116 mm | Bracket: B2 | Weight: 0.26 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.20.R48/B3 | CPS020 cable carrier, inner width 20mm, R48, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 20 mm | Outer Width: 29 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 48 mm | Loop Length (Lp): 231 mm | Loop Projection (LF): 98 mm | Moving Height (H): 116 mm | Bracket: B3 | Weight: 0.26 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.30.R28/B1 | CPS020 cable carrier, inner width 30mm, R28, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 30 mm | Outer Width: 39 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 28 mm | Loop Length (Lp): 168 mm | Loop Projection (LF): 78 mm | Moving Height (H): 76 mm | Bracket: B1 | Weight: 0.285 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.30.R28/B2 | CPS020 cable carrier, inner width 30mm, R28, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 30 mm | Outer Width: 39 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 28 mm | Loop Length (Lp): 168 mm | Loop Projection (LF): 78 mm | Moving Height (H): 76 mm | Bracket: B2 | Weight: 0.285 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.30.R28/B3 | CPS020 cable carrier, inner width 30mm, R28, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 30 mm | Outer Width: 39 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 28 mm | Loop Length (Lp): 168 mm | Loop Projection (LF): 78 mm | Moving Height (H): 76 mm | Bracket: B3 | Weight: 0.285 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.30.R38/B1 | CPS020 cable carrier, inner width 30mm, R38, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 30 mm | Outer Width: 39 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 38 mm | Loop Length (Lp): 200 mm | Loop Projection (LF): 88 mm | Moving Height (H): 96 mm | Bracket: B1 | Weight: 0.285 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.30.R38/B2 | CPS020 cable carrier, inner width 30mm, R38, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 30 mm | Outer Width: 39 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 38 mm | Loop Length (Lp): 200 mm | Loop Projection (LF): 88 mm | Moving Height (H): 96 mm | Bracket: B2 | Weight: 0.285 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.30.R38/B3 | CPS020 cable carrier, inner width 30mm, R38, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 30 mm | Outer Width: 39 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 38 mm | Loop Length (Lp): 200 mm | Loop Projection (LF): 88 mm | Moving Height (H): 96 mm | Bracket: B3 | Weight: 0.285 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.30.R48/B1 | CPS020 cable carrier, inner width 30mm, R48, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 30 mm | Outer Width: 39 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 48 mm | Loop Length (Lp): 231 mm | Loop Projection (LF): 98 mm | Moving Height (H): 116 mm | Bracket: B1 | Weight: 0.285 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.30.R48/B2 | CPS020 cable carrier, inner width 30mm, R48, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 30 mm | Outer Width: 39 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 48 mm | Loop Length (Lp): 231 mm | Loop Projection (LF): 98 mm | Moving Height (H): 116 mm | Bracket: B2 | Weight: 0.285 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.30.R48/B3 | CPS020 cable carrier, inner width 30mm, R48, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 30 mm | Outer Width: 39 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 48 mm | Loop Length (Lp): 231 mm | Loop Projection (LF): 98 mm | Moving Height (H): 116 mm | Bracket: B3 | Weight: 0.285 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.40.R28/B1 | CPS020 cable carrier, inner width 40mm, R28, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 40 mm | Outer Width: 49 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 28 mm | Loop Length (Lp): 168 mm | Loop Projection (LF): 78 mm | Moving Height (H): 76 mm | Bracket: B1 | Weight: 0.31 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.40.R28/B2 | CPS020 cable carrier, inner width 40mm, R28, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 40 mm | Outer Width: 49 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 28 mm | Loop Length (Lp): 168 mm | Loop Projection (LF): 78 mm | Moving Height (H): 76 mm | Bracket: B2 | Weight: 0.31 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.40.R28/B3 | CPS020 cable carrier, inner width 40mm, R28, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 40 mm | Outer Width: 49 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 28 mm | Loop Length (Lp): 168 mm | Loop Projection (LF): 78 mm | Moving Height (H): 76 mm | Bracket: B3 | Weight: 0.31 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.40.R38/B1 | CPS020 cable carrier, inner width 40mm, R38, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 40 mm | Outer Width: 49 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 38 mm | Loop Length (Lp): 200 mm | Loop Projection (LF): 88 mm | Moving Height (H): 96 mm | Bracket: B1 | Weight: 0.31 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.40.R38/B2 | CPS020 cable carrier, inner width 40mm, R38, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 40 mm | Outer Width: 49 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 38 mm | Loop Length (Lp): 200 mm | Loop Projection (LF): 88 mm | Moving Height (H): 96 mm | Bracket: B2 | Weight: 0.31 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.40.R38/B3 | CPS020 cable carrier, inner width 40mm, R38, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 40 mm | Outer Width: 49 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 38 mm | Loop Length (Lp): 200 mm | Loop Projection (LF): 88 mm | Moving Height (H): 96 mm | Bracket: B3 | Weight: 0.31 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.40.R48/B1 | CPS020 cable carrier, inner width 40mm, R48, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 40 mm | Outer Width: 49 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 48 mm | Loop Length (Lp): 231 mm | Loop Projection (LF): 98 mm | Moving Height (H): 116 mm | Bracket: B1 | Weight: 0.31 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.40.R48/B2 | CPS020 cable carrier, inner width 40mm, R48, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 40 mm | Outer Width: 49 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 48 mm | Loop Length (Lp): 231 mm | Loop Projection (LF): 98 mm | Moving Height (H): 116 mm | Bracket: B2 | Weight: 0.31 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS020.40.R48/B3 | CPS020 cable carrier, inner width 40mm, R48, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS020 | Pitch: 20 mm | Inner Width: 40 mm | Outer Width: 49 mm | Inner Height: 14.5 mm | Outer Height: 20 mm | Bending Radius: 48 mm | Loop Length (Lp): 231 mm | Loop Projection (LF): 98 mm | Moving Height (H): 116 mm | Bracket: B3 | Weight: 0.31 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order |
CPS Mini Chain CPS030 cable carrier (cable chain / drag chain). Material: CPS-Amide (PA6+G.F). Noise level: 40dB (DIN EN 61672-1). Speed: 6 m/s. Acceleration: 15 m/s2. Temperature: -30C ~ +130C. Special production: ESD, UV. Certificate: CE, ATEX(Ex), RoHS2. Pitch 30mm. Inside widths: 15, 25, 35, 50mm. Bending radius (R): 38, 48, 75, 100mm. Bracket type: B1/B2/B3. Max length (vertical standing 1.5m / hanging 10.0m / side-mounted unsupported 0.6m). Length & divider qty: made-to-order.
CPS Mini Chain CPS030 cable carrier (cable chain / drag chain). Material: CPS-Amide (PA6+G.F). Noise level: 40dB (DIN EN 61672-1). Speed: 6 m/s. Acceleration: 15 m/s2. Temperature: -30C ~ +130C. Special production: ESD, UV. Certificate: CE, ATEX(Ex), RoHS2. Pitch 30mm. Inside widths: 15, 25, 35, 50mm. Bending radius (R): 38, 48, 75, 100mm. Bracket type: B1/B2/B3. Max length (vertical standing 1.5m / hanging 10.0m / side-mounted unsupported 0.6m). Length & divider qty: made-to-order.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| CPS030.15.R38/B1 | CPS030 cable carrier, inner width 15mm, R38, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B1 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.15.R38/B2 | CPS030 cable carrier, inner width 15mm, R38, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B2 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.15.R38/B3 | CPS030 cable carrier, inner width 15mm, R38, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B3 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.15.R48/B1 | CPS030 cable carrier, inner width 15mm, R48, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B1 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.15.R48/B2 | CPS030 cable carrier, inner width 15mm, R48, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B2 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.15.R48/B3 | CPS030 cable carrier, inner width 15mm, R48, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B3 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.15.R75/B1 | CPS030 cable carrier, inner width 15mm, R75, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B1 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.15.R75/B2 | CPS030 cable carrier, inner width 15mm, R75, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B2 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.15.R75/B3 | CPS030 cable carrier, inner width 15mm, R75, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B3 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.15.R100/B1 | CPS030 cable carrier, inner width 15mm, R100, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B1 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.15.R100/B2 | CPS030 cable carrier, inner width 15mm, R100, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B2 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.15.R100/B3 | CPS030 cable carrier, inner width 15mm, R100, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 15 mm | Outer Width: 29 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B3 | Weight: 0.38 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.25.R38/B1 | CPS030 cable carrier, inner width 25mm, R38, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B1 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.25.R38/B2 | CPS030 cable carrier, inner width 25mm, R38, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B2 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.25.R38/B3 | CPS030 cable carrier, inner width 25mm, R38, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B3 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.25.R48/B1 | CPS030 cable carrier, inner width 25mm, R48, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B1 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.25.R48/B2 | CPS030 cable carrier, inner width 25mm, R48, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B2 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.25.R48/B3 | CPS030 cable carrier, inner width 25mm, R48, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B3 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.25.R75/B1 | CPS030 cable carrier, inner width 25mm, R75, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B1 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.25.R75/B2 | CPS030 cable carrier, inner width 25mm, R75, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B2 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.25.R75/B3 | CPS030 cable carrier, inner width 25mm, R75, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B3 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.25.R100/B1 | CPS030 cable carrier, inner width 25mm, R100, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B1 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.25.R100/B2 | CPS030 cable carrier, inner width 25mm, R100, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B2 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.25.R100/B3 | CPS030 cable carrier, inner width 25mm, R100, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 25 mm | Outer Width: 39 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B3 | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.35.R38/B1 | CPS030 cable carrier, inner width 35mm, R38, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B1 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.35.R38/B2 | CPS030 cable carrier, inner width 35mm, R38, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B2 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.35.R38/B3 | CPS030 cable carrier, inner width 35mm, R38, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B3 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.35.R48/B1 | CPS030 cable carrier, inner width 35mm, R48, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B1 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.35.R48/B2 | CPS030 cable carrier, inner width 35mm, R48, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B2 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.35.R48/B3 | CPS030 cable carrier, inner width 35mm, R48, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B3 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.35.R75/B1 | CPS030 cable carrier, inner width 35mm, R75, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B1 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.35.R75/B2 | CPS030 cable carrier, inner width 35mm, R75, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B2 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.35.R75/B3 | CPS030 cable carrier, inner width 35mm, R75, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B3 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.35.R100/B1 | CPS030 cable carrier, inner width 35mm, R100, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B1 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.35.R100/B2 | CPS030 cable carrier, inner width 35mm, R100, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B2 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.35.R100/B3 | CPS030 cable carrier, inner width 35mm, R100, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 35 mm | Outer Width: 49 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B3 | Weight: 0.42 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.50.R38/B1 | CPS030 cable carrier, inner width 50mm, R38, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B1 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.50.R38/B2 | CPS030 cable carrier, inner width 50mm, R38, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B2 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.50.R38/B3 | CPS030 cable carrier, inner width 50mm, R38, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 38 mm | Loop Length (Lp): 240 mm | Loop Projection (LF): 110 mm | Moving Height (H): 101 mm | Bracket: B3 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.50.R48/B1 | CPS030 cable carrier, inner width 50mm, R48, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B1 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.50.R48/B2 | CPS030 cable carrier, inner width 50mm, R48, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B2 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.50.R48/B3 | CPS030 cable carrier, inner width 50mm, R48, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 48 mm | Loop Length (Lp): 271 mm | Loop Projection (LF): 119 mm | Moving Height (H): 121 mm | Bracket: B3 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.50.R75/B1 | CPS030 cable carrier, inner width 50mm, R75, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B1 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.50.R75/B2 | CPS030 cable carrier, inner width 50mm, R75, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B2 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.50.R75/B3 | CPS030 cable carrier, inner width 50mm, R75, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 75 mm | Loop Length (Lp): 356 mm | Loop Projection (LF): 148 mm | Moving Height (H): 175 mm | Bracket: B3 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.50.R100/B1 | CPS030 cable carrier, inner width 50mm, R100, bracket B1 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B1 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.50.R100/B2 | CPS030 cable carrier, inner width 50mm, R100, bracket B2 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B2 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS030.50.R100/B3 | CPS030 cable carrier, inner width 50mm, R100, bracket B3 | CP SYSTEM | Series: CPS Mini Chain | Model: CPS030 | Pitch: 30 mm | Inner Width: 50 mm | Outer Width: 64 mm | Inner Height: 19 mm | Outer Height: 26 mm | Bending Radius: 100 mm | Loop Length (Lp): 434 mm | Loop Projection (LF): 173 mm | Moving Height (H): 225 mm | Bracket: B3 | Weight: 0.44 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order |
CPS Mini Chain CPS033 cable carrier (cable chain / drag chain). Material: CPS-Amide (PA6+G.F). Noise level: 40dB (DIN EN 61672-1). Speed: 6 m/s. Acceleration: 15 m/s2. Temperature: -30C ~ +130C. Special production: ESD, UV. Certificate: CE, ATEX(Ex), RoHS2. Pitch 33mm. Inside widths: 27, 37, 47, 67, 77mm. Bending radius (R): 35, 45, 75, 100, 120mm. Bracket type: E. Max length (vertical standing 1.5m / hanging 10.0m / side-mounted unsupported 0.6m). Length & divider qty: made-to-order.
CPS Mini Chain CPS033 cable carrier (cable chain / drag chain). Material: CPS-Amide (PA6+G.F). Noise level: 40dB (DIN EN 61672-1). Speed: 6 m/s. Acceleration: 15 m/s2. Temperature: -30C ~ +130C. Special production: ESD, UV. Certificate: CE, ATEX(Ex), RoHS2. Pitch 33mm. Inside widths: 27, 37, 47, 67, 77mm. Bending radius (R): 35, 45, 75, 100, 120mm. Bracket type: E. Max length (vertical standing 1.5m / hanging 10.0m / side-mounted unsupported 0.6m). Length & divider qty: made-to-order.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| CPS033.27.R35/E | CPS033 cable carrier, inner width 27mm, R35, bracket E | CP SYSTEM | Series: CPS Mini Chain | Model: CPS033 | Pitch: 33 mm | Inner Width: 27 mm | Outer Width: 45 mm | Inner Height: 23 mm | Outer Height: 31 mm | Bending Radius: 35 mm | Loop Length (Lp): 242 mm | Loop Projection (LF): 117 mm | Moving Height (H): 101 mm | Bracket: E | Weight: 0.55 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS033.27.R45/E | CPS033 cable carrier, inner width 27mm, R45, bracket E | CP SYSTEM | Series: CPS Mini Chain | Model: CPS033 | Pitch: 33 mm | Inner Width: 27 mm | Outer Width: 45 mm | Inner Height: 23 mm | Outer Height: 31 mm | Bending Radius: 45 mm | Loop Length (Lp): 274 mm | Loop Projection (LF): 127 mm | Moving Height (H): 121 mm | Bracket: E | Weight: 0.55 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS033.27.R75/E | CPS033 cable carrier, inner width 27mm, R75, bracket E | CP SYSTEM | Series: CPS Mini Chain | Model: CPS033 | Pitch: 33 mm | Inner Width: 27 mm | Outer Width: 45 mm | Inner Height: 23 mm | Outer Height: 31 mm | Bending Radius: 75 mm | Loop Length (Lp): 368 mm | Loop Projection (LF): 157 mm | Moving Height (H): 181 mm | Bracket: E | Weight: 0.55 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS033.27.R100/E | CPS033 cable carrier, inner width 27mm, R100, bracket E | CP SYSTEM | Series: CPS Mini Chain | Model: CPS033 | Pitch: 33 mm | Inner Width: 27 mm | Outer Width: 45 mm | Inner Height: 23 mm | Outer Height: 31 mm | Bending Radius: 100 mm | Loop Length (Lp): 446 mm | Loop Projection (LF): 182 mm | Moving Height (H): 231 mm | Bracket: E | Weight: 0.55 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS033.27.R120/E | CPS033 cable carrier, inner width 27mm, R120, bracket E | CP SYSTEM | Series: CPS Mini Chain | Model: CPS033 | Pitch: 33 mm | Inner Width: 27 mm | Outer Width: 45 mm | Inner Height: 23 mm | Outer Height: 31 mm | Bending Radius: 120 mm | Loop Length (Lp): 509 mm | Loop Projection (LF): 202 mm | Moving Height (H): 271 mm | Bracket: E | Weight: 0.55 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS033.37.R35/E | CPS033 cable carrier, inner width 37mm, R35, bracket E | CP SYSTEM | Series: CPS Mini Chain | Model: CPS033 | Pitch: 33 mm | Inner Width: 37 mm | Outer Width: 55 mm | Inner Height: 23 mm | Outer Height: 31 mm | Bending Radius: 35 mm | Loop Length (Lp): 242 mm | Loop Projection (LF): 117 mm | Moving Height (H): 101 mm | Bracket: E | Weight: 0.59 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS033.37.R45/E | CPS033 cable carrier, inner width 37mm, R45, bracket E | CP SYSTEM | Series: CPS Mini Chain | Model: CPS033 | Pitch: 33 mm | Inner Width: 37 mm | Outer Width: 55 mm | Inner Height: 23 mm | Outer Height: 31 mm | Bending Radius: 45 mm | Loop Length (Lp): 274 mm | Loop Projection (LF): 127 mm | Moving Height (H): 121 mm | Bracket: E | Weight: 0.59 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS033.37.R75/E | CPS033 cable carrier, inner width 37mm, R75, bracket E | CP SYSTEM | Series: CPS Mini Chain | Model: CPS033 | Pitch: 33 mm | Inner Width: 37 mm | Outer Width: 55 mm | Inner Height: 23 mm | Outer Height: 31 mm | Bending Radius: 75 mm | Loop Length (Lp): 368 mm | Loop Projection (LF): 157 mm | Moving Height (H): 181 mm | Bracket: E | Weight: 0.59 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS033.37.R100/E | CPS033 cable carrier, inner width 37mm, R100, bracket E | CP SYSTEM | Series: CPS Mini Chain | Model: CPS033 | Pitch: 33 mm | Inner Width: 37 mm | Outer Width: 55 mm | Inner Height: 23 mm | Outer Height: 31 mm | Bending Radius: 100 mm | Loop Length (Lp): 446 mm | Loop Projection (LF): 182 mm | Moving Height (H): 231 mm | Bracket: E | Weight: 0.59 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS033.37.R120/E | CPS033 cable carrier, inner width 37mm, R120, bracket E | CP SYSTEM | Series: CPS Mini Chain | Model: CPS033 | Pitch: 33 mm | Inner Width: 37 mm | Outer Width: 55 mm | Inner Height: 23 mm | Outer Height: 31 mm | Bending Radius: 120 mm | Loop Length (Lp): 509 mm | Loop Projection (LF): 202 mm | Moving Height (H): 271 mm | Bracket: E | Weight: 0.59 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS033.47.R35/E | CPS033 cable carrier, inner width 47mm, R35, bracket E | CP SYSTEM | Series: CPS Mini Chain | Model: CPS033 | Pitch: 33 mm | Inner Width: 47 mm | Outer Width: 65 mm | Inner Height: 23 mm | Outer Height: 31 mm | Bending Radius: 35 mm | Loop Length (Lp): 242 mm | Loop Projection (LF): 117 mm | Moving Height (H): 101 mm | Bracket: E | Weight: 0.61 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS033.47.R45/E | CPS033 cable carrier, inner width 47mm, R45, bracket E | CP SYSTEM | Series: CPS Mini Chain | Model: CPS033 | Pitch: 33 mm | Inner Width: 47 mm | Outer Width: 65 mm | Inner Height: 23 mm | Outer Height: 31 mm | Bending Radius: 45 mm | Loop Length (Lp): 274 mm | Loop Projection (LF): 127 mm | Moving Height (H): 121 mm | Bracket: E | Weight: 0.61 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS033.47.R75/E | CPS033 cable carrier, inner width 47mm, R75, bracket E | CP SYSTEM | Series: CPS Mini Chain | Model: CPS033 | Pitch: 33 mm | Inner Width: 47 mm | Outer Width: 65 mm | Inner Height: 23 mm | Outer Height: 31 mm | Bending Radius: 75 mm | Loop Length (Lp): 368 mm | Loop Projection (LF): 157 mm | Moving Height (H): 181 mm | Bracket: E | Weight: 0.61 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS033.47.R100/E | CPS033 cable carrier, inner width 47mm, R100, bracket E | CP SYSTEM | Series: CPS Mini Chain | Model: CPS033 | Pitch: 33 mm | Inner Width: 47 mm | Outer Width: 65 mm | Inner Height: 23 mm | Outer Height: 31 mm | Bending Radius: 100 mm | Loop Length (Lp): 446 mm | Loop Projection (LF): 182 mm | Moving Height (H): 231 mm | Bracket: E | Weight: 0.61 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS033.47.R120/E | CPS033 cable carrier, inner width 47mm, R120, bracket E | CP SYSTEM | Series: CPS Mini Chain | Model: CPS033 | Pitch: 33 mm | Inner Width: 47 mm | Outer Width: 65 mm | Inner Height: 23 mm | Outer Height: 31 mm | Bending Radius: 120 mm | Loop Length (Lp): 509 mm | Loop Projection (LF): 202 mm | Moving Height (H): 271 mm | Bracket: E | Weight: 0.61 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS033.67.R35/E | CPS033 cable carrier, inner width 67mm, R35, bracket E | CP SYSTEM | Series: CPS Mini Chain | Model: CPS033 | Pitch: 33 mm | Inner Width: 67 mm | Outer Width: 85 mm | Inner Height: 23 mm | Outer Height: 31 mm | Bending Radius: 35 mm | Loop Length (Lp): 242 mm | Loop Projection (LF): 117 mm | Moving Height (H): 101 mm | Bracket: E | Weight: 0.68 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS033.67.R45/E | CPS033 cable carrier, inner width 67mm, R45, bracket E | CP SYSTEM | Series: CPS Mini Chain | Model: CPS033 | Pitch: 33 mm | Inner Width: 67 mm | Outer Width: 85 mm | Inner Height: 23 mm | Outer Height: 31 mm | Bending Radius: 45 mm | Loop Length (Lp): 274 mm | Loop Projection (LF): 127 mm | Moving Height (H): 121 mm | Bracket: E | Weight: 0.68 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS033.67.R75/E | CPS033 cable carrier, inner width 67mm, R75, bracket E | CP SYSTEM | Series: CPS Mini Chain | Model: CPS033 | Pitch: 33 mm | Inner Width: 67 mm | Outer Width: 85 mm | Inner Height: 23 mm | Outer Height: 31 mm | Bending Radius: 75 mm | Loop Length (Lp): 368 mm | Loop Projection (LF): 157 mm | Moving Height (H): 181 mm | Bracket: E | Weight: 0.68 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS033.67.R100/E | CPS033 cable carrier, inner width 67mm, R100, bracket E | CP SYSTEM | Series: CPS Mini Chain | Model: CPS033 | Pitch: 33 mm | Inner Width: 67 mm | Outer Width: 85 mm | Inner Height: 23 mm | Outer Height: 31 mm | Bending Radius: 100 mm | Loop Length (Lp): 446 mm | Loop Projection (LF): 182 mm | Moving Height (H): 231 mm | Bracket: E | Weight: 0.68 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS033.67.R120/E | CPS033 cable carrier, inner width 67mm, R120, bracket E | CP SYSTEM | Series: CPS Mini Chain | Model: CPS033 | Pitch: 33 mm | Inner Width: 67 mm | Outer Width: 85 mm | Inner Height: 23 mm | Outer Height: 31 mm | Bending Radius: 120 mm | Loop Length (Lp): 509 mm | Loop Projection (LF): 202 mm | Moving Height (H): 271 mm | Bracket: E | Weight: 0.68 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS033.77.R35/E | CPS033 cable carrier, inner width 77mm, R35, bracket E | CP SYSTEM | Series: CPS Mini Chain | Model: CPS033 | Pitch: 33 mm | Inner Width: 77 mm | Outer Width: 95 mm | Inner Height: 23 mm | Outer Height: 31 mm | Bending Radius: 35 mm | Loop Length (Lp): 242 mm | Loop Projection (LF): 117 mm | Moving Height (H): 101 mm | Bracket: E | Weight: 0.7 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS033.77.R45/E | CPS033 cable carrier, inner width 77mm, R45, bracket E | CP SYSTEM | Series: CPS Mini Chain | Model: CPS033 | Pitch: 33 mm | Inner Width: 77 mm | Outer Width: 95 mm | Inner Height: 23 mm | Outer Height: 31 mm | Bending Radius: 45 mm | Loop Length (Lp): 274 mm | Loop Projection (LF): 127 mm | Moving Height (H): 121 mm | Bracket: E | Weight: 0.7 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS033.77.R75/E | CPS033 cable carrier, inner width 77mm, R75, bracket E | CP SYSTEM | Series: CPS Mini Chain | Model: CPS033 | Pitch: 33 mm | Inner Width: 77 mm | Outer Width: 95 mm | Inner Height: 23 mm | Outer Height: 31 mm | Bending Radius: 75 mm | Loop Length (Lp): 368 mm | Loop Projection (LF): 157 mm | Moving Height (H): 181 mm | Bracket: E | Weight: 0.7 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS033.77.R100/E | CPS033 cable carrier, inner width 77mm, R100, bracket E | CP SYSTEM | Series: CPS Mini Chain | Model: CPS033 | Pitch: 33 mm | Inner Width: 77 mm | Outer Width: 95 mm | Inner Height: 23 mm | Outer Height: 31 mm | Bending Radius: 100 mm | Loop Length (Lp): 446 mm | Loop Projection (LF): 182 mm | Moving Height (H): 231 mm | Bracket: E | Weight: 0.7 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order | |
| CPS033.77.R120/E | CPS033 cable carrier, inner width 77mm, R120, bracket E | CP SYSTEM | Series: CPS Mini Chain | Model: CPS033 | Pitch: 33 mm | Inner Width: 77 mm | Outer Width: 95 mm | Inner Height: 23 mm | Outer Height: 31 mm | Bending Radius: 120 mm | Loop Length (Lp): 509 mm | Loop Projection (LF): 202 mm | Moving Height (H): 271 mm | Bracket: E | Weight: 0.7 kg/m | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Length & dividers: made-to-order |
CPS Mini Chain CPS048S system-type cable carrier with guide channel and System Tie Wrap (STW) for long unsupported travel. Material: CPS-Amide (PA6+G.F). Noise level: 40dB (DIN EN 61672-1). Speed: 6 m/s. Acceleration: 15 m/s2. Temperature: -30C ~ +130C. Special production: ESD, UV. Certificate: CE, ATEX(Ex), RoHS2. Bending radius (R): 150mm. Weight: 1.17 kg/m. Outer width 66mm. Bracket type: B1/B2/B3. Inside width via guide channel (custom). Max length (vertical standing 1.5m / hanging 10.0m / side-mounted unsupported 0.6m). Inside width, length, dividers and channel configuration: made-to-order (RFQ).
CPS Mini Chain CPS048S system-type cable carrier with guide channel and System Tie Wrap (STW) for long unsupported travel. Material: CPS-Amide (PA6+G.F). Noise level: 40dB (DIN EN 61672-1). Speed: 6 m/s. Acceleration: 15 m/s2. Temperature: -30C ~ +130C. Special production: ESD, UV. Certificate: CE, ATEX(Ex), RoHS2. Bending radius (R): 150mm. Weight: 1.17 kg/m. Outer width 66mm. Bracket type: B1/B2/B3. Inside width via guide channel (custom). Max length (vertical standing 1.5m / hanging 10.0m / side-mounted unsupported 0.6m). Inside width, length, dividers and channel configuration: made-to-order (RFQ).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| CPS048S.R150 | CPS048S system cable carrier, R150, guide channel (made-to-order) | CP SYSTEM | Series: CPS Mini Chain (System) | Model: CPS048S | Outer Width: 66 mm | Bending Radius: 150 mm | Loop Length (Lp): 964 mm | Loop Projection (LF): 395 mm | Moving Height (H): 145 mm | Weight: 1.17 kg/m | Bracket: B1/B2/B3 | Guide Channel: Housing A/A1/B | System Tie Wrap (STW) | Material: CPS-Amide (PA6+G.F) | Temp: -30 ~ +130 C | Cert: CE, ATEX(Ex), RoHS2 | Inside width / length / dividers / channel: made-to-order (RFQ) |
CP SYSTEM Cable Clamp, double type — fixes two stacked cables with a high-strength steel clamp that minimizes cable damage when tightened (holding force approx. 89 Kgf, about 3x a tie wrap). Each part is marked with its product no. Clamp ASM (CA2) and clamp-only (C2) part numbers available per cable diameter (Ø06-34mm).
CP SYSTEM Cable Clamp, double type — fixes two stacked cables with a high-strength steel clamp that minimizes cable damage when tightened (holding force approx. 89 Kgf, about 3x a tie wrap). Each part is marked with its product no. Clamp ASM (CA2) and clamp-only (C2) part numbers available per cable diameter (Ø06-34mm).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| CA2.0612 | Double cable clamp ASM, Ø06~12mm | CP SYSTEM | Type: Double Cable Clamp | Part Category: Clamp ASM (assembly w/ bolt) | Applicable Cable: Ø06~12mm | Dimension A: 16.5±0.2mm | Dimension H: 65.0+5mm | Material: High strength steel | |
| C2.0612 | Double cable clamp body, Ø06~12mm | CP SYSTEM | Type: Double Cable Clamp | Part Category: Clamp (body only) | Applicable Cable: Ø06~12mm | Dimension A: 16.5±0.2mm | Dimension H: 65.0+5mm | Material: High strength steel | |
| CA2.1214 | Double cable clamp ASM, Ø12~14mm | CP SYSTEM | Type: Double Cable Clamp | Part Category: Clamp ASM (assembly w/ bolt) | Applicable Cable: Ø12~14mm | Dimension A: 17.5±0.2mm | Dimension H: 69.0+5mm | Material: High strength steel | |
| C2.1214 | Double cable clamp body, Ø12~14mm | CP SYSTEM | Type: Double Cable Clamp | Part Category: Clamp (body only) | Applicable Cable: Ø12~14mm | Dimension A: 17.5±0.2mm | Dimension H: 69.0+5mm | Material: High strength steel | |
| CA2.1416 | Double cable clamp ASM, Ø14~16mm | CP SYSTEM | Type: Double Cable Clamp | Part Category: Clamp ASM (assembly w/ bolt) | Applicable Cable: Ø14~16mm | Dimension A: 20.0±0.2mm | Dimension H: 73.0+5mm | Material: High strength steel | |
| C2.1416 | Double cable clamp body, Ø14~16mm | CP SYSTEM | Type: Double Cable Clamp | Part Category: Clamp (body only) | Applicable Cable: Ø14~16mm | Dimension A: 20.0±0.2mm | Dimension H: 73.0+5mm | Material: High strength steel | |
| CA2.1618 | Double cable clamp ASM, Ø16~18mm | CP SYSTEM | Type: Double Cable Clamp | Part Category: Clamp ASM (assembly w/ bolt) | Applicable Cable: Ø16~18mm | Dimension A: 22.0±0.2mm | Dimension H: 77.0+5mm | Material: High strength steel | |
| C2.1618 | Double cable clamp body, Ø16~18mm | CP SYSTEM | Type: Double Cable Clamp | Part Category: Clamp (body only) | Applicable Cable: Ø16~18mm | Dimension A: 22.0±0.2mm | Dimension H: 77.0+5mm | Material: High strength steel | |
| CA2.1820 | Double cable clamp ASM, Ø18~20mm | CP SYSTEM | Type: Double Cable Clamp | Part Category: Clamp ASM (assembly w/ bolt) | Applicable Cable: Ø18~20mm | Dimension A: 24.0±0.2mm | Dimension H: 81.0+5mm | Material: High strength steel | |
| C2.1820 | Double cable clamp body, Ø18~20mm | CP SYSTEM | Type: Double Cable Clamp | Part Category: Clamp (body only) | Applicable Cable: Ø18~20mm | Dimension A: 24.0±0.2mm | Dimension H: 81.0+5mm | Material: High strength steel | |
| CA2.2022 | Double cable clamp ASM, Ø20~22mm | CP SYSTEM | Type: Double Cable Clamp | Part Category: Clamp ASM (assembly w/ bolt) | Applicable Cable: Ø20~22mm | Dimension A: 26.0±0.2mm | Dimension H: 85.0+5mm | Material: High strength steel | |
| C2.2022 | Double cable clamp body, Ø20~22mm | CP SYSTEM | Type: Double Cable Clamp | Part Category: Clamp (body only) | Applicable Cable: Ø20~22mm | Dimension A: 26.0±0.2mm | Dimension H: 85.0+5mm | Material: High strength steel | |
| CA2.2226 | Double cable clamp ASM, Ø22~26mm | CP SYSTEM | Type: Double Cable Clamp | Part Category: Clamp ASM (assembly w/ bolt) | Applicable Cable: Ø22~26mm | Dimension A: 30.0±0.2mm | Dimension H: 94.5+5mm | Material: High strength steel | |
| C2.2226 | Double cable clamp body, Ø22~26mm | CP SYSTEM | Type: Double Cable Clamp | Part Category: Clamp (body only) | Applicable Cable: Ø22~26mm | Dimension A: 30.0±0.2mm | Dimension H: 94.5+5mm | Material: High strength steel | |
| CA2.2630 | Double cable clamp ASM, Ø26~30mm | CP SYSTEM | Type: Double Cable Clamp | Part Category: Clamp ASM (assembly w/ bolt) | Applicable Cable: Ø26~30mm | Dimension A: 34.0±0.2mm | Dimension H: 101.0+5mm | Material: High strength steel | |
| C2.2630 | Double cable clamp body, Ø26~30mm | CP SYSTEM | Type: Double Cable Clamp | Part Category: Clamp (body only) | Applicable Cable: Ø26~30mm | Dimension A: 34.0±0.2mm | Dimension H: 101.0+5mm | Material: High strength steel | |
| CA2.3034 | Double cable clamp ASM, Ø30~34mm | CP SYSTEM | Type: Double Cable Clamp | Part Category: Clamp ASM (assembly w/ bolt) | Applicable Cable: Ø30~34mm | Dimension A: 38.0±0.2mm | Dimension H: 110.0+5mm | Material: High strength steel | |
| C2.3034 | Double cable clamp body, Ø30~34mm | CP SYSTEM | Type: Double Cable Clamp | Part Category: Clamp (body only) | Applicable Cable: Ø30~34mm | Dimension A: 38.0±0.2mm | Dimension H: 110.0+5mm | Material: High strength steel |
![[CP SYSTEM] — Guide Channel Nylon Bar (GC.NB-400/800, Normal/Roller)](https://img.prosourcemro.com/2026/05/002-204-300x200.png)
Guide channel nylon bar — supporting unit for the cable chain in the C-Zone, holding up the upper chain. Made of the same low-dust, anti-abrasive material as the chain (Polyamide6 + GF30%). Available in 400mm / 800mm lengths in Normal and Roller types (RH/LH bilaterally symmetric).
Guide channel nylon bar — supporting unit for the cable chain in the C-Zone, holding up the upper chain. Made of the same low-dust, anti-abrasive material as the chain (Polyamide6 + GF30%). Available in 400mm / 800mm lengths in Normal and Roller types (RH/LH bilaterally symmetric).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| GC.NB-400N | Guide channel nylon bar 400mm, Normal type | CP SYSTEM | Type: Normal | Length: 400mm | Material: Polyamide6 + GF30% | Function: C-Zone chain support unit (low-dust, anti-abrasive) | Order Unit: Set (quantity specified in sets, e.g. :10ST) | |
| GC.NB-400R | Guide channel nylon bar 400mm, Roller (RH/LH) type | CP SYSTEM | Type: Roller (RH/LH) | Length: 400mm | Material: Polyamide6 + GF30% | Function: C-Zone chain support unit (low-dust, anti-abrasive) | Order Unit: Set (quantity specified in sets, e.g. :10ST) | |
| GC.NB-800N | Guide channel nylon bar 800mm, Normal type | CP SYSTEM | Type: Normal | Length: 800mm | Material: Polyamide6 + GF30% | Function: C-Zone chain support unit (low-dust, anti-abrasive) | Order Unit: Set (quantity specified in sets, e.g. :10ST) | |
| GC.NB-800R | Guide channel nylon bar 800mm, Roller (RH/LH) type | CP SYSTEM | Type: Roller (RH/LH) | Length: 800mm | Material: Polyamide6 + GF30% | Function: C-Zone chain support unit (low-dust, anti-abrasive) | Order Unit: Set (quantity specified in sets, e.g. :10ST) |
![[CP SYSTEM] — HX3553 Helix Chain (Spiral Rotary, Pitch 53mm, Inside Width 75mm)](https://img.prosourcemro.com/2026/05/002-209-300x240.png)
Helix chain is applied to the application with a spiral rotary motion in limited space where 360 degrees robots, rotating machines are operated. It protects cables from external damage and keeps the rotating angles safely. HX3553: pitch 53mm, chain inside width 75mm, upside & downside open frame with steel end bracket and guide channel.
Helix chain is applied to the application with a spiral rotary motion in limited space where 360 degrees robots, rotating machines are operated. It protects cables from external damage and keeps the rotating angles safely. HX3553: pitch 53mm, chain inside width 75mm, upside & downside open frame with steel end bracket and guide channel.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| HX3553.075.R90 | HX3553 Helix Chain, inside width 75mm, bending radius R90mm | CP SYSTEM | Model: HX3553 | Pitch: 53mm | Inside Width: 75mm | Bending Radius: R90mm | Motion: Spiral rotary up to 360 deg | Frame: Upside & Downside open frame | End Bracket: Steel End Bracket | Guide Channel: Included | Length: Made-to-order (specify in mm, e.g. -1000L) | Divider (DV): Optional qty (set) | |
| HX3553.075.R140 | HX3553 Helix Chain, inside width 75mm, bending radius R140mm | CP SYSTEM | Model: HX3553 | Pitch: 53mm | Inside Width: 75mm | Bending Radius: R140mm | Motion: Spiral rotary up to 360 deg | Frame: Upside & Downside open frame | End Bracket: Steel End Bracket | Guide Channel: Included | Length: Made-to-order (specify in mm, e.g. -1000L) | Divider (DV): Optional qty (set) |
Helix chain is applied to the application with a spiral rotary motion in limited space where 360 degrees robots, rotating machines are operated. It protects cables from external damage and keeps the rotating angles safely. HX6075: pitch 75mm, chain inside width 100mm, upside & downside open frame with steel end bracket and guide channel.
Helix chain is applied to the application with a spiral rotary motion in limited space where 360 degrees robots, rotating machines are operated. It protects cables from external damage and keeps the rotating angles safely. HX6075: pitch 75mm, chain inside width 100mm, upside & downside open frame with steel end bracket and guide channel.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| HX6075.100.R110 | HX6075 Helix Chain, inside width 100mm, bending radius R110mm | CP SYSTEM | Model: HX6075 | Pitch: 75mm | Inside Width: 100mm | Bending Radius: R110mm | Motion: Spiral rotary up to 360 deg | Frame: Upside & Downside open frame | End Bracket: Steel End Bracket | Guide Channel: Included | Length: Made-to-order (specify in mm, e.g. -1000L) | Divider (DV): Optional qty (set) | |
| HX6075.100.R135 | HX6075 Helix Chain, inside width 100mm, bending radius R135mm | CP SYSTEM | Model: HX6075 | Pitch: 75mm | Inside Width: 100mm | Bending Radius: R135mm | Motion: Spiral rotary up to 360 deg | Frame: Upside & Downside open frame | End Bracket: Steel End Bracket | Guide Channel: Included | Length: Made-to-order (specify in mm, e.g. -1000L) | Divider (DV): Optional qty (set) | |
| HX6075.100.R185 | HX6075 Helix Chain, inside width 100mm, bending radius R185mm | CP SYSTEM | Model: HX6075 | Pitch: 75mm | Inside Width: 100mm | Bending Radius: R185mm | Motion: Spiral rotary up to 360 deg | Frame: Upside & Downside open frame | End Bracket: Steel End Bracket | Guide Channel: Included | Length: Made-to-order (specify in mm, e.g. -1000L) | Divider (DV): Optional qty (set) | |
| HX6075.100.R235 | HX6075 Helix Chain, inside width 100mm, bending radius R235mm | CP SYSTEM | Model: HX6075 | Pitch: 75mm | Inside Width: 100mm | Bending Radius: R235mm | Motion: Spiral rotary up to 360 deg | Frame: Upside & Downside open frame | End Bracket: Steel End Bracket | Guide Channel: Included | Length: Made-to-order (specify in mm, e.g. -1000L) | Divider (DV): Optional qty (set) |
CP SYSTEM multi-type Cable Clamp assemblies (MCA1-MCA8) — preset compositions of upper/lower and middle housings for grouping multiple cables in one clamp stack, based on single/double/triple clamps for Ø6-12mm cables. Customized compositions can be produced.
CP SYSTEM multi-type Cable Clamp assemblies (MCA1-MCA8) — preset compositions of upper/lower and middle housings for grouping multiple cables in one clamp stack, based on single/double/triple clamps for Ø6-12mm cables. Customized compositions can be produced.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| MCA1 | Multi type cable clamp MCA1 (Single, Ø06) | CP SYSTEM | Type: Multi Type Cable Clamp (Single) | Base Clamp: C1.0612 | Applicable Cable: Ø06 | Housing Composition: MH1.06 x2 | Note: Preset multi composition; customized available | |
| MCA2 | Multi type cable clamp MCA2 (Double, Ø06) | CP SYSTEM | Type: Multi Type Cable Clamp (Double) | Base Clamp: C2.0612 | Applicable Cable: Ø06 | Housing Composition: MH1.06 x2 + MH2.06 x1 | Note: Preset multi composition; customized available | |
| MCA3 | Multi type cable clamp MCA3 (Double, Ø06,12) | CP SYSTEM | Type: Multi Type Cable Clamp (Double) | Base Clamp: C2.0612 | Applicable Cable: Ø06,12 | Housing Composition: MH1.06 x1 + H1.0612 x1 + MH2.0612 x1 | Note: Preset multi composition; customized available | |
| MCA4 | Multi type cable clamp MCA4 (Double, Ø06,08) | CP SYSTEM | Type: Multi Type Cable Clamp (Double) | Base Clamp: C2.0612 | Applicable Cable: Ø06,08 | Housing Composition: H1.0612 x2 + MH2.0612 x2 | Note: Preset multi composition; customized available | |
| MCA5 | Multi type cable clamp MCA5 (Triple, Ø06) | CP SYSTEM | Type: Multi Type Cable Clamp (Triple) | Base Clamp: C3.0612 | Applicable Cable: Ø06 | Housing Composition: MH1.06 x2 + MH2.06 x3 | Note: Preset multi composition; customized available | |
| MCA6 | Multi type cable clamp MCA6 (Triple, Ø06,12) | CP SYSTEM | Type: Multi Type Cable Clamp (Triple) | Base Clamp: C3.0612 | Applicable Cable: Ø06,12 | Housing Composition: MH1.06 x1 + H1.0612 x1 + MH2.0612 x1 + MH2.06 x2 | Note: Preset multi composition; customized available | |
| MCA7 | Multi type cable clamp MCA7 (Triple, Ø06,12) | CP SYSTEM | Type: Multi Type Cable Clamp (Triple) | Base Clamp: C3.0612 | Applicable Cable: Ø06,12 | Housing Composition: MH1.06 x1 + H1.0612 x1 + H2.0612 x1 + MH2.0612 x1 | Note: Preset multi composition; customized available | |
| MCA8 | Multi type cable clamp MCA8 (Triple, Ø06,12) | CP SYSTEM | Type: Multi Type Cable Clamp (Triple) | Base Clamp: C3.0612 | Applicable Cable: Ø06,12 | Housing Composition: H1.0612 x1 + MH2.0612 x2 + MH2.06 x1 | Note: Preset multi composition; customized available |
![[CP SYSTEM] — New RV (Revolving) Chain Guide Unit](https://img.prosourcemro.com/2026/05/002-208-300x300.png)
New RV Chain Guide Unit for CP SYSTEM Revolving Chain. Prevents the slip phenomenon caused by rotating value and loaded cables, preventing chain damage and improving durability. Separately ordered; M6 screw + washer mounting.
New RV Chain Guide Unit for CP SYSTEM Revolving Chain. Prevents the slip phenomenon caused by rotating value and loaded cables, preventing chain damage and improving durability. Separately ordered; M6 screw + washer mounting.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| RV-GU | New RV Revolving Chain Guide Unit | CP SYSTEM | Type: RV Chain Guide Unit | Function: slip prevention / durability improvement | Mounting: M6 screw + washer | Recommended Qty: 1 (0-90 deg) / 2 (90-180 deg) / 3 (180-270 deg) | Ordering: separately ordered (e.g. RV-GU:1EA) |
![[CP SYSTEM] — nsb020CR Sabin Chain Clean Room Cable Carrier (Inside Width 20-40mm, R28-R48)](https://img.prosourcemro.com/2026/05/002-185-300x227.png)
Sabin Chain nsb-CR Cleanroom Type cable carrier. Performs low noise and low dust for production lines of semiconductors, LCD and PDP where dust and noise are strictly controlled. Hinge-type frame for easy assembly and maintenance. Material CPS-Amide (PA6+G.F). Noise level 30dB (DIN EN 61672-1), recorded at TUV (Germany), patent obtained. Speed 10 m/s, acceleration 20 m/s², operating temperature -30 ~ +130°C. 'NET' certified (low dust/noise) by the Ministry of Science and Technology. Can be produced in ATEX and ESD-retardant types; ESD / UV / customized color options available. Model nsb020CR: inside width 20-40mm, bending radius R28-R48. Brackets, dividers, separators, length and steel plate are made-to-order.
Sabin Chain nsb-CR Cleanroom Type cable carrier. Performs low noise and low dust for production lines of semiconductors, LCD and PDP where dust and noise are strictly controlled. Hinge-type frame for easy assembly and maintenance. Material CPS-Amide (PA6+G.F). Noise level 30dB (DIN EN 61672-1), recorded at TUV (Germany), patent obtained. Speed 10 m/s, acceleration 20 m/s², operating temperature -30 ~ +130°C. 'NET' certified (low dust/noise) by the Ministry of Science and Technology. Can be produced in ATEX and ESD-retardant types; ESD / UV / customized color options available. Model nsb020CR: inside width 20-40mm, bending radius R28-R48. Brackets, dividers, separators, length and steel plate are made-to-order.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| nsb020CR.20.R28 | Sabin nsb020CR Clean Room cable chain, inside width 20mm, R28 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb020CR | Inside Width (C): 20mm | Bending Radius (R): 28mm | Inside Height (D): 15mm | Outer Width (A): 34mm | Outer Height (B): 22mm | Weight: 0.32 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb020CR.20.R38 | Sabin nsb020CR Clean Room cable chain, inside width 20mm, R38 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb020CR | Inside Width (C): 20mm | Bending Radius (R): 38mm | Inside Height (D): 15mm | Outer Width (A): 34mm | Outer Height (B): 22mm | Weight: 0.32 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb020CR.20.R48 | Sabin nsb020CR Clean Room cable chain, inside width 20mm, R48 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb020CR | Inside Width (C): 20mm | Bending Radius (R): 48mm | Inside Height (D): 15mm | Outer Width (A): 34mm | Outer Height (B): 22mm | Weight: 0.32 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb020CR.40.R28 | Sabin nsb020CR Clean Room cable chain, inside width 40mm, R28 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb020CR | Inside Width (C): 40mm | Bending Radius (R): 28mm | Inside Height (D): 15mm | Outer Width (A): 54mm | Outer Height (B): 22mm | Weight: 0.35 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb020CR.40.R38 | Sabin nsb020CR Clean Room cable chain, inside width 40mm, R38 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb020CR | Inside Width (C): 40mm | Bending Radius (R): 38mm | Inside Height (D): 15mm | Outer Width (A): 54mm | Outer Height (B): 22mm | Weight: 0.35 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb020CR.40.R48 | Sabin nsb020CR Clean Room cable chain, inside width 40mm, R48 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb020CR | Inside Width (C): 40mm | Bending Radius (R): 48mm | Inside Height (D): 15mm | Outer Width (A): 54mm | Outer Height (B): 22mm | Weight: 0.35 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order |
![[CP SYSTEM] — nsb020CRG G-Clean Chain (Clean Room Type, UHMW-PE, Inner Width 20/40mm)](https://img.prosourcemro.com/2026/05/002-189-300x200.png)
nsb G-Clean Chain - Clean Room Type with UHMW-PE material. Low Dust, Low Noise Cable Chain. Special designed structure of the side band offers no friction and minimized dust. Comparing CPS nsb-CR cable chain, expect the dramatic developement of the abrasion rate. Great effect against the operation noise. IPA ISO Class 1 Certificates approved for the strictly regulated environment such as Semiconductors, LCD and PDP production line. Material: CPS-Amide (PA6+G.F)+PTFE, GUR. Noise level 30dB. Speed 10 m/s. Acceleration 20 m/s^2. Temperature -30C ~ +130C. Certificate: CE, IPA, ATEX(Ex), TUV. Hinge Hook assembly, separable. Bending radius R28/R38/R48. Inner width 20-40mm. Brackets, dividers, separators, tie-wraps and chain length are made-to-order options.
nsb G-Clean Chain - Clean Room Type with UHMW-PE material. Low Dust, Low Noise Cable Chain. Special designed structure of the side band offers no friction and minimized dust. Comparing CPS nsb-CR cable chain, expect the dramatic developement of the abrasion rate. Great effect against the operation noise. IPA ISO Class 1 Certificates approved for the strictly regulated environment such as Semiconductors, LCD and PDP production line. Material: CPS-Amide (PA6+G.F)+PTFE, GUR. Noise level 30dB. Speed 10 m/s. Acceleration 20 m/s^2. Temperature -30C ~ +130C. Certificate: CE, IPA, ATEX(Ex), TUV. Hinge Hook assembly, separable. Bending radius R28/R38/R48. Inner width 20-40mm. Brackets, dividers, separators, tie-wraps and chain length are made-to-order options.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| nsb020CRG.20.R28 | nsb020CRG G-Clean Chain, inner width 20mm, bending radius R28mm | CP SYSTEM | Inner Width (C): 20mm | Outer Width (A): 34mm | Outer Height (B): 22mm | Inner Height (D): 13.5mm | Bending Radius (R): 28mm | Loop Length (Lp): 168mm | Moving Height (H): 79mm | Weight: 0.36 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | |
| nsb020CRG.20.R38 | nsb020CRG G-Clean Chain, inner width 20mm, bending radius R38mm | CP SYSTEM | Inner Width (C): 20mm | Outer Width (A): 34mm | Outer Height (B): 22mm | Inner Height (D): 13.5mm | Bending Radius (R): 38mm | Loop Length (Lp): 200mm | Moving Height (H): 99mm | Weight: 0.36 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | |
| nsb020CRG.20.R48 | nsb020CRG G-Clean Chain, inner width 20mm, bending radius R48mm | CP SYSTEM | Inner Width (C): 20mm | Outer Width (A): 34mm | Outer Height (B): 22mm | Inner Height (D): 13.5mm | Bending Radius (R): 48mm | Loop Length (Lp): 231mm | Moving Height (H): 119mm | Weight: 0.36 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | |
| nsb020CRG.40.R28 | nsb020CRG G-Clean Chain, inner width 40mm, bending radius R28mm | CP SYSTEM | Inner Width (C): 40mm | Outer Width (A): 54mm | Outer Height (B): 22mm | Inner Height (D): 13.5mm | Bending Radius (R): 28mm | Loop Length (Lp): 168mm | Moving Height (H): 79mm | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | |
| nsb020CRG.40.R38 | nsb020CRG G-Clean Chain, inner width 40mm, bending radius R38mm | CP SYSTEM | Inner Width (C): 40mm | Outer Width (A): 54mm | Outer Height (B): 22mm | Inner Height (D): 13.5mm | Bending Radius (R): 38mm | Loop Length (Lp): 200mm | Moving Height (H): 99mm | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | |
| nsb020CRG.40.R48 | nsb020CRG G-Clean Chain, inner width 40mm, bending radius R48mm | CP SYSTEM | Inner Width (C): 40mm | Outer Width (A): 54mm | Outer Height (B): 22mm | Inner Height (D): 13.5mm | Bending Radius (R): 48mm | Loop Length (Lp): 231mm | Moving Height (H): 119mm | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order |
Sabin Chain nsb-CR Cleanroom Type cable carrier. Performs low noise and low dust for production lines of semiconductors, LCD and PDP where dust and noise are strictly controlled. Hinge-type frame for easy assembly and maintenance. Material CPS-Amide (PA6+G.F). Noise level 30dB (DIN EN 61672-1), recorded at TUV (Germany), patent obtained. Speed 10 m/s, acceleration 20 m/s², operating temperature -30 ~ +130°C. 'NET' certified (low dust/noise) by the Ministry of Science and Technology. Can be produced in ATEX and ESD-retardant types; ESD / UV / customized color options available. Model nsb022CR: inside width 16-100mm, bending radius R35-R120. Brackets, dividers, separators, length and steel plate are made-to-order.
Sabin Chain nsb-CR Cleanroom Type cable carrier. Performs low noise and low dust for production lines of semiconductors, LCD and PDP where dust and noise are strictly controlled. Hinge-type frame for easy assembly and maintenance. Material CPS-Amide (PA6+G.F). Noise level 30dB (DIN EN 61672-1), recorded at TUV (Germany), patent obtained. Speed 10 m/s, acceleration 20 m/s², operating temperature -30 ~ +130°C. 'NET' certified (low dust/noise) by the Ministry of Science and Technology. Can be produced in ATEX and ESD-retardant types; ESD / UV / customized color options available. Model nsb022CR: inside width 16-100mm, bending radius R35-R120. Brackets, dividers, separators, length and steel plate are made-to-order.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| nsb022CR.16.R35 | Sabin nsb022CR Clean Room cable chain, inside width 16mm, R35 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 16mm | Bending Radius (R): 35mm | Inside Height (D): 22mm | Outer Width (A): 30mm | Outer Height (B): 29mm | Weight: 0.43 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.16.R45 | Sabin nsb022CR Clean Room cable chain, inside width 16mm, R45 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 16mm | Bending Radius (R): 45mm | Inside Height (D): 22mm | Outer Width (A): 30mm | Outer Height (B): 29mm | Weight: 0.43 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.16.R75 | Sabin nsb022CR Clean Room cable chain, inside width 16mm, R75 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 16mm | Bending Radius (R): 75mm | Inside Height (D): 22mm | Outer Width (A): 30mm | Outer Height (B): 29mm | Weight: 0.43 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.16.R100 | Sabin nsb022CR Clean Room cable chain, inside width 16mm, R100 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 16mm | Bending Radius (R): 100mm | Inside Height (D): 22mm | Outer Width (A): 30mm | Outer Height (B): 29mm | Weight: 0.43 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.16.R120 | Sabin nsb022CR Clean Room cable chain, inside width 16mm, R120 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 16mm | Bending Radius (R): 120mm | Inside Height (D): 22mm | Outer Width (A): 30mm | Outer Height (B): 29mm | Weight: 0.43 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.27.R35 | Sabin nsb022CR Clean Room cable chain, inside width 27mm, R35 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 27mm | Bending Radius (R): 35mm | Inside Height (D): 22mm | Outer Width (A): 41mm | Outer Height (B): 29mm | Weight: 0.47 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.27.R45 | Sabin nsb022CR Clean Room cable chain, inside width 27mm, R45 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 27mm | Bending Radius (R): 45mm | Inside Height (D): 22mm | Outer Width (A): 41mm | Outer Height (B): 29mm | Weight: 0.47 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.27.R75 | Sabin nsb022CR Clean Room cable chain, inside width 27mm, R75 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 27mm | Bending Radius (R): 75mm | Inside Height (D): 22mm | Outer Width (A): 41mm | Outer Height (B): 29mm | Weight: 0.47 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.27.R100 | Sabin nsb022CR Clean Room cable chain, inside width 27mm, R100 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 27mm | Bending Radius (R): 100mm | Inside Height (D): 22mm | Outer Width (A): 41mm | Outer Height (B): 29mm | Weight: 0.47 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.27.R120 | Sabin nsb022CR Clean Room cable chain, inside width 27mm, R120 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 27mm | Bending Radius (R): 120mm | Inside Height (D): 22mm | Outer Width (A): 41mm | Outer Height (B): 29mm | Weight: 0.47 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.37.R35 | Sabin nsb022CR Clean Room cable chain, inside width 37mm, R35 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 37mm | Bending Radius (R): 35mm | Inside Height (D): 22mm | Outer Width (A): 51mm | Outer Height (B): 29mm | Weight: 0.51 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.37.R45 | Sabin nsb022CR Clean Room cable chain, inside width 37mm, R45 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 37mm | Bending Radius (R): 45mm | Inside Height (D): 22mm | Outer Width (A): 51mm | Outer Height (B): 29mm | Weight: 0.51 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.37.R75 | Sabin nsb022CR Clean Room cable chain, inside width 37mm, R75 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 37mm | Bending Radius (R): 75mm | Inside Height (D): 22mm | Outer Width (A): 51mm | Outer Height (B): 29mm | Weight: 0.51 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.37.R100 | Sabin nsb022CR Clean Room cable chain, inside width 37mm, R100 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 37mm | Bending Radius (R): 100mm | Inside Height (D): 22mm | Outer Width (A): 51mm | Outer Height (B): 29mm | Weight: 0.51 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.37.R120 | Sabin nsb022CR Clean Room cable chain, inside width 37mm, R120 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 37mm | Bending Radius (R): 120mm | Inside Height (D): 22mm | Outer Width (A): 51mm | Outer Height (B): 29mm | Weight: 0.51 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.47.R35 | Sabin nsb022CR Clean Room cable chain, inside width 47mm, R35 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 47mm | Bending Radius (R): 35mm | Inside Height (D): 22mm | Outer Width (A): 61mm | Outer Height (B): 29mm | Weight: 0.55 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.47.R45 | Sabin nsb022CR Clean Room cable chain, inside width 47mm, R45 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 47mm | Bending Radius (R): 45mm | Inside Height (D): 22mm | Outer Width (A): 61mm | Outer Height (B): 29mm | Weight: 0.55 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.47.R75 | Sabin nsb022CR Clean Room cable chain, inside width 47mm, R75 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 47mm | Bending Radius (R): 75mm | Inside Height (D): 22mm | Outer Width (A): 61mm | Outer Height (B): 29mm | Weight: 0.55 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.47.R100 | Sabin nsb022CR Clean Room cable chain, inside width 47mm, R100 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 47mm | Bending Radius (R): 100mm | Inside Height (D): 22mm | Outer Width (A): 61mm | Outer Height (B): 29mm | Weight: 0.55 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.47.R120 | Sabin nsb022CR Clean Room cable chain, inside width 47mm, R120 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 47mm | Bending Radius (R): 120mm | Inside Height (D): 22mm | Outer Width (A): 61mm | Outer Height (B): 29mm | Weight: 0.55 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.67.R35 | Sabin nsb022CR Clean Room cable chain, inside width 67mm, R35 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 67mm | Bending Radius (R): 35mm | Inside Height (D): 22mm | Outer Width (A): 81mm | Outer Height (B): 29mm | Weight: 0.67 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.67.R45 | Sabin nsb022CR Clean Room cable chain, inside width 67mm, R45 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 67mm | Bending Radius (R): 45mm | Inside Height (D): 22mm | Outer Width (A): 81mm | Outer Height (B): 29mm | Weight: 0.67 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.67.R75 | Sabin nsb022CR Clean Room cable chain, inside width 67mm, R75 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 67mm | Bending Radius (R): 75mm | Inside Height (D): 22mm | Outer Width (A): 81mm | Outer Height (B): 29mm | Weight: 0.67 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.67.R100 | Sabin nsb022CR Clean Room cable chain, inside width 67mm, R100 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 67mm | Bending Radius (R): 100mm | Inside Height (D): 22mm | Outer Width (A): 81mm | Outer Height (B): 29mm | Weight: 0.67 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.67.R120 | Sabin nsb022CR Clean Room cable chain, inside width 67mm, R120 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 67mm | Bending Radius (R): 120mm | Inside Height (D): 22mm | Outer Width (A): 81mm | Outer Height (B): 29mm | Weight: 0.67 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.77.R35 | Sabin nsb022CR Clean Room cable chain, inside width 77mm, R35 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 77mm | Bending Radius (R): 35mm | Inside Height (D): 22mm | Outer Width (A): 91mm | Outer Height (B): 29mm | Weight: 0.69 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.77.R45 | Sabin nsb022CR Clean Room cable chain, inside width 77mm, R45 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 77mm | Bending Radius (R): 45mm | Inside Height (D): 22mm | Outer Width (A): 91mm | Outer Height (B): 29mm | Weight: 0.69 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.77.R75 | Sabin nsb022CR Clean Room cable chain, inside width 77mm, R75 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 77mm | Bending Radius (R): 75mm | Inside Height (D): 22mm | Outer Width (A): 91mm | Outer Height (B): 29mm | Weight: 0.69 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.77.R100 | Sabin nsb022CR Clean Room cable chain, inside width 77mm, R100 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 77mm | Bending Radius (R): 100mm | Inside Height (D): 22mm | Outer Width (A): 91mm | Outer Height (B): 29mm | Weight: 0.69 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.77.R120 | Sabin nsb022CR Clean Room cable chain, inside width 77mm, R120 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 77mm | Bending Radius (R): 120mm | Inside Height (D): 22mm | Outer Width (A): 91mm | Outer Height (B): 29mm | Weight: 0.69 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.100.R35 | Sabin nsb022CR Clean Room cable chain, inside width 100mm, R35 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 100mm | Bending Radius (R): 35mm | Inside Height (D): 22mm | Outer Width (A): 114mm | Outer Height (B): 29mm | Weight: 0.81 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.100.R45 | Sabin nsb022CR Clean Room cable chain, inside width 100mm, R45 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 100mm | Bending Radius (R): 45mm | Inside Height (D): 22mm | Outer Width (A): 114mm | Outer Height (B): 29mm | Weight: 0.81 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.100.R75 | Sabin nsb022CR Clean Room cable chain, inside width 100mm, R75 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 100mm | Bending Radius (R): 75mm | Inside Height (D): 22mm | Outer Width (A): 114mm | Outer Height (B): 29mm | Weight: 0.81 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.100.R100 | Sabin nsb022CR Clean Room cable chain, inside width 100mm, R100 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 100mm | Bending Radius (R): 100mm | Inside Height (D): 22mm | Outer Width (A): 114mm | Outer Height (B): 29mm | Weight: 0.81 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb022CR.100.R120 | Sabin nsb022CR Clean Room cable chain, inside width 100mm, R120 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb022CR | Inside Width (C): 100mm | Bending Radius (R): 120mm | Inside Height (D): 22mm | Outer Width (A): 114mm | Outer Height (B): 29mm | Weight: 0.81 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order |
![[CP SYSTEM] — nsb022CRG G-Clean Chain (Clean Room Type, UHMW-PE, Inner Width 27-77mm)](https://img.prosourcemro.com/2026/05/002-190-300x240.png)
nsb G-Clean Chain - Clean Room Type with UHMW-PE material. Low Dust, Low Noise Cable Chain. IPA ISO Class 1 certified for Semiconductors, LCD and PDP production lines.
nsb G-Clean Chain - Clean Room Type with UHMW-PE material. Low Dust, Low Noise Cable Chain. IPA ISO Class 1 certified for Semiconductors, LCD and PDP production lines.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| nsb022CRG.27.R35 | nsb022CRG G-Clean Chain, inner width 27mm, bending radius R35mm | CP SYSTEM | Inner Width (C): 27mm | Outer Width (A): 41mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 35mm | Loop Length (Lp): 198mm | Moving Height (H): 106mm | Weight: 0.426 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | |
| nsb022CRG.27.R45 | nsb022CRG G-Clean Chain, inner width 27mm, bending radius R45mm | CP SYSTEM | Inner Width (C): 27mm | Outer Width (A): 41mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 45mm | Loop Length (Lp): 230mm | Moving Height (H): 126mm | Weight: 0.426 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | |
| nsb022CRG.27.R75 | nsb022CRG G-Clean Chain, inner width 27mm, bending radius R75mm | CP SYSTEM | Inner Width (C): 27mm | Outer Width (A): 41mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 75mm | Loop Length (Lp): 324mm | Moving Height (H): 186mm | Weight: 0.426 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | |
| nsb022CRG.37.R35 | nsb022CRG G-Clean Chain, inner width 37mm, bending radius R35mm | CP SYSTEM | Inner Width (C): 37mm | Outer Width (A): 51mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 35mm | Loop Length (Lp): 198mm | Moving Height (H): 106mm | Weight: 0.463 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | |
| nsb022CRG.37.R45 | nsb022CRG G-Clean Chain, inner width 37mm, bending radius R45mm | CP SYSTEM | Inner Width (C): 37mm | Outer Width (A): 51mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 45mm | Loop Length (Lp): 230mm | Moving Height (H): 126mm | Weight: 0.463 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | |
| nsb022CRG.37.R75 | nsb022CRG G-Clean Chain, inner width 37mm, bending radius R75mm | CP SYSTEM | Inner Width (C): 37mm | Outer Width (A): 51mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 75mm | Loop Length (Lp): 324mm | Moving Height (H): 186mm | Weight: 0.463 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | |
| nsb022CRG.47.R35 | nsb022CRG G-Clean Chain, inner width 47mm, bending radius R35mm | CP SYSTEM | Inner Width (C): 47mm | Outer Width (A): 61mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 35mm | Loop Length (Lp): 198mm | Moving Height (H): 106mm | Weight: 0.5 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | |
| nsb022CRG.47.R45 | nsb022CRG G-Clean Chain, inner width 47mm, bending radius R45mm | CP SYSTEM | Inner Width (C): 47mm | Outer Width (A): 61mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 45mm | Loop Length (Lp): 230mm | Moving Height (H): 126mm | Weight: 0.5 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | |
| nsb022CRG.47.R75 | nsb022CRG G-Clean Chain, inner width 47mm, bending radius R75mm | CP SYSTEM | Inner Width (C): 47mm | Outer Width (A): 61mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 75mm | Loop Length (Lp): 324mm | Moving Height (H): 186mm | Weight: 0.5 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | |
| nsb022CRG.67.R35 | nsb022CRG G-Clean Chain, inner width 67mm, bending radius R35mm | CP SYSTEM | Inner Width (C): 67mm | Outer Width (A): 81mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 35mm | Loop Length (Lp): 198mm | Moving Height (H): 106mm | Weight: 0.56 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | |
| nsb022CRG.67.R45 | nsb022CRG G-Clean Chain, inner width 67mm, bending radius R45mm | CP SYSTEM | Inner Width (C): 67mm | Outer Width (A): 81mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 45mm | Loop Length (Lp): 230mm | Moving Height (H): 126mm | Weight: 0.56 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | |
| nsb022CRG.67.R75 | nsb022CRG G-Clean Chain, inner width 67mm, bending radius R75mm | CP SYSTEM | Inner Width (C): 67mm | Outer Width (A): 81mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 75mm | Loop Length (Lp): 324mm | Moving Height (H): 186mm | Weight: 0.56 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | |
| nsb022CRG.77.R35 | nsb022CRG G-Clean Chain, inner width 77mm, bending radius R35mm | CP SYSTEM | Inner Width (C): 77mm | Outer Width (A): 91mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 35mm | Loop Length (Lp): 198mm | Moving Height (H): 106mm | Weight: 0.601 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | |
| nsb022CRG.77.R45 | nsb022CRG G-Clean Chain, inner width 77mm, bending radius R45mm | CP SYSTEM | Inner Width (C): 77mm | Outer Width (A): 91mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 45mm | Loop Length (Lp): 230mm | Moving Height (H): 126mm | Weight: 0.601 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | |
| nsb022CRG.77.R75 | nsb022CRG G-Clean Chain, inner width 77mm, bending radius R75mm | CP SYSTEM | Inner Width (C): 77mm | Outer Width (A): 91mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 75mm | Loop Length (Lp): 324mm | Moving Height (H): 186mm | Weight: 0.601 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order |
Sabin Chain nsb-CR Cleanroom Type cable carrier. Performs low noise and low dust for production lines of semiconductors, LCD and PDP where dust and noise are strictly controlled. Hinge-type frame for easy assembly and maintenance. Material CPS-Amide (PA6+G.F). Noise level 30dB (DIN EN 61672-1), recorded at TUV (Germany), patent obtained. Speed 10 m/s, acceleration 20 m/s², operating temperature -30 ~ +130°C. 'NET' certified (low dust/noise) by the Ministry of Science and Technology. Can be produced in ATEX and ESD-retardant types; ESD / UV / customized color options available. Model nsb028CR: inside width 35-200mm, bending radius R50-R150. Brackets, dividers, separators, length and steel plate are made-to-order.
Sabin Chain nsb-CR Cleanroom Type cable carrier. Performs low noise and low dust for production lines of semiconductors, LCD and PDP where dust and noise are strictly controlled. Hinge-type frame for easy assembly and maintenance. Material CPS-Amide (PA6+G.F). Noise level 30dB (DIN EN 61672-1), recorded at TUV (Germany), patent obtained. Speed 10 m/s, acceleration 20 m/s², operating temperature -30 ~ +130°C. 'NET' certified (low dust/noise) by the Ministry of Science and Technology. Can be produced in ATEX and ESD-retardant types; ESD / UV / customized color options available. Model nsb028CR: inside width 35-200mm, bending radius R50-R150. Brackets, dividers, separators, length and steel plate are made-to-order.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| nsb028CR.35.R50 | Sabin nsb028CR Clean Room cable chain, inside width 35mm, R50 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 35mm | Bending Radius (R): 50mm | Inside Height (D): 26mm | Outer Width (A): 55mm | Outer Height (B): 38mm | Weight: 0.9 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.35.R70 | Sabin nsb028CR Clean Room cable chain, inside width 35mm, R70 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 35mm | Bending Radius (R): 70mm | Inside Height (D): 26mm | Outer Width (A): 55mm | Outer Height (B): 38mm | Weight: 0.9 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.35.R90 | Sabin nsb028CR Clean Room cable chain, inside width 35mm, R90 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 35mm | Bending Radius (R): 90mm | Inside Height (D): 26mm | Outer Width (A): 55mm | Outer Height (B): 38mm | Weight: 0.9 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.35.R120 | Sabin nsb028CR Clean Room cable chain, inside width 35mm, R120 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 35mm | Bending Radius (R): 120mm | Inside Height (D): 26mm | Outer Width (A): 55mm | Outer Height (B): 38mm | Weight: 0.9 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.35.R150 | Sabin nsb028CR Clean Room cable chain, inside width 35mm, R150 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 35mm | Bending Radius (R): 150mm | Inside Height (D): 26mm | Outer Width (A): 55mm | Outer Height (B): 38mm | Weight: 0.9 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.50.R50 | Sabin nsb028CR Clean Room cable chain, inside width 50mm, R50 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 50mm | Bending Radius (R): 50mm | Inside Height (D): 26mm | Outer Width (A): 70mm | Outer Height (B): 38mm | Weight: 0.98 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.50.R70 | Sabin nsb028CR Clean Room cable chain, inside width 50mm, R70 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 50mm | Bending Radius (R): 70mm | Inside Height (D): 26mm | Outer Width (A): 70mm | Outer Height (B): 38mm | Weight: 0.98 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.50.R90 | Sabin nsb028CR Clean Room cable chain, inside width 50mm, R90 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 50mm | Bending Radius (R): 90mm | Inside Height (D): 26mm | Outer Width (A): 70mm | Outer Height (B): 38mm | Weight: 0.98 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.50.R120 | Sabin nsb028CR Clean Room cable chain, inside width 50mm, R120 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 50mm | Bending Radius (R): 120mm | Inside Height (D): 26mm | Outer Width (A): 70mm | Outer Height (B): 38mm | Weight: 0.98 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.50.R150 | Sabin nsb028CR Clean Room cable chain, inside width 50mm, R150 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 50mm | Bending Radius (R): 150mm | Inside Height (D): 26mm | Outer Width (A): 70mm | Outer Height (B): 38mm | Weight: 0.98 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.55.R50 | Sabin nsb028CR Clean Room cable chain, inside width 55mm, R50 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 55mm | Bending Radius (R): 50mm | Inside Height (D): 26mm | Outer Width (A): 75mm | Outer Height (B): 38mm | Weight: 1.02 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.55.R70 | Sabin nsb028CR Clean Room cable chain, inside width 55mm, R70 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 55mm | Bending Radius (R): 70mm | Inside Height (D): 26mm | Outer Width (A): 75mm | Outer Height (B): 38mm | Weight: 1.02 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.55.R90 | Sabin nsb028CR Clean Room cable chain, inside width 55mm, R90 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 55mm | Bending Radius (R): 90mm | Inside Height (D): 26mm | Outer Width (A): 75mm | Outer Height (B): 38mm | Weight: 1.02 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.55.R120 | Sabin nsb028CR Clean Room cable chain, inside width 55mm, R120 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 55mm | Bending Radius (R): 120mm | Inside Height (D): 26mm | Outer Width (A): 75mm | Outer Height (B): 38mm | Weight: 1.02 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.55.R150 | Sabin nsb028CR Clean Room cable chain, inside width 55mm, R150 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 55mm | Bending Radius (R): 150mm | Inside Height (D): 26mm | Outer Width (A): 75mm | Outer Height (B): 38mm | Weight: 1.02 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.75.R50 | Sabin nsb028CR Clean Room cable chain, inside width 75mm, R50 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 75mm | Bending Radius (R): 50mm | Inside Height (D): 26mm | Outer Width (A): 95mm | Outer Height (B): 38mm | Weight: 1.12 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.75.R70 | Sabin nsb028CR Clean Room cable chain, inside width 75mm, R70 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 75mm | Bending Radius (R): 70mm | Inside Height (D): 26mm | Outer Width (A): 95mm | Outer Height (B): 38mm | Weight: 1.12 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.75.R90 | Sabin nsb028CR Clean Room cable chain, inside width 75mm, R90 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 75mm | Bending Radius (R): 90mm | Inside Height (D): 26mm | Outer Width (A): 95mm | Outer Height (B): 38mm | Weight: 1.12 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.75.R120 | Sabin nsb028CR Clean Room cable chain, inside width 75mm, R120 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 75mm | Bending Radius (R): 120mm | Inside Height (D): 26mm | Outer Width (A): 95mm | Outer Height (B): 38mm | Weight: 1.12 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.75.R150 | Sabin nsb028CR Clean Room cable chain, inside width 75mm, R150 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 75mm | Bending Radius (R): 150mm | Inside Height (D): 26mm | Outer Width (A): 95mm | Outer Height (B): 38mm | Weight: 1.12 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.100.R50 | Sabin nsb028CR Clean Room cable chain, inside width 100mm, R50 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 100mm | Bending Radius (R): 50mm | Inside Height (D): 26mm | Outer Width (A): 120mm | Outer Height (B): 38mm | Weight: 1.27 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.100.R70 | Sabin nsb028CR Clean Room cable chain, inside width 100mm, R70 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 100mm | Bending Radius (R): 70mm | Inside Height (D): 26mm | Outer Width (A): 120mm | Outer Height (B): 38mm | Weight: 1.27 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.100.R90 | Sabin nsb028CR Clean Room cable chain, inside width 100mm, R90 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 100mm | Bending Radius (R): 90mm | Inside Height (D): 26mm | Outer Width (A): 120mm | Outer Height (B): 38mm | Weight: 1.27 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.100.R120 | Sabin nsb028CR Clean Room cable chain, inside width 100mm, R120 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 100mm | Bending Radius (R): 120mm | Inside Height (D): 26mm | Outer Width (A): 120mm | Outer Height (B): 38mm | Weight: 1.27 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.100.R150 | Sabin nsb028CR Clean Room cable chain, inside width 100mm, R150 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 100mm | Bending Radius (R): 150mm | Inside Height (D): 26mm | Outer Width (A): 120mm | Outer Height (B): 38mm | Weight: 1.27 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.125.R50 | Sabin nsb028CR Clean Room cable chain, inside width 125mm, R50 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 125mm | Bending Radius (R): 50mm | Inside Height (D): 26mm | Outer Width (A): 145mm | Outer Height (B): 38mm | Weight: 1.41 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.125.R70 | Sabin nsb028CR Clean Room cable chain, inside width 125mm, R70 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 125mm | Bending Radius (R): 70mm | Inside Height (D): 26mm | Outer Width (A): 145mm | Outer Height (B): 38mm | Weight: 1.41 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.125.R90 | Sabin nsb028CR Clean Room cable chain, inside width 125mm, R90 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 125mm | Bending Radius (R): 90mm | Inside Height (D): 26mm | Outer Width (A): 145mm | Outer Height (B): 38mm | Weight: 1.41 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.125.R120 | Sabin nsb028CR Clean Room cable chain, inside width 125mm, R120 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 125mm | Bending Radius (R): 120mm | Inside Height (D): 26mm | Outer Width (A): 145mm | Outer Height (B): 38mm | Weight: 1.41 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.125.R150 | Sabin nsb028CR Clean Room cable chain, inside width 125mm, R150 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 125mm | Bending Radius (R): 150mm | Inside Height (D): 26mm | Outer Width (A): 145mm | Outer Height (B): 38mm | Weight: 1.41 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.150.R50 | Sabin nsb028CR Clean Room cable chain, inside width 150mm, R50 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 150mm | Bending Radius (R): 50mm | Inside Height (D): 26mm | Outer Width (A): 170mm | Outer Height (B): 38mm | Weight: 1.59 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.150.R70 | Sabin nsb028CR Clean Room cable chain, inside width 150mm, R70 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 150mm | Bending Radius (R): 70mm | Inside Height (D): 26mm | Outer Width (A): 170mm | Outer Height (B): 38mm | Weight: 1.59 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.150.R90 | Sabin nsb028CR Clean Room cable chain, inside width 150mm, R90 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 150mm | Bending Radius (R): 90mm | Inside Height (D): 26mm | Outer Width (A): 170mm | Outer Height (B): 38mm | Weight: 1.59 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.150.R120 | Sabin nsb028CR Clean Room cable chain, inside width 150mm, R120 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 150mm | Bending Radius (R): 120mm | Inside Height (D): 26mm | Outer Width (A): 170mm | Outer Height (B): 38mm | Weight: 1.59 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.150.R150 | Sabin nsb028CR Clean Room cable chain, inside width 150mm, R150 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 150mm | Bending Radius (R): 150mm | Inside Height (D): 26mm | Outer Width (A): 170mm | Outer Height (B): 38mm | Weight: 1.59 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.175.R50 | Sabin nsb028CR Clean Room cable chain, inside width 175mm, R50 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 175mm | Bending Radius (R): 50mm | Inside Height (D): 26mm | Outer Width (A): 195mm | Outer Height (B): 38mm | Weight: 1.74 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.175.R70 | Sabin nsb028CR Clean Room cable chain, inside width 175mm, R70 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 175mm | Bending Radius (R): 70mm | Inside Height (D): 26mm | Outer Width (A): 195mm | Outer Height (B): 38mm | Weight: 1.74 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.175.R90 | Sabin nsb028CR Clean Room cable chain, inside width 175mm, R90 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 175mm | Bending Radius (R): 90mm | Inside Height (D): 26mm | Outer Width (A): 195mm | Outer Height (B): 38mm | Weight: 1.74 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.175.R120 | Sabin nsb028CR Clean Room cable chain, inside width 175mm, R120 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 175mm | Bending Radius (R): 120mm | Inside Height (D): 26mm | Outer Width (A): 195mm | Outer Height (B): 38mm | Weight: 1.74 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.175.R150 | Sabin nsb028CR Clean Room cable chain, inside width 175mm, R150 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 175mm | Bending Radius (R): 150mm | Inside Height (D): 26mm | Outer Width (A): 195mm | Outer Height (B): 38mm | Weight: 1.74 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.200.R50 | Sabin nsb028CR Clean Room cable chain, inside width 200mm, R50 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 200mm | Bending Radius (R): 50mm | Inside Height (D): 26mm | Outer Width (A): 220mm | Outer Height (B): 38mm | Weight: 1.84 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.200.R70 | Sabin nsb028CR Clean Room cable chain, inside width 200mm, R70 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 200mm | Bending Radius (R): 70mm | Inside Height (D): 26mm | Outer Width (A): 220mm | Outer Height (B): 38mm | Weight: 1.84 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.200.R90 | Sabin nsb028CR Clean Room cable chain, inside width 200mm, R90 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 200mm | Bending Radius (R): 90mm | Inside Height (D): 26mm | Outer Width (A): 220mm | Outer Height (B): 38mm | Weight: 1.84 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.200.R120 | Sabin nsb028CR Clean Room cable chain, inside width 200mm, R120 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 200mm | Bending Radius (R): 120mm | Inside Height (D): 26mm | Outer Width (A): 220mm | Outer Height (B): 38mm | Weight: 1.84 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order | |
| nsb028CR.200.R150 | Sabin nsb028CR Clean Room cable chain, inside width 200mm, R150 | CP SYSTEM | Type: Clean Room (CR) | Model: nsb028CR | Inside Width (C): 200mm | Bending Radius (R): 150mm | Inside Height (D): 26mm | Outer Width (A): 220mm | Outer Height (B): 38mm | Weight: 1.84 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Acceleration: 20 m/s² | Temperature: -30 ~ +130°C | Brackets/Dividers/Separators/Length/Steel Plate: made-to-order |
