Motors
![[GGM] — KGC-2847-T1 DC Spur-Gear Geared Motor (ø34mm motor, 12V, 1/2–1/2430)](https://img.prosourcemro.com/2026/06/0604-70-300x225.png)
GGM KGC-2847 DC spur-gear geared motor (motor KD2847T1), ø34mm motor, ø6mm output shaft, 3-M3 flange (PCD ø31). DC 12V, 33 ratios 1/2 to 1/2430; motor 110g. Output rotation varies by gear train (same/reversed vs motor per catalog).
GGM KGC-2847 DC spur-gear geared motor (motor KD2847T1), ø34mm motor, ø6mm output shaft, 3-M3 flange (PCD ø31). DC 12V, 33 ratios 1/2 to 1/2430; motor 110g. Output rotation varies by gear train (same/reversed vs motor per catalog).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KGC-0002-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/2, 3150 rpm / 0.12 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/2 | Output Speed (max eff.): 3150 rpm | Output Torque (max eff.): 0.12 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 21 mm | Overall Length L2: 96.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0003-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/3, 2100 rpm / 0.17 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/3 | Output Speed (max eff.): 2100 rpm | Output Torque (max eff.): 0.17 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 21 mm | Overall Length L2: 96.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0005-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/5, 1260 rpm / 0.29 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/5 | Output Speed (max eff.): 1260 rpm | Output Torque (max eff.): 0.29 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 21 mm | Overall Length L2: 96.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0010-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/10, 630 rpm / 0.58 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/10 | Output Speed (max eff.): 630 rpm | Output Torque (max eff.): 0.58 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 21 mm | Overall Length L2: 96.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0015-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/15, 420 rpm / 0.79 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/15 | Output Speed (max eff.): 420 rpm | Output Torque (max eff.): 0.79 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 21 mm | Overall Length L2: 96.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0020-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/20, 315 rpm / 1.05 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/20 | Output Speed (max eff.): 315 rpm | Output Torque (max eff.): 1.05 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 21 mm | Overall Length L2: 96.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0025-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/25, 252 rpm / 1.31 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/25 | Output Speed (max eff.): 252 rpm | Output Torque (max eff.): 1.31 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 21 mm | Overall Length L2: 96.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0030-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/30, 210 rpm / 1.57 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/30 | Output Speed (max eff.): 210 rpm | Output Torque (max eff.): 1.57 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 21 mm | Overall Length L2: 96.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0040-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/40, 157.5 rpm / 1.89 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/40 | Output Speed (max eff.): 157.5 rpm | Output Torque (max eff.): 1.89 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 29 mm | Overall Length L2: 104.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0050-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/50, 126 rpm / 2.36 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/50 | Output Speed (max eff.): 126 rpm | Output Torque (max eff.): 2.36 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 29 mm | Overall Length L2: 104.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0060-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/60, 105 rpm / 2.83 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/60 | Output Speed (max eff.): 105 rpm | Output Torque (max eff.): 2.83 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 29 mm | Overall Length L2: 104.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0070-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/70, 90 rpm / 3.31 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/70 | Output Speed (max eff.): 90 rpm | Output Torque (max eff.): 3.31 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 29 mm | Overall Length L2: 104.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0080-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/80, 78.8 rpm / 3.4 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/80 | Output Speed (max eff.): 78.8 rpm | Output Torque (max eff.): 3.4 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 29 mm | Overall Length L2: 104.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0083-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/83, 75.9 rpm / 3.53 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/83 | Output Speed (max eff.): 75.9 rpm | Output Torque (max eff.): 3.53 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 29 mm | Overall Length L2: 104.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0090-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/90, 70 rpm / 4.25 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/90 | Output Speed (max eff.): 70 rpm | Output Torque (max eff.): 4.25 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 29 mm | Overall Length L2: 104.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0100-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/100, 63 rpm / 4.25 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/100 | Output Speed (max eff.): 63 rpm | Output Torque (max eff.): 4.25 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 29 mm | Overall Length L2: 104.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0120-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/120, 52.5 rpm / 5.1 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/120 | Output Speed (max eff.): 52.5 rpm | Output Torque (max eff.): 5.1 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 29 mm | Overall Length L2: 104.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0150-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/150, 42 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/150 | Output Speed (max eff.): 42 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 29 mm | Overall Length L2: 104.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0180-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/180, 35 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/180 | Output Speed (max eff.): 35 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 29 mm | Overall Length L2: 104.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0200-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/200, 31.5 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/200 | Output Speed (max eff.): 31.5 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0210-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/210, 30 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/210 | Output Speed (max eff.): 30 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0240-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/240, 26.3 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/240 | Output Speed (max eff.): 26.3 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0300-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/300, 21 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/300 | Output Speed (max eff.): 21 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0360-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/360, 17.5 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/360 | Output Speed (max eff.): 17.5 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0400-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/400, 15.8 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/400 | Output Speed (max eff.): 15.8 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0500-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/500, 12.6 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/500 | Output Speed (max eff.): 12.6 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0600-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/600, 10.5 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/600 | Output Speed (max eff.): 10.5 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0750-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/750, 8.4 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/750 | Output Speed (max eff.): 8.4 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0900-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/900, 7 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/900 | Output Speed (max eff.): 7 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-1080-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/1080, 5.8 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/1080 | Output Speed (max eff.): 5.8 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-1350-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/1350, 4.7 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/1350 | Output Speed (max eff.): 4.7 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-1620-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/1620, 3.9 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/1620 | Output Speed (max eff.): 3.9 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-2430-KD2847T1 | GGM KGC-2847 DC 12V spur-gear geared motor, ratio 1/2430, 2.6 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T1 | Voltage: DC 12V | Gear Ratio: 1/2430 | Output Speed (max eff.): 2.6 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 830 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor |
GGM KGC-2847 DC spur-gear geared motor (motor KD2847T2), ø34mm motor, ø6mm output shaft, 3-M3 flange (PCD ø31). DC 24V, 33 ratios 1/2 to 1/2430; motor 110g. Output rotation varies by gear train (same/reversed vs motor per catalog).
GGM KGC-2847 DC spur-gear geared motor (motor KD2847T2), ø34mm motor, ø6mm output shaft, 3-M3 flange (PCD ø31). DC 24V, 33 ratios 1/2 to 1/2430; motor 110g. Output rotation varies by gear train (same/reversed vs motor per catalog).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KGC-0002-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/2, 3150 rpm / 0.14 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/2 | Output Speed (max eff.): 3150 rpm | Output Torque (max eff.): 0.14 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 21 mm | Overall Length L2: 96.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0003-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/3, 2100 rpm / 0.21 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/3 | Output Speed (max eff.): 2100 rpm | Output Torque (max eff.): 0.21 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 21 mm | Overall Length L2: 96.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0005-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/5, 1260 rpm / 0.36 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/5 | Output Speed (max eff.): 1260 rpm | Output Torque (max eff.): 0.36 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 21 mm | Overall Length L2: 96.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0010-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/10, 630 rpm / 0.71 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/10 | Output Speed (max eff.): 630 rpm | Output Torque (max eff.): 0.71 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 21 mm | Overall Length L2: 96.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0015-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/15, 420 rpm / 0.96 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/15 | Output Speed (max eff.): 420 rpm | Output Torque (max eff.): 0.96 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 21 mm | Overall Length L2: 96.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0020-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/20, 315 rpm / 1.28 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/20 | Output Speed (max eff.): 315 rpm | Output Torque (max eff.): 1.28 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 21 mm | Overall Length L2: 96.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0025-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/25, 252 rpm / 2 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/25 | Output Speed (max eff.): 252 rpm | Output Torque (max eff.): 2 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 21 mm | Overall Length L2: 96.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | Note: Rated torque 2 kgf·cm as printed (non-monotonic vs neighbours; verify) | |
| KGC-0030-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/30, 210 rpm / 1.92 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/30 | Output Speed (max eff.): 210 rpm | Output Torque (max eff.): 1.92 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 21 mm | Overall Length L2: 96.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0040-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/40, 157.5 rpm / 2.31 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/40 | Output Speed (max eff.): 157.5 rpm | Output Torque (max eff.): 2.31 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 29 mm | Overall Length L2: 104.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0050-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/50, 126 rpm / 2.89 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/50 | Output Speed (max eff.): 126 rpm | Output Torque (max eff.): 2.89 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 29 mm | Overall Length L2: 104.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0060-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/60, 105 rpm / 3.46 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/60 | Output Speed (max eff.): 105 rpm | Output Torque (max eff.): 3.46 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 29 mm | Overall Length L2: 104.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0070-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/70, 90 rpm / 4.04 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/70 | Output Speed (max eff.): 90 rpm | Output Torque (max eff.): 4.04 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 29 mm | Overall Length L2: 104.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0080-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/80, 78.8 rpm / 4.2 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/80 | Output Speed (max eff.): 78.8 rpm | Output Torque (max eff.): 4.2 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 29 mm | Overall Length L2: 104.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0083-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/83, 75.9 rpm / 4.31 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/83 | Output Speed (max eff.): 75.9 rpm | Output Torque (max eff.): 4.31 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 29 mm | Overall Length L2: 104.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0090-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/90, 70 rpm / 5 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/90 | Output Speed (max eff.): 70 rpm | Output Torque (max eff.): 5 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 29 mm | Overall Length L2: 104.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0100-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/100, 63 rpm / 5 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/100 | Output Speed (max eff.): 63 rpm | Output Torque (max eff.): 5 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 29 mm | Overall Length L2: 104.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0120-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/120, 52.5 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/120 | Output Speed (max eff.): 52.5 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 29 mm | Overall Length L2: 104.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0150-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/150, 42 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/150 | Output Speed (max eff.): 42 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 29 mm | Overall Length L2: 104.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0180-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/180, 35 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/180 | Output Speed (max eff.): 35 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 29 mm | Overall Length L2: 104.6 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0200-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/200, 31.5 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/200 | Output Speed (max eff.): 31.5 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0210-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/210, 30 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/210 | Output Speed (max eff.): 30 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0240-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/240, 26.3 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/240 | Output Speed (max eff.): 26.3 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0300-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/300, 21 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/300 | Output Speed (max eff.): 21 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0360-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/360, 17.5 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/360 | Output Speed (max eff.): 17.5 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0400-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/400, 15.8 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/400 | Output Speed (max eff.): 15.8 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0500-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/500, 12.6 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/500 | Output Speed (max eff.): 12.6 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0600-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/600, 10.5 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/600 | Output Speed (max eff.): 10.5 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0750-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/750, 8.4 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/750 | Output Speed (max eff.): 8.4 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-0900-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/900, 7 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/900 | Output Speed (max eff.): 7 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-1080-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/1080, 5.8 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/1080 | Output Speed (max eff.): 5.8 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-1350-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/1350, 4.7 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/1350 | Output Speed (max eff.): 4.7 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-1620-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/1620, 3.9 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/1620 | Output Speed (max eff.): 3.9 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor | |
| KGC-2430-KD2847T2 | GGM KGC-2847 DC 24V spur-gear geared motor, ratio 1/2430, 2.6 rpm / 6 kgf·cm @ max eff. | GGM | Motor: KD2847T2 | Voltage: DC 24V | Gear Ratio: 1/2430 | Output Speed (max eff.): 2.6 rpm | Output Torque (max eff.): 6 kgf·cm | No-load Speed: 7300 rpm | Stall Torque: 870 gf·cm | Gearhead Length L1: 33.7 mm | Overall Length L2: 109.3 mm | Output Shaft: ø6mm, 3-M3 flange (PCD ø31) | Type: DC spur-gear geared motor |

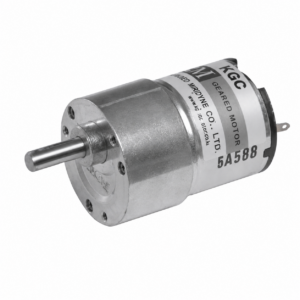

![[GGM] — KGC-3429-P1 Spur Geared DC Motor (ø34, DC 12V, 9500rpm base, 32 ratios 1/2-1/2430)](https://img.prosourcemro.com/2026/06/0605-300x300.png)
GGM KGC-3429-P1 spur geared DC motor, ø34 frame, DC 12V (Top-speed, 9500 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange. High-torque output (12V P1 winding).
GGM KGC-3429-P1 spur geared DC motor, ø34 frame, DC 12V (Top-speed, 9500 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange. High-torque output (12V P1 winding).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KGC-0002-KD3429P1 | KGC-3429-P1 spur geared, 1/2, 4000rpm, 0.13kgf·cm | GGM | Gear Ratio: 1/2 | Output Speed: 4000 rpm | Output Torque: 0.13 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0003-KD3429P1 | KGC-3429-P1 spur geared, 1/3, 2166rpm, 0.2kgf·cm | GGM | Gear Ratio: 1/3 | Output Speed: 2166 rpm | Output Torque: 0.2 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0005-KD3429P1 | KGC-3429-P1 spur geared, 1/5, 1600rpm, 0.3kgf·cm | GGM | Gear Ratio: 1/5 | Output Speed: 1600 rpm | Output Torque: 0.3 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0010-KD3429P1 | KGC-3429-P1 spur geared, 1/10, 800rpm, 0.65kgf·cm | GGM | Gear Ratio: 1/10 | Output Speed: 800 rpm | Output Torque: 0.65 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0015-KD3429P1 | KGC-3429-P1 spur geared, 1/15, 533.3rpm, 0.87kgf·cm | GGM | Gear Ratio: 1/15 | Output Speed: 533.3 rpm | Output Torque: 0.87 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0020-KD3429P1 | KGC-3429-P1 spur geared, 1/20, 400rpm, 1.16kgf·cm | GGM | Gear Ratio: 1/20 | Output Speed: 400 rpm | Output Torque: 1.16 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0025-KD3429P1 | KGC-3429-P1 spur geared, 1/25, 320rpm, 1.46kgf·cm | GGM | Gear Ratio: 1/25 | Output Speed: 320 rpm | Output Torque: 1.46 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0030-KD3429P1 | KGC-3429-P1 spur geared, 1/30, 267rpm, 1.75kgf·cm | GGM | Gear Ratio: 1/30 | Output Speed: 267 rpm | Output Torque: 1.75 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0040-KD3429P1 | KGC-3429-P1 spur geared, 1/40, 200rpm, 2.1kgf·cm | GGM | Gear Ratio: 1/40 | Output Speed: 200 rpm | Output Torque: 2.1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0050-KD3429P1 | KGC-3429-P1 spur geared, 1/50, 160rpm, 2.6kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 160 rpm | Output Torque: 2.6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0060-KD3429P1 | KGC-3429-P1 spur geared, 1/60, 133rpm, 3.15kgf·cm | GGM | Gear Ratio: 1/60 | Output Speed: 133 rpm | Output Torque: 3.15 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0070-KD3429P1 | KGC-3429-P1 spur geared, 1/70, 114rpm, 3.67kgf·cm | GGM | Gear Ratio: 1/70 | Output Speed: 114 rpm | Output Torque: 3.67 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0083-KD3429P1 | KGC-3429-P1 spur geared, 1/83, 96rpm, 3.9kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 96 rpm | Output Torque: 3.9 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0090-KD3429P1 | KGC-3429-P1 spur geared, 1/90, 89rpm, 4.7kgf·cm | GGM | Gear Ratio: 1/90 | Output Speed: 89 rpm | Output Torque: 4.7 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0100-KD3429P1 | KGC-3429-P1 spur geared, 1/100, 80rpm, 4.7kgf·cm | GGM | Gear Ratio: 1/100 | Output Speed: 80 rpm | Output Torque: 4.7 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0120-KD3429P1 | KGC-3429-P1 spur geared, 1/120, 67rpm, 5.7kgf·cm | GGM | Gear Ratio: 1/120 | Output Speed: 67 rpm | Output Torque: 5.7 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0150-KD3429P1 | KGC-3429-P1 spur geared, 1/150, 53rpm, 6kgf·cm | GGM | Gear Ratio: 1/150 | Output Speed: 53 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0180-KD3429P1 | KGC-3429-P1 spur geared, 1/180, 44rpm, 6kgf·cm | GGM | Gear Ratio: 1/180 | Output Speed: 44 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0200-KD3429P1 | KGC-3429-P1 spur geared, 1/200, 40rpm, 6kgf·cm | GGM | Gear Ratio: 1/200 | Output Speed: 40 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0210-KD3429P1 | KGC-3429-P1 spur geared, 1/210, 38rpm, 6kgf·cm | GGM | Gear Ratio: 1/210 | Output Speed: 38 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0240-KD3429P1 | KGC-3429-P1 spur geared, 1/240, 33rpm, 6kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 33 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0300-KD3429P1 | KGC-3429-P1 spur geared, 1/300, 26.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/300 | Output Speed: 26.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0360-KD3429P1 | KGC-3429-P1 spur geared, 1/360, 22.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/360 | Output Speed: 22.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0400-KD3429P1 | KGC-3429-P1 spur geared, 1/400, 20rpm, 6kgf·cm | GGM | Gear Ratio: 1/400 | Output Speed: 20 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0500-KD3429P1 | KGC-3429-P1 spur geared, 1/500, 16rpm, 6kgf·cm | GGM | Gear Ratio: 1/500 | Output Speed: 16 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0600-KD3429P1 | KGC-3429-P1 spur geared, 1/600, 13.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/600 | Output Speed: 13.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0750-KD3429P1 | KGC-3429-P1 spur geared, 1/750, 10.6rpm, 6kgf·cm | GGM | Gear Ratio: 1/750 | Output Speed: 10.6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0900-KD3429P1 | KGC-3429-P1 spur geared, 1/900, 8.9rpm, 6kgf·cm | GGM | Gear Ratio: 1/900 | Output Speed: 8.9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1080-KD3429P1 | KGC-3429-P1 spur geared, 1/1080, 7.4rpm, 6kgf·cm | GGM | Gear Ratio: 1/1080 | Output Speed: 7.4 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1350-KD3429P1 | KGC-3429-P1 spur geared, 1/1350, 5.9rpm, 6kgf·cm | GGM | Gear Ratio: 1/1350 | Output Speed: 5.9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1620-KD3429P1 | KGC-3429-P1 spur geared, 1/1620, 4.9rpm, 6kgf·cm | GGM | Gear Ratio: 1/1620 | Output Speed: 4.9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-2430-KD3429P1 | KGC-3429-P1 spur geared, 1/2430, 3.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/2430 | Output Speed: 3.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0002-KD3429P1 | KGC-3429-P1 spur geared, 1/2, 4000rpm, 0.13kgf·cm | GGM | Gear Ratio: 1/2 | Output Speed: 4000 rpm | Output Torque: 0.13 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0003-KD3429P1 | KGC-3429-P1 spur geared, 1/3, 2166rpm, 0.2kgf·cm | GGM | Gear Ratio: 1/3 | Output Speed: 2166 rpm | Output Torque: 0.2 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0005-KD3429P1 | KGC-3429-P1 spur geared, 1/5, 1600rpm, 0.3kgf·cm | GGM | Gear Ratio: 1/5 | Output Speed: 1600 rpm | Output Torque: 0.3 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0010-KD3429P1 | KGC-3429-P1 spur geared, 1/10, 800rpm, 0.65kgf·cm | GGM | Gear Ratio: 1/10 | Output Speed: 800 rpm | Output Torque: 0.65 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0015-KD3429P1 | KGC-3429-P1 spur geared, 1/15, 533.3rpm, 0.87kgf·cm | GGM | Gear Ratio: 1/15 | Output Speed: 533.3 rpm | Output Torque: 0.87 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0020-KD3429P1 | KGC-3429-P1 spur geared, 1/20, 400rpm, 1.16kgf·cm | GGM | Gear Ratio: 1/20 | Output Speed: 400 rpm | Output Torque: 1.16 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0025-KD3429P1 | KGC-3429-P1 spur geared, 1/25, 320rpm, 1.46kgf·cm | GGM | Gear Ratio: 1/25 | Output Speed: 320 rpm | Output Torque: 1.46 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0030-KD3429P1 | KGC-3429-P1 spur geared, 1/30, 267rpm, 1.75kgf·cm | GGM | Gear Ratio: 1/30 | Output Speed: 267 rpm | Output Torque: 1.75 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0040-KD3429P1 | KGC-3429-P1 spur geared, 1/40, 200rpm, 2.1kgf·cm | GGM | Gear Ratio: 1/40 | Output Speed: 200 rpm | Output Torque: 2.1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0050-KD3429P1 | KGC-3429-P1 spur geared, 1/50, 160rpm, 2.6kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 160 rpm | Output Torque: 2.6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0060-KD3429P1 | KGC-3429-P1 spur geared, 1/60, 133rpm, 3.15kgf·cm | GGM | Gear Ratio: 1/60 | Output Speed: 133 rpm | Output Torque: 3.15 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0070-KD3429P1 | KGC-3429-P1 spur geared, 1/70, 114rpm, 3.67kgf·cm | GGM | Gear Ratio: 1/70 | Output Speed: 114 rpm | Output Torque: 3.67 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0083-KD3429P1 | KGC-3429-P1 spur geared, 1/83, 96rpm, 3.9kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 96 rpm | Output Torque: 3.9 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0090-KD3429P1 | KGC-3429-P1 spur geared, 1/90, 89rpm, 4.7kgf·cm | GGM | Gear Ratio: 1/90 | Output Speed: 89 rpm | Output Torque: 4.7 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0100-KD3429P1 | KGC-3429-P1 spur geared, 1/100, 80rpm, 4.7kgf·cm | GGM | Gear Ratio: 1/100 | Output Speed: 80 rpm | Output Torque: 4.7 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0120-KD3429P1 | KGC-3429-P1 spur geared, 1/120, 67rpm, 5.7kgf·cm | GGM | Gear Ratio: 1/120 | Output Speed: 67 rpm | Output Torque: 5.7 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0150-KD3429P1 | KGC-3429-P1 spur geared, 1/150, 53rpm, 6kgf·cm | GGM | Gear Ratio: 1/150 | Output Speed: 53 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0180-KD3429P1 | KGC-3429-P1 spur geared, 1/180, 44rpm, 6kgf·cm | GGM | Gear Ratio: 1/180 | Output Speed: 44 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0200-KD3429P1 | KGC-3429-P1 spur geared, 1/200, 40rpm, 6kgf·cm | GGM | Gear Ratio: 1/200 | Output Speed: 40 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0210-KD3429P1 | KGC-3429-P1 spur geared, 1/210, 38rpm, 6kgf·cm | GGM | Gear Ratio: 1/210 | Output Speed: 38 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0240-KD3429P1 | KGC-3429-P1 spur geared, 1/240, 33rpm, 6kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 33 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0300-KD3429P1 | KGC-3429-P1 spur geared, 1/300, 26.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/300 | Output Speed: 26.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0360-KD3429P1 | KGC-3429-P1 spur geared, 1/360, 22.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/360 | Output Speed: 22.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0400-KD3429P1 | KGC-3429-P1 spur geared, 1/400, 20rpm, 6kgf·cm | GGM | Gear Ratio: 1/400 | Output Speed: 20 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0500-KD3429P1 | KGC-3429-P1 spur geared, 1/500, 16rpm, 6kgf·cm | GGM | Gear Ratio: 1/500 | Output Speed: 16 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0600-KD3429P1 | KGC-3429-P1 spur geared, 1/600, 13.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/600 | Output Speed: 13.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0750-KD3429P1 | KGC-3429-P1 spur geared, 1/750, 10.6rpm, 6kgf·cm | GGM | Gear Ratio: 1/750 | Output Speed: 10.6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0900-KD3429P1 | KGC-3429-P1 spur geared, 1/900, 8.9rpm, 6kgf·cm | GGM | Gear Ratio: 1/900 | Output Speed: 8.9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1080-KD3429P1 | KGC-3429-P1 spur geared, 1/1080, 7.4rpm, 6kgf·cm | GGM | Gear Ratio: 1/1080 | Output Speed: 7.4 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1350-KD3429P1 | KGC-3429-P1 spur geared, 1/1350, 5.9rpm, 6kgf·cm | GGM | Gear Ratio: 1/1350 | Output Speed: 5.9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1620-KD3429P1 | KGC-3429-P1 spur geared, 1/1620, 4.9rpm, 6kgf·cm | GGM | Gear Ratio: 1/1620 | Output Speed: 4.9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-2430-KD3429P1 | KGC-3429-P1 spur geared, 1/2430, 3.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/2430 | Output Speed: 3.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm |
GGM KGC-3429-P2 spur geared DC motor, ø34 frame, DC 24V (Top-speed, 9500 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange.
GGM KGC-3429-P2 spur geared DC motor, ø34 frame, DC 24V (Top-speed, 9500 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KGC-0002-KD3429P2 | KGC-3429-P2 spur geared, 1/2, 4000rpm, 0.06kgf·cm | GGM | Gear Ratio: 1/2 | Output Speed: 4000 rpm | Output Torque: 0.06 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0003-KD3429P2 | KGC-3429-P2 spur geared, 1/3, 2166rpm, 0.1kgf·cm | GGM | Gear Ratio: 1/3 | Output Speed: 2166 rpm | Output Torque: 0.1 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0005-KD3429P2 | KGC-3429-P2 spur geared, 1/5, 1600rpm, 0.16kgf·cm | GGM | Gear Ratio: 1/5 | Output Speed: 1600 rpm | Output Torque: 0.16 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0010-KD3429P2 | KGC-3429-P2 spur geared, 1/10, 800rpm, 0.29kgf·cm | GGM | Gear Ratio: 1/10 | Output Speed: 800 rpm | Output Torque: 0.29 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0015-KD3429P2 | KGC-3429-P2 spur geared, 1/15, 533.3rpm, 0.44kgf·cm | GGM | Gear Ratio: 1/15 | Output Speed: 533.3 rpm | Output Torque: 0.44 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0020-KD3429P2 | KGC-3429-P2 spur geared, 1/20, 400rpm, 0.58kgf·cm | GGM | Gear Ratio: 1/20 | Output Speed: 400 rpm | Output Torque: 0.58 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0025-KD3429P2 | KGC-3429-P2 spur geared, 1/25, 320rpm, 0.7kgf·cm | GGM | Gear Ratio: 1/25 | Output Speed: 320 rpm | Output Torque: 0.7 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0030-KD3429P2 | KGC-3429-P2 spur geared, 1/30, 267rpm, 0.9kgf·cm | GGM | Gear Ratio: 1/30 | Output Speed: 267 rpm | Output Torque: 0.9 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0040-KD3429P2 | KGC-3429-P2 spur geared, 1/40, 200rpm, 1kgf·cm | GGM | Gear Ratio: 1/40 | Output Speed: 200 rpm | Output Torque: 1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0050-KD3429P2 | KGC-3429-P2 spur geared, 1/50, 160rpm, 1.3kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 160 rpm | Output Torque: 1.3 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0060-KD3429P2 | KGC-3429-P2 spur geared, 1/60, 133rpm, 1.6kgf·cm | GGM | Gear Ratio: 1/60 | Output Speed: 133 rpm | Output Torque: 1.6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0070-KD3429P2 | KGC-3429-P2 spur geared, 1/70, 114rpm, 1.65kgf·cm | GGM | Gear Ratio: 1/70 | Output Speed: 114 rpm | Output Torque: 1.65 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0083-KD3429P2 | KGC-3429-P2 spur geared, 1/83, 96rpm, 1.95kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 96 rpm | Output Torque: 1.95 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0090-KD3429P2 | KGC-3429-P2 spur geared, 1/90, 89rpm, 2.1kgf·cm | GGM | Gear Ratio: 1/90 | Output Speed: 89 rpm | Output Torque: 2.1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0100-KD3429P2 | KGC-3429-P2 spur geared, 1/100, 80rpm, 2.3kgf·cm | GGM | Gear Ratio: 1/100 | Output Speed: 80 rpm | Output Torque: 2.3 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0120-KD3429P2 | KGC-3429-P2 spur geared, 1/120, 67rpm, 2.8kgf·cm | GGM | Gear Ratio: 1/120 | Output Speed: 67 rpm | Output Torque: 2.8 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0150-KD3429P2 | KGC-3429-P2 spur geared, 1/150, 53rpm, 3.5kgf·cm | GGM | Gear Ratio: 1/150 | Output Speed: 53 rpm | Output Torque: 3.5 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0180-KD3429P2 | KGC-3429-P2 spur geared, 1/180, 44rpm, 4.2kgf·cm | GGM | Gear Ratio: 1/180 | Output Speed: 44 rpm | Output Torque: 4.2 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0200-KD3429P2 | KGC-3429-P2 spur geared, 1/200, 40rpm, 4.7kgf·cm | GGM | Gear Ratio: 1/200 | Output Speed: 40 rpm | Output Torque: 4.7 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0210-KD3429P2 | KGC-3429-P2 spur geared, 1/210, 38rpm, 4.9kgf·cm | GGM | Gear Ratio: 1/210 | Output Speed: 38 rpm | Output Torque: 4.9 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0240-KD3429P2 | KGC-3429-P2 spur geared, 1/240, 33rpm, 5.1kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 33 rpm | Output Torque: 5.1 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0300-KD3429P2 | KGC-3429-P2 spur geared, 1/300, 26.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/300 | Output Speed: 26.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0360-KD3429P2 | KGC-3429-P2 spur geared, 1/360, 22.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/360 | Output Speed: 22.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0400-KD3429P2 | KGC-3429-P2 spur geared, 1/400, 20rpm, 6kgf·cm | GGM | Gear Ratio: 1/400 | Output Speed: 20 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0500-KD3429P2 | KGC-3429-P2 spur geared, 1/500, 16rpm, 6kgf·cm | GGM | Gear Ratio: 1/500 | Output Speed: 16 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0600-KD3429P2 | KGC-3429-P2 spur geared, 1/600, 13.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/600 | Output Speed: 13.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0750-KD3429P2 | KGC-3429-P2 spur geared, 1/750, 10.6rpm, 6kgf·cm | GGM | Gear Ratio: 1/750 | Output Speed: 10.6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0900-KD3429P2 | KGC-3429-P2 spur geared, 1/900, 8.9rpm, 6kgf·cm | GGM | Gear Ratio: 1/900 | Output Speed: 8.9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1080-KD3429P2 | KGC-3429-P2 spur geared, 1/1080, 7.4rpm, 6kgf·cm | GGM | Gear Ratio: 1/1080 | Output Speed: 7.4 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1350-KD3429P2 | KGC-3429-P2 spur geared, 1/1350, 5.9rpm, 6kgf·cm | GGM | Gear Ratio: 1/1350 | Output Speed: 5.9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1620-KD3429P2 | KGC-3429-P2 spur geared, 1/1620, 4.9rpm, 6kgf·cm | GGM | Gear Ratio: 1/1620 | Output Speed: 4.9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-2430-KD3429P2 | KGC-3429-P2 spur geared, 1/2430, 3.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/2430 | Output Speed: 3.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0002-KD3429P2 | KGC-3429-P2 spur geared, 1/2, 4000rpm, 0.06kgf·cm | GGM | Gear Ratio: 1/2 | Output Speed: 4000 rpm | Output Torque: 0.06 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0003-KD3429P2 | KGC-3429-P2 spur geared, 1/3, 2166rpm, 0.1kgf·cm | GGM | Gear Ratio: 1/3 | Output Speed: 2166 rpm | Output Torque: 0.1 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0005-KD3429P2 | KGC-3429-P2 spur geared, 1/5, 1600rpm, 0.16kgf·cm | GGM | Gear Ratio: 1/5 | Output Speed: 1600 rpm | Output Torque: 0.16 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0010-KD3429P2 | KGC-3429-P2 spur geared, 1/10, 800rpm, 0.29kgf·cm | GGM | Gear Ratio: 1/10 | Output Speed: 800 rpm | Output Torque: 0.29 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0015-KD3429P2 | KGC-3429-P2 spur geared, 1/15, 533.3rpm, 0.44kgf·cm | GGM | Gear Ratio: 1/15 | Output Speed: 533.3 rpm | Output Torque: 0.44 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0020-KD3429P2 | KGC-3429-P2 spur geared, 1/20, 400rpm, 0.58kgf·cm | GGM | Gear Ratio: 1/20 | Output Speed: 400 rpm | Output Torque: 0.58 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0025-KD3429P2 | KGC-3429-P2 spur geared, 1/25, 320rpm, 0.7kgf·cm | GGM | Gear Ratio: 1/25 | Output Speed: 320 rpm | Output Torque: 0.7 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0030-KD3429P2 | KGC-3429-P2 spur geared, 1/30, 267rpm, 0.9kgf·cm | GGM | Gear Ratio: 1/30 | Output Speed: 267 rpm | Output Torque: 0.9 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0040-KD3429P2 | KGC-3429-P2 spur geared, 1/40, 200rpm, 1kgf·cm | GGM | Gear Ratio: 1/40 | Output Speed: 200 rpm | Output Torque: 1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0050-KD3429P2 | KGC-3429-P2 spur geared, 1/50, 160rpm, 1.3kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 160 rpm | Output Torque: 1.3 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0060-KD3429P2 | KGC-3429-P2 spur geared, 1/60, 133rpm, 1.6kgf·cm | GGM | Gear Ratio: 1/60 | Output Speed: 133 rpm | Output Torque: 1.6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0070-KD3429P2 | KGC-3429-P2 spur geared, 1/70, 114rpm, 1.65kgf·cm | GGM | Gear Ratio: 1/70 | Output Speed: 114 rpm | Output Torque: 1.65 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0083-KD3429P2 | KGC-3429-P2 spur geared, 1/83, 96rpm, 1.95kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 96 rpm | Output Torque: 1.95 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0090-KD3429P2 | KGC-3429-P2 spur geared, 1/90, 89rpm, 2.1kgf·cm | GGM | Gear Ratio: 1/90 | Output Speed: 89 rpm | Output Torque: 2.1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0100-KD3429P2 | KGC-3429-P2 spur geared, 1/100, 80rpm, 2.3kgf·cm | GGM | Gear Ratio: 1/100 | Output Speed: 80 rpm | Output Torque: 2.3 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0120-KD3429P2 | KGC-3429-P2 spur geared, 1/120, 67rpm, 2.8kgf·cm | GGM | Gear Ratio: 1/120 | Output Speed: 67 rpm | Output Torque: 2.8 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0150-KD3429P2 | KGC-3429-P2 spur geared, 1/150, 53rpm, 3.5kgf·cm | GGM | Gear Ratio: 1/150 | Output Speed: 53 rpm | Output Torque: 3.5 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0180-KD3429P2 | KGC-3429-P2 spur geared, 1/180, 44rpm, 4.2kgf·cm | GGM | Gear Ratio: 1/180 | Output Speed: 44 rpm | Output Torque: 4.2 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0200-KD3429P2 | KGC-3429-P2 spur geared, 1/200, 40rpm, 4.7kgf·cm | GGM | Gear Ratio: 1/200 | Output Speed: 40 rpm | Output Torque: 4.7 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0210-KD3429P2 | KGC-3429-P2 spur geared, 1/210, 38rpm, 4.9kgf·cm | GGM | Gear Ratio: 1/210 | Output Speed: 38 rpm | Output Torque: 4.9 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0240-KD3429P2 | KGC-3429-P2 spur geared, 1/240, 33rpm, 5.1kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 33 rpm | Output Torque: 5.1 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0300-KD3429P2 | KGC-3429-P2 spur geared, 1/300, 26.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/300 | Output Speed: 26.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0360-KD3429P2 | KGC-3429-P2 spur geared, 1/360, 22.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/360 | Output Speed: 22.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0400-KD3429P2 | KGC-3429-P2 spur geared, 1/400, 20rpm, 6kgf·cm | GGM | Gear Ratio: 1/400 | Output Speed: 20 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0500-KD3429P2 | KGC-3429-P2 spur geared, 1/500, 16rpm, 6kgf·cm | GGM | Gear Ratio: 1/500 | Output Speed: 16 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0600-KD3429P2 | KGC-3429-P2 spur geared, 1/600, 13.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/600 | Output Speed: 13.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0750-KD3429P2 | KGC-3429-P2 spur geared, 1/750, 10.6rpm, 6kgf·cm | GGM | Gear Ratio: 1/750 | Output Speed: 10.6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0900-KD3429P2 | KGC-3429-P2 spur geared, 1/900, 8.9rpm, 6kgf·cm | GGM | Gear Ratio: 1/900 | Output Speed: 8.9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1080-KD3429P2 | KGC-3429-P2 spur geared, 1/1080, 7.4rpm, 6kgf·cm | GGM | Gear Ratio: 1/1080 | Output Speed: 7.4 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1350-KD3429P2 | KGC-3429-P2 spur geared, 1/1350, 5.9rpm, 6kgf·cm | GGM | Gear Ratio: 1/1350 | Output Speed: 5.9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1620-KD3429P2 | KGC-3429-P2 spur geared, 1/1620, 4.9rpm, 6kgf·cm | GGM | Gear Ratio: 1/1620 | Output Speed: 4.9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-2430-KD3429P2 | KGC-3429-P2 spur geared, 1/2430, 3.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/2430 | Output Speed: 3.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm |
GGM KGC-3429-S1 spur geared DC motor, ø34 frame, DC 12V (Standard, 5200 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange.
GGM KGC-3429-S1 spur geared DC motor, ø34 frame, DC 12V (Standard, 5200 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KGC-0002-KD3429S1 | KGC-3429-S1 spur geared, 1/2, 2250rpm, 0.06kgf·cm | GGM | Gear Ratio: 1/2 | Output Speed: 2250 rpm | Output Torque: 0.06 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0003-KD3429S1 | KGC-3429-S1 spur geared, 1/3, 1500rpm, 0.1kgf·cm | GGM | Gear Ratio: 1/3 | Output Speed: 1500 rpm | Output Torque: 0.1 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0005-KD3429S1 | KGC-3429-S1 spur geared, 1/5, 900rpm, 0.16kgf·cm | GGM | Gear Ratio: 1/5 | Output Speed: 900 rpm | Output Torque: 0.16 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0010-KD3429S1 | KGC-3429-S1 spur geared, 1/10, 450rpm, 0.29kgf·cm | GGM | Gear Ratio: 1/10 | Output Speed: 450 rpm | Output Torque: 0.29 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0015-KD3429S1 | KGC-3429-S1 spur geared, 1/15, 300rpm, 0.44kgf·cm | GGM | Gear Ratio: 1/15 | Output Speed: 300 rpm | Output Torque: 0.44 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0020-KD3429S1 | KGC-3429-S1 spur geared, 1/20, 225rpm, 0.58kgf·cm | GGM | Gear Ratio: 1/20 | Output Speed: 225 rpm | Output Torque: 0.58 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0025-KD3429S1 | KGC-3429-S1 spur geared, 1/25, 180rpm, 0.7kgf·cm | GGM | Gear Ratio: 1/25 | Output Speed: 180 rpm | Output Torque: 0.7 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0030-KD3429S1 | KGC-3429-S1 spur geared, 1/30, 150rpm, 0.9kgf·cm | GGM | Gear Ratio: 1/30 | Output Speed: 150 rpm | Output Torque: 0.9 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0040-KD3429S1 | KGC-3429-S1 spur geared, 1/40, 112.5rpm, 1kgf·cm | GGM | Gear Ratio: 1/40 | Output Speed: 112.5 rpm | Output Torque: 1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0050-KD3429S1 | KGC-3429-S1 spur geared, 1/50, 90rpm, 1.3kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 90 rpm | Output Torque: 1.3 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0060-KD3429S1 | KGC-3429-S1 spur geared, 1/60, 75rpm, 1.6kgf·cm | GGM | Gear Ratio: 1/60 | Output Speed: 75 rpm | Output Torque: 1.6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0070-KD3429S1 | KGC-3429-S1 spur geared, 1/70, 64.3rpm, 1.65kgf·cm | GGM | Gear Ratio: 1/70 | Output Speed: 64.3 rpm | Output Torque: 1.65 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0083-KD3429S1 | KGC-3429-S1 spur geared, 1/83, 54.2rpm, 1.95kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 54.2 rpm | Output Torque: 1.95 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0090-KD3429S1 | KGC-3429-S1 spur geared, 1/90, 50rpm, 2.1kgf·cm | GGM | Gear Ratio: 1/90 | Output Speed: 50 rpm | Output Torque: 2.1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0100-KD3429S1 | KGC-3429-S1 spur geared, 1/100, 45rpm, 2.3kgf·cm | GGM | Gear Ratio: 1/100 | Output Speed: 45 rpm | Output Torque: 2.3 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0120-KD3429S1 | KGC-3429-S1 spur geared, 1/120, 37.5rpm, 2.8kgf·cm | GGM | Gear Ratio: 1/120 | Output Speed: 37.5 rpm | Output Torque: 2.8 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0150-KD3429S1 | KGC-3429-S1 spur geared, 1/150, 30rpm, 3.5kgf·cm | GGM | Gear Ratio: 1/150 | Output Speed: 30 rpm | Output Torque: 3.5 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0180-KD3429S1 | KGC-3429-S1 spur geared, 1/180, 25rpm, 4.2kgf·cm | GGM | Gear Ratio: 1/180 | Output Speed: 25 rpm | Output Torque: 4.2 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0200-KD3429S1 | KGC-3429-S1 spur geared, 1/200, 22.5rpm, 4.7kgf·cm | GGM | Gear Ratio: 1/200 | Output Speed: 22.5 rpm | Output Torque: 4.7 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0210-KD3429S1 | KGC-3429-S1 spur geared, 1/210, 21.4rpm, 4.9kgf·cm | GGM | Gear Ratio: 1/210 | Output Speed: 21.4 rpm | Output Torque: 4.9 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0240-KD3429S1 | KGC-3429-S1 spur geared, 1/240, 18.7rpm, 5.1kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 18.7 rpm | Output Torque: 5.1 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0300-KD3429S1 | KGC-3429-S1 spur geared, 1/300, 15rpm, 6kgf·cm | GGM | Gear Ratio: 1/300 | Output Speed: 15 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0360-KD3429S1 | KGC-3429-S1 spur geared, 1/360, 12.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/360 | Output Speed: 12.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0400-KD3429S1 | KGC-3429-S1 spur geared, 1/400, 11.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/400 | Output Speed: 11.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0500-KD3429S1 | KGC-3429-S1 spur geared, 1/500, 9rpm, 6kgf·cm | GGM | Gear Ratio: 1/500 | Output Speed: 9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0600-KD3429S1 | KGC-3429-S1 spur geared, 1/600, 7.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/600 | Output Speed: 7.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0750-KD3429S1 | KGC-3429-S1 spur geared, 1/750, 6rpm, 6kgf·cm | GGM | Gear Ratio: 1/750 | Output Speed: 6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0900-KD3429S1 | KGC-3429-S1 spur geared, 1/900, 5rpm, 6kgf·cm | GGM | Gear Ratio: 1/900 | Output Speed: 5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1080-KD3429S1 | KGC-3429-S1 spur geared, 1/1080, 4.1rpm, 6kgf·cm | GGM | Gear Ratio: 1/1080 | Output Speed: 4.1 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1350-KD3429S1 | KGC-3429-S1 spur geared, 1/1350, 3.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/1350 | Output Speed: 3.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1620-KD3429S1 | KGC-3429-S1 spur geared, 1/1620, 2.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/1620 | Output Speed: 2.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-2430-KD3429S1 | KGC-3429-S1 spur geared, 1/2430, 1.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/2430 | Output Speed: 1.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0002-KD3429S1 | KGC-3429-S1 spur geared, 1/2, 2250rpm, 0.06kgf·cm | GGM | Gear Ratio: 1/2 | Output Speed: 2250 rpm | Output Torque: 0.06 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0003-KD3429S1 | KGC-3429-S1 spur geared, 1/3, 1500rpm, 0.1kgf·cm | GGM | Gear Ratio: 1/3 | Output Speed: 1500 rpm | Output Torque: 0.1 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0005-KD3429S1 | KGC-3429-S1 spur geared, 1/5, 900rpm, 0.16kgf·cm | GGM | Gear Ratio: 1/5 | Output Speed: 900 rpm | Output Torque: 0.16 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0010-KD3429S1 | KGC-3429-S1 spur geared, 1/10, 450rpm, 0.29kgf·cm | GGM | Gear Ratio: 1/10 | Output Speed: 450 rpm | Output Torque: 0.29 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0015-KD3429S1 | KGC-3429-S1 spur geared, 1/15, 300rpm, 0.44kgf·cm | GGM | Gear Ratio: 1/15 | Output Speed: 300 rpm | Output Torque: 0.44 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0020-KD3429S1 | KGC-3429-S1 spur geared, 1/20, 225rpm, 0.58kgf·cm | GGM | Gear Ratio: 1/20 | Output Speed: 225 rpm | Output Torque: 0.58 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0025-KD3429S1 | KGC-3429-S1 spur geared, 1/25, 180rpm, 0.7kgf·cm | GGM | Gear Ratio: 1/25 | Output Speed: 180 rpm | Output Torque: 0.7 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0030-KD3429S1 | KGC-3429-S1 spur geared, 1/30, 150rpm, 0.9kgf·cm | GGM | Gear Ratio: 1/30 | Output Speed: 150 rpm | Output Torque: 0.9 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0040-KD3429S1 | KGC-3429-S1 spur geared, 1/40, 112.5rpm, 1kgf·cm | GGM | Gear Ratio: 1/40 | Output Speed: 112.5 rpm | Output Torque: 1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0050-KD3429S1 | KGC-3429-S1 spur geared, 1/50, 90rpm, 1.3kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 90 rpm | Output Torque: 1.3 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0060-KD3429S1 | KGC-3429-S1 spur geared, 1/60, 75rpm, 1.6kgf·cm | GGM | Gear Ratio: 1/60 | Output Speed: 75 rpm | Output Torque: 1.6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0070-KD3429S1 | KGC-3429-S1 spur geared, 1/70, 64.3rpm, 1.65kgf·cm | GGM | Gear Ratio: 1/70 | Output Speed: 64.3 rpm | Output Torque: 1.65 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0083-KD3429S1 | KGC-3429-S1 spur geared, 1/83, 54.2rpm, 1.95kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 54.2 rpm | Output Torque: 1.95 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0090-KD3429S1 | KGC-3429-S1 spur geared, 1/90, 50rpm, 2.1kgf·cm | GGM | Gear Ratio: 1/90 | Output Speed: 50 rpm | Output Torque: 2.1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0100-KD3429S1 | KGC-3429-S1 spur geared, 1/100, 45rpm, 2.3kgf·cm | GGM | Gear Ratio: 1/100 | Output Speed: 45 rpm | Output Torque: 2.3 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0120-KD3429S1 | KGC-3429-S1 spur geared, 1/120, 37.5rpm, 2.8kgf·cm | GGM | Gear Ratio: 1/120 | Output Speed: 37.5 rpm | Output Torque: 2.8 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0150-KD3429S1 | KGC-3429-S1 spur geared, 1/150, 30rpm, 3.5kgf·cm | GGM | Gear Ratio: 1/150 | Output Speed: 30 rpm | Output Torque: 3.5 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0180-KD3429S1 | KGC-3429-S1 spur geared, 1/180, 25rpm, 4.2kgf·cm | GGM | Gear Ratio: 1/180 | Output Speed: 25 rpm | Output Torque: 4.2 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0200-KD3429S1 | KGC-3429-S1 spur geared, 1/200, 22.5rpm, 4.7kgf·cm | GGM | Gear Ratio: 1/200 | Output Speed: 22.5 rpm | Output Torque: 4.7 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0210-KD3429S1 | KGC-3429-S1 spur geared, 1/210, 21.4rpm, 4.9kgf·cm | GGM | Gear Ratio: 1/210 | Output Speed: 21.4 rpm | Output Torque: 4.9 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0240-KD3429S1 | KGC-3429-S1 spur geared, 1/240, 18.7rpm, 5.1kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 18.7 rpm | Output Torque: 5.1 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0300-KD3429S1 | KGC-3429-S1 spur geared, 1/300, 15rpm, 6kgf·cm | GGM | Gear Ratio: 1/300 | Output Speed: 15 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0360-KD3429S1 | KGC-3429-S1 spur geared, 1/360, 12.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/360 | Output Speed: 12.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0400-KD3429S1 | KGC-3429-S1 spur geared, 1/400, 11.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/400 | Output Speed: 11.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0500-KD3429S1 | KGC-3429-S1 spur geared, 1/500, 9rpm, 6kgf·cm | GGM | Gear Ratio: 1/500 | Output Speed: 9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0600-KD3429S1 | KGC-3429-S1 spur geared, 1/600, 7.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/600 | Output Speed: 7.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0750-KD3429S1 | KGC-3429-S1 spur geared, 1/750, 6rpm, 6kgf·cm | GGM | Gear Ratio: 1/750 | Output Speed: 6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0900-KD3429S1 | KGC-3429-S1 spur geared, 1/900, 5rpm, 6kgf·cm | GGM | Gear Ratio: 1/900 | Output Speed: 5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1080-KD3429S1 | KGC-3429-S1 spur geared, 1/1080, 4.1rpm, 6kgf·cm | GGM | Gear Ratio: 1/1080 | Output Speed: 4.1 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1350-KD3429S1 | KGC-3429-S1 spur geared, 1/1350, 3.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/1350 | Output Speed: 3.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1620-KD3429S1 | KGC-3429-S1 spur geared, 1/1620, 2.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/1620 | Output Speed: 2.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-2430-KD3429S1 | KGC-3429-S1 spur geared, 1/2430, 1.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/2430 | Output Speed: 1.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm |
GGM KGC-3429-S2 spur geared DC motor, ø34 frame, DC 24V (Standard, 5200 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange.
GGM KGC-3429-S2 spur geared DC motor, ø34 frame, DC 24V (Standard, 5200 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KGC-0002-KD3429S2 | KGC-3429-S2 spur geared, 1/2, 2250rpm, 0.06kgf·cm | GGM | Gear Ratio: 1/2 | Output Speed: 2250 rpm | Output Torque: 0.06 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0003-KD3429S2 | KGC-3429-S2 spur geared, 1/3, 1500rpm, 0.1kgf·cm | GGM | Gear Ratio: 1/3 | Output Speed: 1500 rpm | Output Torque: 0.1 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0005-KD3429S2 | KGC-3429-S2 spur geared, 1/5, 900rpm, 0.16kgf·cm | GGM | Gear Ratio: 1/5 | Output Speed: 900 rpm | Output Torque: 0.16 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0010-KD3429S2 | KGC-3429-S2 spur geared, 1/10, 450rpm, 0.29kgf·cm | GGM | Gear Ratio: 1/10 | Output Speed: 450 rpm | Output Torque: 0.29 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0015-KD3429S2 | KGC-3429-S2 spur geared, 1/15, 300rpm, 0.44kgf·cm | GGM | Gear Ratio: 1/15 | Output Speed: 300 rpm | Output Torque: 0.44 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0020-KD3429S2 | KGC-3429-S2 spur geared, 1/20, 225rpm, 0.58kgf·cm | GGM | Gear Ratio: 1/20 | Output Speed: 225 rpm | Output Torque: 0.58 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0025-KD3429S2 | KGC-3429-S2 spur geared, 1/25, 180rpm, 0.7kgf·cm | GGM | Gear Ratio: 1/25 | Output Speed: 180 rpm | Output Torque: 0.7 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0030-KD3429S2 | KGC-3429-S2 spur geared, 1/30, 150rpm, 0.9kgf·cm | GGM | Gear Ratio: 1/30 | Output Speed: 150 rpm | Output Torque: 0.9 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0040-KD3429S2 | KGC-3429-S2 spur geared, 1/40, 112.5rpm, 1kgf·cm | GGM | Gear Ratio: 1/40 | Output Speed: 112.5 rpm | Output Torque: 1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0050-KD3429S2 | KGC-3429-S2 spur geared, 1/50, 90rpm, 1.3kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 90 rpm | Output Torque: 1.3 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0060-KD3429S2 | KGC-3429-S2 spur geared, 1/60, 75rpm, 1.6kgf·cm | GGM | Gear Ratio: 1/60 | Output Speed: 75 rpm | Output Torque: 1.6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0070-KD3429S2 | KGC-3429-S2 spur geared, 1/70, 64.3rpm, 1.65kgf·cm | GGM | Gear Ratio: 1/70 | Output Speed: 64.3 rpm | Output Torque: 1.65 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0083-KD3429S2 | KGC-3429-S2 spur geared, 1/83, 54.2rpm, 1.95kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 54.2 rpm | Output Torque: 1.95 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0090-KD3429S2 | KGC-3429-S2 spur geared, 1/90, 50rpm, 2.1kgf·cm | GGM | Gear Ratio: 1/90 | Output Speed: 50 rpm | Output Torque: 2.1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0100-KD3429S2 | KGC-3429-S2 spur geared, 1/100, 45rpm, 2.3kgf·cm | GGM | Gear Ratio: 1/100 | Output Speed: 45 rpm | Output Torque: 2.3 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0120-KD3429S2 | KGC-3429-S2 spur geared, 1/120, 37.5rpm, 2.8kgf·cm | GGM | Gear Ratio: 1/120 | Output Speed: 37.5 rpm | Output Torque: 2.8 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0150-KD3429S2 | KGC-3429-S2 spur geared, 1/150, 30rpm, 3.5kgf·cm | GGM | Gear Ratio: 1/150 | Output Speed: 30 rpm | Output Torque: 3.5 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0180-KD3429S2 | KGC-3429-S2 spur geared, 1/180, 25rpm, 4.2kgf·cm | GGM | Gear Ratio: 1/180 | Output Speed: 25 rpm | Output Torque: 4.2 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0200-KD3429S2 | KGC-3429-S2 spur geared, 1/200, 22.5rpm, 4.7kgf·cm | GGM | Gear Ratio: 1/200 | Output Speed: 22.5 rpm | Output Torque: 4.7 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0210-KD3429S2 | KGC-3429-S2 spur geared, 1/210, 21.4rpm, 4.9kgf·cm | GGM | Gear Ratio: 1/210 | Output Speed: 21.4 rpm | Output Torque: 4.9 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0240-KD3429S2 | KGC-3429-S2 spur geared, 1/240, 18.7rpm, 5.1kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 18.7 rpm | Output Torque: 5.1 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0300-KD3429S2 | KGC-3429-S2 spur geared, 1/300, 15rpm, 6kgf·cm | GGM | Gear Ratio: 1/300 | Output Speed: 15 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0360-KD3429S2 | KGC-3429-S2 spur geared, 1/360, 12.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/360 | Output Speed: 12.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0400-KD3429S2 | KGC-3429-S2 spur geared, 1/400, 11.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/400 | Output Speed: 11.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0500-KD3429S2 | KGC-3429-S2 spur geared, 1/500, 9rpm, 6kgf·cm | GGM | Gear Ratio: 1/500 | Output Speed: 9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0600-KD3429S2 | KGC-3429-S2 spur geared, 1/600, 7.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/600 | Output Speed: 7.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0750-KD3429S2 | KGC-3429-S2 spur geared, 1/750, 6rpm, 6kgf·cm | GGM | Gear Ratio: 1/750 | Output Speed: 6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0900-KD3429S2 | KGC-3429-S2 spur geared, 1/900, 5rpm, 6kgf·cm | GGM | Gear Ratio: 1/900 | Output Speed: 5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1080-KD3429S2 | KGC-3429-S2 spur geared, 1/1080, 4.1rpm, 6kgf·cm | GGM | Gear Ratio: 1/1080 | Output Speed: 4.1 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1350-KD3429S2 | KGC-3429-S2 spur geared, 1/1350, 3.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/1350 | Output Speed: 3.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1620-KD3429S2 | KGC-3429-S2 spur geared, 1/1620, 2.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/1620 | Output Speed: 2.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-2430-KD3429S2 | KGC-3429-S2 spur geared, 1/2430, 1.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/2430 | Output Speed: 1.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0002-KD3429S2 | KGC-3429-S2 spur geared, 1/2, 2250rpm, 0.06kgf·cm | GGM | Gear Ratio: 1/2 | Output Speed: 2250 rpm | Output Torque: 0.06 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0003-KD3429S2 | KGC-3429-S2 spur geared, 1/3, 1500rpm, 0.1kgf·cm | GGM | Gear Ratio: 1/3 | Output Speed: 1500 rpm | Output Torque: 0.1 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0005-KD3429S2 | KGC-3429-S2 spur geared, 1/5, 900rpm, 0.16kgf·cm | GGM | Gear Ratio: 1/5 | Output Speed: 900 rpm | Output Torque: 0.16 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0010-KD3429S2 | KGC-3429-S2 spur geared, 1/10, 450rpm, 0.29kgf·cm | GGM | Gear Ratio: 1/10 | Output Speed: 450 rpm | Output Torque: 0.29 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0015-KD3429S2 | KGC-3429-S2 spur geared, 1/15, 300rpm, 0.44kgf·cm | GGM | Gear Ratio: 1/15 | Output Speed: 300 rpm | Output Torque: 0.44 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0020-KD3429S2 | KGC-3429-S2 spur geared, 1/20, 225rpm, 0.58kgf·cm | GGM | Gear Ratio: 1/20 | Output Speed: 225 rpm | Output Torque: 0.58 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0025-KD3429S2 | KGC-3429-S2 spur geared, 1/25, 180rpm, 0.7kgf·cm | GGM | Gear Ratio: 1/25 | Output Speed: 180 rpm | Output Torque: 0.7 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0030-KD3429S2 | KGC-3429-S2 spur geared, 1/30, 150rpm, 0.9kgf·cm | GGM | Gear Ratio: 1/30 | Output Speed: 150 rpm | Output Torque: 0.9 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0040-KD3429S2 | KGC-3429-S2 spur geared, 1/40, 112.5rpm, 1kgf·cm | GGM | Gear Ratio: 1/40 | Output Speed: 112.5 rpm | Output Torque: 1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0050-KD3429S2 | KGC-3429-S2 spur geared, 1/50, 90rpm, 1.3kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 90 rpm | Output Torque: 1.3 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0060-KD3429S2 | KGC-3429-S2 spur geared, 1/60, 75rpm, 1.6kgf·cm | GGM | Gear Ratio: 1/60 | Output Speed: 75 rpm | Output Torque: 1.6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0070-KD3429S2 | KGC-3429-S2 spur geared, 1/70, 64.3rpm, 1.65kgf·cm | GGM | Gear Ratio: 1/70 | Output Speed: 64.3 rpm | Output Torque: 1.65 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0083-KD3429S2 | KGC-3429-S2 spur geared, 1/83, 54.2rpm, 1.95kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 54.2 rpm | Output Torque: 1.95 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0090-KD3429S2 | KGC-3429-S2 spur geared, 1/90, 50rpm, 2.1kgf·cm | GGM | Gear Ratio: 1/90 | Output Speed: 50 rpm | Output Torque: 2.1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0100-KD3429S2 | KGC-3429-S2 spur geared, 1/100, 45rpm, 2.3kgf·cm | GGM | Gear Ratio: 1/100 | Output Speed: 45 rpm | Output Torque: 2.3 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0120-KD3429S2 | KGC-3429-S2 spur geared, 1/120, 37.5rpm, 2.8kgf·cm | GGM | Gear Ratio: 1/120 | Output Speed: 37.5 rpm | Output Torque: 2.8 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0150-KD3429S2 | KGC-3429-S2 spur geared, 1/150, 30rpm, 3.5kgf·cm | GGM | Gear Ratio: 1/150 | Output Speed: 30 rpm | Output Torque: 3.5 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0180-KD3429S2 | KGC-3429-S2 spur geared, 1/180, 25rpm, 4.2kgf·cm | GGM | Gear Ratio: 1/180 | Output Speed: 25 rpm | Output Torque: 4.2 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0200-KD3429S2 | KGC-3429-S2 spur geared, 1/200, 22.5rpm, 4.7kgf·cm | GGM | Gear Ratio: 1/200 | Output Speed: 22.5 rpm | Output Torque: 4.7 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0210-KD3429S2 | KGC-3429-S2 spur geared, 1/210, 21.4rpm, 4.9kgf·cm | GGM | Gear Ratio: 1/210 | Output Speed: 21.4 rpm | Output Torque: 4.9 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0240-KD3429S2 | KGC-3429-S2 spur geared, 1/240, 18.7rpm, 5.1kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 18.7 rpm | Output Torque: 5.1 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0300-KD3429S2 | KGC-3429-S2 spur geared, 1/300, 15rpm, 6kgf·cm | GGM | Gear Ratio: 1/300 | Output Speed: 15 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0360-KD3429S2 | KGC-3429-S2 spur geared, 1/360, 12.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/360 | Output Speed: 12.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0400-KD3429S2 | KGC-3429-S2 spur geared, 1/400, 11.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/400 | Output Speed: 11.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0500-KD3429S2 | KGC-3429-S2 spur geared, 1/500, 9rpm, 6kgf·cm | GGM | Gear Ratio: 1/500 | Output Speed: 9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0600-KD3429S2 | KGC-3429-S2 spur geared, 1/600, 7.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/600 | Output Speed: 7.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0750-KD3429S2 | KGC-3429-S2 spur geared, 1/750, 6rpm, 6kgf·cm | GGM | Gear Ratio: 1/750 | Output Speed: 6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0900-KD3429S2 | KGC-3429-S2 spur geared, 1/900, 5rpm, 6kgf·cm | GGM | Gear Ratio: 1/900 | Output Speed: 5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1080-KD3429S2 | KGC-3429-S2 spur geared, 1/1080, 4.1rpm, 6kgf·cm | GGM | Gear Ratio: 1/1080 | Output Speed: 4.1 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1350-KD3429S2 | KGC-3429-S2 spur geared, 1/1350, 3.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/1350 | Output Speed: 3.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1620-KD3429S2 | KGC-3429-S2 spur geared, 1/1620, 2.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/1620 | Output Speed: 2.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-2430-KD3429S2 | KGC-3429-S2 spur geared, 1/2430, 1.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/2430 | Output Speed: 1.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm |
GGM KGC-3429-T1 spur geared DC motor, ø34 frame, DC 12V (High-speed, 7500 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange.
GGM KGC-3429-T1 spur geared DC motor, ø34 frame, DC 12V (High-speed, 7500 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KGC-0002-KD3429T1 | KGC-3429-T1 spur geared, 1/2, 3250rpm, 0.06kgf·cm | GGM | Gear Ratio: 1/2 | Output Speed: 3250 rpm | Output Torque: 0.06 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0003-KD3429T1 | KGC-3429-T1 spur geared, 1/3, 2166rpm, 0.1kgf·cm | GGM | Gear Ratio: 1/3 | Output Speed: 2166 rpm | Output Torque: 0.1 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0005-KD3429T1 | KGC-3429-T1 spur geared, 1/5, 1300rpm, 0.16kgf·cm | GGM | Gear Ratio: 1/5 | Output Speed: 1300 rpm | Output Torque: 0.16 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0010-KD3429T1 | KGC-3429-T1 spur geared, 1/10, 650rpm, 0.29kgf·cm | GGM | Gear Ratio: 1/10 | Output Speed: 650 rpm | Output Torque: 0.29 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0015-KD3429T1 | KGC-3429-T1 spur geared, 1/15, 433rpm, 0.44kgf·cm | GGM | Gear Ratio: 1/15 | Output Speed: 433 rpm | Output Torque: 0.44 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0020-KD3429T1 | KGC-3429-T1 spur geared, 1/20, 325rpm, 0.58kgf·cm | GGM | Gear Ratio: 1/20 | Output Speed: 325 rpm | Output Torque: 0.58 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0025-KD3429T1 | KGC-3429-T1 spur geared, 1/25, 260rpm, 0.7kgf·cm | GGM | Gear Ratio: 1/25 | Output Speed: 260 rpm | Output Torque: 0.7 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0030-KD3429T1 | KGC-3429-T1 spur geared, 1/30, 217rpm, 0.9kgf·cm | GGM | Gear Ratio: 1/30 | Output Speed: 217 rpm | Output Torque: 0.9 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0040-KD3429T1 | KGC-3429-T1 spur geared, 1/40, 163rpm, 1kgf·cm | GGM | Gear Ratio: 1/40 | Output Speed: 163 rpm | Output Torque: 1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0050-KD3429T1 | KGC-3429-T1 spur geared, 1/50, 130rpm, 1.3kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 130 rpm | Output Torque: 1.3 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0060-KD3429T1 | KGC-3429-T1 spur geared, 1/60, 108rpm, 1.6kgf·cm | GGM | Gear Ratio: 1/60 | Output Speed: 108 rpm | Output Torque: 1.6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0070-KD3429T1 | KGC-3429-T1 spur geared, 1/70, 93rpm, 1.65kgf·cm | GGM | Gear Ratio: 1/70 | Output Speed: 93 rpm | Output Torque: 1.65 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0083-KD3429T1 | KGC-3429-T1 spur geared, 1/83, 78rpm, 1.95kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 78 rpm | Output Torque: 1.95 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0090-KD3429T1 | KGC-3429-T1 spur geared, 1/90, 72rpm, 2.1kgf·cm | GGM | Gear Ratio: 1/90 | Output Speed: 72 rpm | Output Torque: 2.1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0100-KD3429T1 | KGC-3429-T1 spur geared, 1/100, 65rpm, 2.3kgf·cm | GGM | Gear Ratio: 1/100 | Output Speed: 65 rpm | Output Torque: 2.3 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0120-KD3429T1 | KGC-3429-T1 spur geared, 1/120, 54rpm, 2.8kgf·cm | GGM | Gear Ratio: 1/120 | Output Speed: 54 rpm | Output Torque: 2.8 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0150-KD3429T1 | KGC-3429-T1 spur geared, 1/150, 43rpm, 3.5kgf·cm | GGM | Gear Ratio: 1/150 | Output Speed: 43 rpm | Output Torque: 3.5 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0180-KD3429T1 | KGC-3429-T1 spur geared, 1/180, 36rpm, 4.2kgf·cm | GGM | Gear Ratio: 1/180 | Output Speed: 36 rpm | Output Torque: 4.2 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0200-KD3429T1 | KGC-3429-T1 spur geared, 1/200, 32.5rpm, 4.7kgf·cm | GGM | Gear Ratio: 1/200 | Output Speed: 32.5 rpm | Output Torque: 4.7 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0210-KD3429T1 | KGC-3429-T1 spur geared, 1/210, 31rpm, 4.9kgf·cm | GGM | Gear Ratio: 1/210 | Output Speed: 31 rpm | Output Torque: 4.9 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0240-KD3429T1 | KGC-3429-T1 spur geared, 1/240, 27rpm, 5.1kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 27 rpm | Output Torque: 5.1 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0300-KD3429T1 | KGC-3429-T1 spur geared, 1/300, 21.6rpm, 6kgf·cm | GGM | Gear Ratio: 1/300 | Output Speed: 21.6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0360-KD3429T1 | KGC-3429-T1 spur geared, 1/360, 18rpm, 6kgf·cm | GGM | Gear Ratio: 1/360 | Output Speed: 18 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0400-KD3429T1 | KGC-3429-T1 spur geared, 1/400, 16.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/400 | Output Speed: 16.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0500-KD3429T1 | KGC-3429-T1 spur geared, 1/500, 13rpm, 6kgf·cm | GGM | Gear Ratio: 1/500 | Output Speed: 13 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0600-KD3429T1 | KGC-3429-T1 spur geared, 1/600, 10.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/600 | Output Speed: 10.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0750-KD3429T1 | KGC-3429-T1 spur geared, 1/750, 8.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/750 | Output Speed: 8.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0900-KD3429T1 | KGC-3429-T1 spur geared, 1/900, 7.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/900 | Output Speed: 7.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1080-KD3429T1 | KGC-3429-T1 spur geared, 1/1080, 6rpm, 6kgf·cm | GGM | Gear Ratio: 1/1080 | Output Speed: 6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1350-KD3429T1 | KGC-3429-T1 spur geared, 1/1350, 4.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/1350 | Output Speed: 4.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1620-KD3429T1 | KGC-3429-T1 spur geared, 1/1620, 4rpm, 6kgf·cm | GGM | Gear Ratio: 1/1620 | Output Speed: 4 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-2430-KD3429T1 | KGC-3429-T1 spur geared, 1/2430, 2.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/2430 | Output Speed: 2.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0002-KD3429T1 | KGC-3429-T1 spur geared, 1/2, 3250rpm, 0.06kgf·cm | GGM | Gear Ratio: 1/2 | Output Speed: 3250 rpm | Output Torque: 0.06 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0003-KD3429T1 | KGC-3429-T1 spur geared, 1/3, 2166rpm, 0.1kgf·cm | GGM | Gear Ratio: 1/3 | Output Speed: 2166 rpm | Output Torque: 0.1 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0005-KD3429T1 | KGC-3429-T1 spur geared, 1/5, 1300rpm, 0.16kgf·cm | GGM | Gear Ratio: 1/5 | Output Speed: 1300 rpm | Output Torque: 0.16 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0010-KD3429T1 | KGC-3429-T1 spur geared, 1/10, 650rpm, 0.29kgf·cm | GGM | Gear Ratio: 1/10 | Output Speed: 650 rpm | Output Torque: 0.29 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0015-KD3429T1 | KGC-3429-T1 spur geared, 1/15, 433rpm, 0.44kgf·cm | GGM | Gear Ratio: 1/15 | Output Speed: 433 rpm | Output Torque: 0.44 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0020-KD3429T1 | KGC-3429-T1 spur geared, 1/20, 325rpm, 0.58kgf·cm | GGM | Gear Ratio: 1/20 | Output Speed: 325 rpm | Output Torque: 0.58 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0025-KD3429T1 | KGC-3429-T1 spur geared, 1/25, 260rpm, 0.7kgf·cm | GGM | Gear Ratio: 1/25 | Output Speed: 260 rpm | Output Torque: 0.7 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0030-KD3429T1 | KGC-3429-T1 spur geared, 1/30, 217rpm, 0.9kgf·cm | GGM | Gear Ratio: 1/30 | Output Speed: 217 rpm | Output Torque: 0.9 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0040-KD3429T1 | KGC-3429-T1 spur geared, 1/40, 163rpm, 1kgf·cm | GGM | Gear Ratio: 1/40 | Output Speed: 163 rpm | Output Torque: 1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0050-KD3429T1 | KGC-3429-T1 spur geared, 1/50, 130rpm, 1.3kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 130 rpm | Output Torque: 1.3 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0060-KD3429T1 | KGC-3429-T1 spur geared, 1/60, 108rpm, 1.6kgf·cm | GGM | Gear Ratio: 1/60 | Output Speed: 108 rpm | Output Torque: 1.6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0070-KD3429T1 | KGC-3429-T1 spur geared, 1/70, 93rpm, 1.65kgf·cm | GGM | Gear Ratio: 1/70 | Output Speed: 93 rpm | Output Torque: 1.65 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0083-KD3429T1 | KGC-3429-T1 spur geared, 1/83, 78rpm, 1.95kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 78 rpm | Output Torque: 1.95 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0090-KD3429T1 | KGC-3429-T1 spur geared, 1/90, 72rpm, 2.1kgf·cm | GGM | Gear Ratio: 1/90 | Output Speed: 72 rpm | Output Torque: 2.1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0100-KD3429T1 | KGC-3429-T1 spur geared, 1/100, 65rpm, 2.3kgf·cm | GGM | Gear Ratio: 1/100 | Output Speed: 65 rpm | Output Torque: 2.3 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0120-KD3429T1 | KGC-3429-T1 spur geared, 1/120, 54rpm, 2.8kgf·cm | GGM | Gear Ratio: 1/120 | Output Speed: 54 rpm | Output Torque: 2.8 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0150-KD3429T1 | KGC-3429-T1 spur geared, 1/150, 43rpm, 3.5kgf·cm | GGM | Gear Ratio: 1/150 | Output Speed: 43 rpm | Output Torque: 3.5 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0180-KD3429T1 | KGC-3429-T1 spur geared, 1/180, 36rpm, 4.2kgf·cm | GGM | Gear Ratio: 1/180 | Output Speed: 36 rpm | Output Torque: 4.2 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0200-KD3429T1 | KGC-3429-T1 spur geared, 1/200, 32.5rpm, 4.7kgf·cm | GGM | Gear Ratio: 1/200 | Output Speed: 32.5 rpm | Output Torque: 4.7 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0210-KD3429T1 | KGC-3429-T1 spur geared, 1/210, 31rpm, 4.9kgf·cm | GGM | Gear Ratio: 1/210 | Output Speed: 31 rpm | Output Torque: 4.9 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0240-KD3429T1 | KGC-3429-T1 spur geared, 1/240, 27rpm, 5.1kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 27 rpm | Output Torque: 5.1 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0300-KD3429T1 | KGC-3429-T1 spur geared, 1/300, 21.6rpm, 6kgf·cm | GGM | Gear Ratio: 1/300 | Output Speed: 21.6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0360-KD3429T1 | KGC-3429-T1 spur geared, 1/360, 18rpm, 6kgf·cm | GGM | Gear Ratio: 1/360 | Output Speed: 18 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0400-KD3429T1 | KGC-3429-T1 spur geared, 1/400, 16.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/400 | Output Speed: 16.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0500-KD3429T1 | KGC-3429-T1 spur geared, 1/500, 13rpm, 6kgf·cm | GGM | Gear Ratio: 1/500 | Output Speed: 13 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0600-KD3429T1 | KGC-3429-T1 spur geared, 1/600, 10.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/600 | Output Speed: 10.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0750-KD3429T1 | KGC-3429-T1 spur geared, 1/750, 8.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/750 | Output Speed: 8.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0900-KD3429T1 | KGC-3429-T1 spur geared, 1/900, 7.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/900 | Output Speed: 7.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1080-KD3429T1 | KGC-3429-T1 spur geared, 1/1080, 6rpm, 6kgf·cm | GGM | Gear Ratio: 1/1080 | Output Speed: 6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1350-KD3429T1 | KGC-3429-T1 spur geared, 1/1350, 4.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/1350 | Output Speed: 4.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1620-KD3429T1 | KGC-3429-T1 spur geared, 1/1620, 4rpm, 6kgf·cm | GGM | Gear Ratio: 1/1620 | Output Speed: 4 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-2430-KD3429T1 | KGC-3429-T1 spur geared, 1/2430, 2.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/2430 | Output Speed: 2.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm |
GGM KGC-3429-T2 spur geared DC motor, ø34 frame, DC 24V (High-speed, 7500 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange.
GGM KGC-3429-T2 spur geared DC motor, ø34 frame, DC 24V (High-speed, 7500 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KGC-0002-KD3429T2 | KGC-3429-T2 spur geared, 1/2, 3250rpm, 0.06kgf·cm | GGM | Gear Ratio: 1/2 | Output Speed: 3250 rpm | Output Torque: 0.06 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0003-KD3429T2 | KGC-3429-T2 spur geared, 1/3, 2166rpm, 0.1kgf·cm | GGM | Gear Ratio: 1/3 | Output Speed: 2166 rpm | Output Torque: 0.1 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0005-KD3429T2 | KGC-3429-T2 spur geared, 1/5, 1300rpm, 0.16kgf·cm | GGM | Gear Ratio: 1/5 | Output Speed: 1300 rpm | Output Torque: 0.16 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0010-KD3429T2 | KGC-3429-T2 spur geared, 1/10, 650rpm, 0.29kgf·cm | GGM | Gear Ratio: 1/10 | Output Speed: 650 rpm | Output Torque: 0.29 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0015-KD3429T2 | KGC-3429-T2 spur geared, 1/15, 433rpm, 0.44kgf·cm | GGM | Gear Ratio: 1/15 | Output Speed: 433 rpm | Output Torque: 0.44 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0020-KD3429T2 | KGC-3429-T2 spur geared, 1/20, 325rpm, 0.58kgf·cm | GGM | Gear Ratio: 1/20 | Output Speed: 325 rpm | Output Torque: 0.58 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0025-KD3429T2 | KGC-3429-T2 spur geared, 1/25, 260rpm, 0.7kgf·cm | GGM | Gear Ratio: 1/25 | Output Speed: 260 rpm | Output Torque: 0.7 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0030-KD3429T2 | KGC-3429-T2 spur geared, 1/30, 217rpm, 0.9kgf·cm | GGM | Gear Ratio: 1/30 | Output Speed: 217 rpm | Output Torque: 0.9 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0040-KD3429T2 | KGC-3429-T2 spur geared, 1/40, 163rpm, 1kgf·cm | GGM | Gear Ratio: 1/40 | Output Speed: 163 rpm | Output Torque: 1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0050-KD3429T2 | KGC-3429-T2 spur geared, 1/50, 130rpm, 1.3kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 130 rpm | Output Torque: 1.3 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0060-KD3429T2 | KGC-3429-T2 spur geared, 1/60, 108rpm, 1.6kgf·cm | GGM | Gear Ratio: 1/60 | Output Speed: 108 rpm | Output Torque: 1.6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0070-KD3429T2 | KGC-3429-T2 spur geared, 1/70, 93rpm, 1.65kgf·cm | GGM | Gear Ratio: 1/70 | Output Speed: 93 rpm | Output Torque: 1.65 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0083-KD3429T2 | KGC-3429-T2 spur geared, 1/83, 78rpm, 1.95kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 78 rpm | Output Torque: 1.95 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0090-KD3429T2 | KGC-3429-T2 spur geared, 1/90, 72rpm, 2.1kgf·cm | GGM | Gear Ratio: 1/90 | Output Speed: 72 rpm | Output Torque: 2.1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0100-KD3429T2 | KGC-3429-T2 spur geared, 1/100, 65rpm, 2.3kgf·cm | GGM | Gear Ratio: 1/100 | Output Speed: 65 rpm | Output Torque: 2.3 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0120-KD3429T2 | KGC-3429-T2 spur geared, 1/120, 54rpm, 2.8kgf·cm | GGM | Gear Ratio: 1/120 | Output Speed: 54 rpm | Output Torque: 2.8 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0150-KD3429T2 | KGC-3429-T2 spur geared, 1/150, 43rpm, 3.5kgf·cm | GGM | Gear Ratio: 1/150 | Output Speed: 43 rpm | Output Torque: 3.5 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0180-KD3429T2 | KGC-3429-T2 spur geared, 1/180, 36rpm, 4.2kgf·cm | GGM | Gear Ratio: 1/180 | Output Speed: 36 rpm | Output Torque: 4.2 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0200-KD3429T2 | KGC-3429-T2 spur geared, 1/200, 32.5rpm, 4.7kgf·cm | GGM | Gear Ratio: 1/200 | Output Speed: 32.5 rpm | Output Torque: 4.7 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0210-KD3429T2 | KGC-3429-T2 spur geared, 1/210, 31rpm, 4.9kgf·cm | GGM | Gear Ratio: 1/210 | Output Speed: 31 rpm | Output Torque: 4.9 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0240-KD3429T2 | KGC-3429-T2 spur geared, 1/240, 27rpm, 5.1kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 27 rpm | Output Torque: 5.1 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0300-KD3429T2 | KGC-3429-T2 spur geared, 1/300, 21.6rpm, 6kgf·cm | GGM | Gear Ratio: 1/300 | Output Speed: 21.6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0360-KD3429T2 | KGC-3429-T2 spur geared, 1/360, 18rpm, 6kgf·cm | GGM | Gear Ratio: 1/360 | Output Speed: 18 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0400-KD3429T2 | KGC-3429-T2 spur geared, 1/400, 16.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/400 | Output Speed: 16.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0500-KD3429T2 | KGC-3429-T2 spur geared, 1/500, 13rpm, 6kgf·cm | GGM | Gear Ratio: 1/500 | Output Speed: 13 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0600-KD3429T2 | KGC-3429-T2 spur geared, 1/600, 10.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/600 | Output Speed: 10.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0750-KD3429T2 | KGC-3429-T2 spur geared, 1/750, 8.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/750 | Output Speed: 8.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0900-KD3429T2 | KGC-3429-T2 spur geared, 1/900, 7.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/900 | Output Speed: 7.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1080-KD3429T2 | KGC-3429-T2 spur geared, 1/1080, 6rpm, 6kgf·cm | GGM | Gear Ratio: 1/1080 | Output Speed: 6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1350-KD3429T2 | KGC-3429-T2 spur geared, 1/1350, 4.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/1350 | Output Speed: 4.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1620-KD3429T2 | KGC-3429-T2 spur geared, 1/1620, 4rpm, 6kgf·cm | GGM | Gear Ratio: 1/1620 | Output Speed: 4 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-2430-KD3429T2 | KGC-3429-T2 spur geared, 1/2430, 2.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/2430 | Output Speed: 2.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0002-KD3429T2 | KGC-3429-T2 spur geared, 1/2, 3250rpm, 0.06kgf·cm | GGM | Gear Ratio: 1/2 | Output Speed: 3250 rpm | Output Torque: 0.06 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0003-KD3429T2 | KGC-3429-T2 spur geared, 1/3, 2166rpm, 0.1kgf·cm | GGM | Gear Ratio: 1/3 | Output Speed: 2166 rpm | Output Torque: 0.1 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0005-KD3429T2 | KGC-3429-T2 spur geared, 1/5, 1300rpm, 0.16kgf·cm | GGM | Gear Ratio: 1/5 | Output Speed: 1300 rpm | Output Torque: 0.16 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0010-KD3429T2 | KGC-3429-T2 spur geared, 1/10, 650rpm, 0.29kgf·cm | GGM | Gear Ratio: 1/10 | Output Speed: 650 rpm | Output Torque: 0.29 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0015-KD3429T2 | KGC-3429-T2 spur geared, 1/15, 433rpm, 0.44kgf·cm | GGM | Gear Ratio: 1/15 | Output Speed: 433 rpm | Output Torque: 0.44 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0020-KD3429T2 | KGC-3429-T2 spur geared, 1/20, 325rpm, 0.58kgf·cm | GGM | Gear Ratio: 1/20 | Output Speed: 325 rpm | Output Torque: 0.58 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0025-KD3429T2 | KGC-3429-T2 spur geared, 1/25, 260rpm, 0.7kgf·cm | GGM | Gear Ratio: 1/25 | Output Speed: 260 rpm | Output Torque: 0.7 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0030-KD3429T2 | KGC-3429-T2 spur geared, 1/30, 217rpm, 0.9kgf·cm | GGM | Gear Ratio: 1/30 | Output Speed: 217 rpm | Output Torque: 0.9 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0040-KD3429T2 | KGC-3429-T2 spur geared, 1/40, 163rpm, 1kgf·cm | GGM | Gear Ratio: 1/40 | Output Speed: 163 rpm | Output Torque: 1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0050-KD3429T2 | KGC-3429-T2 spur geared, 1/50, 130rpm, 1.3kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 130 rpm | Output Torque: 1.3 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0060-KD3429T2 | KGC-3429-T2 spur geared, 1/60, 108rpm, 1.6kgf·cm | GGM | Gear Ratio: 1/60 | Output Speed: 108 rpm | Output Torque: 1.6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0070-KD3429T2 | KGC-3429-T2 spur geared, 1/70, 93rpm, 1.65kgf·cm | GGM | Gear Ratio: 1/70 | Output Speed: 93 rpm | Output Torque: 1.65 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0083-KD3429T2 | KGC-3429-T2 spur geared, 1/83, 78rpm, 1.95kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 78 rpm | Output Torque: 1.95 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0090-KD3429T2 | KGC-3429-T2 spur geared, 1/90, 72rpm, 2.1kgf·cm | GGM | Gear Ratio: 1/90 | Output Speed: 72 rpm | Output Torque: 2.1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0100-KD3429T2 | KGC-3429-T2 spur geared, 1/100, 65rpm, 2.3kgf·cm | GGM | Gear Ratio: 1/100 | Output Speed: 65 rpm | Output Torque: 2.3 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0120-KD3429T2 | KGC-3429-T2 spur geared, 1/120, 54rpm, 2.8kgf·cm | GGM | Gear Ratio: 1/120 | Output Speed: 54 rpm | Output Torque: 2.8 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0150-KD3429T2 | KGC-3429-T2 spur geared, 1/150, 43rpm, 3.5kgf·cm | GGM | Gear Ratio: 1/150 | Output Speed: 43 rpm | Output Torque: 3.5 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0180-KD3429T2 | KGC-3429-T2 spur geared, 1/180, 36rpm, 4.2kgf·cm | GGM | Gear Ratio: 1/180 | Output Speed: 36 rpm | Output Torque: 4.2 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0200-KD3429T2 | KGC-3429-T2 spur geared, 1/200, 32.5rpm, 4.7kgf·cm | GGM | Gear Ratio: 1/200 | Output Speed: 32.5 rpm | Output Torque: 4.7 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0210-KD3429T2 | KGC-3429-T2 spur geared, 1/210, 31rpm, 4.9kgf·cm | GGM | Gear Ratio: 1/210 | Output Speed: 31 rpm | Output Torque: 4.9 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0240-KD3429T2 | KGC-3429-T2 spur geared, 1/240, 27rpm, 5.1kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 27 rpm | Output Torque: 5.1 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0300-KD3429T2 | KGC-3429-T2 spur geared, 1/300, 21.6rpm, 6kgf·cm | GGM | Gear Ratio: 1/300 | Output Speed: 21.6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0360-KD3429T2 | KGC-3429-T2 spur geared, 1/360, 18rpm, 6kgf·cm | GGM | Gear Ratio: 1/360 | Output Speed: 18 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0400-KD3429T2 | KGC-3429-T2 spur geared, 1/400, 16.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/400 | Output Speed: 16.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0500-KD3429T2 | KGC-3429-T2 spur geared, 1/500, 13rpm, 6kgf·cm | GGM | Gear Ratio: 1/500 | Output Speed: 13 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0600-KD3429T2 | KGC-3429-T2 spur geared, 1/600, 10.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/600 | Output Speed: 10.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0750-KD3429T2 | KGC-3429-T2 spur geared, 1/750, 8.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/750 | Output Speed: 8.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0900-KD3429T2 | KGC-3429-T2 spur geared, 1/900, 7.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/900 | Output Speed: 7.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1080-KD3429T2 | KGC-3429-T2 spur geared, 1/1080, 6rpm, 6kgf·cm | GGM | Gear Ratio: 1/1080 | Output Speed: 6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1350-KD3429T2 | KGC-3429-T2 spur geared, 1/1350, 4.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/1350 | Output Speed: 4.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1620-KD3429T2 | KGC-3429-T2 spur geared, 1/1620, 4rpm, 6kgf·cm | GGM | Gear Ratio: 1/1620 | Output Speed: 4 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-2430-KD3429T2 | KGC-3429-T2 spur geared, 1/2430, 2.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/2430 | Output Speed: 2.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm |
![[GGM] — KGC-3448-P1 Spur Geared DC Motor (ø34, DC 12V, 9000rpm base, 32 ratios 1/2-1/2430)](https://img.prosourcemro.com/2026/06/0605-1-300x300.png)
GGM KGC-3448-P1 spur geared DC motor, ø34 long-can frame, DC 12V (Top-speed, 9000 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange.
GGM KGC-3448-P1 spur geared DC motor, ø34 long-can frame, DC 12V (Top-speed, 9000 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KGC-0002-KD3448P1 | KGC-3448-P1 spur geared, 1/2, 4000rpm, 0.13kgf·cm | GGM | Gear Ratio: 1/2 | Output Speed: 4000 rpm | Output Torque: 0.13 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0003-KD3448P1 | KGC-3448-P1 spur geared, 1/3, 2667rpm, 0.19kgf·cm | GGM | Gear Ratio: 1/3 | Output Speed: 2667 rpm | Output Torque: 0.19 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0005-KD3448P1 | KGC-3448-P1 spur geared, 1/5, 1600rpm, 0.32kgf·cm | GGM | Gear Ratio: 1/5 | Output Speed: 1600 rpm | Output Torque: 0.32 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0010-KD3448P1 | KGC-3448-P1 spur geared, 1/10, 800rpm, 0.65kgf·cm | GGM | Gear Ratio: 1/10 | Output Speed: 800 rpm | Output Torque: 0.65 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0015-KD3448P1 | KGC-3448-P1 spur geared, 1/15, 533rpm, 0.87kgf·cm | GGM | Gear Ratio: 1/15 | Output Speed: 533 rpm | Output Torque: 0.87 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0020-KD3448P1 | KGC-3448-P1 spur geared, 1/20, 400rpm, 1.1kgf·cm | GGM | Gear Ratio: 1/20 | Output Speed: 400 rpm | Output Torque: 1.1 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0025-KD3448P1 | KGC-3448-P1 spur geared, 1/25, 320rpm, 1.4kgf·cm | GGM | Gear Ratio: 1/25 | Output Speed: 320 rpm | Output Torque: 1.4 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0030-KD3448P1 | KGC-3448-P1 spur geared, 1/30, 267rpm, 1.7kgf·cm | GGM | Gear Ratio: 1/30 | Output Speed: 267 rpm | Output Torque: 1.7 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0040-KD3448P1 | KGC-3448-P1 spur geared, 1/40, 200rpm, 2.1kgf·cm | GGM | Gear Ratio: 1/40 | Output Speed: 200 rpm | Output Torque: 2.1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0050-KD3448P1 | KGC-3448-P1 spur geared, 1/50, 160rpm, 2.6kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 160 rpm | Output Torque: 2.6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0060-KD3448P1 | KGC-3448-P1 spur geared, 1/60, 133rpm, 3.1kgf·cm | GGM | Gear Ratio: 1/60 | Output Speed: 133 rpm | Output Torque: 3.1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0070-KD3448P1 | KGC-3448-P1 spur geared, 1/70, 114.3rpm, 3.3kgf·cm | GGM | Gear Ratio: 1/70 | Output Speed: 114.3 rpm | Output Torque: 3.3 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0083-KD3448P1 | KGC-3448-P1 spur geared, 1/83, 96.4rpm, 3.9kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 96.4 rpm | Output Torque: 3.9 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0090-KD3448P1 | KGC-3448-P1 spur geared, 1/90, 88.9rpm, 4.2kgf·cm | GGM | Gear Ratio: 1/90 | Output Speed: 88.9 rpm | Output Torque: 4.2 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0100-KD3448P1 | KGC-3448-P1 spur geared, 1/100, 80rpm, 4.7kgf·cm | GGM | Gear Ratio: 1/100 | Output Speed: 80 rpm | Output Torque: 4.7 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0120-KD3448P1 | KGC-3448-P1 spur geared, 1/120, 66.7rpm, 5.6kgf·cm | GGM | Gear Ratio: 1/120 | Output Speed: 66.7 rpm | Output Torque: 5.6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0150-KD3448P1 | KGC-3448-P1 spur geared, 1/150, 53.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/150 | Output Speed: 53.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0180-KD3448P1 | KGC-3448-P1 spur geared, 1/180, 44.4rpm, 6kgf·cm | GGM | Gear Ratio: 1/180 | Output Speed: 44.4 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0200-KD3448P1 | KGC-3448-P1 spur geared, 1/200, 40rpm, 6kgf·cm | GGM | Gear Ratio: 1/200 | Output Speed: 40 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0210-KD3448P1 | KGC-3448-P1 spur geared, 1/210, 38.1rpm, 6kgf·cm | GGM | Gear Ratio: 1/210 | Output Speed: 38.1 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0240-KD3448P1 | KGC-3448-P1 spur geared, 1/240, 33.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 33.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0300-KD3448P1 | KGC-3448-P1 spur geared, 1/300, 26.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/300 | Output Speed: 26.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0360-KD3448P1 | KGC-3448-P1 spur geared, 1/360, 22.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/360 | Output Speed: 22.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0400-KD3448P1 | KGC-3448-P1 spur geared, 1/400, 20rpm, 6kgf·cm | GGM | Gear Ratio: 1/400 | Output Speed: 20 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0500-KD3448P1 | KGC-3448-P1 spur geared, 1/500, 16rpm, 6kgf·cm | GGM | Gear Ratio: 1/500 | Output Speed: 16 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0600-KD3448P1 | KGC-3448-P1 spur geared, 1/600, 13.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/600 | Output Speed: 13.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0750-KD3448P1 | KGC-3448-P1 spur geared, 1/750, 10.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/750 | Output Speed: 10.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0900-KD3448P1 | KGC-3448-P1 spur geared, 1/900, 8.9rpm, 6kgf·cm | GGM | Gear Ratio: 1/900 | Output Speed: 8.9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1080-KD3448P1 | KGC-3448-P1 spur geared, 1/1080, 7.4rpm, 6kgf·cm | GGM | Gear Ratio: 1/1080 | Output Speed: 7.4 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1350-KD3448P1 | KGC-3448-P1 spur geared, 1/1350, 5.9rpm, 6kgf·cm | GGM | Gear Ratio: 1/1350 | Output Speed: 5.9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1620-KD3448P1 | KGC-3448-P1 spur geared, 1/1620, 4.9rpm, 6kgf·cm | GGM | Gear Ratio: 1/1620 | Output Speed: 4.9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-2430-KD3448P1 | KGC-3448-P1 spur geared, 1/2430, 3.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/2430 | Output Speed: 3.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm |
GGM KGC-3448-P2 spur geared DC motor, ø34 long-can frame, DC 24V (Top-speed, 9000 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange.
GGM KGC-3448-P2 spur geared DC motor, ø34 long-can frame, DC 24V (Top-speed, 9000 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KGC-0002-KD3448P2 | KGC-3448-P2 spur geared, 1/2, 4000rpm, 0.13kgf·cm | GGM | Gear Ratio: 1/2 | Output Speed: 4000 rpm | Output Torque: 0.13 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0003-KD3448P2 | KGC-3448-P2 spur geared, 1/3, 2667rpm, 0.19kgf·cm | GGM | Gear Ratio: 1/3 | Output Speed: 2667 rpm | Output Torque: 0.19 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0005-KD3448P2 | KGC-3448-P2 spur geared, 1/5, 1600rpm, 0.32kgf·cm | GGM | Gear Ratio: 1/5 | Output Speed: 1600 rpm | Output Torque: 0.32 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0010-KD3448P2 | KGC-3448-P2 spur geared, 1/10, 800rpm, 0.65kgf·cm | GGM | Gear Ratio: 1/10 | Output Speed: 800 rpm | Output Torque: 0.65 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0015-KD3448P2 | KGC-3448-P2 spur geared, 1/15, 533rpm, 0.87kgf·cm | GGM | Gear Ratio: 1/15 | Output Speed: 533 rpm | Output Torque: 0.87 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0020-KD3448P2 | KGC-3448-P2 spur geared, 1/20, 400rpm, 1.1kgf·cm | GGM | Gear Ratio: 1/20 | Output Speed: 400 rpm | Output Torque: 1.1 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0025-KD3448P2 | KGC-3448-P2 spur geared, 1/25, 320rpm, 1.4kgf·cm | GGM | Gear Ratio: 1/25 | Output Speed: 320 rpm | Output Torque: 1.4 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0030-KD3448P2 | KGC-3448-P2 spur geared, 1/30, 267rpm, 1.7kgf·cm | GGM | Gear Ratio: 1/30 | Output Speed: 267 rpm | Output Torque: 1.7 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0040-KD3448P2 | KGC-3448-P2 spur geared, 1/40, 200rpm, 2.1kgf·cm | GGM | Gear Ratio: 1/40 | Output Speed: 200 rpm | Output Torque: 2.1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0050-KD3448P2 | KGC-3448-P2 spur geared, 1/50, 160rpm, 2.6kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 160 rpm | Output Torque: 2.6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0060-KD3448P2 | KGC-3448-P2 spur geared, 1/60, 133rpm, 3.1kgf·cm | GGM | Gear Ratio: 1/60 | Output Speed: 133 rpm | Output Torque: 3.1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0070-KD3448P2 | KGC-3448-P2 spur geared, 1/70, 114.3rpm, 3.3kgf·cm | GGM | Gear Ratio: 1/70 | Output Speed: 114.3 rpm | Output Torque: 3.3 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0083-KD3448P2 | KGC-3448-P2 spur geared, 1/83, 96.4rpm, 3.9kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 96.4 rpm | Output Torque: 3.9 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0090-KD3448P2 | KGC-3448-P2 spur geared, 1/90, 88.9rpm, 4.2kgf·cm | GGM | Gear Ratio: 1/90 | Output Speed: 88.9 rpm | Output Torque: 4.2 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0100-KD3448P2 | KGC-3448-P2 spur geared, 1/100, 80rpm, 4.7kgf·cm | GGM | Gear Ratio: 1/100 | Output Speed: 80 rpm | Output Torque: 4.7 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0120-KD3448P2 | KGC-3448-P2 spur geared, 1/120, 66.7rpm, 5.6kgf·cm | GGM | Gear Ratio: 1/120 | Output Speed: 66.7 rpm | Output Torque: 5.6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0150-KD3448P2 | KGC-3448-P2 spur geared, 1/150, 53.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/150 | Output Speed: 53.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0180-KD3448P2 | KGC-3448-P2 spur geared, 1/180, 44.4rpm, 6kgf·cm | GGM | Gear Ratio: 1/180 | Output Speed: 44.4 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0200-KD3448P2 | KGC-3448-P2 spur geared, 1/200, 40rpm, 6kgf·cm | GGM | Gear Ratio: 1/200 | Output Speed: 40 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0210-KD3448P2 | KGC-3448-P2 spur geared, 1/210, 38.1rpm, 6kgf·cm | GGM | Gear Ratio: 1/210 | Output Speed: 38.1 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0240-KD3448P2 | KGC-3448-P2 spur geared, 1/240, 33.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 33.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0300-KD3448P2 | KGC-3448-P2 spur geared, 1/300, 26.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/300 | Output Speed: 26.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0360-KD3448P2 | KGC-3448-P2 spur geared, 1/360, 22.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/360 | Output Speed: 22.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0400-KD3448P2 | KGC-3448-P2 spur geared, 1/400, 20rpm, 6kgf·cm | GGM | Gear Ratio: 1/400 | Output Speed: 20 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0500-KD3448P2 | KGC-3448-P2 spur geared, 1/500, 16rpm, 6kgf·cm | GGM | Gear Ratio: 1/500 | Output Speed: 16 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0600-KD3448P2 | KGC-3448-P2 spur geared, 1/600, 13.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/600 | Output Speed: 13.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0750-KD3448P2 | KGC-3448-P2 spur geared, 1/750, 10.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/750 | Output Speed: 10.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0900-KD3448P2 | KGC-3448-P2 spur geared, 1/900, 8.9rpm, 6kgf·cm | GGM | Gear Ratio: 1/900 | Output Speed: 8.9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1080-KD3448P2 | KGC-3448-P2 spur geared, 1/1080, 7.4rpm, 6kgf·cm | GGM | Gear Ratio: 1/1080 | Output Speed: 7.4 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1350-KD3448P2 | KGC-3448-P2 spur geared, 1/1350, 5.9rpm, 6kgf·cm | GGM | Gear Ratio: 1/1350 | Output Speed: 5.9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1620-KD3448P2 | KGC-3448-P2 spur geared, 1/1620, 4.9rpm, 6kgf·cm | GGM | Gear Ratio: 1/1620 | Output Speed: 4.9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-2430-KD3448P2 | KGC-3448-P2 spur geared, 1/2430, 3.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/2430 | Output Speed: 3.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm |
GGM KGC-3448-S1 spur geared DC motor, ø34 long-can frame, DC 12V (Standard, 5200 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange.
GGM KGC-3448-S1 spur geared DC motor, ø34 long-can frame, DC 12V (Standard, 5200 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KGC-0002-KD3448S1 | KGC-3448-S1 spur geared, 1/2, 2250rpm, 0.13kgf·cm | GGM | Gear Ratio: 1/2 | Output Speed: 2250 rpm | Output Torque: 0.13 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0003-KD3448S1 | KGC-3448-S1 spur geared, 1/3, 1500rpm, 0.19kgf·cm | GGM | Gear Ratio: 1/3 | Output Speed: 1500 rpm | Output Torque: 0.19 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0005-KD3448S1 | KGC-3448-S1 spur geared, 1/5, 900rpm, 0.32kgf·cm | GGM | Gear Ratio: 1/5 | Output Speed: 900 rpm | Output Torque: 0.32 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0010-KD3448S1 | KGC-3448-S1 spur geared, 1/10, 450rpm, 0.65kgf·cm | GGM | Gear Ratio: 1/10 | Output Speed: 450 rpm | Output Torque: 0.65 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0015-KD3448S1 | KGC-3448-S1 spur geared, 1/15, 300rpm, 0.87kgf·cm | GGM | Gear Ratio: 1/15 | Output Speed: 300 rpm | Output Torque: 0.87 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0020-KD3448S1 | KGC-3448-S1 spur geared, 1/20, 225rpm, 1.1kgf·cm | GGM | Gear Ratio: 1/20 | Output Speed: 225 rpm | Output Torque: 1.1 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0025-KD3448S1 | KGC-3448-S1 spur geared, 1/25, 180rpm, 1.4kgf·cm | GGM | Gear Ratio: 1/25 | Output Speed: 180 rpm | Output Torque: 1.4 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0030-KD3448S1 | KGC-3448-S1 spur geared, 1/30, 150rpm, 1.7kgf·cm | GGM | Gear Ratio: 1/30 | Output Speed: 150 rpm | Output Torque: 1.7 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0040-KD3448S1 | KGC-3448-S1 spur geared, 1/40, 112.5rpm, 2.1kgf·cm | GGM | Gear Ratio: 1/40 | Output Speed: 112.5 rpm | Output Torque: 2.1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0050-KD3448S1 | KGC-3448-S1 spur geared, 1/50, 90rpm, 2.6kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 90 rpm | Output Torque: 2.6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0060-KD3448S1 | KGC-3448-S1 spur geared, 1/60, 75rpm, 3.1kgf·cm | GGM | Gear Ratio: 1/60 | Output Speed: 75 rpm | Output Torque: 3.1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0070-KD3448S1 | KGC-3448-S1 spur geared, 1/70, 64.3rpm, 3.3kgf·cm | GGM | Gear Ratio: 1/70 | Output Speed: 64.3 rpm | Output Torque: 3.3 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0083-KD3448S1 | KGC-3448-S1 spur geared, 1/83, 54.2rpm, 3.9kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 54.2 rpm | Output Torque: 3.9 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0090-KD3448S1 | KGC-3448-S1 spur geared, 1/90, 50rpm, 4.2kgf·cm | GGM | Gear Ratio: 1/90 | Output Speed: 50 rpm | Output Torque: 4.2 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0100-KD3448S1 | KGC-3448-S1 spur geared, 1/100, 45rpm, 4.7kgf·cm | GGM | Gear Ratio: 1/100 | Output Speed: 45 rpm | Output Torque: 4.7 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0120-KD3448S1 | KGC-3448-S1 spur geared, 1/120, 37.5rpm, 5.6kgf·cm | GGM | Gear Ratio: 1/120 | Output Speed: 37.5 rpm | Output Torque: 5.6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0150-KD3448S1 | KGC-3448-S1 spur geared, 1/150, 30rpm, 6kgf·cm | GGM | Gear Ratio: 1/150 | Output Speed: 30 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0180-KD3448S1 | KGC-3448-S1 spur geared, 1/180, 25rpm, 6kgf·cm | GGM | Gear Ratio: 1/180 | Output Speed: 25 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0200-KD3448S1 | KGC-3448-S1 spur geared, 1/200, 22.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/200 | Output Speed: 22.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0210-KD3448S1 | KGC-3448-S1 spur geared, 1/210, 21.4rpm, 6kgf·cm | GGM | Gear Ratio: 1/210 | Output Speed: 21.4 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0240-KD3448S1 | KGC-3448-S1 spur geared, 1/240, 18.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 18.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0300-KD3448S1 | KGC-3448-S1 spur geared, 1/300, 15rpm, 6kgf·cm | GGM | Gear Ratio: 1/300 | Output Speed: 15 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0360-KD3448S1 | KGC-3448-S1 spur geared, 1/360, 12.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/360 | Output Speed: 12.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0400-KD3448S1 | KGC-3448-S1 spur geared, 1/400, 11.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/400 | Output Speed: 11.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0500-KD3448S1 | KGC-3448-S1 spur geared, 1/500, 9rpm, 6kgf·cm | GGM | Gear Ratio: 1/500 | Output Speed: 9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0600-KD3448S1 | KGC-3448-S1 spur geared, 1/600, 7.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/600 | Output Speed: 7.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0750-KD3448S1 | KGC-3448-S1 spur geared, 1/750, 6rpm, 6kgf·cm | GGM | Gear Ratio: 1/750 | Output Speed: 6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0900-KD3448S1 | KGC-3448-S1 spur geared, 1/900, 5rpm, 6kgf·cm | GGM | Gear Ratio: 1/900 | Output Speed: 5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1080-KD3448S1 | KGC-3448-S1 spur geared, 1/1080, 4.1rpm, 6kgf·cm | GGM | Gear Ratio: 1/1080 | Output Speed: 4.1 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1350-KD3448S1 | KGC-3448-S1 spur geared, 1/1350, 3.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/1350 | Output Speed: 3.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1620-KD3448S1 | KGC-3448-S1 spur geared, 1/1620, 2.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/1620 | Output Speed: 2.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-2430-KD3448S1 | KGC-3448-S1 spur geared, 1/2430, 1.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/2430 | Output Speed: 1.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm |
GGM KGC-3448-S2 spur geared DC motor, ø34 long-can frame, DC 24V (Standard, 5200 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange.
GGM KGC-3448-S2 spur geared DC motor, ø34 long-can frame, DC 24V (Standard, 5200 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KGC-0002-KD3448S2 | KGC-3448-S2 spur geared, 1/2, 2250rpm, 0.13kgf·cm | GGM | Gear Ratio: 1/2 | Output Speed: 2250 rpm | Output Torque: 0.13 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0003-KD3448S2 | KGC-3448-S2 spur geared, 1/3, 1500rpm, 0.19kgf·cm | GGM | Gear Ratio: 1/3 | Output Speed: 1500 rpm | Output Torque: 0.19 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0005-KD3448S2 | KGC-3448-S2 spur geared, 1/5, 900rpm, 0.32kgf·cm | GGM | Gear Ratio: 1/5 | Output Speed: 900 rpm | Output Torque: 0.32 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0010-KD3448S2 | KGC-3448-S2 spur geared, 1/10, 450rpm, 0.65kgf·cm | GGM | Gear Ratio: 1/10 | Output Speed: 450 rpm | Output Torque: 0.65 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0015-KD3448S2 | KGC-3448-S2 spur geared, 1/15, 300rpm, 0.87kgf·cm | GGM | Gear Ratio: 1/15 | Output Speed: 300 rpm | Output Torque: 0.87 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0020-KD3448S2 | KGC-3448-S2 spur geared, 1/20, 225rpm, 1.1kgf·cm | GGM | Gear Ratio: 1/20 | Output Speed: 225 rpm | Output Torque: 1.1 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0025-KD3448S2 | KGC-3448-S2 spur geared, 1/25, 180rpm, 1.4kgf·cm | GGM | Gear Ratio: 1/25 | Output Speed: 180 rpm | Output Torque: 1.4 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0030-KD3448S2 | KGC-3448-S2 spur geared, 1/30, 150rpm, 1.7kgf·cm | GGM | Gear Ratio: 1/30 | Output Speed: 150 rpm | Output Torque: 1.7 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0040-KD3448S2 | KGC-3448-S2 spur geared, 1/40, 112.5rpm, 2.1kgf·cm | GGM | Gear Ratio: 1/40 | Output Speed: 112.5 rpm | Output Torque: 2.1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0050-KD3448S2 | KGC-3448-S2 spur geared, 1/50, 90rpm, 2.6kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 90 rpm | Output Torque: 2.6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0060-KD3448S2 | KGC-3448-S2 spur geared, 1/60, 75rpm, 3.1kgf·cm | GGM | Gear Ratio: 1/60 | Output Speed: 75 rpm | Output Torque: 3.1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0070-KD3448S2 | KGC-3448-S2 spur geared, 1/70, 64.3rpm, 3.3kgf·cm | GGM | Gear Ratio: 1/70 | Output Speed: 64.3 rpm | Output Torque: 3.3 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0083-KD3448S2 | KGC-3448-S2 spur geared, 1/83, 54.2rpm, 3.9kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 54.2 rpm | Output Torque: 3.9 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0090-KD3448S2 | KGC-3448-S2 spur geared, 1/90, 50rpm, 4.2kgf·cm | GGM | Gear Ratio: 1/90 | Output Speed: 50 rpm | Output Torque: 4.2 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0100-KD3448S2 | KGC-3448-S2 spur geared, 1/100, 45rpm, 4.7kgf·cm | GGM | Gear Ratio: 1/100 | Output Speed: 45 rpm | Output Torque: 4.7 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0120-KD3448S2 | KGC-3448-S2 spur geared, 1/120, 37.5rpm, 5.6kgf·cm | GGM | Gear Ratio: 1/120 | Output Speed: 37.5 rpm | Output Torque: 5.6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0150-KD3448S2 | KGC-3448-S2 spur geared, 1/150, 30rpm, 6kgf·cm | GGM | Gear Ratio: 1/150 | Output Speed: 30 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0180-KD3448S2 | KGC-3448-S2 spur geared, 1/180, 25rpm, 6kgf·cm | GGM | Gear Ratio: 1/180 | Output Speed: 25 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0200-KD3448S2 | KGC-3448-S2 spur geared, 1/200, 22.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/200 | Output Speed: 22.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0210-KD3448S2 | KGC-3448-S2 spur geared, 1/210, 21.4rpm, 6kgf·cm | GGM | Gear Ratio: 1/210 | Output Speed: 21.4 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0240-KD3448S2 | KGC-3448-S2 spur geared, 1/240, 18.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 18.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0300-KD3448S2 | KGC-3448-S2 spur geared, 1/300, 15rpm, 6kgf·cm | GGM | Gear Ratio: 1/300 | Output Speed: 15 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0360-KD3448S2 | KGC-3448-S2 spur geared, 1/360, 12.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/360 | Output Speed: 12.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0400-KD3448S2 | KGC-3448-S2 spur geared, 1/400, 11.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/400 | Output Speed: 11.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0500-KD3448S2 | KGC-3448-S2 spur geared, 1/500, 9rpm, 6kgf·cm | GGM | Gear Ratio: 1/500 | Output Speed: 9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0600-KD3448S2 | KGC-3448-S2 spur geared, 1/600, 7.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/600 | Output Speed: 7.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0750-KD3448S2 | KGC-3448-S2 spur geared, 1/750, 6rpm, 6kgf·cm | GGM | Gear Ratio: 1/750 | Output Speed: 6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0900-KD3448S2 | KGC-3448-S2 spur geared, 1/900, 5rpm, 6kgf·cm | GGM | Gear Ratio: 1/900 | Output Speed: 5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1080-KD3448S2 | KGC-3448-S2 spur geared, 1/1080, 4.1rpm, 6kgf·cm | GGM | Gear Ratio: 1/1080 | Output Speed: 4.1 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1350-KD3448S2 | KGC-3448-S2 spur geared, 1/1350, 3.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/1350 | Output Speed: 3.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1620-KD3448S2 | KGC-3448-S2 spur geared, 1/1620, 2.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/1620 | Output Speed: 2.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-2430-KD3448S2 | KGC-3448-S2 spur geared, 1/2430, 1.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/2430 | Output Speed: 1.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm |
GGM KGC-3448-T1 spur geared DC motor, ø34 long-can frame, DC 12V (High-speed, 7500 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange.
GGM KGC-3448-T1 spur geared DC motor, ø34 long-can frame, DC 12V (High-speed, 7500 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KGC-0002-KD3448T1 | KGC-3448-T1 spur geared, 1/2, 3250rpm, 0.13kgf·cm | GGM | Gear Ratio: 1/2 | Output Speed: 3250 rpm | Output Torque: 0.13 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0003-KD3448T1 | KGC-3448-T1 spur geared, 1/3, 2167rpm, 0.19kgf·cm | GGM | Gear Ratio: 1/3 | Output Speed: 2167 rpm | Output Torque: 0.19 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0005-KD3448T1 | KGC-3448-T1 spur geared, 1/5, 1300rpm, 0.32kgf·cm | GGM | Gear Ratio: 1/5 | Output Speed: 1300 rpm | Output Torque: 0.32 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0010-KD3448T1 | KGC-3448-T1 spur geared, 1/10, 650rpm, 0.65kgf·cm | GGM | Gear Ratio: 1/10 | Output Speed: 650 rpm | Output Torque: 0.65 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0015-KD3448T1 | KGC-3448-T1 spur geared, 1/15, 433.3rpm, 0.87kgf·cm | GGM | Gear Ratio: 1/15 | Output Speed: 433.3 rpm | Output Torque: 0.87 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0020-KD3448T1 | KGC-3448-T1 spur geared, 1/20, 325rpm, 1.1kgf·cm | GGM | Gear Ratio: 1/20 | Output Speed: 325 rpm | Output Torque: 1.1 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0025-KD3448T1 | KGC-3448-T1 spur geared, 1/25, 260rpm, 1.4kgf·cm | GGM | Gear Ratio: 1/25 | Output Speed: 260 rpm | Output Torque: 1.4 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0030-KD3448T1 | KGC-3448-T1 spur geared, 1/30, 216.6rpm, 1.7kgf·cm | GGM | Gear Ratio: 1/30 | Output Speed: 216.6 rpm | Output Torque: 1.7 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0040-KD3448T1 | KGC-3448-T1 spur geared, 1/40, 162.5rpm, 2.1kgf·cm | GGM | Gear Ratio: 1/40 | Output Speed: 162.5 rpm | Output Torque: 2.1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0050-KD3448T1 | KGC-3448-T1 spur geared, 1/50, 130rpm, 2.6kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 130 rpm | Output Torque: 2.6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0060-KD3448T1 | KGC-3448-T1 spur geared, 1/60, 108.3rpm, 3.1kgf·cm | GGM | Gear Ratio: 1/60 | Output Speed: 108.3 rpm | Output Torque: 3.1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0070-KD3448T1 | KGC-3448-T1 spur geared, 1/70, 92.8rpm, 3.3kgf·cm | GGM | Gear Ratio: 1/70 | Output Speed: 92.8 rpm | Output Torque: 3.3 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0083-KD3448T1 | KGC-3448-T1 spur geared, 1/83, 78.3rpm, 3.9kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 78.3 rpm | Output Torque: 3.9 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0090-KD3448T1 | KGC-3448-T1 spur geared, 1/90, 72.2rpm, 4.2kgf·cm | GGM | Gear Ratio: 1/90 | Output Speed: 72.2 rpm | Output Torque: 4.2 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0100-KD3448T1 | KGC-3448-T1 spur geared, 1/100, 65rpm, 4.7kgf·cm | GGM | Gear Ratio: 1/100 | Output Speed: 65 rpm | Output Torque: 4.7 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0120-KD3448T1 | KGC-3448-T1 spur geared, 1/120, 54.1rpm, 5.6kgf·cm | GGM | Gear Ratio: 1/120 | Output Speed: 54.1 rpm | Output Torque: 5.6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0150-KD3448T1 | KGC-3448-T1 spur geared, 1/150, 43.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/150 | Output Speed: 43.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0180-KD3448T1 | KGC-3448-T1 spur geared, 1/180, 36.1rpm, 6kgf·cm | GGM | Gear Ratio: 1/180 | Output Speed: 36.1 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0200-KD3448T1 | KGC-3448-T1 spur geared, 1/200, 32.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/200 | Output Speed: 32.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0210-KD3448T1 | KGC-3448-T1 spur geared, 1/210, 30.9rpm, 6kgf·cm | GGM | Gear Ratio: 1/210 | Output Speed: 30.9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0240-KD3448T1 | KGC-3448-T1 spur geared, 1/240, 27.1rpm, 6kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 27.1 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0300-KD3448T1 | KGC-3448-T1 spur geared, 1/300, 21.6rpm, 6kgf·cm | GGM | Gear Ratio: 1/300 | Output Speed: 21.6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0360-KD3448T1 | KGC-3448-T1 spur geared, 1/360, 18rpm, 6kgf·cm | GGM | Gear Ratio: 1/360 | Output Speed: 18 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0400-KD3448T1 | KGC-3448-T1 spur geared, 1/400, 16.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/400 | Output Speed: 16.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0500-KD3448T1 | KGC-3448-T1 spur geared, 1/500, 13rpm, 6kgf·cm | GGM | Gear Ratio: 1/500 | Output Speed: 13 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0600-KD3448T1 | KGC-3448-T1 spur geared, 1/600, 10.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/600 | Output Speed: 10.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0750-KD3448T1 | KGC-3448-T1 spur geared, 1/750, 8.6rpm, 6kgf·cm | GGM | Gear Ratio: 1/750 | Output Speed: 8.6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0900-KD3448T1 | KGC-3448-T1 spur geared, 1/900, 7.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/900 | Output Speed: 7.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1080-KD3448T1 | KGC-3448-T1 spur geared, 1/1080, 6rpm, 6kgf·cm | GGM | Gear Ratio: 1/1080 | Output Speed: 6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1350-KD3448T1 | KGC-3448-T1 spur geared, 1/1350, 4.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/1350 | Output Speed: 4.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1620-KD3448T1 | KGC-3448-T1 spur geared, 1/1620, 4rpm, 6kgf·cm | GGM | Gear Ratio: 1/1620 | Output Speed: 4 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-2430-KD3448T1 | KGC-3448-T1 spur geared, 1/2430, 2.6rpm, 6kgf·cm | GGM | Gear Ratio: 1/2430 | Output Speed: 2.6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm |
GGM KGC-3448-T2 spur geared DC motor, ø34 long-can frame, DC 24V (High-speed, 7500 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange.
GGM KGC-3448-T2 spur geared DC motor, ø34 long-can frame, DC 24V (High-speed, 7500 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KGC-0002-KD3448T2 | KGC-3448-T2 spur geared, 1/2, 3250rpm, 0.13kgf·cm | GGM | Gear Ratio: 1/2 | Output Speed: 3250 rpm | Output Torque: 0.13 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0003-KD3448T2 | KGC-3448-T2 spur geared, 1/3, 2167rpm, 0.19kgf·cm | GGM | Gear Ratio: 1/3 | Output Speed: 2167 rpm | Output Torque: 0.19 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0005-KD3448T2 | KGC-3448-T2 spur geared, 1/5, 1300rpm, 0.32kgf·cm | GGM | Gear Ratio: 1/5 | Output Speed: 1300 rpm | Output Torque: 0.32 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0010-KD3448T2 | KGC-3448-T2 spur geared, 1/10, 650rpm, 0.65kgf·cm | GGM | Gear Ratio: 1/10 | Output Speed: 650 rpm | Output Torque: 0.65 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0015-KD3448T2 | KGC-3448-T2 spur geared, 1/15, 433.3rpm, 0.87kgf·cm | GGM | Gear Ratio: 1/15 | Output Speed: 433.3 rpm | Output Torque: 0.87 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0020-KD3448T2 | KGC-3448-T2 spur geared, 1/20, 325rpm, 1.1kgf·cm | GGM | Gear Ratio: 1/20 | Output Speed: 325 rpm | Output Torque: 1.1 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0025-KD3448T2 | KGC-3448-T2 spur geared, 1/25, 260rpm, 1.4kgf·cm | GGM | Gear Ratio: 1/25 | Output Speed: 260 rpm | Output Torque: 1.4 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0030-KD3448T2 | KGC-3448-T2 spur geared, 1/30, 216.6rpm, 1.7kgf·cm | GGM | Gear Ratio: 1/30 | Output Speed: 216.6 rpm | Output Torque: 1.7 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0040-KD3448T2 | KGC-3448-T2 spur geared, 1/40, 162.5rpm, 2.1kgf·cm | GGM | Gear Ratio: 1/40 | Output Speed: 162.5 rpm | Output Torque: 2.1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0050-KD3448T2 | KGC-3448-T2 spur geared, 1/50, 130rpm, 2.6kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 130 rpm | Output Torque: 2.6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0060-KD3448T2 | KGC-3448-T2 spur geared, 1/60, 108.3rpm, 3.1kgf·cm | GGM | Gear Ratio: 1/60 | Output Speed: 108.3 rpm | Output Torque: 3.1 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0070-KD3448T2 | KGC-3448-T2 spur geared, 1/70, 92.8rpm, 3.3kgf·cm | GGM | Gear Ratio: 1/70 | Output Speed: 92.8 rpm | Output Torque: 3.3 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0083-KD3448T2 | KGC-3448-T2 spur geared, 1/83, 78.3rpm, 3.9kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 78.3 rpm | Output Torque: 3.9 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0090-KD3448T2 | KGC-3448-T2 spur geared, 1/90, 72.2rpm, 4.2kgf·cm | GGM | Gear Ratio: 1/90 | Output Speed: 72.2 rpm | Output Torque: 4.2 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0100-KD3448T2 | KGC-3448-T2 spur geared, 1/100, 65rpm, 4.7kgf·cm | GGM | Gear Ratio: 1/100 | Output Speed: 65 rpm | Output Torque: 4.7 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0120-KD3448T2 | KGC-3448-T2 spur geared, 1/120, 54.1rpm, 5.6kgf·cm | GGM | Gear Ratio: 1/120 | Output Speed: 54.1 rpm | Output Torque: 5.6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0150-KD3448T2 | KGC-3448-T2 spur geared, 1/150, 43.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/150 | Output Speed: 43.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0180-KD3448T2 | KGC-3448-T2 spur geared, 1/180, 36.1rpm, 6kgf·cm | GGM | Gear Ratio: 1/180 | Output Speed: 36.1 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0200-KD3448T2 | KGC-3448-T2 spur geared, 1/200, 32.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/200 | Output Speed: 32.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0210-KD3448T2 | KGC-3448-T2 spur geared, 1/210, 30.9rpm, 6kgf·cm | GGM | Gear Ratio: 1/210 | Output Speed: 30.9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0240-KD3448T2 | KGC-3448-T2 spur geared, 1/240, 27.1rpm, 6kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 27.1 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0300-KD3448T2 | KGC-3448-T2 spur geared, 1/300, 21.6rpm, 6kgf·cm | GGM | Gear Ratio: 1/300 | Output Speed: 21.6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0360-KD3448T2 | KGC-3448-T2 spur geared, 1/360, 18rpm, 6kgf·cm | GGM | Gear Ratio: 1/360 | Output Speed: 18 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0400-KD3448T2 | KGC-3448-T2 spur geared, 1/400, 16.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/400 | Output Speed: 16.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0500-KD3448T2 | KGC-3448-T2 spur geared, 1/500, 13rpm, 6kgf·cm | GGM | Gear Ratio: 1/500 | Output Speed: 13 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0600-KD3448T2 | KGC-3448-T2 spur geared, 1/600, 10.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/600 | Output Speed: 10.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0750-KD3448T2 | KGC-3448-T2 spur geared, 1/750, 8.6rpm, 6kgf·cm | GGM | Gear Ratio: 1/750 | Output Speed: 8.6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0900-KD3448T2 | KGC-3448-T2 spur geared, 1/900, 7.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/900 | Output Speed: 7.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1080-KD3448T2 | KGC-3448-T2 spur geared, 1/1080, 6rpm, 6kgf·cm | GGM | Gear Ratio: 1/1080 | Output Speed: 6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1350-KD3448T2 | KGC-3448-T2 spur geared, 1/1350, 4.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/1350 | Output Speed: 4.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1620-KD3448T2 | KGC-3448-T2 spur geared, 1/1620, 4rpm, 6kgf·cm | GGM | Gear Ratio: 1/1620 | Output Speed: 4 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-2430-KD3448T2 | KGC-3448-T2 spur geared, 1/2430, 2.6rpm, 6kgf·cm | GGM | Gear Ratio: 1/2430 | Output Speed: 2.6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm |
![[GGM] — KGC-3640-S1 BLDC Spur Geared Motor (ø36, DC 12V, 5300rpm base, 32 ratios 1/2-1/2430)](https://img.prosourcemro.com/2026/06/0605-2-300x300.png)
GGM KGC-3640-S1 BLDC spur geared motor, ø36 frame, DC 12V (5300 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange. Built-in brake and 1FG (6P/R) feedback, 6-lead wire (195mm), CW/CCW reversible, GUN-type PWM speed controller.
GGM KGC-3640-S1 BLDC spur geared motor, ø36 frame, DC 12V (5300 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange. Built-in brake and 1FG (6P/R) feedback, 6-lead wire (195mm), CW/CCW reversible, GUN-type PWM speed controller.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KGC-0002-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/2, 2250rpm, 0.24kgf·cm | GGM | Gear Ratio: 1/2 | Output Speed: 2250 rpm | Output Torque: 0.24 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0003-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/3, 1500rpm, 0.36kgf·cm | GGM | Gear Ratio: 1/3 | Output Speed: 1500 rpm | Output Torque: 0.36 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0005-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/5, 900rpm, 0.6kgf·cm | GGM | Gear Ratio: 1/5 | Output Speed: 900 rpm | Output Torque: 0.6 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0010-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/10, 450rpm, 1.2kgf·cm | GGM | Gear Ratio: 1/10 | Output Speed: 450 rpm | Output Torque: 1.2 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0015-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/15, 300rpm, 1.6kgf·cm | GGM | Gear Ratio: 1/15 | Output Speed: 300 rpm | Output Torque: 1.6 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0020-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/20, 225rpm, 2.2kgf·cm | GGM | Gear Ratio: 1/20 | Output Speed: 225 rpm | Output Torque: 2.2 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0025-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/25, 180rpm, 2.7kgf·cm | GGM | Gear Ratio: 1/25 | Output Speed: 180 rpm | Output Torque: 2.7 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0030-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/30, 150rpm, 3.3kgf·cm | GGM | Gear Ratio: 1/30 | Output Speed: 150 rpm | Output Torque: 3.3 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0040-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/40, 112.5rpm, 3.9kgf·cm | GGM | Gear Ratio: 1/40 | Output Speed: 112.5 rpm | Output Torque: 3.9 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0050-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/50, 90rpm, 4.9kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 90 rpm | Output Torque: 4.9 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0060-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/60, 75rpm, 5.9kgf·cm | GGM | Gear Ratio: 1/60 | Output Speed: 75 rpm | Output Torque: 5.9 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0070-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/70, 64rpm, 6kgf·cm | GGM | Gear Ratio: 1/70 | Output Speed: 64 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0083-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/83, 54rpm, 6kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 54 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0090-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/90, 50rpm, 6kgf·cm | GGM | Gear Ratio: 1/90 | Output Speed: 50 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0100-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/100, 45rpm, 6kgf·cm | GGM | Gear Ratio: 1/100 | Output Speed: 45 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0120-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/120, 37.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/120 | Output Speed: 37.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0150-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/150, 30rpm, 6kgf·cm | GGM | Gear Ratio: 1/150 | Output Speed: 30 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0180-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/180, 25rpm, 6kgf·cm | GGM | Gear Ratio: 1/180 | Output Speed: 25 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0200-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/200, 22.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/200 | Output Speed: 22.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0210-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/210, 21.4rpm, 6kgf·cm | GGM | Gear Ratio: 1/210 | Output Speed: 21.4 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0240-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/240, 18.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 18.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0300-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/300, 15rpm, 6kgf·cm | GGM | Gear Ratio: 1/300 | Output Speed: 15 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0360-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/360, 12.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/360 | Output Speed: 12.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0400-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/400, 11.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/400 | Output Speed: 11.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0500-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/500, 9rpm, 6kgf·cm | GGM | Gear Ratio: 1/500 | Output Speed: 9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0600-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/600, 7.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/600 | Output Speed: 7.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0750-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/750, 6rpm, 6kgf·cm | GGM | Gear Ratio: 1/750 | Output Speed: 6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0900-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/900, 5rpm, 6kgf·cm | GGM | Gear Ratio: 1/900 | Output Speed: 5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1080-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/1080, 4.1rpm, 6kgf·cm | GGM | Gear Ratio: 1/1080 | Output Speed: 4.1 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1350-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/1350, 3.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/1350 | Output Speed: 3.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1620-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/1620, 2.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/1620 | Output Speed: 2.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-2430-KB3640S1 | KGC-3640-S1 BLDC spur geared, 1/2430, 1.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/2430 | Output Speed: 1.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm |
![[GGM] — KGC-3640-S1-T BLDC Spur Geared Motor (ø36, DC 12V, 5400rpm base, no-PCB, 32 ratios 1/2-1/2430)](https://img.prosourcemro.com/2026/06/0605-3-300x300.png)
GGM KGC-3640-S1-T BLDC spur geared motor, ø36 frame, DC 12V (5400 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange. Built-in brake and 1FG (6P/R) feedback, 6-lead wire (300mm), no-PCB control, CW/CCW reversible (default CCW), GUN-type PWM speed controller.
GGM KGC-3640-S1-T BLDC spur geared motor, ø36 frame, DC 12V (5400 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange. Built-in brake and 1FG (6P/R) feedback, 6-lead wire (300mm), no-PCB control, CW/CCW reversible (default CCW), GUN-type PWM speed controller.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KGC-0002-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/2, 2250rpm, 0.4kgf·cm | GGM | Gear Ratio: 1/2 | Output Speed: 2250 rpm | Output Torque: 0.4 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0003-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/3, 1500rpm, 0.6kgf·cm | GGM | Gear Ratio: 1/3 | Output Speed: 1500 rpm | Output Torque: 0.6 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0005-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/5, 900rpm, 1kgf·cm | GGM | Gear Ratio: 1/5 | Output Speed: 900 rpm | Output Torque: 1 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0010-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/10, 450rpm, 2kgf·cm | GGM | Gear Ratio: 1/10 | Output Speed: 450 rpm | Output Torque: 2 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0015-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/15, 300rpm, 2.7kgf·cm | GGM | Gear Ratio: 1/15 | Output Speed: 300 rpm | Output Torque: 2.7 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0020-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/20, 225rpm, 3.6kgf·cm | GGM | Gear Ratio: 1/20 | Output Speed: 225 rpm | Output Torque: 3.6 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0025-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/25, 180rpm, 4.5kgf·cm | GGM | Gear Ratio: 1/25 | Output Speed: 180 rpm | Output Torque: 4.5 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0030-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/30, 150rpm, 5.4kgf·cm | GGM | Gear Ratio: 1/30 | Output Speed: 150 rpm | Output Torque: 5.4 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0040-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/40, 112.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/40 | Output Speed: 112.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0050-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/50, 90rpm, 6kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 90 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0060-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/60, 75rpm, 6kgf·cm | GGM | Gear Ratio: 1/60 | Output Speed: 75 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0070-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/70, 64rpm, 6kgf·cm | GGM | Gear Ratio: 1/70 | Output Speed: 64 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0083-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/83, 54rpm, 6kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 54 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0090-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/90, 50rpm, 6kgf·cm | GGM | Gear Ratio: 1/90 | Output Speed: 50 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0100-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/100, 45rpm, 6kgf·cm | GGM | Gear Ratio: 1/100 | Output Speed: 45 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0120-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/120, 37.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/120 | Output Speed: 37.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0150-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/150, 30rpm, 6kgf·cm | GGM | Gear Ratio: 1/150 | Output Speed: 30 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0180-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/180, 25rpm, 6kgf·cm | GGM | Gear Ratio: 1/180 | Output Speed: 25 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0200-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/200, 22.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/200 | Output Speed: 22.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0210-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/210, 21.4rpm, 6kgf·cm | GGM | Gear Ratio: 1/210 | Output Speed: 21.4 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0240-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/240, 18.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 18.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0300-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/300, 15rpm, 6kgf·cm | GGM | Gear Ratio: 1/300 | Output Speed: 15 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0360-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/360, 12.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/360 | Output Speed: 12.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0400-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/400, 11.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/400 | Output Speed: 11.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0500-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/500, 9rpm, 6kgf·cm | GGM | Gear Ratio: 1/500 | Output Speed: 9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0600-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/600, 7.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/600 | Output Speed: 7.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0750-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/750, 6rpm, 6kgf·cm | GGM | Gear Ratio: 1/750 | Output Speed: 6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0900-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/900, 5rpm, 6kgf·cm | GGM | Gear Ratio: 1/900 | Output Speed: 5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1080-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/1080, 4.1rpm, 6kgf·cm | GGM | Gear Ratio: 1/1080 | Output Speed: 4.1 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1350-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/1350, 3.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/1350 | Output Speed: 3.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1620-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/1620, 2.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/1620 | Output Speed: 2.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-2430-KB3640S1-T | KGC-3640-S1-T BLDC spur geared, 1/2430, 1.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/2430 | Output Speed: 1.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm |
GGM KGC-3640-S2 BLDC spur geared motor, ø36 frame, DC 24V (5000 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange. Built-in brake and 1FG (6P/R) feedback, 6-lead wire (195mm), CW/CCW reversible, GUN-type PWM speed controller.
GGM KGC-3640-S2 BLDC spur geared motor, ø36 frame, DC 24V (5000 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange. Built-in brake and 1FG (6P/R) feedback, 6-lead wire (195mm), CW/CCW reversible, GUN-type PWM speed controller.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KGC-0002-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/2, 1950rpm, 0.4kgf·cm | GGM | Gear Ratio: 1/2 | Output Speed: 1950 rpm | Output Torque: 0.4 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0003-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/3, 1300rpm, 0.6kgf·cm | GGM | Gear Ratio: 1/3 | Output Speed: 1300 rpm | Output Torque: 0.6 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0005-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/5, 780rpm, 1kgf·cm | GGM | Gear Ratio: 1/5 | Output Speed: 780 rpm | Output Torque: 1 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0010-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/10, 390rpm, 2kgf·cm | GGM | Gear Ratio: 1/10 | Output Speed: 390 rpm | Output Torque: 2 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0015-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/15, 260rpm, 2.7kgf·cm | GGM | Gear Ratio: 1/15 | Output Speed: 260 rpm | Output Torque: 2.7 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0020-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/20, 195rpm, 3.6kgf·cm | GGM | Gear Ratio: 1/20 | Output Speed: 195 rpm | Output Torque: 3.6 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0025-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/25, 156rpm, 4.5kgf·cm | GGM | Gear Ratio: 1/25 | Output Speed: 156 rpm | Output Torque: 4.5 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0030-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/30, 130rpm, 5.4kgf·cm | GGM | Gear Ratio: 1/30 | Output Speed: 130 rpm | Output Torque: 5.4 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0040-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/40, 97.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/40 | Output Speed: 97.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0050-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/50, 78rpm, 6kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 78 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0060-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/60, 65rpm, 6kgf·cm | GGM | Gear Ratio: 1/60 | Output Speed: 65 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0070-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/70, 55.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/70 | Output Speed: 55.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0083-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/83, 47rpm, 6kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 47 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0090-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/90, 43.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/90 | Output Speed: 43.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0100-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/100, 39rpm, 6kgf·cm | GGM | Gear Ratio: 1/100 | Output Speed: 39 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0120-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/120, 32.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/120 | Output Speed: 32.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0150-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/150, 26rpm, 6kgf·cm | GGM | Gear Ratio: 1/150 | Output Speed: 26 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0180-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/180, 21.6rpm, 6kgf·cm | GGM | Gear Ratio: 1/180 | Output Speed: 21.6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0200-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/200, 19.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/200 | Output Speed: 19.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0210-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/210, 18.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/210 | Output Speed: 18.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0240-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/240, 16.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 16.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0300-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/300, 13rpm, 6kgf·cm | GGM | Gear Ratio: 1/300 | Output Speed: 13 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0360-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/360, 10.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/360 | Output Speed: 10.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0400-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/400, 9.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/400 | Output Speed: 9.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0500-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/500, 7.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/500 | Output Speed: 7.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0600-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/600, 6.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/600 | Output Speed: 6.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0750-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/750, 5.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/750 | Output Speed: 5.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0900-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/900, 4.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/900 | Output Speed: 4.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1080-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/1080, 3.6rpm, 6kgf·cm | GGM | Gear Ratio: 1/1080 | Output Speed: 3.6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1350-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/1350, 2.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/1350 | Output Speed: 2.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1620-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/1620, 2.4rpm, 6kgf·cm | GGM | Gear Ratio: 1/1620 | Output Speed: 2.4 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-2430-KB3640S2 | KGC-3640-S2 BLDC spur geared, 1/2430, 1.6rpm, 6kgf·cm | GGM | Gear Ratio: 1/2430 | Output Speed: 1.6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm |
GGM KGC-3640-S2-T BLDC spur geared motor, ø36 frame, DC 24V (5000 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange. Built-in brake and 1FG (6P/R) feedback, 6-lead wire (300mm), no-PCB control, CW/CCW reversible (default CCW), GUN-type PWM speed controller.
GGM KGC-3640-S2-T BLDC spur geared motor, ø36 frame, DC 24V (5000 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange. Built-in brake and 1FG (6P/R) feedback, 6-lead wire (300mm), no-PCB control, CW/CCW reversible (default CCW), GUN-type PWM speed controller.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KGC-0002-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/2, 1950rpm, 0.4kgf·cm | GGM | Gear Ratio: 1/2 | Output Speed: 1950 rpm | Output Torque: 0.4 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0003-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/3, 1300rpm, 0.6kgf·cm | GGM | Gear Ratio: 1/3 | Output Speed: 1300 rpm | Output Torque: 0.6 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0005-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/5, 780rpm, 1kgf·cm | GGM | Gear Ratio: 1/5 | Output Speed: 780 rpm | Output Torque: 1 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0010-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/10, 390rpm, 2kgf·cm | GGM | Gear Ratio: 1/10 | Output Speed: 390 rpm | Output Torque: 2 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0015-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/15, 260rpm, 2.7kgf·cm | GGM | Gear Ratio: 1/15 | Output Speed: 260 rpm | Output Torque: 2.7 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0020-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/20, 195rpm, 3.6kgf·cm | GGM | Gear Ratio: 1/20 | Output Speed: 195 rpm | Output Torque: 3.6 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0025-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/25, 156rpm, 4.5kgf·cm | GGM | Gear Ratio: 1/25 | Output Speed: 156 rpm | Output Torque: 4.5 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0030-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/30, 130rpm, 5.4kgf·cm | GGM | Gear Ratio: 1/30 | Output Speed: 130 rpm | Output Torque: 5.4 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0040-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/40, 97.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/40 | Output Speed: 97.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0050-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/50, 78rpm, 6kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 78 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0060-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/60, 65rpm, 6kgf·cm | GGM | Gear Ratio: 1/60 | Output Speed: 65 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0070-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/70, 55.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/70 | Output Speed: 55.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0083-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/83, 47rpm, 6kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 47 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0090-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/90, 43.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/90 | Output Speed: 43.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0100-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/100, 39rpm, 6kgf·cm | GGM | Gear Ratio: 1/100 | Output Speed: 39 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0120-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/120, 32.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/120 | Output Speed: 32.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0150-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/150, 26rpm, 6kgf·cm | GGM | Gear Ratio: 1/150 | Output Speed: 26 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0180-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/180, 21.6rpm, 6kgf·cm | GGM | Gear Ratio: 1/180 | Output Speed: 21.6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0200-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/200, 19.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/200 | Output Speed: 19.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0210-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/210, 18.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/210 | Output Speed: 18.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0240-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/240, 16.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 16.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0300-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/300, 13rpm, 6kgf·cm | GGM | Gear Ratio: 1/300 | Output Speed: 13 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0360-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/360, 10.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/360 | Output Speed: 10.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0400-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/400, 9.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/400 | Output Speed: 9.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0500-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/500, 7.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/500 | Output Speed: 7.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0600-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/600, 6.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/600 | Output Speed: 6.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0750-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/750, 5.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/750 | Output Speed: 5.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0900-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/900, 4.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/900 | Output Speed: 4.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1080-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/1080, 3.6rpm, 6kgf·cm | GGM | Gear Ratio: 1/1080 | Output Speed: 3.6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1350-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/1350, 2.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/1350 | Output Speed: 2.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1620-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/1620, 2.4rpm, 6kgf·cm | GGM | Gear Ratio: 1/1620 | Output Speed: 2.4 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-2430-KB3640S2-T | KGC-3640-S2-T BLDC spur geared, 1/2430, 1.6rpm, 6kgf·cm | GGM | Gear Ratio: 1/2430 | Output Speed: 1.6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm |
![[GGM] — KGC-3657-U1 Spur Geared DC Motor (ø36, DC 12V, 6000rpm base, 32 ratios 1/2-1/2430)](https://img.prosourcemro.com/2026/06/0605-4-300x300.png)
GGM KGC-3657-U1 spur geared DC motor, ø36 frame, DC 12V (6000 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange. Stall 10 A / 1.6 kgf·cm.
GGM KGC-3657-U1 spur geared DC motor, ø36 frame, DC 12V (6000 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange. Stall 10 A / 1.6 kgf·cm.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KGC-0002-KD3657U1 | KGC-3657-U1 spur geared, 1/2, 2500rpm, 0.3kgf·cm | GGM | Gear Ratio: 1/2 | Output Speed: 2500 rpm | Output Torque: 0.3 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0003-KD3657U1 | KGC-3657-U1 spur geared, 1/3, 1666rpm, 0.5kgf·cm | GGM | Gear Ratio: 1/3 | Output Speed: 1666 rpm | Output Torque: 0.5 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0005-KD3657U1 | KGC-3657-U1 spur geared, 1/5, 1000rpm, 0.8kgf·cm | GGM | Gear Ratio: 1/5 | Output Speed: 1000 rpm | Output Torque: 0.8 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0010-KD3657U1 | KGC-3657-U1 spur geared, 1/10, 500rpm, 1.6kgf·cm | GGM | Gear Ratio: 1/10 | Output Speed: 500 rpm | Output Torque: 1.6 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0015-KD3657U1 | KGC-3657-U1 spur geared, 1/15, 333rpm, 2.1kgf·cm | GGM | Gear Ratio: 1/15 | Output Speed: 333 rpm | Output Torque: 2.1 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0020-KD3657U1 | KGC-3657-U1 spur geared, 1/20, 250rpm, 2.9kgf·cm | GGM | Gear Ratio: 1/20 | Output Speed: 250 rpm | Output Torque: 2.9 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0025-KD3657U1 | KGC-3657-U1 spur geared, 1/25, 200rpm, 3.6kgf·cm | GGM | Gear Ratio: 1/25 | Output Speed: 200 rpm | Output Torque: 3.6 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0030-KD3657U1 | KGC-3657-U1 spur geared, 1/30, 166rpm, 4.3kgf·cm | GGM | Gear Ratio: 1/30 | Output Speed: 166 rpm | Output Torque: 4.3 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0040-KD3657U1 | KGC-3657-U1 spur geared, 1/40, 125rpm, 5.2kgf·cm | GGM | Gear Ratio: 1/40 | Output Speed: 125 rpm | Output Torque: 5.2 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0050-KD3657U1 | KGC-3657-U1 spur geared, 1/50, 100rpm, 6kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 100 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0060-KD3657U1 | KGC-3657-U1 spur geared, 1/60, 83rpm, 6kgf·cm | GGM | Gear Ratio: 1/60 | Output Speed: 83 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0070-KD3657U1 | KGC-3657-U1 spur geared, 1/70, 71rpm, 6kgf·cm | GGM | Gear Ratio: 1/70 | Output Speed: 71 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0083-KD3657U1 | KGC-3657-U1 spur geared, 1/83, 60rpm, 6kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 60 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0090-KD3657U1 | KGC-3657-U1 spur geared, 1/90, 55rpm, 6kgf·cm | GGM | Gear Ratio: 1/90 | Output Speed: 55 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0100-KD3657U1 | KGC-3657-U1 spur geared, 1/100, 50rpm, 6kgf·cm | GGM | Gear Ratio: 1/100 | Output Speed: 50 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0120-KD3657U1 | KGC-3657-U1 spur geared, 1/120, 41rpm, 6kgf·cm | GGM | Gear Ratio: 1/120 | Output Speed: 41 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0150-KD3657U1 | KGC-3657-U1 spur geared, 1/150, 33rpm, 6kgf·cm | GGM | Gear Ratio: 1/150 | Output Speed: 33 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0180-KD3657U1 | KGC-3657-U1 spur geared, 1/180, 27.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/180 | Output Speed: 27.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0200-KD3657U1 | KGC-3657-U1 spur geared, 1/200, 25rpm, 6kgf·cm | GGM | Gear Ratio: 1/200 | Output Speed: 25 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0210-KD3657U1 | KGC-3657-U1 spur geared, 1/210, 23.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/210 | Output Speed: 23.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0240-KD3657U1 | KGC-3657-U1 spur geared, 1/240, 20.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 20.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0300-KD3657U1 | KGC-3657-U1 spur geared, 1/300, 16.6rpm, 6kgf·cm | GGM | Gear Ratio: 1/300 | Output Speed: 16.6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0360-KD3657U1 | KGC-3657-U1 spur geared, 1/360, 13.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/360 | Output Speed: 13.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0400-KD3657U1 | KGC-3657-U1 spur geared, 1/400, 12.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/400 | Output Speed: 12.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0500-KD3657U1 | KGC-3657-U1 spur geared, 1/500, 10rpm, 6kgf·cm | GGM | Gear Ratio: 1/500 | Output Speed: 10 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0600-KD3657U1 | KGC-3657-U1 spur geared, 1/600, 8.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/600 | Output Speed: 8.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0750-KD3657U1 | KGC-3657-U1 spur geared, 1/750, 6.6rpm, 6kgf·cm | GGM | Gear Ratio: 1/750 | Output Speed: 6.6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0900-KD3657U1 | KGC-3657-U1 spur geared, 1/900, 5.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/900 | Output Speed: 5.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1080-KD3657U1 | KGC-3657-U1 spur geared, 1/1080, 4.6rpm, 6kgf·cm | GGM | Gear Ratio: 1/1080 | Output Speed: 4.6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1350-KD3657U1 | KGC-3657-U1 spur geared, 1/1350, 3.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/1350 | Output Speed: 3.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1620-KD3657U1 | KGC-3657-U1 spur geared, 1/1620, 3rpm, 6kgf·cm | GGM | Gear Ratio: 1/1620 | Output Speed: 3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-2430-KD3657U1 | KGC-3657-U1 spur geared, 1/2430, 2rpm, 6kgf·cm | GGM | Gear Ratio: 1/2430 | Output Speed: 2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm |
GGM KGC-3657-U2 spur geared DC motor, ø36 frame, DC 24V (6000 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange. Stall 5 A / 1.6 kgf·cm.
GGM KGC-3657-U2 spur geared DC motor, ø36 frame, DC 24V (6000 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange. Stall 5 A / 1.6 kgf·cm.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| KGC-0002-KD3657U2 | KGC-3657-U2 spur geared, 1/2, 2500rpm, 0.3kgf·cm | GGM | Gear Ratio: 1/2 | Output Speed: 2500 rpm | Output Torque: 0.3 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0003-KD3657U2 | KGC-3657-U2 spur geared, 1/3, 1666rpm, 0.5kgf·cm | GGM | Gear Ratio: 1/3 | Output Speed: 1666 rpm | Output Torque: 0.5 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0005-KD3657U2 | KGC-3657-U2 spur geared, 1/5, 1000rpm, 0.8kgf·cm | GGM | Gear Ratio: 1/5 | Output Speed: 1000 rpm | Output Torque: 0.8 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0010-KD3657U2 | KGC-3657-U2 spur geared, 1/10, 500rpm, 1.6kgf·cm | GGM | Gear Ratio: 1/10 | Output Speed: 500 rpm | Output Torque: 1.6 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0015-KD3657U2 | KGC-3657-U2 spur geared, 1/15, 333rpm, 2.1kgf·cm | GGM | Gear Ratio: 1/15 | Output Speed: 333 rpm | Output Torque: 2.1 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0020-KD3657U2 | KGC-3657-U2 spur geared, 1/20, 250rpm, 2.9kgf·cm | GGM | Gear Ratio: 1/20 | Output Speed: 250 rpm | Output Torque: 2.9 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0025-KD3657U2 | KGC-3657-U2 spur geared, 1/25, 200rpm, 3.6kgf·cm | GGM | Gear Ratio: 1/25 | Output Speed: 200 rpm | Output Torque: 3.6 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0030-KD3657U2 | KGC-3657-U2 spur geared, 1/30, 166rpm, 4.3kgf·cm | GGM | Gear Ratio: 1/30 | Output Speed: 166 rpm | Output Torque: 4.3 kgf·cm | Gearhead Length L: 21 mm | |
| KGC-0040-KD3657U2 | KGC-3657-U2 spur geared, 1/40, 125rpm, 5.2kgf·cm | GGM | Gear Ratio: 1/40 | Output Speed: 125 rpm | Output Torque: 5.2 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0050-KD3657U2 | KGC-3657-U2 spur geared, 1/50, 100rpm, 6kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 100 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0060-KD3657U2 | KGC-3657-U2 spur geared, 1/60, 83rpm, 6kgf·cm | GGM | Gear Ratio: 1/60 | Output Speed: 83 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0070-KD3657U2 | KGC-3657-U2 spur geared, 1/70, 71rpm, 6kgf·cm | GGM | Gear Ratio: 1/70 | Output Speed: 71 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0083-KD3657U2 | KGC-3657-U2 spur geared, 1/83, 60rpm, 6kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 60 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0090-KD3657U2 | KGC-3657-U2 spur geared, 1/90, 55rpm, 6kgf·cm | GGM | Gear Ratio: 1/90 | Output Speed: 55 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0100-KD3657U2 | KGC-3657-U2 spur geared, 1/100, 50rpm, 6kgf·cm | GGM | Gear Ratio: 1/100 | Output Speed: 50 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0120-KD3657U2 | KGC-3657-U2 spur geared, 1/120, 41rpm, 6kgf·cm | GGM | Gear Ratio: 1/120 | Output Speed: 41 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0150-KD3657U2 | KGC-3657-U2 spur geared, 1/150, 33rpm, 6kgf·cm | GGM | Gear Ratio: 1/150 | Output Speed: 33 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0180-KD3657U2 | KGC-3657-U2 spur geared, 1/180, 27.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/180 | Output Speed: 27.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | |
| KGC-0200-KD3657U2 | KGC-3657-U2 spur geared, 1/200, 25rpm, 6kgf·cm | GGM | Gear Ratio: 1/200 | Output Speed: 25 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0210-KD3657U2 | KGC-3657-U2 spur geared, 1/210, 23.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/210 | Output Speed: 23.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0240-KD3657U2 | KGC-3657-U2 spur geared, 1/240, 20.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 20.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0300-KD3657U2 | KGC-3657-U2 spur geared, 1/300, 16.6rpm, 6kgf·cm | GGM | Gear Ratio: 1/300 | Output Speed: 16.6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0360-KD3657U2 | KGC-3657-U2 spur geared, 1/360, 13.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/360 | Output Speed: 13.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0400-KD3657U2 | KGC-3657-U2 spur geared, 1/400, 12.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/400 | Output Speed: 12.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0500-KD3657U2 | KGC-3657-U2 spur geared, 1/500, 10rpm, 6kgf·cm | GGM | Gear Ratio: 1/500 | Output Speed: 10 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0600-KD3657U2 | KGC-3657-U2 spur geared, 1/600, 8.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/600 | Output Speed: 8.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0750-KD3657U2 | KGC-3657-U2 spur geared, 1/750, 6.6rpm, 6kgf·cm | GGM | Gear Ratio: 1/750 | Output Speed: 6.6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-0900-KD3657U2 | KGC-3657-U2 spur geared, 1/900, 5.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/900 | Output Speed: 5.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1080-KD3657U2 | KGC-3657-U2 spur geared, 1/1080, 4.6rpm, 6kgf·cm | GGM | Gear Ratio: 1/1080 | Output Speed: 4.6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1350-KD3657U2 | KGC-3657-U2 spur geared, 1/1350, 3.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/1350 | Output Speed: 3.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-1620-KD3657U2 | KGC-3657-U2 spur geared, 1/1620, 3rpm, 6kgf·cm | GGM | Gear Ratio: 1/1620 | Output Speed: 3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | |
| KGC-2430-KD3657U2 | KGC-3657-U2 spur geared, 1/2430, 2rpm, 6kgf·cm | GGM | Gear Ratio: 1/2430 | Output Speed: 2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm |
