Sensors
![[OMRON] — E32 Heat-resistant Fiber Units (100°C to 400°C)](https://img.prosourcemro.com/2026/05/001-316-300x210.png)
OMRON E32 Series heat-resistant fiber units for high-temperature environments. Through-beam: E32-T51R (100°C), E32-T51 (150°C), E32-T54 (150°C side-view), E32-T81R-S (200°C), E32-T84S-S (200°C), E32-T64-2 (300°C, IP30), E32-T61-S (350°C, -60~350°C). Reflective: E32-D51R (100°C), E32-D51 (150°C), E32-D81R-S (200°C), E32-A08H2 (300°C, glass substrate alignment), E32-L64 (300°C, 1~5 mm), E32-L86 (200°C, 4~10 mm), E32-A09H2 (300°C, glass substrate mapping), E32-D611-S / E32-D61-S (350°C), E32-D73-S (400°C). For use with E39-F1/F16/F2 lens units (to 70°C) or E39-F1-33/F16 (heat-resistant). PDF ref: E32 full catalog, Heat-resistant section.
OMRON E32 Series heat-resistant fiber units for high-temperature environments. Through-beam: E32-T51R (100°C), E32-T51 (150°C), E32-T54 (150°C side-view), E32-T81R-S (200°C), E32-T84S-S (200°C), E32-T64-2 (300°C, IP30), E32-T61-S (350°C, -60~350°C). Reflective: E32-D51R (100°C), E32-D51 (150°C), E32-D81R-S (200°C), E32-A08H2 (300°C, glass substrate alignment), E32-L64 (300°C, 1~5 mm), E32-L86 (200°C, 4~10 mm), E32-A09H2 (300°C, glass substrate mapping), E32-D611-S / E32-D61-S (350°C), E32-D73-S (400°C). For use with E39-F1/F16/F2 lens units (to 70°C) or E39-F1-33/F16 (heat-resistant). PDF ref: E32 full catalog, Heat-resistant section.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E32-T51R 2M | Heat-resistant 100°C through-beam, 1 dia., flexible R2, IP50 | OMRON | Model: E32-T51R 2M | Type: Through-beam Heat-resistant (Set of 2) | Heat Resistance: 100°C (continuous use up to 90°C) | Optical Axis Dia.: 1 dia. | Bending Radius: Flexible R2 | IP Rating: IP50 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 800 mm | Sensing Dist. FA ST: 1,200 mm | Min. Sensing Object: 0.1 dia. / 0.03 dia. | |
| E32-T51 2M | Heat-resistant 150°C through-beam, 1.5 dia., R35, IP67 | OMRON | Model: E32-T51 2M | Type: Through-beam Heat-resistant (Set of 2) | Heat Resistance: 150°C (continuous use up to 130°C) | Optical Axis Dia.: 1.5 dia. | Bending Radius: R35 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 1,500 mm | Sensing Dist. FA ST: 2,250 mm | Min. Sensing Object: 0.1 dia. / 0.03 dia. | |
| E32-T54 2M | Heat-resistant 150°C through-beam side-view, 1.5 dia., R35, IP67 | OMRON | Model: E32-T54 2M | Type: Through-beam Heat-resistant Side-view (Set of 2) | Heat Resistance: 150°C (continuous use up to 130°C) | Optical Axis Dia.: 1.5 dia. | Bending Radius: R35 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 450 mm | Sensing Dist. FA ST: 670 mm | Min. Sensing Object: 0.1 dia. / 0.03 dia. | |
| E32-T81R-S 2M | Heat-resistant 200°C through-beam, 0.7 dia., R10, IP67 | OMRON | Model: E32-T81R-S 2M | Type: Through-beam Heat-resistant (Set of 2) | Heat Resistance: 200°C (see dimensions for part-specific ratings) | Optical Axis Dia.: 0.7 dia. | Bending Radius: R10 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 550 mm | Sensing Dist. FA ST: 820 mm | Min. Sensing Object: 5 μm dia. / 2 μm dia. | |
| E32-T84S-S 2M | Heat-resistant 200°C through-beam, 1.7 dia., R25, IP67 | OMRON | Model: E32-T84S-S 2M | Type: Through-beam Heat-resistant (Set of 2) | Heat Resistance: 200°C | Optical Axis Dia.: 1.7 dia. | Bending Radius: R25 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 2,600 mm | Sensing Dist. FA ST: 3,900 mm | Min. Sensing Object: 0.1 dia. / 0.03 dia. | |
| E32-T64-2 2M | Heat-resistant 300°C through-beam, R25, IP30 | OMRON | Model: E32-T64-2 2M | Type: Through-beam Heat-resistant (Set of 2) | Heat Resistance: 300°C | Bending Radius: R25 | IP Rating: IP30 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 190 mm | Sensing Dist. FA ST: 290 mm | |
| E32-T61-S 2M | Heat-resistant 350°C through-beam, 1 dia., R25, IP67 | OMRON | Model: E32-T61-S 2M | Type: Through-beam Heat-resistant (Set of 2) | Heat Resistance: -60 to 350°C (-40 to 200°C with E39-F1/F2; -40 to 350°C with E39-F16) | Optical Axis Dia.: 1 dia. | Bending Radius: R25 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 900 mm | Sensing Dist. FA ST: 1,350 mm | Min. Sensing Object: 5 μm dia. / 2 μm dia. | |
| E32-D51R 2M | Heat-resistant 100°C reflective, flexible R2, IP50 | OMRON | Model: E32-D51R 2M | Type: Reflective Heat-resistant | Heat Resistance: 100°C (continuous use up to 90°C) | Bending Radius: Flexible R2 | IP Rating: IP50 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 280 mm | Sensing Dist. FA ST: 420 mm | Min. Sensing Object: 5 μm dia. / 2 μm dia. | |
| E32-D51 2M | Heat-resistant 150°C reflective, R35, IP67 | OMRON | Model: E32-D51 2M | Type: Reflective Heat-resistant | Heat Resistance: 150°C (continuous use up to 130°C) | Bending Radius: R35 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 450 mm | Sensing Dist. FA ST: 670 mm | |
| E32-D81R-S 2M | Heat-resistant 200°C reflective, R10, IP67 | OMRON | Model: E32-D81R-S 2M | Type: Reflective Heat-resistant | Heat Resistance: 200°C (see dimensions for part-specific ratings) | Bending Radius: R10 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 180 mm | Sensing Dist. FA ST: 270 mm | |
| E32-A08H2 2M | Heat-resistant 300°C reflective glass alignment, 10~20 mm range, R25, IP30 | OMRON | Model: E32-A08H2 2M | Type: Reflective Heat-resistant (Glass Substrate Alignment) | Heat Resistance: 300°C | Bending Radius: R25 | IP Rating: IP30 | Cable Length: 2 m (Free Cutting) | Sensing Range: 10 to 20 mm | Standard Sensing Object: Soda glass with reflection factor of 7% | |
| E32-L64 2M | Heat-resistant 300°C reflective, 1~5 mm range, IP50 | OMRON | Model: E32-L64 2M | Type: Reflective Heat-resistant | Heat Resistance: 300°C | IP Rating: IP50 | Cable Length: 2 m (Free Cutting) | Sensing Range: 1 to 5 mm | |
| E32-L86 2M | Heat-resistant 200°C reflective, 4~10 mm range, IP60 | OMRON | Model: E32-L86 2M | Type: Reflective Heat-resistant | Heat Resistance: 200°C | IP Rating: IP60 | Cable Length: 2 m (Free Cutting) | Sensing Range: 4 to 10 mm | Min. Sensing Object: 5 μm dia. / 2 μm dia. | |
| E32-A09H2 2M | Heat-resistant 300°C reflective glass mapping, 20~30 mm range, R25, IP40 | OMRON | Model: E32-A09H2 2M | Type: Reflective Heat-resistant (Glass Substrate Mapping) | Heat Resistance: 300°C | Bending Radius: R25 | IP Rating: IP40 | Cable Length: 2 m (Free Cutting) | Sensing Range: 20 to 30 mm (center 25 mm) | Standard Sensing Object: End surface of soda glass t=0.7 mm, rounded edges | |
| E32-D611-S 2M | Heat-resistant 350°C reflective, R25, IP67 | OMRON | Model: E32-D611-S 2M | Type: Reflective Heat-resistant | Heat Resistance: 350°C | Bending Radius: R25 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 180 mm | Sensing Dist. FA ST: 270 mm | Min. Sensing Object: 5 μm dia. / 2 μm dia. | |
| E32-D61-S 2M | Heat-resistant 350°C reflective variant, IP67 | OMRON | Model: E32-D61-S 2M | Type: Reflective Heat-resistant | Heat Resistance: 350°C | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 180 mm | Sensing Dist. FA ST: 270 mm | Min. Sensing Object: 5 μm dia. / 2 μm dia. | |
| E32-D73-S 2M | Heat-resistant 400°C reflective, sleeve bending radius 10 mm | OMRON | Model: E32-D73-S 2M | Type: Reflective Heat-resistant | Heat Resistance: 400°C | Sleeve Bending Radius: 10 mm | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 120 mm | Sensing Dist. FA ST: 180 mm | Min. Sensing Object: 5 μm dia. / 2 μm dia. |
OMRON E32 Series high-power beam fiber units for long-distance and dust-resistant detection. E32-T17L 10M: ultra-long sensing up to 20 m (M14, 10 m cable per side), aperture 10°. E32-T14 2M: side-view 30° through-beam, 4 dia. Build-in Lens, IP67. E32-T11 2M: M4 top-view bend-resistant through-beam. E32-D16 2M: narrow-angle 4° reflective with dual integrated lenses, BGS-capable, sensing range 40~2,800 mm (E3X-ZV) / 40~4,200 mm (E3NX-FA), IP40. Lens Units (E39-F1/F16/F2) available separately to further extend sensing distance. PDF ref: E418-E1 p.28-30.
OMRON E32 Series high-power beam fiber units for long-distance and dust-resistant detection. E32-T17L 10M: ultra-long sensing up to 20 m (M14, 10 m cable per side), aperture 10°. E32-T14 2M: side-view 30° through-beam, 4 dia. Build-in Lens, IP67. E32-T11 2M: M4 top-view bend-resistant through-beam. E32-D16 2M: narrow-angle 4° reflective with dual integrated lenses, BGS-capable, sensing range 40~2,800 mm (E3X-ZV) / 40~4,200 mm (E3NX-FA), IP40. Lens Units (E39-F1/F16/F2) available separately to further extend sensing distance. PDF ref: E418-E1 p.28-30.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E32-T17L 10M | Through-beam M14 top-view 10°, 10 dia. lens, 10m cable, sensing up to 20m, IP67 | OMRON | Model: E32-T17L 10M | Type: Through-beam (Set of 2) | Mounting: Threaded M14 | View: Top-view | Aperture Angle: 10° | Sensing Surface Dia.: 10 dia. (PMMA lens) | Bending Radius: R25 | IP Rating: IP67 | Cable Length: 10 m (Free Cutting) | Sensing Dist. ZV ST: 20,000 mm | Sensing Dist. FA ST: 20,000 mm | Incident Level vs Reference: ×1700 | Note: 10 m fiber per side; total sensing distance 20,000 mm | |
| E32-T14 2M | Through-beam side-view 30°, 4 dia. Build-in Lens, R25, IP67 | OMRON | Model: E32-T14 2M | Type: Through-beam (Set of 2) | Mounting: Side-view | Aperture Angle: 30° | Sensing Surface Dia.: 4 dia. (PMMA Build-in Lens) | Bending Radius: R25 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 4,000 mm | Sensing Dist. FA ST: 4,000 mm | Min. Sensing Object: 0.1 dia. / 0.03 dia. | |
| E32-T11 2M | Through-beam M4 top-view bend-resistant, 1 dia., IP67 | OMRON | Model: E32-T11 2M | Type: Through-beam (Set of 2) | Mounting: Threaded M4 | View: Top-view | Sensing Surface Dia.: 1 dia. | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 1,350 mm | Sensing Dist. FA ST: 2,020 mm | Note: Bend-resistant; compatible with E39-F1/F16/F2 lens units for extended range | |
| E32-D16 2M | Reflective top-view narrow 4°, dual integrated lens, bend-resistant R4, IP40 | OMRON | Model: E32-D16 2M | Type: Reflective (Dual Integrated Lens, Narrow-angle) | Mounting: Flat, top-view | Aperture Angle: 4° | Sensing Surface: Two, 5.8 dia. lenses | Bending Radius: Bend-resistant R4 | IP Rating: IP40 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 40 to 1,400 mm | Sensing Dist. FA ST: 40 to 2,100 mm | Incident Level vs Reference: ×17 | Note: Variable sensing range; BGS-capable narrow-angle reflective |
![[OMRON] — E32 LENS in Nut Type Fiber Unit (15° GIGA Beam, Through-beam / Reflective / Retro-reflective)](https://img.prosourcemro.com/2026/05/001-315-300x270.png)
OMRON E32 LENS in Nut Type Fiber Unit — Build-in lens + Nut-type mounting in a single product. 15° narrow aperture angle (GIGA Beam) with high power output for stable detection: approx. 10× light intensity vs non-lens through-beam (E32-LT11N) and approx. 3× S/N ratio vs non-lens reflective (E32-LD11N). Reduces false detection from light reflection in narrow spaces. Patented tool-fit nut structure — spanner inserts deep into nut without contacting fiber cable, preventing fiber damage during installation. Single-nut tightening simplifies mounting. No lens attachment work, no torque management, no risk of lost lens. Includes E39-RP1 Reflector for E32-LR11NP transparent-object detection (required pair). Compatible with E3NX-FA and E3X-HD smart fiber amplifiers. IP50, −40 to +70 °C, bend-resistant R2 cable. Patent registered.
OMRON E32 LENS in Nut Type Fiber Unit — Build-in lens + Nut-type mounting in a single product. 15° narrow aperture angle (GIGA Beam) with high power output for stable detection: approx. 10× light intensity vs non-lens through-beam (E32-LT11N) and approx. 3× S/N ratio vs non-lens reflective (E32-LD11N). Reduces false detection from light reflection in narrow spaces. Patented tool-fit nut structure — spanner inserts deep into nut without contacting fiber cable, preventing fiber damage during installation. Single-nut tightening simplifies mounting. No lens attachment work, no torque management, no risk of lost lens. Includes E39-RP1 Reflector for E32-LR11NP transparent-object detection (required pair). Compatible with E3NX-FA and E3X-HD smart fiber amplifiers. IP50, −40 to +70 °C, bend-resistant R2 cable. Patent registered.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E32-LT11N 2M | E32-LT11N — LENS in Nut Type through-beam fiber unit, M4, 15° aperture | OMRON | Type: Through-beam (透過形) | Aperture Angle: 15° (LENS in GIGA Beam, vs conventional 60° non-lens) | Mounting Size: M4 | Mounting Thread: M4×0.7 (trivalent chrome-plated zinc alloy) | Sensing Surface: 2.3 mm dia. (methacrylate resin lens) | Optical Axis Diameter: 2.3 mm dia. | Min. Sensing Object (E3X-HD): 0.1 mm dia. | Min. Sensing Object (E3NX-FA): 0.03 mm dia. | Sensing Distance — E3X-HD GIGA: 4,000 mm (2m each side, total 4,000mm) | Sensing Distance — E3X-HD HS: 4,000 mm | Sensing Distance — E3X-HD ST: 3,500 mm | Sensing Distance — E3X-HD SHS: 920 mm | Sensing Distance — E3NX-FA GIGA: 4,000 mm | Sensing Distance — E3NX-FA HS: 3,450 mm | Sensing Distance — E3NX-FA ST: 4,000 mm | Sensing Distance — E3NX-FA SHS: 920 mm | Light Intensity Advantage: Approx. 10× vs non-lens E32-T11N (HS mode at 1 m, E3NX-FA) | Mounting Hardware: Hex nut opposite side 7 mm / thickness 2.4 mm (nickel-plated brass) + toothed washer (nickel-plated iron) | Recommended Mounting Hole: 4.2 +0.5/0 mm dia. | Tightening Torque: 0.78 N·m | Tensile Strength: 29.4 N | Weight (Packed): approx. 40 g | Cable Configuration: 2 m on each side (4,000 mm total sensing path) | Emitter/Receiver Differentiation: None (interchangeable) | Form Factor: Nut Type (ナット型) — tool-fit structure, spanner does not contact cable | Mounting Method: Single nut tightening with head fixed by spanner (vs conventional 2-nut clamping) | Tool-Fit Feature: Spanner inserted deep into nut without contacting fiber cable — prevents fiber damage | Cable Routing: Wide cable outlet for relaxed routing | Degree of Protection: IP50 (standard for E32 LENS in series) | Ambient Temperature: −40 to +70 °C | Bending Radius of Cable: Bend-resistant R2 | Unbendable Length: 0 mm | Cable Sheath Material: Polyethylene | Fiber Core Material: Plastic | Cable Length: 2 m | Free-cut: Supported | Compatible Amplifiers: E3NX-FA series / E3X-HD series (E3X-DA-S series for C21N/D21N via E39-F9W13 attachment) | Note: E3X-HD0 Communication Unit Connector model was discontinued October 2024 | |
| E32-LD11N 2M | E32-LD11N — LENS in Nut Type reflective fiber unit, M6, 15° aperture | OMRON | Type: Reflective (反射形) | Aperture Angle: 15° (LENS in GIGA Beam, vs conventional 60° non-lens) | Mounting Size: M6 | Mounting Thread: M6×0.75 (trivalent chrome-plated zinc alloy) | Sensing Surface: 2× 1.5 mm dia. (methacrylate resin lens) | Min. Sensing Object (E3X-HD): 0.1 mm dia. | Min. Sensing Object (E3NX-FA): 0.03 mm dia. | Sensing Distance — E3X-HD GIGA: 840 mm | Sensing Distance — E3X-HD HS: 240 mm | Sensing Distance — E3X-HD ST: 350 mm | Sensing Distance — E3X-HD SHS: 100 mm | Sensing Distance — E3NX-FA GIGA: 1,260 mm | Sensing Distance — E3NX-FA HS: 360 mm | Sensing Distance — E3NX-FA ST: 520 mm | Sensing Distance — E3NX-FA SHS: 100 mm | Standard Sensing Object: Glossy white paper | S/N Ratio Advantage: Approx. 3× vs non-lens E32-D11R (E3NX-FA HS mode, matte black workpiece, QR code 10mm□ at 50mm detection distance) | Mounting Hardware: Hex nut opposite side 10 mm / thickness 2.4 mm (nickel-plated brass) + toothed washer (nickel-plated iron) | Recommended Mounting Hole: 6.2 +0.5/0 mm dia. | Tightening Torque: 0.98 N·m | Tensile Strength: 29.4 N | Weight (Packed): approx. 40 g | Form Factor: Nut Type (ナット型) — tool-fit structure, spanner does not contact cable | Mounting Method: Single nut tightening with head fixed by spanner (vs conventional 2-nut clamping) | Tool-Fit Feature: Spanner inserted deep into nut without contacting fiber cable — prevents fiber damage | Cable Routing: Wide cable outlet for relaxed routing | Degree of Protection: IP50 (standard for E32 LENS in series) | Ambient Temperature: −40 to +70 °C | Bending Radius of Cable: Bend-resistant R2 | Unbendable Length: 0 mm | Cable Sheath Material: Polyethylene | Fiber Core Material: Plastic | Cable Length: 2 m | Free-cut: Supported | Compatible Amplifiers: E3NX-FA series / E3X-HD series (E3X-DA-S series for C21N/D21N via E39-F9W13 attachment) | Note: E3X-HD0 Communication Unit Connector model was discontinued October 2024 | |
| E32-LR11NP 2M | E32-LR11NP — LENS in Nut Type retro-reflective fiber unit for transparent objects, M6 | OMRON | Type: Retro-reflective for transparent object detection (透明体検出用 回帰反射形) | Aperture Angle: 15° (LENS in) | Mounting Size: M6 | Mounting Thread: M6×0.75 (trivalent chrome-plated zinc alloy) | Sensing Surface: 2× 1.5 mm dia. (optical filter) | Required Reflector: E39-RP1 (sold separately, available as separate MPN in this family — included in catalog) | Sensing Distance — E3X-HD GIGA: 1,350 mm | Sensing Distance — E3X-HD HS: 1,000 mm | Sensing Distance — E3X-HD ST: 1,200 mm | Sensing Distance — E3X-HD SHS: 550 mm | Sensing Distance — E3NX-FA GIGA: 2,020 mm | Sensing Distance — E3NX-FA HS: 1,500 mm | Sensing Distance — E3NX-FA ST: 1,800 mm | Sensing Distance — E3NX-FA SHS: 550 mm | Note (Retro-reflective): Highly reflective objects may produce incident-light state due to direct reflection. Some transparent materials may not be detected stably — verify in advance. | Mounting Hardware: Hex nut opposite side 10 mm / thickness 2.4 mm (nickel-plated brass) + toothed washer (nickel-plated iron) | Recommended Mounting Hole: 6.2 +0.5/0 mm dia. | Tightening Torque: 0.98 N·m | Tensile Strength: 29.4 N | Weight (Packed): approx. 40 g | Form Factor: Nut Type (ナット型) — tool-fit structure, spanner does not contact cable | Mounting Method: Single nut tightening with head fixed by spanner (vs conventional 2-nut clamping) | Tool-Fit Feature: Spanner inserted deep into nut without contacting fiber cable — prevents fiber damage | Cable Routing: Wide cable outlet for relaxed routing | Degree of Protection: IP50 (standard for E32 LENS in series) | Ambient Temperature: −40 to +70 °C | Bending Radius of Cable: Bend-resistant R2 | Unbendable Length: 0 mm | Cable Sheath Material: Polyethylene | Fiber Core Material: Plastic | Cable Length: 2 m | Free-cut: Supported | Compatible Amplifiers: E3NX-FA series / E3X-HD series (E3X-DA-S series for C21N/D21N via E39-F9W13 attachment) | Note: E3X-HD0 Communication Unit Connector model was discontinued October 2024 | |
| E39-RP1 | E39-RP1 Reflector for E32-LR11NP retro-reflective fiber unit | OMRON | Type: Reflector for E32-LR11NP Retro-reflective Fiber Unit | Compatible Sensor: E32-LR11NP (LENS in Nut Type Retro-reflective) | Application: Transparent object detection (films, bottles, sheets etc.) | Ambient Temperature: −40 to +60 °C (narrower than E32-LR11NP sensor body −40 to +70 °C) | Mounting: Separate reflector — install opposite to sensor head | Note: Reflector required for retro-reflective operation. Not included with E32-LR11NP sensor (order separately, registered as separate MPN in this family for buyer convenience). | Oil Resistance: 4 years (verified by OMRON's accelerated evaluation tests) | Cable Sheath: Fluororesin (patent pending) — resists both water-soluble and water-insoluble cutting oils | Evaluation Standard: Passed IP67G (JIS C 0920 Annex 1) and OMRON's Oil-resistant Component Evaluation Standards |
OMRON E32 Series limited-reflective (BGS) and retro-reflective fiber units. Limited-reflective types suppress background interference for detecting transparent objects and glass: E32-L16-N (flat-view, 0~15 mm range, soda glass 7% reflectance), E32-L24S (flat-view, 0~4 mm, small size), E32-L25L (side-view, 5.4~9 mm). Retro-reflective types with M.S.R. (Mirror Surface Rejection) function: E32-LR11NP 2M with E39-R1R reflector for film detection (M6 hex-shaped, sensing up to 1,350 mm on ZV), E32-R16 (square, 150~1,500 mm range), E32-R21 (M6 threaded, 10~250 mm). E39-RP1 reflector included with E32-LR11NP as required pair. PDF ref: E32 full catalog, Limited-reflective and Retro-reflective sections.
OMRON E32 Series limited-reflective (BGS) and retro-reflective fiber units. Limited-reflective types suppress background interference for detecting transparent objects and glass: E32-L16-N (flat-view, 0~15 mm range, soda glass 7% reflectance), E32-L24S (flat-view, 0~4 mm, small size), E32-L25L (side-view, 5.4~9 mm). Retro-reflective types with M.S.R. (Mirror Surface Rejection) function: E32-LR11NP 2M with E39-R1R reflector for film detection (M6 hex-shaped, sensing up to 1,350 mm on ZV), E32-R16 (square, 150~1,500 mm range), E32-R21 (M6 threaded, 10~250 mm). E39-RP1 reflector included with E32-LR11NP as required pair. PDF ref: E32 full catalog, Limited-reflective and Retro-reflective sections.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E32-L16-N 2M | Limited-reflective flat-view BGS, 0~15 mm range, soda glass 7% reflectance, R25, IP40 | OMRON | Model: E32-L16-N 2M | Type: Limited-reflective (BGS) | View: Flat-view | Bending Radius: R25 | IP Rating: IP40 | Cable Length: 2 m (Free Cutting) | Sensing Range ZV: 0 to 15 mm | Sensing Range FA: 0 to 15 mm | Standard Sensing Object: Soda glass with reflection factor of 7% | Note: For glass presence detection; suppress background interference | |
| E32-L24S 2M | Limited-reflective flat-view BGS small size, 0~4 mm range, R10, IP50 | OMRON | Model: E32-L24S 2M | Type: Limited-reflective (BGS, Small Size) | View: Flat-view | Bending Radius: R10 | IP Rating: IP50 | Cable Length: 2 m (Free Cutting) | Sensing Range ZV: 0 to 4 mm | Sensing Range FA: 0 to 4 mm | Min. Sensing Object: 5 μm dia. / 2 μm dia. | |
| E32-L25L 2M | Limited-reflective side-view BGS, 5.4~9 mm range (center 7.2 mm), R10, IP50 | OMRON | Model: E32-L25L 2M | Type: Limited-reflective (BGS, Side-view) | View: Side-view | Bending Radius: R10 | IP Rating: IP50 | Cable Length: 2 m (Free Cutting) | Sensing Range ZV: 5.4 to 9 mm (center 7.2 mm) | Sensing Range FA: 5.4 to 9 mm (center 7.2 mm) | |
| E32-LR11NP 2M | Retro-reflective M6 hex-shaped MSR film detection, flexible R2, IP50 + E39-RP1 reflector | OMRON | Model: E32-LR11NP 2M | Type: Retro-reflective MSR (Required pair: E39-RP1 reflector) | Mounting: Hex-shaped M6 | Aperture Angle: Approx. 15° | Bending Radius: Flexible R2 | IP Rating: IP50 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 1,200 mm | Sensing Dist. FA ST: 1,800 mm | Note: M.S.R. function; E39-RP1 reflector required and included as standard pair; film detection capable | |
| E32-R16 2M | Retro-reflective square body MSR, 150~1,500 mm range, R25, IP66 | OMRON | Model: E32-R16 2M | Type: Retro-reflective MSR (Square) | Mounting: Square body | Bending Radius: R25 | IP Rating: IP66 | Cable Length: 2 m (Free Cutting) | Sensing Range ZV: 150 to 1,500 mm | Sensing Range FA: 150 to 1,500 mm | Min. Sensing Object: 0.2 dia. / 0.07 dia. | Note: M.S.R. function; use with appropriate reflector | |
| E32-R21 2M | Retro-reflective M6 threaded MSR, 10~250 mm range, R10, IP67 | OMRON | Model: E32-R21 2M | Type: Retro-reflective MSR (Threaded M6) | Mounting: Threaded M6 | Bending Radius: R10 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Range ZV: 10 to 250 mm | Sensing Range FA: 10 to 370 mm | Min. Sensing Object: 0.1 dia. / 0.03 dia. | Note: M.S.R. function; use with appropriate reflector |
OMRON E32 Series narrow-view through-beam fiber units for detection across clearances and wafer mapping applications. E32-A03/A03-1: 1.5° aperture, 3 mm profile, sensing up to 3,220 mm (ZV) / 4,000 mm (FA). E32-A04: 3.4° aperture, 2 mm profile, optical axis 1.2 dia. E32-T24SR/T24S: 4° aperture, flexible/R10, sensing up to 4,000 mm. E32-T22S: 4° aperture, top-view, 1.7 dia. optical axis. All IP50. Compatible with E3X-ZV, E3X-HD, and E3NX-FA. Also used for FPD/semiconductor wafer mapping (see FPD/Semi section). PDF ref: E32 full catalog, Narrow View section.
OMRON E32 Series narrow-view through-beam fiber units for detection across clearances and wafer mapping applications. E32-A03/A03-1: 1.5° aperture, 3 mm profile, sensing up to 3,220 mm (ZV) / 4,000 mm (FA). E32-A04: 3.4° aperture, 2 mm profile, optical axis 1.2 dia. E32-T24SR/T24S: 4° aperture, flexible/R10, sensing up to 4,000 mm. E32-T22S: 4° aperture, top-view, 1.7 dia. optical axis. All IP50. Compatible with E3X-ZV, E3X-HD, and E3NX-FA. Also used for FPD/semiconductor wafer mapping (see FPD/Semi section). PDF ref: E32 full catalog, Narrow View section.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E32-A03 2M | Narrow view 1.5° side-view through-beam, 2 dia. optical axis, flexible R1, IP50 | OMRON | Model: E32-A03 2M | Type: Through-beam Narrow View (Set of 2) | Aperture Angle: 1.5° | Profile Thickness: 3 mm | View: Side-view | Optical Axis Dia.: 2 dia. | Bending Radius: Flexible R1 | IP Rating: IP50 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 1,780 mm | Sensing Dist. FA ST: 2,670 mm | Min. Sensing Object: 0.1 dia. / 0.03 dia. | |
| E32-A03-1 2M | Narrow view 1.5° side-view through-beam, 2 dia. optical axis, R10, IP50 | OMRON | Model: E32-A03-1 2M | Type: Through-beam Narrow View (Set of 2) | Aperture Angle: 1.5° | Profile Thickness: 3 mm | View: Side-view | Optical Axis Dia.: 2 dia. | Bending Radius: R10 | IP Rating: IP50 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 1,780 mm | Sensing Dist. FA ST: 2,670 mm | Min. Sensing Object: 0.1 dia. / 0.03 dia. | |
| E32-A04 2M | Narrow view 3.4° side-view through-beam, 1.2 dia. optical axis, R10, IP50 | OMRON | Model: E32-A04 2M | Type: Through-beam Narrow View (Set of 2) | Aperture Angle: 3.4° | Profile Thickness: 2 mm | View: Side-view | Optical Axis Dia.: 1.2 dia. | Bending Radius: R10 | IP Rating: IP50 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 680 mm | Sensing Dist. FA ST: 1,020 mm | Min. Sensing Object: 0.1 dia. / 0.03 dia. | |
| E32-T24SR 2M | Narrow view 4° side-view through-beam, 2 dia. optical axis, flexible R1, IP50 | OMRON | Model: E32-T24SR 2M | Type: Through-beam Narrow View (Set of 2) | Aperture Angle: 4° | View: Side-view | Optical Axis Dia.: 2 dia. | Bending Radius: Flexible R1 | IP Rating: IP50 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 2,200 mm | Sensing Dist. FA ST: 3,300 mm | Min. Sensing Object: 0.1 dia. / 0.03 dia. | |
| E32-T24S 2M | Narrow view 4° side-view through-beam, 2 dia. optical axis, R10, IP50 | OMRON | Model: E32-T24S 2M | Type: Through-beam Narrow View (Set of 2) | Aperture Angle: 4° | View: Side-view | Optical Axis Dia.: 2 dia. | Bending Radius: R10 | IP Rating: IP50 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 2,600 mm | Sensing Dist. FA ST: 3,900 mm | Min. Sensing Object: 0.1 dia. / 0.03 dia. | |
| E32-T22S 2M | Narrow view 4° top-view through-beam, 1.7 dia. optical axis, flexible R1, IP50 | OMRON | Model: E32-T22S 2M | Type: Through-beam Narrow View (Set of 2) | Aperture Angle: 4° | View: Top-view | Optical Axis Dia.: 1.7 dia. | Bending Radius: Flexible R1 | IP Rating: IP50 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 3,800 mm | Sensing Dist. FA ST: 4,000 mm | Min. Sensing Object: 0.1 dia. / 0.03 dia. |
OMRON E32 Nut Type Fiber Unit — Non-LENS in conventional 60° aperture reflective fiber units with patented tool-fit nut mounting structure. E32-C21N (M3 Coaxial Reflective) features 9 receiving fibers (vs 4 in conventional E32-C31N) for improved stable detection of low-reflective workpieces, fluttering objects, and angled targets. Small-spot lens attachment compatible. E32-D21N (M4 Diffuse Reflective) — general-purpose M4 size with nut-type mounting reinforcement. Patented tool-fit structure — spanner inserts deep into nut without contacting fiber cable, preventing fiber damage during installation. Single-nut tightening simplifies mounting. Fiber attachment E39-F9W13 included for compatibility with E3NX-FA / E3X-HD / E3X-DA-S amplifiers. IP50, −40 to +70 °C, bend-resistant R2 cable.
OMRON E32 Nut Type Fiber Unit — Non-LENS in conventional 60° aperture reflective fiber units with patented tool-fit nut mounting structure. E32-C21N (M3 Coaxial Reflective) features 9 receiving fibers (vs 4 in conventional E32-C31N) for improved stable detection of low-reflective workpieces, fluttering objects, and angled targets. Small-spot lens attachment compatible. E32-D21N (M4 Diffuse Reflective) — general-purpose M4 size with nut-type mounting reinforcement. Patented tool-fit structure — spanner inserts deep into nut without contacting fiber cable, preventing fiber damage during installation. Single-nut tightening simplifies mounting. Fiber attachment E39-F9W13 included for compatibility with E3NX-FA / E3X-HD / E3X-DA-S amplifiers. IP50, −40 to +70 °C, bend-resistant R2 cable.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E32-C21N 2M | E32-C21N — Nut Type coaxial reflective fiber unit, M3, 9 receiving fibers | OMRON | Type: Coaxial Reflective (同軸反射形) | Aperture Angle: approx. 60° (conventional, non-lens) | Mounting Size: M3 | Mounting Thread: M3×0.5 (trivalent chrome-plated zinc alloy) | Receiving Fiber Count: 9 fibers (vs 4 fibers in conventional E32-C31N — improved stability) | Emitter Fiber: 1× 0.5 mm dia. (white-line marked) | Receiver Fiber: 9× 0.25 mm dia. | Sensing Distance — E3X-HD GIGA: 290 mm | Sensing Distance — E3X-HD HS: 90 mm | Sensing Distance — E3X-HD ST: 130 mm | Sensing Distance — E3X-HD SHS: 39 mm | Sensing Distance — E3NX-FA GIGA: 440 mm | Sensing Distance — E3NX-FA HS: 130 mm | Sensing Distance — E3NX-FA ST: 190 mm | Sensing Distance — E3NX-FA SHS: 39 mm | Standard Sensing Object: White paper | Min. Sensing Object (E3X-HD): 5 μm dia. | Min. Sensing Object (E3NX-FA): 2 μm dia. | Mounting Hardware: Hex nut opposite side 5.5 mm / thickness 1.7 mm (nickel-plated brass) + toothed washer (nickel-plated iron) | Recommended Mounting Hole: 3.2 +0.5/0 mm dia. | Tightening Torque: 0.29 N·m | Tensile Strength: 9.8 N | Weight (Packed): approx. 30 g | Fiber Attachment Included: E39-F9W13 (for E3NX-FA / E3X-HD / E3X-DA-S series) — for E3X-SD/E3X-NA 8mm-pitch amplifiers use bundled E39-F9-7 | Application: Small-spot lens attachment compatible — low-reflective workpieces, fluttering / angled object detection | Form Factor: Nut Type (ナット型) — tool-fit structure, spanner does not contact cable | Mounting Method: Single nut tightening with head fixed by spanner (vs conventional 2-nut clamping) | Tool-Fit Feature: Spanner inserted deep into nut without contacting fiber cable — prevents fiber damage | Cable Routing: Wide cable outlet for relaxed routing | Degree of Protection: IP50 (standard for E32 LENS in series) | Ambient Temperature: −40 to +70 °C | Bending Radius of Cable: Bend-resistant R2 | Unbendable Length: 0 mm | Cable Sheath Material: Polyethylene | Fiber Core Material: Plastic | Cable Length: 2 m | Free-cut: Supported | Compatible Amplifiers: E3NX-FA series / E3X-HD series (E3X-DA-S series for C21N/D21N via E39-F9W13 attachment) | Note: E3X-HD0 Communication Unit Connector model was discontinued October 2024 | |
| E32-D21N 2M | E32-D21N — Nut Type diffuse reflective fiber unit, M4 | OMRON | Type: Diffuse Reflective (拡散反射形) | Aperture Angle: approx. 60° (conventional, non-lens) | Mounting Size: M4 | Mounting Thread: M4×0.7 (trivalent chrome-plated zinc alloy) | Sensing Surface: 2× 1 mm dia. (methacrylate resin) | Sensing Distance — E3X-HD GIGA: 840 mm | Sensing Distance — E3X-HD HS: 240 mm | Sensing Distance — E3X-HD ST: 350 mm | Sensing Distance — E3X-HD SHS: 100 mm | Sensing Distance — E3NX-FA GIGA: 1,260 mm | Sensing Distance — E3NX-FA HS: 360 mm | Sensing Distance — E3NX-FA ST: 520 mm | Sensing Distance — E3NX-FA SHS: 100 mm | Standard Sensing Object: White paper | Min. Sensing Object (E3X-HD): 0.1 mm dia. | Min. Sensing Object (E3NX-FA): 0.03 mm dia. | Mounting Hardware: Hex nut opposite side 7 mm / thickness 2.4 mm (nickel-plated brass) + toothed washer (nickel-plated iron) | Recommended Mounting Hole: 4.2 +0.5/0 mm dia. | Tightening Torque: 0.78 N·m | Tensile Strength: 9.8 N | Weight (Packed): approx. 30 g | Fiber Attachment Included: E39-F9W13 (for E3NX-FA / E3X-HD / E3X-DA-S series) | Application: General-purpose M4 reflective detection with reinforced nut-type mounting | Form Factor: Nut Type (ナット型) — tool-fit structure, spanner does not contact cable | Mounting Method: Single nut tightening with head fixed by spanner (vs conventional 2-nut clamping) | Tool-Fit Feature: Spanner inserted deep into nut without contacting fiber cable — prevents fiber damage | Cable Routing: Wide cable outlet for relaxed routing | Degree of Protection: IP50 (standard for E32 LENS in series) | Ambient Temperature: −40 to +70 °C | Bending Radius of Cable: Bend-resistant R2 | Unbendable Length: 0 mm | Cable Sheath Material: Polyethylene | Fiber Core Material: Plastic | Cable Length: 2 m | Free-cut: Supported | Compatible Amplifiers: E3NX-FA series / E3X-HD series (E3X-DA-S series for C21N/D21N via E39-F9W13 attachment) | Note: E3X-HD0 Communication Unit Connector model was discontinued October 2024 |
OMRON E32 Series small-spot reflective fiber units for minute object detection. Variable-spot types (E32-C42 with E39-F3A/F17 lens unit): spot diameter 0.1~1.6 dia., center distance 6~30 mm. Small-spot lens unit types (E32-C41 with E39-F3A-5/F3B, E32-C31/C21N with E39-F3A-5/F3B/F18): spot diameter 0.1~3 dia., center distance 7~50 mm. Integrated lens types (E32-C42S: 0.1 dia. spot at 5 mm, E32-L15: 6 dia. spot at 50 mm) — no lens unit required. Hex-shaped coaxial types (E32-C21N, E32-D21N) for compact installations. IP50/IP67. Compatible with E3X-ZV, E3X-HD, and E3NX-FA. Lens Units (E39-F3A/F17/F3A-5/F3B/F18/F3C) sold separately. PDF ref: E418-E1 p.24-27.
OMRON E32 Series small-spot reflective fiber units for minute object detection. Variable-spot types (E32-C42 with E39-F3A/F17 lens unit): spot diameter 0.1~1.6 dia., center distance 6~30 mm. Small-spot lens unit types (E32-C41 with E39-F3A-5/F3B, E32-C31/C21N with E39-F3A-5/F3B/F18): spot diameter 0.1~3 dia., center distance 7~50 mm. Integrated lens types (E32-C42S: 0.1 dia. spot at 5 mm, E32-L15: 6 dia. spot at 50 mm) — no lens unit required. Hex-shaped coaxial types (E32-C21N, E32-D21N) for compact installations. IP50/IP67. Compatible with E3X-ZV, E3X-HD, and E3NX-FA. Lens Units (E39-F3A/F17/F3A-5/F3B/F18/F3C) sold separately. PDF ref: E418-E1 p.24-27.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E32-C42 1M | Coaxial reflective for variable-spot lens (E39-F3A/F17), 6 dia., R25, 1m cable | OMRON | Model: E32-C42 1M | Type: Reflective (Coaxial, Variable-spot) | Mounting: Cylindrical 6 dia. | Bending Radius: R25 | IP Rating: IP67 | Cable Length: 1 m (No Cutting) | Compatible Lens Unit: E39-F3A (spot 0.1~0.6 dia., dist 6~15 mm) / E39-F17 (spot 0.3~1.6 dia., dist 10~30 mm) | Note: Fiber attached with adhesive; cannot be removed | |
| E32-C41 1M | Coaxial reflective for small-spot lens (E39-F3A-5/F3B), 5 dia., R25, 1m cable | OMRON | Model: E32-C41 1M | Type: Reflective (Coaxial, Small-spot) | Mounting: Threaded M3, 5 dia. | Bending Radius: R25 | IP Rating: IP67 | Cable Length: 1 m (No Cutting) | Compatible Lens Unit: E39-F3A-5 (spot 0.1 dia., dist 7 mm) / E39-F3B (spot 0.2 dia., dist 17 mm) | Note: Fiber attached with adhesive; cannot be removed | |
| E32-C42S 1M | Integrated lens short-distance small-spot, 0.1 dia. spot at 5 mm, R25, IP50 | OMRON | Model: E32-C42S 1M | Type: Reflective (Integrated Lens, Short-distance Small-spot) | Mounting: Cylindrical 3 dia. | Spot Diameter: 0.1 dia. | Center Distance: 5 mm | Bending Radius: R25 | IP Rating: IP50 | Cable Length: 1 m (No Cutting) | Note: No external lens unit required; lens built-in | |
| E32-L15 2M | Integrated lens long-distance small-spot, 6 dia. spot at 50 mm, IP50 | OMRON | Model: E32-L15 2M | Type: Reflective (Integrated Lens, Long-distance Small-spot) | Sensing Surface: Two, 9 dia. lenses | Spot Diameter: 6 dia. | Center Distance: 50 mm | IP Rating: IP50 | Cable Length: 2 m (Free Cutting) | Note: No external lens unit required; high-power integrated optics | |
| E32-C21N 2M | Hex-shaped M3 coaxial reflective, aperture 60°, flexible R2, IP67 | OMRON | Model: E32-C21N 2M | Type: Reflective (Coaxial, Hex-shaped) | Mounting: Hex-shaped M3 | Aperture Angle: Approx. 60° | Bending Radius: Flexible R2 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 130 mm | Sensing Dist. FA ST: 190 mm | Compatible Lens Unit: E39-F3A-5 / E39-F3B / E39-F3C (parallel-light 4 dia., dist 0~20 mm) | |
| E32-D21N 2M | Hex-shaped M4 reflective, aperture 60°, flexible R1, IP67 | OMRON | Model: E32-D21N 2M | Type: Reflective (Standard, Hex-shaped) | Mounting: Hex-shaped M4 | Aperture Angle: Approx. 60° | Bending Radius: Flexible R1 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 350 mm | Sensing Dist. FA ST: 520 mm |
OMRON E32 Series special application fiber units for industrial process environments. Liquid-level detection: E32-A01 (tube-mounting 3.2~9.5 dia., 5 m cable), E32-L25T (8~10 dia. multilevel), E32-D36T (large diameter tubes, IP67), E32-D82F1 (liquid-contact type, heat-resistant 200°C, IP68). Vacuum-resistant: E32-T51V (vacuum side, 120°C, 1 m), E32-T84SV (vacuum side, 200°C, 1 m), E32-T10V (atmospheric pressure side, 70°C, 2 m). FPD/Semiconductor/Solar limited-reflective: E32-A08 (glass substrate alignment, 70°C), E32-A12 (long-distance glass alignment), E32-A09 (glass substrate mapping). Wafer mapping (narrow view): E32-A03-2 (1.5°, -40~+85°C special), E32-A04-1 / E32-A04-8 (3.4° variants). PDF ref: E32 full catalog, Liquid-level / Vacuum / FPD sections.
OMRON E32 Series special application fiber units for industrial process environments. Liquid-level detection: E32-A01 (tube-mounting 3.2~9.5 dia., 5 m cable), E32-L25T (8~10 dia. multilevel), E32-D36T (large diameter tubes, IP67), E32-D82F1 (liquid-contact type, heat-resistant 200°C, IP68). Vacuum-resistant: E32-T51V (vacuum side, 120°C, 1 m), E32-T84SV (vacuum side, 200°C, 1 m), E32-T10V (atmospheric pressure side, 70°C, 2 m). FPD/Semiconductor/Solar limited-reflective: E32-A08 (glass substrate alignment, 70°C), E32-A12 (long-distance glass alignment), E32-A09 (glass substrate mapping). Wafer mapping (narrow view): E32-A03-2 (1.5°, -40~+85°C special), E32-A04-1 / E32-A04-8 (3.4° variants). PDF ref: E32 full catalog, Liquid-level / Vacuum / FPD sections.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E32-A01 5M | Liquid-level tube-mounting 3.2~9.5 dia., bend-resistant R4, IP50, 5m cable | OMRON | Model: E32-A01 5M | Type: Liquid-level Detection (Tube-mounting) | Applicable Tube Dia.: 3.2, 6.4, or 9.5 dia. transparent tube (wall thickness ~1 mm) | Bending Radius: Bend-resistant R4 | IP Rating: IP50 | Cable Length: 5 m (Free Cutting) | Note: Resistant to bubbles and droplets; residual quantity detection | |
| E32-L25T 2M | Liquid-level tube-mounting 8~10 dia. multilevel, R10, IP50 | OMRON | Model: E32-L25T 2M | Type: Liquid-level Detection (Tube-mounting, Multilevel) | Applicable Tube Dia.: 8 to 10 dia. transparent tube (wall thickness ~1 mm) | Bending Radius: R10 | IP Rating: IP50 | Cable Length: 2 m (Free Cutting) | Note: Ideal for multi-level mounting | |
| E32-D36T 2M | Liquid-level no tube diameter restriction, flexible R4, IP67 | OMRON | Model: E32-D36T 2M | Type: Liquid-level Detection (Universal) | Applicable Tube Dia.: No restrictions on diameter (transparent tube) | Bending Radius: R4 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Note: Resistant to bubbles and droplets; usable on large diameter tubes | |
| E32-D82F1 4M | Liquid-contact heat-resistant 200°C, IP68, sensing section R40 / fiber R25, 4m cable | OMRON | Model: E32-D82F1 4M | Type: Liquid-level Detection (Liquid-contact, Heat-resistant) | Heat Resistance: 200°C | IP Rating: IP68 | Bending Radius: Sensing section R40 / Fiber R25 | Cable Length: 4 m (Free Cutting) | Note: Liquid-contact type; adjust received light via amplifier instruction sheet | |
| E32-T51V 1M | Vacuum-resistant 120°C through-beam vacuum side, 1.2 dia., R30, 1m cable | OMRON | Model: E32-T51V 1M | Type: Through-beam Vacuum-resistant (Vacuum Side) | Heat Resistance: 120°C | Optical Axis Dia.: 1.2 dia. | Bending Radius: R30 | Cable Length: 1 m | Sensing Dist. ZV ST: 400 mm | Sensing Dist. FA ST: 600 mm | Min. Sensing Object: 10 μm dia. / 4 μm dia. | Note: For use in vacuum chambers; pair with E32-T10V on atmospheric side | |
| E32-T84SV 1M | Vacuum-resistant 200°C through-beam vacuum side, 2 dia., R25, 1m cable | OMRON | Model: E32-T84SV 1M | Type: Through-beam Vacuum-resistant (Vacuum Side) | Heat Resistance: 200°C | Optical Axis Dia.: 2 dia. | Bending Radius: R25 | Cable Length: 1 m | Sensing Dist. ZV ST: 950 mm | Sensing Dist. FA ST: 1,420 mm | Min. Sensing Object: 0.1 dia. / 0.03 dia. | |
| E32-T10V 2M | Vacuum-resistant through-beam atmospheric pressure side, 70°C, 2m cable | OMRON | Model: E32-T10V 2M | Type: Through-beam Vacuum-resistant (Atmospheric Pressure Side) | Heat Resistance: 70°C | Cable Length: 2 m | Note: Atmospheric pressure side unit; pair with E32-T51V or E32-T84SV in vacuum | |
| E32-A08 2M | FPD glass substrate alignment limited-reflective, 10~20 mm range, 70°C, R25, IP40 | OMRON | Model: E32-A08 2M | Type: Limited-reflective (Glass Substrate Alignment) | Ambient Temperature: 70°C max. | Bending Radius: R25 | IP Rating: IP40 | Cable Length: 2 m (Free Cutting) | Sensing Range: 10 to 20 mm | Standard Sensing Object: Soda glass with reflection factor of 7% | Note: If background interference occurs, perform power tuning | |
| E32-A12 2M | FPD glass substrate alignment long-distance, 12~30 mm range, 70°C, R25, IP40 | OMRON | Model: E32-A12 2M | Type: Limited-reflective (Glass Substrate Alignment, Long Distance) | Ambient Temperature: 70°C max. | Bending Radius: R25 | IP Rating: IP40 | Cable Length: 2 m (Free Cutting) | Sensing Range: 12 to 30 mm | Standard Sensing Object: Soda glass with reflection factor of 7% | |
| E32-A09 2M | FPD glass substrate mapping, 15~38 mm range (center 25 mm), 70°C, R25, IP40 | OMRON | Model: E32-A09 2M | Type: Limited-reflective (Glass Substrate Mapping) | Ambient Temperature: 70°C max. | Bending Radius: R25 | IP Rating: IP40 | Cable Length: 2 m (Free Cutting) | Sensing Range: 15 to 38 mm (center 25 mm) | Standard Sensing Object: End surface of soda glass t=0.7 mm, rounded edges | |
| E32-A03-2 2M | Wafer mapping 1.5° narrow view through-beam, special temp range, R10, IP50 | OMRON | Model: E32-A03-2 2M | Type: Through-beam Narrow View (Wafer Mapping) | Aperture Angle: 1.5° | Bending Radius: R10 | IP Rating: IP50 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 1,400 mm | Sensing Dist. FA ST: 1,400 mm | Note: Special temperature range variant for wafer mapping applications | |
| E32-A04-1 2M | Wafer mapping 3.4° narrow view through-beam, 1.2 dia., R10, IP50 | OMRON | Model: E32-A04-1 2M | Type: Through-beam Narrow View (Wafer Mapping) | Aperture Angle: 3.4° | Profile Thickness: 2 mm | Optical Axis Dia.: 1.2 dia. | Bending Radius: R10 | IP Rating: IP50 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 680 mm | Sensing Dist. FA ST: 1,020 mm | Min. Sensing Object: 0.1 dia. / 0.03 dia. | |
| E32-A04-8 2M | Wafer mapping 3.4° narrow view through-beam reduced power, R10, IP50 | OMRON | Model: E32-A04-8 2M | Type: Through-beam Narrow View (Wafer Mapping, Reduced Power) | Aperture Angle: 3.4° | Bending Radius: R10 | IP Rating: IP50 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 510 mm | Sensing Dist. FA ST: 760 mm | Note: Reduced incident power variant for sensitive workpiece applications |
OMRON E32 Series standard reflective fiber units for threaded and cylindrical mounting. Includes coaxial reflective types (E32-C31N/C91N/C31/C31M/CC200/LD11N) for improved detection of small and glossy objects, and standard reflective types in M3/M4/M6 threaded and 1.5 dia./3 dia./6 dia. cylindrical configurations. IP67 rated. Flexible or bend-resistant fiber options. Compatible with E3X-ZV, E3X-HD, and E3NX-FA fiber amplifiers. Cable length: 1 m or 2 m (free cutting). PDF ref: E418-E1 p.8-11, p.14-15.
OMRON E32 Series standard reflective fiber units for threaded and cylindrical mounting. Includes coaxial reflective types (E32-C31N/C91N/C31/C31M/CC200/LD11N) for improved detection of small and glossy objects, and standard reflective types in M3/M4/M6 threaded and 1.5 dia./3 dia./6 dia. cylindrical configurations. IP67 rated. Flexible or bend-resistant fiber options. Compatible with E3X-ZV, E3X-HD, and E3NX-FA fiber amplifiers. Cable length: 1 m or 2 m (free cutting). PDF ref: E418-E1 p.8-11, p.14-15.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E32-C31N 2M | Threaded M3 right-angle coaxial reflective, flexible R4, IP67 | OMRON | Model: E32-C31N 2M | Type: Reflective (Coaxial) | Mounting: Threaded M3 | View: Right-angle | Aperture Angle: Approx. 60° | Bending Radius: Flexible R4 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 50 mm | Sensing Dist. FA ST: 75 mm | Min. Sensing Object: 5 μm dia. / 2 μm dia. | |
| E32-C91N 2M | Threaded M6 right-angle coaxial reflective, flexible R4, IP67 | OMRON | Model: E32-C91N 2M | Type: Reflective (Coaxial) | Mounting: Threaded M6 | View: Right-angle | Aperture Angle: Approx. 60° | Bending Radius: Flexible R4 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 350 mm | Sensing Dist. FA ST: 520 mm | Min. Sensing Object: — (standard fiber) | |
| E32-D21R 2M | Threaded M3 right-angle reflective, flexible R1, IP67 | OMRON | Model: E32-D21R 2M | Type: Reflective (Standard) | Mounting: Threaded M3 | View: Right-angle | Aperture Angle: Approx. 60° | Bending Radius: Flexible R1 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 60 mm | Sensing Dist. FA ST: 90 mm | Min. Sensing Object: — (standard fiber) | |
| E32-C31 2M | Threaded M3 top-view coaxial reflective, R25, IP67 | OMRON | Model: E32-C31 2M | Type: Reflective (Coaxial) | Mounting: Threaded M3 | View: Top-view | Aperture Angle: Approx. 60° | Bending Radius: R25 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 150 mm | Sensing Dist. FA ST: 220 mm | Min. Sensing Object: 5 μm dia. / 2 μm dia. | |
| E32-C31M 1M | Threaded M3 top-view coaxial reflective, R10, IP67, 1m cable | OMRON | Model: E32-C31M 1M | Type: Reflective (Coaxial) | Mounting: Threaded M3 | View: Top-view | Aperture Angle: Approx. 60° | Bending Radius: R10 | IP Rating: IP67 | Cable Length: 1 m (Free Cutting) | Sensing Dist. ZV ST: 60 mm | Sensing Dist. FA ST: 90 mm | Min. Sensing Object: 5 μm dia. / 2 μm dia. | |
| E32-D211R 2M | Threaded M4 right-angle reflective, flexible R1, IP67 | OMRON | Model: E32-D211R 2M | Type: Reflective (Standard) | Mounting: Threaded M4 | View: Right-angle | Aperture Angle: Approx. 60° | Bending Radius: Flexible R1 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 350 mm | Sensing Dist. FA ST: 520 mm | Min. Sensing Object: — (standard fiber) | |
| E32-D11R 2M | Threaded M6 right-angle reflective, flexible R1, IP67 | OMRON | Model: E32-D11R 2M | Type: Reflective (Standard) | Mounting: Threaded M6 | View: Right-angle | Aperture Angle: Approx. 60° | Bending Radius: Flexible R1 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 350 mm | Sensing Dist. FA ST: 520 mm | Min. Sensing Object: — (standard fiber) | |
| E32-CC200 2M | Threaded M6 top-view coaxial reflective, R25, IP67 | OMRON | Model: E32-CC200 2M | Type: Reflective (Coaxial) | Mounting: Threaded M6 | View: Top-view | Aperture Angle: Approx. 60° | Bending Radius: R25 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 600 mm | Sensing Dist. FA ST: 900 mm | Min. Sensing Object: — (standard fiber) | |
| E32-LD11N 2M | Hex-shaped M6 top-view Build-in Lens reflective, R25, IP50 | OMRON | Model: E32-LD11N 2M | Type: Reflective (Build-in Lens, Coaxial) | Mounting: Hex-shaped M6 | View: Top-view | Aperture Angle: Approx. 15° | Bending Radius: R25 | IP Rating: IP50 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 350 mm | Sensing Dist. FA ST: 520 mm | Min. Sensing Object: 0.1 dia. / 0.03 dia. | Note: GIGA Beam Build-in Lens; for glossy white paper | |
| E32-D22B 2M | Cylindrical 1.5 dia. reflective, bend-resistant R4, IP67 | OMRON | Model: E32-D22B 2M | Type: Reflective (Standard) | Mounting: Cylindrical press-fit 1.5 dia. | View: Top-view | Bending Radius: Bend-resistant R4 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 60 mm | Sensing Dist. FA ST: 90 mm | Min. Sensing Object: — (standard fiber) | |
| E32-D43M 1M | Cylindrical 1.5 dia. sleeve reflective, R4, IP67, 1m cable | OMRON | Model: E32-D43M 1M | Type: Reflective (Sleeve) | Mounting: Cylindrical press-fit 1.5 dia. | View: Top-view | Bending Radius: R4 | IP Rating: IP67 | Cable Length: 1 m (Free Cutting) | Sensing Dist. ZV ST: 12 mm | Sensing Dist. FA ST: 18 mm | Min. Sensing Object: — (standard fiber) | |
| E32-D22R 2M | Cylindrical 3 dia. reflective, flexible R1, IP67 | OMRON | Model: E32-D22R 2M | Type: Reflective (Standard) | Mounting: Cylindrical press-fit 3 dia. | View: Top-view | Bending Radius: Flexible R1 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 60 mm | Sensing Dist. FA ST: 90 mm | Min. Sensing Object: — (standard fiber) | |
| E32-D221B 2M | Cylindrical 3 dia. top-view reflective, bend-resistant R4, IP67 | OMRON | Model: E32-D221B 2M | Type: Reflective (Standard) | Mounting: Cylindrical press-fit 3 dia. | View: Top-view | Bending Radius: Bend-resistant R4 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 140 mm | Sensing Dist. FA ST: 210 mm | Min. Sensing Object: 5 μm dia. / 2 μm dia. | |
| E32-D32L 2M | Cylindrical 3 dia. coaxial reflective, R25, IP67 | OMRON | Model: E32-D32L 2M | Type: Reflective (Coaxial) | Mounting: Cylindrical press-fit 3 dia. | View: Top-view | Bending Radius: R25 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 300 mm | Sensing Dist. FA ST: 450 mm | Min. Sensing Object: — (standard fiber) | |
| E32-D33 2M | Cylindrical 3 dia. sleeve reflective, R4, IP67 | OMRON | Model: E32-D33 2M | Type: Reflective (Sleeve) | Mounting: Cylindrical press-fit 3 dia. | View: Top-view | Bending Radius: R4 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 30 mm | Sensing Dist. FA ST: 45 mm | Min. Sensing Object: — (standard fiber) | |
| E32-D14LR 2M | Cylindrical 6 dia. side-view reflective, flexible R1, IP67 | OMRON | Model: E32-D14LR 2M | Type: Reflective (Standard) | Mounting: Cylindrical press-fit 6 dia. | View: Side-view | Bending Radius: Flexible R1 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 100 mm | Sensing Dist. FA ST: 150 mm | Min. Sensing Object: — (standard fiber) |
OMRON E32 Series standard through-beam fiber units for threaded and cylindrical mounting. Includes M4 threaded top-view and right-angle models (E32-T11N/T11R) and cylindrical press-fit models in 1 dia. / 1.5 dia. / 3 dia. sizes. IP67 rated. Flexible fiber with small bending radius for tight routing. Compatible with E3X-ZV, E3X-HD, and E3NX-FA fiber amplifiers. Sold as matched pairs (set of 2). Cable length: 2 m (free cutting). PDF ref: E418-E1 p.6-7, p.12-13.
OMRON E32 Series standard through-beam fiber units for threaded and cylindrical mounting. Includes M4 threaded top-view and right-angle models (E32-T11N/T11R) and cylindrical press-fit models in 1 dia. / 1.5 dia. / 3 dia. sizes. IP67 rated. Flexible fiber with small bending radius for tight routing. Compatible with E3X-ZV, E3X-HD, and E3NX-FA fiber amplifiers. Sold as matched pairs (set of 2). Cable length: 2 m (free cutting). PDF ref: E418-E1 p.6-7, p.12-13.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E32-T11N 2M | Threaded M4 top-view through-beam, 1 dia., flexible R1, IP67 | OMRON | Model: E32-T11N 2M | Type: Through-beam (Set of 2) | Mounting: Threaded M4 | View: Top-view | Aperture Angle: Approx. 60° | Sensing Surface Dia.: 1 dia. | Bending Radius: Flexible R1 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 1,000 mm | Sensing Dist. FA ST: 1,500 mm | Min. Sensing Object: 5 μm dia. / 2 μm dia. | |
| E32-T11R 2M | Threaded M4 right-angle through-beam, 1 dia., flexible R1, IP67 | OMRON | Model: E32-T11R 2M | Type: Through-beam (Set of 2) | Mounting: Threaded M4 | View: Right-angle | Aperture Angle: Approx. 60° | Sensing Surface Dia.: 1 dia. | Bending Radius: Flexible R1 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 1,000 mm | Sensing Dist. FA ST: 1,500 mm | Min. Sensing Object: 5 μm dia. / 2 μm dia. | |
| E32-T223R 2M | Cylindrical 1 dia. top-view through-beam, flexible R1, IP67 | OMRON | Model: E32-T223R 2M | Type: Through-beam (Set of 2) | Mounting: Cylindrical press-fit 1 dia. | View: Top-view | Bending Radius: Flexible R1 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 250 mm | Sensing Dist. FA ST: 370 mm | Min. Sensing Object: 0.5 dia. | |
| E32-T22B 2M | Cylindrical 1.5 dia. top-view through-beam, bend-resistant R4, IP67 | OMRON | Model: E32-T22B 2M | Type: Through-beam (Set of 2) | Mounting: Cylindrical press-fit 1.5 dia. | View: Top-view | Bending Radius: Bend-resistant R4 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 400 mm | Sensing Dist. FA ST: 600 mm | Min. Sensing Object: — (standard fiber) | |
| E32-T12R 2M | Cylindrical 3 dia. top-view through-beam, flexible R1, IP67 | OMRON | Model: E32-T12R 2M | Type: Through-beam (Set of 2) | Mounting: Cylindrical press-fit 3 dia. | View: Top-view | Bending Radius: Flexible R1 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 1,000 mm | Sensing Dist. FA ST: 1,500 mm | Min. Sensing Object: 5 μm dia. / 2 μm dia. | |
| E32-T14LR 2M | Cylindrical 3 dia. side-view through-beam, flexible R1, IP67 | OMRON | Model: E32-T14LR 2M | Type: Through-beam (Set of 2) | Mounting: Cylindrical press-fit 3 dia. | View: Side-view | Bending Radius: Flexible R1 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 450 mm | Sensing Dist. FA ST: 670 mm | Min. Sensing Object: 5 μm dia. / 2 μm dia. |
![[OMRON] — E32-L11FP Wet Process Fiber Sensor Head (Heat-resistant PVC, IP67 60°C)](https://img.prosourcemro.com/2026/05/001-300x272.png)
Limited-reflective fiber optic sensor head for stable glass detection in wet processes. Heat-resistant PVC and fluororesin construction handles cleaning, etching, and resist developing environments up to 60°C. Non-contact detection with high resistance to liquid splatter — operates reliably even in misty environments. Free-cut compatible. Amplifier (E3X series) sold separately. Standard object: glass (t=0.7mm). Sensing distance: 8~20mm from lens tip (recommended 11mm); 19~31mm from mounting hole A center (recommended 22mm). Material: Heat-resistant PVC + Fluororesin (PFA). Protection: IP67 @ 60°C. Min. bending radius: R40 mm. Compliant with CE marking. Applications: Cleaning, Etching, Resist Developing.
Limited-reflective fiber optic sensor head for stable glass detection in wet processes. Heat-resistant PVC and fluororesin construction handles cleaning, etching, and resist developing environments up to 60°C. Non-contact detection with high resistance to liquid splatter — operates reliably even in misty environments. Free-cut compatible. Amplifier (E3X series) sold separately. Standard object: glass (t=0.7mm). Sensing distance: 8~20mm from lens tip (recommended 11mm); 19~31mm from mounting hole A center (recommended 22mm). Material: Heat-resistant PVC + Fluororesin (PFA). Protection: IP67 @ 60°C. Min. bending radius: R40 mm. Compliant with CE marking. Applications: Cleaning, Etching, Resist Developing.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E32-L11FP 2M | OMRON E32-L11FP fiber optic sensor head, Heat-resistant PVC body, 2m pre-wired cable, IP67. | OMRON | Sensing Method: Limited-reflective fiber optic | Standard Object: Glass (t=0.7mm) | Sensing Distance (lens tip): 8~20mm from lens tip (recommended 11mm) | Sensing Distance (mounting hole A): 19~31mm from mounting hole A center (recommended 22mm) | Cable Length: 2m | Fiber Diameter: ø2.2mm | Min. Bending Radius: R40 mm | Material: Heat-resistant PVC + Fluororesin (PFA) | Protection: IP67 @ 60°C | Free-cut: Supported | Connection: Pre-wired (Amplifier sold separately — E3X series) | Applications: Cleaning, Etching, Resist Developing | |
| E32-L11FP 5M | OMRON E32-L11FP fiber optic sensor head, Heat-resistant PVC body, 5m pre-wired cable, IP67. | OMRON | Sensing Method: Limited-reflective fiber optic | Standard Object: Glass (t=0.7mm) | Sensing Distance (lens tip): 8~20mm from lens tip (recommended 11mm) | Sensing Distance (mounting hole A): 19~31mm from mounting hole A center (recommended 22mm) | Cable Length: 5m | Fiber Diameter: ø2.2mm | Min. Bending Radius: R40 mm | Material: Heat-resistant PVC + Fluororesin (PFA) | Protection: IP67 @ 60°C | Free-cut: Supported | Connection: Pre-wired (Amplifier sold separately — E3X series) | Applications: Cleaning, Etching, Resist Developing |
Limited-reflective fiber optic sensor head for stable glass detection in high-temperature wet processes. SUS316L stainless steel and fluororesin construction withstands resist stripping environments up to 85°C. Non-contact detection with high resistance to chemical splatter — operates reliably even in misty environments. Free-cut compatible. Amplifier (E3X series) sold separately. Standard object: glass (t=0.7mm). Sensing distance: 8~20mm from lens tip (recommended 11mm); 32~44mm from mounting hole A center (recommended 35mm). Material: SUS316L + Fluororesin (PFA). Protection: IP67 @ 85°C. Min. bending radius: R40 mm. Compliant with CE marking. Applications: Resist Stripping (high-temperature wet process).
Limited-reflective fiber optic sensor head for stable glass detection in high-temperature wet processes. SUS316L stainless steel and fluororesin construction withstands resist stripping environments up to 85°C. Non-contact detection with high resistance to chemical splatter — operates reliably even in misty environments. Free-cut compatible. Amplifier (E3X series) sold separately. Standard object: glass (t=0.7mm). Sensing distance: 8~20mm from lens tip (recommended 11mm); 32~44mm from mounting hole A center (recommended 35mm). Material: SUS316L + Fluororesin (PFA). Protection: IP67 @ 85°C. Min. bending radius: R40 mm. Compliant with CE marking. Applications: Resist Stripping (high-temperature wet process).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E32-L11FS 2M | OMRON E32-L11FS fiber optic sensor head, SUS316L body, 2m pre-wired cable, IP67. | OMRON | Sensing Method: Limited-reflective fiber optic | Standard Object: Glass (t=0.7mm) | Sensing Distance (lens tip): 8~20mm from lens tip (recommended 11mm) | Sensing Distance (mounting hole A): 32~44mm from mounting hole A center (recommended 35mm) | Cable Length: 2m | Fiber Diameter: ø2.2mm | Min. Bending Radius: R40 mm | Material: SUS316L + Fluororesin (PFA) | Protection: IP67 @ 85°C | Free-cut: Supported | Connection: Pre-wired (Amplifier sold separately — E3X series) | Applications: Resist Stripping (high-temperature wet process) | |
| E32-L11FS 5M | OMRON E32-L11FS fiber optic sensor head, SUS316L body, 5m pre-wired cable, IP67. | OMRON | Sensing Method: Limited-reflective fiber optic | Standard Object: Glass (t=0.7mm) | Sensing Distance (lens tip): 8~20mm from lens tip (recommended 11mm) | Sensing Distance (mounting hole A): 32~44mm from mounting hole A center (recommended 35mm) | Cable Length: 5m | Fiber Diameter: ø2.2mm | Min. Bending Radius: R40 mm | Material: SUS316L + Fluororesin (PFA) | Protection: IP67 @ 85°C | Free-cut: Supported | Connection: Pre-wired (Amplifier sold separately — E3X series) | Applications: Resist Stripping (high-temperature wet process) |
Limited-reflective fiber optic sensor head for stable glass detection in wet processes with extended mounting distance. SUS316L stainless steel and fluororesin construction handles resist stripping environments up to 70°C. Longer sensing range from mounting hole (32~44mm) provides flexible installation options. Non-contact detection with high resistance to chemical splatter. Free-cut compatible. Amplifier (E3X series) sold separately. Standard object: glass (t=0.7mm). Sensing distance: 8~20mm from lens tip (recommended 11mm); 32~44mm from mounting hole A center (recommended 35mm). Material: SUS316L + Fluororesin (PFA). Protection: IP67 @ 70°C. Min. bending radius: R40 mm. Compliant with CE marking. Applications: Resist Stripping (longer mounting distance).
Limited-reflective fiber optic sensor head for stable glass detection in wet processes with extended mounting distance. SUS316L stainless steel and fluororesin construction handles resist stripping environments up to 70°C. Longer sensing range from mounting hole (32~44mm) provides flexible installation options. Non-contact detection with high resistance to chemical splatter. Free-cut compatible. Amplifier (E3X series) sold separately. Standard object: glass (t=0.7mm). Sensing distance: 8~20mm from lens tip (recommended 11mm); 32~44mm from mounting hole A center (recommended 35mm). Material: SUS316L + Fluororesin (PFA). Protection: IP67 @ 70°C. Min. bending radius: R40 mm. Compliant with CE marking. Applications: Resist Stripping (longer mounting distance).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E32-L12FS 2M | OMRON E32-L12FS fiber optic sensor head, SUS316L body, 2m pre-wired cable, IP67. | OMRON | Sensing Method: Limited-reflective fiber optic | Standard Object: Glass (t=0.7mm) | Sensing Distance (lens tip): 8~20mm from lens tip (recommended 11mm) | Sensing Distance (mounting hole A): 32~44mm from mounting hole A center (recommended 35mm) | Cable Length: 2m | Fiber Diameter: ø2.2mm | Min. Bending Radius: R40 mm | Material: SUS316L + Fluororesin (PFA) | Protection: IP67 @ 70°C | Free-cut: Supported | Connection: Pre-wired (Amplifier sold separately — E3X series) | Applications: Resist Stripping (longer mounting distance) | |
| E32-L12FS 5M | OMRON E32-L12FS fiber optic sensor head, SUS316L body, 5m pre-wired cable, IP67. | OMRON | Sensing Method: Limited-reflective fiber optic | Standard Object: Glass (t=0.7mm) | Sensing Distance (lens tip): 8~20mm from lens tip (recommended 11mm) | Sensing Distance (mounting hole A): 32~44mm from mounting hole A center (recommended 35mm) | Cable Length: 5m | Fiber Diameter: ø2.2mm | Min. Bending Radius: R40 mm | Material: SUS316L + Fluororesin (PFA) | Protection: IP67 @ 70°C | Free-cut: Supported | Connection: Pre-wired (Amplifier sold separately — E3X series) | Applications: Resist Stripping (longer mounting distance) |
![[OMRON] — E32-LD Build-in Lens Reflective Fiber Unit (M6, 15° GIGA Beam, High-power)](https://img.prosourcemro.com/2026/05/001-314-300x300.png)
OMRON E32-LD Build-in Lens Reflective Fiber Unit — General-purpose threaded fiber sensor with built-in PMMA lens. Approximately 3.5× the light intensity of conventional non-lens reflective models — stable detection even for difficult-to-detect glossy black workpieces and low-reflection materials. Sensing distance approximately 2× conventional non-lens reflective models. 15° aperture angle creates a clear, well-defined spot (approx. 80 mm at 300 mm distance vs 350 mm conventional) for easy on-site adjustment and label-through-backing detection. M6×0.75 trivalent chrome-plated zinc alloy threaded body — no external lens attachment required, no protrusion, no risk of lost lens. Free-cut supported. Two cable variants: standard R25 bending radius (E32-LD11) and flexible R1 (E32-LD11R). IP50. Operating temperature −40 to +70 °C. Compatible with E3X-HD and E3NX-FA fiber amplifiers.
OMRON E32-LD Build-in Lens Reflective Fiber Unit — General-purpose threaded fiber sensor with built-in PMMA lens. Approximately 3.5× the light intensity of conventional non-lens reflective models — stable detection even for difficult-to-detect glossy black workpieces and low-reflection materials. Sensing distance approximately 2× conventional non-lens reflective models. 15° aperture angle creates a clear, well-defined spot (approx. 80 mm at 300 mm distance vs 350 mm conventional) for easy on-site adjustment and label-through-backing detection. M6×0.75 trivalent chrome-plated zinc alloy threaded body — no external lens attachment required, no protrusion, no risk of lost lens. Free-cut supported. Two cable variants: standard R25 bending radius (E32-LD11) and flexible R1 (E32-LD11R). IP50. Operating temperature −40 to +70 °C. Compatible with E3X-HD and E3NX-FA fiber amplifiers.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E32-LD11 2M | E32-LD11 2M — Build-in Lens reflective fiber unit, M6, 15° aperture, R25 bending | OMRON | Type: Build-in Lens Reflective Fiber Unit | Sensing Direction: Top-view | Mounting Thread: M6×0.75 (trivalent chrome-plated zinc alloy) | Sensing Surface: 2× 1.5 mm dia. (with built-in PMMA lens) | Min. Sensing Object (E3X-HD): 0.1 mm dia. | Min. Sensing Object (E3NX-FA): 0.03 mm dia. | Bending Radius of Cable: R25 | Unbendable Length: 10 mm | Sensing Distance — E3X-HD GIGA: 860 mm | Sensing Distance — E3X-HD HS: 250 mm | Sensing Distance — E3X-HD ST: 360 mm | Sensing Distance — E3X-HD SHS: 110 mm | Sensing Distance — E3NX-FA GIGA: 1,290 mm | Sensing Distance — E3NX-FA HS: 370 mm | Sensing Distance — E3NX-FA ST: 540 mm | Sensing Distance — E3NX-FA SHS: 110 mm | Standard Sensing Object: Glossy white paper | Black Workpiece Detection (E3X-HD): SHS 65 mm / HS 160 mm / ST 160 mm / GIGA 500 mm (50 mm glossy black plastic) | Light Intensity Advantage: Approx. 3.5× vs conventional non-lens reflective models (HS mode at 150 mm with glossy black plastic) | Spot Size Advantage: Approx. 80 mm spot at 300 mm distance (vs approx. 350 mm conventional non-lens) | Mounting: Opposite side 10 mm / Thickness 2.4 mm nickel-plated brass nuts + nickel-plated iron washers | Tightening Torque: 0.98 N·m | Weight (Packed): approx. 40 g | Aperture Angle: 15° (Build-in Lens GIGA Beam, vs conventional 60° non-lens) | Lens: Build-in (no external lens attachment required) | Degree of Protection: IP50 | Ambient Temperature: −40 to +70 °C | Cable Sheath Material: Polyethylene | Fiber Core Material: Plastic | Tensile Strength: 29.4 N | Cable Length: 2 m | Free-cut: Supported | Compatible Amplifiers: E3X-HD series / E3NX-FA series (sold separately) | Note: E3X-HD0 Communication Unit Connector model was discontinued October 2024 (per PDF) | |
| E32-LD11R 2M | E32-LD11R 2M — Build-in Lens reflective fiber unit, M6, 15° aperture, Flexible R1 bending | OMRON | Type: Build-in Lens Reflective Fiber Unit | Sensing Direction: Top-view | Mounting Thread: M6×0.75 (trivalent chrome-plated zinc alloy) | Sensing Surface: 2× 1.5 mm dia. (with built-in PMMA lens) | Min. Sensing Object (E3X-HD): 0.1 mm dia. | Min. Sensing Object (E3NX-FA): 0.03 mm dia. | Bending Radius of Cable: Flexible R1 | Unbendable Length: 0 mm | Sensing Distance — E3X-HD GIGA: 840 mm | Sensing Distance — E3X-HD HS: 240 mm | Sensing Distance — E3X-HD ST: 350 mm | Sensing Distance — E3X-HD SHS: 100 mm | Sensing Distance — E3NX-FA GIGA: 1,260 mm | Sensing Distance — E3NX-FA HS: 360 mm | Sensing Distance — E3NX-FA ST: 520 mm | Sensing Distance — E3NX-FA SHS: 100 mm | Standard Sensing Object: Glossy white paper | Black Workpiece Detection (E3X-HD): SHS 65 mm / HS 150 mm / ST 150 mm / GIGA 400 mm (50 mm glossy black plastic) | Light Intensity Advantage: Approx. 3.5× vs conventional non-lens reflective models (HS mode at 150 mm with glossy black plastic) | Spot Size Advantage: Approx. 80 mm spot at 300 mm distance (vs approx. 350 mm conventional non-lens) | Mounting: Opposite side 10 mm / Thickness 2.4 mm nickel-plated brass nuts + nickel-plated iron washers | Tightening Torque: 0.98 N·m | Weight (Packed): approx. 40 g | Aperture Angle: 15° (Build-in Lens GIGA Beam, vs conventional 60° non-lens) | Lens: Build-in (no external lens attachment required) | Degree of Protection: IP50 | Ambient Temperature: −40 to +70 °C | Cable Sheath Material: Polyethylene | Fiber Core Material: Plastic | Tensile Strength: 29.4 N | Cable Length: 2 m | Free-cut: Supported | Compatible Amplifiers: E3X-HD series / E3NX-FA series (sold separately) | Note: E3X-HD0 Communication Unit Connector model was discontinued October 2024 (per PDF) |
OMRON E32-LT Build-in Lens Through-beam Fiber Unit — General-purpose threaded fiber sensor with built-in PMMA lens. Approximately 10× the light intensity of conventional non-lens models for long-term stable detection at distances up to 4,000 mm (Giga-power mode, E3X-HD or E3NX-FA). 15° aperture angle (vs conventional 60°) prevents false detection from surrounding objects and enables stable detection in narrow workpiece spacing. M4×0.7 trivalent chrome-plated zinc alloy threaded body — no external lens attachment required, no protrusion, no risk of lost lens. Free-cut supported. Two cable variants: standard R25 bending radius (E32-LT11) and flexible R1 (E32-LT11R). IP50. Operating temperature −40 to +70 °C. Compatible with E3X-HD and E3NX-FA fiber amplifiers.
OMRON E32-LT Build-in Lens Through-beam Fiber Unit — General-purpose threaded fiber sensor with built-in PMMA lens. Approximately 10× the light intensity of conventional non-lens models for long-term stable detection at distances up to 4,000 mm (Giga-power mode, E3X-HD or E3NX-FA). 15° aperture angle (vs conventional 60°) prevents false detection from surrounding objects and enables stable detection in narrow workpiece spacing. M4×0.7 trivalent chrome-plated zinc alloy threaded body — no external lens attachment required, no protrusion, no risk of lost lens. Free-cut supported. Two cable variants: standard R25 bending radius (E32-LT11) and flexible R1 (E32-LT11R). IP50. Operating temperature −40 to +70 °C. Compatible with E3X-HD and E3NX-FA fiber amplifiers.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E32-LT11 2M | E32-LT11 2M — Build-in Lens through-beam fiber unit, M4, 15° aperture, R25 bending | OMRON | Type: Build-in Lens Through-beam Fiber Unit | Sensing Direction: Top-view | Mounting Thread: M4×0.7 (trivalent chrome-plated zinc alloy) | Sensing Surface: 2.3 mm dia. (with built-in PMMA lens) | Optical Axis Diameter: 2.3 mm dia. | Min. Sensing Object (E3X-HD): 0.1 mm dia. | Min. Sensing Object (E3NX-FA): 0.03 mm dia. | Bending Radius of Cable: R25 | Unbendable Length: 10 mm | Sensing Distance — E3X-HD GIGA: 4,000 mm | Sensing Distance — E3X-HD HS: 4,000 mm | Sensing Distance — E3X-HD ST: 4,000 mm | Sensing Distance — E3X-HD SHS: 2,700 mm | Sensing Distance — E3NX-FA GIGA: 4,000 mm | Sensing Distance — E3NX-FA HS: 4,000 mm | Sensing Distance — E3NX-FA ST: 4,000 mm | Sensing Distance — E3NX-FA SHS: 1,080 mm | Light Intensity Advantage: Approx. 10× vs conventional non-lens through-beam models (HS mode at 1 m) | Mounting: Opposite side 7 mm / Thickness 2.4 mm nickel-plated brass nuts + nickel-plated iron washers | Tightening Torque: 0.78 N·m | Cable Configuration: 2 m on each side (4,000 mm total sensing path) | Emitter/Receiver Differentiation: None (interchangeable) | Weight (Packed): approx. 40 g | Aperture Angle: 15° (Build-in Lens GIGA Beam, vs conventional 60° non-lens) | Lens: Build-in (no external lens attachment required) | Degree of Protection: IP50 | Ambient Temperature: −40 to +70 °C | Cable Sheath Material: Polyethylene | Fiber Core Material: Plastic | Tensile Strength: 29.4 N | Cable Length: 2 m | Free-cut: Supported | Compatible Amplifiers: E3X-HD series / E3NX-FA series (sold separately) | Note: E3X-HD0 Communication Unit Connector model was discontinued October 2024 (per PDF) | |
| E32-LT11R 2M | E32-LT11R 2M — Build-in Lens through-beam fiber unit, M4, 15° aperture, Flexible R1 bending | OMRON | Type: Build-in Lens Through-beam Fiber Unit | Sensing Direction: Top-view | Mounting Thread: M4×0.7 (trivalent chrome-plated zinc alloy) | Sensing Surface: 2.3 mm dia. (with built-in PMMA lens) | Optical Axis Diameter: 2.3 mm dia. | Min. Sensing Object (E3X-HD): 0.1 mm dia. | Min. Sensing Object (E3NX-FA): 0.03 mm dia. | Bending Radius of Cable: Flexible R1 | Unbendable Length: 0 mm | Sensing Distance — E3X-HD GIGA: 4,000 mm | Sensing Distance — E3X-HD HS: 3,500 mm | Sensing Distance — E3X-HD ST: 2,300 mm | Sensing Distance — E3X-HD SHS: 920 mm | Sensing Distance — E3NX-FA GIGA: 4,000 mm | Sensing Distance — E3NX-FA HS: 3,450 mm | Sensing Distance — E3NX-FA ST: 4,000 mm | Sensing Distance — E3NX-FA SHS: 920 mm | Light Intensity Advantage: Approx. 10× vs conventional non-lens through-beam models (HS mode at 1 m) | Mounting: Opposite side 7 mm / Thickness 2.4 mm nickel-plated brass nuts + nickel-plated iron washers | Tightening Torque: 0.78 N·m | Cable Configuration: 2 m on each side (4,000 mm total sensing path) | Emitter/Receiver Differentiation: None (interchangeable) | Weight (Packed): approx. 40 g | Aperture Angle: 15° (Build-in Lens GIGA Beam, vs conventional 60° non-lens) | Lens: Build-in (no external lens attachment required) | Degree of Protection: IP50 | Ambient Temperature: −40 to +70 °C | Cable Sheath Material: Polyethylene | Fiber Core Material: Plastic | Tensile Strength: 29.4 N | Cable Length: 2 m | Free-cut: Supported | Compatible Amplifiers: E3X-HD series / E3NX-FA series (sold separately) | Note: E3X-HD0 Communication Unit Connector model was discontinued October 2024 (per PDF) |
![[OMRON] — E32-T11NF Oil-resistant Fiber Unit (Through-beam, Right-angle, Fluororesin Cable + Glass Lens)](https://img.prosourcemro.com/2026/05/001-313-300x300.png)
OMRON E32-T11NF Oil-resistant Fiber Unit — Environment-resistant Series. Through-beam type with right-angle sensing direction. Fluororesin cable covering (fiber covering) prevents cutting oil ingress into the fiber core. Mechanical seal structure: aluminum ring bushing compressed by set screw against fluororesin core. Spherical glass lens resists oil adhesion; shape prevents accumulation of oil drops and cutting chips. IP68G degree of protection (JIS C 0920 Annex 1). Operating temperature −25 to +70 °C. Compatible with E3X-HD and E3NX-FA fiber amplifiers (amplifiers themselves are not oil-resistant). Two mounting sizes: M8 (E32-T11NF) and M4 (E32-T11NFS, for limited-space applications).
OMRON E32-T11NF Oil-resistant Fiber Unit — Environment-resistant Series. Through-beam type with right-angle sensing direction. Fluororesin cable covering (fiber covering) prevents cutting oil ingress into the fiber core. Mechanical seal structure: aluminum ring bushing compressed by set screw against fluororesin core. Spherical glass lens resists oil adhesion; shape prevents accumulation of oil drops and cutting chips. IP68G degree of protection (JIS C 0920 Annex 1). Operating temperature −25 to +70 °C. Compatible with E3X-HD and E3NX-FA fiber amplifiers (amplifiers themselves are not oil-resistant). Two mounting sizes: M8 (E32-T11NF) and M4 (E32-T11NFS, for limited-space applications).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E32-T11NF 2M | E32-T11NF 2M — through-beam right-angle fiber unit, M8 | OMRON | Type: Oil-resistant Through-beam Fiber Unit | Sensing Direction: Right-angle | Mounting Size: M8 | Sensing Distance: GIGA 4,000 mm / ST 4,000 mm / HS 4,000 mm / SHS 2,200 mm (E3X-HD); same in E3NX-FA | Optical Axis Diameter (Min. Sensing Object): 4 mm dia. (min. sensing object 0.1 mm dia. E3X-HD / 0.03 mm dia. E3NX-FA) | Bending Radius of Cable: Flexible R1 | Unbendable Length: 0 mm | Tensile Strength: 29.4 N | Cable Sheath Material: Fluororesin | Fiber Core Material: Plastic | Emitter/Receiver Differentiation: None (interchangeable) | Lens: Spherical glass (resists oil adhesion) | Mounting: 8.5 mm dia. mounting hole / Tightening torque 12 N·m | Ambient Temperature: −25 to +70 °C | Weight (Packed): approx. 80 g | Degree of Protection: IP68 (IEC 60529) + IP68G (JIS C 0920 Annex 1) | Sealing Method: Mechanical seal (aluminum ring bushing compressed by set screw against fluororesin) | Compatible Amplifiers: E3X-HD series / E3NX-FA series (amplifiers not oil-resistant) | Response Time (with E3X-HD): SHS 50 μs (NPN) or 55 μs (PNP) / HS 250 μs / ST 1 ms / GIGA 16 ms | Response Time (with E3NX-FA): SHS 30 μs / HS 250 μs / ST 1 ms / GIGA 16 ms | Oil Resistance: 4 years (verified by OMRON's accelerated evaluation tests) | Cable Sheath: Fluororesin (patent pending) — resists both water-soluble and water-insoluble cutting oils | Evaluation Standard: Passed IP67G (JIS C 0920 Annex 1) and OMRON's Oil-resistant Component Evaluation Standards | Applicable Oil Types: JIS K 2241:2000 specified cutting oils | Evaluation Temperature: 35 °C max | |
| E32-T11NFS 2M | E32-T11NFS 2M — through-beam right-angle fiber unit, M4 (limited space) | OMRON | Type: Oil-resistant Through-beam Fiber Unit | Sensing Direction: Right-angle | Mounting Size: M4 (limited space) | Sensing Distance: GIGA 2,200 mm / ST 1,100 mm / HS 730 mm / SHS 270 mm (E3X-HD); GIGA 3,300 mm / ST 1,600 mm / HS 1,100 mm / SHS 270 mm (E3NX-FA) | Optical Axis Diameter (Min. Sensing Object): 2 mm dia. (min. sensing object 0.1 mm dia. E3X-HD / 0.03 mm dia. E3NX-FA) | Bending Radius of Cable: Flexible R1 | Unbendable Length: 0 mm | Tensile Strength: 29.4 N | Cable Sheath Material: Fluororesin | Fiber Core Material: Plastic | Emitter/Receiver Differentiation: None (interchangeable) | Lens: Spherical glass (resists oil adhesion) | Mounting: 4.2 mm dia. mounting hole / Tightening torque 0.78 N·m | Ambient Temperature: −25 to +70 °C | Weight (Packed): approx. 70 g | Degree of Protection: IP68 (IEC 60529) + IP68G (JIS C 0920 Annex 1) | Sealing Method: Mechanical seal (aluminum ring bushing compressed by set screw against fluororesin) | Compatible Amplifiers: E3X-HD series / E3NX-FA series (amplifiers not oil-resistant) | Response Time (with E3X-HD): SHS 50 μs (NPN) or 55 μs (PNP) / HS 250 μs / ST 1 ms / GIGA 16 ms | Response Time (with E3NX-FA): SHS 30 μs / HS 250 μs / ST 1 ms / GIGA 16 ms | Oil Resistance: 4 years (verified by OMRON's accelerated evaluation tests) | Cable Sheath: Fluororesin (patent pending) — resists both water-soluble and water-insoluble cutting oils | Evaluation Standard: Passed IP67G (JIS C 0920 Annex 1) and OMRON's Oil-resistant Component Evaluation Standards | Applicable Oil Types: JIS K 2241:2000 specified cutting oils | Evaluation Temperature: 35 °C max |

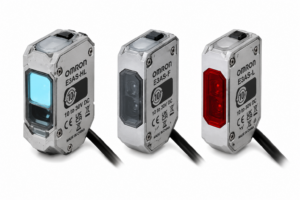

![[OMRON] — E3AS-F1000IM Distance-settable Photoelectric Sensor (Metal Case, 1000 mm, NPN/PNP, IO-Link)](https://img.prosourcemro.com/2026/05/001-324-300x200.png)
OMRON E3AS-F Series distance-settable photoelectric sensor, metal case, 1000 mm sensing distance (white paper, infrared light). IO-Link COM3 (230.4 kbps). NPN and PNP output. Connection: pre-wired 2 m / 5 m, M8 connector, M12 Smartclick 0.3 m. Mounting brackets E39-L201/202/203/204/211/212/214 (F/L-specific) and E39-L261/262/263 (common) sold separately. COM2 (38.4 kbps) and M8 pre-wired models available on request.
OMRON E3AS-F Series distance-settable photoelectric sensor, metal case, 1000 mm sensing distance (white paper, infrared light). IO-Link COM3 (230.4 kbps). NPN and PNP output. Connection: pre-wired 2 m / 5 m, M8 connector, M12 Smartclick 0.3 m. Mounting brackets E39-L201/202/203/204/211/212/214 (F/L-specific) and E39-L261/262/263 (common) sold separately. COM2 (38.4 kbps) and M8 pre-wired models available on request.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E3AS-F1000IMN 2M | Spot NPN Pre-wired 2 m | OMRON | Sensing Distance: 1,000 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: NPN | Connection: Pre-wired 2 m | |
| E3AS-F1000IMT 2M | Spot PNP Pre-wired 2 m | OMRON | Sensing Distance: 1,000 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: PNP | Connection: Pre-wired 2 m | |
| E3AS-F1000IMN 5M | Spot NPN Pre-wired 5 m | OMRON | Sensing Distance: 1,000 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: NPN | Connection: Pre-wired 5 m | |
| E3AS-F1000IMT 5M | Spot PNP Pre-wired 5 m | OMRON | Sensing Distance: 1,000 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: PNP | Connection: Pre-wired 5 m | |
| E3AS-F1000IMN M3 | Spot NPN M8 Connector | OMRON | Sensing Distance: 1,000 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: NPN | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately) | |
| E3AS-F1000IMT M3 | Spot PNP M8 Connector | OMRON | Sensing Distance: 1,000 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: PNP | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately) | |
| E3AS-F1000IMN-M1TJ 0.3M | Spot NPN M12 Pre-wired Smartclick Connector 0.3 m | OMRON | Sensing Distance: 1,000 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: NPN | Connection: M12 Pre-wired Smartclick Connector 0.3 m | |
| E3AS-F1000IMT-M1TJ 0.3M | Spot PNP M12 Pre-wired Smartclick Connector 0.3 m | OMRON | Sensing Distance: 1,000 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: PNP | Connection: M12 Pre-wired Smartclick Connector 0.3 m |
OMRON E3AS-F Series distance-settable photoelectric sensor, plastic case, 1000 mm sensing distance (white paper, infrared light). IO-Link COM3 (230.4 kbps). NPN and PNP output. Connection: pre-wired 2 m / 5 m, M8 connector, M12 Smartclick 0.3 m. Mounting brackets E39-L201/202/203/204/211/212/214 (F/L-specific) and E39-L261/262/263 (common) sold separately. COM2 (38.4 kbps) and M8 pre-wired models available on request.
OMRON E3AS-F Series distance-settable photoelectric sensor, plastic case, 1000 mm sensing distance (white paper, infrared light). IO-Link COM3 (230.4 kbps). NPN and PNP output. Connection: pre-wired 2 m / 5 m, M8 connector, M12 Smartclick 0.3 m. Mounting brackets E39-L201/202/203/204/211/212/214 (F/L-specific) and E39-L261/262/263 (common) sold separately. COM2 (38.4 kbps) and M8 pre-wired models available on request.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E3AS-F1000IPN 2M | Spot NPN Pre-wired 2 m | OMRON | Sensing Distance: 1,000 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Plastic | Output: NPN | Connection: Pre-wired 2 m | |
| E3AS-F1000IPT 2M | Spot PNP Pre-wired 2 m | OMRON | Sensing Distance: 1,000 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Plastic | Output: PNP | Connection: Pre-wired 2 m | |
| E3AS-F1000IPN 5M | Spot NPN Pre-wired 5 m | OMRON | Sensing Distance: 1,000 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Plastic | Output: NPN | Connection: Pre-wired 5 m | |
| E3AS-F1000IPT 5M | Spot PNP Pre-wired 5 m | OMRON | Sensing Distance: 1,000 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Plastic | Output: PNP | Connection: Pre-wired 5 m | |
| E3AS-F1000IPN M3 | Spot NPN M8 Connector | OMRON | Sensing Distance: 1,000 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Plastic | Output: NPN | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately) | |
| E3AS-F1000IPT M3 | Spot PNP M8 Connector | OMRON | Sensing Distance: 1,000 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Plastic | Output: PNP | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately) | |
| E3AS-F1000IPN-M1TJ 0.3M | Spot NPN M12 Pre-wired Smartclick Connector 0.3 m | OMRON | Sensing Distance: 1,000 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Plastic | Output: NPN | Connection: M12 Pre-wired Smartclick Connector 0.3 m | |
| E3AS-F1000IPT-M1TJ 0.3M | Spot PNP M12 Pre-wired Smartclick Connector 0.3 m | OMRON | Sensing Distance: 1,000 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Plastic | Output: PNP | Connection: M12 Pre-wired Smartclick Connector 0.3 m |
OMRON E3AS-F Series distance-settable photoelectric sensor, metal case, 1500 mm sensing distance (white paper, infrared light). IO-Link COM3 (230.4 kbps). NPN and PNP output. Connection: pre-wired 2 m / 5 m, M8 connector, M12 Smartclick 0.3 m. Mounting brackets E39-L201/202/203/204/211/212/214 (F/L-specific) and E39-L261/262/263 (common) sold separately. COM2 (38.4 kbps) and M8 pre-wired models available on request.
OMRON E3AS-F Series distance-settable photoelectric sensor, metal case, 1500 mm sensing distance (white paper, infrared light). IO-Link COM3 (230.4 kbps). NPN and PNP output. Connection: pre-wired 2 m / 5 m, M8 connector, M12 Smartclick 0.3 m. Mounting brackets E39-L201/202/203/204/211/212/214 (F/L-specific) and E39-L261/262/263 (common) sold separately. COM2 (38.4 kbps) and M8 pre-wired models available on request.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E3AS-F1500IMN 2M | Spot NPN Pre-wired 2 m | OMRON | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: NPN | Connection: Pre-wired 2 m | |
| E3AS-F1500IMT 2M | Spot PNP Pre-wired 2 m | OMRON | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: PNP | Connection: Pre-wired 2 m | |
| E3AS-F1500IMN 5M | Spot NPN Pre-wired 5 m | OMRON | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: NPN | Connection: Pre-wired 5 m | |
| E3AS-F1500IMT 5M | Spot PNP Pre-wired 5 m | OMRON | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: PNP | Connection: Pre-wired 5 m | |
| E3AS-F1500IMN M3 | Spot NPN M8 Connector | OMRON | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: NPN | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately) | |
| E3AS-F1500IMT M3 | Spot PNP M8 Connector | OMRON | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: PNP | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately) | |
| E3AS-F1500IMN-M1TJ 0.3M | Spot NPN M12 Pre-wired Smartclick Connector 0.3 m | OMRON | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: NPN | Connection: M12 Pre-wired Smartclick Connector 0.3 m | |
| E3AS-F1500IMT-M1TJ 0.3M | Spot PNP M12 Pre-wired Smartclick Connector 0.3 m | OMRON | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: PNP | Connection: M12 Pre-wired Smartclick Connector 0.3 m |
OMRON E3AS-F Series distance-settable photoelectric sensor, plastic case, 1500 mm sensing distance (white paper, infrared light). IO-Link COM3 (230.4 kbps). NPN and PNP output. Connection: pre-wired 2 m / 5 m, M8 connector, M12 Smartclick 0.3 m. Mounting brackets E39-L201/202/203/204/211/212/214 (F/L-specific) and E39-L261/262/263 (common) sold separately. COM2 (38.4 kbps) and M8 pre-wired models available on request.
OMRON E3AS-F Series distance-settable photoelectric sensor, plastic case, 1500 mm sensing distance (white paper, infrared light). IO-Link COM3 (230.4 kbps). NPN and PNP output. Connection: pre-wired 2 m / 5 m, M8 connector, M12 Smartclick 0.3 m. Mounting brackets E39-L201/202/203/204/211/212/214 (F/L-specific) and E39-L261/262/263 (common) sold separately. COM2 (38.4 kbps) and M8 pre-wired models available on request.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E3AS-F1500IPN 2M | Spot NPN Pre-wired 2 m | OMRON | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Plastic | Output: NPN | Connection: Pre-wired 2 m | |
| E3AS-F1500IPT 2M | Spot PNP Pre-wired 2 m | OMRON | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Plastic | Output: PNP | Connection: Pre-wired 2 m | |
| E3AS-F1500IPN 5M | Spot NPN Pre-wired 5 m | OMRON | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Plastic | Output: NPN | Connection: Pre-wired 5 m | |
| E3AS-F1500IPT 5M | Spot PNP Pre-wired 5 m | OMRON | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Plastic | Output: PNP | Connection: Pre-wired 5 m | |
| E3AS-F1500IPN M3 | Spot NPN M8 Connector | OMRON | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Plastic | Output: NPN | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately) | |
| E3AS-F1500IPT M3 | Spot PNP M8 Connector | OMRON | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Plastic | Output: PNP | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately) | |
| E3AS-F1500IPN-M1TJ 0.3M | Spot NPN M12 Pre-wired Smartclick Connector 0.3 m | OMRON | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Plastic | Output: NPN | Connection: M12 Pre-wired Smartclick Connector 0.3 m | |
| E3AS-F1500IPT-M1TJ 0.3M | Spot PNP M12 Pre-wired Smartclick Connector 0.3 m | OMRON | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Plastic | Output: PNP | Connection: M12 Pre-wired Smartclick Connector 0.3 m |
