Sensors
![[OMRON] — E3T-UL M2-mounting Side-view Through-beam Ultracompact Sensor (2m/1m/300mm, Red light, NPN/PNP, UL Certified)](https://img.prosourcemro.com/2026/05/001-333-300x300.png)
OMRON E3T-UL Series M2-mounting side-view through-beam ultracompact photoelectric sensors. UL certified. Red light only. 2 m (E3T-ST3x-UL), 1 m (E3T-ST1x-UL), 300 mm (E3T-ST2x-UL). Light-ON and Dark-ON modes. NPN and PNP output. Cable 2 m. Set models; Emitter (-L) and Receiver (-D) available individually. Sensitivity Adjustment Unit E39-E10 compatible with 2m and 1m models.
OMRON E3T-UL Series M2-mounting side-view through-beam ultracompact photoelectric sensors. UL certified. Red light only. 2 m (E3T-ST3x-UL), 1 m (E3T-ST1x-UL), 300 mm (E3T-ST2x-UL). Light-ON and Dark-ON modes. NPN and PNP output. Cable 2 m. Set models; Emitter (-L) and Receiver (-D) available individually. Sensitivity Adjustment Unit E39-E10 compatible with 2m and 1m models.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E3T-ST31-UL 2M | UL M2 side-view through-beam 2 m NPN Light-ON | OMRON | Sensing Distance: 2 m | Light Source: Red light | Sensing Method: Through-beam Side-view (M2 mounting, Set, UL certified) | Output: NPN | Operation Mode: Light-ON | Certification: UL | Note: Emitter-only: add '-L' suffix; Receiver-only: add '-D' suffix (e.g. E3T-ST11-L-UL 2M) / Sensitivity Adjustment Unit E39-E10 compatible (sold separately) | |
| E3T-ST32-UL 2M | UL M2 side-view through-beam 2 m NPN Dark-ON | OMRON | Sensing Distance: 2 m | Light Source: Red light | Sensing Method: Through-beam Side-view (M2 mounting, Set, UL certified) | Output: NPN | Operation Mode: Dark-ON | Certification: UL | Note: Emitter-only: add '-L' suffix; Receiver-only: add '-D' suffix (e.g. E3T-ST11-L-UL 2M) / Sensitivity Adjustment Unit E39-E10 compatible (sold separately) | |
| E3T-ST33-UL 2M | UL M2 side-view through-beam 2 m PNP Light-ON | OMRON | Sensing Distance: 2 m | Light Source: Red light | Sensing Method: Through-beam Side-view (M2 mounting, Set, UL certified) | Output: PNP | Operation Mode: Light-ON | Certification: UL | Note: Emitter-only: add '-L' suffix; Receiver-only: add '-D' suffix (e.g. E3T-ST11-L-UL 2M) / Sensitivity Adjustment Unit E39-E10 compatible (sold separately) | |
| E3T-ST34-UL 2M | UL M2 side-view through-beam 2 m PNP Dark-ON | OMRON | Sensing Distance: 2 m | Light Source: Red light | Sensing Method: Through-beam Side-view (M2 mounting, Set, UL certified) | Output: PNP | Operation Mode: Dark-ON | Certification: UL | Note: Emitter-only: add '-L' suffix; Receiver-only: add '-D' suffix (e.g. E3T-ST11-L-UL 2M) / Sensitivity Adjustment Unit E39-E10 compatible (sold separately) | |
| E3T-ST11-UL 2M | UL M2 side-view through-beam 1 m NPN Light-ON | OMRON | Sensing Distance: 1 m | Light Source: Red light | Sensing Method: Through-beam Side-view (M2 mounting, Set, UL certified) | Output: NPN | Operation Mode: Light-ON | Certification: UL | Note: Emitter-only: add '-L' suffix; Receiver-only: add '-D' suffix (e.g. E3T-ST11-L-UL 2M) / Sensitivity Adjustment Unit E39-E10 compatible (sold separately) | |
| E3T-ST12-UL 2M | UL M2 side-view through-beam 1 m NPN Dark-ON | OMRON | Sensing Distance: 1 m | Light Source: Red light | Sensing Method: Through-beam Side-view (M2 mounting, Set, UL certified) | Output: NPN | Operation Mode: Dark-ON | Certification: UL | Note: Emitter-only: add '-L' suffix; Receiver-only: add '-D' suffix (e.g. E3T-ST11-L-UL 2M) / Sensitivity Adjustment Unit E39-E10 compatible (sold separately) | |
| E3T-ST13-UL 2M | UL M2 side-view through-beam 1 m PNP Light-ON | OMRON | Sensing Distance: 1 m | Light Source: Red light | Sensing Method: Through-beam Side-view (M2 mounting, Set, UL certified) | Output: PNP | Operation Mode: Light-ON | Certification: UL | Note: Emitter-only: add '-L' suffix; Receiver-only: add '-D' suffix (e.g. E3T-ST11-L-UL 2M) / Sensitivity Adjustment Unit E39-E10 compatible (sold separately) | |
| E3T-ST14-UL 2M | UL M2 side-view through-beam 1 m PNP Dark-ON | OMRON | Sensing Distance: 1 m | Light Source: Red light | Sensing Method: Through-beam Side-view (M2 mounting, Set, UL certified) | Output: PNP | Operation Mode: Dark-ON | Certification: UL | Note: Emitter-only: add '-L' suffix; Receiver-only: add '-D' suffix (e.g. E3T-ST11-L-UL 2M) / Sensitivity Adjustment Unit E39-E10 compatible (sold separately) | |
| E3T-ST21-UL 2M | UL M2 side-view through-beam 300 mm NPN Light-ON | OMRON | Sensing Distance: 300 mm | Light Source: Red light | Sensing Method: Through-beam Side-view (M2 mounting, Set, UL certified) | Output: NPN | Operation Mode: Light-ON | Certification: UL | Note: Emitter-only: add '-L' suffix; Receiver-only: add '-D' suffix (e.g. E3T-ST11-L-UL 2M) | |
| E3T-ST22-UL 2M | UL M2 side-view through-beam 300 mm NPN Dark-ON | OMRON | Sensing Distance: 300 mm | Light Source: Red light | Sensing Method: Through-beam Side-view (M2 mounting, Set, UL certified) | Output: NPN | Operation Mode: Dark-ON | Certification: UL | Note: Emitter-only: add '-L' suffix; Receiver-only: add '-D' suffix (e.g. E3T-ST11-L-UL 2M) | |
| E3T-ST23-UL 2M | UL M2 side-view through-beam 300 mm PNP Light-ON | OMRON | Sensing Distance: 300 mm | Light Source: Red light | Sensing Method: Through-beam Side-view (M2 mounting, Set, UL certified) | Output: PNP | Operation Mode: Light-ON | Certification: UL | Note: Emitter-only: add '-L' suffix; Receiver-only: add '-D' suffix (e.g. E3T-ST11-L-UL 2M) | |
| E3T-ST24-UL 2M | UL M2 side-view through-beam 300 mm PNP Dark-ON | OMRON | Sensing Distance: 300 mm | Light Source: Red light | Sensing Method: Through-beam Side-view (M2 mounting, Set, UL certified) | Output: PNP | Operation Mode: Dark-ON | Certification: UL | Note: Emitter-only: add '-L' suffix; Receiver-only: add '-D' suffix (e.g. E3T-ST11-L-UL 2M) |
OMRON E3T-UL Series M3-mounting ultracompact photoelectric sensors. UL certified. Side-view through-beam (E3T-ST1xM/2xM-UL): 1 m and 300 mm, red light. Diffuse-reflective (E3T-FD1xM-UL): 5~30 mm, red light. Light-ON and Dark-ON modes. NPN and PNP output. Cable 2 m. M3 mounting screws not included; E39-L171 SUS screw set sold separately. Mounting brackets E39-L166 (side-view) / E39-L167 (flat) sold separately.
OMRON E3T-UL Series M3-mounting ultracompact photoelectric sensors. UL certified. Side-view through-beam (E3T-ST1xM/2xM-UL): 1 m and 300 mm, red light. Diffuse-reflective (E3T-FD1xM-UL): 5~30 mm, red light. Light-ON and Dark-ON modes. NPN and PNP output. Cable 2 m. M3 mounting screws not included; E39-L171 SUS screw set sold separately. Mounting brackets E39-L166 (side-view) / E39-L167 (flat) sold separately.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E3T-ST11M-UL 2M | UL M3 side-view through-beam 1 m NPN Light-ON | OMRON | Sensing Distance: 1 m | Light Source: Red light | Sensing Method: Through-beam Side-view (M3 mounting, Set, UL certified) | Output: NPN | Operation Mode: Light-ON | Certification: UL | Note: Emitter-only: add '-L' suffix; Receiver-only: add '-D' suffix (e.g. E3T-ST11-L-UL 2M) | Mounting: M3 screws not included — order E39-L171 SUS screw set separately | |
| E3T-ST12M-UL 2M | UL M3 side-view through-beam 1 m NPN Dark-ON | OMRON | Sensing Distance: 1 m | Light Source: Red light | Sensing Method: Through-beam Side-view (M3 mounting, Set, UL certified) | Output: NPN | Operation Mode: Dark-ON | Certification: UL | Note: Emitter-only: add '-L' suffix; Receiver-only: add '-D' suffix (e.g. E3T-ST11-L-UL 2M) | Mounting: M3 screws not included — order E39-L171 SUS screw set separately | |
| E3T-ST13M-UL 2M | UL M3 side-view through-beam 1 m PNP Light-ON | OMRON | Sensing Distance: 1 m | Light Source: Red light | Sensing Method: Through-beam Side-view (M3 mounting, Set, UL certified) | Output: PNP | Operation Mode: Light-ON | Certification: UL | Note: Emitter-only: add '-L' suffix; Receiver-only: add '-D' suffix (e.g. E3T-ST11-L-UL 2M) | Mounting: M3 screws not included — order E39-L171 SUS screw set separately | |
| E3T-ST14M-UL 2M | UL M3 side-view through-beam 1 m PNP Dark-ON | OMRON | Sensing Distance: 1 m | Light Source: Red light | Sensing Method: Through-beam Side-view (M3 mounting, Set, UL certified) | Output: PNP | Operation Mode: Dark-ON | Certification: UL | Note: Emitter-only: add '-L' suffix; Receiver-only: add '-D' suffix (e.g. E3T-ST11-L-UL 2M) | Mounting: M3 screws not included — order E39-L171 SUS screw set separately | |
| E3T-ST21M-UL 2M | UL M3 side-view through-beam 300 mm NPN Light-ON | OMRON | Sensing Distance: 300 mm | Light Source: Red light | Sensing Method: Through-beam Side-view (M3 mounting, Set, UL certified) | Output: NPN | Operation Mode: Light-ON | Certification: UL | Note: Emitter-only: add '-L' suffix; Receiver-only: add '-D' suffix (e.g. E3T-ST11-L-UL 2M) | Mounting: M3 screws not included — order E39-L171 SUS screw set separately | |
| E3T-ST22M-UL 2M | UL M3 side-view through-beam 300 mm NPN Dark-ON | OMRON | Sensing Distance: 300 mm | Light Source: Red light | Sensing Method: Through-beam Side-view (M3 mounting, Set, UL certified) | Output: NPN | Operation Mode: Dark-ON | Certification: UL | Note: Emitter-only: add '-L' suffix; Receiver-only: add '-D' suffix (e.g. E3T-ST11-L-UL 2M) | Mounting: M3 screws not included — order E39-L171 SUS screw set separately | |
| E3T-ST23M-UL 2M | UL M3 side-view through-beam 300 mm PNP Light-ON | OMRON | Sensing Distance: 300 mm | Light Source: Red light | Sensing Method: Through-beam Side-view (M3 mounting, Set, UL certified) | Output: PNP | Operation Mode: Light-ON | Certification: UL | Note: Emitter-only: add '-L' suffix; Receiver-only: add '-D' suffix (e.g. E3T-ST11-L-UL 2M) | Mounting: M3 screws not included — order E39-L171 SUS screw set separately | |
| E3T-ST24M-UL 2M | UL M3 side-view through-beam 300 mm PNP Dark-ON | OMRON | Sensing Distance: 300 mm | Light Source: Red light | Sensing Method: Through-beam Side-view (M3 mounting, Set, UL certified) | Output: PNP | Operation Mode: Dark-ON | Certification: UL | Note: Emitter-only: add '-L' suffix; Receiver-only: add '-D' suffix (e.g. E3T-ST11-L-UL 2M) | Mounting: M3 screws not included — order E39-L171 SUS screw set separately | |
| E3T-FD11M-UL 2M | UL M3 diffuse-reflective 5~30mm NPN Light-ON | OMRON | Sensing Distance: 5 to 30 mm | Light Source: Red light | Sensing Method: Diffuse-reflective (M3 mounting, UL certified) | Output: NPN | Operation Mode: Light-ON | Certification: UL | Mounting: M3 screws not included — order separately | |
| E3T-FD12M-UL 2M | UL M3 diffuse-reflective 5~30mm NPN Dark-ON | OMRON | Sensing Distance: 5 to 30 mm | Light Source: Red light | Sensing Method: Diffuse-reflective (M3 mounting, UL certified) | Output: NPN | Operation Mode: Dark-ON | Certification: UL | Mounting: M3 screws not included — order separately | |
| E3T-FD13M-UL 2M | UL M3 diffuse-reflective 5~30mm PNP Light-ON | OMRON | Sensing Distance: 5 to 30 mm | Light Source: Red light | Sensing Method: Diffuse-reflective (M3 mounting, UL certified) | Output: PNP | Operation Mode: Light-ON | Certification: UL | Mounting: M3 screws not included — order separately | |
| E3T-FD14M-UL 2M | UL M3 diffuse-reflective 5~30mm PNP Dark-ON | OMRON | Sensing Distance: 5 to 30 mm | Light Source: Red light | Sensing Method: Diffuse-reflective (M3 mounting, UL certified) | Output: PNP | Operation Mode: Dark-ON | Certification: UL | Mounting: M3 screws not included — order separately |
![[OMRON] — E3X-HD Smart Fiber Amplifier (GIGA RAY II, Smart Tuning, APC+DPC Auto-Compensation)](https://img.prosourcemro.com/2026/05/001-2-300x237.png)
Smart fiber amplifier unit with one-touch Smart Tuning that auto-configures optimum settings with a single button press. GIGA RAY II light source delivers best-in-class power for stable detection of low-reflective and large workpieces. APC (Auto Power Control) plus DPC (Dynamic Power Control) provide maintenance-free operation by automatically compensating for dirt, vibration, and LED aged deterioration — long-term stable detection without recalibration. Twin digital display (green threshold + red incident level) and visible indicators (L/D, OUT, ST, DPC) for at-a-glance status. Pushbutton operation works even with gloves on. Four selectable response modes: Super-high-speed (50μs), High-speed (250μs default), Standard (1ms), and Giga-power (16ms) — one amplifier covers fast-line counting through long-distance detection. 12-24 VDC, NPN or PNP open-collector output. Up to 16 units side-by-side mounted with mutual interference prevention. Compatible with OMRON E32 series fiber optic head units. M8 connector models compatible with XS3F-M421/M422 sensor I/O cables (separately listed). Wire-saving Connectors (E3X-CN11/CN12), Mounting Bracket (E39-L143), DIN Track (PFP-100N/50N/100N2), and End Plate (PFP-M) sold separately — contact for quote.
Smart fiber amplifier unit with one-touch Smart Tuning that auto-configures optimum settings with a single button press. GIGA RAY II light source delivers best-in-class power for stable detection of low-reflective and large workpieces. APC (Auto Power Control) plus DPC (Dynamic Power Control) provide maintenance-free operation by automatically compensating for dirt, vibration, and LED aged deterioration — long-term stable detection without recalibration. Twin digital display (green threshold + red incident level) and visible indicators (L/D, OUT, ST, DPC) for at-a-glance status. Pushbutton operation works even with gloves on. Four selectable response modes: Super-high-speed (50μs), High-speed (250μs default), Standard (1ms), and Giga-power (16ms) — one amplifier covers fast-line counting through long-distance detection. 12-24 VDC, NPN or PNP open-collector output. Up to 16 units side-by-side mounted with mutual interference prevention. Compatible with OMRON E32 series fiber optic head units. M8 connector models compatible with XS3F-M421/M422 sensor I/O cables (separately listed). Wire-saving Connectors (E3X-CN11/CN12), Mounting Bracket (E39-L143), DIN Track (PFP-100N/50N/100N2), and End Plate (PFP-M) sold separately — contact for quote.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E3X-HD11 2M | OMRON E3X-HD11 smart fiber amplifier, NPN open-collector, 2m pre-wired cable. | OMRON | Output: NPN | Connection: Pre-wired (2m vinyl-insulated round cable, 4 dia., 3 conductors) | Light Source: Red 4-element LED (625 nm) — GIGA RAY II | Display: Twin digital display: green (threshold) + red (incident level), 4 visible indicators (L/D, OUT, ST, DPC) | Sensitivity Setting: Smart Tuning (single-button auto-setup) + UP/DOWN fine-tune + MODE/L-D pushbuttons | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 720 mW max. Normal / 530 mW Eco-ON / 640 mW Eco-LO (30 mA @ 24 VDC) | Control Output: Open-collector (NPN or PNP), 26.4 VDC max. | Load Current: 100 mA max. (1-3 amplifiers gang-mounted), 20 mA max. (4-16 amplifiers) | Residual Voltage: 1 V max. (<10 mA load) / 2 V max. (10-100 mA load) | OFF Current: 0.1 mA max. | Mode Selector: Light-ON / Dark-ON | Response Time — SHS (Super-high-speed): 50 μs (NPN) / 55 μs (PNP) | Response Time — HS (High-speed, default): 250 μs | Response Time — Stnd (Standard): 1 ms | Response Time — GIGA (Giga-power): 16 ms | Auto Power Control (APC): Always ON (light intensity auto-compensation) | Dynamic Power Control (DPC): Active threshold-based incident-level auto-compensation — compensates for dirt, vibration, and LED aged deterioration | Other Functions: Power tuning, differential detection, timer (OFF-delay/ON-delay/one-shot), zero reset, settings reset, Eco mode | Maximum Connectable Units: 16 units (standard) — up to 30 units with E3X-ECT Communications Unit | Mutual Interference Prevention: Up to 10 units (optical sync, disabled in SHS mode) | Protection: IP50 (with Protective Cover) | Ambient Temperature: -25°C to 55°C (1-2 amps), -25°C to 50°C (3-10), -25°C to 45°C (11-16) | Vibration Resistance: 10-55 Hz, 1.5mm double amplitude, 2 hours each axis (X/Y/Z) | Shock Resistance: 500 m/s² × 3 times each axis | Insulation Resistance: 20 MΩ min. (at 500 VDC) | Dielectric Strength: 1,000 VAC at 50/60 Hz for 1 minute | Compatible Fiber Heads: OMRON E32 series fiber optic head units (E32-L11FP/L11FS/L12FS and others) | Mounting: DIN track or Mounting Bracket E39-L143 (sold separately) | |
| E3X-HD41 2M | OMRON E3X-HD41 smart fiber amplifier, PNP open-collector, 2m pre-wired cable. | OMRON | Output: PNP | Connection: Pre-wired (2m vinyl-insulated round cable, 4 dia., 3 conductors) | Light Source: Red 4-element LED (625 nm) — GIGA RAY II | Display: Twin digital display: green (threshold) + red (incident level), 4 visible indicators (L/D, OUT, ST, DPC) | Sensitivity Setting: Smart Tuning (single-button auto-setup) + UP/DOWN fine-tune + MODE/L-D pushbuttons | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 720 mW max. Normal / 530 mW Eco-ON / 640 mW Eco-LO (30 mA @ 24 VDC) | Control Output: Open-collector (NPN or PNP), 26.4 VDC max. | Load Current: 100 mA max. (1-3 amplifiers gang-mounted), 20 mA max. (4-16 amplifiers) | Residual Voltage: 1 V max. (<10 mA load) / 2 V max. (10-100 mA load) | OFF Current: 0.1 mA max. | Mode Selector: Light-ON / Dark-ON | Response Time — SHS (Super-high-speed): 50 μs (NPN) / 55 μs (PNP) | Response Time — HS (High-speed, default): 250 μs | Response Time — Stnd (Standard): 1 ms | Response Time — GIGA (Giga-power): 16 ms | Auto Power Control (APC): Always ON (light intensity auto-compensation) | Dynamic Power Control (DPC): Active threshold-based incident-level auto-compensation — compensates for dirt, vibration, and LED aged deterioration | Other Functions: Power tuning, differential detection, timer (OFF-delay/ON-delay/one-shot), zero reset, settings reset, Eco mode | Maximum Connectable Units: 16 units (standard) — up to 30 units with E3X-ECT Communications Unit | Mutual Interference Prevention: Up to 10 units (optical sync, disabled in SHS mode) | Protection: IP50 (with Protective Cover) | Ambient Temperature: -25°C to 55°C (1-2 amps), -25°C to 50°C (3-10), -25°C to 45°C (11-16) | Vibration Resistance: 10-55 Hz, 1.5mm double amplitude, 2 hours each axis (X/Y/Z) | Shock Resistance: 500 m/s² × 3 times each axis | Insulation Resistance: 20 MΩ min. (at 500 VDC) | Dielectric Strength: 1,000 VAC at 50/60 Hz for 1 minute | Compatible Fiber Heads: OMRON E32 series fiber optic head units (E32-L11FP/L11FS/L12FS and others) | Mounting: DIN track or Mounting Bracket E39-L143 (sold separately) | |
| E3X-HD6 | OMRON E3X-HD6 smart fiber amplifier, NPN, wire-saving connector type. | OMRON | Output: NPN | Connection: Wire-saving connector (E3X-CN11 Master 3-conductor / E3X-CN12 Slave 1-conductor sold separately) | Light Source: Red 4-element LED (625 nm) — GIGA RAY II | Display: Twin digital display: green (threshold) + red (incident level), 4 visible indicators (L/D, OUT, ST, DPC) | Sensitivity Setting: Smart Tuning (single-button auto-setup) + UP/DOWN fine-tune + MODE/L-D pushbuttons | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 720 mW max. Normal / 530 mW Eco-ON / 640 mW Eco-LO (30 mA @ 24 VDC) | Control Output: Open-collector (NPN or PNP), 26.4 VDC max. | Load Current: 100 mA max. (1-3 amplifiers gang-mounted), 20 mA max. (4-16 amplifiers) | Residual Voltage: 1 V max. (<10 mA load) / 2 V max. (10-100 mA load) | OFF Current: 0.1 mA max. | Mode Selector: Light-ON / Dark-ON | Response Time — SHS (Super-high-speed): 50 μs (NPN) / 55 μs (PNP) | Response Time — HS (High-speed, default): 250 μs | Response Time — Stnd (Standard): 1 ms | Response Time — GIGA (Giga-power): 16 ms | Auto Power Control (APC): Always ON (light intensity auto-compensation) | Dynamic Power Control (DPC): Active threshold-based incident-level auto-compensation — compensates for dirt, vibration, and LED aged deterioration | Other Functions: Power tuning, differential detection, timer (OFF-delay/ON-delay/one-shot), zero reset, settings reset, Eco mode | Maximum Connectable Units: 16 units (standard) — up to 30 units with E3X-ECT Communications Unit | Mutual Interference Prevention: Up to 10 units (optical sync, disabled in SHS mode) | Protection: IP50 (with Protective Cover) | Ambient Temperature: -25°C to 55°C (1-2 amps), -25°C to 50°C (3-10), -25°C to 45°C (11-16) | Vibration Resistance: 10-55 Hz, 1.5mm double amplitude, 2 hours each axis (X/Y/Z) | Shock Resistance: 500 m/s² × 3 times each axis | Insulation Resistance: 20 MΩ min. (at 500 VDC) | Dielectric Strength: 1,000 VAC at 50/60 Hz for 1 minute | Compatible Fiber Heads: OMRON E32 series fiber optic head units (E32-L11FP/L11FS/L12FS and others) | Mounting: DIN track or Mounting Bracket E39-L143 (sold separately) | |
| E3X-HD8 | OMRON E3X-HD8 smart fiber amplifier, PNP, wire-saving connector type. | OMRON | Output: PNP | Connection: Wire-saving connector (E3X-CN11 Master 3-conductor / E3X-CN12 Slave 1-conductor sold separately) | Light Source: Red 4-element LED (625 nm) — GIGA RAY II | Display: Twin digital display: green (threshold) + red (incident level), 4 visible indicators (L/D, OUT, ST, DPC) | Sensitivity Setting: Smart Tuning (single-button auto-setup) + UP/DOWN fine-tune + MODE/L-D pushbuttons | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 720 mW max. Normal / 530 mW Eco-ON / 640 mW Eco-LO (30 mA @ 24 VDC) | Control Output: Open-collector (NPN or PNP), 26.4 VDC max. | Load Current: 100 mA max. (1-3 amplifiers gang-mounted), 20 mA max. (4-16 amplifiers) | Residual Voltage: 1 V max. (<10 mA load) / 2 V max. (10-100 mA load) | OFF Current: 0.1 mA max. | Mode Selector: Light-ON / Dark-ON | Response Time — SHS (Super-high-speed): 50 μs (NPN) / 55 μs (PNP) | Response Time — HS (High-speed, default): 250 μs | Response Time — Stnd (Standard): 1 ms | Response Time — GIGA (Giga-power): 16 ms | Auto Power Control (APC): Always ON (light intensity auto-compensation) | Dynamic Power Control (DPC): Active threshold-based incident-level auto-compensation — compensates for dirt, vibration, and LED aged deterioration | Other Functions: Power tuning, differential detection, timer (OFF-delay/ON-delay/one-shot), zero reset, settings reset, Eco mode | Maximum Connectable Units: 16 units (standard) — up to 30 units with E3X-ECT Communications Unit | Mutual Interference Prevention: Up to 10 units (optical sync, disabled in SHS mode) | Protection: IP50 (with Protective Cover) | Ambient Temperature: -25°C to 55°C (1-2 amps), -25°C to 50°C (3-10), -25°C to 45°C (11-16) | Vibration Resistance: 10-55 Hz, 1.5mm double amplitude, 2 hours each axis (X/Y/Z) | Shock Resistance: 500 m/s² × 3 times each axis | Insulation Resistance: 20 MΩ min. (at 500 VDC) | Dielectric Strength: 1,000 VAC at 50/60 Hz for 1 minute | Compatible Fiber Heads: OMRON E32 series fiber optic head units (E32-L11FP/L11FS/L12FS and others) | Mounting: DIN track or Mounting Bracket E39-L143 (sold separately) | |
| E3X-HD14 | OMRON E3X-HD14 smart fiber amplifier, NPN, M8 4-pin connector. | OMRON | Output: NPN | Connection: M8 4-pin connector — Compatible XS3F cables: XS3F-M421-402-A / XS3F-M421-405-A (straight, 2m/5m), XS3F-M422-402-A / XS3F-M422-405-A (L-shaped, 2m/5m) — separately listed under OMRON Sensor I/O Connector Cables | Light Source: Red 4-element LED (625 nm) — GIGA RAY II | Display: Twin digital display: green (threshold) + red (incident level), 4 visible indicators (L/D, OUT, ST, DPC) | Sensitivity Setting: Smart Tuning (single-button auto-setup) + UP/DOWN fine-tune + MODE/L-D pushbuttons | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 720 mW max. Normal / 530 mW Eco-ON / 640 mW Eco-LO (30 mA @ 24 VDC) | Control Output: Open-collector (NPN or PNP), 26.4 VDC max. | Load Current: 100 mA max. (1-3 amplifiers gang-mounted), 20 mA max. (4-16 amplifiers) | Residual Voltage: 1 V max. (<10 mA load) / 2 V max. (10-100 mA load) | OFF Current: 0.1 mA max. | Mode Selector: Light-ON / Dark-ON | Response Time — SHS (Super-high-speed): 50 μs (NPN) / 55 μs (PNP) | Response Time — HS (High-speed, default): 250 μs | Response Time — Stnd (Standard): 1 ms | Response Time — GIGA (Giga-power): 16 ms | Auto Power Control (APC): Always ON (light intensity auto-compensation) | Dynamic Power Control (DPC): Active threshold-based incident-level auto-compensation — compensates for dirt, vibration, and LED aged deterioration | Other Functions: Power tuning, differential detection, timer (OFF-delay/ON-delay/one-shot), zero reset, settings reset, Eco mode | Maximum Connectable Units: 16 units (standard) — up to 30 units with E3X-ECT Communications Unit | Mutual Interference Prevention: Up to 10 units (optical sync, disabled in SHS mode) | Protection: IP50 (with Protective Cover) | Ambient Temperature: -25°C to 55°C (1-2 amps), -25°C to 50°C (3-10), -25°C to 45°C (11-16) | Vibration Resistance: 10-55 Hz, 1.5mm double amplitude, 2 hours each axis (X/Y/Z) | Shock Resistance: 500 m/s² × 3 times each axis | Insulation Resistance: 20 MΩ min. (at 500 VDC) | Dielectric Strength: 1,000 VAC at 50/60 Hz for 1 minute | Compatible Fiber Heads: OMRON E32 series fiber optic head units (E32-L11FP/L11FS/L12FS and others) | Mounting: DIN track or Mounting Bracket E39-L143 (sold separately) | |
| E3X-HD44 | OMRON E3X-HD44 smart fiber amplifier, PNP, M8 4-pin connector. | OMRON | Output: PNP | Connection: M8 4-pin connector — Compatible XS3F cables: XS3F-M421-402-A / XS3F-M421-405-A (straight, 2m/5m), XS3F-M422-402-A / XS3F-M422-405-A (L-shaped, 2m/5m) — separately listed under OMRON Sensor I/O Connector Cables | Light Source: Red 4-element LED (625 nm) — GIGA RAY II | Display: Twin digital display: green (threshold) + red (incident level), 4 visible indicators (L/D, OUT, ST, DPC) | Sensitivity Setting: Smart Tuning (single-button auto-setup) + UP/DOWN fine-tune + MODE/L-D pushbuttons | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 720 mW max. Normal / 530 mW Eco-ON / 640 mW Eco-LO (30 mA @ 24 VDC) | Control Output: Open-collector (NPN or PNP), 26.4 VDC max. | Load Current: 100 mA max. (1-3 amplifiers gang-mounted), 20 mA max. (4-16 amplifiers) | Residual Voltage: 1 V max. (<10 mA load) / 2 V max. (10-100 mA load) | OFF Current: 0.1 mA max. | Mode Selector: Light-ON / Dark-ON | Response Time — SHS (Super-high-speed): 50 μs (NPN) / 55 μs (PNP) | Response Time — HS (High-speed, default): 250 μs | Response Time — Stnd (Standard): 1 ms | Response Time — GIGA (Giga-power): 16 ms | Auto Power Control (APC): Always ON (light intensity auto-compensation) | Dynamic Power Control (DPC): Active threshold-based incident-level auto-compensation — compensates for dirt, vibration, and LED aged deterioration | Other Functions: Power tuning, differential detection, timer (OFF-delay/ON-delay/one-shot), zero reset, settings reset, Eco mode | Maximum Connectable Units: 16 units (standard) — up to 30 units with E3X-ECT Communications Unit | Mutual Interference Prevention: Up to 10 units (optical sync, disabled in SHS mode) | Protection: IP50 (with Protective Cover) | Ambient Temperature: -25°C to 55°C (1-2 amps), -25°C to 50°C (3-10), -25°C to 45°C (11-16) | Vibration Resistance: 10-55 Hz, 1.5mm double amplitude, 2 hours each axis (X/Y/Z) | Shock Resistance: 500 m/s² × 3 times each axis | Insulation Resistance: 20 MΩ min. (at 500 VDC) | Dielectric Strength: 1,000 VAC at 50/60 Hz for 1 minute | Compatible Fiber Heads: OMRON E32 series fiber optic head units (E32-L11FP/L11FS/L12FS and others) | Mounting: DIN track or Mounting Bracket E39-L143 (sold separately) |
![[OMRON] — E3X-MZV Smart Fiber Amplifier (2-Channel, Value Line, Red LED)](https://img.prosourcemro.com/2026/05/001-6-300x189.png)
OMRON E3X-MZV Smart Fiber Amplifier — Value Line (2-channel, NEW). 1 amp body provides 2 independent detection points — 1/2 installation space and up to 60% wiring savings compared to standard single-channel amplifiers (with wire-saving connector). Red 4-element LED (625 nm), min. detectable object 3 μm. Response time 100 μs (Super High Speed) / 250 μs (High Speed) / 1 ms (Standard) / 16 ms (Giga Power). Smart Tuning (2-press auto-adjust), DPC, ATC, built-in timer (1-9999 ms). Mutual interference prevention by emission cycle switching (max 2 MZV units, or 2× E3X-ZV + 1× E3X-MZV combination). Independent CH1/CH2 indicators and selection. User Save/Reset for easy field recovery. Available with NPN or PNP output, pre-wired cable (2 m) or wire-saving connector type. 12-24 VDC, IEC compliant, CE marked. Patented dual-channel design.
OMRON E3X-MZV Smart Fiber Amplifier — Value Line (2-channel, NEW). 1 amp body provides 2 independent detection points — 1/2 installation space and up to 60% wiring savings compared to standard single-channel amplifiers (with wire-saving connector). Red 4-element LED (625 nm), min. detectable object 3 μm. Response time 100 μs (Super High Speed) / 250 μs (High Speed) / 1 ms (Standard) / 16 ms (Giga Power). Smart Tuning (2-press auto-adjust), DPC, ATC, built-in timer (1-9999 ms). Mutual interference prevention by emission cycle switching (max 2 MZV units, or 2× E3X-ZV + 1× E3X-MZV combination). Independent CH1/CH2 indicators and selection. User Save/Reset for easy field recovery. Available with NPN or PNP output, pre-wired cable (2 m) or wire-saving connector type. 12-24 VDC, IEC compliant, CE marked. Patented dual-channel design.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E3X-MZV11 2M | E3X-MZV Value Line 2-channel fiber amplifier, NPN, Pre-wired Cable 2 m | OMRON | Channels: 2-Channel (independent) | Outputs: 2 outputs | Response Time — Super High Speed (SHS): 100 μs (operate/reset) | Response Time — High Speed (HS): 250 μs (operate/reset, 700 μs with mutual interference) | Response Time — Standard (Stnd): 1 ms (operate/reset, 1.6 ms with mutual interference) | Response Time — Giga Power (GIGA): 16 ms (operate/reset) | Mutual Interference Prevention: Emission cycle switching (max 2 units MZV, or 2× E3X-ZV + 1× E3X-MZV, no close-mounting required) | Power Consumption (Normal): 820 mW max (24V: 35 mA / 12V: 69 mA) | Power Consumption (Eco ON): 600 mW max (24V: 25 mA / 12V: 50 mA) | Note: 1 amp body = 2 detection points / 1/2 installation space / up to 60% wiring savings with wire-saving connector | Output Type: NPN open collector (load 100 mA max, residual voltage 1-2 V) | Connection: Pre-wired Cable 2 m | Light Source: Red 4-element LED (625 nm) | Power Supply: 12-24 VDC ±10% (ripple p-p 10% max) | Min. Detectable Object: 3 μm (with E32-CC200) | Sensitivity Adjustment: Smart Tuning (2-point / power tuning / percent / max sensitivity / full auto / positioning) or manual | Display: 7-segment (green min. + red incident light) — orientation reversible | Functions: Smart Tuning / DPC (auto light correction) / ATC (auto threshold correction) / Timer / Zero Reset / User Save+Reset / Eco / Power Tuning | Timer: Off / Off-delay / On-delay / One-shot (1-9999 ms) | Ambient Illuminance: Incandescent 20,000 lx max / Sunlight 30,000 lx max | Ambient Temperature: Operating -25 to +55 °C / Storage -30 to +70 °C (no icing/condensation) | Ambient Humidity: 35-85 %RH (operating and storage) | Insulation Resistance: 20 MΩ min. (500 VDC megger) | Dielectric Strength: 1,000 VAC 50/60 Hz 1 min | Vibration Resistance: 10-55 Hz, 1.5 mm double amplitude, 2 h each X/Y/Z | Shock Resistance: 500 m/s² 3 times each X/Y/Z | Protection Circuits: Reverse polarity / Output short-circuit / Output reverse polarity | Housing Material: Polycarbonate (case + cover) | Compliance: CE | Compatible Connector: — | Weight (Packed): approx. 100 g | Weight (Body Only): approx. 75 g | |
| E3X-MZV41 2M | E3X-MZV Value Line 2-channel fiber amplifier, PNP, Pre-wired Cable 2 m | OMRON | Channels: 2-Channel (independent) | Outputs: 2 outputs | Response Time — Super High Speed (SHS): 100 μs (operate/reset) | Response Time — High Speed (HS): 250 μs (operate/reset, 700 μs with mutual interference) | Response Time — Standard (Stnd): 1 ms (operate/reset, 1.6 ms with mutual interference) | Response Time — Giga Power (GIGA): 16 ms (operate/reset) | Mutual Interference Prevention: Emission cycle switching (max 2 units MZV, or 2× E3X-ZV + 1× E3X-MZV, no close-mounting required) | Power Consumption (Normal): 820 mW max (24V: 35 mA / 12V: 69 mA) | Power Consumption (Eco ON): 600 mW max (24V: 25 mA / 12V: 50 mA) | Note: 1 amp body = 2 detection points / 1/2 installation space / up to 60% wiring savings with wire-saving connector | Output Type: PNP open collector (load 100 mA max, residual voltage 1-2 V) | Connection: Pre-wired Cable 2 m | Light Source: Red 4-element LED (625 nm) | Power Supply: 12-24 VDC ±10% (ripple p-p 10% max) | Min. Detectable Object: 3 μm (with E32-CC200) | Sensitivity Adjustment: Smart Tuning (2-point / power tuning / percent / max sensitivity / full auto / positioning) or manual | Display: 7-segment (green min. + red incident light) — orientation reversible | Functions: Smart Tuning / DPC (auto light correction) / ATC (auto threshold correction) / Timer / Zero Reset / User Save+Reset / Eco / Power Tuning | Timer: Off / Off-delay / On-delay / One-shot (1-9999 ms) | Ambient Illuminance: Incandescent 20,000 lx max / Sunlight 30,000 lx max | Ambient Temperature: Operating -25 to +55 °C / Storage -30 to +70 °C (no icing/condensation) | Ambient Humidity: 35-85 %RH (operating and storage) | Insulation Resistance: 20 MΩ min. (500 VDC megger) | Dielectric Strength: 1,000 VAC 50/60 Hz 1 min | Vibration Resistance: 10-55 Hz, 1.5 mm double amplitude, 2 h each X/Y/Z | Shock Resistance: 500 m/s² 3 times each X/Y/Z | Protection Circuits: Reverse polarity / Output short-circuit / Output reverse polarity | Housing Material: Polycarbonate (case + cover) | Compliance: CE | Compatible Connector: — | Weight (Packed): approx. 100 g | Weight (Body Only): approx. 75 g | |
| E3X-MZV6 | E3X-MZV Value Line 2-channel fiber amplifier, NPN, Wire-saving Connector | OMRON | Channels: 2-Channel (independent) | Outputs: 2 outputs | Response Time — Super High Speed (SHS): 100 μs (operate/reset) | Response Time — High Speed (HS): 250 μs (operate/reset, 700 μs with mutual interference) | Response Time — Standard (Stnd): 1 ms (operate/reset, 1.6 ms with mutual interference) | Response Time — Giga Power (GIGA): 16 ms (operate/reset) | Mutual Interference Prevention: Emission cycle switching (max 2 units MZV, or 2× E3X-ZV + 1× E3X-MZV, no close-mounting required) | Power Consumption (Normal): 820 mW max (24V: 35 mA / 12V: 69 mA) | Power Consumption (Eco ON): 600 mW max (24V: 25 mA / 12V: 50 mA) | Note: 1 amp body = 2 detection points / 1/2 installation space / up to 60% wiring savings with wire-saving connector | Output Type: NPN open collector (load 100 mA max, residual voltage 1-2 V) | Connection: Wire-saving Connector | Light Source: Red 4-element LED (625 nm) | Power Supply: 12-24 VDC ±10% (ripple p-p 10% max) | Min. Detectable Object: 3 μm (with E32-CC200) | Sensitivity Adjustment: Smart Tuning (2-point / power tuning / percent / max sensitivity / full auto / positioning) or manual | Display: 7-segment (green min. + red incident light) — orientation reversible | Functions: Smart Tuning / DPC (auto light correction) / ATC (auto threshold correction) / Timer / Zero Reset / User Save+Reset / Eco / Power Tuning | Timer: Off / Off-delay / On-delay / One-shot (1-9999 ms) | Ambient Illuminance: Incandescent 20,000 lx max / Sunlight 30,000 lx max | Ambient Temperature: Operating -25 to +55 °C / Storage -30 to +70 °C (no icing/condensation) | Ambient Humidity: 35-85 %RH (operating and storage) | Insulation Resistance: 20 MΩ min. (500 VDC megger) | Dielectric Strength: 1,000 VAC 50/60 Hz 1 min | Vibration Resistance: 10-55 Hz, 1.5 mm double amplitude, 2 h each X/Y/Z | Shock Resistance: 500 m/s² 3 times each X/Y/Z | Protection Circuits: Reverse polarity / Output short-circuit / Output reverse polarity | Housing Material: Polycarbonate (case + cover) | Compliance: CE | Compatible Connector: E3X-CN21 (master, 4-wire) / E3X-CN22 (slave, 2-wire) — sold separately | Weight (Packed): approx. 45 g | Weight (Body Only): approx. 20 g | |
| E3X-MZV8 | E3X-MZV Value Line 2-channel fiber amplifier, PNP, Wire-saving Connector | OMRON | Channels: 2-Channel (independent) | Outputs: 2 outputs | Response Time — Super High Speed (SHS): 100 μs (operate/reset) | Response Time — High Speed (HS): 250 μs (operate/reset, 700 μs with mutual interference) | Response Time — Standard (Stnd): 1 ms (operate/reset, 1.6 ms with mutual interference) | Response Time — Giga Power (GIGA): 16 ms (operate/reset) | Mutual Interference Prevention: Emission cycle switching (max 2 units MZV, or 2× E3X-ZV + 1× E3X-MZV, no close-mounting required) | Power Consumption (Normal): 820 mW max (24V: 35 mA / 12V: 69 mA) | Power Consumption (Eco ON): 600 mW max (24V: 25 mA / 12V: 50 mA) | Note: 1 amp body = 2 detection points / 1/2 installation space / up to 60% wiring savings with wire-saving connector | Output Type: PNP open collector (load 100 mA max, residual voltage 1-2 V) | Connection: Wire-saving Connector | Light Source: Red 4-element LED (625 nm) | Power Supply: 12-24 VDC ±10% (ripple p-p 10% max) | Min. Detectable Object: 3 μm (with E32-CC200) | Sensitivity Adjustment: Smart Tuning (2-point / power tuning / percent / max sensitivity / full auto / positioning) or manual | Display: 7-segment (green min. + red incident light) — orientation reversible | Functions: Smart Tuning / DPC (auto light correction) / ATC (auto threshold correction) / Timer / Zero Reset / User Save+Reset / Eco / Power Tuning | Timer: Off / Off-delay / On-delay / One-shot (1-9999 ms) | Ambient Illuminance: Incandescent 20,000 lx max / Sunlight 30,000 lx max | Ambient Temperature: Operating -25 to +55 °C / Storage -30 to +70 °C (no icing/condensation) | Ambient Humidity: 35-85 %RH (operating and storage) | Insulation Resistance: 20 MΩ min. (500 VDC megger) | Dielectric Strength: 1,000 VAC 50/60 Hz 1 min | Vibration Resistance: 10-55 Hz, 1.5 mm double amplitude, 2 h each X/Y/Z | Shock Resistance: 500 m/s² 3 times each X/Y/Z | Protection Circuits: Reverse polarity / Output short-circuit / Output reverse polarity | Housing Material: Polycarbonate (case + cover) | Compliance: CE | Compatible Connector: E3X-CN21 (master, 4-wire) / E3X-CN22 (slave, 2-wire) — sold separately | Weight (Packed): approx. 45 g | Weight (Body Only): approx. 20 g |
![[OMRON] — E3X-NA F-Type High-Speed Fiber Amplifier (20μs Response, Bar Display)](https://img.prosourcemro.com/2026/05/001-1-300x209.png)
High-speed fiber amplifier unit with 20μs operate / 30μs reset response time — 10x faster than standard models for high-speed production line detection. Bar display with 8-turn adjuster for easy sensitivity tuning. Bottle counting, small-part detection, and high-speed positioning applications. 12-24 VDC power supply, open-collector output (NPN/PNP), Light-ON/Dark-ON selectable. Note: Mutual interference prevention is disabled in high-speed mode. Compatible with E32 series fiber optic head units. Mounting Bracket (E39-L143) and DIN track End Plate (PFP-M) sold separately — contact for quote.
High-speed fiber amplifier unit with 20μs operate / 30μs reset response time — 10x faster than standard models for high-speed production line detection. Bar display with 8-turn adjuster for easy sensitivity tuning. Bottle counting, small-part detection, and high-speed positioning applications. 12-24 VDC power supply, open-collector output (NPN/PNP), Light-ON/Dark-ON selectable. Note: Mutual interference prevention is disabled in high-speed mode. Compatible with E32 series fiber optic head units. Mounting Bracket (E39-L143) and DIN track End Plate (PFP-M) sold separately — contact for quote.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E3X-NA11F 2M | OMRON E3X-NA11F high-speed fiber amplifier, NPN, 20μs response, 2m cable. | OMRON | Output: NPN | Connection: Pre-wired (2m cable) | Light Source: Red 4-element LED (625 nm) | Display: 5-segment bar (4 green + 1 red) excess gain indicator | Sensitivity Setting: 8-turn sensitivity adjuster (with indicator) | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 840 mW max. (35 mA @ 24 VDC) | Control Output: Open-collector, 26.4 V max., 50 mA max., residual voltage 1 V max. | Mode Selector: Light-ON / Dark-ON | Response Time: Operate 20 μs max. / Reset 30 μs max. ⭐ High-speed | Timer Function: No timer / OFF-delay (40 ms fixed) — selectable | Mutual Interference Prevention: None (high-speed mode) | Protection: IP50 (with Protective Cover) | Ambient Temperature: -25°C to 55°C (1-3 amps), -25°C to 50°C (4-11), -25°C to 45°C (12-16) | Mounting: DIN track or Mounting Bracket E39-L143 (sold separately) | |
| E3X-NA41F 2M | OMRON E3X-NA41F high-speed fiber amplifier, PNP, 20μs response, 2m cable. | OMRON | Output: PNP | Connection: Pre-wired (2m cable) | Light Source: Red 4-element LED (625 nm) | Display: 5-segment bar (4 green + 1 red) excess gain indicator | Sensitivity Setting: 8-turn sensitivity adjuster (with indicator) | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 840 mW max. (35 mA @ 24 VDC) | Control Output: Open-collector, 26.4 V max., 50 mA max., residual voltage 1 V max. | Mode Selector: Light-ON / Dark-ON | Response Time: Operate 20 μs max. / Reset 30 μs max. ⭐ High-speed | Timer Function: No timer / OFF-delay (40 ms fixed) — selectable | Mutual Interference Prevention: None (high-speed mode) | Protection: IP50 (with Protective Cover) | Ambient Temperature: -25°C to 55°C (1-3 amps), -25°C to 50°C (4-11), -25°C to 45°C (12-16) | Mounting: DIN track or Mounting Bracket E39-L143 (sold separately) |
Simple and affordable fiber amplifier unit with intuitive bar display and 8-turn sensitivity adjuster. 5-segment LED bar (4 green + 1 red) shows excess gain level for easy light axis alignment and sensitivity tuning. Built-in OFF-delay timer (40 ms fixed) selectable. 12-24 VDC power supply, open-collector output (NPN/PNP), Light-ON/Dark-ON selectable. Mutual interference prevention up to 5 amplifiers gang-mounted. Compatible with E32 series fiber optic head units. Mounting Bracket (E39-L143), DIN track End Plate (PFP-M), and Wire-saving Connectors (E3X-CN11 Master / E3X-CN12 Slave) sold separately — contact for quote.
Simple and affordable fiber amplifier unit with intuitive bar display and 8-turn sensitivity adjuster. 5-segment LED bar (4 green + 1 red) shows excess gain level for easy light axis alignment and sensitivity tuning. Built-in OFF-delay timer (40 ms fixed) selectable. 12-24 VDC power supply, open-collector output (NPN/PNP), Light-ON/Dark-ON selectable. Mutual interference prevention up to 5 amplifiers gang-mounted. Compatible with E32 series fiber optic head units. Mounting Bracket (E39-L143), DIN track End Plate (PFP-M), and Wire-saving Connectors (E3X-CN11 Master / E3X-CN12 Slave) sold separately — contact for quote.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E3X-NA11 2M | OMRON E3X-NA11 fiber amplifier, NPN open-collector, 2m pre-wired cable. | OMRON | Output: NPN | Connection: Pre-wired (2m cable) | Light Source: Red 4-element LED (624 nm) | Display: 5-segment bar (4 green + 1 red) excess gain indicator | Sensitivity Setting: 8-turn sensitivity adjuster (with indicator) | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 840 mW max. (35 mA @ 24 VDC) | Control Output: Open-collector, 26.4 V max., 50 mA max., residual voltage 1 V max. | Mode Selector: Light-ON / Dark-ON | Response Time: Operate/Reset 200 μs max. (350 μs for 8+ amplifiers) | Timer Function: No timer / OFF-delay (40 ms fixed) — selectable | Mutual Interference Prevention: Up to 5 amplifiers (optically synchronized) | Protection: IP50 (with Protective Cover) | Ambient Temperature: -25°C to 55°C (1-3 amps), -25°C to 50°C (4-11), -25°C to 45°C (12-16) | Mounting: DIN track or Mounting Bracket E39-L143 (sold separately) | |
| E3X-NA41 2M | OMRON E3X-NA41 fiber amplifier, PNP open-collector, 2m pre-wired cable. | OMRON | Output: PNP | Connection: Pre-wired (2m cable) | Light Source: Red 4-element LED (624 nm) | Display: 5-segment bar (4 green + 1 red) excess gain indicator | Sensitivity Setting: 8-turn sensitivity adjuster (with indicator) | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 840 mW max. (35 mA @ 24 VDC) | Control Output: Open-collector, 26.4 V max., 50 mA max., residual voltage 1 V max. | Mode Selector: Light-ON / Dark-ON | Response Time: Operate/Reset 200 μs max. (350 μs for 8+ amplifiers) | Timer Function: No timer / OFF-delay (40 ms fixed) — selectable | Mutual Interference Prevention: Up to 5 amplifiers (optically synchronized) | Protection: IP50 (with Protective Cover) | Ambient Temperature: -25°C to 55°C (1-3 amps), -25°C to 50°C (4-11), -25°C to 45°C (12-16) | Mounting: DIN track or Mounting Bracket E39-L143 (sold separately) | |
| E3X-NA6 | OMRON E3X-NA6 fiber amplifier, NPN, wire-saving connector type. | OMRON | Output: NPN | Connection: Wire-saving connector (E3X-CN11/CN12 sold separately) | Light Source: Red 4-element LED (624 nm) | Display: 5-segment bar (4 green + 1 red) excess gain indicator | Sensitivity Setting: 8-turn sensitivity adjuster (with indicator) | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 840 mW max. (35 mA @ 24 VDC) | Control Output: Open-collector, 26.4 V max., 50 mA max., residual voltage 1 V max. | Mode Selector: Light-ON / Dark-ON | Response Time: Operate/Reset 200 μs max. (350 μs for 8+ amplifiers) | Timer Function: No timer / OFF-delay (40 ms fixed) — selectable | Mutual Interference Prevention: Up to 5 amplifiers (optically synchronized) | Protection: IP50 (with Protective Cover) | Ambient Temperature: -25°C to 55°C (1-3 amps), -25°C to 50°C (4-11), -25°C to 45°C (12-16) | Mounting: DIN track or Mounting Bracket E39-L143 (sold separately) | |
| E3X-NA8 | OMRON E3X-NA8 fiber amplifier, PNP, wire-saving connector type. | OMRON | Output: PNP | Connection: Wire-saving connector (E3X-CN11/CN12 sold separately) | Light Source: Red 4-element LED (624 nm) | Display: 5-segment bar (4 green + 1 red) excess gain indicator | Sensitivity Setting: 8-turn sensitivity adjuster (with indicator) | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 840 mW max. (35 mA @ 24 VDC) | Control Output: Open-collector, 26.4 V max., 50 mA max., residual voltage 1 V max. | Mode Selector: Light-ON / Dark-ON | Response Time: Operate/Reset 200 μs max. (350 μs for 8+ amplifiers) | Timer Function: No timer / OFF-delay (40 ms fixed) — selectable | Mutual Interference Prevention: Up to 5 amplifiers (optically synchronized) | Protection: IP50 (with Protective Cover) | Ambient Temperature: -25°C to 55°C (1-3 amps), -25°C to 50°C (4-11), -25°C to 45°C (12-16) | Mounting: DIN track or Mounting Bracket E39-L143 (sold separately) |
Water-resistant fiber amplifier unit with IP66 protection and M8 4-pin connector for tool-free cable replacement and quick maintenance. Ideal for wet processing, food and beverage production, and equipment requiring frequent disconnect. Bar display with 8-turn adjuster. 12-24 VDC, open-collector output (NPN/PNP). Compatible with E32 series fiber optic head units. Sensor I/O cable XS3F-M421-402-A / XS3F-M421-405-A (straight) or XS3F-M422-402-A / XS3F-M422-405-A (L-shaped) sold separately. Mounting Bracket (E39-L148) and DIN track End Plate (PFP-M) sold separately.
Water-resistant fiber amplifier unit with IP66 protection and M8 4-pin connector for tool-free cable replacement and quick maintenance. Ideal for wet processing, food and beverage production, and equipment requiring frequent disconnect. Bar display with 8-turn adjuster. 12-24 VDC, open-collector output (NPN/PNP). Compatible with E32 series fiber optic head units. Sensor I/O cable XS3F-M421-402-A / XS3F-M421-405-A (straight) or XS3F-M422-402-A / XS3F-M422-405-A (L-shaped) sold separately. Mounting Bracket (E39-L148) and DIN track End Plate (PFP-M) sold separately.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E3X-NA14V | OMRON E3X-NA14V water-resistant fiber amplifier, NPN, IP66, M8 connector. | OMRON | Output: NPN | Connection: M8 4-pin connector (XS3F cable sold separately) | Light Source: Red LED (680 nm) | Display: 5-segment bar (4 green + 1 red) excess gain indicator | Sensitivity Setting: 8-turn sensitivity adjuster (with indicator) | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 840 mW max. (35 mA @ 24 VDC) | Control Output: Open-collector, 26.4 V max., 50 mA max., residual voltage 1 V max. | Mode Selector: Light-ON / Dark-ON | Response Time: Operate/Reset 200 μs max. | Timer Function: No timer / OFF-delay (40 ms fixed) — selectable | Mutual Interference Prevention: Up to 5 amplifiers (optically synchronized) | Protection: IP66 ⭐ Water-resistant | Ambient Temperature: -25°C to 55°C (1-3 amps), -25°C to 50°C (4-11), -25°C to 45°C (12-16) | Connector: M8 4-pin (XS3F-M421/M422 cable sold separately) | Mounting: DIN track or Mounting Bracket E39-L148 (sold separately) | |
| E3X-NA44V | OMRON E3X-NA44V water-resistant fiber amplifier, PNP, IP66, M8 connector. | OMRON | Output: PNP | Connection: M8 4-pin connector (XS3F cable sold separately) | Light Source: Red LED (680 nm) | Display: 5-segment bar (4 green + 1 red) excess gain indicator | Sensitivity Setting: 8-turn sensitivity adjuster (with indicator) | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 840 mW max. (35 mA @ 24 VDC) | Control Output: Open-collector, 26.4 V max., 50 mA max., residual voltage 1 V max. | Mode Selector: Light-ON / Dark-ON | Response Time: Operate/Reset 200 μs max. | Timer Function: No timer / OFF-delay (40 ms fixed) — selectable | Mutual Interference Prevention: Up to 5 amplifiers (optically synchronized) | Protection: IP66 ⭐ Water-resistant | Ambient Temperature: -25°C to 55°C (1-3 amps), -25°C to 50°C (4-11), -25°C to 45°C (12-16) | Connector: M8 4-pin (XS3F-M421/M422 cable sold separately) | Mounting: DIN track or Mounting Bracket E39-L148 (sold separately) |
Water-resistant fiber amplifier unit with IP66 protection rating for harsh environments — wet processing, food production, and outdoor or splash-prone applications. Larger enclosure with sealed cable entry. Bar display with 8-turn adjuster. 12-24 VDC power supply, open-collector output (NPN/PNP), Light-ON/Dark-ON selectable. Compatible with E32 series fiber optic head units. Mounting Bracket (E39-L148) and DIN track End Plate (PFP-M) sold separately — contact for quote.
Water-resistant fiber amplifier unit with IP66 protection rating for harsh environments — wet processing, food production, and outdoor or splash-prone applications. Larger enclosure with sealed cable entry. Bar display with 8-turn adjuster. 12-24 VDC power supply, open-collector output (NPN/PNP), Light-ON/Dark-ON selectable. Compatible with E32 series fiber optic head units. Mounting Bracket (E39-L148) and DIN track End Plate (PFP-M) sold separately — contact for quote.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E3X-NA11V 2M | OMRON E3X-NA11V water-resistant fiber amplifier, NPN, IP66, 2m cable. | OMRON | Output: NPN | Connection: Pre-wired (2m cable) | Light Source: Red LED (680 nm) | Display: 5-segment bar (4 green + 1 red) excess gain indicator | Sensitivity Setting: 8-turn sensitivity adjuster (with indicator) | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 840 mW max. (35 mA @ 24 VDC) | Control Output: Open-collector, 26.4 V max., 50 mA max., residual voltage 1 V max. | Mode Selector: Light-ON / Dark-ON | Response Time: Operate/Reset 200 μs max. | Timer Function: No timer / OFF-delay (40 ms fixed) — selectable | Mutual Interference Prevention: Up to 5 amplifiers (optically synchronized) | Protection: IP66 ⭐ Water-resistant | Ambient Temperature: -25°C to 55°C (1-3 amps), -25°C to 50°C (4-11), -25°C to 45°C (12-16) | Mounting: DIN track or Mounting Bracket E39-L148 (sold separately) | |
| E3X-NA41V 2M | OMRON E3X-NA41V water-resistant fiber amplifier, PNP, IP66, 2m cable. | OMRON | Output: PNP | Connection: Pre-wired (2m cable) | Light Source: Red LED (680 nm) | Display: 5-segment bar (4 green + 1 red) excess gain indicator | Sensitivity Setting: 8-turn sensitivity adjuster (with indicator) | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 840 mW max. (35 mA @ 24 VDC) | Control Output: Open-collector, 26.4 V max., 50 mA max., residual voltage 1 V max. | Mode Selector: Light-ON / Dark-ON | Response Time: Operate/Reset 200 μs max. | Timer Function: No timer / OFF-delay (40 ms fixed) — selectable | Mutual Interference Prevention: Up to 5 amplifiers (optically synchronized) | Protection: IP66 ⭐ Water-resistant | Ambient Temperature: -25°C to 55°C (1-3 amps), -25°C to 50°C (4-11), -25°C to 45°C (12-16) | Mounting: DIN track or Mounting Bracket E39-L148 (sold separately) |
Simple and affordable fiber amplifier unit with digital display and direct key setting. One-key one-function feature for quick, easy operation. UP/DOWN sensitivity adjustment, teaching with/without workpiece, and automatic teaching for moving workpieces. 12-24 VDC power supply, open-collector output (NPN/PNP), Light-ON/Dark-ON selectable. Mutual interference prevention up to 5 amplifiers gang-mounted. Compatible with E32 series fiber optic head units. Mounting Bracket (E39-L143), DIN track End Plate (PFP-M), and Wire-saving Connectors (E3X-CN11 Master / E3X-CN12 Slave) sold separately — contact for quote.
Simple and affordable fiber amplifier unit with digital display and direct key setting. One-key one-function feature for quick, easy operation. UP/DOWN sensitivity adjustment, teaching with/without workpiece, and automatic teaching for moving workpieces. 12-24 VDC power supply, open-collector output (NPN/PNP), Light-ON/Dark-ON selectable. Mutual interference prevention up to 5 amplifiers gang-mounted. Compatible with E32 series fiber optic head units. Mounting Bracket (E39-L143), DIN track End Plate (PFP-M), and Wire-saving Connectors (E3X-CN11 Master / E3X-CN12 Slave) sold separately — contact for quote.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E3X-SD21 2M | OMRON E3X-SD21 fiber amplifier, NPN open-collector, 2m pre-wired cable. | OMRON | Output: NPN | Connection: Pre-wired (2m cable) | Light Source: Red 4-element LED (625 nm) | Display: Digital incident light level / threshold value | Sensitivity Setting: UP/DOWN keys, teaching with/without workpiece, automatic teaching | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 960 mW max. (40 mA @ 24 VDC) | Control Output: Open-collector, 26.4 V max., 50 mA max., residual voltage 1.5 V max. | Mode Selector: Light-ON / Dark-ON | Response Time: Operate/Reset 200 μs max. (350 μs for 8+ amplifiers) | Mutual Interference Prevention: Up to 5 amplifiers (optically synchronized) | Protection: IP50 (with Protective Cover) | Ambient Temperature: -25°C to 55°C (1-3 amps), -25°C to 50°C (4-11), -25°C to 45°C (12-16) | Mounting: DIN track or Mounting Bracket E39-L143 (sold separately) | |
| E3X-SD51 2M | OMRON E3X-SD51 fiber amplifier, PNP open-collector, 2m pre-wired cable. | OMRON | Output: PNP | Connection: Pre-wired (2m cable) | Light Source: Red 4-element LED (625 nm) | Display: Digital incident light level / threshold value | Sensitivity Setting: UP/DOWN keys, teaching with/without workpiece, automatic teaching | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 960 mW max. (40 mA @ 24 VDC) | Control Output: Open-collector, 26.4 V max., 50 mA max., residual voltage 1.5 V max. | Mode Selector: Light-ON / Dark-ON | Response Time: Operate/Reset 200 μs max. (350 μs for 8+ amplifiers) | Mutual Interference Prevention: Up to 5 amplifiers (optically synchronized) | Protection: IP50 (with Protective Cover) | Ambient Temperature: -25°C to 55°C (1-3 amps), -25°C to 50°C (4-11), -25°C to 45°C (12-16) | Mounting: DIN track or Mounting Bracket E39-L143 (sold separately) | |
| E3X-SD7 | OMRON E3X-SD7 fiber amplifier, NPN, wire-saving connector type. | OMRON | Output: NPN | Connection: Wire-saving connector (E3X-CN11/CN12 sold separately) | Light Source: Red 4-element LED (625 nm) | Display: Digital incident light level / threshold value | Sensitivity Setting: UP/DOWN keys, teaching with/without workpiece, automatic teaching | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 960 mW max. (40 mA @ 24 VDC) | Control Output: Open-collector, 26.4 V max., 50 mA max., residual voltage 1.5 V max. | Mode Selector: Light-ON / Dark-ON | Response Time: Operate/Reset 200 μs max. (350 μs for 8+ amplifiers) | Mutual Interference Prevention: Up to 5 amplifiers (optically synchronized) | Protection: IP50 (with Protective Cover) | Ambient Temperature: -25°C to 55°C (1-3 amps), -25°C to 50°C (4-11), -25°C to 45°C (12-16) | Mounting: DIN track or Mounting Bracket E39-L143 (sold separately) | |
| E3X-SD9 | OMRON E3X-SD9 fiber amplifier, PNP, wire-saving connector type. | OMRON | Output: PNP | Connection: Wire-saving connector (E3X-CN11/CN12 sold separately) | Light Source: Red 4-element LED (625 nm) | Display: Digital incident light level / threshold value | Sensitivity Setting: UP/DOWN keys, teaching with/without workpiece, automatic teaching | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 960 mW max. (40 mA @ 24 VDC) | Control Output: Open-collector, 26.4 V max., 50 mA max., residual voltage 1.5 V max. | Mode Selector: Light-ON / Dark-ON | Response Time: Operate/Reset 200 μs max. (350 μs for 8+ amplifiers) | Mutual Interference Prevention: Up to 5 amplifiers (optically synchronized) | Protection: IP50 (with Protective Cover) | Ambient Temperature: -25°C to 55°C (1-3 amps), -25°C to 50°C (4-11), -25°C to 45°C (12-16) | Mounting: DIN track or Mounting Bracket E39-L143 (sold separately) |
OMRON E3X-ZV Smart Fiber Amplifier — Value Line (1-channel). Red 4-element LED (625 nm), min. detectable object 3 μm. Response time 50 μs (Super High Speed) / 250 μs (High Speed) / 1 ms (Standard) / 16 ms (Giga Power). Smart Tuning (2-press auto-adjust), DPC (Dynamic Power Control) for auto light correction, ATC (Auto Threshold Correction), built-in timer (off/on-delay/one-shot 1-9999 ms). Mutual interference prevention by emission cycle switching — up to 4 units, no close-mounting required. User Save/Reset for easy field recovery. Eco mode reduces consumption to 530 mW max. Available with NPN or PNP output, pre-wired cable (2 m) or wire-saving connector type. 12-24 VDC, IEC compliant, CE marked.
OMRON E3X-ZV Smart Fiber Amplifier — Value Line (1-channel). Red 4-element LED (625 nm), min. detectable object 3 μm. Response time 50 μs (Super High Speed) / 250 μs (High Speed) / 1 ms (Standard) / 16 ms (Giga Power). Smart Tuning (2-press auto-adjust), DPC (Dynamic Power Control) for auto light correction, ATC (Auto Threshold Correction), built-in timer (off/on-delay/one-shot 1-9999 ms). Mutual interference prevention by emission cycle switching — up to 4 units, no close-mounting required. User Save/Reset for easy field recovery. Eco mode reduces consumption to 530 mW max. Available with NPN or PNP output, pre-wired cable (2 m) or wire-saving connector type. 12-24 VDC, IEC compliant, CE marked.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E3X-ZV11 2M | E3X-ZV Value Line 1-channel fiber amplifier, NPN, Pre-wired Cable 2 m | OMRON | Channels: 1-Channel | Outputs: 1 output | Response Time — Super High Speed (SHS): 50 μs (operate/reset) | Response Time — High Speed (HS): 250 μs (operate/reset) | Response Time — Standard (Stnd): 1 ms (operate/reset) | Response Time — Giga Power (GIGA): 16 ms (operate/reset) | Mutual Interference Prevention: Emission cycle switching (max 4 units, no close-mounting required) | Power Consumption (Normal): 720 mW max (24V: 30 mA / 12V: 60 mA) | Power Consumption (Eco ON): 530 mW max (24V: 22 mA / 12V: 44 mA) | Output Type: NPN open collector (load 100 mA max, residual voltage 1-2 V) | Connection: Pre-wired Cable 2 m | Light Source: Red 4-element LED (625 nm) | Power Supply: 12-24 VDC ±10% (ripple p-p 10% max) | Min. Detectable Object: 3 μm (with E32-CC200) | Sensitivity Adjustment: Smart Tuning (2-point / power tuning / percent / max sensitivity / full auto / positioning) or manual | Display: 7-segment (green min. + red incident light) — orientation reversible | Functions: Smart Tuning / DPC (auto light correction) / ATC (auto threshold correction) / Timer / Zero Reset / User Save+Reset / Eco / Power Tuning | Timer: Off / Off-delay / On-delay / One-shot (1-9999 ms) | Ambient Illuminance: Incandescent 20,000 lx max / Sunlight 30,000 lx max | Ambient Temperature: Operating -25 to +55 °C / Storage -30 to +70 °C (no icing/condensation) | Ambient Humidity: 35-85 %RH (operating and storage) | Insulation Resistance: 20 MΩ min. (500 VDC megger) | Dielectric Strength: 1,000 VAC 50/60 Hz 1 min | Vibration Resistance: 10-55 Hz, 1.5 mm double amplitude, 2 h each X/Y/Z | Shock Resistance: 500 m/s² 3 times each X/Y/Z | Protection Circuits: Reverse polarity / Output short-circuit / Output reverse polarity | Housing Material: Polycarbonate (case + cover) | Compliance: CE | Compatible Connector: — | Weight (Packed): approx. 95 g | Weight (Body Only): approx. 65 g | |
| E3X-ZV41 2M | E3X-ZV Value Line 1-channel fiber amplifier, PNP, Pre-wired Cable 2 m | OMRON | Channels: 1-Channel | Outputs: 1 output | Response Time — Super High Speed (SHS): 50 μs (operate/reset) | Response Time — High Speed (HS): 250 μs (operate/reset) | Response Time — Standard (Stnd): 1 ms (operate/reset) | Response Time — Giga Power (GIGA): 16 ms (operate/reset) | Mutual Interference Prevention: Emission cycle switching (max 4 units, no close-mounting required) | Power Consumption (Normal): 720 mW max (24V: 30 mA / 12V: 60 mA) | Power Consumption (Eco ON): 530 mW max (24V: 22 mA / 12V: 44 mA) | Output Type: PNP open collector (load 100 mA max, residual voltage 1-2 V) | Connection: Pre-wired Cable 2 m | Light Source: Red 4-element LED (625 nm) | Power Supply: 12-24 VDC ±10% (ripple p-p 10% max) | Min. Detectable Object: 3 μm (with E32-CC200) | Sensitivity Adjustment: Smart Tuning (2-point / power tuning / percent / max sensitivity / full auto / positioning) or manual | Display: 7-segment (green min. + red incident light) — orientation reversible | Functions: Smart Tuning / DPC (auto light correction) / ATC (auto threshold correction) / Timer / Zero Reset / User Save+Reset / Eco / Power Tuning | Timer: Off / Off-delay / On-delay / One-shot (1-9999 ms) | Ambient Illuminance: Incandescent 20,000 lx max / Sunlight 30,000 lx max | Ambient Temperature: Operating -25 to +55 °C / Storage -30 to +70 °C (no icing/condensation) | Ambient Humidity: 35-85 %RH (operating and storage) | Insulation Resistance: 20 MΩ min. (500 VDC megger) | Dielectric Strength: 1,000 VAC 50/60 Hz 1 min | Vibration Resistance: 10-55 Hz, 1.5 mm double amplitude, 2 h each X/Y/Z | Shock Resistance: 500 m/s² 3 times each X/Y/Z | Protection Circuits: Reverse polarity / Output short-circuit / Output reverse polarity | Housing Material: Polycarbonate (case + cover) | Compliance: CE | Compatible Connector: — | Weight (Packed): approx. 95 g | Weight (Body Only): approx. 65 g | |
| E3X-ZV6 | E3X-ZV Value Line 1-channel fiber amplifier, NPN, Wire-saving Connector | OMRON | Channels: 1-Channel | Outputs: 1 output | Response Time — Super High Speed (SHS): 50 μs (operate/reset) | Response Time — High Speed (HS): 250 μs (operate/reset) | Response Time — Standard (Stnd): 1 ms (operate/reset) | Response Time — Giga Power (GIGA): 16 ms (operate/reset) | Mutual Interference Prevention: Emission cycle switching (max 4 units, no close-mounting required) | Power Consumption (Normal): 720 mW max (24V: 30 mA / 12V: 60 mA) | Power Consumption (Eco ON): 530 mW max (24V: 22 mA / 12V: 44 mA) | Output Type: NPN open collector (load 100 mA max, residual voltage 1-2 V) | Connection: Wire-saving Connector | Light Source: Red 4-element LED (625 nm) | Power Supply: 12-24 VDC ±10% (ripple p-p 10% max) | Min. Detectable Object: 3 μm (with E32-CC200) | Sensitivity Adjustment: Smart Tuning (2-point / power tuning / percent / max sensitivity / full auto / positioning) or manual | Display: 7-segment (green min. + red incident light) — orientation reversible | Functions: Smart Tuning / DPC (auto light correction) / ATC (auto threshold correction) / Timer / Zero Reset / User Save+Reset / Eco / Power Tuning | Timer: Off / Off-delay / On-delay / One-shot (1-9999 ms) | Ambient Illuminance: Incandescent 20,000 lx max / Sunlight 30,000 lx max | Ambient Temperature: Operating -25 to +55 °C / Storage -30 to +70 °C (no icing/condensation) | Ambient Humidity: 35-85 %RH (operating and storage) | Insulation Resistance: 20 MΩ min. (500 VDC megger) | Dielectric Strength: 1,000 VAC 50/60 Hz 1 min | Vibration Resistance: 10-55 Hz, 1.5 mm double amplitude, 2 h each X/Y/Z | Shock Resistance: 500 m/s² 3 times each X/Y/Z | Protection Circuits: Reverse polarity / Output short-circuit / Output reverse polarity | Housing Material: Polycarbonate (case + cover) | Compliance: CE | Compatible Connector: E3X-CN11 (master, 3-wire) / E3X-CN12 (slave, 1-wire) — sold separately | Weight (Packed): approx. 45 g | Weight (Body Only): approx. 20 g | |
| E3X-ZV8 | E3X-ZV Value Line 1-channel fiber amplifier, PNP, Wire-saving Connector | OMRON | Channels: 1-Channel | Outputs: 1 output | Response Time — Super High Speed (SHS): 50 μs (operate/reset) | Response Time — High Speed (HS): 250 μs (operate/reset) | Response Time — Standard (Stnd): 1 ms (operate/reset) | Response Time — Giga Power (GIGA): 16 ms (operate/reset) | Mutual Interference Prevention: Emission cycle switching (max 4 units, no close-mounting required) | Power Consumption (Normal): 720 mW max (24V: 30 mA / 12V: 60 mA) | Power Consumption (Eco ON): 530 mW max (24V: 22 mA / 12V: 44 mA) | Output Type: PNP open collector (load 100 mA max, residual voltage 1-2 V) | Connection: Wire-saving Connector | Light Source: Red 4-element LED (625 nm) | Power Supply: 12-24 VDC ±10% (ripple p-p 10% max) | Min. Detectable Object: 3 μm (with E32-CC200) | Sensitivity Adjustment: Smart Tuning (2-point / power tuning / percent / max sensitivity / full auto / positioning) or manual | Display: 7-segment (green min. + red incident light) — orientation reversible | Functions: Smart Tuning / DPC (auto light correction) / ATC (auto threshold correction) / Timer / Zero Reset / User Save+Reset / Eco / Power Tuning | Timer: Off / Off-delay / On-delay / One-shot (1-9999 ms) | Ambient Illuminance: Incandescent 20,000 lx max / Sunlight 30,000 lx max | Ambient Temperature: Operating -25 to +55 °C / Storage -30 to +70 °C (no icing/condensation) | Ambient Humidity: 35-85 %RH (operating and storage) | Insulation Resistance: 20 MΩ min. (500 VDC megger) | Dielectric Strength: 1,000 VAC 50/60 Hz 1 min | Vibration Resistance: 10-55 Hz, 1.5 mm double amplitude, 2 h each X/Y/Z | Shock Resistance: 500 m/s² 3 times each X/Y/Z | Protection Circuits: Reverse polarity / Output short-circuit / Output reverse polarity | Housing Material: Polycarbonate (case + cover) | Compliance: CE | Compatible Connector: E3X-CN11 (master, 3-wire) / E3X-CN12 (slave, 1-wire) — sold separately | Weight (Packed): approx. 45 g | Weight (Body Only): approx. 20 g |

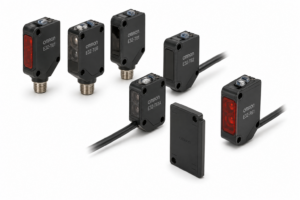

![[OMRON] — E3Z Diffuse / Limited / Narrow Compact Photoelectric Sensor (NPN/PNP)](https://img.prosourcemro.com/2026/05/001-325-300x200.png)
OMRON E3Z Series compact diffuse-reflective and limited-reflective photoelectric sensors. Diffuse-reflective wide view (E3Z-D61/81): 5~100 mm, infrared. Diffuse-reflective 1 m (E3Z-D62/82): infrared/red. Narrow beam diffuse (E3Z-L61/81): 90±30 mm, red. Limited-reflective for transparent glass (E3Z-L63/83): 30±20 mm, red. Pre-wired 2 m and M8 connector types. NPN and PNP output. Distance-settable models (E3Z-LS series) registered separately.
OMRON E3Z Series compact diffuse-reflective and limited-reflective photoelectric sensors. Diffuse-reflective wide view (E3Z-D61/81): 5~100 mm, infrared. Diffuse-reflective 1 m (E3Z-D62/82): infrared/red. Narrow beam diffuse (E3Z-L61/81): 90±30 mm, red. Limited-reflective for transparent glass (E3Z-L63/83): 30±20 mm, red. Pre-wired 2 m and M8 connector types. NPN and PNP output. Distance-settable models (E3Z-LS series) registered separately.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E3Z-D61 2M | Diffuse-reflective 5~100 mm (wide view) NPN pre-wired 2m | OMRON | Sensing Distance: 5~100 mm (wide view) | Light Source: Infrared | Sensing Method: Diffuse-reflective | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series) | Connection: Pre-wired 2 m | |
| E3Z-D66 | Diffuse-reflective 5~100 mm (wide view) NPN M8 | OMRON | Sensing Distance: 5~100 mm (wide view) | Light Source: Infrared | Sensing Method: Diffuse-reflective | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | |
| E3Z-D81 2M | Diffuse-reflective 5~100 mm (wide view) PNP pre-wired 2m | OMRON | Sensing Distance: 5~100 mm (wide view) | Light Source: Infrared | Sensing Method: Diffuse-reflective | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series) | Connection: Pre-wired 2 m | |
| E3Z-D86 | Diffuse-reflective 5~100 mm (wide view) PNP M8 | OMRON | Sensing Distance: 5~100 mm (wide view) | Light Source: Infrared | Sensing Method: Diffuse-reflective | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | |
| E3Z-D62 2M | Diffuse-reflective 1 m NPN pre-wired 2m | OMRON | Sensing Distance: 1 m | Light Source: Infrared/Red | Sensing Method: Diffuse-reflective | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series) | Connection: Pre-wired 2 m | |
| E3Z-D67 | Diffuse-reflective 1 m NPN M8 | OMRON | Sensing Distance: 1 m | Light Source: Infrared/Red | Sensing Method: Diffuse-reflective | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | |
| E3Z-D82 2M | Diffuse-reflective 1 m PNP pre-wired 2m | OMRON | Sensing Distance: 1 m | Light Source: Infrared/Red | Sensing Method: Diffuse-reflective | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series) | Connection: Pre-wired 2 m | |
| E3Z-D87 | Diffuse-reflective 1 m PNP M8 | OMRON | Sensing Distance: 1 m | Light Source: Infrared/Red | Sensing Method: Diffuse-reflective | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | |
| E3Z-L61 2M | Diffuse-reflective (narrow) 90±30 mm (narrow beam) NPN pre-wired 2m | OMRON | Sensing Distance: 90±30 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective (narrow) | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series) | Connection: Pre-wired 2 m | |
| E3Z-L66 | Diffuse-reflective (narrow) 90±30 mm (narrow beam) NPN M8 | OMRON | Sensing Distance: 90±30 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective (narrow) | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | |
| E3Z-L81 2M | Diffuse-reflective (narrow) 90±30 mm (narrow beam) PNP pre-wired 2m | OMRON | Sensing Distance: 90±30 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective (narrow) | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series) | Connection: Pre-wired 2 m | |
| E3Z-L86 | Diffuse-reflective (narrow) 90±30 mm (narrow beam) PNP M8 | OMRON | Sensing Distance: 90±30 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective (narrow) | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | |
| E3Z-L63 2M | Limited-reflective (transparent glass) 30±20 mm NPN pre-wired 2m | OMRON | Sensing Distance: 30±20 mm | Light Source: Red light | Sensing Method: Limited-reflective (transparent glass) | Output: NPN | Connection: Pre-wired 2 m | |
| E3Z-L68 | Limited-reflective (transparent glass) 30±20 mm NPN M8 | OMRON | Sensing Distance: 30±20 mm | Light Source: Red light | Sensing Method: Limited-reflective (transparent glass) | Output: NPN | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | |
| E3Z-L83 2M | Limited-reflective (transparent glass) 30±20 mm PNP pre-wired 2m | OMRON | Sensing Distance: 30±20 mm | Light Source: Red light | Sensing Method: Limited-reflective (transparent glass) | Output: PNP | Connection: Pre-wired 2 m | |
| E3Z-L88 | Limited-reflective (transparent glass) 30±20 mm PNP M8 | OMRON | Sensing Distance: 30±20 mm | Light Source: Red light | Sensing Method: Limited-reflective (transparent glass) | Output: PNP | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) |

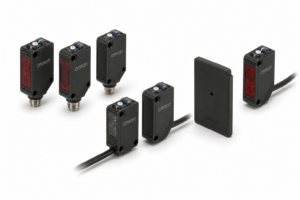

![[OMRON] — E3Z IO-Link Diffuse-reflective Photoelectric Sensor (1m + Narrow 90mm, PNP, COM2/COM3)](https://img.prosourcemro.com/2026/05/001-328-300x200.png)
OMRON E3Z IO-Link Series diffuse-reflective photoelectric sensors. PNP output only. IO-Link COM2 (38.4 kbps, IL2) and COM3 (230.4 kbps, IL3). Standard diffuse (E3Z-D82): 1 m, infrared. Narrow beam diffuse (E3Z-L81): 90 mm, red light. Connection: pre-wired 2 m, M12 Smartclick 0.3 m, or M8 connector. IODD file available from OMRON sales representative.
OMRON E3Z IO-Link Series diffuse-reflective photoelectric sensors. PNP output only. IO-Link COM2 (38.4 kbps, IL2) and COM3 (230.4 kbps, IL3). Standard diffuse (E3Z-D82): 1 m, infrared. Narrow beam diffuse (E3Z-L81): 90 mm, red light. Connection: pre-wired 2 m, M12 Smartclick 0.3 m, or M8 connector. IODD file available from OMRON sales representative.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E3Z-D82-IL2 2M | IO-Link Diffuse-reflective (IO-Link) 1 m COM2 (38.4 kbps) pre-wired 2m | OMRON | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Connection: Pre-wired 2 m | |
| E3Z-D82-M1TJ-IL2 0.3M | IO-Link Diffuse-reflective (IO-Link) 1 m COM2 (38.4 kbps) M12 0.3m | OMRON | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately) | |
| E3Z-D87-IL2 | IO-Link Diffuse-reflective (IO-Link) 1 m COM2 (38.4 kbps) M8 | OMRON | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | |
| E3Z-D82-IL3 2M | IO-Link Diffuse-reflective (IO-Link) 1 m COM3 (230.4 kbps) pre-wired 2m | OMRON | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Connection: Pre-wired 2 m | |
| E3Z-D82-M1TJ-IL3 0.3M | IO-Link Diffuse-reflective (IO-Link) 1 m COM3 (230.4 kbps) M12 0.3m | OMRON | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately) | |
| E3Z-D87-IL3 | IO-Link Diffuse-reflective (IO-Link) 1 m COM3 (230.4 kbps) M8 | OMRON | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | |
| E3Z-L81-IL2 2M | IO-Link Diffuse-reflective narrow beam (IO-Link) 90 mm (narrow beam) COM2 (38.4 kbps) pre-wired 2m | OMRON | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Connection: Pre-wired 2 m | |
| E3Z-L81-M1TJ-IL2 0.3M | IO-Link Diffuse-reflective narrow beam (IO-Link) 90 mm (narrow beam) COM2 (38.4 kbps) M12 0.3m | OMRON | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately) | |
| E3Z-L86-IL2 | IO-Link Diffuse-reflective narrow beam (IO-Link) 90 mm (narrow beam) COM2 (38.4 kbps) M8 | OMRON | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | |
| E3Z-L81-IL3 2M | IO-Link Diffuse-reflective narrow beam (IO-Link) 90 mm (narrow beam) COM3 (230.4 kbps) pre-wired 2m | OMRON | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Connection: Pre-wired 2 m | |
| E3Z-L81-M1TJ-IL3 0.3M | IO-Link Diffuse-reflective narrow beam (IO-Link) 90 mm (narrow beam) COM3 (230.4 kbps) M12 0.3m | OMRON | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately) | |
| E3Z-L86-IL3 | IO-Link Diffuse-reflective narrow beam (IO-Link) 90 mm (narrow beam) COM3 (230.4 kbps) M8 | OMRON | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) |
OMRON E3Z IO-Link Series retro-reflective photoelectric sensor with MSR function. 4 m sensing distance (min 100 mm), red light. PNP output only. IO-Link COM2 (38.4 kbps, IL2) and COM3 (230.4 kbps, IL3). Connection: pre-wired 2 m, M12 Smartclick 0.3 m, or M8 connector. Reflector E39-R1S (4m rated) sold separately. IODD file available from OMRON sales representative.
OMRON E3Z IO-Link Series retro-reflective photoelectric sensor with MSR function. 4 m sensing distance (min 100 mm), red light. PNP output only. IO-Link COM2 (38.4 kbps, IL2) and COM3 (230.4 kbps, IL3). Connection: pre-wired 2 m, M12 Smartclick 0.3 m, or M8 connector. Reflector E39-R1S (4m rated) sold separately. IODD file available from OMRON sales representative.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E3Z-R81-IL2 2M | IO-Link retro MSR COM2 (38.4 kbps) pre-wired 2m | OMRON | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Required Reflector: E39-R1S (sold separately) | Connection: Pre-wired 2 m | |
| E3Z-R81-M1TJ-IL2 0.3M | IO-Link retro MSR COM2 (38.4 kbps) M12 Smartclick 0.3m | OMRON | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Required Reflector: E39-R1S (sold separately) | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately) | |
| E3Z-R86-IL2 | IO-Link retro MSR COM2 (38.4 kbps) M8 connector | OMRON | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Required Reflector: E39-R1S (sold separately) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | |
| E3Z-R81-IL3 2M | IO-Link retro MSR COM3 (230.4 kbps) pre-wired 2m | OMRON | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Required Reflector: E39-R1S (sold separately) | Connection: Pre-wired 2 m | |
| E3Z-R81-M1TJ-IL3 0.3M | IO-Link retro MSR COM3 (230.4 kbps) M12 Smartclick 0.3m | OMRON | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Required Reflector: E39-R1S (sold separately) | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately) | |
| E3Z-R86-IL3 | IO-Link retro MSR COM3 (230.4 kbps) M8 connector | OMRON | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Required Reflector: E39-R1S (sold separately) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) |
OMRON E3Z IO-Link Series through-beam photoelectric sensor. 15 m sensing distance, infrared light. PNP output only. IO-Link COM2 (38.4 kbps, IL2) and COM3 (230.4 kbps, IL3). Available as set, emitter-only, or receiver-only. Connection: pre-wired 2 m, M12 Smartclick pre-wired 0.3 m, or M8 connector. Slits (E39-S65A~F) sold separately. IODD file available from OMRON sales representative.
OMRON E3Z IO-Link Series through-beam photoelectric sensor. 15 m sensing distance, infrared light. PNP output only. IO-Link COM2 (38.4 kbps, IL2) and COM3 (230.4 kbps, IL3). Available as set, emitter-only, or receiver-only. Connection: pre-wired 2 m, M12 Smartclick pre-wired 0.3 m, or M8 connector. Slits (E39-S65A~F) sold separately. IODD file available from OMRON sales representative.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E3Z-T81-IL2 2M | IO-Link through-beam COM2 (38.4 kbps) Through-beam Set 2m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Sensing Method: Through-beam (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Type: Through-beam Set (Emitter+Receiver) | Connection: Pre-wired 2 m | |
| E3Z-T81-L-IL2 2M | IO-Link through-beam COM2 (38.4 kbps) Through-beam Emitter 2m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Sensing Method: Through-beam (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Type: Through-beam Emitter | Connection: Pre-wired 2 m | Pair With: E3Z-T81-D-IL2 2M (Receiver) | |
| E3Z-T81-D-IL2 2M | IO-Link through-beam COM2 (38.4 kbps) Through-beam Receiver 2m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Sensing Method: Through-beam (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Type: Through-beam Receiver | Connection: Pre-wired 2 m | Pair With: E3Z-T81-L-IL2 2M (Emitter) | |
| E3Z-T81-M1TJ-IL2 0.3M | IO-Link through-beam COM2 (38.4 kbps) Through-beam Set M12 0.3m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Sensing Method: Through-beam (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Type: Through-beam Set (Emitter+Receiver) | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately) | |
| E3Z-T81-L-M1TJ-IL2 0.3M | IO-Link through-beam COM2 (38.4 kbps) Through-beam Emitter M12 0.3m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Sensing Method: Through-beam (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Type: Through-beam Emitter | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately) | Pair With: E3Z-T81-D-M1TJ-IL2 0.3M (Receiver) | |
| E3Z-T81-D-M1TJ-IL2 0.3M | IO-Link through-beam COM2 (38.4 kbps) Through-beam Receiver M12 0.3m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Sensing Method: Through-beam (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Type: Through-beam Receiver | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately) | Pair With: E3Z-T81-L-M1TJ-IL2 0.3M (Emitter) | |
| E3Z-T86-IL2 | IO-Link through-beam COM2 (38.4 kbps) Through-beam Set M8 | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Sensing Method: Through-beam (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Type: Through-beam Set (Emitter+Receiver) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | |
| E3Z-T86-L-IL2 | IO-Link through-beam COM2 (38.4 kbps) Through-beam Emitter M8 | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Sensing Method: Through-beam (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Type: Through-beam Emitter | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | Pair With: E3Z-T86-D-IL2 (Receiver) | |
| E3Z-T86-D-IL2 | IO-Link through-beam COM2 (38.4 kbps) Through-beam Receiver M8 | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Sensing Method: Through-beam (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Type: Through-beam Receiver | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | Pair With: E3Z-T86-L-IL2 (Emitter) | |
| E3Z-T81-IL3 2M | IO-Link through-beam COM3 (230.4 kbps) Through-beam Set 2m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Sensing Method: Through-beam (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Type: Through-beam Set (Emitter+Receiver) | Connection: Pre-wired 2 m | |
| E3Z-T81-L-IL3 2M | IO-Link through-beam COM3 (230.4 kbps) Through-beam Emitter 2m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Sensing Method: Through-beam (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Type: Through-beam Emitter | Connection: Pre-wired 2 m | Pair With: E3Z-T81-D-IL3 2M (Receiver) | |
| E3Z-T81-D-IL3 2M | IO-Link through-beam COM3 (230.4 kbps) Through-beam Receiver 2m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Sensing Method: Through-beam (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Type: Through-beam Receiver | Connection: Pre-wired 2 m | Pair With: E3Z-T81-L-IL3 2M (Emitter) | |
| E3Z-T81-M1TJ-IL3 0.3M | IO-Link through-beam COM3 (230.4 kbps) Through-beam Set M12 0.3m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Sensing Method: Through-beam (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Type: Through-beam Set (Emitter+Receiver) | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately) | |
| E3Z-T81-L-M1TJ-IL3 0.3M | IO-Link through-beam COM3 (230.4 kbps) Through-beam Emitter M12 0.3m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Sensing Method: Through-beam (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Type: Through-beam Emitter | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately) | Pair With: E3Z-T81-D-M1TJ-IL3 0.3M (Receiver) | |
| E3Z-T81-D-M1TJ-IL3 0.3M | IO-Link through-beam COM3 (230.4 kbps) Through-beam Receiver M12 0.3m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Sensing Method: Through-beam (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Type: Through-beam Receiver | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately) | Pair With: E3Z-T81-L-M1TJ-IL3 0.3M (Emitter) | |
| E3Z-T86-IL3 | IO-Link through-beam COM3 (230.4 kbps) Through-beam Set M8 | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Sensing Method: Through-beam (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Type: Through-beam Set (Emitter+Receiver) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | |
| E3Z-T86-L-IL3 | IO-Link through-beam COM3 (230.4 kbps) Through-beam Emitter M8 | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Sensing Method: Through-beam (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Type: Through-beam Emitter | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | Pair With: E3Z-T86-D-IL3 (Receiver) | |
| E3Z-T86-D-IL3 | IO-Link through-beam COM3 (230.4 kbps) Through-beam Receiver M8 | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Sensing Method: Through-beam (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Type: Through-beam Receiver | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | Pair With: E3Z-T86-L-IL3 (Emitter) |
OMRON E3Z-K Series oil-resistant compact photoelectric sensors. Retro-reflective MSR (E3Z-R61K/81K): 3 m, red light, requires reflector E39-R1S (sold separately). Diffuse-reflective wide view (E3Z-D61K/81K): 5~100 mm, infrared. Diffuse-reflective 1 m (E3Z-D62K/82K): infrared. Pre-wired 2 m and M8 pre-wired connector 0.3 m. NPN and PNP output.
OMRON E3Z-K Series oil-resistant compact photoelectric sensors. Retro-reflective MSR (E3Z-R61K/81K): 3 m, red light, requires reflector E39-R1S (sold separately). Diffuse-reflective wide view (E3Z-D61K/81K): 5~100 mm, infrared. Diffuse-reflective 1 m (E3Z-D62K/82K): infrared. Pre-wired 2 m and M8 pre-wired connector 0.3 m. NPN and PNP output.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E3Z-R61K 2M | Oil-resistant Retro-reflective with MSR function 3 m (min 150 mm with E39-R1S) NPN 2m | OMRON | Sensing Distance: 3 m (min 150 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function | Output: NPN | Oil Resistance: Yes (K series) | Note: Required Reflector: E39-R1S (sold separately) | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Connection: Pre-wired 2 m | |
| E3Z-R61K-M3J 0.3M | Oil-resistant Retro-reflective with MSR function 3 m (min 150 mm with E39-R1S) NPN M8 0.3m | OMRON | Sensing Distance: 3 m (min 150 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function | Output: NPN | Oil Resistance: Yes (K series) | Note: Required Reflector: E39-R1S (sold separately) | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Connection: M8 Pre-wired Connector 0.3 m | |
| E3Z-R81K 2M | Oil-resistant Retro-reflective with MSR function 3 m (min 150 mm with E39-R1S) PNP 2m | OMRON | Sensing Distance: 3 m (min 150 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function | Output: PNP | Oil Resistance: Yes (K series) | Note: Required Reflector: E39-R1S (sold separately) | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Connection: Pre-wired 2 m | |
| E3Z-R81K-M3J 0.3M | Oil-resistant Retro-reflective with MSR function 3 m (min 150 mm with E39-R1S) PNP M8 0.3m | OMRON | Sensing Distance: 3 m (min 150 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function | Output: PNP | Oil Resistance: Yes (K series) | Note: Required Reflector: E39-R1S (sold separately) | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Connection: M8 Pre-wired Connector 0.3 m | |
| E3Z-D61K 2M | Oil-resistant Diffuse-reflective 5~100 mm (wide view) NPN 2m | OMRON | Sensing Distance: 5~100 mm (wide view) | Light Source: Infrared | Sensing Method: Diffuse-reflective | Output: NPN | Oil Resistance: Yes (K series) | Connection: Pre-wired 2 m | |
| E3Z-D61K-M3J 0.3M | Oil-resistant Diffuse-reflective 5~100 mm (wide view) NPN M8 0.3m | OMRON | Sensing Distance: 5~100 mm (wide view) | Light Source: Infrared | Sensing Method: Diffuse-reflective | Output: NPN | Oil Resistance: Yes (K series) | Connection: M8 Pre-wired Connector 0.3 m | |
| E3Z-D81K 2M | Oil-resistant Diffuse-reflective 5~100 mm (wide view) PNP 2m | OMRON | Sensing Distance: 5~100 mm (wide view) | Light Source: Infrared | Sensing Method: Diffuse-reflective | Output: PNP | Oil Resistance: Yes (K series) | Connection: Pre-wired 2 m | |
| E3Z-D81K-M3J 0.3M | Oil-resistant Diffuse-reflective 5~100 mm (wide view) PNP M8 0.3m | OMRON | Sensing Distance: 5~100 mm (wide view) | Light Source: Infrared | Sensing Method: Diffuse-reflective | Output: PNP | Oil Resistance: Yes (K series) | Connection: M8 Pre-wired Connector 0.3 m | |
| E3Z-D62K 2M | Oil-resistant Diffuse-reflective 1 m NPN 2m | OMRON | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective | Output: NPN | Oil Resistance: Yes (K series) | Connection: Pre-wired 2 m | |
| E3Z-D62K-M3J 0.3M | Oil-resistant Diffuse-reflective 1 m NPN M8 0.3m | OMRON | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective | Output: NPN | Oil Resistance: Yes (K series) | Connection: M8 Pre-wired Connector 0.3 m | |
| E3Z-D82K 2M | Oil-resistant Diffuse-reflective 1 m PNP 2m | OMRON | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective | Output: PNP | Oil Resistance: Yes (K series) | Connection: Pre-wired 2 m | |
| E3Z-D82K-M3J 0.3M | Oil-resistant Diffuse-reflective 1 m PNP M8 0.3m | OMRON | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective | Output: PNP | Oil Resistance: Yes (K series) | Connection: M8 Pre-wired Connector 0.3 m |
OMRON E3Z-K Series oil-resistant compact through-beam photoelectric sensors. 15 m sensing distance, infrared. NPN (E3Z-T61K) and PNP (E3Z-T81K). Available as set, emitter-only, or receiver-only. Pre-wired 2 m and M8 pre-wired connector 0.3 m. M12 pre-wired connector (-M1J 0.3M) variants also available.
OMRON E3Z-K Series oil-resistant compact through-beam photoelectric sensors. 15 m sensing distance, infrared. NPN (E3Z-T61K) and PNP (E3Z-T81K). Available as set, emitter-only, or receiver-only. Pre-wired 2 m and M8 pre-wired connector 0.3 m. M12 pre-wired connector (-M1J 0.3M) variants also available.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E3Z-T61K 2M | Oil-resistant through-beam NPN set 2m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Output: NPN | Oil Resistance: Yes (K series) | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Set (Emitter+Receiver) | Connection: Pre-wired 2 m | |
| E3Z-T61K-L 2M | Oil-resistant through-beam NPN emitter 2m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Output: NPN | Oil Resistance: Yes (K series) | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Emitter | Connection: Pre-wired 2 m | Pair With: E3Z-T61K-D 2M (Receiver) | |
| E3Z-T61K-D 2M | Oil-resistant through-beam NPN receiver 2m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Output: NPN | Oil Resistance: Yes (K series) | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Receiver | Connection: Pre-wired 2 m | Pair With: E3Z-T61K-L 2M (Emitter) | |
| E3Z-T61K-M3J 0.3M | Oil-resistant through-beam NPN set M8 pre-wired 0.3m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Output: NPN | Oil Resistance: Yes (K series) | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Set (Emitter+Receiver) | Connection: M8 Pre-wired Connector 0.3 m | |
| E3Z-T61K-L-M3J 2M | Oil-resistant through-beam NPN emitter M8 | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Output: NPN | Oil Resistance: Yes (K series) | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Emitter | Connection: M8 Pre-wired Connector | Pair With: E3Z-T61K-D-M3J 2M (Receiver) | |
| E3Z-T61K-D-M3J 2M | Oil-resistant through-beam NPN receiver M8 | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Output: NPN | Oil Resistance: Yes (K series) | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Receiver | Connection: M8 Pre-wired Connector | Pair With: E3Z-T61K-L-M3J 2M (Emitter) | |
| E3Z-T81K 2M | Oil-resistant through-beam PNP set 2m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Output: PNP | Oil Resistance: Yes (K series) | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Set (Emitter+Receiver) | Connection: Pre-wired 2 m | |
| E3Z-T81K-L 2M | Oil-resistant through-beam PNP emitter 2m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Output: PNP | Oil Resistance: Yes (K series) | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Emitter | Connection: Pre-wired 2 m | Pair With: E3Z-T81K-D 2M (Receiver) | |
| E3Z-T81K-D 2M | Oil-resistant through-beam PNP receiver 2m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Output: PNP | Oil Resistance: Yes (K series) | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Receiver | Connection: Pre-wired 2 m | Pair With: E3Z-T81K-L 2M (Emitter) | |
| E3Z-T81K-M3J 0.3M | Oil-resistant through-beam PNP set M8 pre-wired 0.3m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Output: PNP | Oil Resistance: Yes (K series) | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Set (Emitter+Receiver) | Connection: M8 Pre-wired Connector 0.3 m | |
| E3Z-T81K-L-M3J 2M | Oil-resistant through-beam PNP emitter M8 | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Output: PNP | Oil Resistance: Yes (K series) | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Emitter | Connection: M8 Pre-wired Connector | Pair With: E3Z-T81K-D-M3J 2M (Receiver) | |
| E3Z-T81K-D-M3J 2M | Oil-resistant through-beam PNP receiver M8 | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Output: PNP | Oil Resistance: Yes (K series) | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Receiver | Connection: M8 Pre-wired Connector | Pair With: E3Z-T81K-L-M3J 2M (Emitter) |
OMRON E3Z Series compact retro-reflective photoelectric sensors. MSR function models (E3Z-R61/81): 4 m sensing distance, red light, suppresses mirror-surface reflection. Clear bottle models without MSR (E3Z-B61/62/81/82): for transparent PET bottles, 500 mm and 2 m sensing distance. Reflectors (E39-R1/R1S/R2/R9/R10/R1K/R3/RS1~RS3) sold separately. Pre-wired 2 m and M8 connector types. NPN and PNP output.
OMRON E3Z Series compact retro-reflective photoelectric sensors. MSR function models (E3Z-R61/81): 4 m sensing distance, red light, suppresses mirror-surface reflection. Clear bottle models without MSR (E3Z-B61/62/81/82): for transparent PET bottles, 500 mm and 2 m sensing distance. Reflectors (E39-R1/R1S/R2/R9/R10/R1K/R3/RS1~RS3) sold separately. Pre-wired 2 m and M8 connector types. NPN and PNP output.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E3Z-R61 2M | Retro-reflective MSR 4m NPN pre-wired 2m | OMRON | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function | Output: NPN | Required Reflector: E39-R1/R1S/R2/R9/R10/R1K/R3/RS1~RS3 sold separately | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series cable) | Connection: Pre-wired 2 m | |
| E3Z-R66 | Retro-reflective MSR 4m NPN M8 | OMRON | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function | Output: NPN | Required Reflector: E39-R1/R1S/R2/R9/R10/R1K/R3/RS1~RS3 sold separately | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series cable) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | |
| E3Z-R81 2M | Retro-reflective MSR 4m PNP pre-wired 2m | OMRON | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function | Output: PNP | Required Reflector: E39-R1/R1S/R2/R9/R10/R1K/R3/RS1~RS3 sold separately | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series cable) | Connection: Pre-wired 2 m | |
| E3Z-R86 | Retro-reflective MSR 4m PNP M8 | OMRON | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function | Output: PNP | Required Reflector: E39-R1/R1S/R2/R9/R10/R1K/R3/RS1~RS3 sold separately | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series cable) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | |
| E3Z-B61 2M | Retro no-MSR 500 mm NPN pre-wired 2m | OMRON | Sensing Distance: 500 mm (min 80 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective without MSR (for clear plastic bottles) | Output: NPN | Required Reflector: E39-R1S or E39-R1K (fog preventive) sold separately | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Connection: Pre-wired 2 m | |
| E3Z-B66 | Retro no-MSR 500 mm NPN M8 | OMRON | Sensing Distance: 500 mm (min 80 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective without MSR (for clear plastic bottles) | Output: NPN | Required Reflector: E39-R1S or E39-R1K (fog preventive) sold separately | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | |
| E3Z-B81 2M | Retro no-MSR 500 mm PNP pre-wired 2m | OMRON | Sensing Distance: 500 mm (min 80 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective without MSR (for clear plastic bottles) | Output: PNP | Required Reflector: E39-R1S or E39-R1K (fog preventive) sold separately | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Connection: Pre-wired 2 m | |
| E3Z-B86 | Retro no-MSR 500 mm PNP M8 | OMRON | Sensing Distance: 500 mm (min 80 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective without MSR (for clear plastic bottles) | Output: PNP | Required Reflector: E39-R1S or E39-R1K (fog preventive) sold separately | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | |
| E3Z-B62 2M | Retro no-MSR 2 m NPN pre-wired 2m | OMRON | Sensing Distance: 2 m (min 500 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective without MSR (for clear plastic bottles) | Output: NPN | Required Reflector: E39-R1S or E39-R1K (fog preventive) sold separately | Connection: Pre-wired 2 m | |
| E3Z-B67 | Retro no-MSR 2 m NPN M8 | OMRON | Sensing Distance: 2 m (min 500 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective without MSR (for clear plastic bottles) | Output: NPN | Required Reflector: E39-R1S or E39-R1K (fog preventive) sold separately | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | |
| E3Z-B82 2M | Retro no-MSR 2 m PNP pre-wired 2m | OMRON | Sensing Distance: 2 m (min 500 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective without MSR (for clear plastic bottles) | Output: PNP | Required Reflector: E39-R1S or E39-R1K (fog preventive) sold separately | Connection: Pre-wired 2 m | |
| E3Z-B87 | Retro no-MSR 2 m PNP M8 | OMRON | Sensing Distance: 2 m (min 500 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective without MSR (for clear plastic bottles) | Output: PNP | Required Reflector: E39-R1S or E39-R1K (fog preventive) sold separately | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) |
OMRON E3Z Series slit-type through-beam photoelectric sensors. 1-axis (E3Z-G61/81): single optical axis, 25 mm sensing distance, infrared. 2-axis (E3Z-G62/82): dual optical axis, 25 mm, infrared. Pre-wired 2 m and M8 pre-wired connector 0.3 m. NPN and PNP output. M12 connector variants also available on request.
OMRON E3Z Series slit-type through-beam photoelectric sensors. 1-axis (E3Z-G61/81): single optical axis, 25 mm sensing distance, infrared. 2-axis (E3Z-G62/82): dual optical axis, 25 mm, infrared. Pre-wired 2 m and M8 pre-wired connector 0.3 m. NPN and PNP output. M12 connector variants also available on request.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E3Z-G61 2M | Slit through-beam 1-axis NPN pre-wired 2m | OMRON | Sensing Distance: 25 mm | Light Source: Infrared | Sensing Method: Slit-type Through-beam (1-axis) | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series cable) | Connection: Pre-wired 2 m | |
| E3Z-G61-M3J | Slit through-beam 1-axis NPN M8 pre-wired 0.3m | OMRON | Sensing Distance: 25 mm | Light Source: Infrared | Sensing Method: Slit-type Through-beam (1-axis) | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series cable) | Connection: M8 Pre-wired Connector 0.3 m | |
| E3Z-G81 2M | Slit through-beam 1-axis PNP pre-wired 2m | OMRON | Sensing Distance: 25 mm | Light Source: Infrared | Sensing Method: Slit-type Through-beam (1-axis) | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series cable) | Connection: Pre-wired 2 m | |
| E3Z-G81-M3J | Slit through-beam 1-axis PNP M8 pre-wired 0.3m | OMRON | Sensing Distance: 25 mm | Light Source: Infrared | Sensing Method: Slit-type Through-beam (1-axis) | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series cable) | Connection: M8 Pre-wired Connector 0.3 m | |
| E3Z-G62 2M | Slit through-beam 2-axis NPN pre-wired 2m | OMRON | Sensing Distance: 25 mm | Light Source: Infrared | Sensing Method: Slit-type Through-beam (2-axis) | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series cable) | Connection: Pre-wired 2 m | |
| E3Z-G62-M3J | Slit through-beam 2-axis NPN M8 pre-wired 0.3m | OMRON | Sensing Distance: 25 mm | Light Source: Infrared | Sensing Method: Slit-type Through-beam (2-axis) | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series cable) | Connection: M8 Pre-wired Connector 0.3 m | |
| E3Z-G82 2M | Slit through-beam 2-axis PNP pre-wired 2m | OMRON | Sensing Distance: 25 mm | Light Source: Infrared | Sensing Method: Slit-type Through-beam (2-axis) | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series cable) | Connection: Pre-wired 2 m | |
| E3Z-G82-M3J | Slit through-beam 2-axis PNP M8 pre-wired 0.3m | OMRON | Sensing Distance: 25 mm | Light Source: Infrared | Sensing Method: Slit-type Through-beam (2-axis) | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series cable) | Connection: M8 Pre-wired Connector 0.3 m |
OMRON E3Z Series compact through-beam photoelectric sensors with built-in amplifier. 15 m infrared (E3Z-T61/81): set, emitter, receiver / pre-wired 2m + M8 connector. 10 m red light (E3Z-T61A/81A): set, emitter, receiver / pre-wired 2m + M8 connector. 30 m infrared (E3Z-T62/82): set, emitter, receiver / pre-wired 2m + M8 connector. NPN and PNP output. Slits (E39-S65A~F) and reflectors sold separately. M12 pre-wired connector (-M1J 0.3M) and Smartclick (-M1TJ 0.3M) variants also available.
OMRON E3Z Series compact through-beam photoelectric sensors with built-in amplifier. 15 m infrared (E3Z-T61/81): set, emitter, receiver / pre-wired 2m + M8 connector. 10 m red light (E3Z-T61A/81A): set, emitter, receiver / pre-wired 2m + M8 connector. 30 m infrared (E3Z-T62/82): set, emitter, receiver / pre-wired 2m + M8 connector. NPN and PNP output. Slits (E39-S65A~F) and reflectors sold separately. M12 pre-wired connector (-M1J 0.3M) and Smartclick (-M1TJ 0.3M) variants also available.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E3Z-T61 2M | Through-beam 15 m NPN set 2m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series cable) | Type: Through-beam Set (Emitter+Receiver) | Connection: Pre-wired 2 m | |
| E3Z-T61-L 2M | Through-beam 15 m NPN emitter 2m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series cable) | Type: Through-beam Emitter | Connection: Pre-wired 2 m | Pair With: E3Z-T61-D 2M (Receiver) | |
| E3Z-T61-D 2M | Through-beam 15 m NPN receiver 2m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series cable) | Type: Through-beam Receiver | Connection: Pre-wired 2 m | Pair With: E3Z-T61-L 2M (Emitter) | |
| E3Z-T66 | Through-beam 15 m NPN set M8 | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series cable) | Type: Through-beam Set (Emitter+Receiver) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | |
| E3Z-T66-L | Through-beam 15 m NPN emitter M8 | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series cable) | Type: Through-beam Emitter | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | Pair With: E3Z-T66-D (Receiver) | |
| E3Z-T66-D | Through-beam 15 m NPN receiver M8 | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series cable) | Type: Through-beam Receiver | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | Pair With: E3Z-T66-L (Emitter) | |
| E3Z-T81 2M | Through-beam 15 m PNP set 2m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series cable) | Type: Through-beam Set (Emitter+Receiver) | Connection: Pre-wired 2 m | |
| E3Z-T81-L 2M | Through-beam 15 m PNP emitter 2m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series cable) | Type: Through-beam Emitter | Connection: Pre-wired 2 m | Pair With: E3Z-T81-D 2M (Receiver) | |
| E3Z-T81-D 2M | Through-beam 15 m PNP receiver 2m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series cable) | Type: Through-beam Receiver | Connection: Pre-wired 2 m | Pair With: E3Z-T81-L 2M (Emitter) | |
| E3Z-T86 | Through-beam 15 m PNP set M8 | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series cable) | Type: Through-beam Set (Emitter+Receiver) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | |
| E3Z-T86-L | Through-beam 15 m PNP emitter M8 | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series cable) | Type: Through-beam Emitter | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | Pair With: E3Z-T86-D (Receiver) | |
| E3Z-T86-D | Through-beam 15 m PNP receiver M8 | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series cable) | Type: Through-beam Receiver | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | Pair With: E3Z-T86-L (Emitter) | |
| E3Z-T61A 2M | Through-beam 10 m NPN set 2m | OMRON | Sensing Distance: 10 m | Light Source: Red light | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Set (Emitter+Receiver) | Connection: Pre-wired 2 m | |
| E3Z-T61A-L 2M | Through-beam 10 m NPN emitter 2m | OMRON | Sensing Distance: 10 m | Light Source: Red light | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Emitter | Connection: Pre-wired 2 m | Pair With: E3Z-T61A-D 2M (Receiver) | |
| E3Z-T61A-D 2M | Through-beam 10 m NPN receiver 2m | OMRON | Sensing Distance: 10 m | Light Source: Red light | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Receiver | Connection: Pre-wired 2 m | Pair With: E3Z-T61A-L 2M (Emitter) | |
| E3Z-T66A | Through-beam 10 m NPN set M8 | OMRON | Sensing Distance: 10 m | Light Source: Red light | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Set (Emitter+Receiver) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | |
| E3Z-T66A-L | Through-beam 10 m NPN emitter M8 | OMRON | Sensing Distance: 10 m | Light Source: Red light | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Emitter | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | Pair With: E3Z-T66A-D (Receiver) | |
| E3Z-T66A-D | Through-beam 10 m NPN receiver M8 | OMRON | Sensing Distance: 10 m | Light Source: Red light | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Receiver | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | Pair With: E3Z-T66A-L (Emitter) | |
| E3Z-T81A 2M | Through-beam 10 m PNP set 2m | OMRON | Sensing Distance: 10 m | Light Source: Red light | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Set (Emitter+Receiver) | Connection: Pre-wired 2 m | |
| E3Z-T81A-L 2M | Through-beam 10 m PNP emitter 2m | OMRON | Sensing Distance: 10 m | Light Source: Red light | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Emitter | Connection: Pre-wired 2 m | Pair With: E3Z-T81A-D 2M (Receiver) | |
| E3Z-T81A-D 2M | Through-beam 10 m PNP receiver 2m | OMRON | Sensing Distance: 10 m | Light Source: Red light | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Receiver | Connection: Pre-wired 2 m | Pair With: E3Z-T81A-L 2M (Emitter) | |
| E3Z-T86A | Through-beam 10 m PNP set M8 | OMRON | Sensing Distance: 10 m | Light Source: Red light | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Set (Emitter+Receiver) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | |
| E3Z-T86A-L | Through-beam 10 m PNP emitter M8 | OMRON | Sensing Distance: 10 m | Light Source: Red light | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Emitter | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | Pair With: E3Z-T86A-D (Receiver) | |
| E3Z-T86A-D | Through-beam 10 m PNP receiver M8 | OMRON | Sensing Distance: 10 m | Light Source: Red light | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Receiver | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | Pair With: E3Z-T86A-L (Emitter) | |
| E3Z-T62 2M | Through-beam 30 m NPN set 2m | OMRON | Sensing Distance: 30 m | Light Source: Infrared | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Set (Emitter+Receiver) | Connection: Pre-wired 2 m | |
| E3Z-T62-L 2M | Through-beam 30 m NPN emitter 2m | OMRON | Sensing Distance: 30 m | Light Source: Infrared | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Emitter | Connection: Pre-wired 2 m | Pair With: E3Z-T62-D 2M (Receiver) | |
| E3Z-T62-D 2M | Through-beam 30 m NPN receiver 2m | OMRON | Sensing Distance: 30 m | Light Source: Infrared | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Receiver | Connection: Pre-wired 2 m | Pair With: E3Z-T62-L 2M (Emitter) | |
| E3Z-T67 | Through-beam 30 m NPN set M8 | OMRON | Sensing Distance: 30 m | Light Source: Infrared | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Set (Emitter+Receiver) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | |
| E3Z-T67-L | Through-beam 30 m NPN emitter M8 | OMRON | Sensing Distance: 30 m | Light Source: Infrared | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Emitter | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | Pair With: E3Z-T67-D (Receiver) | |
| E3Z-T67-D | Through-beam 30 m NPN receiver M8 | OMRON | Sensing Distance: 30 m | Light Source: Infrared | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Receiver | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | Pair With: E3Z-T67-L (Emitter) | |
| E3Z-T82 2M | Through-beam 30 m PNP set 2m | OMRON | Sensing Distance: 30 m | Light Source: Infrared | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Set (Emitter+Receiver) | Connection: Pre-wired 2 m | |
| E3Z-T82-L 2M | Through-beam 30 m PNP emitter 2m | OMRON | Sensing Distance: 30 m | Light Source: Infrared | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Emitter | Connection: Pre-wired 2 m | Pair With: E3Z-T82-D 2M (Receiver) | |
| E3Z-T82-D 2M | Through-beam 30 m PNP receiver 2m | OMRON | Sensing Distance: 30 m | Light Source: Infrared | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Receiver | Connection: Pre-wired 2 m | Pair With: E3Z-T82-L 2M (Emitter) | |
| E3Z-T87 | Through-beam 30 m PNP set M8 | OMRON | Sensing Distance: 30 m | Light Source: Infrared | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Set (Emitter+Receiver) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | |
| E3Z-T87-L | Through-beam 30 m PNP emitter M8 | OMRON | Sensing Distance: 30 m | Light Source: Infrared | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Emitter | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | Pair With: E3Z-T87-D (Receiver) | |
| E3Z-T87-D | Through-beam 30 m PNP receiver M8 | OMRON | Sensing Distance: 30 m | Light Source: Infrared | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series cable) | Type: Through-beam Receiver | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | Pair With: E3Z-T87-L (Emitter) |
![[OMRON] — E3Z-G Grooved-type Through-beam Photoelectric Sensor (1-axis / 2-axis, NPN/PNP)](https://img.prosourcemro.com/2026/05/001-330-300x200.png)
OMRON E3Z-G Series grooved-type through-beam photoelectric sensor with built-in amplifier. 25 mm sensing distance, infrared light. Easy settings. 1-axis (E3Z-G61/81): single optical axis. 2-axis (E3Z-G62/82): dual optical axis. NPN and PNP output. Pre-wired 2 m and M8 pre-wired connector 0.3 m. M12 Standard (-M1J 0.3M) and Smartclick (-M1TJ 0.3M) variants also available. Protective bracket E39-L149 sold separately.
OMRON E3Z-G Series grooved-type through-beam photoelectric sensor with built-in amplifier. 25 mm sensing distance, infrared light. Easy settings. 1-axis (E3Z-G61/81): single optical axis. 2-axis (E3Z-G62/82): dual optical axis. NPN and PNP output. Pre-wired 2 m and M8 pre-wired connector 0.3 m. M12 Standard (-M1J 0.3M) and Smartclick (-M1TJ 0.3M) variants also available. Protective bracket E39-L149 sold separately.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| E3Z-G61 2M | Grooved through-beam 1-axis NPN pre-wired 2m | OMRON | Sensing Distance: 25 mm | Light Source: Infrared | Sensing Method: Through-beam Grooved (1-axis) | Output: NPN | Also Available: M12 standard pre-wired also available: add '-M1J 0.3M' suffix / M12 Smartclick pre-wired also available: add '-M1TJ 0.3M' suffix (1-axis only) | Connection: Pre-wired 2 m | |
| E3Z-G61-M3J 0.3M | Grooved through-beam 1-axis NPN M8 pre-wired 0.3m | OMRON | Sensing Distance: 25 mm | Light Source: Infrared | Sensing Method: Through-beam Grooved (1-axis) | Output: NPN | Also Available: M12 standard pre-wired also available: add '-M1J 0.3M' suffix / M12 Smartclick pre-wired also available: add '-M1TJ 0.3M' suffix (1-axis only) | Connection: M8 Pre-wired Connector 0.3 m | |
| E3Z-G81 2M | Grooved through-beam 1-axis PNP pre-wired 2m | OMRON | Sensing Distance: 25 mm | Light Source: Infrared | Sensing Method: Through-beam Grooved (1-axis) | Output: PNP | Also Available: M12 standard pre-wired also available: add '-M1J 0.3M' suffix / M12 Smartclick pre-wired also available: add '-M1TJ 0.3M' suffix (1-axis only) | Connection: Pre-wired 2 m | |
| E3Z-G81-M3J 0.3M | Grooved through-beam 1-axis PNP M8 pre-wired 0.3m | OMRON | Sensing Distance: 25 mm | Light Source: Infrared | Sensing Method: Through-beam Grooved (1-axis) | Output: PNP | Also Available: M12 standard pre-wired also available: add '-M1J 0.3M' suffix / M12 Smartclick pre-wired also available: add '-M1TJ 0.3M' suffix (1-axis only) | Connection: M8 Pre-wired Connector 0.3 m | |
| E3Z-G62 2M | Grooved through-beam 2-axis NPN pre-wired 2m | OMRON | Sensing Distance: 25 mm | Light Source: Infrared | Sensing Method: Through-beam Grooved (2-axis) | Output: NPN | Also Available: M12 standard pre-wired also available: add '-M1J 0.3M' suffix | Connection: Pre-wired 2 m | |
| E3Z-G62-M3J 0.3M | Grooved through-beam 2-axis NPN M8 pre-wired 0.3m | OMRON | Sensing Distance: 25 mm | Light Source: Infrared | Sensing Method: Through-beam Grooved (2-axis) | Output: NPN | Also Available: M12 standard pre-wired also available: add '-M1J 0.3M' suffix | Connection: M8 Pre-wired Connector 0.3 m | |
| E3Z-G82 2M | Grooved through-beam 2-axis PNP pre-wired 2m | OMRON | Sensing Distance: 25 mm | Light Source: Infrared | Sensing Method: Through-beam Grooved (2-axis) | Output: PNP | Also Available: M12 standard pre-wired also available: add '-M1J 0.3M' suffix | Connection: Pre-wired 2 m | |
| E3Z-G82-M3J 0.3M | Grooved through-beam 2-axis PNP M8 pre-wired 0.3m | OMRON | Sensing Distance: 25 mm | Light Source: Infrared | Sensing Method: Through-beam Grooved (2-axis) | Output: PNP | Also Available: M12 standard pre-wired also available: add '-M1J 0.3M' suffix | Connection: M8 Pre-wired Connector 0.3 m |
