Solid State Contactors

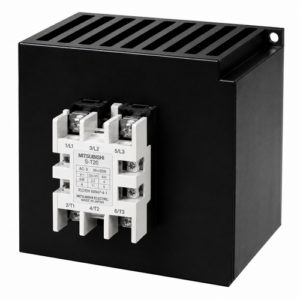

Mitsubishi Electric MS-T/N series US-H20 solid state contactor dedicated to heater loads, suited to injection moulding machines, semiconductor production equipment and similar applications. Wide main circuit voltage range AC24-480V with rated operational current 20A under AC-1 class between -10 and 40 degrees C, heater capacity 4kW at 1 phase 200V, 6.9kW at 3 phase 200V, 13.8kW at 3 phase 400V under batch control. Semiconductor switching gives long life in high frequency switching duty with no switching noise, no wearing parts and clean operation, and a front operation indicator shows the control input state. The DD code selects individual control in place of batch control and the HZ code supplies the unit without a cooling fin, while the RM code gives a rail mount only specification and the UF code a reduced width body. A charged part protection cover unit UN-CV501US and the power control unit UA-PC are available as options. Derate the rated operational current above 40 degrees C ambient. JEM, IEC, UL, CSA, EC directive and TUV certified as standard, CCC is not applicable.

Mitsubishi Electric MS-T/N series US-H30 solid state contactor dedicated to heater loads, suited to injection moulding machines, semiconductor production equipment and similar applications. Wide main circuit voltage range AC24-480V with rated operational current 30A under AC-1 class between -10 and 40 degrees C, heater capacity 6kW at 1 phase 200V, 10.3kW at 3 phase 200V, 20.7kW at 3 phase 400V under batch control. Semiconductor switching gives long life in high frequency switching duty with no switching noise, no wearing parts and clean operation, and a front operation indicator shows the control input state. The DD code selects individual control in place of batch control and the HZ code supplies the unit without a cooling fin, while the RM code gives a rail mount only specification and the UF code a reduced width body. A charged part protection cover unit UN-CV501US and the power control unit UA-PC are available as options. Derate the rated operational current above 40 degrees C ambient. JEM, IEC, UL, CSA, EC directive and TUV certified as standard, CCC is not applicable.

Mitsubishi Electric MS-T/N series US-H40 solid state contactor dedicated to heater loads, suited to injection moulding machines, semiconductor production equipment and similar applications. Wide main circuit voltage range AC24-480V with rated operational current 40A under AC-1 class between -10 and 40 degrees C, heater capacity 8kW at 1 phase 200V, 13.8kW at 3 phase 200V, 27.7kW at 3 phase 400V under batch control. Semiconductor switching gives long life in high frequency switching duty with no switching noise, no wearing parts and clean operation, and a front operation indicator shows the control input state. The DD code selects individual control in place of batch control and the HZ code supplies the unit without a cooling fin. A charged part protection cover unit UN-CV501US and the power control unit UA-PC are available as options. Derate the rated operational current above 40 degrees C ambient. JEM, IEC, UL, CSA, EC directive and TUV certified as standard, CCC is not applicable.

Mitsubishi Electric MS-T/N series US-H50 solid state contactor dedicated to heater loads, suited to injection moulding machines, semiconductor production equipment and similar applications. Wide main circuit voltage range AC24-480V with rated operational current 50A under AC-1 class between -10 and 40 degrees C, heater capacity 10kW at 1 phase 200V, 17.3kW at 3 phase 200V, 34.6kW at 3 phase 400V under batch control. Semiconductor switching gives long life in high frequency switching duty with no switching noise, no wearing parts and clean operation, and a front operation indicator shows the control input state. The DD code selects individual control in place of batch control and the HZ code supplies the unit without a cooling fin. A charged part protection cover unit UN-CV501US and the power control unit UA-PC are available as options. Derate the rated operational current above 40 degrees C ambient. JEM, IEC, UL, CSA, EC directive and TUV certified as standard, CCC is not applicable.

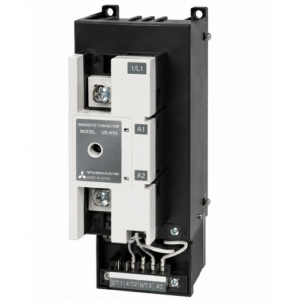

Mitsubishi Electric MS-T/N series US-K single pole solid state contactor for motor and heater loads at rated voltage AC100-240V, covering rated operational currents 70A to 200A under AC-1 class. The single pole type is used for single phase loads, and two or three units may be combined for a three phase load. Semiconductor switching gives long life in high frequency switching duty with no switching noise and no wearing parts. Option units include the drive unit UA-DR1, the reversing unit UA-RE and the power control unit UA-PC. Three phase capacity figures assume two or three single pole units combined onto a three phase load. Derate the rated operational current above 40 degrees C ambient. JEM, IEC, UL, CSA, EC directive, TUV and CCC certified as standard.

Mitsubishi Electric MS-T/N series US-K three pole solid state contactor for motor and heater loads at rated voltage AC100-240V, covering rated operational currents 100A to 150A under AC-1 class. The three pole type is supplied only as a three element type; the two element type is not manufactured. Semiconductor switching gives long life in high frequency switching duty with no switching noise and no wearing parts. Option units include the drive unit UA-DR1, the reversing unit UA-RE and the power control unit UA-PC. Three phase capacity figures assume two or three single pole units combined onto a three phase load. Derate the rated operational current above 40 degrees C ambient. JEM, IEC, UL, CSA, EC directive, TUV and CCC certified as standard.

Mitsubishi Electric MS-T/N series US-KD8 solid state contactor for DC loads, rated DC24-110V with rated operational current 8A under DC-1 class. It is the only DC load type in the US series. Semiconductor switching gives long life in high frequency switching duty with no switching noise and no wearing parts. Rail mounting is available on the standard product and the drive unit with output UA-SH8 can be fitted as an option. Derate the rated operational current above 40 degrees C ambient.

Mitsubishi Electric MS-T/N series US-KH single pole solid state contactor for motor and heater loads at rated voltage AC200-440V, covering rated operational currents 70A to 200A under AC-1 class. The single pole type is used for single phase loads, and two or three units may be combined for a three phase load. Semiconductor switching gives long life in high frequency switching duty with no switching noise and no wearing parts. Option units include the drive unit UA-DR1, the reversing unit UA-RE and the power control unit UA-PC. Three phase capacity figures assume two or three single pole units combined onto a three phase load. Derate the rated operational current above 40 degrees C ambient. JEM, IEC, UL, CSA, EC directive, TUV and CCC certified as standard.

Mitsubishi Electric MS-T/N series US-KH three pole solid state contactor for motor and heater loads at rated voltage AC200-440V, covering rated operational currents 100A to 150A under AC-1 class. The three pole type is supplied only as a three element type; the two element type is not manufactured. Semiconductor switching gives long life in high frequency switching duty with no switching noise and no wearing parts. Option units include the drive unit UA-DR1, the reversing unit UA-RE and the power control unit UA-PC. Three phase capacity figures assume two or three single pole units combined onto a three phase load. Derate the rated operational current above 40 degrees C ambient. JEM, IEC, UL, CSA, EC directive, TUV and CCC certified as standard.

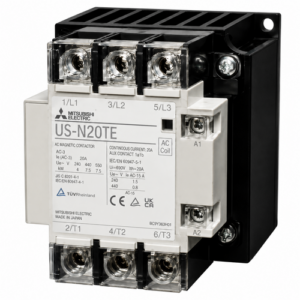

Mitsubishi Electric MS-T/N series US-N20 solid state contactor for motor and heater loads, suited to high frequency switching on conveying lines and similar duty. Rated voltage AC100-480V with rated operational current 20A under AC-1 class. Heater capacity 4kW at 1 phase 200V, 6.9kW at 3 phase 200V and motor capacity 2.2kW at 3 phase 200V. Heater capacity 8kW at 1 phase 400V, 13.8kW at 3 phase 400V and motor capacity 3.7kW at 3 phase 400V. Semiconductor switching gives long life in high frequency switching duty with no switching noise, no wearing parts and clean operation, a front operation indicator shows the control input state, and a finger protection charged part cover to DIN and VDE requirements is fitted as standard. Available as a 3 pole 2 element type or, with the TE code, a 3 pole 3 element type, with the CX code adding a CAN terminal and the RM code giving a rail mount only specification. Option units include the drive unit UA-DR1, the reversing unit UA-RE and the power control unit UA-PC. Derate the rated operational current above 40 degrees C ambient. JEM, IEC, UL, CSA, EC directive, TUV and CCC certified as standard.

Mitsubishi Electric MS-T/N series US-N30 solid state contactor for motor and heater loads, suited to high frequency switching on conveying lines and similar duty. Rated voltage AC100-480V with rated operational current 30A under AC-1 class. Heater capacity 6kW at 1 phase 200V, 10.3kW at 3 phase 200V and motor capacity 3.7kW at 3 phase 200V. Heater capacity 12kW at 1 phase 400V, 20.7kW at 3 phase 400V and motor capacity 7.5kW at 3 phase 400V. Semiconductor switching gives long life in high frequency switching duty with no switching noise, no wearing parts and clean operation, a front operation indicator shows the control input state, and a finger protection charged part cover to DIN and VDE requirements is fitted as standard. Available as a 3 pole 2 element type or, with the TE code, a 3 pole 3 element type, with the CX code adding a CAN terminal. Option units include the drive unit UA-DR1, the reversing unit UA-RE and the power control unit UA-PC. Derate the rated operational current above 40 degrees C ambient. JEM, IEC, UL, CSA, EC directive, TUV and CCC certified as standard.

Mitsubishi Electric MS-T/N series US-N40 solid state contactor for motor and heater loads, suited to high frequency switching on conveying lines and similar duty. Rated voltage AC100-480V with rated operational current 40A under AC-1 class. Heater capacity 8kW at 1 phase 200V, 13.8kW at 3 phase 200V and motor capacity 5.5kW at 3 phase 200V. Heater capacity 16kW at 1 phase 400V, 27.7kW at 3 phase 400V and motor capacity 11kW at 3 phase 400V. Semiconductor switching gives long life in high frequency switching duty with no switching noise, no wearing parts and clean operation, a front operation indicator shows the control input state, and a finger protection charged part cover to DIN and VDE requirements is fitted as standard. Available as a 3 pole 2 element type or, with the TE code, a 3 pole 3 element type, with the CX code adding a CAN terminal. Option units include the drive unit UA-DR1, the reversing unit UA-RE and the power control unit UA-PC. Derate the rated operational current above 40 degrees C ambient. JEM, IEC, UL, CSA, EC directive, TUV and CCC certified as standard.

Mitsubishi Electric MS-T/N series US-N50 solid state contactor for motor and heater loads, suited to high frequency switching on conveying lines and similar duty. Rated voltage AC100-480V with rated operational current 50A under AC-1 class. Heater capacity 10kW at 1 phase 200V, 17.3kW at 3 phase 200V and motor capacity 5.5kW at 3 phase 200V. Heater capacity 20kW at 1 phase 400V, 34.6kW at 3 phase 400V and motor capacity 11kW at 3 phase 400V. Semiconductor switching gives long life in high frequency switching duty with no switching noise, no wearing parts and clean operation, a front operation indicator shows the control input state, and a finger protection charged part cover to DIN and VDE requirements is fitted as standard. Available as a 3 pole 2 element type or, with the TE code, a 3 pole 3 element type, with the CX code adding a CAN terminal. Option units include the drive unit UA-DR1, the reversing unit UA-RE and the power control unit UA-PC. Derate the rated operational current above 40 degrees C ambient. JEM, IEC, UL, CSA, EC directive, TUV and CCC certified as standard.

Mitsubishi Electric MS-T/N series US-N5SS solid state contactor for motor and heater loads, suited to high frequency switching on conveying lines and similar duty. Rated voltage AC100-240V with rated operational current 5A under AC-1 class. Heater capacity 1kW at 1 phase 200V, 1.7kW at 3 phase 200V and motor capacity 0.4kW at 3 phase 200V. Semiconductor switching gives long life in high frequency switching duty with no switching noise, no wearing parts and clean operation, a front operation indicator shows the control input state, and a finger protection charged part cover to DIN and VDE requirements is fitted as standard. Available as a 3 pole 2 element type or, with the TE code, a 3 pole 3 element type. Option units include the drive unit UA-DR1, the reversing unit UA-RE and the power control unit UA-PC. Derate the rated operational current above 40 degrees C ambient. JEM, IEC, UL, CSA, EC directive, TUV and CCC certified as standard. Rail mounting is available on the standard product.

Mitsubishi Electric MS-T/N series US-N70NS solid state contactor for motor and heater loads, suited to high frequency switching on conveying lines and similar duty. Rated voltage AC100-240V with rated operational current 70A under AC-1 class. Heater capacity 14kW at 1 phase 200V, 24.2kW at 3 phase 200V and motor capacity 11kW at 3 phase 200V. Semiconductor switching gives long life in high frequency switching duty with no switching noise, no wearing parts and clean operation, a front operation indicator shows the control input state, and a finger protection charged part cover to DIN and VDE requirements is fitted as standard. Available as a 3 pole 2 element type or, with the TE code, a 3 pole 3 element type. Option units include the drive unit UA-DR1, the reversing unit UA-RE and the power control unit UA-PC. Derate the rated operational current above 40 degrees C ambient. JEM, IEC, UL, CSA, EC directive, TUV and CCC certified as standard.

Mitsubishi Electric MS-T/N series US-N80NS solid state contactor for motor and heater loads, suited to high frequency switching on conveying lines and similar duty. Rated voltage AC100-240V with rated operational current 80A under AC-1 class. Heater capacity 16kW at 1 phase 200V, 27.7kW at 3 phase 200V and motor capacity 11kW at 3 phase 200V. Semiconductor switching gives long life in high frequency switching duty with no switching noise, no wearing parts and clean operation, a front operation indicator shows the control input state, and a finger protection charged part cover to DIN and VDE requirements is fitted as standard. Available as a 3 pole 2 element type or, with the TE code, a 3 pole 3 element type. Option units include the drive unit UA-DR1, the reversing unit UA-RE and the power control unit UA-PC. Derate the rated operational current above 40 degrees C ambient. JEM, IEC, UL, CSA, EC directive, TUV and CCC certified as standard.

Mitsubishi Electric MS-T/N series US-N8SS solid state contactor for motor and heater loads, suited to high frequency switching on conveying lines and similar duty. Rated voltage AC100-240V with rated operational current 8A under AC-1 class. Heater capacity 1.6kW at 1 phase 200V, 2.7kW at 3 phase 200V and motor capacity 0.4kW at 3 phase 200V. Semiconductor switching gives long life in high frequency switching duty with no switching noise, no wearing parts and clean operation, a front operation indicator shows the control input state, and a finger protection charged part cover to DIN and VDE requirements is fitted as standard. Available as a 3 pole 2 element type or, with the TE code, a 3 pole 3 element type. Option units include the drive unit UA-DR1, the reversing unit UA-RE and the power control unit UA-PC. Derate the rated operational current above 40 degrees C ambient. JEM, IEC, UL, CSA, EC directive, TUV and CCC certified as standard. Rail mounting is available on the standard product.

Mitsubishi Electric MS-T/N series US-NH70NS solid state contactor for motor and heater loads, suited to high frequency switching on conveying lines and similar duty. Rated voltage AC200-480V with rated operational current 70A under AC-1 class. Heater capacity 28kW at 1 phase 400V, 48.5kW at 3 phase 400V and motor capacity 22kW at 3 phase 400V. Semiconductor switching gives long life in high frequency switching duty with no switching noise, no wearing parts and clean operation, a front operation indicator shows the control input state, and a finger protection charged part cover to DIN and VDE requirements is fitted as standard. Available as a 3 pole 2 element type or, with the TE code, a 3 pole 3 element type. Option units include the drive unit UA-DR1, the reversing unit UA-RE and the power control unit UA-PC. Derate the rated operational current above 40 degrees C ambient. JEM, IEC, UL, CSA, EC directive, TUV and CCC certified as standard.

Mitsubishi Electric MS-T/N series US-NH80NS solid state contactor for motor and heater loads, suited to high frequency switching on conveying lines and similar duty. Rated voltage AC200-480V with rated operational current 80A under AC-1 class. Heater capacity 32kW at 1 phase 400V, 55.4kW at 3 phase 400V and motor capacity 22kW at 3 phase 400V. Semiconductor switching gives long life in high frequency switching duty with no switching noise, no wearing parts and clean operation, a front operation indicator shows the control input state, and a finger protection charged part cover to DIN and VDE requirements is fitted as standard. Available as a 3 pole 2 element type or, with the TE code, a 3 pole 3 element type. Option units include the drive unit UA-DR1, the reversing unit UA-RE and the power control unit UA-PC. Derate the rated operational current above 40 degrees C ambient. JEM, IEC, UL, CSA, EC directive, TUV and CCC certified as standard.
