![[THK] — RA Cross Roller Ring (Split Outer Ring, Compact Thin Type)](https://img.prosourcemro.com/2026/05/001-953-300x200.png)
THK RA-type Cross Roller Ring with split outer ring — compact thin type with minimized ring wall thickness. Optimized for lightweight, space-saving applications such as robot hand pivot joints. For inner ring rotation. Seal version: RA...UU. Bore range: 50–200 mm.
THK RA-type Cross Roller Ring with split outer ring — compact thin type with minimized ring wall thickness. Optimized for lightweight, space-saving applications such as robot hand pivot joints. For inner ring rotation. Seal version: RA...UU. Bore range: 50–200 mm.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| RA5008 | THK RA5008, d=50mm D=66mm B=8mm compact thin type | THK | Model: RA5008 | Type: RA (Split Outer Ring, Compact Thin) | Bore d: 50 mm | OD D: 66 mm | Roller PCD dp: 57 mm | Width B: 8 mm | Dynamic Load C: 5.1 kN | Static Load C0: 7.19 kN | Mass: 0.08 kg | Seal variant: RA5008UU | |
| RA6008 | THK RA6008, d=60mm D=76mm B=8mm compact thin type | THK | Model: RA6008 | Type: RA (Split Outer Ring, Compact Thin) | Bore d: 60 mm | OD D: 76 mm | Roller PCD dp: 67 mm | Width B: 8 mm | Dynamic Load C: 5.68 kN | Static Load C0: 8.68 kN | Mass: 0.09 kg | Seal variant: RA6008UU | |
| RA7008 | THK RA7008, d=70mm D=86mm B=8mm compact thin type | THK | Model: RA7008 | Type: RA (Split Outer Ring, Compact Thin) | Bore d: 70 mm | OD D: 86 mm | Roller PCD dp: 77 mm | Width B: 8 mm | Dynamic Load C: 5.98 kN | Static Load C0: 9.8 kN | Mass: 0.1 kg | Seal variant: RA7008UU | |
| RA8008 | THK RA8008, d=80mm D=96mm B=8mm compact thin type | THK | Model: RA8008 | Type: RA (Split Outer Ring, Compact Thin) | Bore d: 80 mm | OD D: 96 mm | Roller PCD dp: 87 mm | Width B: 8 mm | Dynamic Load C: 6.37 kN | Static Load C0: 11.3 kN | Mass: 0.11 kg | Seal variant: RA8008UU | |
| RA9008 | THK RA9008, d=90mm D=106mm B=8mm compact thin type | THK | Model: RA9008 | Type: RA (Split Outer Ring, Compact Thin) | Bore d: 90 mm | OD D: 106 mm | Roller PCD dp: 97 mm | Width B: 8 mm | Dynamic Load C: 6.76 kN | Static Load C0: 12.4 kN | Mass: 0.12 kg | Seal variant: RA9008UU | |
| RA10008 | THK RA10008, d=100mm D=116mm B=8mm compact thin type | THK | Model: RA10008 | Type: RA (Split Outer Ring, Compact Thin) | Bore d: 100 mm | OD D: 116 mm | Roller PCD dp: 107 mm | Width B: 8 mm | Dynamic Load C: 7.15 kN | Static Load C0: 13.9 kN | Mass: 0.14 kg | Seal variant: RA10008UU | |
| RA11008 | THK RA11008, d=110mm D=126mm B=8mm compact thin type | THK | Model: RA11008 | Type: RA (Split Outer Ring, Compact Thin) | Bore d: 110 mm | OD D: 126 mm | Roller PCD dp: 117 mm | Width B: 8 mm | Dynamic Load C: 7.45 kN | Static Load C0: 15.0 kN | Mass: 0.15 kg | Seal variant: RA11008UU | |
| RA12008 | THK RA12008, d=120mm D=136mm B=8mm compact thin type | THK | Model: RA12008 | Type: RA (Split Outer Ring, Compact Thin) | Bore d: 120 mm | OD D: 136 mm | Roller PCD dp: 127 mm | Width B: 8 mm | Dynamic Load C: 7.84 kN | Static Load C0: 16.5 kN | Mass: 0.17 kg | Seal variant: RA12008UU | |
| RA13008 | THK RA13008, d=130mm D=146mm B=8mm compact thin type | THK | Model: RA13008 | Type: RA (Split Outer Ring, Compact Thin) | Bore d: 130 mm | OD D: 146 mm | Roller PCD dp: 137 mm | Width B: 8 mm | Dynamic Load C: 7.94 kN | Static Load C0: 17.6 kN | Mass: 0.18 kg | Seal variant: RA13008UU | |
| RA14008 | THK RA14008, d=140mm D=156mm B=8mm compact thin type | THK | Model: RA14008 | Type: RA (Split Outer Ring, Compact Thin) | Bore d: 140 mm | OD D: 156 mm | Roller PCD dp: 147 mm | Width B: 8 mm | Dynamic Load C: 8.33 kN | Static Load C0: 19.1 kN | Mass: 0.19 kg | Seal variant: RA14008UU | |
| RA15008 | THK RA15008, d=150mm D=166mm B=8mm compact thin type | THK | Model: RA15008 | Type: RA (Split Outer Ring, Compact Thin) | Bore d: 150 mm | OD D: 166 mm | Roller PCD dp: 157 mm | Width B: 8 mm | Dynamic Load C: 8.82 kN | Static Load C0: 20.6 kN | Mass: 0.2 kg | Seal variant: RA15008UU | |
| RA16013 | THK RA16013, d=160mm D=186mm B=13mm compact thin type | THK | Model: RA16013 | Type: RA (Split Outer Ring, Compact Thin) | Bore d: 160 mm | OD D: 186 mm | Roller PCD dp: 172 mm | Width B: 13 mm | Dynamic Load C: 23.3 kN | Static Load C0: 44.9 kN | Mass: 0.59 kg | Seal variant: RA16013UU | |
| RA17013 | THK RA17013, d=170mm D=196mm B=13mm compact thin type | THK | Model: RA17013 | Type: RA (Split Outer Ring, Compact Thin) | Bore d: 170 mm | OD D: 196 mm | Roller PCD dp: 182 mm | Width B: 13 mm | Dynamic Load C: 23.5 kN | Static Load C0: 46.5 kN | Mass: 0.64 kg | Seal variant: RA17013UU | |
| RA18013 | THK RA18013, d=180mm D=206mm B=13mm compact thin type | THK | Model: RA18013 | Type: RA (Split Outer Ring, Compact Thin) | Bore d: 180 mm | OD D: 206 mm | Roller PCD dp: 192 mm | Width B: 13 mm | Dynamic Load C: 24.5 kN | Static Load C0: 49.8 kN | Mass: 0.68 kg | Seal variant: RA18013UU | |
| RA19013 | THK RA19013, d=190mm D=216mm B=13mm compact thin type | THK | Model: RA19013 | Type: RA (Split Outer Ring, Compact Thin) | Bore d: 190 mm | OD D: 216 mm | Roller PCD dp: 202 mm | Width B: 13 mm | Dynamic Load C: 24.9 kN | Static Load C0: 51.5 kN | Mass: 0.69 kg | Seal variant: RA19013UU | |
| RA20013 | THK RA20013, d=200mm D=226mm B=13mm compact thin type | THK | Model: RA20013 | Type: RA (Split Outer Ring, Compact Thin) | Bore d: 200 mm | OD D: 226 mm | Roller PCD dp: 212 mm | Width B: 13 mm | Dynamic Load C: 25.8 kN | Static Load C0: 54.7 kN | Mass: 0.71 kg | Seal variant: RA20013UU |
![[THK] — RA-C Cross Roller Ring (Single Split Outer Ring)](https://img.prosourcemro.com/2026/05/001-954-300x196.png)
THK RA-C type Cross Roller Ring — single split outer ring type. Same dimensions as RA type; single outer ring split increases outer ring rigidity allowing use for outer ring rotation as well as inner ring rotation. Seal version: RA...CUU. Bore range: 50–200 mm.
THK RA-C type Cross Roller Ring — single split outer ring type. Same dimensions as RA type; single outer ring split increases outer ring rigidity allowing use for outer ring rotation as well as inner ring rotation. Seal version: RA...CUU. Bore range: 50–200 mm.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| RA5008C | THK RA5008C, d=50mm D=66mm B=8mm single split outer ring | THK | Model: RA5008C | Type: RA-C (Single Split Outer Ring) | Bore d: 50 mm | OD D: 66 mm | Roller PCD dp: 57 mm | Width B: 8 mm | Dynamic Load C: 5.1 kN | Static Load C0: 7.19 kN | Mass: 0.08 kg | Seal variant: RA5008CUU | |
| RA6008C | THK RA6008C, d=60mm D=76mm B=8mm single split outer ring | THK | Model: RA6008C | Type: RA-C (Single Split Outer Ring) | Bore d: 60 mm | OD D: 76 mm | Roller PCD dp: 67 mm | Width B: 8 mm | Dynamic Load C: 5.68 kN | Static Load C0: 8.68 kN | Mass: 0.09 kg | Seal variant: RA6008CUU | |
| RA7008C | THK RA7008C, d=70mm D=86mm B=8mm single split outer ring | THK | Model: RA7008C | Type: RA-C (Single Split Outer Ring) | Bore d: 70 mm | OD D: 86 mm | Roller PCD dp: 77 mm | Width B: 8 mm | Dynamic Load C: 5.98 kN | Static Load C0: 9.8 kN | Mass: 0.1 kg | Seal variant: RA7008CUU | |
| RA8008C | THK RA8008C, d=80mm D=96mm B=8mm single split outer ring | THK | Model: RA8008C | Type: RA-C (Single Split Outer Ring) | Bore d: 80 mm | OD D: 96 mm | Roller PCD dp: 87 mm | Width B: 8 mm | Dynamic Load C: 6.37 kN | Static Load C0: 11.3 kN | Mass: 0.11 kg | Seal variant: RA8008CUU | |
| RA9008C | THK RA9008C, d=90mm D=106mm B=8mm single split outer ring | THK | Model: RA9008C | Type: RA-C (Single Split Outer Ring) | Bore d: 90 mm | OD D: 106 mm | Roller PCD dp: 97 mm | Width B: 8 mm | Dynamic Load C: 6.76 kN | Static Load C0: 12.4 kN | Mass: 0.12 kg | Seal variant: RA9008CUU | |
| RA10008C | THK RA10008C, d=100mm D=116mm B=8mm single split outer ring | THK | Model: RA10008C | Type: RA-C (Single Split Outer Ring) | Bore d: 100 mm | OD D: 116 mm | Roller PCD dp: 107 mm | Width B: 8 mm | Dynamic Load C: 7.15 kN | Static Load C0: 13.9 kN | Mass: 0.14 kg | Seal variant: RA10008CUU | |
| RA11008C | THK RA11008C, d=110mm D=126mm B=8mm single split outer ring | THK | Model: RA11008C | Type: RA-C (Single Split Outer Ring) | Bore d: 110 mm | OD D: 126 mm | Roller PCD dp: 117 mm | Width B: 8 mm | Dynamic Load C: 7.45 kN | Static Load C0: 15.0 kN | Mass: 0.15 kg | Seal variant: RA11008CUU | |
| RA12008C | THK RA12008C, d=120mm D=136mm B=8mm single split outer ring | THK | Model: RA12008C | Type: RA-C (Single Split Outer Ring) | Bore d: 120 mm | OD D: 136 mm | Roller PCD dp: 127 mm | Width B: 8 mm | Dynamic Load C: 7.84 kN | Static Load C0: 16.5 kN | Mass: 0.17 kg | Seal variant: RA12008CUU | |
| RA13008C | THK RA13008C, d=130mm D=146mm B=8mm single split outer ring | THK | Model: RA13008C | Type: RA-C (Single Split Outer Ring) | Bore d: 130 mm | OD D: 146 mm | Roller PCD dp: 137 mm | Width B: 8 mm | Dynamic Load C: 7.94 kN | Static Load C0: 17.6 kN | Mass: 0.18 kg | Seal variant: RA13008CUU | |
| RA14008C | THK RA14008C, d=140mm D=156mm B=8mm single split outer ring | THK | Model: RA14008C | Type: RA-C (Single Split Outer Ring) | Bore d: 140 mm | OD D: 156 mm | Roller PCD dp: 147 mm | Width B: 8 mm | Dynamic Load C: 8.33 kN | Static Load C0: 19.1 kN | Mass: 0.19 kg | Seal variant: RA14008CUU | |
| RA15008C | THK RA15008C, d=150mm D=166mm B=8mm single split outer ring | THK | Model: RA15008C | Type: RA-C (Single Split Outer Ring) | Bore d: 150 mm | OD D: 166 mm | Roller PCD dp: 157 mm | Width B: 8 mm | Dynamic Load C: 8.82 kN | Static Load C0: 20.6 kN | Mass: 0.2 kg | Seal variant: RA15008CUU | |
| RA16013C | THK RA16013C, d=160mm D=186mm B=13mm single split outer ring | THK | Model: RA16013C | Type: RA-C (Single Split Outer Ring) | Bore d: 160 mm | OD D: 186 mm | Roller PCD dp: 172 mm | Width B: 13 mm | Dynamic Load C: 23.3 kN | Static Load C0: 44.9 kN | Mass: 0.59 kg | Seal variant: RA16013CUU | |
| RA17013C | THK RA17013C, d=170mm D=196mm B=13mm single split outer ring | THK | Model: RA17013C | Type: RA-C (Single Split Outer Ring) | Bore d: 170 mm | OD D: 196 mm | Roller PCD dp: 182 mm | Width B: 13 mm | Dynamic Load C: 23.5 kN | Static Load C0: 46.5 kN | Mass: 0.64 kg | Seal variant: RA17013CUU | |
| RA18013C | THK RA18013C, d=180mm D=206mm B=13mm single split outer ring | THK | Model: RA18013C | Type: RA-C (Single Split Outer Ring) | Bore d: 180 mm | OD D: 206 mm | Roller PCD dp: 192 mm | Width B: 13 mm | Dynamic Load C: 24.5 kN | Static Load C0: 49.8 kN | Mass: 0.68 kg | Seal variant: RA18013CUU | |
| RA19013C | THK RA19013C, d=190mm D=216mm B=13mm single split outer ring | THK | Model: RA19013C | Type: RA-C (Single Split Outer Ring) | Bore d: 190 mm | OD D: 216 mm | Roller PCD dp: 202 mm | Width B: 13 mm | Dynamic Load C: 24.9 kN | Static Load C0: 51.5 kN | Mass: 0.69 kg | Seal variant: RA19013CUU | |
| RA20013C | THK RA20013C, d=200mm D=226mm B=13mm single split outer ring | THK | Model: RA20013C | Type: RA-C (Single Split Outer Ring) | Bore d: 200 mm | OD D: 226 mm | Roller PCD dp: 212 mm | Width B: 13 mm | Dynamic Load C: 25.8 kN | Static Load C0: 54.7 kN | Mass: 0.71 kg | Seal variant: RA20013CUU |
![[THK] — RAU Cross Roller Ring (RA-Compatible, Integrated Inner/Outer Ring)](https://img.prosourcemro.com/2026/05/001-955-300x215.png)
THK RAU-type Cross Roller Ring — RA-compatible integrated inner/outer ring type. Small cross-sectional area for lightweight, compact design. Usable for both inner ring and outer ring rotation. Seal version: RAU...UU. Bore range: 50–200 mm.
THK RAU-type Cross Roller Ring — RA-compatible integrated inner/outer ring type. Small cross-sectional area for lightweight, compact design. Usable for both inner ring and outer ring rotation. Seal version: RAU...UU. Bore range: 50–200 mm.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| RAU5008 | THK RAU5008, d=50mm D=66mm B=8mm RA-compatible | THK | Model: RAU5008 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 50 mm | OD D: 66 mm | Roller PCD dp: 57 mm | Width B: 8 mm | Dynamic Load C: 5.1 kN | Static Load C0: 7.19 kN | Mass: 0.08 kg | Seal variant: RAU5008UU | |
| RAU6008 | THK RAU6008, d=60mm D=76mm B=8mm RA-compatible | THK | Model: RAU6008 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 60 mm | OD D: 76 mm | Roller PCD dp: 67 mm | Width B: 8 mm | Dynamic Load C: 5.68 kN | Static Load C0: 8.68 kN | Mass: 0.09 kg | Seal variant: RAU6008UU | |
| RAU7008 | THK RAU7008, d=70mm D=86mm B=8mm RA-compatible | THK | Model: RAU7008 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 70 mm | OD D: 86 mm | Roller PCD dp: 77 mm | Width B: 8 mm | Dynamic Load C: 5.98 kN | Static Load C0: 9.8 kN | Mass: 0.1 kg | Seal variant: RAU7008UU | |
| RAU8008 | THK RAU8008, d=80mm D=96mm B=8mm RA-compatible | THK | Model: RAU8008 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 80 mm | OD D: 96 mm | Roller PCD dp: 87 mm | Width B: 8 mm | Dynamic Load C: 6.37 kN | Static Load C0: 11.3 kN | Mass: 0.11 kg | Seal variant: RAU8008UU | |
| RAU9008 | THK RAU9008, d=90mm D=106mm B=8mm RA-compatible | THK | Model: RAU9008 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 90 mm | OD D: 106 mm | Roller PCD dp: 97 mm | Width B: 8 mm | Dynamic Load C: 6.76 kN | Static Load C0: 12.4 kN | Mass: 0.12 kg | Seal variant: RAU9008UU | |
| RAU10008 | THK RAU10008, d=100mm D=116mm B=8mm RA-compatible | THK | Model: RAU10008 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 100 mm | OD D: 116 mm | Roller PCD dp: 107 mm | Width B: 8 mm | Dynamic Load C: 7.15 kN | Static Load C0: 13.9 kN | Mass: 0.14 kg | Seal variant: RAU10008UU | |
| RAU11008 | THK RAU11008, d=110mm D=126mm B=8mm RA-compatible | THK | Model: RAU11008 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 110 mm | OD D: 126 mm | Roller PCD dp: 117 mm | Width B: 8 mm | Dynamic Load C: 7.45 kN | Static Load C0: 15.0 kN | Mass: 0.15 kg | Seal variant: RAU11008UU | |
| RAU12008 | THK RAU12008, d=120mm D=136mm B=8mm RA-compatible | THK | Model: RAU12008 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 120 mm | OD D: 136 mm | Roller PCD dp: 127 mm | Width B: 8 mm | Dynamic Load C: 7.84 kN | Static Load C0: 16.5 kN | Mass: 0.17 kg | Seal variant: RAU12008UU | |
| RAU13008 | THK RAU13008, d=130mm D=146mm B=8mm RA-compatible | THK | Model: RAU13008 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 130 mm | OD D: 146 mm | Roller PCD dp: 137 mm | Width B: 8 mm | Dynamic Load C: 7.94 kN | Static Load C0: 17.6 kN | Mass: 0.18 kg | Seal variant: RAU13008UU | |
| RAU14008 | THK RAU14008, d=140mm D=156mm B=8mm RA-compatible | THK | Model: RAU14008 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 140 mm | OD D: 156 mm | Roller PCD dp: 147 mm | Width B: 8 mm | Dynamic Load C: 8.33 kN | Static Load C0: 19.1 kN | Mass: 0.19 kg | Seal variant: RAU14008UU | |
| RAU15008 | THK RAU15008, d=150mm D=166mm B=8mm RA-compatible | THK | Model: RAU15008 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 150 mm | OD D: 166 mm | Roller PCD dp: 157 mm | Width B: 8 mm | Dynamic Load C: 8.82 kN | Static Load C0: 20.6 kN | Mass: 0.2 kg | Seal variant: RAU15008UU | |
| RAU16013 | THK RAU16013, d=160mm D=186mm B=13mm RA-compatible | THK | Model: RAU16013 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 160 mm | OD D: 186 mm | Roller PCD dp: 172 mm | Width B: 13 mm | Dynamic Load C: 23.3 kN | Static Load C0: 44.9 kN | Mass: 0.59 kg | Seal variant: RAU16013UU | |
| RAU17013 | THK RAU17013, d=170mm D=196mm B=13mm RA-compatible | THK | Model: RAU17013 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 170 mm | OD D: 196 mm | Roller PCD dp: 182 mm | Width B: 13 mm | Dynamic Load C: 23.5 kN | Static Load C0: 46.5 kN | Mass: 0.64 kg | Seal variant: RAU17013UU | |
| RAU18013 | THK RAU18013, d=180mm D=206mm B=13mm RA-compatible | THK | Model: RAU18013 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 180 mm | OD D: 206 mm | Roller PCD dp: 192 mm | Width B: 13 mm | Dynamic Load C: 24.5 kN | Static Load C0: 49.8 kN | Mass: 0.68 kg | Seal variant: RAU18013UU | |
| RAU19013 | THK RAU19013, d=190mm D=216mm B=13mm RA-compatible | THK | Model: RAU19013 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 190 mm | OD D: 216 mm | Roller PCD dp: 202 mm | Width B: 13 mm | Dynamic Load C: 24.9 kN | Static Load C0: 51.5 kN | Mass: 0.69 kg | Seal variant: RAU19013UU | |
| RAU20013 | THK RAU20013, d=200mm D=226mm B=13mm RA-compatible | THK | Model: RAU20013 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 200 mm | OD D: 226 mm | Roller PCD dp: 212 mm | Width B: 13 mm | Dynamic Load C: 25.8 kN | Static Load C0: 54.7 kN | Mass: 0.71 kg | Seal variant: RAU20013UU |
![[THK] — RAU Cross Roller Ring (Small Bore, Thin Type, Width 5mm)](https://img.prosourcemro.com/2026/05/001-950-300x200.png)
THK RAU-type Cross Roller Ring — small bore, thin type with 5mm width. No seal available. Radial clearance C0 only. Standard accuracy (Grade 0). Bore range: 10–100 mm.
THK RAU-type Cross Roller Ring — small bore, thin type with 5mm width. No seal available. Radial clearance C0 only. Standard accuracy (Grade 0). Bore range: 10–100 mm.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| RAU1005 | THK RAU1005, d=10mm D=21mm B=5mm thin type | THK | Model: RAU1005 | Type: RAU (Small Bore, Thin 5mm Width) | Bore d: 10 mm | OD D: 21 mm | Roller PCD dp: 14.7 mm | Width B: 5 mm | Dynamic Load C: 1.12 kN | Static Load C0: 0.809 kN | Mass: 9 g | Note: No seal. C0 clearance only. Standard accuracy only. | |
| RAU1505 | THK RAU1505, d=15mm D=26mm B=5mm thin type | THK | Model: RAU1505 | Type: RAU (Small Bore, Thin 5mm Width) | Bore d: 15 mm | OD D: 26 mm | Roller PCD dp: 19.7 mm | Width B: 5 mm | Dynamic Load C: 1.32 kN | Static Load C0: 1.1 kN | Mass: 12 g | Note: No seal. C0 clearance only. Standard accuracy only. | |
| RAU2005 | THK RAU2005, d=20mm D=31mm B=5mm thin type | THK | Model: RAU2005 | Type: RAU (Small Bore, Thin 5mm Width) | Bore d: 20 mm | OD D: 31 mm | Roller PCD dp: 24.7 mm | Width B: 5 mm | Dynamic Load C: 1.49 kN | Static Load C0: 1.4 kN | Mass: 15 g | Note: No seal. C0 clearance only. Standard accuracy only. | |
| RAU3005 | THK RAU3005, d=30mm D=41mm B=5mm thin type | THK | Model: RAU3005 | Type: RAU (Small Bore, Thin 5mm Width) | Bore d: 30 mm | OD D: 41 mm | Roller PCD dp: 34.7 mm | Width B: 5 mm | Dynamic Load C: 1.89 kN | Static Load C0: 2.14 kN | Mass: 21 g | Note: No seal. C0 clearance only. Standard accuracy only. | |
| RAU4005 | THK RAU4005, d=40mm D=51mm B=5mm thin type | THK | Model: RAU4005 | Type: RAU (Small Bore, Thin 5mm Width) | Bore d: 40 mm | OD D: 51 mm | Roller PCD dp: 44.7 mm | Width B: 5 mm | Dynamic Load C: 2.14 kN | Static Load C0: 2.74 kN | Mass: 27 g | Note: No seal. C0 clearance only. Standard accuracy only. | |
| RAU5005 | THK RAU5005, d=50mm D=61mm B=5mm thin type | THK | Model: RAU5005 | Type: RAU (Small Bore, Thin 5mm Width) | Bore d: 50 mm | OD D: 61 mm | Roller PCD dp: 54.7 mm | Width B: 5 mm | Dynamic Load C: 2.43 kN | Static Load C0: 3.49 kN | Mass: 32 g | Note: No seal. C0 clearance only. Standard accuracy only. | |
| RAU6005 | THK RAU6005, d=60mm D=71mm B=5mm thin type | THK | Model: RAU6005 | Type: RAU (Small Bore, Thin 5mm Width) | Bore d: 60 mm | OD D: 71 mm | Roller PCD dp: 64.7 mm | Width B: 5 mm | Dynamic Load C: 2.63 kN | Static Load C0: 4.09 kN | Mass: 38 g | Note: No seal. C0 clearance only. Standard accuracy only. | |
| RAU7005 | THK RAU7005, d=70mm D=81mm B=5mm thin type | THK | Model: RAU7005 | Type: RAU (Small Bore, Thin 5mm Width) | Bore d: 70 mm | OD D: 81 mm | Roller PCD dp: 74.7 mm | Width B: 5 mm | Dynamic Load C: 2.81 kN | Static Load C0: 4.68 kN | Mass: 44 g | Note: No seal. C0 clearance only. Standard accuracy only. | |
| RAU8005 | THK RAU8005, d=80mm D=91mm B=5mm thin type | THK | Model: RAU8005 | Type: RAU (Small Bore, Thin 5mm Width) | Bore d: 80 mm | OD D: 91 mm | Roller PCD dp: 84.7 mm | Width B: 5 mm | Dynamic Load C: 3.05 kN | Static Load C0: 5.43 kN | Mass: 50 g | Note: No seal. C0 clearance only. Standard accuracy only. | |
| RAU9005 | THK RAU9005, d=90mm D=101mm B=5mm thin type | THK | Model: RAU9005 | Type: RAU (Small Bore, Thin 5mm Width) | Bore d: 90 mm | OD D: 101 mm | Roller PCD dp: 94.7 mm | Width B: 5 mm | Dynamic Load C: 3.19 kN | Static Load C0: 6.03 kN | Mass: 56 g | Note: No seal. C0 clearance only. Standard accuracy only. | |
| RAU10005 | THK RAU10005, d=100mm D=111mm B=5mm thin type | THK | Model: RAU10005 | Type: RAU (Small Bore, Thin 5mm Width) | Bore d: 100 mm | OD D: 111 mm | Roller PCD dp: 104.7 mm | Width B: 5 mm | Dynamic Load C: 3.37 kN | Static Load C0: 6.63 kN | Mass: 61 g | Note: No seal. C0 clearance only. Standard accuracy only. |
![[THK] — RB Cross Roller Ring (Split Outer Ring)](https://img.prosourcemro.com/2026/05/001-949-300x200.png)
THK RB-type Cross Roller Ring with split outer ring and integrated inner ring. Suitable for inner ring rotation applications requiring high rotational accuracy. Seal version available as RB...UU. Bore range: 20–1250 mm.
THK RB-type Cross Roller Ring with split outer ring and integrated inner ring. Suitable for inner ring rotation applications requiring high rotational accuracy. Seal version available as RB...UU. Bore range: 20–1250 mm.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| RB2008 | THK RB2008, d=20mm D=36mm B=8mm, C=3.23kN C0=3.1kN | THK | Model: RB2008 | Type: RB (Split Outer Ring) | Bore d: 20 mm | OD D: 36 mm | Roller PCD dp: 27.0 mm | Width B: 8 mm | Dynamic Load C: 3.23 kN | Static Load C0: 3.1 kN | Mass: 0.04 kg | Seal variant: RB2008UU | |
| RB2508 | THK RB2508, d=25mm D=41mm B=8mm, C=3.63kN C0=3.83kN | THK | Model: RB2508 | Type: RB (Split Outer Ring) | Bore d: 25 mm | OD D: 41 mm | Roller PCD dp: 32.0 mm | Width B: 8 mm | Dynamic Load C: 3.63 kN | Static Load C0: 3.83 kN | Mass: 0.05 kg | Seal variant: RB2508UU | |
| RB3010 | THK RB3010, d=30mm D=55mm B=10mm, C=7.35kN C0=8.36kN | THK | Model: RB3010 | Type: RB (Split Outer Ring) | Bore d: 30 mm | OD D: 55 mm | Roller PCD dp: 41.5 mm | Width B: 10 mm | Dynamic Load C: 7.35 kN | Static Load C0: 8.36 kN | Mass: 0.12 kg | Seal variant: RB3010UU | |
| RB3510 | THK RB3510, d=35mm D=60mm B=10mm, C=7.64kN C0=9.12kN | THK | Model: RB3510 | Type: RB (Split Outer Ring) | Bore d: 35 mm | OD D: 60 mm | Roller PCD dp: 46.5 mm | Width B: 10 mm | Dynamic Load C: 7.64 kN | Static Load C0: 9.12 kN | Mass: 0.13 kg | Seal variant: RB3510UU | |
| RB4010 | THK RB4010, d=40mm D=65mm B=10mm, C=8.33kN C0=10.6kN | THK | Model: RB4010 | Type: RB (Split Outer Ring) | Bore d: 40 mm | OD D: 65 mm | Roller PCD dp: 51.5 mm | Width B: 10 mm | Dynamic Load C: 8.33 kN | Static Load C0: 10.6 kN | Mass: 0.16 kg | Seal variant: RB4010UU | |
| RB4510 | THK RB4510, d=45mm D=70mm B=10mm, C=8.62kN C0=11.3kN | THK | Model: RB4510 | Type: RB (Split Outer Ring) | Bore d: 45 mm | OD D: 70 mm | Roller PCD dp: 56.5 mm | Width B: 10 mm | Dynamic Load C: 8.62 kN | Static Load C0: 11.3 kN | Mass: 0.17 kg | Seal variant: RB4510UU | |
| RB5013 | THK RB5013, d=50mm D=80mm B=13mm, C=16.7kN C0=20.9kN | THK | Model: RB5013 | Type: RB (Split Outer Ring) | Bore d: 50 mm | OD D: 80 mm | Roller PCD dp: 64.0 mm | Width B: 13 mm | Dynamic Load C: 16.7 kN | Static Load C0: 20.9 kN | Mass: 0.27 kg | Seal variant: RB5013UU | |
| RB6013 | THK RB6013, d=60mm D=90mm B=13mm, C=18.0kN C0=24.3kN | THK | Model: RB6013 | Type: RB (Split Outer Ring) | Bore d: 60 mm | OD D: 90 mm | Roller PCD dp: 74.0 mm | Width B: 13 mm | Dynamic Load C: 18.0 kN | Static Load C0: 24.3 kN | Mass: 0.3 kg | Seal variant: RB6013UU | |
| RB7013 | THK RB7013, d=70mm D=100mm B=13mm, C=19.4kN C0=27.7kN | THK | Model: RB7013 | Type: RB (Split Outer Ring) | Bore d: 70 mm | OD D: 100 mm | Roller PCD dp: 84.0 mm | Width B: 13 mm | Dynamic Load C: 19.4 kN | Static Load C0: 27.7 kN | Mass: 0.35 kg | Seal variant: RB7013UU | |
| RB8016 | THK RB8016, d=80mm D=120mm B=16mm, C=30.1kN C0=42.1kN | THK | Model: RB8016 | Type: RB (Split Outer Ring) | Bore d: 80 mm | OD D: 120 mm | Roller PCD dp: 98.0 mm | Width B: 16 mm | Dynamic Load C: 30.1 kN | Static Load C0: 42.1 kN | Mass: 0.7 kg | Seal variant: RB8016UU | |
| RB9016 | THK RB9016, d=90mm D=130mm B=16mm, C=31.4kN C0=45.3kN | THK | Model: RB9016 | Type: RB (Split Outer Ring) | Bore d: 90 mm | OD D: 130 mm | Roller PCD dp: 108.0 mm | Width B: 16 mm | Dynamic Load C: 31.4 kN | Static Load C0: 45.3 kN | Mass: 0.75 kg | Seal variant: RB9016UU | |
| RB10016 | THK RB10016, d=100mm D=140mm B=16mm, C=31.7kN C0=48.6kN | THK | Model: RB10016 | Type: RB (Split Outer Ring) | Bore d: 100 mm | OD D: 140 mm | Roller PCD dp: 119.3 mm | Width B: 16 mm | Dynamic Load C: 31.7 kN | Static Load C0: 48.6 kN | Mass: 0.83 kg | Seal variant: RB10016UU | |
| RB10020 | THK RB10020, d=100mm D=150mm B=20mm, C=33.1kN C0=50.9kN | THK | Model: RB10020 | Type: RB (Split Outer Ring) | Bore d: 100 mm | OD D: 150 mm | Roller PCD dp: 123.0 mm | Width B: 20 mm | Dynamic Load C: 33.1 kN | Static Load C0: 50.9 kN | Mass: 1.45 kg | Seal variant: RB10020UU | |
| RB11012 | THK RB11012, d=110mm D=135mm B=12mm, C=12.5kN C0=24.1kN | THK | Model: RB11012 | Type: RB (Split Outer Ring) | Bore d: 110 mm | OD D: 135 mm | Roller PCD dp: 121.8 mm | Width B: 12 mm | Dynamic Load C: 12.5 kN | Static Load C0: 24.1 kN | Mass: 0.4 kg | Seal variant: RB11012UU | |
| RB11015 | THK RB11015, d=110mm D=145mm B=15mm, C=23.7kN C0=41.5kN | THK | Model: RB11015 | Type: RB (Split Outer Ring) | Bore d: 110 mm | OD D: 145 mm | Roller PCD dp: 126.5 mm | Width B: 15 mm | Dynamic Load C: 23.7 kN | Static Load C0: 41.5 kN | Mass: 0.75 kg | Seal variant: RB11015UU | |
| RB11020 | THK RB11020, d=110mm D=160mm B=20mm, C=34.0kN C0=54.0kN | THK | Model: RB11020 | Type: RB (Split Outer Ring) | Bore d: 110 mm | OD D: 160 mm | Roller PCD dp: 133.0 mm | Width B: 20 mm | Dynamic Load C: 34.0 kN | Static Load C0: 54.0 kN | Mass: 1.56 kg | Seal variant: RB11020UU | |
| RB12016 | THK RB12016, d=120mm D=150mm B=16mm, C=24.2kN C0=43.2kN | THK | Model: RB12016 | Type: RB (Split Outer Ring) | Bore d: 120 mm | OD D: 150 mm | Roller PCD dp: 134.2 mm | Width B: 16 mm | Dynamic Load C: 24.2 kN | Static Load C0: 43.2 kN | Mass: 0.72 kg | Seal variant: RB12016UU | |
| RB12025 | THK RB12025, d=120mm D=180mm B=25mm, C=66.9kN C0=100.0kN | THK | Model: RB12025 | Type: RB (Split Outer Ring) | Bore d: 120 mm | OD D: 180 mm | Roller PCD dp: 148.7 mm | Width B: 25 mm | Dynamic Load C: 66.9 kN | Static Load C0: 100.0 kN | Mass: 2.62 kg | Seal variant: RB12025UU | |
| RB13015 | THK RB13015, d=130mm D=160mm B=15mm, C=25.0kN C0=46.7kN | THK | Model: RB13015 | Type: RB (Split Outer Ring) | Bore d: 130 mm | OD D: 160 mm | Roller PCD dp: 144.5 mm | Width B: 15 mm | Dynamic Load C: 25.0 kN | Static Load C0: 46.7 kN | Mass: 0.72 kg | Seal variant: RB13015UU | |
| RB13025 | THK RB13025, d=130mm D=190mm B=25mm, C=69.5kN C0=107.0kN | THK | Model: RB13025 | Type: RB (Split Outer Ring) | Bore d: 130 mm | OD D: 190 mm | Roller PCD dp: 158.0 mm | Width B: 25 mm | Dynamic Load C: 69.5 kN | Static Load C0: 107.0 kN | Mass: 2.82 kg | Seal variant: RB13025UU | |
| RB14016 | THK RB14016, d=140mm D=175mm B=16mm, C=25.9kN C0=50.1kN | THK | Model: RB14016 | Type: RB (Split Outer Ring) | Bore d: 140 mm | OD D: 175 mm | Roller PCD dp: 154.8 mm | Width B: 16 mm | Dynamic Load C: 25.9 kN | Static Load C0: 50.1 kN | Mass: 1.0 kg | Seal variant: RB14016UU | |
| RB14025 | THK RB14025, d=140mm D=200mm B=25mm, C=74.8kN C0=121.0kN | THK | Model: RB14025 | Type: RB (Split Outer Ring) | Bore d: 140 mm | OD D: 200 mm | Roller PCD dp: 168.0 mm | Width B: 25 mm | Dynamic Load C: 74.8 kN | Static Load C0: 121.0 kN | Mass: 2.96 kg | Seal variant: RB14025UU | |
| RB15013 | THK RB15013, d=150mm D=180mm B=13mm, C=27.0kN C0=53.5kN | THK | Model: RB15013 | Type: RB (Split Outer Ring) | Bore d: 150 mm | OD D: 180 mm | Roller PCD dp: 164.0 mm | Width B: 13 mm | Dynamic Load C: 27.0 kN | Static Load C0: 53.5 kN | Mass: 0.68 kg | Seal variant: RB15013UU | |
| RB15025 | THK RB15025, d=150mm D=210mm B=25mm, C=76.8kN C0=128.0kN | THK | Model: RB15025 | Type: RB (Split Outer Ring) | Bore d: 150 mm | OD D: 210 mm | Roller PCD dp: 178.0 mm | Width B: 25 mm | Dynamic Load C: 76.8 kN | Static Load C0: 128.0 kN | Mass: 3.16 kg | Seal variant: RB15025UU | |
| RB15030 | THK RB15030, d=150mm D=230mm B=30mm, C=100.0kN C0=156.0kN | THK | Model: RB15030 | Type: RB (Split Outer Ring) | Bore d: 150 mm | OD D: 230 mm | Roller PCD dp: 188.0 mm | Width B: 30 mm | Dynamic Load C: 100.0 kN | Static Load C0: 156.0 kN | Mass: 5.3 kg | Seal variant: RB15030UU | |
| RB16025 | THK RB16025, d=160mm D=220mm B=25mm, C=81.7kN C0=135.0kN | THK | Model: RB16025 | Type: RB (Split Outer Ring) | Bore d: 160 mm | OD D: 220 mm | Roller PCD dp: 188.6 mm | Width B: 25 mm | Dynamic Load C: 81.7 kN | Static Load C0: 135.0 kN | Mass: 3.14 kg | Seal variant: RB16025UU | |
| RB17020 | THK RB17020, d=170mm D=220mm B=20mm, C=29.0kN C0=62.1kN | THK | Model: RB17020 | Type: RB (Split Outer Ring) | Bore d: 170 mm | OD D: 220 mm | Roller PCD dp: 191.0 mm | Width B: 20 mm | Dynamic Load C: 29.0 kN | Static Load C0: 62.1 kN | Mass: 2.21 kg | Seal variant: RB17020UU | |
| RB18025 | THK RB18025, d=180mm D=240mm B=25mm, C=84.0kN C0=143.0kN | THK | Model: RB18025 | Type: RB (Split Outer Ring) | Bore d: 180 mm | OD D: 240 mm | Roller PCD dp: 210.0 mm | Width B: 25 mm | Dynamic Load C: 84.0 kN | Static Load C0: 143.0 kN | Mass: 3.44 kg | Seal variant: RB18025UU | |
| RB19025 | THK RB19025, d=190mm D=240mm B=25mm, C=41.7kN C0=82.9kN | THK | Model: RB19025 | Type: RB (Split Outer Ring) | Bore d: 190 mm | OD D: 240 mm | Roller PCD dp: 211.9 mm | Width B: 25 mm | Dynamic Load C: 41.7 kN | Static Load C0: 82.9 kN | Mass: 2.99 kg | Seal variant: RB19025UU | |
| RB20025 | THK RB20025, d=200mm D=260mm B=25mm, C=84.2kN C0=157.0kN | THK | Model: RB20025 | Type: RB (Split Outer Ring) | Bore d: 200 mm | OD D: 260 mm | Roller PCD dp: 230.0 mm | Width B: 25 mm | Dynamic Load C: 84.2 kN | Static Load C0: 157.0 kN | Mass: 4.0 kg | Seal variant: RB20025UU | |
| RB20030 | THK RB20030, d=200mm D=280mm B=30mm, C=114.0kN C0=200.0kN | THK | Model: RB20030 | Type: RB (Split Outer Ring) | Bore d: 200 mm | OD D: 280 mm | Roller PCD dp: 240.0 mm | Width B: 30 mm | Dynamic Load C: 114.0 kN | Static Load C0: 200.0 kN | Mass: 6.7 kg | Seal variant: RB20030UU | |
| RB20035 | THK RB20035, d=200mm D=295mm B=35mm, C=151.0kN C0=252.0kN | THK | Model: RB20035 | Type: RB (Split Outer Ring) | Bore d: 200 mm | OD D: 295 mm | Roller PCD dp: 247.7 mm | Width B: 35 mm | Dynamic Load C: 151.0 kN | Static Load C0: 252.0 kN | Mass: 9.6 kg | Seal variant: RB20035UU | |
| RB22025 | THK RB22025, d=220mm D=280mm B=25mm, C=92.3kN C0=171.0kN | THK | Model: RB22025 | Type: RB (Split Outer Ring) | Bore d: 220 mm | OD D: 280 mm | Roller PCD dp: 250.1 mm | Width B: 25 mm | Dynamic Load C: 92.3 kN | Static Load C0: 171.0 kN | Mass: 4.1 kg | Seal variant: RB22025UU | |
| RB24025 | THK RB24025, d=240mm D=300mm B=25mm, C=68.3kN C0=145.0kN | THK | Model: RB24025 | Type: RB (Split Outer Ring) | Bore d: 240 mm | OD D: 300 mm | Roller PCD dp: 269.0 mm | Width B: 25 mm | Dynamic Load C: 68.3 kN | Static Load C0: 145.0 kN | Mass: 4.5 kg | Seal variant: RB24025UU | |
| RB25025 | THK RB25025, d=250mm D=310mm B=25mm, C=69.3kN C0=150.0kN | THK | Model: RB25025 | Type: RB (Split Outer Ring) | Bore d: 250 mm | OD D: 310 mm | Roller PCD dp: 277.5 mm | Width B: 25 mm | Dynamic Load C: 69.3 kN | Static Load C0: 150.0 kN | Mass: 5.0 kg | Seal variant: RB25025UU | |
| RB25030 | THK RB25030, d=250mm D=330mm B=30mm, C=126.0kN C0=244.0kN | THK | Model: RB25030 | Type: RB (Split Outer Ring) | Bore d: 250 mm | OD D: 330 mm | Roller PCD dp: 287.5 mm | Width B: 30 mm | Dynamic Load C: 126.0 kN | Static Load C0: 244.0 kN | Mass: 8.1 kg | Seal variant: RB25030UU | |
| RB25040 | THK RB25040, d=250mm D=355mm B=40mm, C=195.0kN C0=348.0kN | THK | Model: RB25040 | Type: RB (Split Outer Ring) | Bore d: 250 mm | OD D: 355 mm | Roller PCD dp: 300.7 mm | Width B: 40 mm | Dynamic Load C: 195.0 kN | Static Load C0: 348.0 kN | Mass: 14.8 kg | Seal variant: RB25040UU | |
| RB30025 | THK RB30025, d=300mm D=360mm B=25mm, C=76.3kN C0=178.0kN | THK | Model: RB30025 | Type: RB (Split Outer Ring) | Bore d: 300 mm | OD D: 360 mm | Roller PCD dp: 328.0 mm | Width B: 25 mm | Dynamic Load C: 76.3 kN | Static Load C0: 178.0 kN | Mass: 5.9 kg | Seal variant: RB30025UU | |
| RB30035 | THK RB30035, d=300mm D=395mm B=35mm, C=183.0kN C0=367.0kN | THK | Model: RB30035 | Type: RB (Split Outer Ring) | Bore d: 300 mm | OD D: 395 mm | Roller PCD dp: 345.0 mm | Width B: 35 mm | Dynamic Load C: 183.0 kN | Static Load C0: 367.0 kN | Mass: 13.4 kg | Seal variant: RB30035UU | |
| RB30040 | THK RB30040, d=300mm D=405mm B=40mm, C=212.0kN C0=409.0kN | THK | Model: RB30040 | Type: RB (Split Outer Ring) | Bore d: 300 mm | OD D: 405 mm | Roller PCD dp: 351.6 mm | Width B: 40 mm | Dynamic Load C: 212.0 kN | Static Load C0: 409.0 kN | Mass: 17.2 kg | Seal variant: RB30040UU | |
| RB35020 | THK RB35020, d=350mm D=400mm B=20mm, C=54.1kN C0=143.0kN | THK | Model: RB35020 | Type: RB (Split Outer Ring) | Bore d: 350 mm | OD D: 400 mm | Roller PCD dp: 373.4 mm | Width B: 20 mm | Dynamic Load C: 54.1 kN | Static Load C0: 143.0 kN | Mass: 3.9 kg | Seal variant: RB35020UU | |
| RB40035 | THK RB40035, d=400mm D=480mm B=35mm, C=156.0kN C0=370.0kN | THK | Model: RB40035 | Type: RB (Split Outer Ring) | Bore d: 400 mm | OD D: 480 mm | Roller PCD dp: 440.3 mm | Width B: 35 mm | Dynamic Load C: 156.0 kN | Static Load C0: 370.0 kN | Mass: 14.5 kg | Seal variant: RB40035UU | |
| RB40040 | THK RB40040, d=400mm D=510mm B=40mm, C=241.0kN C0=531.0kN | THK | Model: RB40040 | Type: RB (Split Outer Ring) | Bore d: 400 mm | OD D: 510 mm | Roller PCD dp: 453.4 mm | Width B: 40 mm | Dynamic Load C: 241.0 kN | Static Load C0: 531.0 kN | Mass: 23.5 kg | Seal variant: RB40040UU | |
| RB45025 | THK RB45025, d=450mm D=500mm B=25mm, C=61.7kN C0=182.0kN | THK | Model: RB45025 | Type: RB (Split Outer Ring) | Bore d: 450 mm | OD D: 500 mm | Roller PCD dp: 474.0 mm | Width B: 25 mm | Dynamic Load C: 61.7 kN | Static Load C0: 182.0 kN | Mass: 6.6 kg | Seal variant: RB45025UU | |
| RB50025 | THK RB50025, d=500mm D=550mm B=25mm, C=65.5kN C0=201.0kN | THK | Model: RB50025 | Type: RB (Split Outer Ring) | Bore d: 500 mm | OD D: 550 mm | Roller PCD dp: 524.2 mm | Width B: 25 mm | Dynamic Load C: 65.5 kN | Static Load C0: 201.0 kN | Mass: 7.3 kg | Seal variant: RB50025UU | |
| RB50040 | THK RB50040, d=500mm D=600mm B=40mm, C=239.0kN C0=607.0kN | THK | Model: RB50040 | Type: RB (Split Outer Ring) | Bore d: 500 mm | OD D: 600 mm | Roller PCD dp: 548.8 mm | Width B: 40 mm | Dynamic Load C: 239.0 kN | Static Load C0: 607.0 kN | Mass: 26.0 kg | Seal variant: RB50040UU | |
| RB50050 | THK RB50050, d=500mm D=625mm B=50mm, C=267.0kN C0=653.0kN | THK | Model: RB50050 | Type: RB (Split Outer Ring) | Bore d: 500 mm | OD D: 625 mm | Roller PCD dp: 561.6 mm | Width B: 50 mm | Dynamic Load C: 267.0 kN | Static Load C0: 653.0 kN | Mass: 41.7 kg | Seal variant: RB50050UU | |
| RB60040 | THK RB60040, d=600mm D=700mm B=40mm, C=264.0kN C0=721.0kN | THK | Model: RB60040 | Type: RB (Split Outer Ring) | Bore d: 600 mm | OD D: 700 mm | Roller PCD dp: 650.0 mm | Width B: 40 mm | Dynamic Load C: 264.0 kN | Static Load C0: 721.0 kN | Mass: 29.0 kg | Seal variant: RB60040UU | |
| RB70045 | THK RB70045, d=700mm D=815mm B=45mm, C=281.0kN C0=836.0kN | THK | Model: RB70045 | Type: RB (Split Outer Ring) | Bore d: 700 mm | OD D: 815 mm | Roller PCD dp: 753.5 mm | Width B: 45 mm | Dynamic Load C: 281.0 kN | Static Load C0: 836.0 kN | Mass: 46.0 kg | Seal variant: RB70045UU | |
| RB80070 | THK RB80070, d=800mm D=950mm B=70mm, C=468.0kN C0=1330.0kN | THK | Model: RB80070 | Type: RB (Split Outer Ring) | Bore d: 800 mm | OD D: 950 mm | Roller PCD dp: 868.1 mm | Width B: 70 mm | Dynamic Load C: 468.0 kN | Static Load C0: 1330.0 kN | Mass: 105.0 kg | Seal variant: RB80070UU | |
| RB90070 | THK RB90070, d=900mm D=1050mm B=70mm, C=494.0kN C0=1490.0kN | THK | Model: RB90070 | Type: RB (Split Outer Ring) | Bore d: 900 mm | OD D: 1050 mm | Roller PCD dp: 969.0 mm | Width B: 70 mm | Dynamic Load C: 494.0 kN | Static Load C0: 1490.0 kN | Mass: 120.0 kg | Seal variant: RB90070UU | |
| RB1000110 | THK RB1000110, d=1000mm D=1250mm B=110mm, C=1220.0kN C0=3220.0kN | THK | Model: RB1000110 | Type: RB (Split Outer Ring) | Bore d: 1000 mm | OD D: 1250 mm | Roller PCD dp: 1114.0 mm | Width B: 110 mm | Dynamic Load C: 1220.0 kN | Static Load C0: 3220.0 kN | Mass: 360.0 kg | Seal variant: RB1000110UU | |
| RB1250110 | THK RB1250110, d=1250mm D=1500mm B=110mm, C=1350.0kN C0=3970.0kN | THK | Model: RB1250110 | Type: RB (Split Outer Ring) | Bore d: 1250 mm | OD D: 1500 mm | Roller PCD dp: 1365.8 mm | Width B: 110 mm | Dynamic Load C: 1350.0 kN | Static Load C0: 3970.0 kN | Mass: 440.0 kg | Seal variant: RB1250110UU |
THK RB-type Cross Roller Ring USP grade — ultra-super precision exceeding JIS Class 2 / ISO Class 2 / DIN P2. Split outer ring, integrated inner ring. For inner ring rotation applications. Seal version: RB...UU-USP. Bore range: 100–600 mm.
THK RB-type Cross Roller Ring USP grade — ultra-super precision exceeding JIS Class 2 / ISO Class 2 / DIN P2. Split outer ring, integrated inner ring. For inner ring rotation applications. Seal version: RB...UU-USP. Bore range: 100–600 mm.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| RB10020USP | THK RB10020USP, d=100mm D=150mm B=20mm USP grade | THK | Model: RB10020USP | Grade: USP (Ultra-Super Precision) | Type: RB (Split Outer Ring) | Bore d: 100 mm | OD D: 150 mm | Roller PCD dp: 123 mm | Width B: 20 mm | Dynamic Load C: 33.1 kN | Static Load C0: 50.9 kN | Mass: 1.45 kg | Seal variant: RB10020UU-USP | |
| RB12025USP | THK RB12025USP, d=120mm D=180mm B=25mm USP grade | THK | Model: RB12025USP | Grade: USP (Ultra-Super Precision) | Type: RB (Split Outer Ring) | Bore d: 120 mm | OD D: 180 mm | Roller PCD dp: 148.7 mm | Width B: 25 mm | Dynamic Load C: 66.9 kN | Static Load C0: 100.0 kN | Mass: 2.62 kg | Seal variant: RB12025UU-USP | |
| RB15025USP | THK RB15025USP, d=150mm D=210mm B=25mm USP grade | THK | Model: RB15025USP | Grade: USP (Ultra-Super Precision) | Type: RB (Split Outer Ring) | Bore d: 150 mm | OD D: 210 mm | Roller PCD dp: 178 mm | Width B: 25 mm | Dynamic Load C: 76.8 kN | Static Load C0: 128.0 kN | Mass: 3.16 kg | Seal variant: RB15025UU-USP | |
| RB20030USP | THK RB20030USP, d=200mm D=280mm B=30mm USP grade | THK | Model: RB20030USP | Grade: USP (Ultra-Super Precision) | Type: RB (Split Outer Ring) | Bore d: 200 mm | OD D: 280 mm | Roller PCD dp: 240 mm | Width B: 30 mm | Dynamic Load C: 114.0 kN | Static Load C0: 200.0 kN | Mass: 6.7 kg | Seal variant: RB20030UU-USP | |
| RB25030USP | THK RB25030USP, d=250mm D=330mm B=30mm USP grade | THK | Model: RB25030USP | Grade: USP (Ultra-Super Precision) | Type: RB (Split Outer Ring) | Bore d: 250 mm | OD D: 330 mm | Roller PCD dp: 287.5 mm | Width B: 30 mm | Dynamic Load C: 126.0 kN | Static Load C0: 244.0 kN | Mass: 8.1 kg | Seal variant: RB25030UU-USP | |
| RB30035USP | THK RB30035USP, d=300mm D=395mm B=35mm USP grade | THK | Model: RB30035USP | Grade: USP (Ultra-Super Precision) | Type: RB (Split Outer Ring) | Bore d: 300 mm | OD D: 395 mm | Roller PCD dp: 345 mm | Width B: 35 mm | Dynamic Load C: 183.0 kN | Static Load C0: 367.0 kN | Mass: 13.4 kg | Seal variant: RB30035UU-USP | |
| RB40040USP | THK RB40040USP, d=400mm D=510mm B=40mm USP grade | THK | Model: RB40040USP | Grade: USP (Ultra-Super Precision) | Type: RB (Split Outer Ring) | Bore d: 400 mm | OD D: 510 mm | Roller PCD dp: 453.4 mm | Width B: 40 mm | Dynamic Load C: 241.0 kN | Static Load C0: 531.0 kN | Mass: 23.5 kg | Seal variant: RB40040UU-USP | |
| RB50040USP | THK RB50040USP, d=500mm D=600mm B=40mm USP grade | THK | Model: RB50040USP | Grade: USP (Ultra-Super Precision) | Type: RB (Split Outer Ring) | Bore d: 500 mm | OD D: 600 mm | Roller PCD dp: 548.8 mm | Width B: 40 mm | Dynamic Load C: 239.0 kN | Static Load C0: 607.0 kN | Mass: 26.0 kg | Seal variant: RB50040UU-USP | |
| RB60040USP | THK RB60040USP, d=600mm D=700mm B=40mm USP grade | THK | Model: RB60040USP | Grade: USP (Ultra-Super Precision) | Type: RB (Split Outer Ring) | Bore d: 600 mm | OD D: 700 mm | Roller PCD dp: 650 mm | Width B: 40 mm | Dynamic Load C: 264.0 kN | Static Load C0: 721.0 kN | Mass: 29.0 kg | Seal variant: RB60040UU-USP |
![[THK] — RE Cross Roller Ring (Split Inner Ring)](https://img.prosourcemro.com/2026/05/001-951-300x200.png)
THK RE-type Cross Roller Ring with split inner ring and integrated outer ring. Suitable for outer ring rotation applications requiring high rotational accuracy. Seal version available as RE...UU. Bore range: 20–600 mm.
THK RE-type Cross Roller Ring with split inner ring and integrated outer ring. Suitable for outer ring rotation applications requiring high rotational accuracy. Seal version available as RE...UU. Bore range: 20–600 mm.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| RE2008 | THK RE2008, d=20mm D=36mm B=8mm, C=3.23kN C0=3.1kN | THK | Model: RE2008 | Type: RE (Split Inner Ring) | Bore d: 20 mm | OD D: 36 mm | Roller PCD dp: 29.0 mm | Width B: 8 mm | Dynamic Load C: 3.23 kN | Static Load C0: 3.1 kN | Mass: 0.04 kg | Seal variant: RE2008UU | |
| RE2508 | THK RE2508, d=25mm D=41mm B=8mm, C=3.63kN C0=3.83kN | THK | Model: RE2508 | Type: RE (Split Inner Ring) | Bore d: 25 mm | OD D: 41 mm | Roller PCD dp: 34.0 mm | Width B: 8 mm | Dynamic Load C: 3.63 kN | Static Load C0: 3.83 kN | Mass: 0.05 kg | Seal variant: RE2508UU | |
| RE3010 | THK RE3010, d=30mm D=55mm B=10mm, C=7.35kN C0=8.36kN | THK | Model: RE3010 | Type: RE (Split Inner Ring) | Bore d: 30 mm | OD D: 55 mm | Roller PCD dp: 43.5 mm | Width B: 10 mm | Dynamic Load C: 7.35 kN | Static Load C0: 8.36 kN | Mass: 0.12 kg | Seal variant: RE3010UU | |
| RE3510 | THK RE3510, d=35mm D=60mm B=10mm, C=7.64kN C0=9.12kN | THK | Model: RE3510 | Type: RE (Split Inner Ring) | Bore d: 35 mm | OD D: 60 mm | Roller PCD dp: 48.5 mm | Width B: 10 mm | Dynamic Load C: 7.64 kN | Static Load C0: 9.12 kN | Mass: 0.13 kg | Seal variant: RE3510UU | |
| RE4010 | THK RE4010, d=40mm D=65mm B=10mm, C=8.33kN C0=10.6kN | THK | Model: RE4010 | Type: RE (Split Inner Ring) | Bore d: 40 mm | OD D: 65 mm | Roller PCD dp: 53.5 mm | Width B: 10 mm | Dynamic Load C: 8.33 kN | Static Load C0: 10.6 kN | Mass: 0.16 kg | Seal variant: RE4010UU | |
| RE4510 | THK RE4510, d=45mm D=70mm B=10mm, C=8.62kN C0=11.3kN | THK | Model: RE4510 | Type: RE (Split Inner Ring) | Bore d: 45 mm | OD D: 70 mm | Roller PCD dp: 58.5 mm | Width B: 10 mm | Dynamic Load C: 8.62 kN | Static Load C0: 11.3 kN | Mass: 0.17 kg | Seal variant: RE4510UU | |
| RE5013 | THK RE5013, d=50mm D=80mm B=13mm, C=16.7kN C0=20.9kN | THK | Model: RE5013 | Type: RE (Split Inner Ring) | Bore d: 50 mm | OD D: 80 mm | Roller PCD dp: 66.0 mm | Width B: 13 mm | Dynamic Load C: 16.7 kN | Static Load C0: 20.9 kN | Mass: 0.27 kg | Seal variant: RE5013UU | |
| RE6013 | THK RE6013, d=60mm D=90mm B=13mm, C=18.0kN C0=24.3kN | THK | Model: RE6013 | Type: RE (Split Inner Ring) | Bore d: 60 mm | OD D: 90 mm | Roller PCD dp: 76.0 mm | Width B: 13 mm | Dynamic Load C: 18.0 kN | Static Load C0: 24.3 kN | Mass: 0.3 kg | Seal variant: RE6013UU | |
| RE7013 | THK RE7013, d=70mm D=100mm B=13mm, C=19.4kN C0=27.7kN | THK | Model: RE7013 | Type: RE (Split Inner Ring) | Bore d: 70 mm | OD D: 100 mm | Roller PCD dp: 86.0 mm | Width B: 13 mm | Dynamic Load C: 19.4 kN | Static Load C0: 27.7 kN | Mass: 0.35 kg | Seal variant: RE7013UU | |
| RE8016 | THK RE8016, d=80mm D=120mm B=16mm, C=30.1kN C0=42.1kN | THK | Model: RE8016 | Type: RE (Split Inner Ring) | Bore d: 80 mm | OD D: 120 mm | Roller PCD dp: 101.4 mm | Width B: 16 mm | Dynamic Load C: 30.1 kN | Static Load C0: 42.1 kN | Mass: 0.7 kg | Seal variant: RE8016UU | |
| RE9016 | THK RE9016, d=90mm D=130mm B=16mm, C=31.4kN C0=45.3kN | THK | Model: RE9016 | Type: RE (Split Inner Ring) | Bore d: 90 mm | OD D: 130 mm | Roller PCD dp: 112.0 mm | Width B: 16 mm | Dynamic Load C: 31.4 kN | Static Load C0: 45.3 kN | Mass: 0.75 kg | Seal variant: RE9016UU | |
| RE10016 | THK RE10016, d=100mm D=140mm B=16mm, C=31.7kN C0=48.6kN | THK | Model: RE10016 | Type: RE (Split Inner Ring) | Bore d: 100 mm | OD D: 140 mm | Roller PCD dp: 121.1 mm | Width B: 16 mm | Dynamic Load C: 31.7 kN | Static Load C0: 48.6 kN | Mass: 0.83 kg | Seal variant: RE10016UU | |
| RE10020 | THK RE10020, d=100mm D=150mm B=20mm, C=33.1kN C0=50.9kN | THK | Model: RE10020 | Type: RE (Split Inner Ring) | Bore d: 100 mm | OD D: 150 mm | Roller PCD dp: 127.0 mm | Width B: 20 mm | Dynamic Load C: 33.1 kN | Static Load C0: 50.9 kN | Mass: 1.45 kg | Seal variant: RE10020UU | |
| RE11012 | THK RE11012, d=110mm D=135mm B=12mm, C=12.5kN C0=24.1kN | THK | Model: RE11012 | Type: RE (Split Inner Ring) | Bore d: 110 mm | OD D: 135 mm | Roller PCD dp: 123.3 mm | Width B: 12 mm | Dynamic Load C: 12.5 kN | Static Load C0: 24.1 kN | Mass: 0.4 kg | Seal variant: RE11012UU | |
| RE11015 | THK RE11015, d=110mm D=145mm B=15mm, C=23.7kN C0=41.5kN | THK | Model: RE11015 | Type: RE (Split Inner Ring) | Bore d: 110 mm | OD D: 145 mm | Roller PCD dp: 129.0 mm | Width B: 15 mm | Dynamic Load C: 23.7 kN | Static Load C0: 41.5 kN | Mass: 0.75 kg | Seal variant: RE11015UU | |
| RE11020 | THK RE11020, d=110mm D=160mm B=20mm, C=34.0kN C0=54.0kN | THK | Model: RE11020 | Type: RE (Split Inner Ring) | Bore d: 110 mm | OD D: 160 mm | Roller PCD dp: 137.0 mm | Width B: 20 mm | Dynamic Load C: 34.0 kN | Static Load C0: 54.0 kN | Mass: 1.56 kg | Seal variant: RE11020UU | |
| RE12016 | THK RE12016, d=120mm D=150mm B=16mm, C=24.2kN C0=43.2kN | THK | Model: RE12016 | Type: RE (Split Inner Ring) | Bore d: 120 mm | OD D: 150 mm | Roller PCD dp: 136.0 mm | Width B: 16 mm | Dynamic Load C: 24.2 kN | Static Load C0: 43.2 kN | Mass: 0.72 kg | Seal variant: RE12016UU | |
| RE12025 | THK RE12025, d=120mm D=180mm B=25mm, C=66.9kN C0=100.0kN | THK | Model: RE12025 | Type: RE (Split Inner Ring) | Bore d: 120 mm | OD D: 180 mm | Roller PCD dp: 152.0 mm | Width B: 25 mm | Dynamic Load C: 66.9 kN | Static Load C0: 100.0 kN | Mass: 2.62 kg | Seal variant: RE12025UU | |
| RE13015 | THK RE13015, d=130mm D=160mm B=15mm, C=25.0kN C0=46.7kN | THK | Model: RE13015 | Type: RE (Split Inner Ring) | Bore d: 130 mm | OD D: 160 mm | Roller PCD dp: 146.0 mm | Width B: 15 mm | Dynamic Load C: 25.0 kN | Static Load C0: 46.7 kN | Mass: 0.72 kg | Seal variant: RE13015UU | |
| RE13025 | THK RE13025, d=130mm D=190mm B=25mm, C=69.5kN C0=107.0kN | THK | Model: RE13025 | Type: RE (Split Inner Ring) | Bore d: 130 mm | OD D: 190 mm | Roller PCD dp: 162.0 mm | Width B: 25 mm | Dynamic Load C: 69.5 kN | Static Load C0: 107.0 kN | Mass: 2.82 kg | Seal variant: RE13025UU | |
| RE14016 | THK RE14016, d=140mm D=175mm B=16mm, C=25.9kN C0=50.1kN | THK | Model: RE14016 | Type: RE (Split Inner Ring) | Bore d: 140 mm | OD D: 175 mm | Roller PCD dp: 160.0 mm | Width B: 16 mm | Dynamic Load C: 25.9 kN | Static Load C0: 50.1 kN | Mass: 1.0 kg | Seal variant: RE14016UU | |
| RE14025 | THK RE14025, d=140mm D=200mm B=25mm, C=74.8kN C0=121.0kN | THK | Model: RE14025 | Type: RE (Split Inner Ring) | Bore d: 140 mm | OD D: 200 mm | Roller PCD dp: 172.0 mm | Width B: 25 mm | Dynamic Load C: 74.8 kN | Static Load C0: 121.0 kN | Mass: 2.96 kg | Seal variant: RE14025UU | |
| RE15013 | THK RE15013, d=150mm D=180mm B=13mm, C=27.0kN C0=53.5kN | THK | Model: RE15013 | Type: RE (Split Inner Ring) | Bore d: 150 mm | OD D: 180 mm | Roller PCD dp: 166.0 mm | Width B: 13 mm | Dynamic Load C: 27.0 kN | Static Load C0: 53.5 kN | Mass: 0.68 kg | Seal variant: RE15013UU | |
| RE15025 | THK RE15025, d=150mm D=210mm B=25mm, C=76.8kN C0=128.0kN | THK | Model: RE15025 | Type: RE (Split Inner Ring) | Bore d: 150 mm | OD D: 210 mm | Roller PCD dp: 182.0 mm | Width B: 25 mm | Dynamic Load C: 76.8 kN | Static Load C0: 128.0 kN | Mass: 3.16 kg | Seal variant: RE15025UU | |
| RE15030 | THK RE15030, d=150mm D=230mm B=30mm, C=100.0kN C0=156.0kN | THK | Model: RE15030 | Type: RE (Split Inner Ring) | Bore d: 150 mm | OD D: 230 mm | Roller PCD dp: 192.0 mm | Width B: 30 mm | Dynamic Load C: 100.0 kN | Static Load C0: 156.0 kN | Mass: 5.3 kg | Seal variant: RE15030UU | |
| RE16025 | THK RE16025, d=160mm D=220mm B=25mm, C=81.7kN C0=135.0kN | THK | Model: RE16025 | Type: RE (Split Inner Ring) | Bore d: 160 mm | OD D: 220 mm | Roller PCD dp: 192.0 mm | Width B: 25 mm | Dynamic Load C: 81.7 kN | Static Load C0: 135.0 kN | Mass: 3.14 kg | Seal variant: RE16025UU | |
| RE17020 | THK RE17020, d=170mm D=220mm B=20mm, C=29.0kN C0=62.1kN | THK | Model: RE17020 | Type: RE (Split Inner Ring) | Bore d: 170 mm | OD D: 220 mm | Roller PCD dp: 196.1 mm | Width B: 20 mm | Dynamic Load C: 29.0 kN | Static Load C0: 62.1 kN | Mass: 2.21 kg | Seal variant: RE17020UU | |
| RE18025 | THK RE18025, d=180mm D=240mm B=25mm, C=84.0kN C0=143.0kN | THK | Model: RE18025 | Type: RE (Split Inner Ring) | Bore d: 180 mm | OD D: 240 mm | Roller PCD dp: 210.0 mm | Width B: 25 mm | Dynamic Load C: 84.0 kN | Static Load C0: 143.0 kN | Mass: 3.44 kg | Seal variant: RE18025UU | |
| RE19025 | THK RE19025, d=190mm D=240mm B=25mm, C=41.7kN C0=82.9kN | THK | Model: RE19025 | Type: RE (Split Inner Ring) | Bore d: 190 mm | OD D: 240 mm | Roller PCD dp: 219.0 mm | Width B: 25 mm | Dynamic Load C: 41.7 kN | Static Load C0: 82.9 kN | Mass: 2.99 kg | Seal variant: RE19025UU | |
| RE20025 | THK RE20025, d=200mm D=260mm B=25mm, C=84.2kN C0=157.0kN | THK | Model: RE20025 | Type: RE (Split Inner Ring) | Bore d: 200 mm | OD D: 260 mm | Roller PCD dp: 230.0 mm | Width B: 25 mm | Dynamic Load C: 84.2 kN | Static Load C0: 157.0 kN | Mass: 4.0 kg | Seal variant: RE20025UU | |
| RE20030 | THK RE20030, d=200mm D=280mm B=30mm, C=114.0kN C0=200.0kN | THK | Model: RE20030 | Type: RE (Split Inner Ring) | Bore d: 200 mm | OD D: 280 mm | Roller PCD dp: 240.0 mm | Width B: 30 mm | Dynamic Load C: 114.0 kN | Static Load C0: 200.0 kN | Mass: 6.7 kg | Seal variant: RE20030UU | |
| RE20035 | THK RE20035, d=200mm D=295mm B=35mm, C=151.0kN C0=252.0kN | THK | Model: RE20035 | Type: RE (Split Inner Ring) | Bore d: 200 mm | OD D: 295 mm | Roller PCD dp: 247.7 mm | Width B: 35 mm | Dynamic Load C: 151.0 kN | Static Load C0: 252.0 kN | Mass: 9.6 kg | Seal variant: RE20035UU | |
| RE22025 | THK RE22025, d=220mm D=280mm B=25mm, C=92.3kN C0=171.0kN | THK | Model: RE22025 | Type: RE (Split Inner Ring) | Bore d: 220 mm | OD D: 280 mm | Roller PCD dp: 250.1 mm | Width B: 25 mm | Dynamic Load C: 92.3 kN | Static Load C0: 171.0 kN | Mass: 4.1 kg | Seal variant: RE22025UU | |
| RE24025 | THK RE24025, d=240mm D=300mm B=25mm, C=68.3kN C0=145.0kN | THK | Model: RE24025 | Type: RE (Split Inner Ring) | Bore d: 240 mm | OD D: 300 mm | Roller PCD dp: 272.5 mm | Width B: 25 mm | Dynamic Load C: 68.3 kN | Static Load C0: 145.0 kN | Mass: 4.5 kg | Seal variant: RE24025UU | |
| RE25025 | THK RE25025, d=250mm D=310mm B=25mm, C=69.3kN C0=150.0kN | THK | Model: RE25025 | Type: RE (Split Inner Ring) | Bore d: 250 mm | OD D: 310 mm | Roller PCD dp: 280.9 mm | Width B: 25 mm | Dynamic Load C: 69.3 kN | Static Load C0: 150.0 kN | Mass: 5.0 kg | Seal variant: RE25025UU | |
| RE25030 | THK RE25030, d=250mm D=330mm B=30mm, C=126.0kN C0=244.0kN | THK | Model: RE25030 | Type: RE (Split Inner Ring) | Bore d: 250 mm | OD D: 330 mm | Roller PCD dp: 287.5 mm | Width B: 30 mm | Dynamic Load C: 126.0 kN | Static Load C0: 244.0 kN | Mass: 8.1 kg | Seal variant: RE25030UU | |
| RE25040 | THK RE25040, d=250mm D=355mm B=40mm, C=195.0kN C0=348.0kN | THK | Model: RE25040 | Type: RE (Split Inner Ring) | Bore d: 250 mm | OD D: 355 mm | Roller PCD dp: 300.7 mm | Width B: 40 mm | Dynamic Load C: 195.0 kN | Static Load C0: 348.0 kN | Mass: 14.8 kg | Seal variant: RE25040UU | |
| RE30025 | THK RE30025, d=300mm D=360mm B=25mm, C=75.5kN C0=178.0kN | THK | Model: RE30025 | Type: RE (Split Inner Ring) | Bore d: 300 mm | OD D: 360 mm | Roller PCD dp: 332.0 mm | Width B: 25 mm | Dynamic Load C: 75.5 kN | Static Load C0: 178.0 kN | Mass: 5.9 kg | Seal variant: RE30025UU | |
| RE30035 | THK RE30035, d=300mm D=395mm B=35mm, C=183.0kN C0=367.0kN | THK | Model: RE30035 | Type: RE (Split Inner Ring) | Bore d: 300 mm | OD D: 395 mm | Roller PCD dp: 345.0 mm | Width B: 35 mm | Dynamic Load C: 183.0 kN | Static Load C0: 367.0 kN | Mass: 13.4 kg | Seal variant: RE30035UU | |
| RE30040 | THK RE30040, d=300mm D=405mm B=40mm, C=212.0kN C0=409.0kN | THK | Model: RE30040 | Type: RE (Split Inner Ring) | Bore d: 300 mm | OD D: 405 mm | Roller PCD dp: 351.6 mm | Width B: 40 mm | Dynamic Load C: 212.0 kN | Static Load C0: 409.0 kN | Mass: 17.2 kg | Seal variant: RE30040UU | |
| RE35020 | THK RE35020, d=350mm D=400mm B=20mm, C=54.1kN C0=143.0kN | THK | Model: RE35020 | Type: RE (Split Inner Ring) | Bore d: 350 mm | OD D: 400 mm | Roller PCD dp: 376.6 mm | Width B: 20 mm | Dynamic Load C: 54.1 kN | Static Load C0: 143.0 kN | Mass: 3.9 kg | Seal variant: RE35020UU | |
| RE40035 | THK RE40035, d=400mm D=480mm B=35mm, C=156.0kN C0=370.0kN | THK | Model: RE40035 | Type: RE (Split Inner Ring) | Bore d: 400 mm | OD D: 480 mm | Roller PCD dp: 440.3 mm | Width B: 35 mm | Dynamic Load C: 156.0 kN | Static Load C0: 370.0 kN | Mass: 14.5 kg | Seal variant: RE40035UU | |
| RE40040 | THK RE40040, d=400mm D=510mm B=40mm, C=241.0kN C0=531.0kN | THK | Model: RE40040 | Type: RE (Split Inner Ring) | Bore d: 400 mm | OD D: 510 mm | Roller PCD dp: 453.4 mm | Width B: 40 mm | Dynamic Load C: 241.0 kN | Static Load C0: 531.0 kN | Mass: 23.5 kg | Seal variant: RE40040UU | |
| RE45025 | THK RE45025, d=450mm D=500mm B=25mm, C=61.7kN C0=182.0kN | THK | Model: RE45025 | Type: RE (Split Inner Ring) | Bore d: 450 mm | OD D: 500 mm | Roller PCD dp: 476.6 mm | Width B: 25 mm | Dynamic Load C: 61.7 kN | Static Load C0: 182.0 kN | Mass: 6.6 kg | Seal variant: RE45025UU | |
| RE50025 | THK RE50025, d=500mm D=550mm B=25mm, C=65.5kN C0=201.0kN | THK | Model: RE50025 | Type: RE (Split Inner Ring) | Bore d: 500 mm | OD D: 550 mm | Roller PCD dp: 526.6 mm | Width B: 25 mm | Dynamic Load C: 65.5 kN | Static Load C0: 201.0 kN | Mass: 7.3 kg | Seal variant: RE50025UU | |
| RE50040 | THK RE50040, d=500mm D=600mm B=40mm, C=239.0kN C0=607.0kN | THK | Model: RE50040 | Type: RE (Split Inner Ring) | Bore d: 500 mm | OD D: 600 mm | Roller PCD dp: 548.8 mm | Width B: 40 mm | Dynamic Load C: 239.0 kN | Static Load C0: 607.0 kN | Mass: 26.0 kg | Seal variant: RE50040UU | |
| RE50050 | THK RE50050, d=500mm D=625mm B=50mm, C=267.0kN C0=653.0kN | THK | Model: RE50050 | Type: RE (Split Inner Ring) | Bore d: 500 mm | OD D: 625 mm | Roller PCD dp: 561.6 mm | Width B: 50 mm | Dynamic Load C: 267.0 kN | Static Load C0: 653.0 kN | Mass: 41.7 kg | Seal variant: RE50050UU | |
| RE60040 | THK RE60040, d=600mm D=700mm B=40mm, C=264.0kN C0=721.0kN | THK | Model: RE60040 | Type: RE (Split Inner Ring) | Bore d: 600 mm | OD D: 700 mm | Roller PCD dp: 650.0 mm | Width B: 40 mm | Dynamic Load C: 264.0 kN | Static Load C0: 721.0 kN | Mass: 29.0 kg | Seal variant: RE60040UU |
THK RE-type Cross Roller Ring USP grade — ultra-super precision exceeding JIS Class 2 / ISO Class 2 / DIN P2. Split inner ring, integrated outer ring. For outer ring rotation applications. Seal version: RE...UU-USP. Bore range: 100–600 mm.
THK RE-type Cross Roller Ring USP grade — ultra-super precision exceeding JIS Class 2 / ISO Class 2 / DIN P2. Split inner ring, integrated outer ring. For outer ring rotation applications. Seal version: RE...UU-USP. Bore range: 100–600 mm.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| RE10020USP | THK RE10020USP, d=100mm D=150mm B=20mm USP grade | THK | Model: RE10020USP | Grade: USP (Ultra-Super Precision) | Type: RE (Split Inner Ring) | Bore d: 100 mm | OD D: 150 mm | Roller PCD dp: 127 mm | Width B: 20 mm | Dynamic Load C: 33.1 kN | Static Load C0: 50.9 kN | Mass: 1.45 kg | Seal variant: RE10020UU-USP | |
| RE12025USP | THK RE12025USP, d=120mm D=180mm B=25mm USP grade | THK | Model: RE12025USP | Grade: USP (Ultra-Super Precision) | Type: RE (Split Inner Ring) | Bore d: 120 mm | OD D: 180 mm | Roller PCD dp: 152 mm | Width B: 25 mm | Dynamic Load C: 66.9 kN | Static Load C0: 100.0 kN | Mass: 2.62 kg | Seal variant: RE12025UU-USP | |
| RE15025USP | THK RE15025USP, d=150mm D=210mm B=25mm USP grade | THK | Model: RE15025USP | Grade: USP (Ultra-Super Precision) | Type: RE (Split Inner Ring) | Bore d: 150 mm | OD D: 210 mm | Roller PCD dp: 182 mm | Width B: 25 mm | Dynamic Load C: 76.8 kN | Static Load C0: 128.0 kN | Mass: 3.16 kg | Seal variant: RE15025UU-USP | |
| RE20030USP | THK RE20030USP, d=200mm D=280mm B=30mm USP grade | THK | Model: RE20030USP | Grade: USP (Ultra-Super Precision) | Type: RE (Split Inner Ring) | Bore d: 200 mm | OD D: 280 mm | Roller PCD dp: 240 mm | Width B: 30 mm | Dynamic Load C: 114.0 kN | Static Load C0: 200.0 kN | Mass: 6.7 kg | Seal variant: RE20030UU-USP | |
| RE25030USP | THK RE25030USP, d=250mm D=330mm B=30mm USP grade | THK | Model: RE25030USP | Grade: USP (Ultra-Super Precision) | Type: RE (Split Inner Ring) | Bore d: 250 mm | OD D: 330 mm | Roller PCD dp: 287.5 mm | Width B: 30 mm | Dynamic Load C: 126.0 kN | Static Load C0: 244.0 kN | Mass: 8.1 kg | Seal variant: RE25030UU-USP | |
| RE30035USP | THK RE30035USP, d=300mm D=395mm B=35mm USP grade | THK | Model: RE30035USP | Grade: USP (Ultra-Super Precision) | Type: RE (Split Inner Ring) | Bore d: 300 mm | OD D: 395 mm | Roller PCD dp: 345 mm | Width B: 35 mm | Dynamic Load C: 183.0 kN | Static Load C0: 367.0 kN | Mass: 13.4 kg | Seal variant: RE30035UU-USP | |
| RE40040USP | THK RE40040USP, d=400mm D=510mm B=40mm USP grade | THK | Model: RE40040USP | Grade: USP (Ultra-Super Precision) | Type: RE (Split Inner Ring) | Bore d: 400 mm | OD D: 510 mm | Roller PCD dp: 453.4 mm | Width B: 40 mm | Dynamic Load C: 241.0 kN | Static Load C0: 531.0 kN | Mass: 23.5 kg | Seal variant: RE40040UU-USP | |
| RE50040USP | THK RE50040USP, d=500mm D=600mm B=40mm USP grade | THK | Model: RE50040USP | Grade: USP (Ultra-Super Precision) | Type: RE (Split Inner Ring) | Bore d: 500 mm | OD D: 600 mm | Roller PCD dp: 548.8 mm | Width B: 40 mm | Dynamic Load C: 239.0 kN | Static Load C0: 607.0 kN | Mass: 26.0 kg | Seal variant: RE50040UU-USP | |
| RE60040USP | THK RE60040USP, d=600mm D=700mm B=40mm USP grade | THK | Model: RE60040USP | Grade: USP (Ultra-Super Precision) | Type: RE (Split Inner Ring) | Bore d: 600 mm | OD D: 700 mm | Roller PCD dp: 650 mm | Width B: 40 mm | Dynamic Load C: 264.0 kN | Static Load C0: 721.0 kN | Mass: 29.0 kg | Seal variant: RE60040UU-USP |
![[THK] — RN Lock Nut (for Ball Screw Shaft and Bearing)](https://img.prosourcemro.com/2026/05/001-899-300x300.png)
THK RN Series Lock Nut for ball screw shaft and bearing. Anti-loosening mechanism via hex socket set screw and set piece. Shaft thread range M4~M40. Simple and reliable shaft/bearing retention.
THK RN Series Lock Nut for ball screw shaft and bearing. Anti-loosening mechanism via hex socket set screw and set piece. Shaft thread range M4~M40. Simple and reliable shaft/bearing retention.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| RN4 | THK RN4, Lock Nut M4×0.5 | THK | Shaft Thread M: M4×0.5 | Set Screw m: M2.6 | OD D: 11.5mm | Bore d: 8mm | Length L: 5mm | Groove Depth t: 2.7mm | Across Flats T: 10mm | Mass: 0.003kg | Type: Lock Nut with Anti-loosening Set Screw (RN) | |
| RN5 | THK RN5, Lock Nut M5×0.5 | THK | Shaft Thread M: M5×0.5 | Set Screw m: M2.6 | OD D: 13.5mm | Bore d: 9mm | Length L: 5mm | Groove Depth t: 2.7mm | Across Flats T: 11mm | Mass: 0.004kg | Type: Lock Nut with Anti-loosening Set Screw (RN) | |
| RN6 | THK RN6, Lock Nut M6×0.75 | THK | Shaft Thread M: M6×0.75 | Set Screw m: M3 | OD D: 14.5mm | Bore d: 10mm | Length L: 5mm | Groove Depth t: 2.7mm | Across Flats T: 12mm | Mass: 0.005kg | Type: Lock Nut with Anti-loosening Set Screw (RN) | |
| RN8 | THK RN8, Lock Nut M8×1 | THK | Shaft Thread M: M8×1 | Set Screw m: M3 | OD D: 17.0mm | Bore d: 13mm | Length L: 6.5mm | Groove Depth t: 4mm | Across Flats T: 14mm | Mass: 0.008kg | Type: Lock Nut with Anti-loosening Set Screw (RN) | |
| RN10 | THK RN10, Lock Nut M10×1 | THK | Shaft Thread M: M10×1 | Set Screw m: M3 | OD D: 20.0mm | Bore d: 15mm | Length L: 8mm | Groove Depth t: 5.5mm | Across Flats T: 16mm | Mass: 0.013kg | Type: Lock Nut with Anti-loosening Set Screw (RN) | |
| RN12 | THK RN12, Lock Nut M12×1 | THK | Shaft Thread M: M12×1 | Set Screw m: M3 | OD D: 22.0mm | Bore d: 17mm | Length L: 8mm | Groove Depth t: 5.5mm | Across Flats T: 19mm | Mass: 0.014kg | Type: Lock Nut with Anti-loosening Set Screw (RN) | |
| RN15 | THK RN15, Lock Nut M15×1 | THK | Shaft Thread M: M15×1 | Set Screw m: M3 | OD D: 25.0mm | Bore d: 21mm | Length L: 8mm | Groove Depth t: 4.5mm | Across Flats T: 22mm | Mass: 0.017kg | Type: Lock Nut with Anti-loosening Set Screw (RN) | |
| RN17 | THK RN17, Lock Nut M17×1 | THK | Shaft Thread M: M17×1 | Set Screw m: M4 | OD D: 30.0mm | Bore d: 25mm | Length L: 13mm | Groove Depth t: 9mm | Across Flats T: 24mm | Mass: 0.042kg | Type: Lock Nut with Anti-loosening Set Screw (RN) | |
| RN20 | THK RN20, Lock Nut M20×1 | THK | Shaft Thread M: M20×1 | Set Screw m: M4 | OD D: 35.0mm | Bore d: 26mm | Length L: 11mm | Groove Depth t: 7mm | Across Flats T: 30mm | Mass: 0.048kg | Type: Lock Nut with Anti-loosening Set Screw (RN) | |
| RN25 | THK RN25, Lock Nut M25×1.5 | THK | Shaft Thread M: M25×1.5 | Set Screw m: M5 | OD D: 43.0mm | Bore d: 33mm | Length L: 15mm | Groove Depth t: 10mm | Across Flats T: 35mm | Mass: 0.096kg | Type: Lock Nut with Anti-loosening Set Screw (RN) | |
| RN30 | THK RN30, Lock Nut M30×1.5 | THK | Shaft Thread M: M30×1.5 | Set Screw m: M6 | OD D: 48.0mm | Bore d: 39mm | Length L: 20mm | Groove Depth t: 14mm | Across Flats T: 40mm | Mass: 0.145kg | Type: Lock Nut with Anti-loosening Set Screw (RN) | |
| RN35 | THK RN35, Lock Nut M35×1.5 | THK | Shaft Thread M: M35×1.5 | Set Screw m: M8 | OD D: 60.0mm | Bore d: 46mm | Length L: 21mm | Groove Depth t: 14mm | Across Flats T: 50mm | Mass: 0.261kg | Type: Lock Nut with Anti-loosening Set Screw (RN) | |
| RN40 | THK RN40, Lock Nut M40×1.5 | THK | Shaft Thread M: M40×1.5 | Set Screw m: M8 | OD D: 63.0mm | Bore d: 51mm | Length L: 25mm | Groove Depth t: 18mm | Across Flats T: 50mm | Mass: 0.304kg | Type: Lock Nut with Anti-loosening Set Screw (RN) |
![[THK] — Rod End NHS-T (Female Thread, Maintenance-Free)](https://img.prosourcemro.com/2026/05/001-1066-300x268.png)
THK NHS-T type Maintenance-Free Rod End with female (internal) thread. Self-lubricating synthetic resin bushing between steel holder and spherical inner ring. Minimized rolling clearance for precise link motion. No grease nipple required; oil or grease may be applied to spherical surface for initial lubrication. Ball diameter (inch series): 9.525~38.1mm (3/8"~1-1/2"). NHS3T/4T: S20C holder; NHS5T~NHS22T: S35C chromate holder. Left-hand thread: suffix L.
THK NHS-T type Maintenance-Free Rod End with female (internal) thread. Self-lubricating synthetic resin bushing between steel holder and spherical inner ring. Minimized rolling clearance for precise link motion. No grease nipple required; oil or grease may be applied to spherical surface for initial lubrication. Ball diameter (inch series): 9.525~38.1mm (3/8"~1-1/2"). NHS3T/4T: S20C holder; NHS5T~NHS22T: S35C chromate holder. Left-hand thread: suffix L.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| NHS3T | THK Rod End NHS3T (maintenance-free), thread=M3×0.5, Da=9.525mm, Cs=1570N | THK | Thread (female): M3×0.5 | Total Length (L): 27 mm | Holder Diameter (D): 12 mm | Ball Diameter (Da): 9.525 mm (3/8") | Bore Diameter (d): 3 mm | Allowable Tilt Angle α1/α2/α3: 8°/10°/42° | Radial Clearance: ≤0.3 mm | Static Load Capacity (Cs): 1570 N | Mass: 6.5 g | Holder Material: S20C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| NHS4T | THK Rod End NHS4T (maintenance-free), thread=M4×0.7, Da=10.319mm, Cs=2250N | THK | Thread (female): M4×0.7 | Total Length (L): 31 mm | Holder Diameter (D): 14 mm | Ball Diameter (Da): 10.319 mm (13/32") | Bore Diameter (d): 4 mm | Allowable Tilt Angle α1/α2/α3: 9°/11°/35° | Radial Clearance: ≤0.3 mm | Static Load Capacity (Cs): 2250 N | Mass: 10.0 g | Holder Material: S20C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| NHS5T | THK Rod End NHS5T (maintenance-free), thread=M5×0.8, Da=11.112mm, Cs=3920N | THK | Thread (female): M5×0.8 | Total Length (L): 35 mm | Holder Diameter (D): 16 mm | Ball Diameter (Da): 11.112 mm (7/16") | Bore Diameter (d): 5 mm | Allowable Tilt Angle α1/α2/α3: 8°/13°/30° | Radial Clearance: ≤0.3 mm | Static Load Capacity (Cs): 3920 N | Mass: 16.5 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| NHS6T | THK Rod End NHS6T (maintenance-free), thread=M6×1, Da=12.7mm, Cs=5000N | THK | Thread (female): M6×1 | Total Length (L): 39 mm | Holder Diameter (D): 18 mm | Ball Diameter (Da): 12.7 mm (1/2") | Bore Diameter (d): 6 mm | Allowable Tilt Angle α1/α2/α3: 8°/13°/30° | Radial Clearance: ≤0.3 mm | Static Load Capacity (Cs): 5000 N | Mass: 25.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| NHS8T | THK Rod End NHS8T (maintenance-free), thread=M8×1.25, Da=15.875mm, Cs=7450N | THK | Thread (female): M8×1.25 | Total Length (L): 47 mm | Holder Diameter (D): 22 mm | Ball Diameter (Da): 15.875 mm (5/8") | Bore Diameter (d): 8 mm | Allowable Tilt Angle α1/α2/α3: 8°/14°/25° | Radial Clearance: ≤0.5 mm | Static Load Capacity (Cs): 7450 N | Mass: 43.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| NHS10T | THK Rod End NHS10T (maintenance-free), thread=M10×1.5, Da=19.05mm, Cs=9410N | THK | Thread (female): M10×1.5 | Total Length (L): 56 mm | Holder Diameter (D): 26 mm | Ball Diameter (Da): 19.05 mm (3/4") | Bore Diameter (d): 10 mm | Allowable Tilt Angle α1/α2/α3: 8°/14°/25° | Radial Clearance: ≤0.5 mm | Static Load Capacity (Cs): 9410 N | Mass: 72.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| NHS12T | THK Rod End NHS12T (maintenance-free), thread=M12×1.75, Da=22.225mm, Cs=11000N | THK | Thread (female): M12×1.75 | Total Length (L): 65 mm | Holder Diameter (D): 30 mm | Ball Diameter (Da): 22.225 mm (7/8") | Bore Diameter (d): 12 mm | Allowable Tilt Angle α1/α2/α3: 8°/13°/25° | Radial Clearance: ≤0.5 mm | Static Load Capacity (Cs): 11000 N | Mass: 107.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| NHS14T | THK Rod End NHS14T (maintenance-free), thread=M14×2, Da=25.4mm, Cs=15200N | THK | Thread (female): M14×2 | Total Length (L): 74 mm | Holder Diameter (D): 34 mm | Ball Diameter (Da): 25.4 mm (1") | Bore Diameter (d): 14 mm | Allowable Tilt Angle α1/α2/α3: 10°/16°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 15200 N | Mass: 160.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| NHS16T | THK Rod End NHS16T (maintenance-free), thread=M16×2, Da=28.575mm, Cs=20200N | THK | Thread (female): M16×2 | Total Length (L): 83 mm | Holder Diameter (D): 38 mm | Ball Diameter (Da): 28.575 mm (1-1/8") | Bore Diameter (d): 16 mm | Allowable Tilt Angle α1/α2/α3: 9°/15°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 20200 N | Mass: 210.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| NHS18T | THK Rod End NHS18T (maintenance-free), thread=M18×1.5, Da=31.75mm, Cs=25200N | THK | Thread (female): M18×1.5 | Total Length (L): 92 mm | Holder Diameter (D): 42 mm | Ball Diameter (Da): 31.75 mm (1-1/4") | Bore Diameter (d): 18 mm | Allowable Tilt Angle α1/α2/α3: 9°/15°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 25200 N | Mass: 295.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| NHS20T | THK Rod End NHS20T (maintenance-free), thread=M20×1.5, Da=34.925mm, Cs=27800N | THK | Thread (female): M20×1.5 | Total Length (L): 100 mm | Holder Diameter (D): 46 mm | Ball Diameter (Da): 34.925 mm (1-3/8") | Bore Diameter (d): 20 mm | Allowable Tilt Angle α1/α2/α3: 9°/15°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 27800 N | Mass: 380.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| NHS22T | THK Rod End NHS22T (maintenance-free), thread=M22×1.5, Da=38.1mm, Cs=35900N | THK | Thread (female): M22×1.5 | Total Length (L): 109 mm | Holder Diameter (D): 50 mm | Ball Diameter (Da): 38.1 mm (1-1/2") | Bore Diameter (d): 22 mm | Allowable Tilt Angle α1/α2/α3: 10°/15°/23° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 35900 N | Mass: 490.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix |
![[THK] — Rod End NOS-T (Male Thread, Maintenance-Free)](https://img.prosourcemro.com/2026/05/001-1068-300x240.png)
THK NOS-T type Maintenance-Free Rod End with male (external) thread. Same construction as NHS-T (female thread) type. Self-lubricating synthetic resin bushing; no grease nipple required. Ball diameter (inch series): 9.525~38.1mm (3/8"~1-1/2"). NOS3T/4T: S20C holder; NOS5T~NOS22T: S35C chromate. Left-hand thread: suffix L.
THK NOS-T type Maintenance-Free Rod End with male (external) thread. Same construction as NHS-T (female thread) type. Self-lubricating synthetic resin bushing; no grease nipple required. Ball diameter (inch series): 9.525~38.1mm (3/8"~1-1/2"). NOS3T/4T: S20C holder; NOS5T~NOS22T: S35C chromate. Left-hand thread: suffix L.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| NOS3T | THK Rod End NOS3T (male, maintenance-free), thread=M3×0.5, Da=9.525mm, Cs=1570N | THK | Thread (male): M3×0.5 | Total Length (L): 33 mm | Holder Diameter (D): 12 mm | Ball Diameter (Da): 9.525 mm (3/8") | Bore Diameter (d): 3 mm | Allowable Tilt Angle α1/α2/α3: 8°/10°/42° | Radial Clearance: ≤0.3 mm | Static Load Capacity (Cs): 1570 N | Mass: 4.5 g | Holder Material: S20C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| NOS4T | THK Rod End NOS4T (male, maintenance-free), thread=M4×0.7, Da=10.319mm, Cs=2250N | THK | Thread (male): M4×0.7 | Total Length (L): 37 mm | Holder Diameter (D): 14 mm | Ball Diameter (Da): 10.319 mm (13/32") | Bore Diameter (d): 4 mm | Allowable Tilt Angle α1/α2/α3: 9°/11°/35° | Radial Clearance: ≤0.3 mm | Static Load Capacity (Cs): 2250 N | Mass: 7.0 g | Holder Material: S20C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| NOS5T | THK Rod End NOS5T (male, maintenance-free), thread=M5×0.8, Da=11.112mm, Cs=3430N | THK | Thread (male): M5×0.8 | Total Length (L): 41 mm | Holder Diameter (D): 16 mm | Ball Diameter (Da): 11.112 mm (7/16") | Bore Diameter (d): 5 mm | Allowable Tilt Angle α1/α2/α3: 8°/13°/30° | Radial Clearance: ≤0.3 mm | Static Load Capacity (Cs): 3430 N | Mass: 12.5 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| NOS6T | THK Rod End NOS6T (male, maintenance-free), thread=M6×1, Da=12.7mm, Cs=4900N | THK | Thread (male): M6×1 | Total Length (L): 45 mm | Holder Diameter (D): 18 mm | Ball Diameter (Da): 12.7 mm (1/2") | Bore Diameter (d): 6 mm | Allowable Tilt Angle α1/α2/α3: 8°/13°/30° | Radial Clearance: ≤0.3 mm | Static Load Capacity (Cs): 4900 N | Mass: 19.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| NOS8T | THK Rod End NOS8T (male, maintenance-free), thread=M8×1.25, Da=15.875mm, Cs=6860N | THK | Thread (male): M8×1.25 | Total Length (L): 53 mm | Holder Diameter (D): 22 mm | Ball Diameter (Da): 15.875 mm (5/8") | Bore Diameter (d): 8 mm | Allowable Tilt Angle α1/α2/α3: 8°/14°/25° | Radial Clearance: ≤0.5 mm | Static Load Capacity (Cs): 6860 N | Mass: 32.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| NOS10T | THK Rod End NOS10T (male, maintenance-free), thread=M10×1.5, Da=19.05mm, Cs=9410N | THK | Thread (male): M10×1.5 | Total Length (L): 61 mm | Holder Diameter (D): 26 mm | Ball Diameter (Da): 19.05 mm (3/4") | Bore Diameter (d): 10 mm | Allowable Tilt Angle α1/α2/α3: 8°/14°/25° | Radial Clearance: ≤0.5 mm | Static Load Capacity (Cs): 9410 N | Mass: 54.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| NOS12T | THK Rod End NOS12T (male, maintenance-free), thread=M12×1.75, Da=22.225mm, Cs=11000N | THK | Thread (male): M12×1.75 | Total Length (L): 69 mm | Holder Diameter (D): 30 mm | Ball Diameter (Da): 22.225 mm (7/8") | Bore Diameter (d): 12 mm | Allowable Tilt Angle α1/α2/α3: 8°/13°/25° | Radial Clearance: ≤0.5 mm | Static Load Capacity (Cs): 11000 N | Mass: 85.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| NOS14T | THK Rod End NOS14T (male, maintenance-free), thread=M14×2, Da=25.4mm, Cs=15200N | THK | Thread (male): M14×2 | Total Length (L): 77 mm | Holder Diameter (D): 34 mm | Ball Diameter (Da): 25.4 mm (1") | Bore Diameter (d): 14 mm | Allowable Tilt Angle α1/α2/α3: 10°/16°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 15200 N | Mass: 126.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| NOS16T | THK Rod End NOS16T (male, maintenance-free), thread=M16×2, Da=28.575mm, Cs=20200N | THK | Thread (male): M16×2 | Total Length (L): 85 mm | Holder Diameter (D): 38 mm | Ball Diameter (Da): 28.575 mm (1-1/8") | Bore Diameter (d): 16 mm | Allowable Tilt Angle α1/α2/α3: 9°/15°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 20200 N | Mass: 185.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| NOS18T | THK Rod End NOS18T (male, maintenance-free), thread=M18×1.5, Da=31.75mm, Cs=25200N | THK | Thread (male): M18×1.5 | Total Length (L): 93 mm | Holder Diameter (D): 42 mm | Ball Diameter (Da): 31.75 mm (1-1/4") | Bore Diameter (d): 18 mm | Allowable Tilt Angle α1/α2/α3: 9°/15°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 25200 N | Mass: 260.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| NOS20T | THK Rod End NOS20T (male, maintenance-free), thread=M20×1.5, Da=34.925mm, Cs=27800N | THK | Thread (male): M20×1.5 | Total Length (L): 101 mm | Holder Diameter (D): 46 mm | Ball Diameter (Da): 34.925 mm (1-3/8") | Bore Diameter (d): 20 mm | Allowable Tilt Angle α1/α2/α3: 9°/15°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 27800 N | Mass: 340.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| NOS22T | THK Rod End NOS22T (male, maintenance-free), thread=M22×1.5, Da=38.1mm, Cs=35900N | THK | Thread (male): M22×1.5 | Total Length (L): 109 mm | Holder Diameter (D): 50 mm | Ball Diameter (Da): 38.1 mm (1-1/2") | Bore Diameter (d): 22 mm | Allowable Tilt Angle α1/α2/α3: 10°/15°/23° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 35900 N | Mass: 435.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix |
![[THK] — Rod End PHS (Female Thread Type)](https://img.prosourcemro.com/2026/05/001-1065-300x300.png)
THK PHS type Rod End with female (internal) thread. Steel holder (S35C, chromate) with spherical inner ring (SUJ2, 58HRC+) and bronze alloy bushing. Spherical outer surface hard chrome plated; high rigidity, wear and corrosion resistance. Ball diameter (inch series): 11.112~50.8mm (7/16"~2"). Shaft fit: h7 (normal load) or p6 (indeterminate load direction). Lubrication via grease nipple. Left-hand thread: suffix L.
THK PHS type Rod End with female (internal) thread. Steel holder (S35C, chromate) with spherical inner ring (SUJ2, 58HRC+) and bronze alloy bushing. Spherical outer surface hard chrome plated; high rigidity, wear and corrosion resistance. Ball diameter (inch series): 11.112~50.8mm (7/16"~2"). Shaft fit: h7 (normal load) or p6 (indeterminate load direction). Lubrication via grease nipple. Left-hand thread: suffix L.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| PHS5 | THK Rod End PHS5 (female), thread=M5×0.8, Da=11.112mm, Cs=5590N | THK | Thread (female): M5×0.8 | Total Length (L): 35 mm | Holder Diameter (D): 16 mm | Ball Diameter (Da): 11.112 mm (7/16") | Bore Diameter (d): 5 mm | Allowable Tilt Angle α1/α2/α3: 8°/13°/30° | Radial Clearance: ≤0.3 mm | Static Load Capacity (Cs): 5590 N | Mass: 16.5 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) | Bushing: Bronze alloy | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| PHS6 | THK Rod End PHS6 (female), thread=M6×1, Da=12.7mm, Cs=6860N | THK | Thread (female): M6×1 | Total Length (L): 39 mm | Holder Diameter (D): 18 mm | Ball Diameter (Da): 12.7 mm (1/2") | Bore Diameter (d): 6 mm | Allowable Tilt Angle α1/α2/α3: 8°/13°/30° | Radial Clearance: ≤0.3 mm | Static Load Capacity (Cs): 6860 N | Mass: 25.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) | Bushing: Bronze alloy | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| PHS8 | THK Rod End PHS8 (female), thread=M8×1.25, Da=15.875mm, Cs=9800N | THK | Thread (female): M8×1.25 | Total Length (L): 47 mm | Holder Diameter (D): 22 mm | Ball Diameter (Da): 15.875 mm (5/8") | Bore Diameter (d): 8 mm | Allowable Tilt Angle α1/α2/α3: 8°/14°/25° | Radial Clearance: ≤0.5 mm | Static Load Capacity (Cs): 9800 N | Mass: 43.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) | Bushing: Bronze alloy | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| PHS10 | THK Rod End PHS10 (female), thread=M10×1.5, Da=19.05mm, Cs=13200N | THK | Thread (female): M10×1.5 | Total Length (L): 56 mm | Holder Diameter (D): 26 mm | Ball Diameter (Da): 19.05 mm (3/4") | Bore Diameter (d): 10 mm | Allowable Tilt Angle α1/α2/α3: 8°/14°/25° | Radial Clearance: ≤0.5 mm | Static Load Capacity (Cs): 13200 N | Mass: 72.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) | Bushing: Bronze alloy | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| PHS12 | THK Rod End PHS12 (female), thread=M12×1.75, Da=22.225mm, Cs=16700N | THK | Thread (female): M12×1.75 | Total Length (L): 65 mm | Holder Diameter (D): 30 mm | Ball Diameter (Da): 22.225 mm (7/8") | Bore Diameter (d): 12 mm | Allowable Tilt Angle α1/α2/α3: 8°/13°/25° | Radial Clearance: ≤0.5 mm | Static Load Capacity (Cs): 16700 N | Mass: 107.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) | Bushing: Bronze alloy | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| PHS14 | THK Rod End PHS14 (female), thread=M14×2, Da=25.4mm, Cs=20600N | THK | Thread (female): M14×2 | Total Length (L): 74 mm | Holder Diameter (D): 34 mm | Ball Diameter (Da): 25.4 mm (1") | Bore Diameter (d): 14 mm | Allowable Tilt Angle α1/α2/α3: 10°/16°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 20600 N | Mass: 160.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) | Bushing: Bronze alloy | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| PHS16 | THK Rod End PHS16 (female), thread=M16×2, Da=28.575mm, Cs=25000N | THK | Thread (female): M16×2 | Total Length (L): 83 mm | Holder Diameter (D): 38 mm | Ball Diameter (Da): 28.575 mm (1-1/8") | Bore Diameter (d): 16 mm | Allowable Tilt Angle α1/α2/α3: 9°/15°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 25000 N | Mass: 210.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) | Bushing: Bronze alloy | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| PHS18 | THK Rod End PHS18 (female), thread=M18×1.5, Da=31.75mm, Cs=29400N | THK | Thread (female): M18×1.5 | Total Length (L): 92 mm | Holder Diameter (D): 42 mm | Ball Diameter (Da): 31.75 mm (1-1/4") | Bore Diameter (d): 18 mm | Allowable Tilt Angle α1/α2/α3: 9°/15°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 29400 N | Mass: 295.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) | Bushing: Bronze alloy | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| PHS20 | THK Rod End PHS20 (female), thread=M20×1.5, Da=34.925mm, Cs=34300N | THK | Thread (female): M20×1.5 | Total Length (L): 100 mm | Holder Diameter (D): 46 mm | Ball Diameter (Da): 34.925 mm (1-3/8") | Bore Diameter (d): 20 mm | Allowable Tilt Angle α1/α2/α3: 9°/15°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 34300 N | Mass: 380.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) | Bushing: Bronze alloy | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| PHS22 | THK Rod End PHS22 (female), thread=M22×1.5, Da=38.1mm, Cs=41200N | THK | Thread (female): M22×1.5 | Total Length (L): 109 mm | Holder Diameter (D): 50 mm | Ball Diameter (Da): 38.1 mm (1-1/2") | Bore Diameter (d): 22 mm | Allowable Tilt Angle α1/α2/α3: 10°/15°/23° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 41200 N | Mass: 490.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) | Bushing: Bronze alloy | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| PHS25 | THK Rod End PHS25 (female), thread=M24×2, Da=42.862mm, Cs=72500N | THK | Thread (female): M24×2 | Total Length (L): 124 mm | Holder Diameter (D): 60 mm | Ball Diameter (Da): 42.862 mm (1-11/16") | Bore Diameter (d): 25 mm | Allowable Tilt Angle α1/α2/α3: 9°/15°/23° | Radial Clearance: ≤0.8 mm | Static Load Capacity (Cs): 72500 N | Mass: 750.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) | Bushing: Bronze alloy | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| PHS30 | THK Rod End PHS30 (female), thread=M30×2, Da=50.8mm, Cs=92200N | THK | Thread (female): M30×2 | Total Length (L): 145 mm | Holder Diameter (D): 70 mm | Ball Diameter (Da): 50.8 mm (2") | Bore Diameter (d): 30 mm | Allowable Tilt Angle α1/α2/α3: 10°/17°/23° | Radial Clearance: ≤0.8 mm | Static Load Capacity (Cs): 92200 N | Mass: 1130.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) | Bushing: Bronze alloy | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix |
![[THK] — Rod End POS (Male Thread Type)](https://img.prosourcemro.com/2026/05/001-1067-300x240.png)
THK POS type Rod End with male (external) thread. Same high-rigidity construction as PHS (female thread) type. Steel holder (S35C, chromate), spherical inner ring (SUJ2, 58HRC+), bronze alloy bushing. POS5/6: lubrication via oil port on holder. POS8 and larger: grease nipple. Ball diameter (inch series): 11.112~50.8mm (7/16"~2"). Left-hand thread: suffix L.
THK POS type Rod End with male (external) thread. Same high-rigidity construction as PHS (female thread) type. Steel holder (S35C, chromate), spherical inner ring (SUJ2, 58HRC+), bronze alloy bushing. POS5/6: lubrication via oil port on holder. POS8 and larger: grease nipple. Ball diameter (inch series): 11.112~50.8mm (7/16"~2"). Left-hand thread: suffix L.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| POS5 | THK Rod End POS5 (male thread), thread=M5×0.8, Da=11.112mm, Cs=3430N | THK | Thread (male): M5×0.8 | Total Length (L): 41 mm | Holder Diameter (D): 16 mm | Ball Diameter (Da): 11.112 mm (7/16") | Bore Diameter (d): 5 mm | Allowable Tilt Angle α1/α2/α3: 8°/13°/30° | Radial Clearance: ≤0.3 mm | Static Load Capacity (Cs): 3430 N | Mass: 12.5 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Bronze alloy | Lubrication: Oil port on holder | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| POS6 | THK Rod End POS6 (male thread), thread=M6×1, Da=12.7mm, Cs=4900N | THK | Thread (male): M6×1 | Total Length (L): 45 mm | Holder Diameter (D): 18 mm | Ball Diameter (Da): 12.7 mm (1/2") | Bore Diameter (d): 6 mm | Allowable Tilt Angle α1/α2/α3: 8°/13°/30° | Radial Clearance: ≤0.3 mm | Static Load Capacity (Cs): 4900 N | Mass: 19.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Bronze alloy | Lubrication: Oil port on holder | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| POS8 | THK Rod End POS8 (male thread), thread=M8×1.25, Da=15.875mm, Cs=6860N | THK | Thread (male): M8×1.25 | Total Length (L): 53 mm | Holder Diameter (D): 22 mm | Ball Diameter (Da): 15.875 mm (5/8") | Bore Diameter (d): 8 mm | Allowable Tilt Angle α1/α2/α3: 8°/14°/25° | Radial Clearance: ≤0.5 mm | Static Load Capacity (Cs): 6860 N | Mass: 32.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Bronze alloy | Lubrication: Grease nipple | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| POS10 | THK Rod End POS10 (male thread), thread=M10×1.5, Da=19.05mm, Cs=10800N | THK | Thread (male): M10×1.5 | Total Length (L): 61 mm | Holder Diameter (D): 26 mm | Ball Diameter (Da): 19.05 mm (3/4") | Bore Diameter (d): 10 mm | Allowable Tilt Angle α1/α2/α3: 8°/14°/25° | Radial Clearance: ≤0.5 mm | Static Load Capacity (Cs): 10800 N | Mass: 54.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Bronze alloy | Lubrication: Grease nipple | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| POS12 | THK Rod End POS12 (male thread), thread=M12×1.75, Da=22.225mm, Cs=16700N | THK | Thread (male): M12×1.75 | Total Length (L): 69 mm | Holder Diameter (D): 30 mm | Ball Diameter (Da): 22.225 mm (7/8") | Bore Diameter (d): 12 mm | Allowable Tilt Angle α1/α2/α3: 8°/13°/25° | Radial Clearance: ≤0.5 mm | Static Load Capacity (Cs): 16700 N | Mass: 85.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Bronze alloy | Lubrication: Grease nipple | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| POS14 | THK Rod End POS14 (male thread), thread=M14×2, Da=25.4mm, Cs=20600N | THK | Thread (male): M14×2 | Total Length (L): 77 mm | Holder Diameter (D): 34 mm | Ball Diameter (Da): 25.4 mm (1") | Bore Diameter (d): 14 mm | Allowable Tilt Angle α1/α2/α3: 10°/16°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 20600 N | Mass: 126.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Bronze alloy | Lubrication: Grease nipple | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| POS16 | THK Rod End POS16 (male thread), thread=M16×2, Da=28.575mm, Cs=25000N | THK | Thread (male): M16×2 | Total Length (L): 85 mm | Holder Diameter (D): 38 mm | Ball Diameter (Da): 28.575 mm (1-1/8") | Bore Diameter (d): 16 mm | Allowable Tilt Angle α1/α2/α3: 9°/15°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 25000 N | Mass: 185.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Bronze alloy | Lubrication: Grease nipple | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| POS18 | THK Rod End POS18 (male thread), thread=M18×1.5, Da=31.75mm, Cs=29400N | THK | Thread (male): M18×1.5 | Total Length (L): 93 mm | Holder Diameter (D): 42 mm | Ball Diameter (Da): 31.75 mm (1-1/4") | Bore Diameter (d): 18 mm | Allowable Tilt Angle α1/α2/α3: 9°/15°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 29400 N | Mass: 260.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Bronze alloy | Lubrication: Grease nipple | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| POS20 | THK Rod End POS20 (male thread), thread=M20×1.5, Da=34.925mm, Cs=34300N | THK | Thread (male): M20×1.5 | Total Length (L): 101 mm | Holder Diameter (D): 46 mm | Ball Diameter (Da): 34.925 mm (1-3/8") | Bore Diameter (d): 20 mm | Allowable Tilt Angle α1/α2/α3: 9°/15°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 34300 N | Mass: 340.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Bronze alloy | Lubrication: Grease nipple | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| POS22 | THK Rod End POS22 (male thread), thread=M22×1.5, Da=38.1mm, Cs=41200N | THK | Thread (male): M22×1.5 | Total Length (L): 109 mm | Holder Diameter (D): 50 mm | Ball Diameter (Da): 38.1 mm (1-1/2") | Bore Diameter (d): 22 mm | Allowable Tilt Angle α1/α2/α3: 10°/15°/23° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 41200 N | Mass: 435.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Bronze alloy | Lubrication: Grease nipple | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| POS25 | THK Rod End POS25 (male thread), thread=M24×2, Da=42.862mm, Cs=72500N | THK | Thread (male): M24×2 | Total Length (L): 124 mm | Holder Diameter (D): 60 mm | Ball Diameter (Da): 42.862 mm (1-11/16") | Bore Diameter (d): 25 mm | Allowable Tilt Angle α1/α2/α3: 9°/15°/23° | Radial Clearance: ≤0.8 mm | Static Load Capacity (Cs): 72500 N | Mass: 650.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Bronze alloy | Lubrication: Grease nipple | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | |
| POS30 | THK Rod End POS30 (male thread), thread=M30×2, Da=50.8mm, Cs=92200N | THK | Thread (male): M30×2 | Total Length (L): 145 mm | Holder Diameter (D): 70 mm | Ball Diameter (Da): 50.8 mm (2") | Bore Diameter (d): 30 mm | Allowable Tilt Angle α1/α2/α3: 10°/17°/23° | Radial Clearance: ≤0.8 mm | Static Load Capacity (Cs): 92200 N | Mass: 1070.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Bronze alloy | Lubrication: Grease nipple | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix |

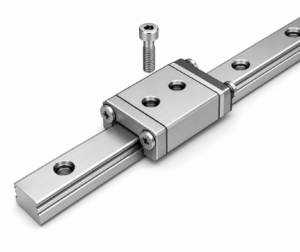

![[THK] — RSR Miniature LM Guide Block (Ball Recirculation, Compact, Multi-direction Load)](https://img.prosourcemro.com/2026/05/001-769-300x252.png)
Miniature LM Guide with ball recirculation in compact structure. Accepts loads in all directions — suitable as single-axis guide for small moment loads. Note: Balls drop out if block is removed from rail.
Miniature LM Guide with ball recirculation in compact structure. Accepts loads in all directions — suitable as single-axis guide for small moment loads. Note: Balls drop out if block is removed from rail.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| RSR2N | RSR2N LM Block H3.2×W6×L12.4mm | THK | Type: Miniature LM Guide Block | Series: RSR | Model: RSR2N | Height M: 3.2 mm | Width W: 6 mm | Length L: 12.4 mm | Max Rail Length: 200 mm | Dynamic Load C: 0.214 kN | Static Load C0: 0.384 kN | Structure: Ball Recirculation | Caution: Balls drop if block removed from rail | Brand: THK | |
| RSR2WN | RSR2WN LM Block H4×W10×L16.7mm | THK | Type: Miniature LM Guide Block | Series: RSR | Model: RSR2WN | Height M: 4 mm | Width W: 10 mm | Length L: 16.7 mm | Max Rail Length: 200 mm | Dynamic Load C: 0.395 kN | Static Load C0: 0.682 kN | Structure: Ball Recirculation | Caution: Balls drop if block removed from rail | Brand: THK | |
| RSR3M | RSR3M LM Block H4×W8×L12mm | THK | Type: Miniature LM Guide Block | Series: RSR | Model: RSR3M | Height M: 4 mm | Width W: 8 mm | Length L: 12 mm | Max Rail Length: 220 mm | Dynamic Load C: 0.18 kN | Static Load C0: 0.27 kN | Structure: Ball Recirculation | Caution: Balls drop if block removed from rail | Brand: THK | |
| RSR3N | RSR3N LM Block H4×W8×L16mm | THK | Type: Miniature LM Guide Block | Series: RSR | Model: RSR3N | Height M: 4 mm | Width W: 8 mm | Length L: 16 mm | Max Rail Length: 220 mm | Dynamic Load C: 0.3 kN | Static Load C0: 0.44 kN | Structure: Ball Recirculation | Caution: Balls drop if block removed from rail | Brand: THK | |
| RSR3WM | RSR3WM LM Block H4.5×W12×L14.9mm | THK | Type: Miniature LM Guide Block | Series: RSR | Model: RSR3WM | Height M: 4.5 mm | Width W: 12 mm | Length L: 14.9 mm | Max Rail Length: 480 mm | Dynamic Load C: 0.25 kN | Static Load C0: 0.47 kN | Structure: Ball Recirculation | Caution: Balls drop if block removed from rail | Brand: THK | |
| RSR3WN | RSR3WN LM Block H4.5×W12×L19.9mm | THK | Type: Miniature LM Guide Block | Series: RSR | Model: RSR3WN | Height M: 4.5 mm | Width W: 12 mm | Length L: 19.9 mm | Max Rail Length: 480 mm | Dynamic Load C: 0.39 kN | Static Load C0: 0.75 kN | Structure: Ball Recirculation | Caution: Balls drop if block removed from rail | Brand: THK | |
| RSR14WVM | RSR14WVM LM Block H15×W50×L50mm | THK | Type: Miniature LM Guide Block | Series: RSR | Model: RSR14WVM | Height M: 15 mm | Width W: 50 mm | Length L: 50 mm | Max Rail Length: 1800 mm | Dynamic Load C: 6.01 kN | Static Load C0: 9.08 kN | Structure: Ball Recirculation | Caution: Balls drop if block removed from rail | Brand: THK |

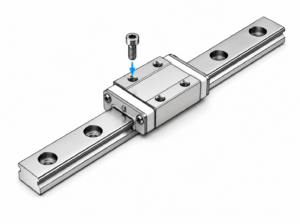

![[THK] — RSR-M1K/M1V/M1N High Temperature LM Guide Block (Ball Recirculation, Stainless, 150°C)](https://img.prosourcemro.com/2026/05/001-790-300x224.png)
High temperature type RSR LM Guide. Tapped standard type. Stainless end plate and high-temp rubber end seal — max 150°C operating temperature. Stainless block, rail and balls — ideal for clean rooms.
High temperature type RSR LM Guide. Tapped standard type. Stainless end plate and high-temp rubber end seal — max 150°C operating temperature. Stainless block, rail and balls — ideal for clean rooms.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| RSR-9M1K | RSR 9M1K LM Block H10×W20×L30.8mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 9M1K | Height M: 10 mm | Width W: 20 mm | Length L: 30.8 mm | Max Rail Length: 1240 mm | Dynamic Load C: 1.47 kN | Static Load C0: 2.25 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Length: Short (K) | Application: High-temp / Clean room | Brand: THK | |
| RSR-9M1N | RSR 9M1N LM Block H10×W20×L41mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 9M1N | Height M: 10 mm | Width W: 20 mm | Length L: 41 mm | Max Rail Length: 1240 mm | Dynamic Load C: 2.6 kN | Static Load C0: 3.96 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Length: Long (N) | Application: High-temp / Clean room | Brand: THK | |
| RSR-12M1V | RSR 12M1V LM Block H13×W27×L35mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 12M1V | Height M: 13 mm | Width W: 27 mm | Length L: 35 mm | Max Rail Length: 1430 mm | Dynamic Load C: 2.65 kN | Static Load C0: 4.02 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Length: Standard (V) | Application: High-temp / Clean room | Brand: THK | |
| RSR-12M1N | RSR 12M1N LM Block H13×W27×L47.7mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 12M1N | Height M: 13 mm | Width W: 27 mm | Length L: 47.7 mm | Max Rail Length: 1430 mm | Dynamic Load C: 4.3 kN | Static Load C0: 6.65 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Length: Long (N) | Application: High-temp / Clean room | Brand: THK | |
| RSR-15M1V | RSR 15M1V LM Block H16×W32×L43mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 15M1V | Height M: 16 mm | Width W: 32 mm | Length L: 43 mm | Max Rail Length: 1600 mm | Dynamic Load C: 4.41 kN | Static Load C0: 6.57 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Length: Standard (V) | Application: High-temp / Clean room | Brand: THK | |
| RSR-15M1N | RSR 15M1N LM Block H16×W32×L61mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 15M1N | Height M: 16 mm | Width W: 32 mm | Length L: 61 mm | Max Rail Length: 1600 mm | Dynamic Load C: 7.16 kN | Static Load C0: 10.7 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Length: Long (N) | Application: High-temp / Clean room | Brand: THK | |
| RSR-20M1V | RSR 20M1V LM Block H25×W46×L66.5mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 20M1V | Height M: 25 mm | Width W: 46 mm | Length L: 66.5 mm | Max Rail Length: 1800 mm | Dynamic Load C: 8.82 kN | Static Load C0: 12.7 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Length: Standard (V) | Application: High-temp / Clean room | Brand: THK | |
| RSR-20M1N | RSR 20M1N LM Block H25×W46×L86.3mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 20M1N | Height M: 25 mm | Width W: 46 mm | Length L: 86.3 mm | Max Rail Length: 1800 mm | Dynamic Load C: 14.2 kN | Static Load C0: 20.6 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Length: Long (N) | Application: High-temp / Clean room | Brand: THK |

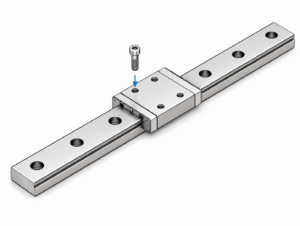

![[THK] — RSR-M1WV/M1WN High Temperature LM Guide Block (Wide Block, Stainless, 150°C)](https://img.prosourcemro.com/2026/05/001-791-300x226.png)
High temperature type RSR LM Guide. Wide block width (W type) with tapped holes. Stainless end plate and high-temp rubber end seal — max 150°C operating temperature. Stainless block, rail and balls — ideal for clean rooms.
High temperature type RSR LM Guide. Wide block width (W type) with tapped holes. Stainless end plate and high-temp rubber end seal — max 150°C operating temperature. Stainless block, rail and balls — ideal for clean rooms.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| RSR-9M1WV | RSR 9M1WV LM Block H12×W30×L39mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 9M1WV | Height M: 12 mm | Width W: 30 mm | Length L: 39 mm | Max Rail Length: 1430 mm | Dynamic Load C: 2.45 kN | Static Load C0: 3.92 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Width: Wide | Block Length: Standard (V type) | Application: High-temp / Clean room | Brand: THK | |
| RSR-9M1WN | RSR 9M1WN LM Block H12×W30×L50.7mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 9M1WN | Height M: 12 mm | Width W: 30 mm | Length L: 50.7 mm | Max Rail Length: 1430 mm | Dynamic Load C: 3.52 kN | Static Load C0: 5.37 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Width: Wide | Block Length: Long (N type) | Application: High-temp / Clean room | Brand: THK | |
| RSR-12M1WV | RSR 12M1WV LM Block H14×W40×L44.5mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 12M1WV | Height M: 14 mm | Width W: 40 mm | Length L: 44.5 mm | Max Rail Length: 1600 mm | Dynamic Load C: 4.02 kN | Static Load C0: 6.08 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Width: Wide | Block Length: Standard (V type) | Application: High-temp / Clean room | Brand: THK | |
| RSR-12M1WN | RSR 12M1WN LM Block H14×W40×L59.5mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 12M1WN | Height M: 14 mm | Width W: 40 mm | Length L: 59.5 mm | Max Rail Length: 1600 mm | Dynamic Load C: 5.96 kN | Static Load C0: 9.21 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Width: Wide | Block Length: Long (N type) | Application: High-temp / Clean room | Brand: THK | |
| RSR-15M1WV | RSR 15M1WV LM Block H16×W60×L55.5mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 15M1WV | Height M: 16 mm | Width W: 60 mm | Length L: 55.5 mm | Max Rail Length: 1800 mm | Dynamic Load C: 6.66 kN | Static Load C0: 9.8 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Width: Wide | Block Length: Standard (V type) | Application: High-temp / Clean room | Brand: THK | |
| RSR-15M1WN | RSR 15M1WN LM Block H16×W60×L74.5mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 15M1WN | Height M: 16 mm | Width W: 60 mm | Length L: 74.5 mm | Max Rail Length: 1800 mm | Dynamic Load C: 9.91 kN | Static Load C0: 14.9 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Width: Wide | Block Length: Long (N type) | Application: High-temp / Clean room | Brand: THK |

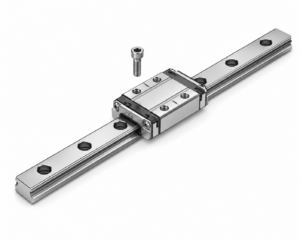

![[THK] — RSX-M Miniature LM Guide Block (Wire Retainer, Gothic Arch, Stainless)](https://img.prosourcemro.com/2026/05/001-767-300x240.png)
Miniature LM Guide. Minimum block width (W) with tapped holes. Wire-type retainer prevents ball drop. 2-row Gothic Arch groove structure for compact multi-directional load capability. Stainless steel rail, block and balls.
Miniature LM Guide. Minimum block width (W) with tapped holes. Wire-type retainer prevents ball drop. 2-row Gothic Arch groove structure for compact multi-directional load capability. Stainless steel rail, block and balls.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| RSX-5M | RSX 5M LM Block H6×W12×L16.9mm | THK | Type: Miniature LM Guide Block | Series: RSX | Model: RSX 5M | Height M: 6 mm | Width W: 12 mm | Length L: 16.9 mm | Max Rail Length: 220 mm | Dynamic Load C: 0.37 kN | Static Load C0: 0.53 kN | Material: Stainless Steel | Structure: Wire Retainer / Gothic Arch 2-row | Brand: THK | |
| RSX-7M | RSX 7M LM Block H8×W17×L23.4mm | THK | Type: Miniature LM Guide Block | Series: RSX | Model: RSX 7M | Height M: 8 mm | Width W: 17 mm | Length L: 23.4 mm | Max Rail Length: 480 mm | Dynamic Load C: 1.16 kN | Static Load C0: 1.54 kN | Material: Stainless Steel | Structure: Wire Retainer / Gothic Arch 2-row | Brand: THK | |
| RSX-9M | RSX 9M LM Block H10×W20×L30.8mm | THK | Type: Miniature LM Guide Block | Series: RSX | Model: RSX 9M | Height M: 10 mm | Width W: 20 mm | Length L: 30.8 mm | Max Rail Length: 1240 mm | Dynamic Load C: 2.22 kN | Static Load C0: 3.06 kN | Material: Stainless Steel | Structure: Wire Retainer / Gothic Arch 2-row | Brand: THK | |
| RSX-12M | RSX 12M LM Block H13×W27×L35mm | THK | Type: Miniature LM Guide Block | Series: RSX | Model: RSX 12M | Height M: 13 mm | Width W: 27 mm | Length L: 35 mm | Max Rail Length: 2000 mm | Dynamic Load C: 3.36 kN | Static Load C0: 4.21 kN | Material: Stainless Steel | Structure: Wire Retainer / Gothic Arch 2-row | Brand: THK | Note: Model corrected from source typo (RSX 9M → RSX 12M per dimensions) | |
| RSX-15M | RSX 15M LM Block H16×W32×L42.9mm | THK | Type: Miniature LM Guide Block | Series: RSX | Model: RSX 15M | Height M: 16 mm | Width W: 32 mm | Length L: 42.9 mm | Max Rail Length: 2000 mm | Dynamic Load C: 5.59 kN | Static Load C0: 6.78 kN | Material: Stainless Steel | Structure: Wire Retainer / Gothic Arch 2-row | Brand: THK |

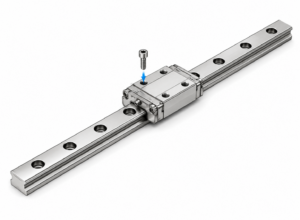

![[THK] — RSX-M1/M1N High Temperature LM Guide Block (Wire Retainer, Stainless, 150°C)](https://img.prosourcemro.com/2026/05/001-788-300x220.png)
High temperature type RSX LM Guide. Tapped standard type. Stainless end plate and high-temp rubber end seal — max 150°C operating temperature. Stainless block, rail and balls — ideal for clean rooms. M1 = standard length, M1N = long block.
High temperature type RSX LM Guide. Tapped standard type. Stainless end plate and high-temp rubber end seal — max 150°C operating temperature. Stainless block, rail and balls — ideal for clean rooms. M1 = standard length, M1N = long block.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| RSX9-M1 | RSX9 M1 LM Block H10×W20×L30.8mm | THK | Type: High Temperature LM Guide Block | Series: RSX-M1 | Model: RSX9 M1 | Height M: 10 mm | Width W: 20 mm | Length L: 30.8 mm | Max Rail Length: 1240 mm | Dynamic Load C: 2.22 kN | Static Load C0: 3.06 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Wire Retainer | Block Length: Standard | Application: High-temp / Clean room | Brand: THK | |
| RSX9-M1N | RSX9 M1N LM Block H10×W20×L40.8mm | THK | Type: High Temperature LM Guide Block | Series: RSX-M1 | Model: RSX9 M1N | Height M: 10 mm | Width W: 20 mm | Length L: 40.8 mm | Max Rail Length: 1240 mm | Dynamic Load C: 2.94 kN | Static Load C0: 4.59 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Wire Retainer | Block Length: Long (N type) | Application: High-temp / Clean room | Brand: THK | |
| RSX12-M1 | RSX12 M1 LM Block H13×W27×L35mm | THK | Type: High Temperature LM Guide Block | Series: RSX-M1 | Model: RSX12 M1 | Height M: 13 mm | Width W: 27 mm | Length L: 35 mm | Max Rail Length: 2000 mm | Dynamic Load C: 3.36 kN | Static Load C0: 4.21 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Wire Retainer | Block Length: Standard | Application: High-temp / Clean room | Brand: THK | |
| RSX12-M1N | RSX12 M1N LM Block H13×W27×L47.7mm | THK | Type: High Temperature LM Guide Block | Series: RSX-M1 | Model: RSX12 M1N | Height M: 13 mm | Width W: 27 mm | Length L: 47.7 mm | Max Rail Length: 2000 mm | Dynamic Load C: 4.72 kN | Static Load C0: 6.83 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Wire Retainer | Block Length: Long (N type) | Application: High-temp / Clean room | Brand: THK | |
| RSX15-M1 | RSX15 M1 LM Block H16×W32×L42.9mm | THK | Type: High Temperature LM Guide Block | Series: RSX-M1 | Model: RSX15 M1 | Height M: 16 mm | Width W: 32 mm | Length L: 42.9 mm | Max Rail Length: 2000 mm | Dynamic Load C: 5.59 kN | Static Load C0: 6.78 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Wire Retainer | Block Length: Standard | Application: High-temp / Clean room | Brand: THK | |
| RSX15-M1N | RSX15 M1N LM Block H16×W32×L60.7mm | THK | Type: High Temperature LM Guide Block | Series: RSX-M1 | Model: RSX15 M1N | Height M: 16 mm | Width W: 32 mm | Length L: 60.7 mm | Max Rail Length: 2000 mm | Dynamic Load C: 8.27 kN | Static Load C0: 11.8 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Wire Retainer | Block Length: Long (N type) | Application: High-temp / Clean room | Brand: THK |

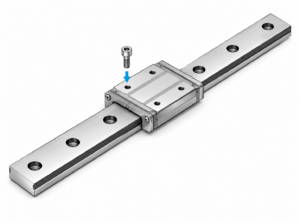

![[THK] — RSX-M1W/M1WN High Temperature LM Guide Block (Wide Block, Stainless, 150°C)](https://img.prosourcemro.com/2026/05/001-789-300x223.png)
High temperature type RSX LM Guide. Wide block width (W type) with tapped holes. Stainless end plate and high-temp rubber end seal — max 150°C operating temperature. Stainless block, rail and balls — ideal for clean rooms.
High temperature type RSX LM Guide. Wide block width (W type) with tapped holes. Stainless end plate and high-temp rubber end seal — max 150°C operating temperature. Stainless block, rail and balls — ideal for clean rooms.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| RSX9-M1W | RSX9 M1W LM Block H12×W30×L39mm | THK | Type: High Temperature LM Guide Block | Series: RSX-M1 | Model: RSX9 M1W | Height M: 12 mm | Width W: 30 mm | Length L: 39 mm | Max Rail Length: 1430 mm | Dynamic Load C: 2.8 kN | Static Load C0: 4.28 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Wire Retainer | Block Width: Wide | Block Length: Standard | Application: High-temp / Clean room | Brand: THK | Note: C0 corrected from source typo (42.8→4.28) | |
| RSX9-M1WN | RSX9 M1WN LM Block H12×W30×L50.7mm | THK | Type: High Temperature LM Guide Block | Series: RSX-M1 | Model: RSX9 M1WN | Height M: 12 mm | Width W: 30 mm | Length L: 50.7 mm | Max Rail Length: 1430 mm | Dynamic Load C: 3.48 kN | Static Load C0: 5.81 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Wire Retainer | Block Width: Wide | Block Length: Long (N type) | Application: High-temp / Clean room | Brand: THK | |
| RSX12-M1W | RSX12 M1W LM Block H14×W40×L44.5mm | THK | Type: High Temperature LM Guide Block | Series: RSX-M1 | Model: RSX12 M1W | Height M: 14 mm | Width W: 40 mm | Length L: 44.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 4.46 kN | Static Load C0: 6.31 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Wire Retainer | Block Width: Wide | Block Length: Standard | Application: High-temp / Clean room | Brand: THK | |
| RSX12-M1WN | RSX12 M1WN LM Block H14×W40×L59.5mm | THK | Type: High Temperature LM Guide Block | Series: RSX-M1 | Model: RSX12 M1WN | Height M: 14 mm | Width W: 40 mm | Length L: 59.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 5.93 kN | Static Load C0: 9.46 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Wire Retainer | Block Width: Wide | Block Length: Long (N type) | Application: High-temp / Clean room | Brand: THK | |
| RSX15-M1W | RSX15 M1W LM Block H16×W60×L55.5mm | THK | Type: High Temperature LM Guide Block | Series: RSX-M1 | Model: RSX15 M1W | Height M: 16 mm | Width W: 60 mm | Length L: 55.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 7.43 kN | Static Load C0: 10.1 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Wire Retainer | Block Width: Wide | Block Length: Standard | Application: High-temp / Clean room | Brand: THK | |
| RSX15-M1WN | RSX15 M1WN LM Block H16×W60×L74.5mm | THK | Type: High Temperature LM Guide Block | Series: RSX-M1 | Model: RSX15 M1WN | Height M: 16 mm | Width W: 60 mm | Length L: 74.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 9.87 kN | Static Load C0: 15.2 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Wire Retainer | Block Width: Wide | Block Length: Long (N type) | Application: High-temp / Clean room | Brand: THK |

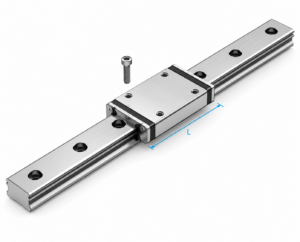

![[THK] — RSX-WM Miniature LM Guide Block (Wide Block, Wire Retainer, Gothic Arch, Stainless)](https://img.prosourcemro.com/2026/05/001-768-300x242.png)
Miniature LM Guide. Wide block width (W) type with tapped holes. Wire-type retainer prevents ball drop. 2-row Gothic Arch groove structure for compact multi-directional load capability. Stainless steel rail, block and balls.
Miniature LM Guide. Wide block width (W) type with tapped holes. Wire-type retainer prevents ball drop. 2-row Gothic Arch groove structure for compact multi-directional load capability. Stainless steel rail, block and balls.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| RSX-7WM | RSX 7WM LM Block H9×W25×L31mm | THK | Type: Miniature LM Guide Block | Series: RSX | Model: RSX 7WM | Height M: 9 mm | Width W: 25 mm | Length L: 31 mm | Max Rail Length: 480 mm | Dynamic Load C: 1.63 kN | Static Load C0: 2.51 kN | Material: Stainless Steel | Structure: Wire Retainer / Gothic Arch 2-row | Block Width: Wide | Brand: THK | |
| RSX-9WM | RSX 9WM LM Block H12×W30×L39mm | THK | Type: Miniature LM Guide Block | Series: RSX | Model: RSX 9WM | Height M: 12 mm | Width W: 30 mm | Length L: 39 mm | Max Rail Length: 1430 mm | Dynamic Load C: 2.8 kN | Static Load C0: 4.28 kN | Material: Stainless Steel | Structure: Wire Retainer / Gothic Arch 2-row | Block Width: Wide | Brand: THK | |
| RSX-12WM | RSX 12WM LM Block H14×W40×L44.5mm | THK | Type: Miniature LM Guide Block | Series: RSX | Model: RSX 12WM | Height M: 14 mm | Width W: 40 mm | Length L: 44.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 4.46 kN | Static Load C0: 6.31 kN | Material: Stainless Steel | Structure: Wire Retainer / Gothic Arch 2-row | Block Width: Wide | Brand: THK | |
| RSX-15WM | RSX 15WM LM Block H16×W60×L55.5mm | THK | Type: Miniature LM Guide Block | Series: RSX | Model: RSX 15WM | Height M: 16 mm | Width W: 60 mm | Length L: 55.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 7.43 kN | Static Load C0: 10.1 kN | Material: Stainless Steel | Structure: Wire Retainer / Gothic Arch 2-row | Block Width: Wide | Brand: THK |
