Linear Motion

486 products linear-motion ✕

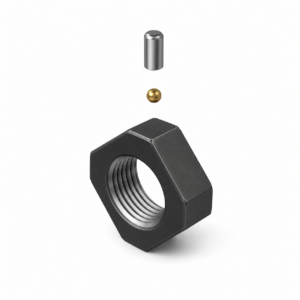

[THK] — RN Lock Nut (for Ball Screw Shaft and Bearing)

THK RN Series Lock Nut for ball screw shaft and bearing. Anti-loosening mechanism via hex socket set screw and set piece. Shaft thread range M4~M40. Simple and reliable shaft/bearing retention.

Brand: THK Category: Ball Screws 13 models

THK RN Series Lock Nut for ball screw shaft and bearing. Anti-loosening mechanism via hex socket set screw and set piece. Shaft thread range M4~M40. Simple and reliable shaft/bearing retention.

Product Code	Description	Brand	Spec
RN4	THK RN4, Lock Nut M4×0.5	THK	Shaft Thread M: M4×0.5 \| Set Screw m: M2.6 \| OD D: 11.5mm \| Bore d: 8mm \| Length L: 5mm \| Groove Depth t: 2.7mm \| Across Flats T: 10mm \| Mass: 0.003kg \| Type: Lock Nut with Anti-loosening Set Screw (RN)
RN5	THK RN5, Lock Nut M5×0.5	THK	Shaft Thread M: M5×0.5 \| Set Screw m: M2.6 \| OD D: 13.5mm \| Bore d: 9mm \| Length L: 5mm \| Groove Depth t: 2.7mm \| Across Flats T: 11mm \| Mass: 0.004kg \| Type: Lock Nut with Anti-loosening Set Screw (RN)
RN6	THK RN6, Lock Nut M6×0.75	THK	Shaft Thread M: M6×0.75 \| Set Screw m: M3 \| OD D: 14.5mm \| Bore d: 10mm \| Length L: 5mm \| Groove Depth t: 2.7mm \| Across Flats T: 12mm \| Mass: 0.005kg \| Type: Lock Nut with Anti-loosening Set Screw (RN)
RN8	THK RN8, Lock Nut M8×1	THK	Shaft Thread M: M8×1 \| Set Screw m: M3 \| OD D: 17.0mm \| Bore d: 13mm \| Length L: 6.5mm \| Groove Depth t: 4mm \| Across Flats T: 14mm \| Mass: 0.008kg \| Type: Lock Nut with Anti-loosening Set Screw (RN)
RN10	THK RN10, Lock Nut M10×1	THK	Shaft Thread M: M10×1 \| Set Screw m: M3 \| OD D: 20.0mm \| Bore d: 15mm \| Length L: 8mm \| Groove Depth t: 5.5mm \| Across Flats T: 16mm \| Mass: 0.013kg \| Type: Lock Nut with Anti-loosening Set Screw (RN)
RN12	THK RN12, Lock Nut M12×1	THK	Shaft Thread M: M12×1 \| Set Screw m: M3 \| OD D: 22.0mm \| Bore d: 17mm \| Length L: 8mm \| Groove Depth t: 5.5mm \| Across Flats T: 19mm \| Mass: 0.014kg \| Type: Lock Nut with Anti-loosening Set Screw (RN)
RN15	THK RN15, Lock Nut M15×1	THK	Shaft Thread M: M15×1 \| Set Screw m: M3 \| OD D: 25.0mm \| Bore d: 21mm \| Length L: 8mm \| Groove Depth t: 4.5mm \| Across Flats T: 22mm \| Mass: 0.017kg \| Type: Lock Nut with Anti-loosening Set Screw (RN)
RN17	THK RN17, Lock Nut M17×1	THK	Shaft Thread M: M17×1 \| Set Screw m: M4 \| OD D: 30.0mm \| Bore d: 25mm \| Length L: 13mm \| Groove Depth t: 9mm \| Across Flats T: 24mm \| Mass: 0.042kg \| Type: Lock Nut with Anti-loosening Set Screw (RN)
RN20	THK RN20, Lock Nut M20×1	THK	Shaft Thread M: M20×1 \| Set Screw m: M4 \| OD D: 35.0mm \| Bore d: 26mm \| Length L: 11mm \| Groove Depth t: 7mm \| Across Flats T: 30mm \| Mass: 0.048kg \| Type: Lock Nut with Anti-loosening Set Screw (RN)
RN25	THK RN25, Lock Nut M25×1.5	THK	Shaft Thread M: M25×1.5 \| Set Screw m: M5 \| OD D: 43.0mm \| Bore d: 33mm \| Length L: 15mm \| Groove Depth t: 10mm \| Across Flats T: 35mm \| Mass: 0.096kg \| Type: Lock Nut with Anti-loosening Set Screw (RN)
RN30	THK RN30, Lock Nut M30×1.5	THK	Shaft Thread M: M30×1.5 \| Set Screw m: M6 \| OD D: 48.0mm \| Bore d: 39mm \| Length L: 20mm \| Groove Depth t: 14mm \| Across Flats T: 40mm \| Mass: 0.145kg \| Type: Lock Nut with Anti-loosening Set Screw (RN)
RN35	THK RN35, Lock Nut M35×1.5	THK	Shaft Thread M: M35×1.5 \| Set Screw m: M8 \| OD D: 60.0mm \| Bore d: 46mm \| Length L: 21mm \| Groove Depth t: 14mm \| Across Flats T: 50mm \| Mass: 0.261kg \| Type: Lock Nut with Anti-loosening Set Screw (RN)
RN40	THK RN40, Lock Nut M40×1.5	THK	Shaft Thread M: M40×1.5 \| Set Screw m: M8 \| OD D: 63.0mm \| Bore d: 51mm \| Length L: 25mm \| Groove Depth t: 18mm \| Across Flats T: 50mm \| Mass: 0.304kg \| Type: Lock Nut with Anti-loosening Set Screw (RN)

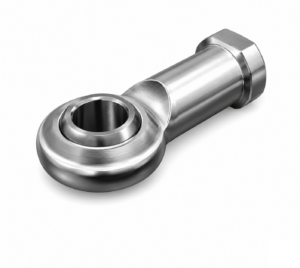

[THK] — Rod End NHS-T (Female Thread, Maintenance-Free)

THK NHS-T type Maintenance-Free Rod End with female (internal) thread. Self-lubricating synthetic resin bushing between steel holder and spherical inner ring. Minimized rolling clearance for precise link motion. No grease nipple required; oil or grease may be applied to spherical surface for initial lubrication. Ball diameter (inch series): 9.525~38.1mm (3/8"~1-1/2"). NHS3T/4T: S20C holder; NHS5T~NHS22T: S35C chromate holder. Left-hand thread: suffix L.

Brand: THK Category: Roller Guides 12 models

Product Code	Description	Brand	Spec
NHS3T	THK Rod End NHS3T (maintenance-free), thread=M3×0.5, Da=9.525mm, Cs=1570N	THK	Thread (female): M3×0.5 \| Total Length (L): 27 mm \| Holder Diameter (D): 12 mm \| Ball Diameter (Da): 9.525 mm (3/8") \| Bore Diameter (d): 3 mm \| Allowable Tilt Angle α1/α2/α3: 8°/10°/42° \| Radial Clearance: ≤0.3 mm \| Static Load Capacity (Cs): 1570 N \| Mass: 6.5 g \| Holder Material: S20C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Self-lubricating synthetic resin (maintenance-free) \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
NHS4T	THK Rod End NHS4T (maintenance-free), thread=M4×0.7, Da=10.319mm, Cs=2250N	THK	Thread (female): M4×0.7 \| Total Length (L): 31 mm \| Holder Diameter (D): 14 mm \| Ball Diameter (Da): 10.319 mm (13/32") \| Bore Diameter (d): 4 mm \| Allowable Tilt Angle α1/α2/α3: 9°/11°/35° \| Radial Clearance: ≤0.3 mm \| Static Load Capacity (Cs): 2250 N \| Mass: 10.0 g \| Holder Material: S20C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Self-lubricating synthetic resin (maintenance-free) \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
NHS5T	THK Rod End NHS5T (maintenance-free), thread=M5×0.8, Da=11.112mm, Cs=3920N	THK	Thread (female): M5×0.8 \| Total Length (L): 35 mm \| Holder Diameter (D): 16 mm \| Ball Diameter (Da): 11.112 mm (7/16") \| Bore Diameter (d): 5 mm \| Allowable Tilt Angle α1/α2/α3: 8°/13°/30° \| Radial Clearance: ≤0.3 mm \| Static Load Capacity (Cs): 3920 N \| Mass: 16.5 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Self-lubricating synthetic resin (maintenance-free) \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
NHS6T	THK Rod End NHS6T (maintenance-free), thread=M6×1, Da=12.7mm, Cs=5000N	THK	Thread (female): M6×1 \| Total Length (L): 39 mm \| Holder Diameter (D): 18 mm \| Ball Diameter (Da): 12.7 mm (1/2") \| Bore Diameter (d): 6 mm \| Allowable Tilt Angle α1/α2/α3: 8°/13°/30° \| Radial Clearance: ≤0.3 mm \| Static Load Capacity (Cs): 5000 N \| Mass: 25.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Self-lubricating synthetic resin (maintenance-free) \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
NHS8T	THK Rod End NHS8T (maintenance-free), thread=M8×1.25, Da=15.875mm, Cs=7450N	THK	Thread (female): M8×1.25 \| Total Length (L): 47 mm \| Holder Diameter (D): 22 mm \| Ball Diameter (Da): 15.875 mm (5/8") \| Bore Diameter (d): 8 mm \| Allowable Tilt Angle α1/α2/α3: 8°/14°/25° \| Radial Clearance: ≤0.5 mm \| Static Load Capacity (Cs): 7450 N \| Mass: 43.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Self-lubricating synthetic resin (maintenance-free) \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
NHS10T	THK Rod End NHS10T (maintenance-free), thread=M10×1.5, Da=19.05mm, Cs=9410N	THK	Thread (female): M10×1.5 \| Total Length (L): 56 mm \| Holder Diameter (D): 26 mm \| Ball Diameter (Da): 19.05 mm (3/4") \| Bore Diameter (d): 10 mm \| Allowable Tilt Angle α1/α2/α3: 8°/14°/25° \| Radial Clearance: ≤0.5 mm \| Static Load Capacity (Cs): 9410 N \| Mass: 72.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Self-lubricating synthetic resin (maintenance-free) \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
NHS12T	THK Rod End NHS12T (maintenance-free), thread=M12×1.75, Da=22.225mm, Cs=11000N	THK	Thread (female): M12×1.75 \| Total Length (L): 65 mm \| Holder Diameter (D): 30 mm \| Ball Diameter (Da): 22.225 mm (7/8") \| Bore Diameter (d): 12 mm \| Allowable Tilt Angle α1/α2/α3: 8°/13°/25° \| Radial Clearance: ≤0.5 mm \| Static Load Capacity (Cs): 11000 N \| Mass: 107.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Self-lubricating synthetic resin (maintenance-free) \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
NHS14T	THK Rod End NHS14T (maintenance-free), thread=M14×2, Da=25.4mm, Cs=15200N	THK	Thread (female): M14×2 \| Total Length (L): 74 mm \| Holder Diameter (D): 34 mm \| Ball Diameter (Da): 25.4 mm (1") \| Bore Diameter (d): 14 mm \| Allowable Tilt Angle α1/α2/α3: 10°/16°/24° \| Radial Clearance: ≤0.7 mm \| Static Load Capacity (Cs): 15200 N \| Mass: 160.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Self-lubricating synthetic resin (maintenance-free) \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
NHS16T	THK Rod End NHS16T (maintenance-free), thread=M16×2, Da=28.575mm, Cs=20200N	THK	Thread (female): M16×2 \| Total Length (L): 83 mm \| Holder Diameter (D): 38 mm \| Ball Diameter (Da): 28.575 mm (1-1/8") \| Bore Diameter (d): 16 mm \| Allowable Tilt Angle α1/α2/α3: 9°/15°/24° \| Radial Clearance: ≤0.7 mm \| Static Load Capacity (Cs): 20200 N \| Mass: 210.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Self-lubricating synthetic resin (maintenance-free) \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
NHS18T	THK Rod End NHS18T (maintenance-free), thread=M18×1.5, Da=31.75mm, Cs=25200N	THK	Thread (female): M18×1.5 \| Total Length (L): 92 mm \| Holder Diameter (D): 42 mm \| Ball Diameter (Da): 31.75 mm (1-1/4") \| Bore Diameter (d): 18 mm \| Allowable Tilt Angle α1/α2/α3: 9°/15°/24° \| Radial Clearance: ≤0.7 mm \| Static Load Capacity (Cs): 25200 N \| Mass: 295.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Self-lubricating synthetic resin (maintenance-free) \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
NHS20T	THK Rod End NHS20T (maintenance-free), thread=M20×1.5, Da=34.925mm, Cs=27800N	THK	Thread (female): M20×1.5 \| Total Length (L): 100 mm \| Holder Diameter (D): 46 mm \| Ball Diameter (Da): 34.925 mm (1-3/8") \| Bore Diameter (d): 20 mm \| Allowable Tilt Angle α1/α2/α3: 9°/15°/24° \| Radial Clearance: ≤0.7 mm \| Static Load Capacity (Cs): 27800 N \| Mass: 380.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Self-lubricating synthetic resin (maintenance-free) \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
NHS22T	THK Rod End NHS22T (maintenance-free), thread=M22×1.5, Da=38.1mm, Cs=35900N	THK	Thread (female): M22×1.5 \| Total Length (L): 109 mm \| Holder Diameter (D): 50 mm \| Ball Diameter (Da): 38.1 mm (1-1/2") \| Bore Diameter (d): 22 mm \| Allowable Tilt Angle α1/α2/α3: 10°/15°/23° \| Radial Clearance: ≤0.7 mm \| Static Load Capacity (Cs): 35900 N \| Mass: 490.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Self-lubricating synthetic resin (maintenance-free) \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix

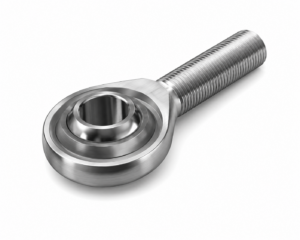

[THK] — Rod End NOS-T (Male Thread, Maintenance-Free)

THK NOS-T type Maintenance-Free Rod End with male (external) thread. Same construction as NHS-T (female thread) type. Self-lubricating synthetic resin bushing; no grease nipple required. Ball diameter (inch series): 9.525~38.1mm (3/8"~1-1/2"). NOS3T/4T: S20C holder; NOS5T~NOS22T: S35C chromate. Left-hand thread: suffix L.

Brand: THK Category: Roller Guides 12 models

Product Code	Description	Brand	Spec
NOS3T	THK Rod End NOS3T (male, maintenance-free), thread=M3×0.5, Da=9.525mm, Cs=1570N	THK	Thread (male): M3×0.5 \| Total Length (L): 33 mm \| Holder Diameter (D): 12 mm \| Ball Diameter (Da): 9.525 mm (3/8") \| Bore Diameter (d): 3 mm \| Allowable Tilt Angle α1/α2/α3: 8°/10°/42° \| Radial Clearance: ≤0.3 mm \| Static Load Capacity (Cs): 1570 N \| Mass: 4.5 g \| Holder Material: S20C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Self-lubricating synthetic resin (maintenance-free) \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
NOS4T	THK Rod End NOS4T (male, maintenance-free), thread=M4×0.7, Da=10.319mm, Cs=2250N	THK	Thread (male): M4×0.7 \| Total Length (L): 37 mm \| Holder Diameter (D): 14 mm \| Ball Diameter (Da): 10.319 mm (13/32") \| Bore Diameter (d): 4 mm \| Allowable Tilt Angle α1/α2/α3: 9°/11°/35° \| Radial Clearance: ≤0.3 mm \| Static Load Capacity (Cs): 2250 N \| Mass: 7.0 g \| Holder Material: S20C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Self-lubricating synthetic resin (maintenance-free) \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
NOS5T	THK Rod End NOS5T (male, maintenance-free), thread=M5×0.8, Da=11.112mm, Cs=3430N	THK	Thread (male): M5×0.8 \| Total Length (L): 41 mm \| Holder Diameter (D): 16 mm \| Ball Diameter (Da): 11.112 mm (7/16") \| Bore Diameter (d): 5 mm \| Allowable Tilt Angle α1/α2/α3: 8°/13°/30° \| Radial Clearance: ≤0.3 mm \| Static Load Capacity (Cs): 3430 N \| Mass: 12.5 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Self-lubricating synthetic resin (maintenance-free) \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
NOS6T	THK Rod End NOS6T (male, maintenance-free), thread=M6×1, Da=12.7mm, Cs=4900N	THK	Thread (male): M6×1 \| Total Length (L): 45 mm \| Holder Diameter (D): 18 mm \| Ball Diameter (Da): 12.7 mm (1/2") \| Bore Diameter (d): 6 mm \| Allowable Tilt Angle α1/α2/α3: 8°/13°/30° \| Radial Clearance: ≤0.3 mm \| Static Load Capacity (Cs): 4900 N \| Mass: 19.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Self-lubricating synthetic resin (maintenance-free) \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
NOS8T	THK Rod End NOS8T (male, maintenance-free), thread=M8×1.25, Da=15.875mm, Cs=6860N	THK	Thread (male): M8×1.25 \| Total Length (L): 53 mm \| Holder Diameter (D): 22 mm \| Ball Diameter (Da): 15.875 mm (5/8") \| Bore Diameter (d): 8 mm \| Allowable Tilt Angle α1/α2/α3: 8°/14°/25° \| Radial Clearance: ≤0.5 mm \| Static Load Capacity (Cs): 6860 N \| Mass: 32.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Self-lubricating synthetic resin (maintenance-free) \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
NOS10T	THK Rod End NOS10T (male, maintenance-free), thread=M10×1.5, Da=19.05mm, Cs=9410N	THK	Thread (male): M10×1.5 \| Total Length (L): 61 mm \| Holder Diameter (D): 26 mm \| Ball Diameter (Da): 19.05 mm (3/4") \| Bore Diameter (d): 10 mm \| Allowable Tilt Angle α1/α2/α3: 8°/14°/25° \| Radial Clearance: ≤0.5 mm \| Static Load Capacity (Cs): 9410 N \| Mass: 54.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Self-lubricating synthetic resin (maintenance-free) \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
NOS12T	THK Rod End NOS12T (male, maintenance-free), thread=M12×1.75, Da=22.225mm, Cs=11000N	THK	Thread (male): M12×1.75 \| Total Length (L): 69 mm \| Holder Diameter (D): 30 mm \| Ball Diameter (Da): 22.225 mm (7/8") \| Bore Diameter (d): 12 mm \| Allowable Tilt Angle α1/α2/α3: 8°/13°/25° \| Radial Clearance: ≤0.5 mm \| Static Load Capacity (Cs): 11000 N \| Mass: 85.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Self-lubricating synthetic resin (maintenance-free) \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
NOS14T	THK Rod End NOS14T (male, maintenance-free), thread=M14×2, Da=25.4mm, Cs=15200N	THK	Thread (male): M14×2 \| Total Length (L): 77 mm \| Holder Diameter (D): 34 mm \| Ball Diameter (Da): 25.4 mm (1") \| Bore Diameter (d): 14 mm \| Allowable Tilt Angle α1/α2/α3: 10°/16°/24° \| Radial Clearance: ≤0.7 mm \| Static Load Capacity (Cs): 15200 N \| Mass: 126.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Self-lubricating synthetic resin (maintenance-free) \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
NOS16T	THK Rod End NOS16T (male, maintenance-free), thread=M16×2, Da=28.575mm, Cs=20200N	THK	Thread (male): M16×2 \| Total Length (L): 85 mm \| Holder Diameter (D): 38 mm \| Ball Diameter (Da): 28.575 mm (1-1/8") \| Bore Diameter (d): 16 mm \| Allowable Tilt Angle α1/α2/α3: 9°/15°/24° \| Radial Clearance: ≤0.7 mm \| Static Load Capacity (Cs): 20200 N \| Mass: 185.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Self-lubricating synthetic resin (maintenance-free) \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
NOS18T	THK Rod End NOS18T (male, maintenance-free), thread=M18×1.5, Da=31.75mm, Cs=25200N	THK	Thread (male): M18×1.5 \| Total Length (L): 93 mm \| Holder Diameter (D): 42 mm \| Ball Diameter (Da): 31.75 mm (1-1/4") \| Bore Diameter (d): 18 mm \| Allowable Tilt Angle α1/α2/α3: 9°/15°/24° \| Radial Clearance: ≤0.7 mm \| Static Load Capacity (Cs): 25200 N \| Mass: 260.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Self-lubricating synthetic resin (maintenance-free) \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
NOS20T	THK Rod End NOS20T (male, maintenance-free), thread=M20×1.5, Da=34.925mm, Cs=27800N	THK	Thread (male): M20×1.5 \| Total Length (L): 101 mm \| Holder Diameter (D): 46 mm \| Ball Diameter (Da): 34.925 mm (1-3/8") \| Bore Diameter (d): 20 mm \| Allowable Tilt Angle α1/α2/α3: 9°/15°/24° \| Radial Clearance: ≤0.7 mm \| Static Load Capacity (Cs): 27800 N \| Mass: 340.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Self-lubricating synthetic resin (maintenance-free) \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
NOS22T	THK Rod End NOS22T (male, maintenance-free), thread=M22×1.5, Da=38.1mm, Cs=35900N	THK	Thread (male): M22×1.5 \| Total Length (L): 109 mm \| Holder Diameter (D): 50 mm \| Ball Diameter (Da): 38.1 mm (1-1/2") \| Bore Diameter (d): 22 mm \| Allowable Tilt Angle α1/α2/α3: 10°/15°/23° \| Radial Clearance: ≤0.7 mm \| Static Load Capacity (Cs): 35900 N \| Mass: 435.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Self-lubricating synthetic resin (maintenance-free) \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix

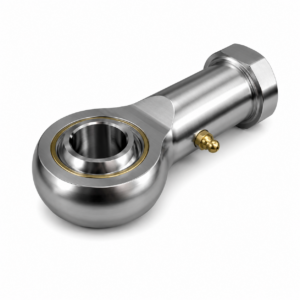

[THK] — Rod End PHS (Female Thread Type)

THK PHS type Rod End with female (internal) thread. Steel holder (S35C, chromate) with spherical inner ring (SUJ2, 58HRC+) and bronze alloy bushing. Spherical outer surface hard chrome plated; high rigidity, wear and corrosion resistance. Ball diameter (inch series): 11.112~50.8mm (7/16"~2"). Shaft fit: h7 (normal load) or p6 (indeterminate load direction). Lubrication via grease nipple. Left-hand thread: suffix L.

Brand: THK Category: Roller Guides 12 models

Product Code	Description	Brand	Spec
PHS5	THK Rod End PHS5 (female), thread=M5×0.8, Da=11.112mm, Cs=5590N	THK	Thread (female): M5×0.8 \| Total Length (L): 35 mm \| Holder Diameter (D): 16 mm \| Ball Diameter (Da): 11.112 mm (7/16") \| Bore Diameter (d): 5 mm \| Allowable Tilt Angle α1/α2/α3: 8°/13°/30° \| Radial Clearance: ≤0.3 mm \| Static Load Capacity (Cs): 5590 N \| Mass: 16.5 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) \| Bushing: Bronze alloy \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
PHS6	THK Rod End PHS6 (female), thread=M6×1, Da=12.7mm, Cs=6860N	THK	Thread (female): M6×1 \| Total Length (L): 39 mm \| Holder Diameter (D): 18 mm \| Ball Diameter (Da): 12.7 mm (1/2") \| Bore Diameter (d): 6 mm \| Allowable Tilt Angle α1/α2/α3: 8°/13°/30° \| Radial Clearance: ≤0.3 mm \| Static Load Capacity (Cs): 6860 N \| Mass: 25.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) \| Bushing: Bronze alloy \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
PHS8	THK Rod End PHS8 (female), thread=M8×1.25, Da=15.875mm, Cs=9800N	THK	Thread (female): M8×1.25 \| Total Length (L): 47 mm \| Holder Diameter (D): 22 mm \| Ball Diameter (Da): 15.875 mm (5/8") \| Bore Diameter (d): 8 mm \| Allowable Tilt Angle α1/α2/α3: 8°/14°/25° \| Radial Clearance: ≤0.5 mm \| Static Load Capacity (Cs): 9800 N \| Mass: 43.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) \| Bushing: Bronze alloy \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
PHS10	THK Rod End PHS10 (female), thread=M10×1.5, Da=19.05mm, Cs=13200N	THK	Thread (female): M10×1.5 \| Total Length (L): 56 mm \| Holder Diameter (D): 26 mm \| Ball Diameter (Da): 19.05 mm (3/4") \| Bore Diameter (d): 10 mm \| Allowable Tilt Angle α1/α2/α3: 8°/14°/25° \| Radial Clearance: ≤0.5 mm \| Static Load Capacity (Cs): 13200 N \| Mass: 72.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) \| Bushing: Bronze alloy \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
PHS12	THK Rod End PHS12 (female), thread=M12×1.75, Da=22.225mm, Cs=16700N	THK	Thread (female): M12×1.75 \| Total Length (L): 65 mm \| Holder Diameter (D): 30 mm \| Ball Diameter (Da): 22.225 mm (7/8") \| Bore Diameter (d): 12 mm \| Allowable Tilt Angle α1/α2/α3: 8°/13°/25° \| Radial Clearance: ≤0.5 mm \| Static Load Capacity (Cs): 16700 N \| Mass: 107.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) \| Bushing: Bronze alloy \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
PHS14	THK Rod End PHS14 (female), thread=M14×2, Da=25.4mm, Cs=20600N	THK	Thread (female): M14×2 \| Total Length (L): 74 mm \| Holder Diameter (D): 34 mm \| Ball Diameter (Da): 25.4 mm (1") \| Bore Diameter (d): 14 mm \| Allowable Tilt Angle α1/α2/α3: 10°/16°/24° \| Radial Clearance: ≤0.7 mm \| Static Load Capacity (Cs): 20600 N \| Mass: 160.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) \| Bushing: Bronze alloy \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
PHS16	THK Rod End PHS16 (female), thread=M16×2, Da=28.575mm, Cs=25000N	THK	Thread (female): M16×2 \| Total Length (L): 83 mm \| Holder Diameter (D): 38 mm \| Ball Diameter (Da): 28.575 mm (1-1/8") \| Bore Diameter (d): 16 mm \| Allowable Tilt Angle α1/α2/α3: 9°/15°/24° \| Radial Clearance: ≤0.7 mm \| Static Load Capacity (Cs): 25000 N \| Mass: 210.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) \| Bushing: Bronze alloy \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
PHS18	THK Rod End PHS18 (female), thread=M18×1.5, Da=31.75mm, Cs=29400N	THK	Thread (female): M18×1.5 \| Total Length (L): 92 mm \| Holder Diameter (D): 42 mm \| Ball Diameter (Da): 31.75 mm (1-1/4") \| Bore Diameter (d): 18 mm \| Allowable Tilt Angle α1/α2/α3: 9°/15°/24° \| Radial Clearance: ≤0.7 mm \| Static Load Capacity (Cs): 29400 N \| Mass: 295.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) \| Bushing: Bronze alloy \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
PHS20	THK Rod End PHS20 (female), thread=M20×1.5, Da=34.925mm, Cs=34300N	THK	Thread (female): M20×1.5 \| Total Length (L): 100 mm \| Holder Diameter (D): 46 mm \| Ball Diameter (Da): 34.925 mm (1-3/8") \| Bore Diameter (d): 20 mm \| Allowable Tilt Angle α1/α2/α3: 9°/15°/24° \| Radial Clearance: ≤0.7 mm \| Static Load Capacity (Cs): 34300 N \| Mass: 380.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) \| Bushing: Bronze alloy \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
PHS22	THK Rod End PHS22 (female), thread=M22×1.5, Da=38.1mm, Cs=41200N	THK	Thread (female): M22×1.5 \| Total Length (L): 109 mm \| Holder Diameter (D): 50 mm \| Ball Diameter (Da): 38.1 mm (1-1/2") \| Bore Diameter (d): 22 mm \| Allowable Tilt Angle α1/α2/α3: 10°/15°/23° \| Radial Clearance: ≤0.7 mm \| Static Load Capacity (Cs): 41200 N \| Mass: 490.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) \| Bushing: Bronze alloy \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
PHS25	THK Rod End PHS25 (female), thread=M24×2, Da=42.862mm, Cs=72500N	THK	Thread (female): M24×2 \| Total Length (L): 124 mm \| Holder Diameter (D): 60 mm \| Ball Diameter (Da): 42.862 mm (1-11/16") \| Bore Diameter (d): 25 mm \| Allowable Tilt Angle α1/α2/α3: 9°/15°/23° \| Radial Clearance: ≤0.8 mm \| Static Load Capacity (Cs): 72500 N \| Mass: 750.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) \| Bushing: Bronze alloy \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
PHS30	THK Rod End PHS30 (female), thread=M30×2, Da=50.8mm, Cs=92200N	THK	Thread (female): M30×2 \| Total Length (L): 145 mm \| Holder Diameter (D): 70 mm \| Ball Diameter (Da): 50.8 mm (2") \| Bore Diameter (d): 30 mm \| Allowable Tilt Angle α1/α2/α3: 10°/17°/23° \| Radial Clearance: ≤0.8 mm \| Static Load Capacity (Cs): 92200 N \| Mass: 1130.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) \| Bushing: Bronze alloy \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix

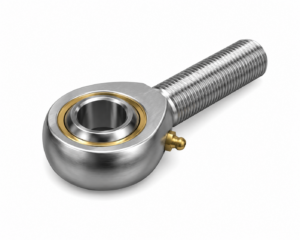

[THK] — Rod End POS (Male Thread Type)

THK POS type Rod End with male (external) thread. Same high-rigidity construction as PHS (female thread) type. Steel holder (S35C, chromate), spherical inner ring (SUJ2, 58HRC+), bronze alloy bushing. POS5/6: lubrication via oil port on holder. POS8 and larger: grease nipple. Ball diameter (inch series): 11.112~50.8mm (7/16"~2"). Left-hand thread: suffix L.

Brand: THK Category: Roller Guides 12 models

Product Code	Description	Brand	Spec
POS5	THK Rod End POS5 (male thread), thread=M5×0.8, Da=11.112mm, Cs=3430N	THK	Thread (male): M5×0.8 \| Total Length (L): 41 mm \| Holder Diameter (D): 16 mm \| Ball Diameter (Da): 11.112 mm (7/16") \| Bore Diameter (d): 5 mm \| Allowable Tilt Angle α1/α2/α3: 8°/13°/30° \| Radial Clearance: ≤0.3 mm \| Static Load Capacity (Cs): 3430 N \| Mass: 12.5 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Bronze alloy \| Lubrication: Oil port on holder \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
POS6	THK Rod End POS6 (male thread), thread=M6×1, Da=12.7mm, Cs=4900N	THK	Thread (male): M6×1 \| Total Length (L): 45 mm \| Holder Diameter (D): 18 mm \| Ball Diameter (Da): 12.7 mm (1/2") \| Bore Diameter (d): 6 mm \| Allowable Tilt Angle α1/α2/α3: 8°/13°/30° \| Radial Clearance: ≤0.3 mm \| Static Load Capacity (Cs): 4900 N \| Mass: 19.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Bronze alloy \| Lubrication: Oil port on holder \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
POS8	THK Rod End POS8 (male thread), thread=M8×1.25, Da=15.875mm, Cs=6860N	THK	Thread (male): M8×1.25 \| Total Length (L): 53 mm \| Holder Diameter (D): 22 mm \| Ball Diameter (Da): 15.875 mm (5/8") \| Bore Diameter (d): 8 mm \| Allowable Tilt Angle α1/α2/α3: 8°/14°/25° \| Radial Clearance: ≤0.5 mm \| Static Load Capacity (Cs): 6860 N \| Mass: 32.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Bronze alloy \| Lubrication: Grease nipple \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
POS10	THK Rod End POS10 (male thread), thread=M10×1.5, Da=19.05mm, Cs=10800N	THK	Thread (male): M10×1.5 \| Total Length (L): 61 mm \| Holder Diameter (D): 26 mm \| Ball Diameter (Da): 19.05 mm (3/4") \| Bore Diameter (d): 10 mm \| Allowable Tilt Angle α1/α2/α3: 8°/14°/25° \| Radial Clearance: ≤0.5 mm \| Static Load Capacity (Cs): 10800 N \| Mass: 54.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Bronze alloy \| Lubrication: Grease nipple \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
POS12	THK Rod End POS12 (male thread), thread=M12×1.75, Da=22.225mm, Cs=16700N	THK	Thread (male): M12×1.75 \| Total Length (L): 69 mm \| Holder Diameter (D): 30 mm \| Ball Diameter (Da): 22.225 mm (7/8") \| Bore Diameter (d): 12 mm \| Allowable Tilt Angle α1/α2/α3: 8°/13°/25° \| Radial Clearance: ≤0.5 mm \| Static Load Capacity (Cs): 16700 N \| Mass: 85.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Bronze alloy \| Lubrication: Grease nipple \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
POS14	THK Rod End POS14 (male thread), thread=M14×2, Da=25.4mm, Cs=20600N	THK	Thread (male): M14×2 \| Total Length (L): 77 mm \| Holder Diameter (D): 34 mm \| Ball Diameter (Da): 25.4 mm (1") \| Bore Diameter (d): 14 mm \| Allowable Tilt Angle α1/α2/α3: 10°/16°/24° \| Radial Clearance: ≤0.7 mm \| Static Load Capacity (Cs): 20600 N \| Mass: 126.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Bronze alloy \| Lubrication: Grease nipple \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
POS16	THK Rod End POS16 (male thread), thread=M16×2, Da=28.575mm, Cs=25000N	THK	Thread (male): M16×2 \| Total Length (L): 85 mm \| Holder Diameter (D): 38 mm \| Ball Diameter (Da): 28.575 mm (1-1/8") \| Bore Diameter (d): 16 mm \| Allowable Tilt Angle α1/α2/α3: 9°/15°/24° \| Radial Clearance: ≤0.7 mm \| Static Load Capacity (Cs): 25000 N \| Mass: 185.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Bronze alloy \| Lubrication: Grease nipple \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
POS18	THK Rod End POS18 (male thread), thread=M18×1.5, Da=31.75mm, Cs=29400N	THK	Thread (male): M18×1.5 \| Total Length (L): 93 mm \| Holder Diameter (D): 42 mm \| Ball Diameter (Da): 31.75 mm (1-1/4") \| Bore Diameter (d): 18 mm \| Allowable Tilt Angle α1/α2/α3: 9°/15°/24° \| Radial Clearance: ≤0.7 mm \| Static Load Capacity (Cs): 29400 N \| Mass: 260.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Bronze alloy \| Lubrication: Grease nipple \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
POS20	THK Rod End POS20 (male thread), thread=M20×1.5, Da=34.925mm, Cs=34300N	THK	Thread (male): M20×1.5 \| Total Length (L): 101 mm \| Holder Diameter (D): 46 mm \| Ball Diameter (Da): 34.925 mm (1-3/8") \| Bore Diameter (d): 20 mm \| Allowable Tilt Angle α1/α2/α3: 9°/15°/24° \| Radial Clearance: ≤0.7 mm \| Static Load Capacity (Cs): 34300 N \| Mass: 340.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Bronze alloy \| Lubrication: Grease nipple \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
POS22	THK Rod End POS22 (male thread), thread=M22×1.5, Da=38.1mm, Cs=41200N	THK	Thread (male): M22×1.5 \| Total Length (L): 109 mm \| Holder Diameter (D): 50 mm \| Ball Diameter (Da): 38.1 mm (1-1/2") \| Bore Diameter (d): 22 mm \| Allowable Tilt Angle α1/α2/α3: 10°/15°/23° \| Radial Clearance: ≤0.7 mm \| Static Load Capacity (Cs): 41200 N \| Mass: 435.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Bronze alloy \| Lubrication: Grease nipple \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
POS25	THK Rod End POS25 (male thread), thread=M24×2, Da=42.862mm, Cs=72500N	THK	Thread (male): M24×2 \| Total Length (L): 124 mm \| Holder Diameter (D): 60 mm \| Ball Diameter (Da): 42.862 mm (1-11/16") \| Bore Diameter (d): 25 mm \| Allowable Tilt Angle α1/α2/α3: 9°/15°/23° \| Radial Clearance: ≤0.8 mm \| Static Load Capacity (Cs): 72500 N \| Mass: 650.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Bronze alloy \| Lubrication: Grease nipple \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix
POS30	THK Rod End POS30 (male thread), thread=M30×2, Da=50.8mm, Cs=92200N	THK	Thread (male): M30×2 \| Total Length (L): 145 mm \| Holder Diameter (D): 70 mm \| Ball Diameter (Da): 50.8 mm (2") \| Bore Diameter (d): 30 mm \| Allowable Tilt Angle α1/α2/α3: 10°/17°/23° \| Radial Clearance: ≤0.8 mm \| Static Load Capacity (Cs): 92200 N \| Mass: 1070.0 g \| Holder Material: S35C (chromate) \| Inner Ring: SUJ2 58HRC+ \| Bushing: Bronze alloy \| Lubrication: Grease nipple \| Shaft Fit: h7 (normal) / p6 (indeterminate direction) \| Left-hand thread: add L suffix

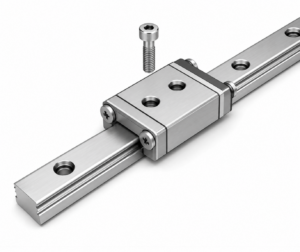

[THK] — RSR Miniature LM Guide Block (Ball Recirculation, Compact, Multi-direction Load)

Miniature LM Guide with ball recirculation in compact structure. Accepts loads in all directions — suitable as single-axis guide for small moment loads. Note: Balls drop out if block is removed from rail.

Brand: THK Category: LM Guides 7 models

Product Code	Description	Brand	Spec
RSR2N	RSR2N LM Block H3.2×W6×L12.4mm	THK	Type: Miniature LM Guide Block \| Series: RSR \| Model: RSR2N \| Height M: 3.2 mm \| Width W: 6 mm \| Length L: 12.4 mm \| Max Rail Length: 200 mm \| Dynamic Load C: 0.214 kN \| Static Load C0: 0.384 kN \| Structure: Ball Recirculation \| Caution: Balls drop if block removed from rail \| Brand: THK
RSR2WN	RSR2WN LM Block H4×W10×L16.7mm	THK	Type: Miniature LM Guide Block \| Series: RSR \| Model: RSR2WN \| Height M: 4 mm \| Width W: 10 mm \| Length L: 16.7 mm \| Max Rail Length: 200 mm \| Dynamic Load C: 0.395 kN \| Static Load C0: 0.682 kN \| Structure: Ball Recirculation \| Caution: Balls drop if block removed from rail \| Brand: THK
RSR3M	RSR3M LM Block H4×W8×L12mm	THK	Type: Miniature LM Guide Block \| Series: RSR \| Model: RSR3M \| Height M: 4 mm \| Width W: 8 mm \| Length L: 12 mm \| Max Rail Length: 220 mm \| Dynamic Load C: 0.18 kN \| Static Load C0: 0.27 kN \| Structure: Ball Recirculation \| Caution: Balls drop if block removed from rail \| Brand: THK
RSR3N	RSR3N LM Block H4×W8×L16mm	THK	Type: Miniature LM Guide Block \| Series: RSR \| Model: RSR3N \| Height M: 4 mm \| Width W: 8 mm \| Length L: 16 mm \| Max Rail Length: 220 mm \| Dynamic Load C: 0.3 kN \| Static Load C0: 0.44 kN \| Structure: Ball Recirculation \| Caution: Balls drop if block removed from rail \| Brand: THK
RSR3WM	RSR3WM LM Block H4.5×W12×L14.9mm	THK	Type: Miniature LM Guide Block \| Series: RSR \| Model: RSR3WM \| Height M: 4.5 mm \| Width W: 12 mm \| Length L: 14.9 mm \| Max Rail Length: 480 mm \| Dynamic Load C: 0.25 kN \| Static Load C0: 0.47 kN \| Structure: Ball Recirculation \| Caution: Balls drop if block removed from rail \| Brand: THK
RSR3WN	RSR3WN LM Block H4.5×W12×L19.9mm	THK	Type: Miniature LM Guide Block \| Series: RSR \| Model: RSR3WN \| Height M: 4.5 mm \| Width W: 12 mm \| Length L: 19.9 mm \| Max Rail Length: 480 mm \| Dynamic Load C: 0.39 kN \| Static Load C0: 0.75 kN \| Structure: Ball Recirculation \| Caution: Balls drop if block removed from rail \| Brand: THK
RSR14WVM	RSR14WVM LM Block H15×W50×L50mm	THK	Type: Miniature LM Guide Block \| Series: RSR \| Model: RSR14WVM \| Height M: 15 mm \| Width W: 50 mm \| Length L: 50 mm \| Max Rail Length: 1800 mm \| Dynamic Load C: 6.01 kN \| Static Load C0: 9.08 kN \| Structure: Ball Recirculation \| Caution: Balls drop if block removed from rail \| Brand: THK

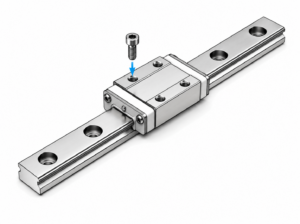

[THK] — RSR-M1K/M1V/M1N High Temperature LM Guide Block (Ball Recirculation, Stainless, 150°C)

High temperature type RSR LM Guide. Tapped standard type. Stainless end plate and high-temp rubber end seal — max 150°C operating temperature. Stainless block, rail and balls — ideal for clean rooms.

Brand: THK Category: LM Guides 8 models

Product Code	Description	Brand	Spec
RSR-9M1K	RSR 9M1K LM Block H10×W20×L30.8mm	THK	Type: High Temperature LM Guide Block \| Series: RSR-M1 \| Model: RSR 9M1K \| Height M: 10 mm \| Width W: 20 mm \| Length L: 30.8 mm \| Max Rail Length: 1240 mm \| Dynamic Load C: 1.47 kN \| Static Load C0: 2.25 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Structure: Ball Recirculation \| Block Length: Short (K) \| Application: High-temp / Clean room \| Brand: THK
RSR-9M1N	RSR 9M1N LM Block H10×W20×L41mm	THK	Type: High Temperature LM Guide Block \| Series: RSR-M1 \| Model: RSR 9M1N \| Height M: 10 mm \| Width W: 20 mm \| Length L: 41 mm \| Max Rail Length: 1240 mm \| Dynamic Load C: 2.6 kN \| Static Load C0: 3.96 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Structure: Ball Recirculation \| Block Length: Long (N) \| Application: High-temp / Clean room \| Brand: THK
RSR-12M1V	RSR 12M1V LM Block H13×W27×L35mm	THK	Type: High Temperature LM Guide Block \| Series: RSR-M1 \| Model: RSR 12M1V \| Height M: 13 mm \| Width W: 27 mm \| Length L: 35 mm \| Max Rail Length: 1430 mm \| Dynamic Load C: 2.65 kN \| Static Load C0: 4.02 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Structure: Ball Recirculation \| Block Length: Standard (V) \| Application: High-temp / Clean room \| Brand: THK
RSR-12M1N	RSR 12M1N LM Block H13×W27×L47.7mm	THK	Type: High Temperature LM Guide Block \| Series: RSR-M1 \| Model: RSR 12M1N \| Height M: 13 mm \| Width W: 27 mm \| Length L: 47.7 mm \| Max Rail Length: 1430 mm \| Dynamic Load C: 4.3 kN \| Static Load C0: 6.65 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Structure: Ball Recirculation \| Block Length: Long (N) \| Application: High-temp / Clean room \| Brand: THK
RSR-15M1V	RSR 15M1V LM Block H16×W32×L43mm	THK	Type: High Temperature LM Guide Block \| Series: RSR-M1 \| Model: RSR 15M1V \| Height M: 16 mm \| Width W: 32 mm \| Length L: 43 mm \| Max Rail Length: 1600 mm \| Dynamic Load C: 4.41 kN \| Static Load C0: 6.57 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Structure: Ball Recirculation \| Block Length: Standard (V) \| Application: High-temp / Clean room \| Brand: THK
RSR-15M1N	RSR 15M1N LM Block H16×W32×L61mm	THK	Type: High Temperature LM Guide Block \| Series: RSR-M1 \| Model: RSR 15M1N \| Height M: 16 mm \| Width W: 32 mm \| Length L: 61 mm \| Max Rail Length: 1600 mm \| Dynamic Load C: 7.16 kN \| Static Load C0: 10.7 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Structure: Ball Recirculation \| Block Length: Long (N) \| Application: High-temp / Clean room \| Brand: THK
RSR-20M1V	RSR 20M1V LM Block H25×W46×L66.5mm	THK	Type: High Temperature LM Guide Block \| Series: RSR-M1 \| Model: RSR 20M1V \| Height M: 25 mm \| Width W: 46 mm \| Length L: 66.5 mm \| Max Rail Length: 1800 mm \| Dynamic Load C: 8.82 kN \| Static Load C0: 12.7 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Structure: Ball Recirculation \| Block Length: Standard (V) \| Application: High-temp / Clean room \| Brand: THK
RSR-20M1N	RSR 20M1N LM Block H25×W46×L86.3mm	THK	Type: High Temperature LM Guide Block \| Series: RSR-M1 \| Model: RSR 20M1N \| Height M: 25 mm \| Width W: 46 mm \| Length L: 86.3 mm \| Max Rail Length: 1800 mm \| Dynamic Load C: 14.2 kN \| Static Load C0: 20.6 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Structure: Ball Recirculation \| Block Length: Long (N) \| Application: High-temp / Clean room \| Brand: THK

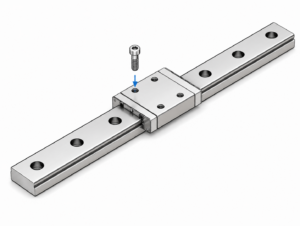

[THK] — RSR-M1WV/M1WN High Temperature LM Guide Block (Wide Block, Stainless, 150°C)

High temperature type RSR LM Guide. Wide block width (W type) with tapped holes. Stainless end plate and high-temp rubber end seal — max 150°C operating temperature. Stainless block, rail and balls — ideal for clean rooms.

Brand: THK Category: LM Guides 6 models

Product Code	Description	Brand	Spec
RSR-9M1WV	RSR 9M1WV LM Block H12×W30×L39mm	THK	Type: High Temperature LM Guide Block \| Series: RSR-M1 \| Model: RSR 9M1WV \| Height M: 12 mm \| Width W: 30 mm \| Length L: 39 mm \| Max Rail Length: 1430 mm \| Dynamic Load C: 2.45 kN \| Static Load C0: 3.92 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Structure: Ball Recirculation \| Block Width: Wide \| Block Length: Standard (V type) \| Application: High-temp / Clean room \| Brand: THK
RSR-9M1WN	RSR 9M1WN LM Block H12×W30×L50.7mm	THK	Type: High Temperature LM Guide Block \| Series: RSR-M1 \| Model: RSR 9M1WN \| Height M: 12 mm \| Width W: 30 mm \| Length L: 50.7 mm \| Max Rail Length: 1430 mm \| Dynamic Load C: 3.52 kN \| Static Load C0: 5.37 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Structure: Ball Recirculation \| Block Width: Wide \| Block Length: Long (N type) \| Application: High-temp / Clean room \| Brand: THK
RSR-12M1WV	RSR 12M1WV LM Block H14×W40×L44.5mm	THK	Type: High Temperature LM Guide Block \| Series: RSR-M1 \| Model: RSR 12M1WV \| Height M: 14 mm \| Width W: 40 mm \| Length L: 44.5 mm \| Max Rail Length: 1600 mm \| Dynamic Load C: 4.02 kN \| Static Load C0: 6.08 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Structure: Ball Recirculation \| Block Width: Wide \| Block Length: Standard (V type) \| Application: High-temp / Clean room \| Brand: THK
RSR-12M1WN	RSR 12M1WN LM Block H14×W40×L59.5mm	THK	Type: High Temperature LM Guide Block \| Series: RSR-M1 \| Model: RSR 12M1WN \| Height M: 14 mm \| Width W: 40 mm \| Length L: 59.5 mm \| Max Rail Length: 1600 mm \| Dynamic Load C: 5.96 kN \| Static Load C0: 9.21 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Structure: Ball Recirculation \| Block Width: Wide \| Block Length: Long (N type) \| Application: High-temp / Clean room \| Brand: THK
RSR-15M1WV	RSR 15M1WV LM Block H16×W60×L55.5mm	THK	Type: High Temperature LM Guide Block \| Series: RSR-M1 \| Model: RSR 15M1WV \| Height M: 16 mm \| Width W: 60 mm \| Length L: 55.5 mm \| Max Rail Length: 1800 mm \| Dynamic Load C: 6.66 kN \| Static Load C0: 9.8 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Structure: Ball Recirculation \| Block Width: Wide \| Block Length: Standard (V type) \| Application: High-temp / Clean room \| Brand: THK
RSR-15M1WN	RSR 15M1WN LM Block H16×W60×L74.5mm	THK	Type: High Temperature LM Guide Block \| Series: RSR-M1 \| Model: RSR 15M1WN \| Height M: 16 mm \| Width W: 60 mm \| Length L: 74.5 mm \| Max Rail Length: 1800 mm \| Dynamic Load C: 9.91 kN \| Static Load C0: 14.9 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Structure: Ball Recirculation \| Block Width: Wide \| Block Length: Long (N type) \| Application: High-temp / Clean room \| Brand: THK

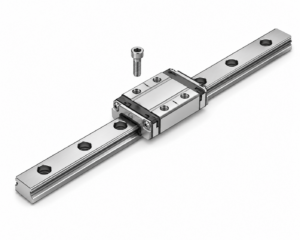

[THK] — RSX-M Miniature LM Guide Block (Wire Retainer, Gothic Arch, Stainless)

Miniature LM Guide. Minimum block width (W) with tapped holes. Wire-type retainer prevents ball drop. 2-row Gothic Arch groove structure for compact multi-directional load capability. Stainless steel rail, block and balls.

Brand: THK Category: LM Guides 5 models

Product Code	Description	Brand	Spec
RSX-5M	RSX 5M LM Block H6×W12×L16.9mm	THK	Type: Miniature LM Guide Block \| Series: RSX \| Model: RSX 5M \| Height M: 6 mm \| Width W: 12 mm \| Length L: 16.9 mm \| Max Rail Length: 220 mm \| Dynamic Load C: 0.37 kN \| Static Load C0: 0.53 kN \| Material: Stainless Steel \| Structure: Wire Retainer / Gothic Arch 2-row \| Brand: THK
RSX-7M	RSX 7M LM Block H8×W17×L23.4mm	THK	Type: Miniature LM Guide Block \| Series: RSX \| Model: RSX 7M \| Height M: 8 mm \| Width W: 17 mm \| Length L: 23.4 mm \| Max Rail Length: 480 mm \| Dynamic Load C: 1.16 kN \| Static Load C0: 1.54 kN \| Material: Stainless Steel \| Structure: Wire Retainer / Gothic Arch 2-row \| Brand: THK
RSX-9M	RSX 9M LM Block H10×W20×L30.8mm	THK	Type: Miniature LM Guide Block \| Series: RSX \| Model: RSX 9M \| Height M: 10 mm \| Width W: 20 mm \| Length L: 30.8 mm \| Max Rail Length: 1240 mm \| Dynamic Load C: 2.22 kN \| Static Load C0: 3.06 kN \| Material: Stainless Steel \| Structure: Wire Retainer / Gothic Arch 2-row \| Brand: THK
RSX-12M	RSX 12M LM Block H13×W27×L35mm	THK	Type: Miniature LM Guide Block \| Series: RSX \| Model: RSX 12M \| Height M: 13 mm \| Width W: 27 mm \| Length L: 35 mm \| Max Rail Length: 2000 mm \| Dynamic Load C: 3.36 kN \| Static Load C0: 4.21 kN \| Material: Stainless Steel \| Structure: Wire Retainer / Gothic Arch 2-row \| Brand: THK \| Note: Model corrected from source typo (RSX 9M → RSX 12M per dimensions)
RSX-15M	RSX 15M LM Block H16×W32×L42.9mm	THK	Type: Miniature LM Guide Block \| Series: RSX \| Model: RSX 15M \| Height M: 16 mm \| Width W: 32 mm \| Length L: 42.9 mm \| Max Rail Length: 2000 mm \| Dynamic Load C: 5.59 kN \| Static Load C0: 6.78 kN \| Material: Stainless Steel \| Structure: Wire Retainer / Gothic Arch 2-row \| Brand: THK

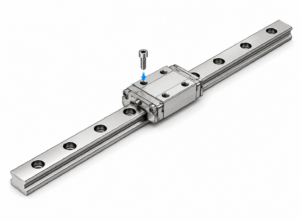

[THK] — RSX-M1/M1N High Temperature LM Guide Block (Wire Retainer, Stainless, 150°C)

High temperature type RSX LM Guide. Tapped standard type. Stainless end plate and high-temp rubber end seal — max 150°C operating temperature. Stainless block, rail and balls — ideal for clean rooms. M1 = standard length, M1N = long block.

Brand: THK Category: LM Guides 6 models

Product Code	Description	Brand	Spec
RSX9-M1	RSX9 M1 LM Block H10×W20×L30.8mm	THK	Type: High Temperature LM Guide Block \| Series: RSX-M1 \| Model: RSX9 M1 \| Height M: 10 mm \| Width W: 20 mm \| Length L: 30.8 mm \| Max Rail Length: 1240 mm \| Dynamic Load C: 2.22 kN \| Static Load C0: 3.06 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Structure: Wire Retainer \| Block Length: Standard \| Application: High-temp / Clean room \| Brand: THK
RSX9-M1N	RSX9 M1N LM Block H10×W20×L40.8mm	THK	Type: High Temperature LM Guide Block \| Series: RSX-M1 \| Model: RSX9 M1N \| Height M: 10 mm \| Width W: 20 mm \| Length L: 40.8 mm \| Max Rail Length: 1240 mm \| Dynamic Load C: 2.94 kN \| Static Load C0: 4.59 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Structure: Wire Retainer \| Block Length: Long (N type) \| Application: High-temp / Clean room \| Brand: THK
RSX12-M1	RSX12 M1 LM Block H13×W27×L35mm	THK	Type: High Temperature LM Guide Block \| Series: RSX-M1 \| Model: RSX12 M1 \| Height M: 13 mm \| Width W: 27 mm \| Length L: 35 mm \| Max Rail Length: 2000 mm \| Dynamic Load C: 3.36 kN \| Static Load C0: 4.21 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Structure: Wire Retainer \| Block Length: Standard \| Application: High-temp / Clean room \| Brand: THK
RSX12-M1N	RSX12 M1N LM Block H13×W27×L47.7mm	THK	Type: High Temperature LM Guide Block \| Series: RSX-M1 \| Model: RSX12 M1N \| Height M: 13 mm \| Width W: 27 mm \| Length L: 47.7 mm \| Max Rail Length: 2000 mm \| Dynamic Load C: 4.72 kN \| Static Load C0: 6.83 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Structure: Wire Retainer \| Block Length: Long (N type) \| Application: High-temp / Clean room \| Brand: THK
RSX15-M1	RSX15 M1 LM Block H16×W32×L42.9mm	THK	Type: High Temperature LM Guide Block \| Series: RSX-M1 \| Model: RSX15 M1 \| Height M: 16 mm \| Width W: 32 mm \| Length L: 42.9 mm \| Max Rail Length: 2000 mm \| Dynamic Load C: 5.59 kN \| Static Load C0: 6.78 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Structure: Wire Retainer \| Block Length: Standard \| Application: High-temp / Clean room \| Brand: THK
RSX15-M1N	RSX15 M1N LM Block H16×W32×L60.7mm	THK	Type: High Temperature LM Guide Block \| Series: RSX-M1 \| Model: RSX15 M1N \| Height M: 16 mm \| Width W: 32 mm \| Length L: 60.7 mm \| Max Rail Length: 2000 mm \| Dynamic Load C: 8.27 kN \| Static Load C0: 11.8 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Structure: Wire Retainer \| Block Length: Long (N type) \| Application: High-temp / Clean room \| Brand: THK

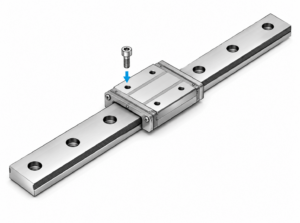

[THK] — RSX-M1W/M1WN High Temperature LM Guide Block (Wide Block, Stainless, 150°C)

High temperature type RSX LM Guide. Wide block width (W type) with tapped holes. Stainless end plate and high-temp rubber end seal — max 150°C operating temperature. Stainless block, rail and balls — ideal for clean rooms.

Brand: THK Category: LM Guides 6 models

Product Code	Description	Brand	Spec
RSX9-M1W	RSX9 M1W LM Block H12×W30×L39mm	THK	Type: High Temperature LM Guide Block \| Series: RSX-M1 \| Model: RSX9 M1W \| Height M: 12 mm \| Width W: 30 mm \| Length L: 39 mm \| Max Rail Length: 1430 mm \| Dynamic Load C: 2.8 kN \| Static Load C0: 4.28 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Structure: Wire Retainer \| Block Width: Wide \| Block Length: Standard \| Application: High-temp / Clean room \| Brand: THK \| Note: C0 corrected from source typo (42.8→4.28)
RSX9-M1WN	RSX9 M1WN LM Block H12×W30×L50.7mm	THK	Type: High Temperature LM Guide Block \| Series: RSX-M1 \| Model: RSX9 M1WN \| Height M: 12 mm \| Width W: 30 mm \| Length L: 50.7 mm \| Max Rail Length: 1430 mm \| Dynamic Load C: 3.48 kN \| Static Load C0: 5.81 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Structure: Wire Retainer \| Block Width: Wide \| Block Length: Long (N type) \| Application: High-temp / Clean room \| Brand: THK
RSX12-M1W	RSX12 M1W LM Block H14×W40×L44.5mm	THK	Type: High Temperature LM Guide Block \| Series: RSX-M1 \| Model: RSX12 M1W \| Height M: 14 mm \| Width W: 40 mm \| Length L: 44.5 mm \| Max Rail Length: 2000 mm \| Dynamic Load C: 4.46 kN \| Static Load C0: 6.31 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Structure: Wire Retainer \| Block Width: Wide \| Block Length: Standard \| Application: High-temp / Clean room \| Brand: THK
RSX12-M1WN	RSX12 M1WN LM Block H14×W40×L59.5mm	THK	Type: High Temperature LM Guide Block \| Series: RSX-M1 \| Model: RSX12 M1WN \| Height M: 14 mm \| Width W: 40 mm \| Length L: 59.5 mm \| Max Rail Length: 2000 mm \| Dynamic Load C: 5.93 kN \| Static Load C0: 9.46 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Structure: Wire Retainer \| Block Width: Wide \| Block Length: Long (N type) \| Application: High-temp / Clean room \| Brand: THK
RSX15-M1W	RSX15 M1W LM Block H16×W60×L55.5mm	THK	Type: High Temperature LM Guide Block \| Series: RSX-M1 \| Model: RSX15 M1W \| Height M: 16 mm \| Width W: 60 mm \| Length L: 55.5 mm \| Max Rail Length: 2000 mm \| Dynamic Load C: 7.43 kN \| Static Load C0: 10.1 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Structure: Wire Retainer \| Block Width: Wide \| Block Length: Standard \| Application: High-temp / Clean room \| Brand: THK
RSX15-M1WN	RSX15 M1WN LM Block H16×W60×L74.5mm	THK	Type: High Temperature LM Guide Block \| Series: RSX-M1 \| Model: RSX15 M1WN \| Height M: 16 mm \| Width W: 60 mm \| Length L: 74.5 mm \| Max Rail Length: 2000 mm \| Dynamic Load C: 9.87 kN \| Static Load C0: 15.2 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Structure: Wire Retainer \| Block Width: Wide \| Block Length: Long (N type) \| Application: High-temp / Clean room \| Brand: THK

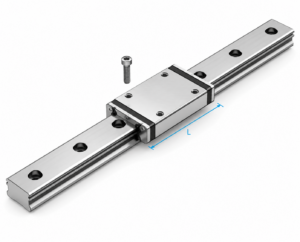

[THK] — RSX-WM Miniature LM Guide Block (Wide Block, Wire Retainer, Gothic Arch, Stainless)

Miniature LM Guide. Wide block width (W) type with tapped holes. Wire-type retainer prevents ball drop. 2-row Gothic Arch groove structure for compact multi-directional load capability. Stainless steel rail, block and balls.

Brand: THK Category: LM Guides 4 models

Product Code	Description	Brand	Spec
RSX-7WM	RSX 7WM LM Block H9×W25×L31mm	THK	Type: Miniature LM Guide Block \| Series: RSX \| Model: RSX 7WM \| Height M: 9 mm \| Width W: 25 mm \| Length L: 31 mm \| Max Rail Length: 480 mm \| Dynamic Load C: 1.63 kN \| Static Load C0: 2.51 kN \| Material: Stainless Steel \| Structure: Wire Retainer / Gothic Arch 2-row \| Block Width: Wide \| Brand: THK
RSX-9WM	RSX 9WM LM Block H12×W30×L39mm	THK	Type: Miniature LM Guide Block \| Series: RSX \| Model: RSX 9WM \| Height M: 12 mm \| Width W: 30 mm \| Length L: 39 mm \| Max Rail Length: 1430 mm \| Dynamic Load C: 2.8 kN \| Static Load C0: 4.28 kN \| Material: Stainless Steel \| Structure: Wire Retainer / Gothic Arch 2-row \| Block Width: Wide \| Brand: THK
RSX-12WM	RSX 12WM LM Block H14×W40×L44.5mm	THK	Type: Miniature LM Guide Block \| Series: RSX \| Model: RSX 12WM \| Height M: 14 mm \| Width W: 40 mm \| Length L: 44.5 mm \| Max Rail Length: 2000 mm \| Dynamic Load C: 4.46 kN \| Static Load C0: 6.31 kN \| Material: Stainless Steel \| Structure: Wire Retainer / Gothic Arch 2-row \| Block Width: Wide \| Brand: THK
RSX-15WM	RSX 15WM LM Block H16×W60×L55.5mm	THK	Type: Miniature LM Guide Block \| Series: RSX \| Model: RSX 15WM \| Height M: 16 mm \| Width W: 60 mm \| Length L: 55.5 mm \| Max Rail Length: 2000 mm \| Dynamic Load C: 7.43 kN \| Static Load C0: 10.1 kN \| Material: Stainless Steel \| Structure: Wire Retainer / Gothic Arch 2-row \| Block Width: Wide \| Brand: THK

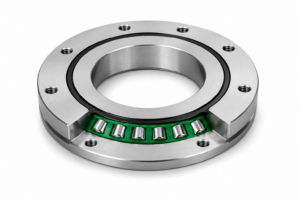

[THK] — RU Cross Roller Ring (Integrated Inner/Outer Ring)

THK RU-type Cross Roller Ring with integrated inner and outer ring. No housing or flange required. Suitable for inner ring rotation, outer ring rotation, or both. Available in standard, G (grease nipple), and X (inner ring tapped through-hole) variants. Bore range: 20–350 mm.

Brand: THK Category: Cross Roller Rings 21 models

Product Code	Description	Brand	Spec
RU42	THK RU 42, d=20mm D=70mm B=12mm, Standard type	THK	Model: RU 42 \| Variant: Standard \| Bore d: 20 mm \| OD D: 70 mm \| Roller PCD dp: 41.5 mm \| Width B: 12 mm \| Lubrication hole d1: φ3.1 mm \| r min: 0.6 mm \| Dynamic Load C: 7.35 kN \| Static Load C0: 8.35 kN \| Mass: 0.29 kg \| Note: Standard type
RU66	THK RU 66, d=35mm D=95mm B=15mm, Standard type	THK	Model: RU 66 \| Variant: Standard \| Bore d: 35 mm \| OD D: 95 mm \| Roller PCD dp: 66 mm \| Width B: 15 mm \| Lubrication hole d1: φ3.1 mm \| r min: 0.6 mm \| Dynamic Load C: 17.5 kN \| Static Load C0: 22.3 kN \| Mass: 0.62 kg \| Note: Standard type
RU85	THK RU 85, d=55mm D=120mm B=15mm, Standard type	THK	Model: RU 85 \| Variant: Standard \| Bore d: 55 mm \| OD D: 120 mm \| Roller PCD dp: 85 mm \| Width B: 15 mm \| Lubrication hole d1: φ3.1 mm \| r min: 0.6 mm \| Dynamic Load C: 20.3 kN \| Static Load C0: 29.5 kN \| Mass: 1.0 kg \| Note: Standard type
RU124	THK RU 124, d=80mm D=165mm B=22mm, Standard type	THK	Model: RU 124 \| Variant: Standard \| Bore d: 80 mm \| OD D: 165 mm \| Roller PCD dp: 124 mm \| Width B: 22 mm \| Lubrication hole d1: φ3.1 mm \| r min: 1.0 mm \| Dynamic Load C: 33.1 kN \| Static Load C0: 50.9 kN \| Mass: 2.6 kg \| Note: Standard type
RU124G	THK RU 124G, d=80mm D=165mm B=22mm, With grease nipple (NP3.2×3.5)	THK	Model: RU 124G \| Variant: G (Grease nipple built-in) \| Bore d: 80 mm \| OD D: 165 mm \| Roller PCD dp: 124 mm \| Width B: 22 mm \| Lubrication hole d1: φ3.1 mm \| r min: 1.0 mm \| Dynamic Load C: 33.1 kN \| Static Load C0: 50.9 kN \| Mass: 2.6 kg \| Note: With grease nipple (NP3.2×3.5)
RU124X	THK RU 124X, d=80mm D=165mm B=22mm, Inner ring with tapped through-holes	THK	Model: RU 124X \| Variant: X (Inner ring tapped through-hole) \| Bore d: 80 mm \| OD D: 165 mm \| Roller PCD dp: 124 mm \| Width B: 22 mm \| Lubrication hole d1: φ3.1 mm \| r min: 1.0 mm \| Dynamic Load C: 33.1 kN \| Static Load C0: 50.9 kN \| Mass: 2.6 kg \| Note: Inner ring with tapped through-holes
RU148	THK RU 148, d=90mm D=210mm B=25mm, Standard type	THK	Model: RU 148 \| Variant: Standard \| Bore d: 90 mm \| OD D: 210 mm \| Roller PCD dp: 147.5 mm \| Width B: 25 mm \| Lubrication hole d1: φ3.1 mm \| r min: 1.5 mm \| Dynamic Load C: 49.1 kN \| Static Load C0: 76.8 kN \| Mass: 4.9 kg \| Note: Standard type
RU148G	THK RU 148G, d=90mm D=210mm B=25mm, With grease nipple (NP3.2×3.5)	THK	Model: RU 148G \| Variant: G (Grease nipple built-in) \| Bore d: 90 mm \| OD D: 210 mm \| Roller PCD dp: 147.5 mm \| Width B: 25 mm \| Lubrication hole d1: φ3.1 mm \| r min: 1.5 mm \| Dynamic Load C: 49.1 kN \| Static Load C0: 76.8 kN \| Mass: 4.9 kg \| Note: With grease nipple (NP3.2×3.5)
RU148X	THK RU 148X, d=90mm D=210mm B=25mm, Inner ring with tapped through-holes	THK	Model: RU 148X \| Variant: X (Inner ring tapped through-hole) \| Bore d: 90 mm \| OD D: 210 mm \| Roller PCD dp: 147.5 mm \| Width B: 25 mm \| Lubrication hole d1: φ3.1 mm \| r min: 1.5 mm \| Dynamic Load C: 49.1 kN \| Static Load C0: 76.8 kN \| Mass: 4.9 kg \| Note: Inner ring with tapped through-holes
RU178	THK RU 178, d=115mm D=240mm B=28mm, Standard type	THK	Model: RU 178 \| Variant: Standard \| Bore d: 115 mm \| OD D: 240 mm \| Roller PCD dp: 178 mm \| Width B: 28 mm \| Lubrication hole d1: φ3.1 mm \| r min: 1.5 mm \| Dynamic Load C: 80.3 kN \| Static Load C0: 135 kN \| Mass: 6.8 kg \| Note: Standard type
RU178G	THK RU 178G, d=115mm D=240mm B=28mm, With grease nipple (NP3.2×3.5)	THK	Model: RU 178G \| Variant: G (Grease nipple built-in) \| Bore d: 115 mm \| OD D: 240 mm \| Roller PCD dp: 178 mm \| Width B: 28 mm \| Lubrication hole d1: φ3.1 mm \| r min: 1.5 mm \| Dynamic Load C: 80.3 kN \| Static Load C0: 135 kN \| Mass: 6.8 kg \| Note: With grease nipple (NP3.2×3.5)
RU178X	THK RU 178X, d=115mm D=240mm B=28mm, Inner ring with tapped through-holes	THK	Model: RU 178X \| Variant: X (Inner ring tapped through-hole) \| Bore d: 115 mm \| OD D: 240 mm \| Roller PCD dp: 178 mm \| Width B: 28 mm \| Lubrication hole d1: φ3.1 mm \| r min: 1.5 mm \| Dynamic Load C: 80.3 kN \| Static Load C0: 135 kN \| Mass: 6.8 kg \| Note: Inner ring with tapped through-holes
RU228	THK RU 228, d=160mm D=295mm B=35mm, Standard type	THK	Model: RU 228 \| Variant: Standard \| Bore d: 160 mm \| OD D: 295 mm \| Roller PCD dp: 227.5 mm \| Width B: 35 mm \| Lubrication hole d1: φ6.0 mm \| r min: 2.0 mm \| Dynamic Load C: 104 kN \| Static Load C0: 173 kN \| Mass: 11.4 kg \| Note: Standard type
RU228G	THK RU 228G, d=160mm D=295mm B=35mm, With grease nipple (NP6×5)	THK	Model: RU 228G \| Variant: G (Grease nipple built-in) \| Bore d: 160 mm \| OD D: 295 mm \| Roller PCD dp: 227.5 mm \| Width B: 35 mm \| Lubrication hole d1: φ6.0 mm \| r min: 2.0 mm \| Dynamic Load C: 104 kN \| Static Load C0: 173 kN \| Mass: 11.4 kg \| Note: With grease nipple (NP6×5)
RU228X	THK RU 228X, d=160mm D=295mm B=35mm, Inner ring with tapped through-holes	THK	Model: RU 228X \| Variant: X (Inner ring tapped through-hole) \| Bore d: 160 mm \| OD D: 295 mm \| Roller PCD dp: 227.5 mm \| Width B: 35 mm \| Lubrication hole d1: φ6.0 mm \| r min: 2.0 mm \| Dynamic Load C: 104 kN \| Static Load C0: 173 kN \| Mass: 11.4 kg \| Note: Inner ring with tapped through-holes
RU297	THK RU 297, d=210mm D=380mm B=40mm, Standard type	THK	Model: RU 297 \| Variant: Standard \| Bore d: 210 mm \| OD D: 380 mm \| Roller PCD dp: 297.3 mm \| Width B: 40 mm \| Lubrication hole d1: φ6.0 mm \| r min: 2.5 mm \| Dynamic Load C: 156 kN \| Static Load C0: 281 kN \| Mass: 21.3 kg \| Note: Standard type
RU297G	THK RU 297G, d=210mm D=380mm B=40mm, With grease nipple (NP6×5)	THK	Model: RU 297G \| Variant: G (Grease nipple built-in) \| Bore d: 210 mm \| OD D: 380 mm \| Roller PCD dp: 297.3 mm \| Width B: 40 mm \| Lubrication hole d1: φ6.0 mm \| r min: 2.5 mm \| Dynamic Load C: 156 kN \| Static Load C0: 281 kN \| Mass: 21.3 kg \| Note: With grease nipple (NP6×5)
RU297X	THK RU 297X, d=210mm D=380mm B=40mm, Inner ring with tapped through-holes	THK	Model: RU 297X \| Variant: X (Inner ring tapped through-hole) \| Bore d: 210 mm \| OD D: 380 mm \| Roller PCD dp: 297.3 mm \| Width B: 40 mm \| Lubrication hole d1: φ6.0 mm \| r min: 2.5 mm \| Dynamic Load C: 156 kN \| Static Load C0: 281 kN \| Mass: 21.3 kg \| Note: Inner ring with tapped through-holes
RU445	THK RU 445, d=350mm D=540mm B=45mm, Standard type	THK	Model: RU 445 \| Variant: Standard \| Bore d: 350 mm \| OD D: 540 mm \| Roller PCD dp: 445.4 mm \| Width B: 45 mm \| Lubrication hole d1: φ6.0 mm \| r min: 2.5 mm \| Dynamic Load C: 222 kN \| Static Load C0: 473 kN \| Mass: 35.4 kg \| Note: Standard type
RU445G	THK RU 445G, d=350mm D=540mm B=45mm, With grease nipple (NP6×5)	THK	Model: RU 445G \| Variant: G (Grease nipple built-in) \| Bore d: 350 mm \| OD D: 540 mm \| Roller PCD dp: 445.4 mm \| Width B: 45 mm \| Lubrication hole d1: φ6.0 mm \| r min: 2.5 mm \| Dynamic Load C: 222 kN \| Static Load C0: 473 kN \| Mass: 35.4 kg \| Note: With grease nipple (NP6×5)
RU445X	THK RU 445X, d=350mm D=540mm B=45mm, Inner ring with tapped through-holes	THK	Model: RU 445X \| Variant: X (Inner ring tapped through-hole) \| Bore d: 350 mm \| OD D: 540 mm \| Roller PCD dp: 445.4 mm \| Width B: 45 mm \| Lubrication hole d1: φ6.0 mm \| r min: 2.5 mm \| Dynamic Load C: 222 kN \| Static Load C0: 473 kN \| Mass: 35.4 kg \| Note: Inner ring with tapped through-holes

[THK] — SBK Ball Screw (Medium Type, φ36~55, Ball Retainer)

THK SBK Series High-Speed Precision Ground Ball Screw (Medium type) with Ball Retainer. DN value 210,000. Ball retainer eliminates ball-to-ball contact for low noise, reduced torque variation, and long maintenance-free operation. Shaft diameter range φ36~55mm. Multiple lead options available.

Brand: THK Category: Ball Screws 12 models

Product Code	Description	Brand	Spec
SBK3620-7.6	THK SBK3620-7.6, φ36 Lead20, Ca=48.5kN	THK	Shaft Diameter: φ36mm \| Lead: 20mm \| Ca: 48.5kN \| C0a: 85.0kN \| Nut OD D: 73mm \| Flange D1: 114mm \| Nut Length L1: 110mm \| DN Value: 210,000 \| Size: Medium \| Type: High-Speed, Ball Retainer (SBK)
SBK3636-5.6	THK SBK3636-5.6, φ36 Lead36, Ca=36.6kN	THK	Shaft Diameter: φ36mm \| Lead: 36mm \| Ca: 36.6kN \| C0a: 64.7kN \| Nut OD D: 73mm \| Flange D1: 114mm \| Nut Length L1: 134mm \| DN Value: 210,000 \| Size: Medium \| Type: High-Speed, Ball Retainer (SBK)
SBK4020-7.6	THK SBK4020-7.6, φ40 Lead20, Ca=59.7kN	THK	Shaft Diameter: φ40mm \| Lead: 20mm \| Ca: 59.7kN \| C0a: 112.7kN \| Nut OD D: 80mm \| Flange D1: 136mm \| Nut Length L1: 110mm \| DN Value: 210,000 \| Size: Medium \| Type: High-Speed, Ball Retainer (SBK)
SBK4030-7.6	THK SBK4030-7.6, φ40 Lead30, Ca=59.2kN	THK	Shaft Diameter: φ40mm \| Lead: 30mm \| Ca: 59.2kN \| C0a: 107.5kN \| Nut OD D: 80mm \| Flange D1: 136mm \| Nut Length L1: 148mm \| DN Value: 210,000 \| Size: Medium \| Type: High-Speed, Ball Retainer (SBK)
SBK4040-5.6	THK SBK4040-5.6, φ40 Lead40, Ca=44.8kN	THK	Shaft Diameter: φ40mm \| Lead: 40mm \| Ca: 44.8kN \| C0a: 80.3kN \| Nut OD D: 80mm \| Flange D1: 136mm \| Nut Length L1: 146mm \| DN Value: 210,000 \| Size: Medium \| Type: High-Speed, Ball Retainer (SBK)
SBK5020-7.6	THK SBK5020-7.6, φ50 Lead20, Ca=66.8kN	THK	Shaft Diameter: φ50mm \| Lead: 20mm \| Ca: 66.8kN \| C0a: 141.9kN \| Nut OD D: 90mm \| Flange D1: 146mm \| Nut Length L1: 110mm \| DN Value: 210,000 \| Size: Medium \| Type: High-Speed, Ball Retainer (SBK)
SBK5030-7.6	THK SBK5030-7.6, φ50 Lead30, Ca=66.5kN	THK	Shaft Diameter: φ50mm \| Lead: 30mm \| Ca: 66.5kN \| C0a: 135.0kN \| Nut OD D: 90mm \| Flange D1: 146mm \| Nut Length L1: 149mm \| DN Value: 210,000 \| Size: Medium \| Type: High-Speed, Ball Retainer (SBK)
SBK5036-7.6	THK SBK5036-7.6, φ50 Lead36, Ca=65.9kN	THK	Shaft Diameter: φ50mm \| Lead: 36mm \| Ca: 65.9kN \| C0a: 135.0kN \| Nut OD D: 90mm \| Flange D1: 146mm \| Nut Length L1: 172mm \| DN Value: 210,000 \| Size: Medium \| Type: High-Speed, Ball Retainer (SBK)
SBK5050-5.6	THK SBK5050-5.6, φ50 Lead50, Ca=50.3kN	THK	Shaft Diameter: φ50mm \| Lead: 50mm \| Ca: 50.3kN \| C0a: 102.4kN \| Nut OD D: 90mm \| Flange D1: 146mm \| Nut Length L1: 175mm \| DN Value: 210,000 \| Size: Medium \| Type: High-Speed, Ball Retainer (SBK)
SBK5520-7.6	THK SBK5520-7.6, φ55 Lead20, Ca=69.8kN	THK	Shaft Diameter: φ55mm \| Lead: 20mm \| Ca: 69.8kN \| C0a: 156.4kN \| Nut OD D: 96mm \| Flange D1: 152mm \| Nut Length L1: 110mm \| DN Value: 210,000 \| Size: Medium \| Type: High-Speed, Ball Retainer (SBK)
SBK5530-7.6	THK SBK5530-7.6, φ55 Lead30, Ca=69.2kN	THK	Shaft Diameter: φ55mm \| Lead: 30mm \| Ca: 69.2kN \| C0a: 147.0kN \| Nut OD D: 96mm \| Flange D1: 152mm \| Nut Length L1: 149mm \| DN Value: 210,000 \| Size: Medium \| Type: High-Speed, Ball Retainer (SBK)
SBK5536-7.6	THK SBK5536-7.6, φ55 Lead36, Ca=69.1kN	THK	Shaft Diameter: φ55mm \| Lead: 36mm \| Ca: 69.1kN \| C0a: 148.7kN \| Nut OD D: 96mm \| Flange D1: 152mm \| Nut Length L1: 172mm \| DN Value: 210,000 \| Size: Medium \| Type: High-Speed, Ball Retainer (SBK)

[THK] — SBK Ball Screw (Small Type, φ15~32, Ball Retainer)

THK SBK Series High-Speed Precision Ground Ball Screw (Small type) with Ball Retainer. DN value 210,000. Ball retainer eliminates ball-to-ball contact for low noise, reduced torque variation, and long maintenance-free operation. Shaft diameter range φ15~32mm. Multiple lead options available.

Brand: THK Category: Ball Screws 9 models

Product Code	Description	Brand	Spec
SBK1520-3.6	THK SBK1520-3.6, φ15 Lead20, Ca=5.8kN	THK	Shaft Diameter: φ15mm \| Lead: 20mm \| Ca: 5.8kN \| C0a: 7.8kN \| Nut OD D: 38mm \| Flange D1: 62mm \| Nut Length L1: 54mm \| DN Value: 210,000 \| Size: Small \| Type: High-Speed, Ball Retainer (SBK)
SBK1616-3.6	THK SBK1616-3.6, φ16 Lead16, Ca=4.6kN	THK	Shaft Diameter: φ16mm \| Lead: 16mm \| Ca: 4.6kN \| C0a: 6.4kN \| Nut OD D: 33mm \| Flange D1: 54mm \| Nut Length L1: 45mm \| DN Value: 210,000 \| Size: Small \| Type: High-Speed, Ball Retainer (SBK)
SBK2010-5.6	THK SBK2010-5.6, φ20 Lead10, Ca=10.7kN	THK	Shaft Diameter: φ20mm \| Lead: 10mm \| Ca: 10.7kN \| C0a: 17.3kN \| Nut OD D: 40mm \| Flange D1: 65mm \| Nut Length L1: 45mm \| DN Value: 210,000 \| Size: Small \| Type: High-Speed, Ball Retainer (SBK)
SBK2020-3.6	THK SBK2020-3.6, φ20 Lead20, Ca=7.0kN	THK	Shaft Diameter: φ20mm \| Lead: 20mm \| Ca: 7.0kN \| C0a: 10.5kN \| Nut OD D: 40mm \| Flange D1: 65mm \| Nut Length L1: 54mm \| DN Value: 210,000 \| Size: Small \| Type: High-Speed, Ball Retainer (SBK)
SBK2030-3.6	THK SBK2030-3.6, φ20 Lead30, Ca=6.9kN	THK	Shaft Diameter: φ20mm \| Lead: 30mm \| Ca: 6.9kN \| C0a: 11.2kN \| Nut OD D: 40mm \| Flange D1: 65mm \| Nut Length L1: 71mm \| DN Value: 210,000 \| Size: Small \| Type: High-Speed, Ball Retainer (SBK)
SBK2520-3.6	THK SBK2520-3.6, φ25 Lead20, Ca=11.0kN	THK	Shaft Diameter: φ25mm \| Lead: 20mm \| Ca: 11.0kN \| C0a: 16.9kN \| Nut OD D: 47mm \| Flange D1: 74mm \| Nut Length L1: 57mm \| DN Value: 210,000 \| Size: Small \| Type: High-Speed, Ball Retainer (SBK)
SBK2525-3.6	THK SBK2525-3.6, φ25 Lead25, Ca=10.8kN	THK	Shaft Diameter: φ25mm \| Lead: 25mm \| Ca: 10.8kN \| C0a: 16.9kN \| Nut OD D: 47mm \| Flange D1: 74mm \| Nut Length L1: 68mm \| DN Value: 210,000 \| Size: Small \| Type: High-Speed, Ball Retainer (SBK)
SBK3220-5.6	THK SBK3220-5.6, φ32 Lead20, Ca=23.6kN	THK	Shaft Diameter: φ32mm \| Lead: 20mm \| Ca: 23.6kN \| C0a: 41.1kN \| Nut OD D: 58mm \| Flange D1: 92mm \| Nut Length L1: 82mm \| DN Value: 210,000 \| Size: Small \| Type: High-Speed, Ball Retainer (SBK)
SBK3232-5.6	THK SBK3232-5.6, φ32 Lead32, Ca=23.1kN	THK	Shaft Diameter: φ32mm \| Lead: 32mm \| Ca: 23.1kN \| C0a: 41.8kN \| Nut OD D: 58mm \| Flange D1: 92mm \| Nut Length L1: 118mm \| DN Value: 210,000 \| Size: Small \| Type: High-Speed, Ball Retainer (SBK)

[THK] — SBKH Ball Screw (High Load High Speed, Ball Retainer, φ63~120)

THK SBKH Series High Load High Speed Precision Ground Ball Screw with Ball Retainer. DN value 130,000. Ball retainer eliminates ball-to-ball contact for low noise, reduced torque variation, and long maintenance-free operation. Shaft diameter range φ63~120mm, lead 32~60mm.

Brand: THK Category: Ball Screws 7 models

Product Code	Description	Brand	Spec
SBKH6332-3.8	THK SBKH6332-3.8, φ63 Lead32, Ca=304kN	THK	Shaft Diameter: φ63mm \| Lead: 32mm \| Ca: 304kN \| C0a: 631kN \| Nut OD D: 140mm \| Flange D1: 205mm \| Nut Length L1: 190mm \| PCD: 173mm \| DN Value: 130,000 \| Type: High Load High Speed, Ball Retainer (SBKH)
SBKH6340-7.6	THK SBKH6340-7.6, φ63 Lead40, Ca=413kN	THK	Shaft Diameter: φ63mm \| Lead: 40mm \| Ca: 413kN \| C0a: 967kN \| Nut OD D: 127mm \| Flange D1: 191mm \| Nut Length L1: 209mm \| PCD: 159mm \| DN Value: 130,000 \| Type: High Load High Speed, Ball Retainer (SBKH)
SBKH8050-7.6	THK SBKH8050-7.6, φ80 Lead50, Ca=777kN	THK	Shaft Diameter: φ80mm \| Lead: 50mm \| Ca: 777kN \| C0a: 1788kN \| Nut OD D: 175mm \| Flange D1: 253mm \| Nut Length L1: 268mm \| PCD: 214mm \| DN Value: 130,000 \| Type: High Load High Speed, Ball Retainer (SBKH)
SBKH8060-7.6	THK SBKH8060-7.6, φ80 Lead60, Ca=780kN	THK	Shaft Diameter: φ80mm \| Lead: 60mm \| Ca: 780kN \| C0a: 1824kN \| Nut OD D: 175mm \| Flange D1: 253mm \| Nut Length L1: 306mm \| PCD: 214mm \| DN Value: 130,000 \| Type: High Load High Speed, Ball Retainer (SBKH)
SBKH10050-7.6	THK SBKH10050-7.6, φ100 Lead50, Ca=876kN	THK	Shaft Diameter: φ100mm \| Lead: 50mm \| Ca: 876kN \| C0a: 2401kN \| Nut OD D: 195mm \| Flange D1: 273mm \| Nut Length L1: 269mm \| PCD: 234mm \| DN Value: 130,000 \| Type: High Load High Speed, Ball Retainer (SBKH)
SBKH10060-7.6	THK SBKH10060-7.6, φ100 Lead60, Ca=880kN	THK	Shaft Diameter: φ100mm \| Lead: 60mm \| Ca: 880kN \| C0a: 2294kN \| Nut OD D: 195mm \| Flange D1: 273mm \| Nut Length L1: 307mm \| PCD: 234mm \| DN Value: 130,000 \| Type: High Load High Speed, Ball Retainer (SBKH)
SBKH12060-7.6	THK SBKH12060-7.6, φ120 Lead60, Ca=962kN	THK	Shaft Diameter: φ120mm \| Lead: 60mm \| Ca: 962kN \| C0a: 2941kN \| Nut OD D: 210mm \| Flange D1: 288mm \| Nut Length L1: 308mm \| PCD: 249mm \| DN Value: 130,000 \| Type: High Load High Speed, Ball Retainer (SBKH)

[THK] — SBN1604V-5 Ball Screw (SBN-V Small, Shaft φ16, Lead 4mm)

THK SBN-V Series High-Speed Precision Ground Ball Screw (Small type) with Ball Retainer. DN value 130,000. Ball retainer eliminates ball-to-ball contact for low noise, reduced torque variation, and long maintenance-free operation. Shaft diameter φ16mm, lead 4mm. Ca=5.3kN, C0a=8.0kN.

Brand: THK Category: Ball Screws 1 model

Product Code	Description	Brand	Spec
SBN1604V-5	THK SBN1604V-5, φ16 Lead4, Ca=5.3kN	THK	Shaft Diameter: φ16mm \| Lead: 4mm \| Ca: 5.3kN \| C0a: 8.0kN \| Nut OD D: 36mm \| Flange D1: 59mm \| Nut Length L1: 53mm \| DN Value: 130,000 \| Size: Small \| Type: High-Speed, Ball Retainer (SBN-V)

[THK] — SBN1605V-5 Ball Screw (SBN-V Small, Shaft φ16, Lead 5mm)

Brand: THK Category: Ball Screws 1 model

Product Code	Description	Brand	Spec
SBN1605V-5	THK SBN1605V-5, φ16 Lead5, Ca=9.2kN	THK	Shaft Diameter: φ16mm \| Lead: 5mm \| Ca: 9.2kN \| C0a: 12.9kN \| Nut OD D: 40mm \| Flange D1: 60mm \| Nut Length L1: 56mm \| DN Value: 130,000 \| Size: Small \| Type: High-Speed, Ball Retainer (SBN-V)

[THK] — SBN2004V-5 Ball Screw (SBN-V Small, Shaft φ20, Lead 4mm)

Brand: THK Category: Ball Screws 1 model

Product Code	Description	Brand	Spec
SBN2004V-5	THK SBN2004V-5, φ20 Lead4, Ca=5.9kN	THK	Shaft Diameter: φ20mm \| Lead: 4mm \| Ca: 5.9kN \| C0a: 10.1kN \| Nut OD D: 40mm \| Flange D1: 63mm \| Nut Length L1: 49mm \| DN Value: 130,000 \| Size: Small \| Type: High-Speed, Ball Retainer (SBN-V)

[THK] — SBN2005V-5 Ball Screw (SBN-V Small, Shaft φ20, Lead 5mm)

Brand: THK Category: Ball Screws 1 model

Product Code	Description	Brand	Spec
SBN2005V-5	THK SBN2005V-5, φ20 Lead5, Ca=10.3kN	THK	Shaft Diameter: φ20mm \| Lead: 5mm \| Ca: 10.3kN \| C0a: 16.2kN \| Nut OD D: 44mm \| Flange D1: 67mm \| Nut Length L1: 56mm \| DN Value: 130,000 \| Size: Small \| Type: High-Speed, Ball Retainer (SBN-V)
