Automation

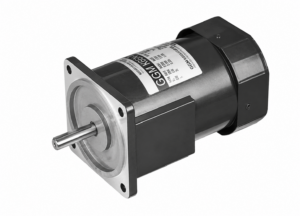

![[GGM] — 90W □90mm 2-Pole Single-phase AC Induction Motor (High-Speed, Lead Wire)](https://img.prosourcemro.com/2026/05/002-218-300x216.png)
GGM 90W single-phase AC induction motor, □90mm frame, 2-pole high-speed (2700rpm@50Hz / 3200rpm@60Hz), continuous rating. Lead wire type, straight (S) shaft. 220/230V with built-in capacitor (5µF).
GGM 90W single-phase AC induction motor, □90mm frame, 2-pole high-speed (2700rpm@50Hz / 3200rpm@60Hz), continuous rating. Lead wire type, straight (S) shaft. 220/230V with built-in capacitor (5µF).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| K9IS90FC-2P | GGM 90W 2-pole Single-phase induction motor, 220/230V, Straight shaft, Lead wire | GGM | Frame: □90mm | Output: 90W | Poles: 2 (high-speed) | Phase: Single-phase | Shaft: Straight (S) | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 220/230V | Condenser: 5µF | Operating Points: 220V/50Hz: 0.68A, Start 0.36/3.60 N·m/kgf·cm, Rated 0.32/3.20 N·m/kgf·cm, 2700rpm | 220V/60Hz: 0.83A, Start 0.35/3.50 N·m/kgf·cm, Rated 0.27/2.70 N·m/kgf·cm, 3200rpm | 230V/50Hz: 0.71A, Start 0.37/3.70 N·m/kgf·cm, Rated 0.32/3.20 N·m/kgf·cm, 2700rpm | 230V/60Hz: 0.87A, Start 0.37/3.70 N·m/kgf·cm, Rated 0.27/2.70 N·m/kgf·cm, 3200rpm | Speed basis: 2-pole synchronous 3000rpm@50Hz / 3600rpm@60Hz | Weight: 2.56kg |
GGM 90W three-phase AC induction motor, □90mm frame, 2-pole high-speed (2700rpm@50Hz / 3200rpm@60Hz), continuous rating. Lead wire type, straight (S) shaft. Three-phase 220/230/380/440V.
GGM 90W three-phase AC induction motor, □90mm frame, 2-pole high-speed (2700rpm@50Hz / 3200rpm@60Hz), continuous rating. Lead wire type, straight (S) shaft. Three-phase 220/230/380/440V.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| K9IS90FH-2P | GGM 90W 2-pole Three-phase induction motor, 220/230V, Straight shaft, Lead wire | GGM | Frame: □90mm | Output: 90W | Poles: 2 (high-speed) | Phase: Three-phase | Shaft: Straight (S) | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 220/230V | Operating Points: 220V/50Hz: 0.53A, Start 1.14/11.40 N·m/kgf·cm, Rated 0.32/3.20 N·m/kgf·cm, 2700rpm | 220V/60Hz: 0.52A, Start 0.93/9.30 N·m/kgf·cm, Rated 0.27/2.70 N·m/kgf·cm, 3200rpm | 230V/50Hz: 0.56A, Start 1.24/12.40 N·m/kgf·cm, Rated 0.32/3.20 N·m/kgf·cm, 2700rpm | 230V/60Hz: 0.54A, Start 0.99/9.90 N·m/kgf·cm, Rated 0.27/2.70 N·m/kgf·cm, 3200rpm | Speed basis: 2-pole synchronous 3000rpm@50Hz / 3600rpm@60Hz | Weight: 2.56kg | |
| K9IS90FM-2P | GGM 90W 2-pole Three-phase induction motor, 380V, Straight shaft, Lead wire | GGM | Frame: □90mm | Output: 90W | Poles: 2 (high-speed) | Phase: Three-phase | Shaft: Straight (S) | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 380V | Operating Points: 380V/50Hz: 0.30A, Start 1.08/10.80 N·m/kgf·cm, Rated 0.32/3.20 N·m/kgf·cm, 2700rpm | 380V/60Hz: 0.30A, Start 0.89/8.90 N·m/kgf·cm, Rated 0.27/2.70 N·m/kgf·cm, 3200rpm | Speed basis: 2-pole synchronous 3000rpm@50Hz / 3600rpm@60Hz | Weight: 2.56kg | |
| K9IS90FZ-2P | GGM 90W 2-pole Three-phase induction motor, 440V, Straight shaft, Lead wire | GGM | Frame: □90mm | Output: 90W | Poles: 2 (high-speed) | Phase: Three-phase | Shaft: Straight (S) | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 440V | Operating Points: 440V/50Hz: 0.26A, Start 1.08/10.80 N·m/kgf·cm, Rated 0.32/3.20 N·m/kgf·cm, 2700rpm | 440V/60Hz: 0.26A, Start 0.87/8.70 N·m/kgf·cm, Rated 0.27/2.70 N·m/kgf·cm, 3200rpm | Speed basis: 2-pole synchronous 3000rpm@50Hz / 3600rpm@60Hz | Weight: 2.56kg |

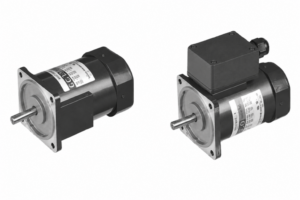

![[GGM] — 90W □90mm Single-phase AC Induction Geared Motor (Lead wire)](https://img.prosourcemro.com/2026/05/002-217-300x200.png)
GGM 90W single-phase AC induction geared motor, □90mm frame, 4-pole, continuous rating. Lead wire type (300mm, UL Style 3271 AWG20). Straight (S) and pinion (P) shaft options. Single-phase 100/110/115/200/220/230/240V with built-in capacitor. Compatible with K9P power gearheads (sold separately).
GGM 90W single-phase AC induction geared motor, □90mm frame, 4-pole, continuous rating. Lead wire type (300mm, UL Style 3271 AWG20). Straight (S) and pinion (P) shaft options. Single-phase 100/110/115/200/220/230/240V with built-in capacitor. Compatible with K9P power gearheads (sold separately).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| K9IS90FJ | GGM 90W Single-phase geared motor, 100V, Straight shaft, Lead wire | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 100V | Condenser: 30µF | Operating Points: 100V/50Hz: 2.07A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 100V/60Hz: 1.97A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IP90FJ | GGM 90W Single-phase geared motor, 100V, Pinion shaft, Lead wire | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 100V | Condenser: 30µF | Operating Points: 100V/50Hz: 2.07A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 100V/60Hz: 1.97A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IS90FU | GGM 90W Single-phase geared motor, 110/115V, Straight shaft, Lead wire | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 110/115V | Condenser: 20µF | Operating Points: 110V/60Hz: 1.47A, Start 0.44/4.4 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | 115V/60Hz: 1.52A, Start 0.485/4.85 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: E204632 (certified) | |
| K9IP90FU | GGM 90W Single-phase geared motor, 110/115V, Pinion shaft, Lead wire | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 110/115V | Condenser: 20µF | Operating Points: 110V/60Hz: 1.47A, Start 0.44/4.4 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | 115V/60Hz: 1.52A, Start 0.485/4.85 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: E204632 (certified) | |
| K9IS90FL | GGM 90W Single-phase geared motor, 200V, Straight shaft, Lead wire | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 200V | Condenser: 7µF | Operating Points: 200V/50Hz: 0.75A, Start 0.5/5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 200V/60Hz: 0.97A, Start 0.5/5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IP90FL | GGM 90W Single-phase geared motor, 200V, Pinion shaft, Lead wire | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 200V | Condenser: 7µF | Operating Points: 200V/50Hz: 0.75A, Start 0.5/5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 200V/60Hz: 0.97A, Start 0.5/5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IS90FC | GGM 90W Single-phase geared motor, 220/230V, Straight shaft, Lead wire | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 220/230V | Condenser: 6µF | Operating Points: 220V/50Hz: 0.8A, Start 0.45/4.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 220V/60Hz: 0.9A, Start 0.5/5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | 230V/50Hz: 0.87A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 230V/60Hz: 0.93A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: E204632 (certified) | |
| K9IP90FC | GGM 90W Single-phase geared motor, 220/230V, Pinion shaft, Lead wire | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 220/230V | Condenser: 6µF | Operating Points: 220V/50Hz: 0.8A, Start 0.45/4.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 220V/60Hz: 0.9A, Start 0.5/5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | 230V/50Hz: 0.87A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 230V/60Hz: 0.93A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: E204632 (certified) | |
| K9IS90FD | GGM 90W Single-phase geared motor, 240V, Straight shaft, Lead wire | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 240V | Condenser: 5µF | Operating Points: 240V/50Hz: 0.85A, Start 0.5/5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IP90FD | GGM 90W Single-phase geared motor, 240V, Pinion shaft, Lead wire | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 240V | Condenser: 5µF | Operating Points: 240V/50Hz: 0.85A, Start 0.5/5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant |
GGM 90W single-phase AC induction geared motor, □90mm frame, 4-pole, continuous rating. Terminal box type (metal housing). Straight (S) and pinion (P) shaft options. Single-phase 100/110/115/200/220/230/240V with built-in capacitor. Compatible with K9P power gearheads (sold separately).
GGM 90W single-phase AC induction geared motor, □90mm frame, 4-pole, continuous rating. Terminal box type (metal housing). Straight (S) and pinion (P) shaft options. Single-phase 100/110/115/200/220/230/240V with built-in capacitor. Compatible with K9P power gearheads (sold separately).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| K9IS90FJ-T | GGM 90W Single-phase geared motor, 100V, Straight shaft, Terminal box (metal) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Terminal box type (metal housing) | Rated Voltage: 100V | Condenser: 30µF | Operating Points: 100V/50Hz: 2.07A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 100V/60Hz: 1.97A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IP90FJ-T | GGM 90W Single-phase geared motor, 100V, Pinion shaft, Terminal box (metal) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Terminal box type (metal housing) | Rated Voltage: 100V | Condenser: 30µF | Operating Points: 100V/50Hz: 2.07A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 100V/60Hz: 1.97A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IS90FU-T | GGM 90W Single-phase geared motor, 110/115V, Straight shaft, Terminal box (metal) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Terminal box type (metal housing) | Rated Voltage: 110/115V | Condenser: 20µF | Operating Points: 110V/60Hz: 1.47A, Start 0.44/4.4 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | 115V/60Hz: 1.52A, Start 0.485/4.85 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IP90FU-T | GGM 90W Single-phase geared motor, 110/115V, Pinion shaft, Terminal box (metal) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Terminal box type (metal housing) | Rated Voltage: 110/115V | Condenser: 20µF | Operating Points: 110V/60Hz: 1.47A, Start 0.44/4.4 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | 115V/60Hz: 1.52A, Start 0.485/4.85 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IS90FL-T | GGM 90W Single-phase geared motor, 200V, Straight shaft, Terminal box (metal) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Terminal box type (metal housing) | Rated Voltage: 200V | Condenser: 7µF | Operating Points: 200V/50Hz: 0.75A, Start 0.5/5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 200V/60Hz: 0.97A, Start 0.5/5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IP90FL-T | GGM 90W Single-phase geared motor, 200V, Pinion shaft, Terminal box (metal) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Terminal box type (metal housing) | Rated Voltage: 200V | Condenser: 7µF | Operating Points: 200V/50Hz: 0.75A, Start 0.5/5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 200V/60Hz: 0.97A, Start 0.5/5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IS90FC-T | GGM 90W Single-phase geared motor, 220/230V, Straight shaft, Terminal box (metal) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Terminal box type (metal housing) | Rated Voltage: 220/230V | Condenser: 6µF | Operating Points: 220V/50Hz: 0.8A, Start 0.45/4.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 220V/60Hz: 0.9A, Start 0.5/5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | 230V/50Hz: 0.87A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 230V/60Hz: 0.93A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IP90FC-T | GGM 90W Single-phase geared motor, 220/230V, Pinion shaft, Terminal box (metal) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Terminal box type (metal housing) | Rated Voltage: 220/230V | Condenser: 6µF | Operating Points: 220V/50Hz: 0.8A, Start 0.45/4.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 220V/60Hz: 0.9A, Start 0.5/5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | 230V/50Hz: 0.87A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 230V/60Hz: 0.93A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IS90FD-T | GGM 90W Single-phase geared motor, 240V, Straight shaft, Terminal box (metal) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Terminal box type (metal housing) | Rated Voltage: 240V | Condenser: 5µF | Operating Points: 240V/50Hz: 0.85A, Start 0.5/5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IP90FD-T | GGM 90W Single-phase geared motor, 240V, Pinion shaft, Terminal box (metal) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Terminal box type (metal housing) | Rated Voltage: 240V | Condenser: 5µF | Operating Points: 240V/50Hz: 0.85A, Start 0.5/5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant |
GGM 90W single-phase AC induction geared motor, □90mm frame, 4-pole, continuous rating. Terminal box type (plastic housing). Straight (S) and pinion (P) shaft options. Single-phase 100/110/115/200/220/230/240V with built-in capacitor. Compatible with K9P power gearheads (sold separately).
GGM 90W single-phase AC induction geared motor, □90mm frame, 4-pole, continuous rating. Terminal box type (plastic housing). Straight (S) and pinion (P) shaft options. Single-phase 100/110/115/200/220/230/240V with built-in capacitor. Compatible with K9P power gearheads (sold separately).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| K9IS90FJ-T5 | GGM 90W Single-phase geared motor, 100V, Straight shaft, Terminal box (plastic) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Terminal box type (plastic housing) | Rated Voltage: 100V | Condenser: 30µF | Operating Points: 100V/50Hz: 2.07A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 100V/60Hz: 1.97A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IP90FJ-T5 | GGM 90W Single-phase geared motor, 100V, Pinion shaft, Terminal box (plastic) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Terminal box type (plastic housing) | Rated Voltage: 100V | Condenser: 30µF | Operating Points: 100V/50Hz: 2.07A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 100V/60Hz: 1.97A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IS90FU-T5 | GGM 90W Single-phase geared motor, 110/115V, Straight shaft, Terminal box (plastic) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Terminal box type (plastic housing) | Rated Voltage: 110/115V | Condenser: 20µF | Operating Points: 110V/60Hz: 1.47A, Start 0.44/4.4 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | 115V/60Hz: 1.52A, Start 0.485/4.85 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IP90FU-T5 | GGM 90W Single-phase geared motor, 110/115V, Pinion shaft, Terminal box (plastic) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Terminal box type (plastic housing) | Rated Voltage: 110/115V | Condenser: 20µF | Operating Points: 110V/60Hz: 1.47A, Start 0.44/4.4 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | 115V/60Hz: 1.52A, Start 0.485/4.85 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IS90FL-T5 | GGM 90W Single-phase geared motor, 200V, Straight shaft, Terminal box (plastic) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Terminal box type (plastic housing) | Rated Voltage: 200V | Condenser: 7µF | Operating Points: 200V/50Hz: 0.75A, Start 0.5/5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 200V/60Hz: 0.97A, Start 0.5/5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IP90FL-T5 | GGM 90W Single-phase geared motor, 200V, Pinion shaft, Terminal box (plastic) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Terminal box type (plastic housing) | Rated Voltage: 200V | Condenser: 7µF | Operating Points: 200V/50Hz: 0.75A, Start 0.5/5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 200V/60Hz: 0.97A, Start 0.5/5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IS90FC-T5 | GGM 90W Single-phase geared motor, 220/230V, Straight shaft, Terminal box (plastic) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Terminal box type (plastic housing) | Rated Voltage: 220/230V | Condenser: 6µF | Operating Points: 220V/50Hz: 0.8A, Start 0.45/4.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 220V/60Hz: 0.9A, Start 0.5/5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | 230V/50Hz: 0.87A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 230V/60Hz: 0.93A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IP90FC-T5 | GGM 90W Single-phase geared motor, 220/230V, Pinion shaft, Terminal box (plastic) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Terminal box type (plastic housing) | Rated Voltage: 220/230V | Condenser: 6µF | Operating Points: 220V/50Hz: 0.8A, Start 0.45/4.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 220V/60Hz: 0.9A, Start 0.5/5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | 230V/50Hz: 0.87A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 230V/60Hz: 0.93A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IS90FD-T5 | GGM 90W Single-phase geared motor, 240V, Straight shaft, Terminal box (plastic) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Terminal box type (plastic housing) | Rated Voltage: 240V | Condenser: 5µF | Operating Points: 240V/50Hz: 0.85A, Start 0.5/5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IP90FD-T5 | GGM 90W Single-phase geared motor, 240V, Pinion shaft, Terminal box (plastic) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Terminal box type (plastic housing) | Rated Voltage: 240V | Condenser: 5µF | Operating Points: 240V/50Hz: 0.85A, Start 0.5/5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant |
GGM 90W three-phase AC induction geared motor, □90mm frame, 4-pole, continuous rating. Lead wire type (300mm, UL Style 3271 AWG20). Straight (S) and pinion (P) shaft options. Three-phase 200/220/230/380/400/415/440V. Compatible with K9P power gearheads (sold separately).
GGM 90W three-phase AC induction geared motor, □90mm frame, 4-pole, continuous rating. Lead wire type (300mm, UL Style 3271 AWG20). Straight (S) and pinion (P) shaft options. Three-phase 200/220/230/380/400/415/440V. Compatible with K9P power gearheads (sold separately).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| K9IS90FT | GGM 90W Three-phase geared motor, 200V, Straight shaft, Lead wire | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 200V | Operating Points: 200V/50Hz: 0.79A, Start 2.25/22.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 200V/60Hz: 0.72A, Start 1.75/17.5 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IP90FT | GGM 90W Three-phase geared motor, 200V, Pinion shaft, Lead wire | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 200V | Operating Points: 200V/50Hz: 0.79A, Start 2.25/22.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 200V/60Hz: 0.72A, Start 1.75/17.5 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IS90FH | GGM 90W Three-phase geared motor, 220/230V, Straight shaft, Lead wire | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 220/230V | Operating Points: 220V/50Hz: 0.72A, Start 2.35/23.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 220V/60Hz: 0.63A, Start 1.8/18 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | 230V/50Hz: 0.86A, Start 2.45/24.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 230V/60Hz: 0.66A, Start 1.95/19.5 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: E204632 (certified) | |
| K9IP90FH | GGM 90W Three-phase geared motor, 220/230V, Pinion shaft, Lead wire | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 220/230V | Operating Points: 220V/50Hz: 0.72A, Start 2.35/23.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 220V/60Hz: 0.63A, Start 1.8/18 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | 230V/50Hz: 0.86A, Start 2.45/24.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 230V/60Hz: 0.66A, Start 1.95/19.5 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: E204632 (certified) | |
| K9IS90FM | GGM 90W Three-phase geared motor, 380V, Straight shaft, Lead wire | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 380V | Operating Points: 380V/50Hz: 0.43A, Start 2.35/23.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 380V/60Hz: 0.37A, Start 1.7/17 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage) | |
| K9IP90FM | GGM 90W Three-phase geared motor, 380V, Pinion shaft, Lead wire | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 380V | Operating Points: 380V/50Hz: 0.43A, Start 2.35/23.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 380V/60Hz: 0.37A, Start 1.7/17 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage) | |
| K9IS90FV | GGM 90W Three-phase geared motor, 400V, Straight shaft, Lead wire | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 400V | Operating Points: 400V/50Hz: 0.52A, Start 2.65/26.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 400V/60Hz: 0.45A, Start 2.1/21 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage) | |
| K9IP90FV | GGM 90W Three-phase geared motor, 400V, Pinion shaft, Lead wire | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 400V | Operating Points: 400V/50Hz: 0.52A, Start 2.65/26.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 400V/60Hz: 0.45A, Start 2.1/21 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage) | |
| K9IS90FQ | GGM 90W Three-phase geared motor, 415V, Straight shaft, Lead wire | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 415V | Operating Points: 415V/50Hz: 0.39A, Start 2/20 N·m/kgf·cm, Rated 0.68/6.8 N·m/kgf·cm, 1300rpm | 415V/60Hz: 0.31A, Start 1.5/15 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage) | |
| K9IP90FQ | GGM 90W Three-phase geared motor, 415V, Pinion shaft, Lead wire | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 415V | Operating Points: 415V/50Hz: 0.39A, Start 2/20 N·m/kgf·cm, Rated 0.68/6.8 N·m/kgf·cm, 1300rpm | 415V/60Hz: 0.31A, Start 1.5/15 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage) | |
| K9IS90FZ | GGM 90W Three-phase geared motor, 440V, Straight shaft, Lead wire | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 440V | Operating Points: 440V/50Hz: 0.45A, Start 2.1/21 N·m/kgf·cm, Rated 0.68/6.8 N·m/kgf·cm, 1300rpm | 440V/60Hz: 0.39A, Start 1.7/17 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage) | |
| K9IP90FZ | GGM 90W Three-phase geared motor, 440V, Pinion shaft, Lead wire | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 440V | Operating Points: 440V/50Hz: 0.45A, Start 2.1/21 N·m/kgf·cm, Rated 0.68/6.8 N·m/kgf·cm, 1300rpm | 440V/60Hz: 0.39A, Start 1.7/17 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage) |
GGM 90W three-phase AC induction geared motor, □90mm frame, 4-pole, continuous rating. Terminal box type (metal housing). Straight (S) and pinion (P) shaft options. Three-phase 200/220/230/380/400/415/440V. Compatible with K9P power gearheads (sold separately).
GGM 90W three-phase AC induction geared motor, □90mm frame, 4-pole, continuous rating. Terminal box type (metal housing). Straight (S) and pinion (P) shaft options. Three-phase 200/220/230/380/400/415/440V. Compatible with K9P power gearheads (sold separately).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| K9IS90FT-T | GGM 90W Three-phase geared motor, 200V, Straight shaft, Terminal box (metal) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Straight | Output Type: Terminal box type (metal housing) | Rated Voltage: 200V | Operating Points: 200V/50Hz: 0.79A, Start 2.25/22.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 200V/60Hz: 0.72A, Start 1.75/17.5 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IP90FT-T | GGM 90W Three-phase geared motor, 200V, Pinion shaft, Terminal box (metal) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Pinion | Output Type: Terminal box type (metal housing) | Rated Voltage: 200V | Operating Points: 200V/50Hz: 0.79A, Start 2.25/22.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 200V/60Hz: 0.72A, Start 1.75/17.5 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IS90FH-T | GGM 90W Three-phase geared motor, 220/230V, Straight shaft, Terminal box (metal) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Straight | Output Type: Terminal box type (metal housing) | Rated Voltage: 220/230V | Operating Points: 220V/50Hz: 0.72A, Start 2.35/23.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 220V/60Hz: 0.63A, Start 1.8/18 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | 230V/50Hz: 0.86A, Start 2.45/24.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 230V/60Hz: 0.66A, Start 1.95/19.5 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: E204632 (certified) | |
| K9IP90FH-T | GGM 90W Three-phase geared motor, 220/230V, Pinion shaft, Terminal box (metal) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Pinion | Output Type: Terminal box type (metal housing) | Rated Voltage: 220/230V | Operating Points: 220V/50Hz: 0.72A, Start 2.35/23.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 220V/60Hz: 0.63A, Start 1.8/18 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | 230V/50Hz: 0.86A, Start 2.45/24.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 230V/60Hz: 0.66A, Start 1.95/19.5 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: E204632 (certified) | |
| K9IS90FM-T | GGM 90W Three-phase geared motor, 380V, Straight shaft, Terminal box (metal) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Straight | Output Type: Terminal box type (metal housing) | Rated Voltage: 380V | Operating Points: 380V/50Hz: 0.43A, Start 2.35/23.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 380V/60Hz: 0.37A, Start 1.7/17 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage) | |
| K9IP90FM-T | GGM 90W Three-phase geared motor, 380V, Pinion shaft, Terminal box (metal) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Pinion | Output Type: Terminal box type (metal housing) | Rated Voltage: 380V | Operating Points: 380V/50Hz: 0.43A, Start 2.35/23.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 380V/60Hz: 0.37A, Start 1.7/17 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage) | |
| K9IS90FV-T | GGM 90W Three-phase geared motor, 400V, Straight shaft, Terminal box (metal) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Straight | Output Type: Terminal box type (metal housing) | Rated Voltage: 400V | Operating Points: 400V/50Hz: 0.52A, Start 2.65/26.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 400V/60Hz: 0.45A, Start 2.1/21 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage) | |
| K9IP90FV-T | GGM 90W Three-phase geared motor, 400V, Pinion shaft, Terminal box (metal) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Pinion | Output Type: Terminal box type (metal housing) | Rated Voltage: 400V | Operating Points: 400V/50Hz: 0.52A, Start 2.65/26.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 400V/60Hz: 0.45A, Start 2.1/21 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage) | |
| K9IS90FQ-T | GGM 90W Three-phase geared motor, 415V, Straight shaft, Terminal box (metal) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Straight | Output Type: Terminal box type (metal housing) | Rated Voltage: 415V | Operating Points: 415V/50Hz: 0.39A, Start 2/20 N·m/kgf·cm, Rated 0.68/6.8 N·m/kgf·cm, 1300rpm | 415V/60Hz: 0.31A, Start 1.5/15 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage) | |
| K9IP90FQ-T | GGM 90W Three-phase geared motor, 415V, Pinion shaft, Terminal box (metal) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Pinion | Output Type: Terminal box type (metal housing) | Rated Voltage: 415V | Operating Points: 415V/50Hz: 0.39A, Start 2/20 N·m/kgf·cm, Rated 0.68/6.8 N·m/kgf·cm, 1300rpm | 415V/60Hz: 0.31A, Start 1.5/15 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage) | |
| K9IS90FZ-T | GGM 90W Three-phase geared motor, 440V, Straight shaft, Terminal box (metal) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Straight | Output Type: Terminal box type (metal housing) | Rated Voltage: 440V | Operating Points: 440V/50Hz: 0.45A, Start 2.1/21 N·m/kgf·cm, Rated 0.68/6.8 N·m/kgf·cm, 1300rpm | 440V/60Hz: 0.39A, Start 1.7/17 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage) | |
| K9IP90FZ-T | GGM 90W Three-phase geared motor, 440V, Pinion shaft, Terminal box (metal) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Pinion | Output Type: Terminal box type (metal housing) | Rated Voltage: 440V | Operating Points: 440V/50Hz: 0.45A, Start 2.1/21 N·m/kgf·cm, Rated 0.68/6.8 N·m/kgf·cm, 1300rpm | 440V/60Hz: 0.39A, Start 1.7/17 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage) |
GGM 90W three-phase AC induction geared motor, □90mm frame, 4-pole, continuous rating. Terminal box type (plastic housing). Straight (S) and pinion (P) shaft options. Three-phase 200/220/230/380/400/415/440V. Compatible with K9P power gearheads (sold separately).
GGM 90W three-phase AC induction geared motor, □90mm frame, 4-pole, continuous rating. Terminal box type (plastic housing). Straight (S) and pinion (P) shaft options. Three-phase 200/220/230/380/400/415/440V. Compatible with K9P power gearheads (sold separately).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| K9IS90FT-T5 | GGM 90W Three-phase geared motor, 200V, Straight shaft, Terminal box (plastic) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Straight | Output Type: Terminal box type (plastic housing) | Rated Voltage: 200V | Operating Points: 200V/50Hz: 0.79A, Start 2.25/22.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 200V/60Hz: 0.72A, Start 1.75/17.5 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IP90FT-T5 | GGM 90W Three-phase geared motor, 200V, Pinion shaft, Terminal box (plastic) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Pinion | Output Type: Terminal box type (plastic housing) | Rated Voltage: 200V | Operating Points: 200V/50Hz: 0.79A, Start 2.25/22.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 200V/60Hz: 0.72A, Start 1.75/17.5 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | |
| K9IS90FH-T5 | GGM 90W Three-phase geared motor, 220/230V, Straight shaft, Terminal box (plastic) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Straight | Output Type: Terminal box type (plastic housing) | Rated Voltage: 220/230V | Operating Points: 220V/50Hz: 0.72A, Start 2.35/23.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 220V/60Hz: 0.63A, Start 1.8/18 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | 230V/50Hz: 0.86A, Start 2.45/24.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 230V/60Hz: 0.66A, Start 1.95/19.5 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: E204632 (certified) | |
| K9IP90FH-T5 | GGM 90W Three-phase geared motor, 220/230V, Pinion shaft, Terminal box (plastic) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Pinion | Output Type: Terminal box type (plastic housing) | Rated Voltage: 220/230V | Operating Points: 220V/50Hz: 0.72A, Start 2.35/23.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 220V/60Hz: 0.63A, Start 1.8/18 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | 230V/50Hz: 0.86A, Start 2.45/24.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 230V/60Hz: 0.66A, Start 1.95/19.5 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: E204632 (certified) | |
| K9IS90FM-T5 | GGM 90W Three-phase geared motor, 380V, Straight shaft, Terminal box (plastic) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Straight | Output Type: Terminal box type (plastic housing) | Rated Voltage: 380V | Operating Points: 380V/50Hz: 0.43A, Start 2.35/23.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 380V/60Hz: 0.37A, Start 1.7/17 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage) | |
| K9IP90FM-T5 | GGM 90W Three-phase geared motor, 380V, Pinion shaft, Terminal box (plastic) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Pinion | Output Type: Terminal box type (plastic housing) | Rated Voltage: 380V | Operating Points: 380V/50Hz: 0.43A, Start 2.35/23.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 380V/60Hz: 0.37A, Start 1.7/17 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage) | |
| K9IS90FV-T5 | GGM 90W Three-phase geared motor, 400V, Straight shaft, Terminal box (plastic) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Straight | Output Type: Terminal box type (plastic housing) | Rated Voltage: 400V | Operating Points: 400V/50Hz: 0.52A, Start 2.65/26.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 400V/60Hz: 0.45A, Start 2.1/21 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage) | |
| K9IP90FV-T5 | GGM 90W Three-phase geared motor, 400V, Pinion shaft, Terminal box (plastic) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Pinion | Output Type: Terminal box type (plastic housing) | Rated Voltage: 400V | Operating Points: 400V/50Hz: 0.52A, Start 2.65/26.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm | 400V/60Hz: 0.45A, Start 2.1/21 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage) | |
| K9IS90FQ-T5 | GGM 90W Three-phase geared motor, 415V, Straight shaft, Terminal box (plastic) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Straight | Output Type: Terminal box type (plastic housing) | Rated Voltage: 415V | Operating Points: 415V/50Hz: 0.39A, Start 2/20 N·m/kgf·cm, Rated 0.68/6.8 N·m/kgf·cm, 1300rpm | 415V/60Hz: 0.31A, Start 1.5/15 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage) | |
| K9IP90FQ-T5 | GGM 90W Three-phase geared motor, 415V, Pinion shaft, Terminal box (plastic) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Pinion | Output Type: Terminal box type (plastic housing) | Rated Voltage: 415V | Operating Points: 415V/50Hz: 0.39A, Start 2/20 N·m/kgf·cm, Rated 0.68/6.8 N·m/kgf·cm, 1300rpm | 415V/60Hz: 0.31A, Start 1.5/15 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage) | |
| K9IS90FZ-T5 | GGM 90W Three-phase geared motor, 440V, Straight shaft, Terminal box (plastic) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Straight | Output Type: Terminal box type (plastic housing) | Rated Voltage: 440V | Operating Points: 440V/50Hz: 0.45A, Start 2.1/21 N·m/kgf·cm, Rated 0.68/6.8 N·m/kgf·cm, 1300rpm | 440V/60Hz: 0.39A, Start 1.7/17 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage) | |
| K9IP90FZ-T5 | GGM 90W Three-phase geared motor, 440V, Pinion shaft, Terminal box (plastic) | GGM | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Three-phase | Shaft: Pinion | Output Type: Terminal box type (plastic housing) | Rated Voltage: 440V | Operating Points: 440V/50Hz: 0.45A, Start 2.1/21 N·m/kgf·cm, Rated 0.68/6.8 N·m/kgf·cm, 1300rpm | 440V/60Hz: 0.39A, Start 1.7/17 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant | Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage) |
![[GGM] — GPA Plug-in Speed Control Unit for AC Geared Motors (Built-in Setter, Electrical Brake, Single-phase)](https://img.prosourcemro.com/2026/06/0604-4-300x300.png)
GGM GPA plug-in speed control unit for AC induction (6–180W), reversible (6–90W) & brake (6–180W) geared motors. Built-in speed setter with electrical brake moment-stop, 90–1700 r/min (60Hz).
GGM GPA plug-in speed control unit for AC induction (6–180W), reversible (6–90W) & brake (6–180W) geared motors. Built-in speed setter with electrical brake moment-stop, 90–1700 r/min (60Hz).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| GPA-U | GGM GPA-U plug-in speed control unit, single-phase AC 110/115V 50/60Hz | GGM | Input: 1-ph AC 110/115V 50/60Hz (±10%) | Applied motor: induction 6–180W / reversible 6–90W / speed&brake 6–180W | Speed range: 90–1700 r/min @60Hz, 90–1400 @50Hz | Type: plug-in (socket type) | Speed setter: built-in (external = special order) | Brake: electrical moment-stop, 0.5s (no retention) | Slow run/stop: none (use GSA series) | |
| GPA-J | GGM GPA-J plug-in speed control unit, single-phase AC 100V 50/60Hz | GGM | Input: 1-ph AC 100V 50/60Hz (±10%) | Applied motor: induction 6–180W / reversible 6–90W / speed&brake 6–180W | Speed range: 90–1700 r/min @60Hz, 90–1400 @50Hz | Type: plug-in (socket type) | Speed setter: built-in (external = special order) | Brake: electrical moment-stop, 0.5s (no retention) | Slow run/stop: none (use GSA series) | |
| GPA-C | GGM GPA-C plug-in speed control unit, single-phase AC 220/230/240V 50/60Hz | GGM | Input: 1-ph AC 220/230/240V 50/60Hz (±10%) | Applied motor: induction 6–180W / reversible 6–90W / speed&brake 6–180W | Speed range: 90–1700 r/min @60Hz, 90–1400 @50Hz | Type: plug-in (socket type) | Speed setter: built-in (external = special order) | Brake: electrical moment-stop, 0.5s (no retention) | Slow run/stop: none (use GSA series) | |
| GPA-L | GGM GPA-L plug-in speed control unit, single-phase AC 200V 50/60Hz | GGM | Input: 1-ph AC 200V 50/60Hz (±10%) | Applied motor: induction 6–180W / reversible 6–90W / speed&brake 6–180W | Speed range: 90–1700 r/min @60Hz, 90–1400 @50Hz | Type: plug-in (socket type) | Speed setter: built-in (external = special order) | Brake: electrical moment-stop, 0.5s (no retention) | Slow run/stop: none (use GSA series) | |
| GPA-U | GGM GPA-U plug-in speed control unit, single-phase AC 110/115V 50/60Hz | GGM | Input: 1-ph AC 110/115V 50/60Hz (±10%) | Applied motor: induction 6–180W / reversible 6–90W / speed&brake 6–180W | Speed range: 90–1700 r/min @60Hz, 90–1400 @50Hz | Type: plug-in (socket type) | Speed setter: built-in (external = special order) | Brake: electrical moment-stop, 0.5s (no retention) | Slow run/stop: none (use GSA series) | |
| GPA-J | GGM GPA-J plug-in speed control unit, single-phase AC 100V 50/60Hz | GGM | Input: 1-ph AC 100V 50/60Hz (±10%) | Applied motor: induction 6–180W / reversible 6–90W / speed&brake 6–180W | Speed range: 90–1700 r/min @60Hz, 90–1400 @50Hz | Type: plug-in (socket type) | Speed setter: built-in (external = special order) | Brake: electrical moment-stop, 0.5s (no retention) | Slow run/stop: none (use GSA series) | |
| GPA-C | GGM GPA-C plug-in speed control unit, single-phase AC 220/230/240V 50/60Hz | GGM | Input: 1-ph AC 220/230/240V 50/60Hz (±10%) | Applied motor: induction 6–180W / reversible 6–90W / speed&brake 6–180W | Speed range: 90–1700 r/min @60Hz, 90–1400 @50Hz | Type: plug-in (socket type) | Speed setter: built-in (external = special order) | Brake: electrical moment-stop, 0.5s (no retention) | Slow run/stop: none (use GSA series) | |
| GPA-L | GGM GPA-L plug-in speed control unit, single-phase AC 200V 50/60Hz | GGM | Input: 1-ph AC 200V 50/60Hz (±10%) | Applied motor: induction 6–180W / reversible 6–90W / speed&brake 6–180W | Speed range: 90–1700 r/min @60Hz, 90–1400 @50Hz | Type: plug-in (socket type) | Speed setter: built-in (external = special order) | Brake: electrical moment-stop, 0.5s (no retention) | Slow run/stop: none (use GSA series) | |
| GPA-U | GGM GPA-U plug-in speed control unit, single-phase AC 110/115V 50/60Hz | GGM | Input: 1-ph AC 110/115V 50/60Hz (±10%) | Applied motor: induction 6–180W / reversible 6–90W / speed&brake 6–180W | Speed range: 90–1700 r/min @60Hz, 90–1400 @50Hz | Type: plug-in (socket type) | Speed setter: built-in (external = special order) | Brake: electrical moment-stop, 0.5s (no retention) | Slow run/stop: none (use GSA series) | |
| GPA-J | GGM GPA-J plug-in speed control unit, single-phase AC 100V 50/60Hz | GGM | Input: 1-ph AC 100V 50/60Hz (±10%) | Applied motor: induction 6–180W / reversible 6–90W / speed&brake 6–180W | Speed range: 90–1700 r/min @60Hz, 90–1400 @50Hz | Type: plug-in (socket type) | Speed setter: built-in (external = special order) | Brake: electrical moment-stop, 0.5s (no retention) | Slow run/stop: none (use GSA series) | |
| GPA-C | GGM GPA-C plug-in speed control unit, single-phase AC 220/230/240V 50/60Hz | GGM | Input: 1-ph AC 220/230/240V 50/60Hz (±10%) | Applied motor: induction 6–180W / reversible 6–90W / speed&brake 6–180W | Speed range: 90–1700 r/min @60Hz, 90–1400 @50Hz | Type: plug-in (socket type) | Speed setter: built-in (external = special order) | Brake: electrical moment-stop, 0.5s (no retention) | Slow run/stop: none (use GSA series) | |
| GPA-L | GGM GPA-L plug-in speed control unit, single-phase AC 200V 50/60Hz | GGM | Input: 1-ph AC 200V 50/60Hz (±10%) | Applied motor: induction 6–180W / reversible 6–90W / speed&brake 6–180W | Speed range: 90–1700 r/min @60Hz, 90–1400 @50Hz | Type: plug-in (socket type) | Speed setter: built-in (external = special order) | Brake: electrical moment-stop, 0.5s (no retention) | Slow run/stop: none (use GSA series) |
![[GGM] — GSA Plug-in Speed Control Unit for AC Geared Motors (11-pin, Electrical Brake, Single-phase)](https://img.prosourcemro.com/2026/06/0604-3-300x300.png)
GGM GSA 11-pin plug-in speed control unit for AC induction (6–180W), reversible (6–90W) & speed-brake (6–180W) motors. Electrical brake stop, slow run/stop and parallel operation via external speed setter.
GGM GSA 11-pin plug-in speed control unit for AC induction (6–180W), reversible (6–90W) & speed-brake (6–180W) motors. Electrical brake stop, slow run/stop and parallel operation via external speed setter.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| GSA-U | GGM GSA-U 11-pin plug-in speed control unit, single-phase AC 110/115V 60Hz | GGM | Input: 1-ph AC 110/115V 60Hz (±10%) | Rated current: 3A | Applied motor: induction 6–180W / reversible 6–90W / speed&brake 6–180W | Speed range: 90–1700 r/min @60Hz | Type: 11-pin plug-in (socket type) | Brake: electrical moment-stop, 0.5s (no retention) | Functions: slow run/stop, parallel operation | Speed setter: external (required) | |
| GSA-J | GGM GSA-J 11-pin plug-in speed control unit, single-phase AC 100V 50/60Hz | GGM | Input: 1-ph AC 100V 50/60Hz (±10%) | Rated current: 3A | Applied motor: induction 6–180W / reversible 6–90W / speed&brake 6–180W | Speed range: 90–1700 r/min @60Hz, 90–1400 @50Hz | Type: 11-pin plug-in (socket type) | Brake: electrical moment-stop, 0.5s (no retention) | Functions: slow run/stop, parallel operation | Speed setter: external (required) | |
| GSA-C | GGM GSA-C 11-pin plug-in speed control unit, single-phase AC 220/230V 50/60Hz, 240V 50Hz | GGM | Input: 1-ph AC 220/230V 50/60Hz, 240V 50Hz (±10%) | Rated current: 3A | Applied motor: induction 6–180W / reversible 6–90W / speed&brake 6–180W | Speed range: 90–1700 r/min @60Hz, 90–1400 @50Hz | Type: 11-pin plug-in (socket type) | Brake: electrical moment-stop, 0.5s (no retention) | Functions: slow run/stop, parallel operation | Speed setter: external (required) | |
| GSA-L | GGM GSA-L 11-pin plug-in speed control unit, single-phase AC 200V 50/60Hz | GGM | Input: 1-ph AC 200V 50/60Hz (±10%) | Rated current: 3A | Applied motor: induction 6–180W / reversible 6–90W / speed&brake 6–180W | Speed range: 90–1700 r/min @60Hz, 90–1400 @50Hz | Type: 11-pin plug-in (socket type) | Brake: electrical moment-stop, 0.5s (no retention) | Functions: slow run/stop, parallel operation | Speed setter: external (required) |
![[GGM] — GUA Volume-Type Speed Control Unit for AC Geared Motors (Single-phase)](https://img.prosourcemro.com/2026/06/0604-2-300x300.png)
GGM GUA volume-type speed control unit for AC induction (6–180W) & reversible (6–90W) geared motors. One-touch motor connector, front speed dial, CW/CCW and accel/decel control; 90–1700 r/min (60Hz).
GGM GUA volume-type speed control unit for AC induction (6–180W) & reversible (6–90W) geared motors. One-touch motor connector, front speed dial, CW/CCW and accel/decel control; 90–1700 r/min (60Hz).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| GUA-U | GGM GUA-U volume-type speed control unit, single-phase AC 110/115V 60Hz | GGM | Input: 1-ph AC 110/115V 60Hz (±10%) | Applied motor: induction 6–180W / reversible 6–90W | Speed range: 90–1700 r/min @60Hz | Speed setter: volume dial | Direction: CW/CCW | Accel/decel: adjustable | Connector: one-touch (motor link), extension up to 2.0m | |
| GUA-J | GGM GUA-J volume-type speed control unit, single-phase AC 110V 50/60Hz | GGM | Input: 1-ph AC 110V 50/60Hz (±10%) | Applied motor: induction 6–180W / reversible 6–90W | Speed range: 90–1700 r/min @60Hz, 90–1400 @50Hz | Speed setter: volume dial | Direction: CW/CCW | Accel/decel: adjustable | Connector: one-touch (motor link), extension up to 2.0m | |
| GUA-C | GGM GUA-C volume-type speed control unit, single-phase AC 220/230V 50/60Hz, 240V 50Hz | GGM | Input: 1-ph AC 220/230V 50/60Hz, 240V 50Hz (±10%) | Applied motor: induction 6–180W / reversible 6–90W | Speed range: 90–1700 r/min @60Hz, 90–1400 @50Hz | Speed setter: volume dial | Direction: CW/CCW | Accel/decel: adjustable | Connector: one-touch (motor link), extension up to 2.0m | |
| GUA-L | GGM GUA-L volume-type speed control unit, single-phase AC 200V 50/60Hz | GGM | Input: 1-ph AC 200V 50/60Hz (±10%) | Applied motor: induction 6–180W / reversible 6–90W | Speed range: 90–1700 r/min @60Hz, 90–1400 @50Hz | Speed setter: volume dial | Direction: CW/CCW | Accel/decel: adjustable | Connector: one-touch (motor link), extension up to 2.0m |
![[GGM] — GUD Digital Speed Control Unit for AC Geared Motors (6–180W, Single-phase)](https://img.prosourcemro.com/2026/06/0604-1-300x300.png)
GGM GUD digital speed control unit for AC induction & reversible geared motors, 6–180W. CW/CCW reversing, 4-step multi-speed, electromagnetic brake control via I/O port; 90–1730 r/min (60Hz).
GGM GUD digital speed control unit for AC induction & reversible geared motors, 6–180W. CW/CCW reversing, 4-step multi-speed, electromagnetic brake control via I/O port; 90–1730 r/min (60Hz).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| GUD-U-6 | GGM GUD-U-6 digital speed control unit, single-phase AC 100–115V, for 6W motor | GGM | Input: 1-ph AC 100–115V 50/60Hz (±10%) | Motor output: 6W (induction/reversible) | Speed range: 90–1730 r/min @60Hz, 90–1430 @50Hz | Direction: CW/CCW (front key + I/O) | Multi-speed: 4-step (I/O) | Brake: electromagnetic (parameter-enabled) | Protection: IP20 | |
| GUD-U-15 | GGM GUD-U-15 digital speed control unit, single-phase AC 100–115V, for 15W motor | GGM | Input: 1-ph AC 100–115V 50/60Hz (±10%) | Motor output: 15W (induction/reversible) | Speed range: 90–1730 r/min @60Hz, 90–1430 @50Hz | Direction: CW/CCW (front key + I/O) | Multi-speed: 4-step (I/O) | Brake: electromagnetic (parameter-enabled) | Protection: IP20 | |
| GUD-U-25 | GGM GUD-U-25 digital speed control unit, single-phase AC 100–115V, for 25W motor | GGM | Input: 1-ph AC 100–115V 50/60Hz (±10%) | Motor output: 25W (induction/reversible) | Speed range: 90–1730 r/min @60Hz, 90–1430 @50Hz | Direction: CW/CCW (front key + I/O) | Multi-speed: 4-step (I/O) | Brake: electromagnetic (parameter-enabled) | Protection: IP20 | |
| GUD-U-40 | GGM GUD-U-40 digital speed control unit, single-phase AC 100–115V, for 40W motor | GGM | Input: 1-ph AC 100–115V 50/60Hz (±10%) | Motor output: 40W (induction/reversible) | Speed range: 90–1730 r/min @60Hz, 90–1430 @50Hz | Direction: CW/CCW (front key + I/O) | Multi-speed: 4-step (I/O) | Brake: electromagnetic (parameter-enabled) | Protection: IP20 | |
| GUD-U-60 | GGM GUD-U-60 digital speed control unit, single-phase AC 100–115V, for 60W motor | GGM | Input: 1-ph AC 100–115V 50/60Hz (±10%) | Motor output: 60W (induction/reversible) | Speed range: 90–1730 r/min @60Hz, 90–1430 @50Hz | Direction: CW/CCW (front key + I/O) | Multi-speed: 4-step (I/O) | Brake: electromagnetic (parameter-enabled) | Protection: IP20 | |
| GUD-U-90 | GGM GUD-U-90 digital speed control unit, single-phase AC 100–115V, for 90W motor | GGM | Input: 1-ph AC 100–115V 50/60Hz (±10%) | Motor output: 90W (induction/reversible) | Speed range: 90–1730 r/min @60Hz, 90–1430 @50Hz | Direction: CW/CCW (front key + I/O) | Multi-speed: 4-step (I/O) | Brake: electromagnetic (parameter-enabled) | Protection: IP20 | |
| GUD-U-120 | GGM GUD-U-120 digital speed control unit, single-phase AC 100–115V, for 120W motor | GGM | Input: 1-ph AC 100–115V 50/60Hz (±10%) | Motor output: 120W (induction/reversible) | Speed range: 90–1730 r/min @60Hz, 90–1430 @50Hz | Direction: CW/CCW (front key + I/O) | Multi-speed: 4-step (I/O) | Brake: electromagnetic (parameter-enabled) | Protection: IP20 | |
| GUD-U-150 | GGM GUD-U-150 digital speed control unit, single-phase AC 100–115V, for 150W motor | GGM | Input: 1-ph AC 100–115V 50/60Hz (±10%) | Motor output: 150W (induction/reversible) | Speed range: 90–1730 r/min @60Hz, 90–1430 @50Hz | Direction: CW/CCW (front key + I/O) | Multi-speed: 4-step (I/O) | Brake: electromagnetic (parameter-enabled) | Protection: IP20 | |
| GUD-U-180 | GGM GUD-U-180 digital speed control unit, single-phase AC 100–115V, for 180W motor | GGM | Input: 1-ph AC 100–115V 50/60Hz (±10%) | Motor output: 180W (induction/reversible) | Speed range: 90–1730 r/min @60Hz, 90–1430 @50Hz | Direction: CW/CCW (front key + I/O) | Multi-speed: 4-step (I/O) | Brake: electromagnetic (parameter-enabled) | Protection: IP20 | |
| GUD-C-6 | GGM GUD-C-6 digital speed control unit, single-phase AC 220–240V, for 6W motor | GGM | Input: 1-ph AC 220–240V 50/60Hz (±10%) | Motor output: 6W (induction/reversible) | Speed range: 90–1730 r/min @60Hz, 90–1430 @50Hz | Direction: CW/CCW (front key + I/O) | Multi-speed: 4-step (I/O) | Brake: electromagnetic (parameter-enabled) | Protection: IP20 | |
| GUD-C-15 | GGM GUD-C-15 digital speed control unit, single-phase AC 220–240V, for 15W motor | GGM | Input: 1-ph AC 220–240V 50/60Hz (±10%) | Motor output: 15W (induction/reversible) | Speed range: 90–1730 r/min @60Hz, 90–1430 @50Hz | Direction: CW/CCW (front key + I/O) | Multi-speed: 4-step (I/O) | Brake: electromagnetic (parameter-enabled) | Protection: IP20 | |
| GUD-C-25 | GGM GUD-C-25 digital speed control unit, single-phase AC 220–240V, for 25W motor | GGM | Input: 1-ph AC 220–240V 50/60Hz (±10%) | Motor output: 25W (induction/reversible) | Speed range: 90–1730 r/min @60Hz, 90–1430 @50Hz | Direction: CW/CCW (front key + I/O) | Multi-speed: 4-step (I/O) | Brake: electromagnetic (parameter-enabled) | Protection: IP20 | |
| GUD-C-40 | GGM GUD-C-40 digital speed control unit, single-phase AC 220–240V, for 40W motor | GGM | Input: 1-ph AC 220–240V 50/60Hz (±10%) | Motor output: 40W (induction/reversible) | Speed range: 90–1730 r/min @60Hz, 90–1430 @50Hz | Direction: CW/CCW (front key + I/O) | Multi-speed: 4-step (I/O) | Brake: electromagnetic (parameter-enabled) | Protection: IP20 | |
| GUD-C-60 | GGM GUD-C-60 digital speed control unit, single-phase AC 220–240V, for 60W motor | GGM | Input: 1-ph AC 220–240V 50/60Hz (±10%) | Motor output: 60W (induction/reversible) | Speed range: 90–1730 r/min @60Hz, 90–1430 @50Hz | Direction: CW/CCW (front key + I/O) | Multi-speed: 4-step (I/O) | Brake: electromagnetic (parameter-enabled) | Protection: IP20 | |
| GUD-C-90 | GGM GUD-C-90 digital speed control unit, single-phase AC 220–240V, for 90W motor | GGM | Input: 1-ph AC 220–240V 50/60Hz (±10%) | Motor output: 90W (induction/reversible) | Speed range: 90–1730 r/min @60Hz, 90–1430 @50Hz | Direction: CW/CCW (front key + I/O) | Multi-speed: 4-step (I/O) | Brake: electromagnetic (parameter-enabled) | Protection: IP20 | |
| GUD-C-120 | GGM GUD-C-120 digital speed control unit, single-phase AC 220–240V, for 120W motor | GGM | Input: 1-ph AC 220–240V 50/60Hz (±10%) | Motor output: 120W (induction/reversible) | Speed range: 90–1730 r/min @60Hz, 90–1430 @50Hz | Direction: CW/CCW (front key + I/O) | Multi-speed: 4-step (I/O) | Brake: electromagnetic (parameter-enabled) | Protection: IP20 | |
| GUD-C-150 | GGM GUD-C-150 digital speed control unit, single-phase AC 220–240V, for 150W motor | GGM | Input: 1-ph AC 220–240V 50/60Hz (±10%) | Motor output: 150W (induction/reversible) | Speed range: 90–1730 r/min @60Hz, 90–1430 @50Hz | Direction: CW/CCW (front key + I/O) | Multi-speed: 4-step (I/O) | Brake: electromagnetic (parameter-enabled) | Protection: IP20 | |
| GUD-C-180 | GGM GUD-C-180 digital speed control unit, single-phase AC 220–240V, for 180W motor | GGM | Input: 1-ph AC 220–240V 50/60Hz (±10%) | Motor output: 180W (induction/reversible) | Speed range: 90–1730 r/min @60Hz, 90–1430 @50Hz | Direction: CW/CCW (front key + I/O) | Multi-speed: 4-step (I/O) | Brake: electromagnetic (parameter-enabled) | Protection: IP20 |
![[GGM] — GUS Speed Control Unit for AC Geared Motors (6–180W, Single-phase)](https://img.prosourcemro.com/2026/06/0604-300x300.png)
GGM GUS speed control unit for AC induction & reversible geared motors, 6–180W. Front-dial control with digital rpm display, 100–1730 r/min (60Hz), plus accel/decel and lock parameter modes.
GGM GUS speed control unit for AC induction & reversible geared motors, 6–180W. Front-dial control with digital rpm display, 100–1730 r/min (60Hz), plus accel/decel and lock parameter modes.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| GUS-U | GGM GUS-U speed control unit, single-phase AC110/115V | GGM | Input: 1-ph AC 110/115V 50/60Hz (±10%) | Applied motor: 6–180W induction/reversible | Speed range: 100–1730 r/min @60Hz, 100–1430 @50Hz | Speed regulation: ±5% | Control: front dial + digital rpm display | Parameters: gear ratio / accel / decel / key-lock | Operating temp: -10–40°C | |
| GUS-C | GGM GUS-C speed control unit, single-phase AC220–240V | GGM | Input: 1-ph AC 220–240V 50/60Hz (±10%) | Applied motor: 6–180W induction/reversible | Speed range: 100–1730 r/min @60Hz, 100–1430 @50Hz | Speed regulation: ±5% | Control: front dial + digital rpm display | Parameters: gear ratio / accel / decel / key-lock | Operating temp: -10–40°C | |
| KE-05 | GUS connector extension cable, 0.5m | GGM | Type: Connector extension cable (motor–controller) | Length: 0.5m | For: GUS speed control unit | |
| KE-10 | GUS connector extension cable, 1m | GGM | Type: Connector extension cable (motor–controller) | Length: 1m | For: GUS speed control unit | |
| KE-15 | GUS connector extension cable, 1.5m | GGM | Type: Connector extension cable (motor–controller) | Length: 1.5m | For: GUS speed control unit | |
| KE-20 | GUS connector extension cable, 2m | GGM | Type: Connector extension cable (motor–controller) | Length: 2m | For: GUS speed control unit |

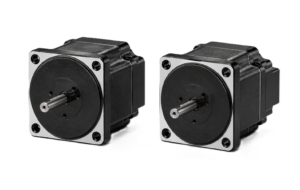

![[GGM] — K10B200N Brushless DC Motor Unit 200W (□104mm, Single-phase 200~230V AC Input, B Series)](https://img.prosourcemro.com/2026/06/0601-1-300x190.png)
GGM K10B200N Brushless DC Motor Unit, 200W, □104mm frame, single-phase 200~230V AC voltage input. Gear type (pinion shaft), D-cut, and key output shaft, UL certified (E504659). Optional electromagnetic brake (-B), 1,000PPR line-driver encoder (-E), or both (-BE). Rated torque 0.65 N·m, starting torque 1.15 N·m, rated speed 3,000 r/min, speed control 100~3,000 r/min. Insulation class E (120℃), IP65 (except output/mounting).
GGM K10B200N Brushless DC Motor Unit, 200W, □104mm frame, single-phase 200~230V AC voltage input. Gear type (pinion shaft), D-cut, and key output shaft, UL certified (E504659). Optional electromagnetic brake (-B), 1,000PPR line-driver encoder (-E), or both (-BE). Rated torque 0.65 N·m, starting torque 1.15 N·m, rated speed 3,000 r/min, speed control 100~3,000 r/min. Insulation class E (120℃), IP65 (except output/mounting).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| K10BH200NC | 200W BLDC, Gear type (pinion shaft), Single-phase 200~230V, Standard | GGM | Output: 200W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 2.7A | Max Input Current: 5.5A | Rated Output Current: 1.7A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.4kg | Option: Standard | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately) | |
| K10BH200NC-B | 200W BLDC, Gear type (pinion shaft), Single-phase 200~230V, Brake | GGM | Output: 200W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 2.7A | Max Input Current: 5.5A | Rated Output Current: 1.7A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.0kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately) | |
| K10BH200NC-E | 200W BLDC, Gear type (pinion shaft), Single-phase 200~230V, Encoder | GGM | Output: 200W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 2.7A | Max Input Current: 5.5A | Rated Output Current: 1.7A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.5kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately) | |
| K10BH200NC-BE | 200W BLDC, Gear type (pinion shaft), Single-phase 200~230V, Brake + Encoder | GGM | Output: 200W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 2.7A | Max Input Current: 5.5A | Rated Output Current: 1.7A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.1kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately) | |
| K10BS200NC | 200W BLDC, D-cut type, Single-phase 200~230V, Standard | GGM | Output: 200W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 2.7A | Max Input Current: 5.5A | Rated Output Current: 1.7A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.4kg | Option: Standard | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling | |
| K10BS200NC-B | 200W BLDC, D-cut type, Single-phase 200~230V, Brake | GGM | Output: 200W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 2.7A | Max Input Current: 5.5A | Rated Output Current: 1.7A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.0kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling | |
| K10BS200NC-E | 200W BLDC, D-cut type, Single-phase 200~230V, Encoder | GGM | Output: 200W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 2.7A | Max Input Current: 5.5A | Rated Output Current: 1.7A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.5kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling | |
| K10BS200NC-BE | 200W BLDC, D-cut type, Single-phase 200~230V, Brake + Encoder | GGM | Output: 200W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 2.7A | Max Input Current: 5.5A | Rated Output Current: 1.7A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.1kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling | |
| K10BK200NC | 200W BLDC, Key type, Single-phase 200~230V, Standard | GGM | Output: 200W | Frame: □104mm | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 2.7A | Max Input Current: 5.5A | Rated Output Current: 1.7A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.4kg | Option: Standard | UL: Yes (UL FILE E504659) | Shaft Note: Key type — keyed output shaft (key & keyway accessory included) | |
| K10BK200NC-B | 200W BLDC, Key type, Single-phase 200~230V, Brake | GGM | Output: 200W | Frame: □104mm | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 2.7A | Max Input Current: 5.5A | Rated Output Current: 1.7A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.0kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: Yes (UL FILE E504659) | Shaft Note: Key type — keyed output shaft (key & keyway accessory included) | |
| K10BK200NC-E | 200W BLDC, Key type, Single-phase 200~230V, Encoder | GGM | Output: 200W | Frame: □104mm | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 2.7A | Max Input Current: 5.5A | Rated Output Current: 1.7A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.5kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: Yes (UL FILE E504659) | Shaft Note: Key type — keyed output shaft (key & keyway accessory included) | |
| K10BK200NC-BE | 200W BLDC, Key type, Single-phase 200~230V, Brake + Encoder | GGM | Output: 200W | Frame: □104mm | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 2.7A | Max Input Current: 5.5A | Rated Output Current: 1.7A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.1kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: Yes (UL FILE E504659) | Shaft Note: Key type — keyed output shaft (key & keyway accessory included) |
GGM K10B400N Brushless DC Motor Unit, 400W, □104mm frame, single-phase 200~230V AC voltage input. Gear type (pinion shaft), D-cut, and key output shaft, UL certified (E504659). Optional electromagnetic brake (-B), 1,000PPR line-driver encoder (-E), or both (-BE). Rated torque 1.3 N·m, starting torque 1.8 N·m, rated speed 3,000 r/min, speed control 100~3,000 r/min. Insulation class E (120℃), IP65 (except output/mounting).
GGM K10B400N Brushless DC Motor Unit, 400W, □104mm frame, single-phase 200~230V AC voltage input. Gear type (pinion shaft), D-cut, and key output shaft, UL certified (E504659). Optional electromagnetic brake (-B), 1,000PPR line-driver encoder (-E), or both (-BE). Rated torque 1.3 N·m, starting torque 1.8 N·m, rated speed 3,000 r/min, speed control 100~3,000 r/min. Insulation class E (120℃), IP65 (except output/mounting).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| K10BH400NC | 400W BLDC, Gear type (pinion shaft), Single-phase 200~230V, Standard | GGM | Output: 400W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 4.5A | Max Input Current: 8A | Rated Output Current: 2.5A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.4kg | Option: Standard | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately) | |
| K10BH400NC-B | 400W BLDC, Gear type (pinion shaft), Single-phase 200~230V, Brake | GGM | Output: 400W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 4.5A | Max Input Current: 8A | Rated Output Current: 2.5A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.0kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately) | |
| K10BH400NC-E | 400W BLDC, Gear type (pinion shaft), Single-phase 200~230V, Encoder | GGM | Output: 400W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 4.5A | Max Input Current: 8A | Rated Output Current: 2.5A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.5kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately) | |
| K10BH400NC-BE | 400W BLDC, Gear type (pinion shaft), Single-phase 200~230V, Brake + Encoder | GGM | Output: 400W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 4.5A | Max Input Current: 8A | Rated Output Current: 2.5A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.1kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately) | |
| K10BS400NC | 400W BLDC, D-cut type, Single-phase 200~230V, Standard | GGM | Output: 400W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 4.5A | Max Input Current: 8A | Rated Output Current: 2.5A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.4kg | Option: Standard | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling | |
| K10BS400NC-B | 400W BLDC, D-cut type, Single-phase 200~230V, Brake | GGM | Output: 400W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 4.5A | Max Input Current: 8A | Rated Output Current: 2.5A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.0kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling | |
| K10BS400NC-E | 400W BLDC, D-cut type, Single-phase 200~230V, Encoder | GGM | Output: 400W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 4.5A | Max Input Current: 8A | Rated Output Current: 2.5A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.5kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling | |
| K10BS400NC-BE | 400W BLDC, D-cut type, Single-phase 200~230V, Brake + Encoder | GGM | Output: 400W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 4.5A | Max Input Current: 8A | Rated Output Current: 2.5A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.1kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling | |
| K10BK400NC | 400W BLDC, Key type, Single-phase 200~230V, Standard | GGM | Output: 400W | Frame: □104mm | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 4.5A | Max Input Current: 8A | Rated Output Current: 2.5A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.4kg | Option: Standard | UL: Yes (UL FILE E504659) | Shaft Note: Key type — keyed output shaft (key & keyway accessory included) | |
| K10BK400NC-B | 400W BLDC, Key type, Single-phase 200~230V, Brake | GGM | Output: 400W | Frame: □104mm | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 4.5A | Max Input Current: 8A | Rated Output Current: 2.5A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.0kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: Yes (UL FILE E504659) | Shaft Note: Key type — keyed output shaft (key & keyway accessory included) | |
| K10BK400NC-E | 400W BLDC, Key type, Single-phase 200~230V, Encoder | GGM | Output: 400W | Frame: □104mm | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 4.5A | Max Input Current: 8A | Rated Output Current: 2.5A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.5kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: Yes (UL FILE E504659) | Shaft Note: Key type — keyed output shaft (key & keyway accessory included) | |
| K10BK400NC-BE | 400W BLDC, Key type, Single-phase 200~230V, Brake + Encoder | GGM | Output: 400W | Frame: □104mm | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 4.5A | Max Input Current: 8A | Rated Output Current: 2.5A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.1kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: Yes (UL FILE E504659) | Shaft Note: Key type — keyed output shaft (key & keyway accessory included) |
![[GGM] — K10B750N Brushless DC Motor Unit 750W (□104mm, Single-phase 200~230V AC Input, IEC Key Type, B Series)](https://img.prosourcemro.com/2026/06/0601-2-300x190.png)
GGM K10B750N Brushless DC Motor Unit, 750W, □104mm frame (IEC type), single-phase 200~230V AC voltage input. Key output shaft Ø19 (h7) with 6mm key. Optional electromagnetic brake (-B), 1,000PPR line-driver encoder (-E), or both (-BE). Rated torque 2.4 N·m, starting torque 3.5 N·m, rated speed 3,000 r/min, speed control 100~3,000 r/min. Insulation class E (120℃), IP65 (except output/mounting parts).
GGM K10B750N Brushless DC Motor Unit, 750W, □104mm frame (IEC type), single-phase 200~230V AC voltage input. Key output shaft Ø19 (h7) with 6mm key. Optional electromagnetic brake (-B), 1,000PPR line-driver encoder (-E), or both (-BE). Rated torque 2.4 N·m, starting torque 3.5 N·m, rated speed 3,000 r/min, speed control 100~3,000 r/min. Insulation class E (120℃), IP65 (except output/mounting parts).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| K10BK750NC | 750W BLDC, Key type (IEC), Single-phase 200~230V, Standard | GGM | Output: 750W | Frame: □104mm (IEC type) | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 7A | Max Input Current: 10A | Rated Output Current: 5A | Rated Torque: 2.4 N·m | Starting Torque: 3.5 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 4.7kg | Option: Standard | UL: N/A (catalog omission; IEC type) | Shaft Note: Key type — keyed output shaft Ø19 (h7), 6mm key, spigot Ø94 (h7); IEC frame | |
| K10BK750NC-B | 750W BLDC, Key type (IEC), Single-phase 200~230V, Brake | GGM | Output: 750W | Frame: □104mm (IEC type) | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 7A | Max Input Current: 10A | Rated Output Current: 5A | Rated Torque: 2.4 N·m | Starting Torque: 3.5 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 5.3kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: N/A (catalog omission; IEC type) | Shaft Note: Key type — keyed output shaft Ø19 (h7), 6mm key, spigot Ø94 (h7); IEC frame | |
| K10BK750NC-E | 750W BLDC, Key type (IEC), Single-phase 200~230V, Encoder | GGM | Output: 750W | Frame: □104mm (IEC type) | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 7A | Max Input Current: 10A | Rated Output Current: 5A | Rated Torque: 2.4 N·m | Starting Torque: 3.5 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 4.8kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: N/A (catalog omission; IEC type) | Shaft Note: Key type — keyed output shaft Ø19 (h7), 6mm key, spigot Ø94 (h7); IEC frame | |
| K10BK750NC-BE | 750W BLDC, Key type (IEC), Single-phase 200~230V, Brake + Encoder | GGM | Output: 750W | Frame: □104mm (IEC type) | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 7A | Max Input Current: 10A | Rated Output Current: 5A | Rated Torque: 2.4 N·m | Starting Torque: 3.5 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 5.4kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: N/A (catalog omission; IEC type) | Shaft Note: Key type — keyed output shaft Ø19 (h7), 6mm key, spigot Ø94 (h7); IEC frame |
![[GGM] — K10F200N Brushless DC Motor Unit 200W (□104mm, Single/Three-phase 200~240V AC Input, F Series)](https://img.prosourcemro.com/2026/06/0601-9-300x278.png)
GGM K10F200N Brushless DC Motor Unit, 200W, □104mm frame. F-Series driver accepts single-phase or three-phase 200~240V AC voltage input (±10%). Gear type (pinion shaft) and D-cut output shaft, UL certified (E504659). Optional electromagnetic brake (-B), 1,000PPR line-driver encoder (-E), or both (-BE). Rated torque 0.65 N·m, starting torque 1.15 N·m, rated speed 3,000 r/min, speed control 100~4,000 r/min. Insulation class E (120℃), IP65 (except output/mounting parts).
GGM K10F200N Brushless DC Motor Unit, 200W, □104mm frame. F-Series driver accepts single-phase or three-phase 200~240V AC voltage input (±10%). Gear type (pinion shaft) and D-cut output shaft, UL certified (E504659). Optional electromagnetic brake (-B), 1,000PPR line-driver encoder (-E), or both (-BE). Rated torque 0.65 N·m, starting torque 1.15 N·m, rated speed 3,000 r/min, speed control 100~4,000 r/min. Insulation class E (120℃), IP65 (except output/mounting parts).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| K10FH200NC | 200W BLDC (F Series), Gear type (pinion shaft), Single/Three-phase 200~240V, Standard | GGM | Output: 200W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 2.5A (single-phase) / 1.8A (three-phase) | Max Input Current: 5.5A (single-phase) / 3.2A (three-phase) | Rated Output Current: 1.60A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.4kg | Option: Standard | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately) | |
| K10FH200NC-B | 200W BLDC (F Series), Gear type (pinion shaft), Single/Three-phase 200~240V, Brake | GGM | Output: 200W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 2.5A (single-phase) / 1.8A (three-phase) | Max Input Current: 5.5A (single-phase) / 3.2A (three-phase) | Rated Output Current: 1.60A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.0kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately) | |
| K10FH200NC-E | 200W BLDC (F Series), Gear type (pinion shaft), Single/Three-phase 200~240V, Encoder | GGM | Output: 200W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 2.5A (single-phase) / 1.8A (three-phase) | Max Input Current: 5.5A (single-phase) / 3.2A (three-phase) | Rated Output Current: 1.60A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.5kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately) | |
| K10FH200NC-BE | 200W BLDC (F Series), Gear type (pinion shaft), Single/Three-phase 200~240V, Brake + Encoder | GGM | Output: 200W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 2.5A (single-phase) / 1.8A (three-phase) | Max Input Current: 5.5A (single-phase) / 3.2A (three-phase) | Rated Output Current: 1.60A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.1kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately) | |
| K10FS200NC | 200W BLDC (F Series), D-cut type, Single/Three-phase 200~240V, Standard | GGM | Output: 200W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 2.5A (single-phase) / 1.8A (three-phase) | Max Input Current: 5.5A (single-phase) / 3.2A (three-phase) | Rated Output Current: 1.60A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.4kg | Option: Standard | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling | |
| K10FS200NC-B | 200W BLDC (F Series), D-cut type, Single/Three-phase 200~240V, Brake | GGM | Output: 200W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 2.5A (single-phase) / 1.8A (three-phase) | Max Input Current: 5.5A (single-phase) / 3.2A (three-phase) | Rated Output Current: 1.60A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.0kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling | |
| K10FS200NC-E | 200W BLDC (F Series), D-cut type, Single/Three-phase 200~240V, Encoder | GGM | Output: 200W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 2.5A (single-phase) / 1.8A (three-phase) | Max Input Current: 5.5A (single-phase) / 3.2A (three-phase) | Rated Output Current: 1.60A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.5kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling | |
| K10FS200NC-BE | 200W BLDC (F Series), D-cut type, Single/Three-phase 200~240V, Brake + Encoder | GGM | Output: 200W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 2.5A (single-phase) / 1.8A (three-phase) | Max Input Current: 5.5A (single-phase) / 3.2A (three-phase) | Rated Output Current: 1.60A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.1kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling |
GGM K10F400N Brushless DC Motor Unit, 400W, □104mm frame. F-Series driver accepts single-phase or three-phase 200~240V AC voltage input (±10%). Gear type (pinion shaft) and D-cut output shaft, UL certified (E504659). Optional electromagnetic brake (-B), 1,000PPR line-driver encoder (-E), or both (-BE). Rated torque 1.30 N·m, starting torque 1.80 N·m, rated speed 3,000 r/min, speed control 100~4,000 r/min. Insulation class E (120℃), IP65 (except output/mounting parts).
GGM K10F400N Brushless DC Motor Unit, 400W, □104mm frame. F-Series driver accepts single-phase or three-phase 200~240V AC voltage input (±10%). Gear type (pinion shaft) and D-cut output shaft, UL certified (E504659). Optional electromagnetic brake (-B), 1,000PPR line-driver encoder (-E), or both (-BE). Rated torque 1.30 N·m, starting torque 1.80 N·m, rated speed 3,000 r/min, speed control 100~4,000 r/min. Insulation class E (120℃), IP65 (except output/mounting parts).
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| K10FH400NC | 400W BLDC (F Series), Gear type (pinion shaft), Single/Three-phase 200~240V, Standard | GGM | Output: 400W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 4.0A (single-phase) / 3.0A (three-phase) | Max Input Current: 7.8A (single-phase) / 5.0A (three-phase) | Rated Output Current: 2.30A | Rated Torque: 1.30 N·m | Starting Torque: 1.80 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.4kg | Option: Standard | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately) | |
| K10FH400NC-B | 400W BLDC (F Series), Gear type (pinion shaft), Single/Three-phase 200~240V, Brake | GGM | Output: 400W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 4.0A (single-phase) / 3.0A (three-phase) | Max Input Current: 7.8A (single-phase) / 5.0A (three-phase) | Rated Output Current: 2.30A | Rated Torque: 1.30 N·m | Starting Torque: 1.80 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.0kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately) | |
| K10FH400NC-E | 400W BLDC (F Series), Gear type (pinion shaft), Single/Three-phase 200~240V, Encoder | GGM | Output: 400W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 4.0A (single-phase) / 3.0A (three-phase) | Max Input Current: 7.8A (single-phase) / 5.0A (three-phase) | Rated Output Current: 2.30A | Rated Torque: 1.30 N·m | Starting Torque: 1.80 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.5kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately) | |
| K10FH400NC-BE | 400W BLDC (F Series), Gear type (pinion shaft), Single/Three-phase 200~240V, Brake + Encoder | GGM | Output: 400W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 4.0A (single-phase) / 3.0A (three-phase) | Max Input Current: 7.8A (single-phase) / 5.0A (three-phase) | Rated Output Current: 2.30A | Rated Torque: 1.30 N·m | Starting Torque: 1.80 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.1kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately) | |
| K10FS400NC | 400W BLDC (F Series), D-cut type, Single/Three-phase 200~240V, Standard | GGM | Output: 400W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 4.0A (single-phase) / 3.0A (three-phase) | Max Input Current: 7.8A (single-phase) / 5.0A (three-phase) | Rated Output Current: 2.30A | Rated Torque: 1.30 N·m | Starting Torque: 1.80 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.4kg | Option: Standard | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling | |
| K10FS400NC-B | 400W BLDC (F Series), D-cut type, Single/Three-phase 200~240V, Brake | GGM | Output: 400W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 4.0A (single-phase) / 3.0A (three-phase) | Max Input Current: 7.8A (single-phase) / 5.0A (three-phase) | Rated Output Current: 2.30A | Rated Torque: 1.30 N·m | Starting Torque: 1.80 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.0kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling | |
| K10FS400NC-E | 400W BLDC (F Series), D-cut type, Single/Three-phase 200~240V, Encoder | GGM | Output: 400W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 4.0A (single-phase) / 3.0A (three-phase) | Max Input Current: 7.8A (single-phase) / 5.0A (three-phase) | Rated Output Current: 2.30A | Rated Torque: 1.30 N·m | Starting Torque: 1.80 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.5kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling | |
| K10FS400NC-BE | 400W BLDC (F Series), D-cut type, Single/Three-phase 200~240V, Brake + Encoder | GGM | Output: 400W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 4.0A (single-phase) / 3.0A (three-phase) | Max Input Current: 7.8A (single-phase) / 5.0A (three-phase) | Rated Output Current: 2.30A | Rated Torque: 1.30 N·m | Starting Torque: 1.80 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.1kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling |
![[GGM] — K10H□B Gearhead for □104 200W Geared Motors (□104mm, 1/3–1/200, No Decimal, Cap 40 N·m, ø18 Tapped Keyed Shaft)](https://img.prosourcemro.com/2026/06/0604-39-300x267.png)
GGM K10H-B parallel-shaft gearhead for □104mm 200W GGM geared motors, sold separately. 24 gear ratios 1/3–1/200 (no decimal gearhead), ø18 (h7) keyed output shaft with M6×P1.0 tap hole, mounting 4-ø8.5 / ø120 B.C. / M8 P1.25, max permissible torque 40 N·m / 400 kgf·cm.
GGM K10H-B parallel-shaft gearhead for □104mm 200W GGM geared motors, sold separately. 24 gear ratios 1/3–1/200 (no decimal gearhead), ø18 (h7) keyed output shaft with M6×P1.0 tap hole, mounting 4-ø8.5 / ø120 B.C. / M8 P1.25, max permissible torque 40 N·m / 400 kgf·cm.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| K10H3B | GGM K10H gearhead K10H3B — ratio 1/3, output 500/600 rpm (50/60Hz), □104mm | GGM | Type: Gearhead (Parallel Shaft) | Gear Ratio: 1/3 | Output Speed: 500 rpm @50Hz / 600 rpm @60Hz (4-pole AC input) | Max Permissible Torque: 40 N·m / 400 kgf·cm | |
| K10H3.6B | GGM K10H gearhead K10H3.6B — ratio 1/3.6, output 416/500 rpm (50/60Hz), □104mm | GGM | Type: Gearhead (Parallel Shaft) | Gear Ratio: 1/3.6 | Output Speed: 416 rpm @50Hz / 500 rpm @60Hz (4-pole AC input) | Max Permissible Torque: 40 N·m / 400 kgf·cm | |
| K10H5B | GGM K10H gearhead K10H5B — ratio 1/5, output 300/360 rpm (50/60Hz), □104mm | GGM | Type: Gearhead (Parallel Shaft) | Gear Ratio: 1/5 | Output Speed: 300 rpm @50Hz / 360 rpm @60Hz (4-pole AC input) | Max Permissible Torque: 40 N·m / 400 kgf·cm | |
| K10H6B | GGM K10H gearhead K10H6B — ratio 1/6, output 250/300 rpm (50/60Hz), □104mm | GGM | Type: Gearhead (Parallel Shaft) | Gear Ratio: 1/6 | Output Speed: 250 rpm @50Hz / 300 rpm @60Hz (4-pole AC input) | Max Permissible Torque: 40 N·m / 400 kgf·cm | |
| K10H7.5B | GGM K10H gearhead K10H7.5B — ratio 1/7.5, output 200/240 rpm (50/60Hz), □104mm | GGM | Type: Gearhead (Parallel Shaft) | Gear Ratio: 1/7.5 | Output Speed: 200 rpm @50Hz / 240 rpm @60Hz (4-pole AC input) | Max Permissible Torque: 40 N·m / 400 kgf·cm | |
| K10H9B | GGM K10H gearhead K10H9B — ratio 1/9, output 166/200 rpm (50/60Hz), □104mm | GGM | Type: Gearhead (Parallel Shaft) | Gear Ratio: 1/9 | Output Speed: 166 rpm @50Hz / 200 rpm @60Hz (4-pole AC input) | Max Permissible Torque: 40 N·m / 400 kgf·cm | |
| K10H10B | GGM K10H gearhead K10H10B — ratio 1/10, output 150/180 rpm (50/60Hz), □104mm | GGM | Type: Gearhead (Parallel Shaft) | Gear Ratio: 1/10 | Output Speed: 150 rpm @50Hz / 180 rpm @60Hz (4-pole AC input) | Max Permissible Torque: 40 N·m / 400 kgf·cm | |
| K10H12.5B | GGM K10H gearhead K10H12.5B — ratio 1/12.5, output 120/144 rpm (50/60Hz), □104mm | GGM | Type: Gearhead (Parallel Shaft) | Gear Ratio: 1/12.5 | Output Speed: 120 rpm @50Hz / 144 rpm @60Hz (4-pole AC input) | Max Permissible Torque: 40 N·m / 400 kgf·cm | |
| K10H15B | GGM K10H gearhead K10H15B — ratio 1/15, output 100/120 rpm (50/60Hz), □104mm | GGM | Type: Gearhead (Parallel Shaft) | Gear Ratio: 1/15 | Output Speed: 100 rpm @50Hz / 120 rpm @60Hz (4-pole AC input) | Max Permissible Torque: 40 N·m / 400 kgf·cm | |
| K10H18B | GGM K10H gearhead K10H18B — ratio 1/18, output 83/100 rpm (50/60Hz), □104mm | GGM | Type: Gearhead (Parallel Shaft) | Gear Ratio: 1/18 | Output Speed: 83 rpm @50Hz / 100 rpm @60Hz (4-pole AC input) | Max Permissible Torque: 40 N·m / 400 kgf·cm | |
| K10H20B | GGM K10H gearhead K10H20B — ratio 1/20, output 75/90 rpm (50/60Hz), □104mm | GGM | Type: Gearhead (Parallel Shaft) | Gear Ratio: 1/20 | Output Speed: 75 rpm @50Hz / 90 rpm @60Hz (4-pole AC input) | Max Permissible Torque: 40 N·m / 400 kgf·cm | |
| K10H25B | GGM K10H gearhead K10H25B — ratio 1/25, output 60/72 rpm (50/60Hz), □104mm | GGM | Type: Gearhead (Parallel Shaft) | Gear Ratio: 1/25 | Output Speed: 60 rpm @50Hz / 72 rpm @60Hz (4-pole AC input) | Max Permissible Torque: 40 N·m / 400 kgf·cm | |
| K10H30B | GGM K10H gearhead K10H30B — ratio 1/30, output 50/60 rpm (50/60Hz), □104mm | GGM | Type: Gearhead (Parallel Shaft) | Gear Ratio: 1/30 | Output Speed: 50 rpm @50Hz / 60 rpm @60Hz (4-pole AC input) | Max Permissible Torque: 40 N·m / 400 kgf·cm | |
| K10H36B | GGM K10H gearhead K10H36B — ratio 1/36, output 41/50 rpm (50/60Hz), □104mm | GGM | Type: Gearhead (Parallel Shaft) | Gear Ratio: 1/36 | Output Speed: 41 rpm @50Hz / 50 rpm @60Hz (4-pole AC input) | Max Permissible Torque: 40 N·m / 400 kgf·cm | |
| K10H40B | GGM K10H gearhead K10H40B — ratio 1/40, output 37/45 rpm (50/60Hz), □104mm | GGM | Type: Gearhead (Parallel Shaft) | Gear Ratio: 1/40 | Output Speed: 37 rpm @50Hz / 45 rpm @60Hz (4-pole AC input) | Max Permissible Torque: 40 N·m / 400 kgf·cm | |
| K10H50B | GGM K10H gearhead K10H50B — ratio 1/50, output 30/36 rpm (50/60Hz), □104mm | GGM | Type: Gearhead (Parallel Shaft) | Gear Ratio: 1/50 | Output Speed: 30 rpm @50Hz / 36 rpm @60Hz (4-pole AC input) | Max Permissible Torque: 40 N·m / 400 kgf·cm | |
| K10H60B | GGM K10H gearhead K10H60B — ratio 1/60, output 25/30 rpm (50/60Hz), □104mm | GGM | Type: Gearhead (Parallel Shaft) | Gear Ratio: 1/60 | Output Speed: 25 rpm @50Hz / 30 rpm @60Hz (4-pole AC input) | Max Permissible Torque: 40 N·m / 400 kgf·cm | |
| K10H75B | GGM K10H gearhead K10H75B — ratio 1/75, output 20/24 rpm (50/60Hz), □104mm | GGM | Type: Gearhead (Parallel Shaft) | Gear Ratio: 1/75 | Output Speed: 20 rpm @50Hz / 24 rpm @60Hz (4-pole AC input) | Max Permissible Torque: 40 N·m / 400 kgf·cm | |
| K10H90B | GGM K10H gearhead K10H90B — ratio 1/90, output 16/20 rpm (50/60Hz), □104mm | GGM | Type: Gearhead (Parallel Shaft) | Gear Ratio: 1/90 | Output Speed: 16 rpm @50Hz / 20 rpm @60Hz (4-pole AC input) | Max Permissible Torque: 40 N·m / 400 kgf·cm | |
| K10H100B | GGM K10H gearhead K10H100B — ratio 1/100, output 15/18 rpm (50/60Hz), □104mm | GGM | Type: Gearhead (Parallel Shaft) | Gear Ratio: 1/100 | Output Speed: 15 rpm @50Hz / 18 rpm @60Hz (4-pole AC input) | Max Permissible Torque: 40 N·m / 400 kgf·cm | |
| K10H120B | GGM K10H gearhead K10H120B — ratio 1/120, output 13/15 rpm (50/60Hz), □104mm | GGM | Type: Gearhead (Parallel Shaft) | Gear Ratio: 1/120 | Output Speed: 13 rpm @50Hz / 15 rpm @60Hz (4-pole AC input) [50Hz speed printed 13 — catalog anomaly, expected 12.5] | Max Permissible Torque: 40 N·m / 400 kgf·cm | |
| K10H150B | GGM K10H gearhead K10H150B — ratio 1/150, output 10/12 rpm (50/60Hz), □104mm | GGM | Type: Gearhead (Parallel Shaft) | Gear Ratio: 1/150 | Output Speed: 10 rpm @50Hz / 12 rpm @60Hz (4-pole AC input) | Max Permissible Torque: 40 N·m / 400 kgf·cm | |
| K10H180B | GGM K10H gearhead K10H180B — ratio 1/180, output 8.3/10 rpm (50/60Hz), □104mm | GGM | Type: Gearhead (Parallel Shaft) | Gear Ratio: 1/180 | Output Speed: 8.3 rpm @50Hz / 10 rpm @60Hz (4-pole AC input) | Max Permissible Torque: 40 N·m / 400 kgf·cm | |
| K10H200B | GGM K10H gearhead K10H200B — ratio 1/200, output 7.5/9 rpm (50/60Hz), □104mm | GGM | Type: Gearhead (Parallel Shaft) | Gear Ratio: 1/200 | Output Speed: 7.5 rpm @50Hz / 9 rpm @60Hz (4-pole AC input) | Max Permissible Torque: 40 N·m / 400 kgf·cm |
![[GGM] — K10H□BTH Flat Hollow-Shaft Gearhead (for K10 200/400W Brushless Motor Unit, ø25 hollow, 1/5~1/100)](https://img.prosourcemro.com/2026/06/0604-47-206x300.png)
GGM K10H□BTH flat hollow-shaft gearhead for K10 200/400W brushless motor units, with ø25 hollow output bore (H8), ø94 pilot flange and M8×100 fixing bolt set (included). Deceleration ratios 1/5 to 1/100 (7 steps), allowed output torque up to 110 N·m, 85% efficiency; motor sold separately.
GGM K10H□BTH flat hollow-shaft gearhead for K10 200/400W brushless motor units, with ø25 hollow output bore (H8), ø94 pilot flange and M8×100 fixing bolt set (included). Deceleration ratios 1/5 to 1/100 (7 steps), allowed output torque up to 110 N·m, 85% efficiency; motor sold separately.
| Product Code | Description | Brand | Spec | |
|---|---|---|---|---|
| K10H5BTH | GGM K10H□BTH flat hollow-shaft gearhead, ratio 1/5, ø25 hollow bore, for K10 200/400W brushless motor unit | GGM | Type: Flat Hollow-Shaft Gearhead (for K10 Brushless Motor Unit) | Deceleration Ratio: 1/5 | Output Speed Range: 20~600 r/min (with 100-3000 r/min motor) | Allowed Output Torque: 2.8 N·m (200W) / 5.5 N·m (400W) brushless, AC type | Gearhead Efficiency: 85% | Allowed Overhang Load: 1230 N (at 10mm from shaft end) | Allowed Thrust Load: 800 N | Output Shaft: ø25 hollow bore (H8), key type | Flange: ø94 (h7), pilot ø58 (h8), P.C.D ø120 | Fixing Bolt: M8 P1.25×100 (set included) | |
| K10H10BTH | GGM K10H□BTH flat hollow-shaft gearhead, ratio 1/10, ø25 hollow bore, for K10 200/400W brushless motor unit | GGM | Type: Flat Hollow-Shaft Gearhead (for K10 Brushless Motor Unit) | Deceleration Ratio: 1/10 | Output Speed Range: 10~300 r/min (with 100-3000 r/min motor) | Allowed Output Torque: 5.5 N·m (200W) / 11.1 N·m (400W) brushless, AC type | Gearhead Efficiency: 85% | Allowed Overhang Load: 1230 N (at 10mm from shaft end) | Allowed Thrust Load: 800 N | Output Shaft: ø25 hollow bore (H8), key type | Flange: ø94 (h7), pilot ø58 (h8), P.C.D ø120 | Fixing Bolt: M8 P1.25×100 (set included) | |
| K10H15BTH | GGM K10H□BTH flat hollow-shaft gearhead, ratio 1/15, ø25 hollow bore, for K10 200/400W brushless motor unit | GGM | Type: Flat Hollow-Shaft Gearhead (for K10 Brushless Motor Unit) | Deceleration Ratio: 1/15 | Output Speed Range: 6.7~200 r/min (with 100-3000 r/min motor) | Allowed Output Torque: 8.3 N·m (200W) / 16.6 N·m (400W) brushless, AC type | Gearhead Efficiency: 85% | Allowed Overhang Load: 1680 N (at 10mm from shaft end) | Allowed Thrust Load: 800 N | Output Shaft: ø25 hollow bore (H8), key type | Flange: ø94 (h7), pilot ø58 (h8), P.C.D ø120 | Fixing Bolt: M8 P1.25×100 (set included) | |
| K10H20BTH | GGM K10H□BTH flat hollow-shaft gearhead, ratio 1/20, ø25 hollow bore, for K10 200/400W brushless motor unit | GGM | Type: Flat Hollow-Shaft Gearhead (for K10 Brushless Motor Unit) | Deceleration Ratio: 1/20 | Output Speed Range: 5~150 r/min (with 100-3000 r/min motor) | Allowed Output Torque: 11.1 N·m (200W) / 22.1 N·m (400W) brushless, AC type | Gearhead Efficiency: 85% | Allowed Overhang Load: 1680 N (at 10mm from shaft end) | Allowed Thrust Load: 800 N | Output Shaft: ø25 hollow bore (H8), key type | Flange: ø94 (h7), pilot ø58 (h8), P.C.D ø120 | Fixing Bolt: M8 P1.25×100 (set included) | |
| K10H30BTH | GGM K10H□BTH flat hollow-shaft gearhead, ratio 1/30, ø25 hollow bore, for K10 200/400W brushless motor unit | GGM | Type: Flat Hollow-Shaft Gearhead (for K10 Brushless Motor Unit) | Deceleration Ratio: 1/30 | Output Speed Range: 3.3~100 r/min (with 100-3000 r/min motor) | Allowed Output Torque: 16.6 N·m (200W) / 33.2 N·m (400W) brushless, AC type | Gearhead Efficiency: 85% | Allowed Overhang Load: 2040 N (at 10mm from shaft end) | Allowed Thrust Load: 800 N | Output Shaft: ø25 hollow bore (H8), key type | Flange: ø94 (h7), pilot ø58 (h8), P.C.D ø120 | Fixing Bolt: M8 P1.25×100 (set included) | |
| K10H50BTH | GGM K10H□BTH flat hollow-shaft gearhead, ratio 1/50, ø25 hollow bore, for K10 200/400W brushless motor unit | GGM | Type: Flat Hollow-Shaft Gearhead (for K10 Brushless Motor Unit) | Deceleration Ratio: 1/50 | Output Speed Range: 2~60 r/min (with 100-3000 r/min motor) | Allowed Output Torque: 27.6 N·m (200W) / 55.3 N·m (400W) brushless, AC type | Gearhead Efficiency: 85% | Allowed Overhang Load: 2040 N (at 10mm from shaft end) | Allowed Thrust Load: 800 N | Output Shaft: ø25 hollow bore (H8), key type | Flange: ø94 (h7), pilot ø58 (h8), P.C.D ø120 | Fixing Bolt: M8 P1.25×100 (set included) | |
| K10H100BTH | GGM K10H□BTH flat hollow-shaft gearhead, ratio 1/100, ø25 hollow bore, for K10 200/400W brushless motor unit | GGM | Type: Flat Hollow-Shaft Gearhead (for K10 Brushless Motor Unit) | Deceleration Ratio: 1/100 | Output Speed Range: 1~30 r/min (with 100-3000 r/min motor) | Allowed Output Torque: 55.3 N·m (200W) / 110 N·m (400W) brushless, AC type | Gearhead Efficiency: 85% | Allowed Overhang Load: 2040 N (at 10mm from shaft end) | Allowed Thrust Load: 800 N | Output Shaft: ø25 hollow bore (H8), key type | Flange: ø94 (h7), pilot ø58 (h8), P.C.D ø120 | Fixing Bolt: M8 P1.25×100 (set included) |
